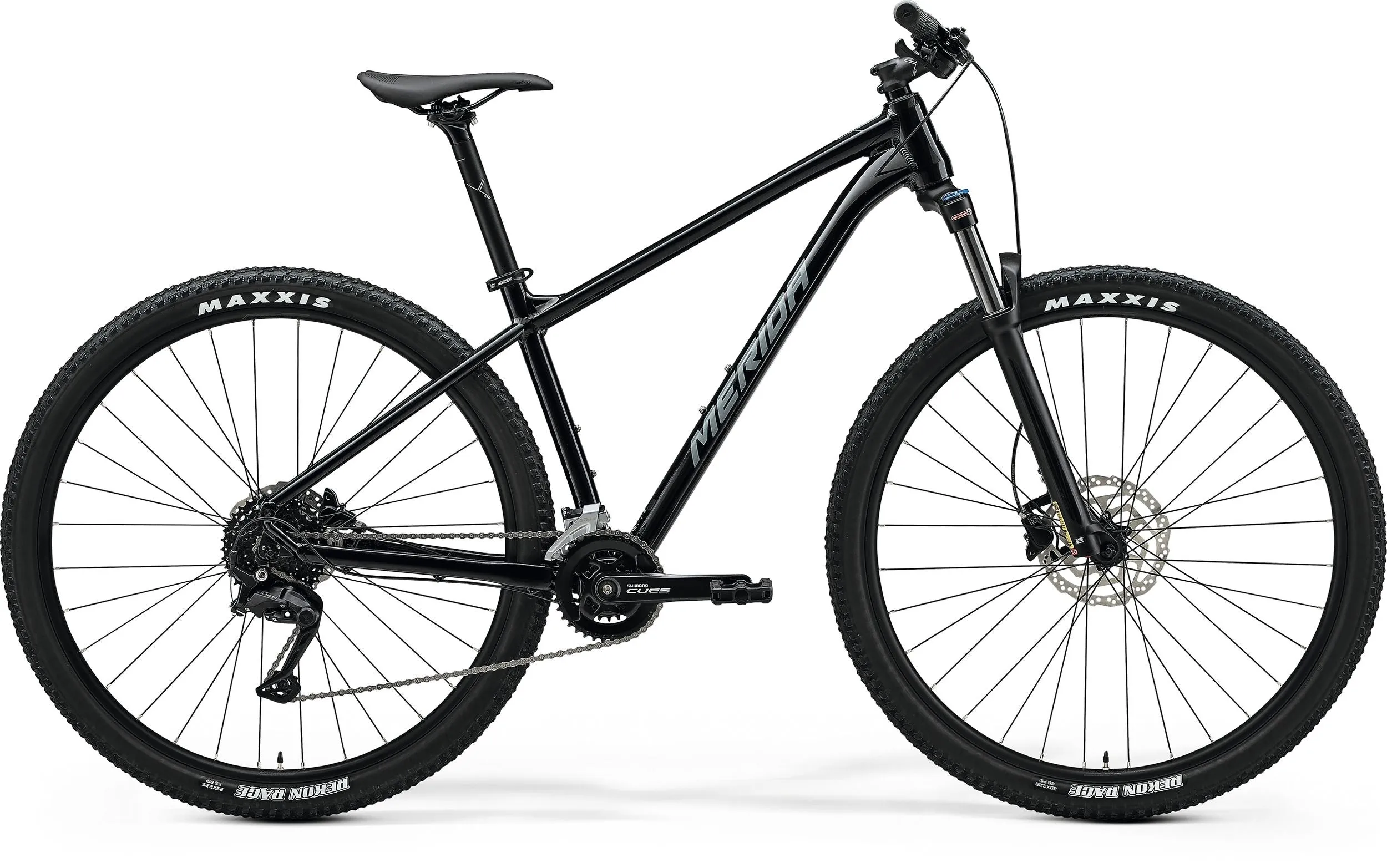

Featuring a 100 mm air suspension fork and fast-rolling 29er wheels, the BIG.NINE 100 allows you to cover ground quickly and comfortably. The slightly more minimalistic double chainring setup provides a broad range of gears, perfect for long off-road sessions and fast blasts through the urban jungle. The slightly more upright riding position puts less strain on the lower back and also improves the visibility of what lies ahead
Features
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel air suspension fork with lockout
- Shimano 9-speed drivetrain with double chainring setup
- Internal cable routing
Specifications
- Intended Use- Trail
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- BIG.NINE TFS IV material: aluminum 29 wheelsize 135x9mm axle standard BSA bottom bracket standard Smooth welding
- Fork- Suntour XCR32 LOR Air 100mm suspension travel Lockout 44mm fork offset
- Bottom Bracket- FSA TH-7420ST Cartridge Bearing
- Chain- KMC xGlide
- Crank- Shimano CUES U4000 36-22 teeth 170 mm-S, 175 mm-M up
- Shift Levers- Shimano CUES U4000
- Cassette- Shimano LG300 11-36 teeth 9 speed
- Front Derailleur- Shimano CUES U4000
- Rear Derailleur- Shimano CUES U4020 SGS
- Grips/Bartape- MERIDA COMP EC
- Handlebar- MERIDA EXPERT CC material: aluminium 720mm width 10mm rise
- Stem- MERIDA COMP CC material: aluminium 31.8mm diameter 7 stem angle S:70 mm, M:80 mm, L:90 mm, XL:100 mm, XXL:110 mm
- Saddle- MERIDA COMP SL 25% recycled material V-mount
- Seatpost- MERIDA COMP CC material: aluminium 30.9mm diameter 0mm setback
- Front Brake- Shimano MT200 2 piston
- Rear Brake- Shimano MT200 2 piston
- Front Wheel- MERIDA COMP CC II 25mm inner width material: aluminium tubeless ready, Shimano QC300 / Shimano QC300-HM 100x9mm width front hub 32 spoke holes Centerlock 135x9mm width rear hub 32 spoke holes Centerlock
- Rear Wheel- MERIDA COMP CC II 25mm inner width material: aluminium tubeless ready, Shimano QC300 / Shimano QC300-HM 100x9mm width front hub 32 spoke holes Centerlock 135x9mm width rear hub 32 spoke holes Centerlock
- Tire- Maxxis Rekon Race 29x2.25" wire
- Pedal- VP VPE-891
Additional Info
- Country of Origin: Taiwan
- Imported By: Extreme Adventure Sports , Gat No. 399 , Milkat , 2289 , Nagar Rd , Sai Satyam Park , Wagholi , Lonikand , Pune - 412207 , Maharashtra , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Bicycles
