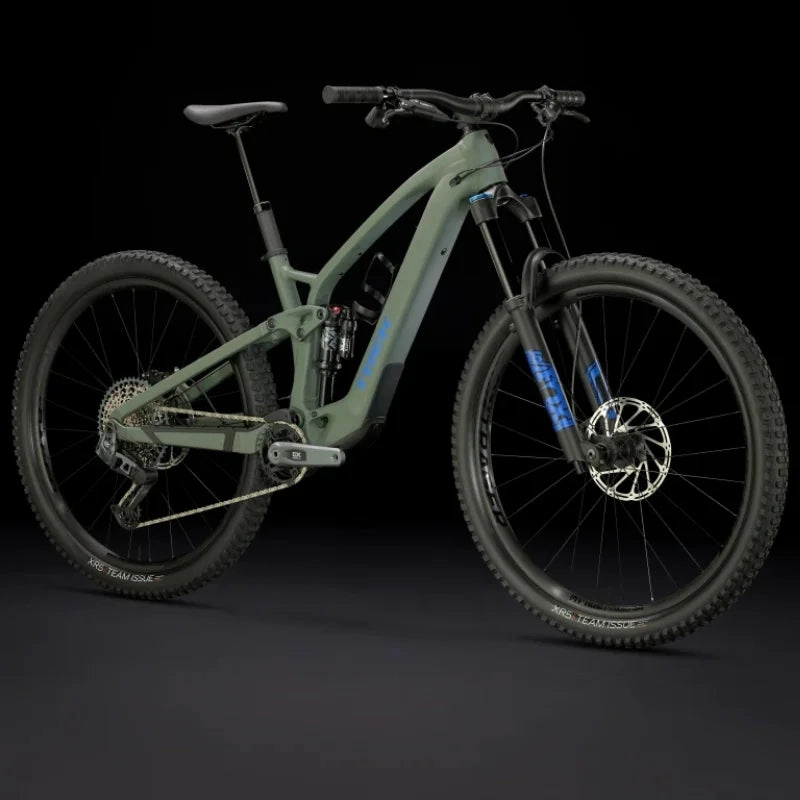

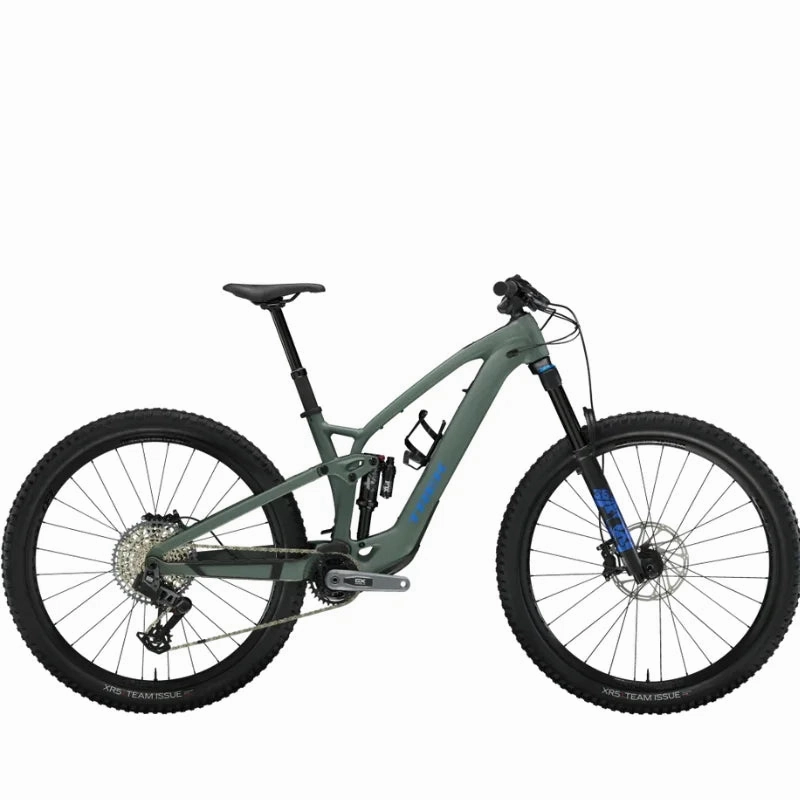

Introducing the Trek Fuel EXe 8 GX AXS T-Type in Matte Keswick: Ride Further, Ride Faster!
Elevate Your Trail Experience: The Fuel EXe 8 is a trail-ready aluminum electric mountain bike designed to enhance your ride with quiet assistance on climbs, ensuring you have the power you need to conquer descents with confidence. With its sleek design and top-tier components, this bike delivers performance and reliability without breaking the bank.
Tailored to Your Needs: Built for riders who demand performance without compromising on value, the Fuel EXe 8 offers all the technology found in high-end models, at a more accessible price point. With upgraded components and a robust alloy frame, this bike is ready to tackle any trail with ease.

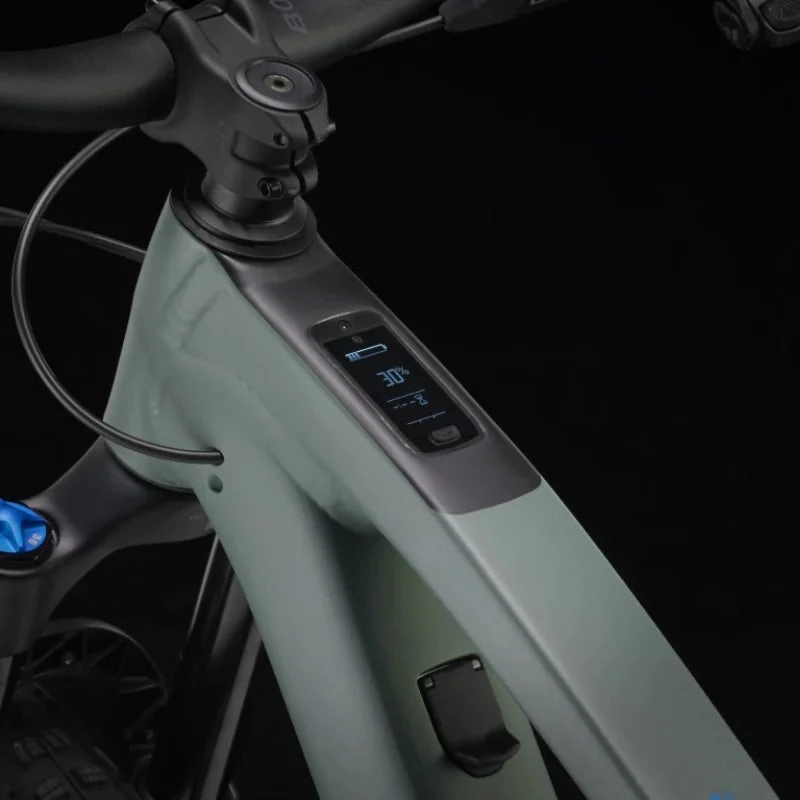

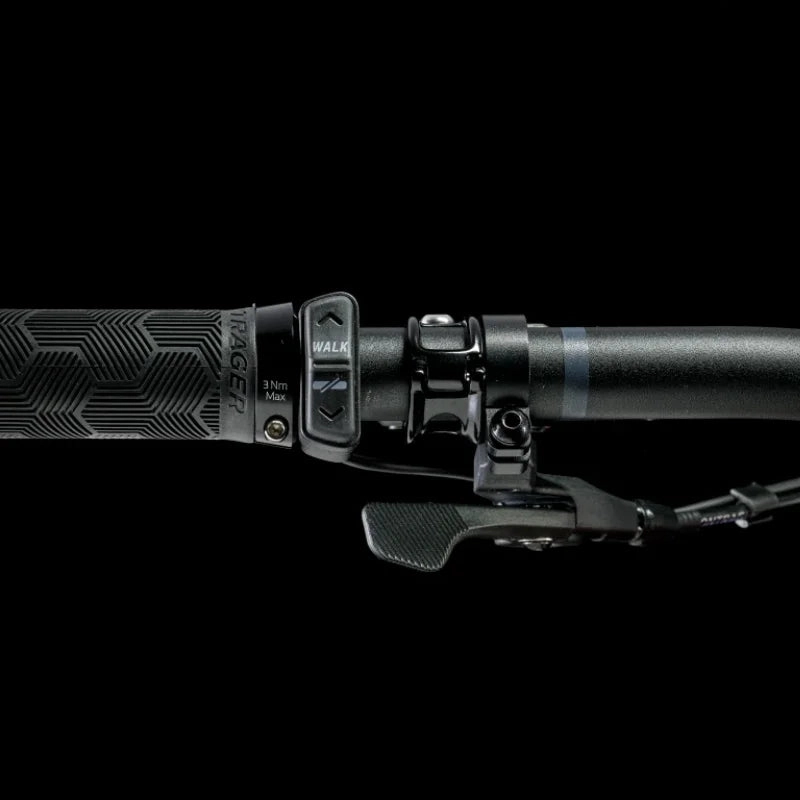

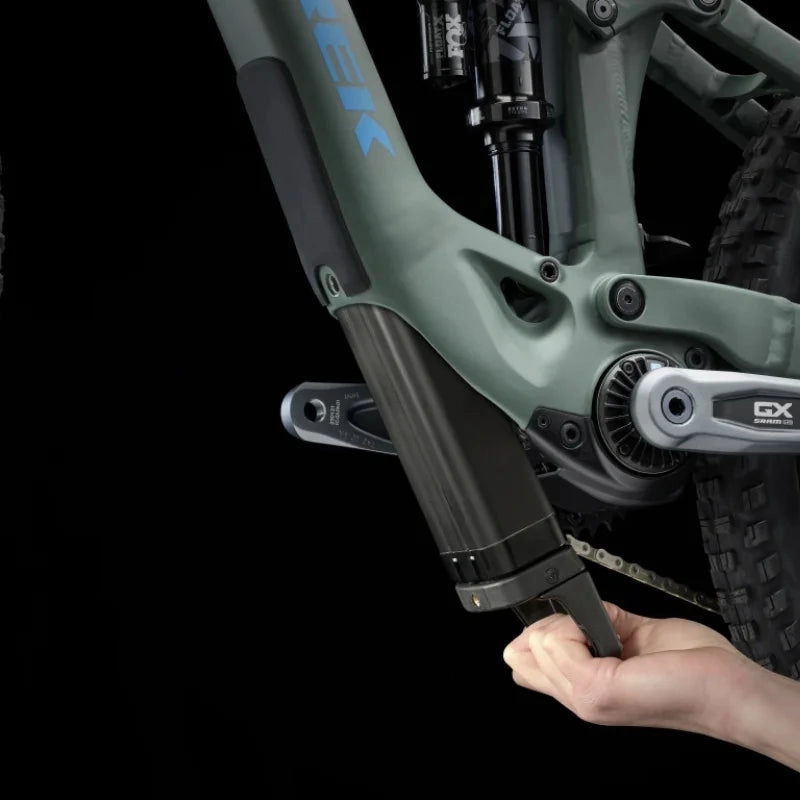

Advanced Technology, Unmatched Performance: Featuring an Alpha Platinum Aluminum frame with TQ's HPR50 harmonic pin ring drive system, the Fuel EXe 8 delivers a powerful and responsive ride. Equipped with a fully-encased 360 Wh removable battery, smart charging port, integrated LED display, and handlebar remote, this bike offers intuitive control and seamless integration.
Experience Ultimate Versatility: With a 150mm FOX Rhythm 36 front suspension, 140mm FOX Performance Float X rear suspension, wide Bontrager Line Comp Tubeless Ready wheels, and SRAM's 12-speed wireless GX AXS transmission, the Fuel EXe 8 is built to handle any terrain with confidence and precision.
Why Choose the Fuel EXe 8:
- Exceptional Value: Enjoy all the technology of top-tier e-MTBs without the hefty price tag.
- Performance Upgrades: Benefit from upgraded FOX suspension and SRAM wireless transmission for enhanced performance on the trail.
- Quiet and Powerful: The TQ motor provides quiet assistance, ensuring a natural ride feel and seamless power delivery.
- Intuitive Controls: The integrated display, charging port, and controls are simple to use, sleek, and intuitive.

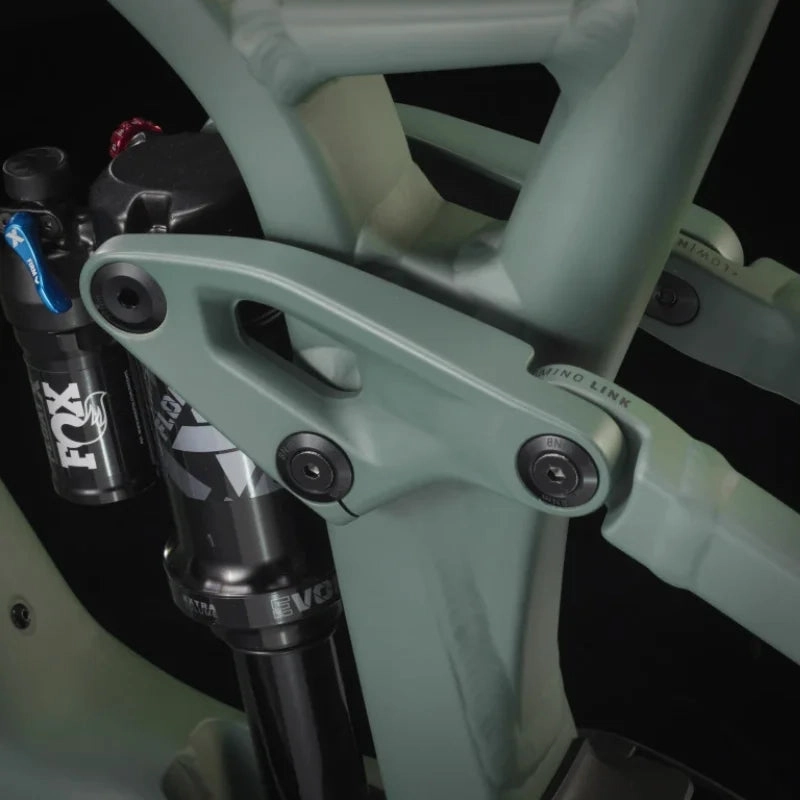

- Customizable Geometry: Adjust your bike's geometry with Mino Link or add an adjustable angle headset for enhanced control and comfort.
Conclusion: Unleash your trail potential with the Trek Fuel EXe 8 GX AXS T-Type. Offering advanced technology, superior performance, and exceptional value, it's the perfect choice for riders seeking an electrifying trail experience without compromise.
Trek Fuel EXe 8 GX AXS T-Type Specification
| Description | |
| Frame | Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

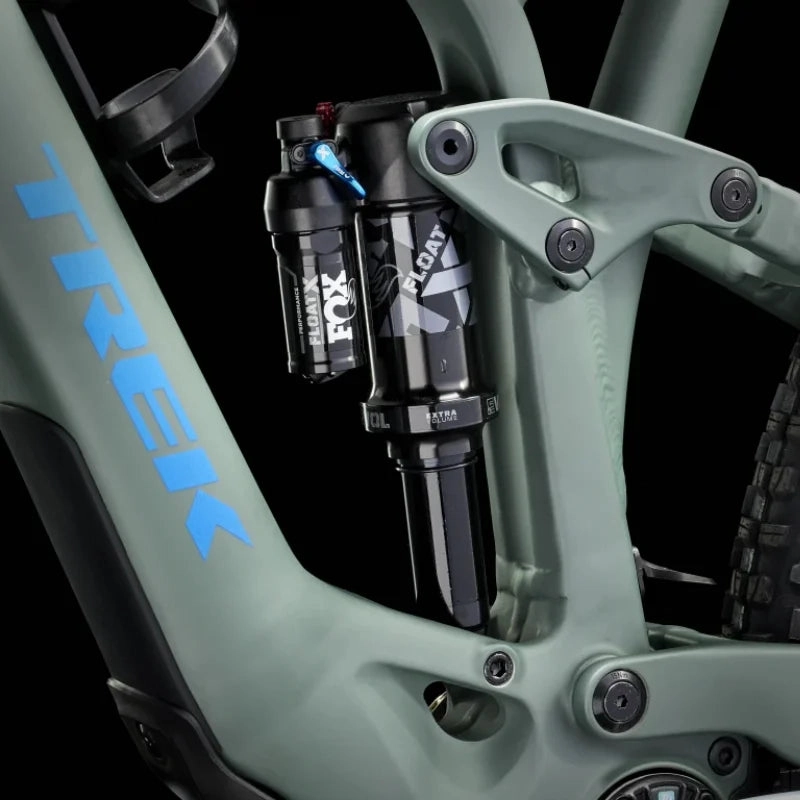

| Shock | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Max compatible fork travel | 160mm (575mm axle-to-crown) |
| Wheel Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Wheel Rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50", Fork: see manufacturer |
| Battery | TQ 360Wh |

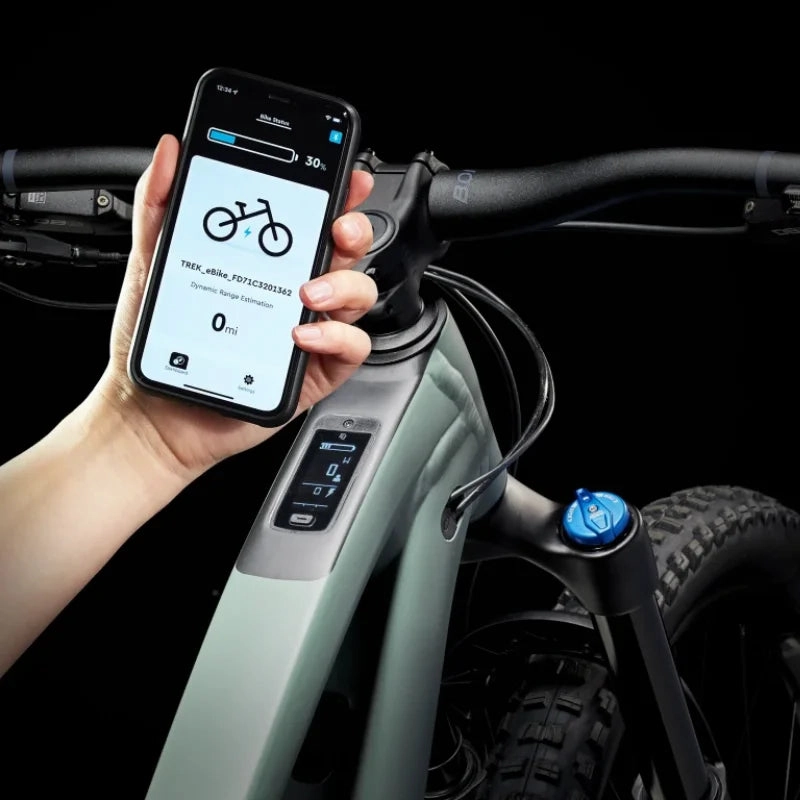

| Computer | TQ LED display with Bluetooth & ANT connectivity |

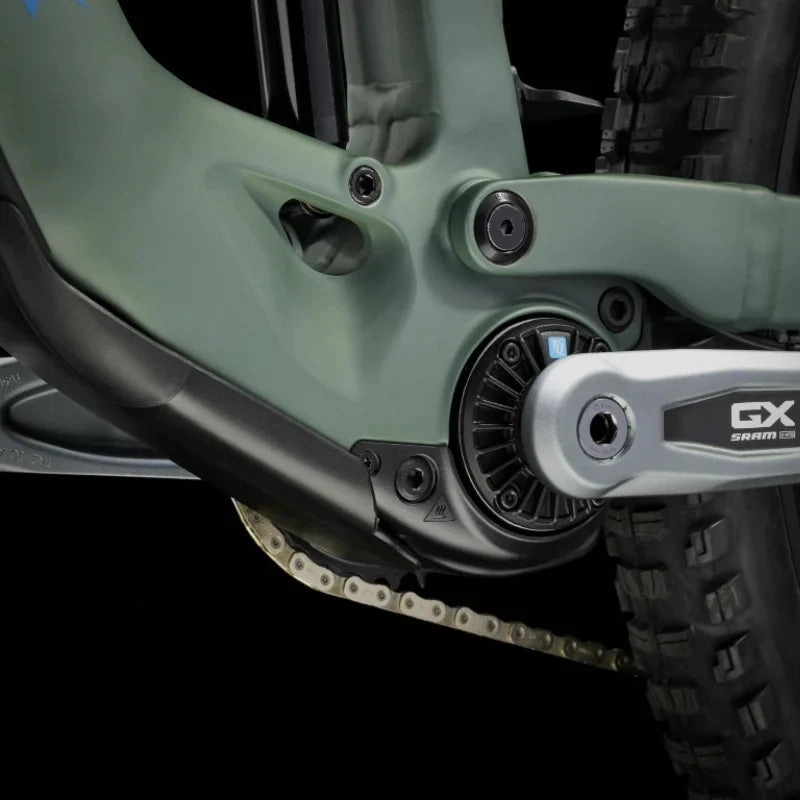

| Motor | TQ-HPR50, 50Nm, 250 watt maximum continuous rated power, 300-watt peak power |
| Shifter | SRAM AXS POD |
| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX, 165 mm length |
| Chainring | SRAM T-Type, 32T, alloy |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: S Size: M Size: L, XL |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |

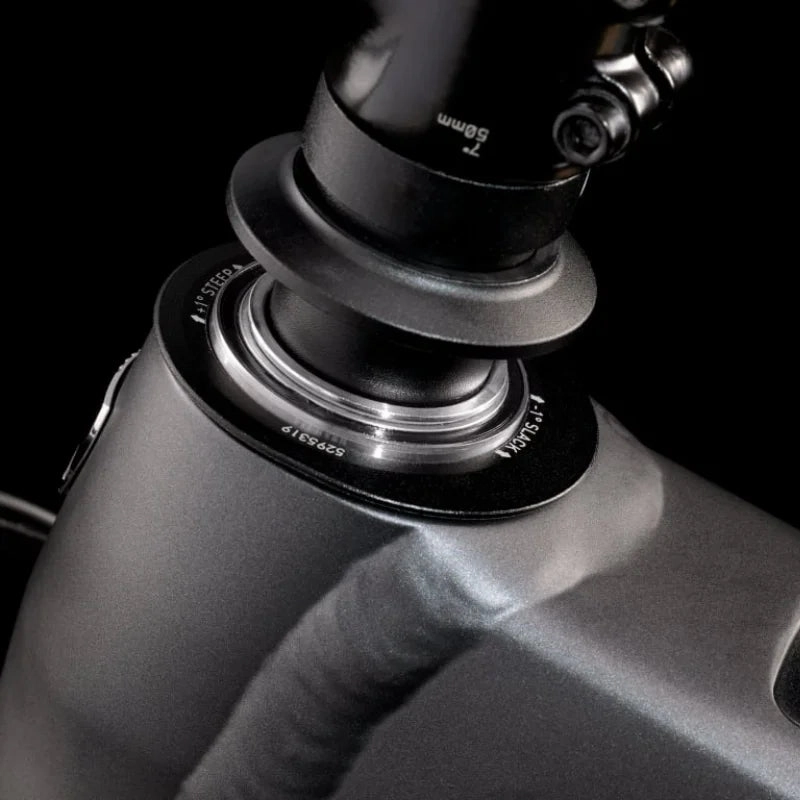

| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

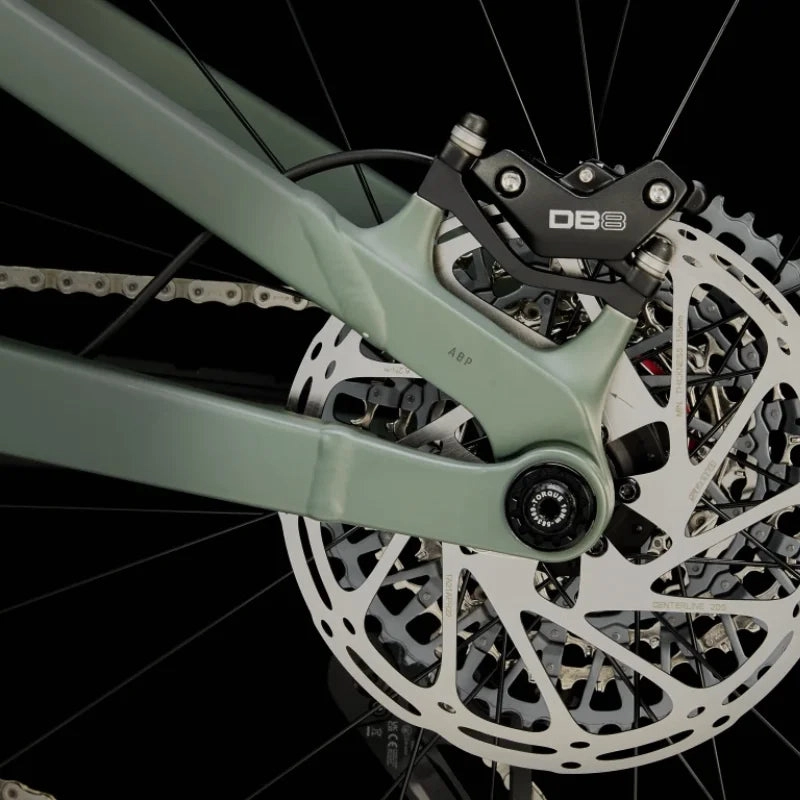

| Brake | SRAM DB 8 4-piston hydraulic disc |
| Brake Rotor | SRAM CentreLine, 6-bolt, round edge, 200 mm |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Electronics | TQ 4A charger |
| Weight | M - 20.25 kg / 44.65 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Trek Fuel EXe 8 GX AXS T-Type Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Trek Fuel EXe 9.7 Geometry
Sizing Table
| Frame Size Number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
| Frame Size Letter | S | S | M | M | L | L | XL | XL |
| Geometry Position | High | Low | High | Low | High | Low | High | Low |
| Wheel Size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Seat Tube | 38.0 | 38.0 | 41.0 | 41.0 | 43.5 | 43.5 | 47.0 | 47.0 |
| Seat Tube Angle | 69.3 | 68.8 | 69.8 | 69.3 | 70.8 | 70.3 | 71.3 | 70.8 |
| Effective Seat Tube Angle | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 |
| Head Tube Length | 10.0 | 10.0 | 11.0 | 11.0 | 11.0 | 11.0 | 12.0 | 12.0 |
| Head Angle | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 |
| Effective Top Tube | 57.2 | 57.3 | 59.9 | 60.0 | 62.9 | 63.0 | 65.6 | 65.8 |
| Bottom Bracket Height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
| Bottom Bracket Drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
| Chainstay Length | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0c |
| Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
| Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
| Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
| Frame Reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.3 | 48.3 | 51.4 | 50.8 |
| Frame Stack | 61.6 | 62.0 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
