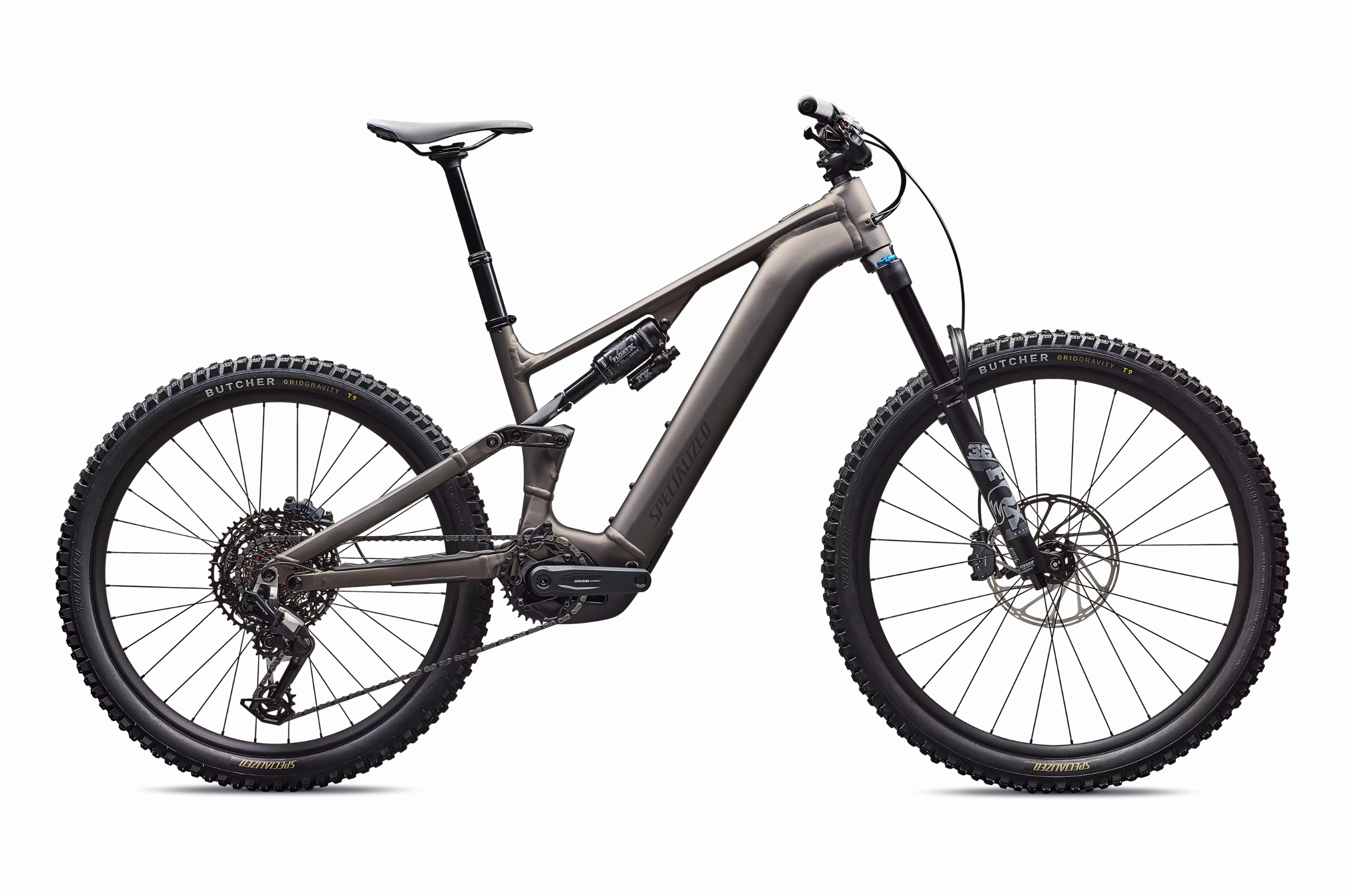

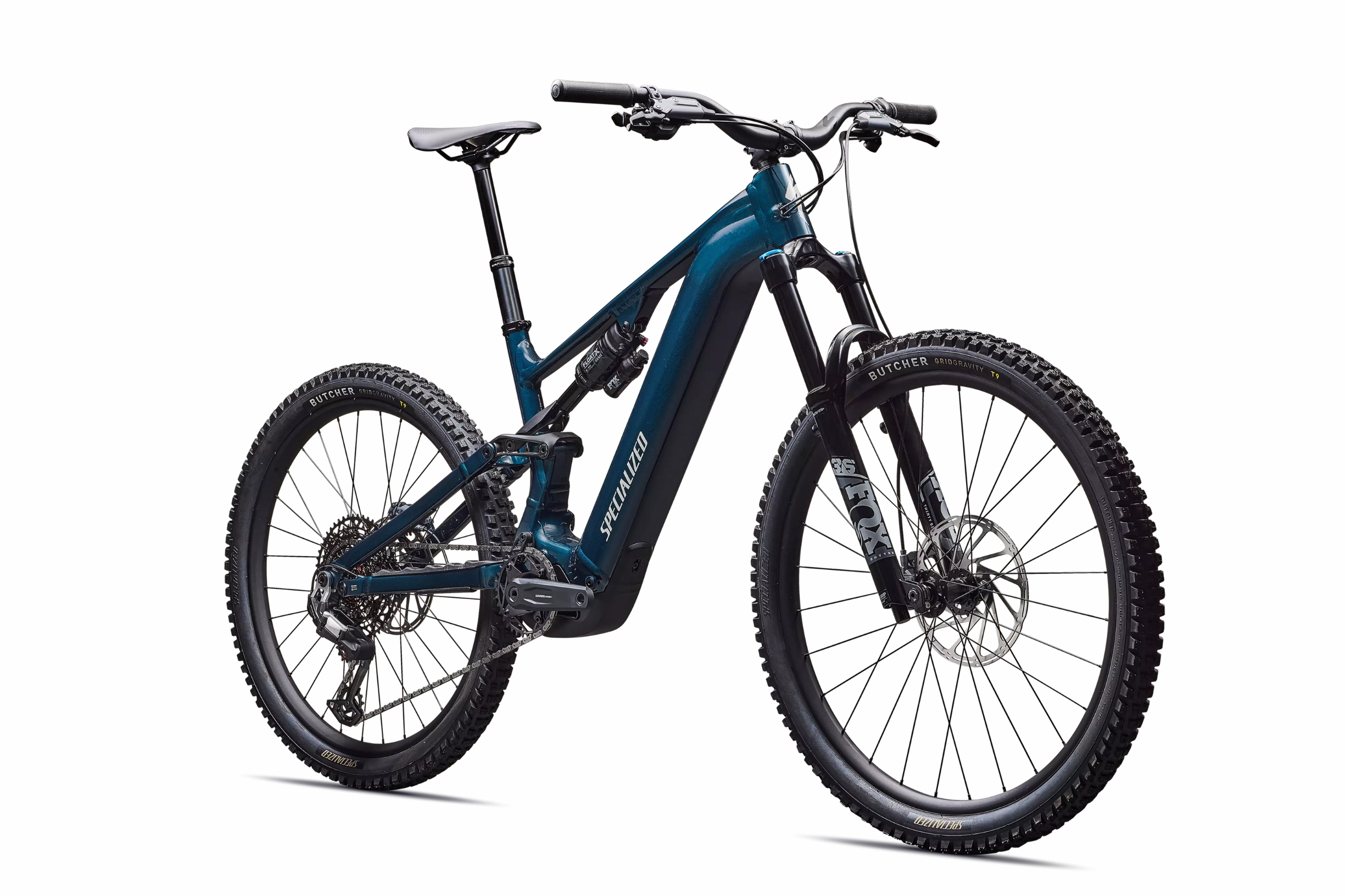

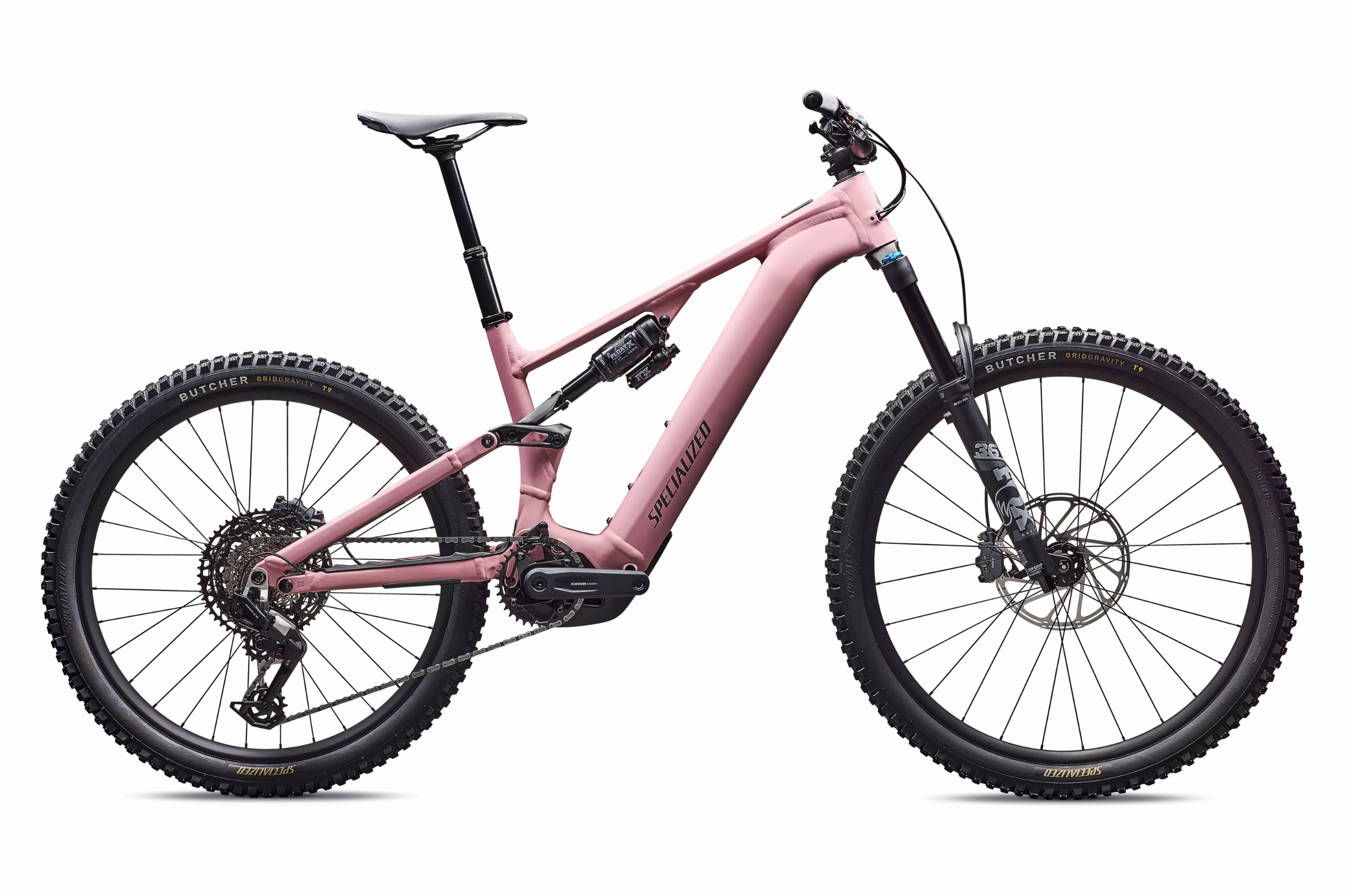

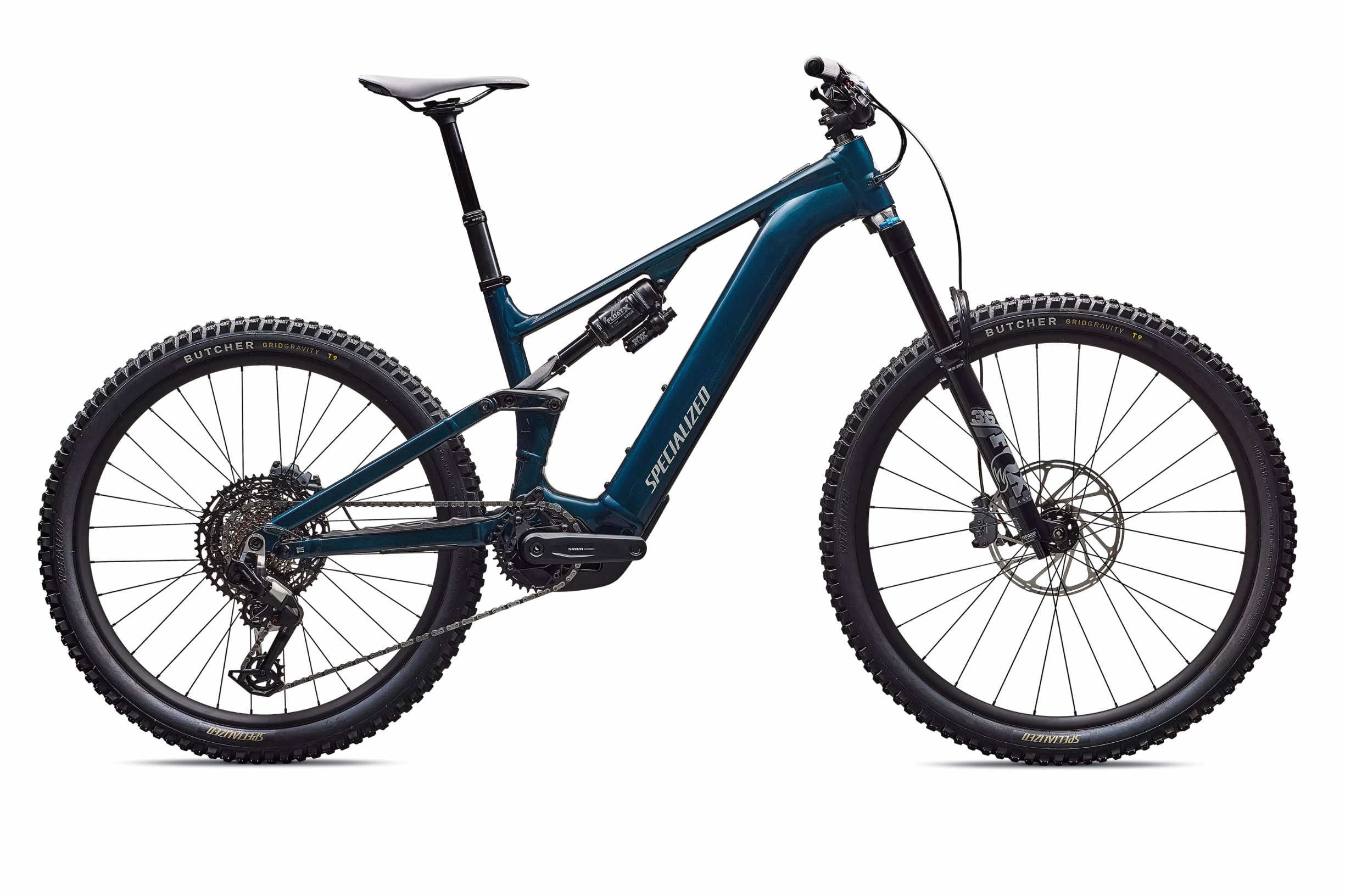

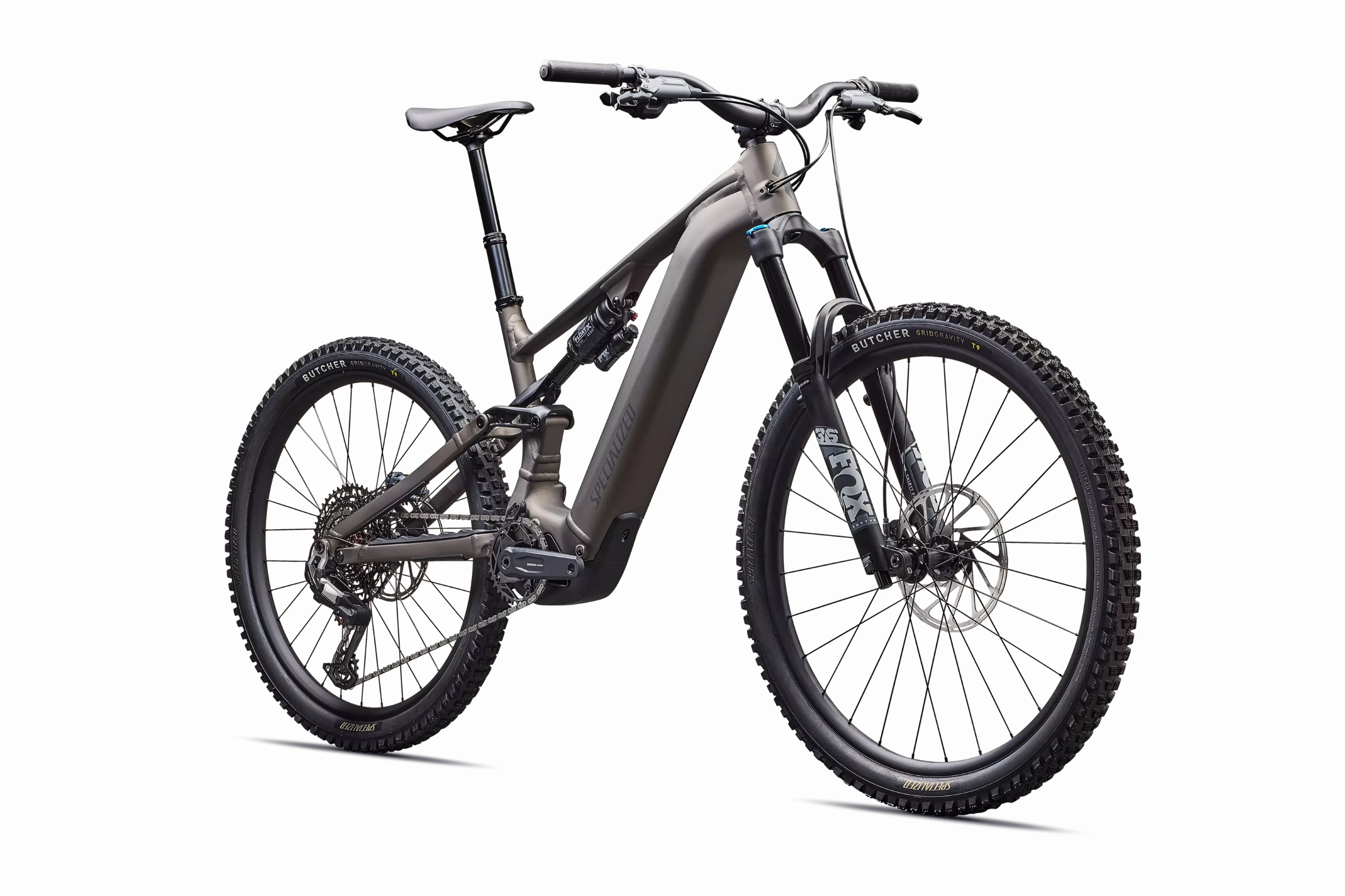

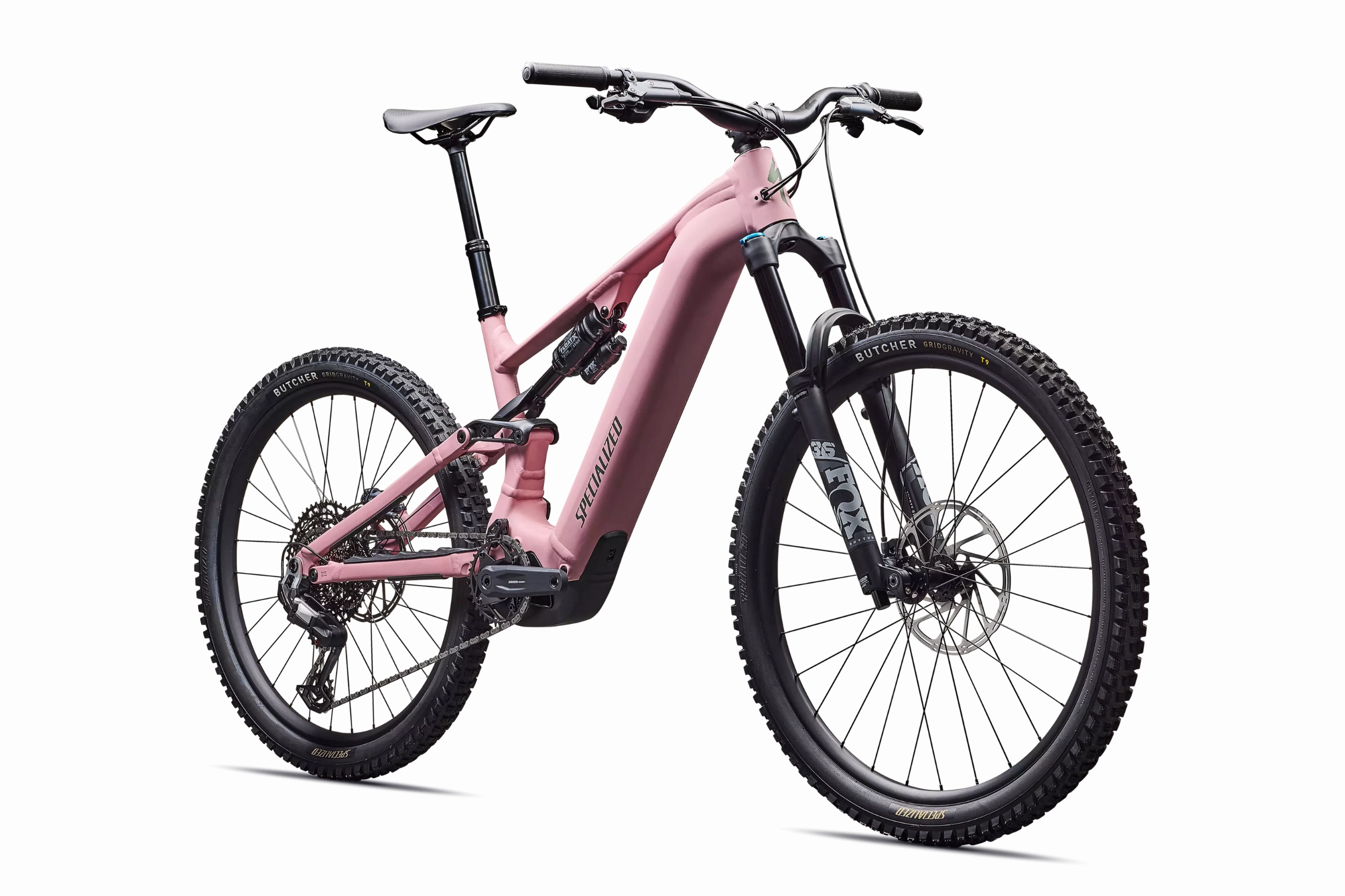

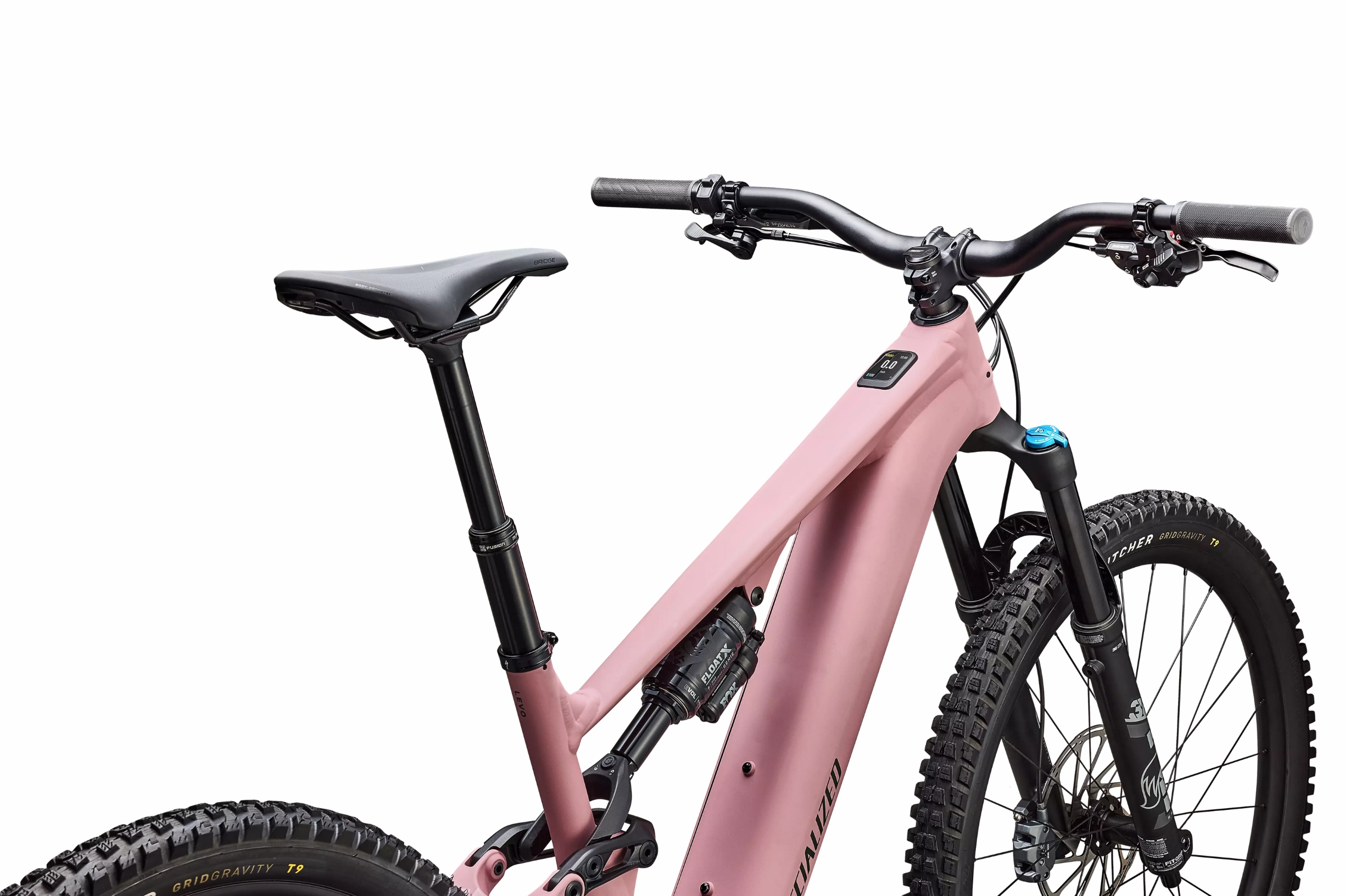

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

Specfication

E-bike

UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App

Motor: All New Specialized 3.1 Motor, 101Nm torque, 666Nm power

Charger: Specialized 4amp charger

Battery: 840Wh battery

Frameset

Seat Binder: Alloy, 38.6mm

Frame: All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm

Suspension

Rear Shock: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment

Fork: FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle

Brakes

Front Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Rear Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain

Cassette: SRAM XS-1275, 12-speed, 10-52t

Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Chain: SRAM GX Eagle T-Type Flattop Chain, 12-speed

Shift Levers: SRAM 90 trigger, 12-speed, single click

Rear Derailleur: SRAM Eagle 90 T-Type

Crankset: SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Wheels & tires

Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, TLR, 27.5x2.4"

Front Tire: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, TLR, 29x2.4"

Spokes: DT Swiss Industry

Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes: Standard, Presta valve

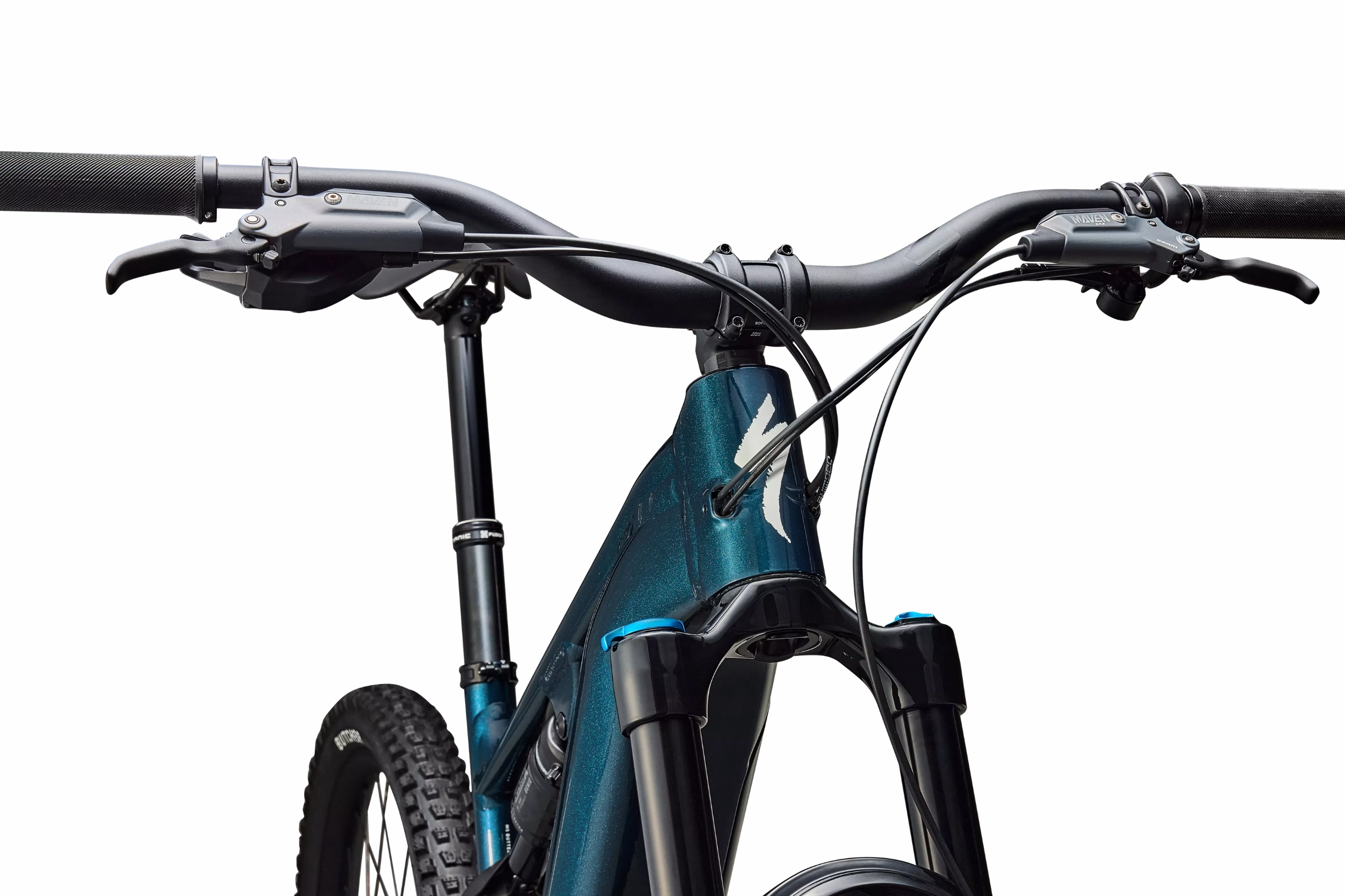

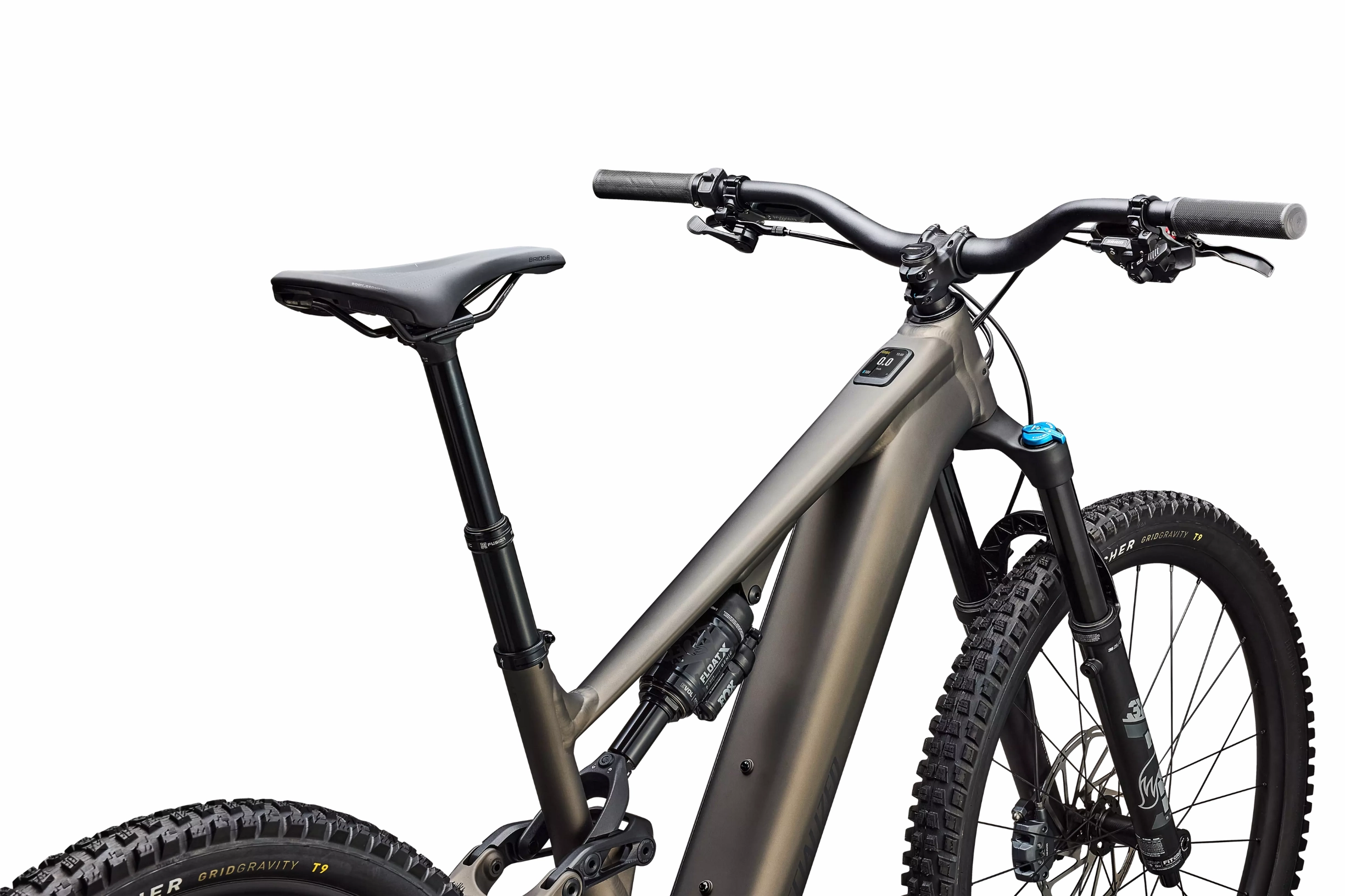

Cockpit

Stem: Alloy Trail Stem, 35mm bar bore

Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width

Saddle: Bridge Comp, Hollow Cr-mo rails 155/143

Grips: Specialized Trail Grips

SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm

Accessories

SWAT: SWAT internal downtube storage

Geometry

	S1	S2	S3	S4	S5	S6
Crank Length	155	155	155	155	155	155
Handlebar Width	780	780	800	800	800	800
Stem Length	40	40	40	40	40	40
Saddle Width	155	155	143	143	143	143
Seatpost Length	100	125	150	170	190	190
Stack	609	618	626	638	652	667
Reach	407	435	455	480	505	535
Headtube Length	94	95	103	117	132	149
Headtube Angle	64	64.5	64.5	64.5	64.5	64.5
BB Height	355	350	350	350	350	350
BB Drop	24.13	29.5	29.5	29.5	29.5	29.5
Trail	132	132	137	132	132	132
Fork Length (full)	577	577	577	577	577	577
Fork Rake/Offset	44	44	44	44	44	44
Front Center	744	765	789	820	851	888
Chainstay Length	435	435	435	435	435	435
Wheelbase	1179	1200	1223	1254	1286	1323
Top-tube Length (horizontal)	556	578	599	627	655	689
Bike Standover Height	753	753	754	753	758	761
Seat Tube Length	379	390	405	425	445	465
Seat Tube Angle	76	77	77	77	77	77
Saddle Height for Effective ST Angle	645	690	735	780	825	870
Max Seatpost Insertion	264	274	289	313	337	357
Min Seatpost Insertion	80	80	80	80	80	80
