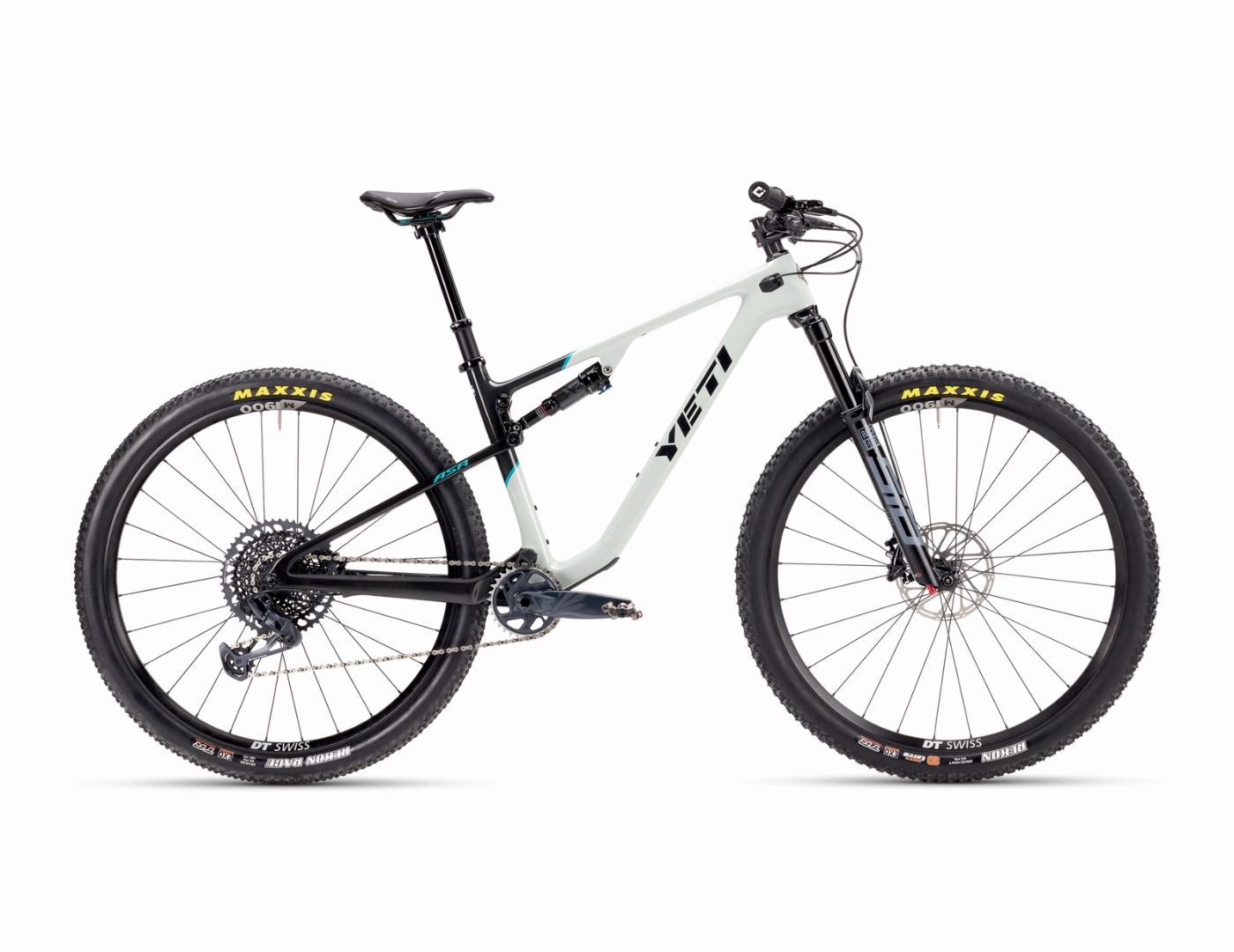

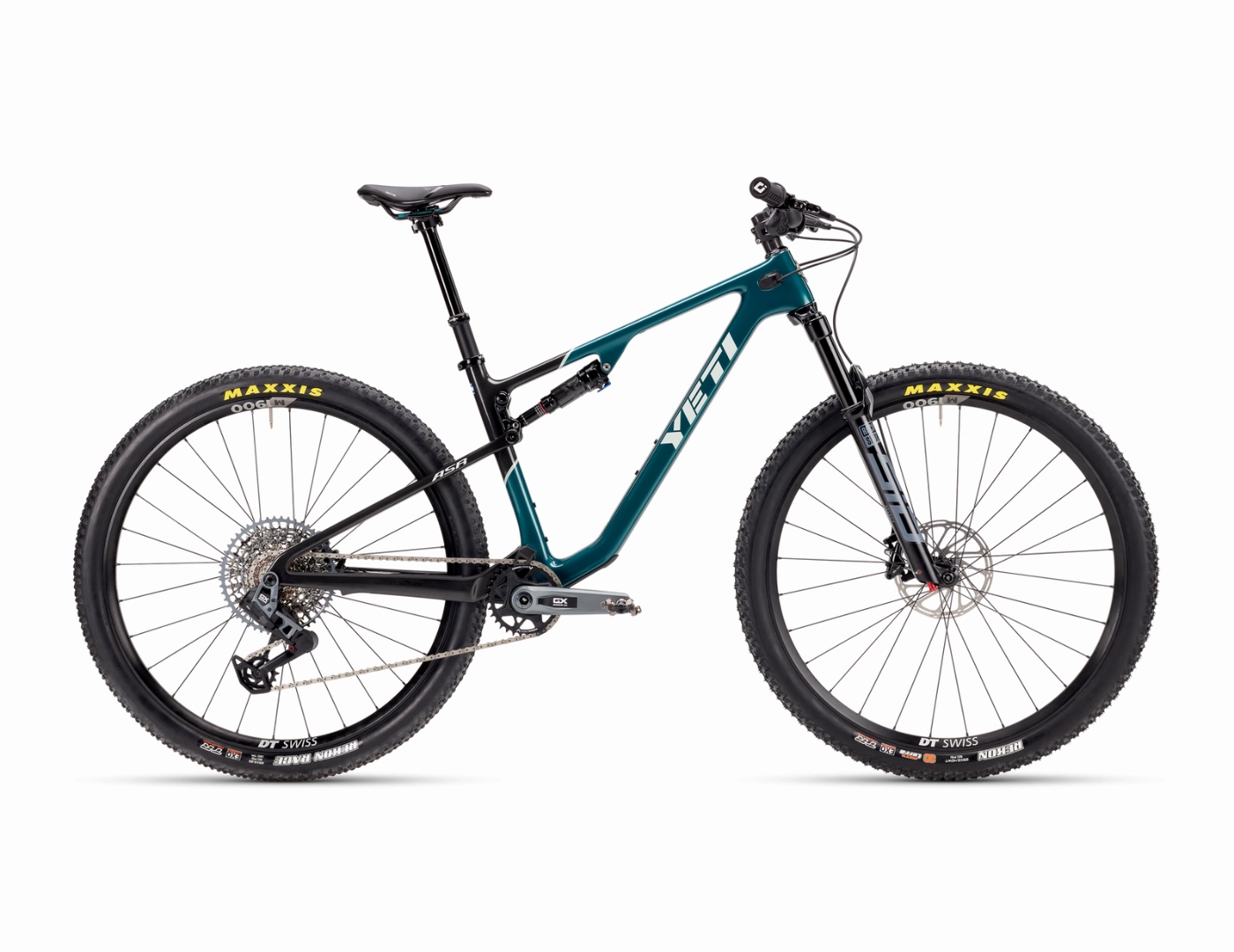

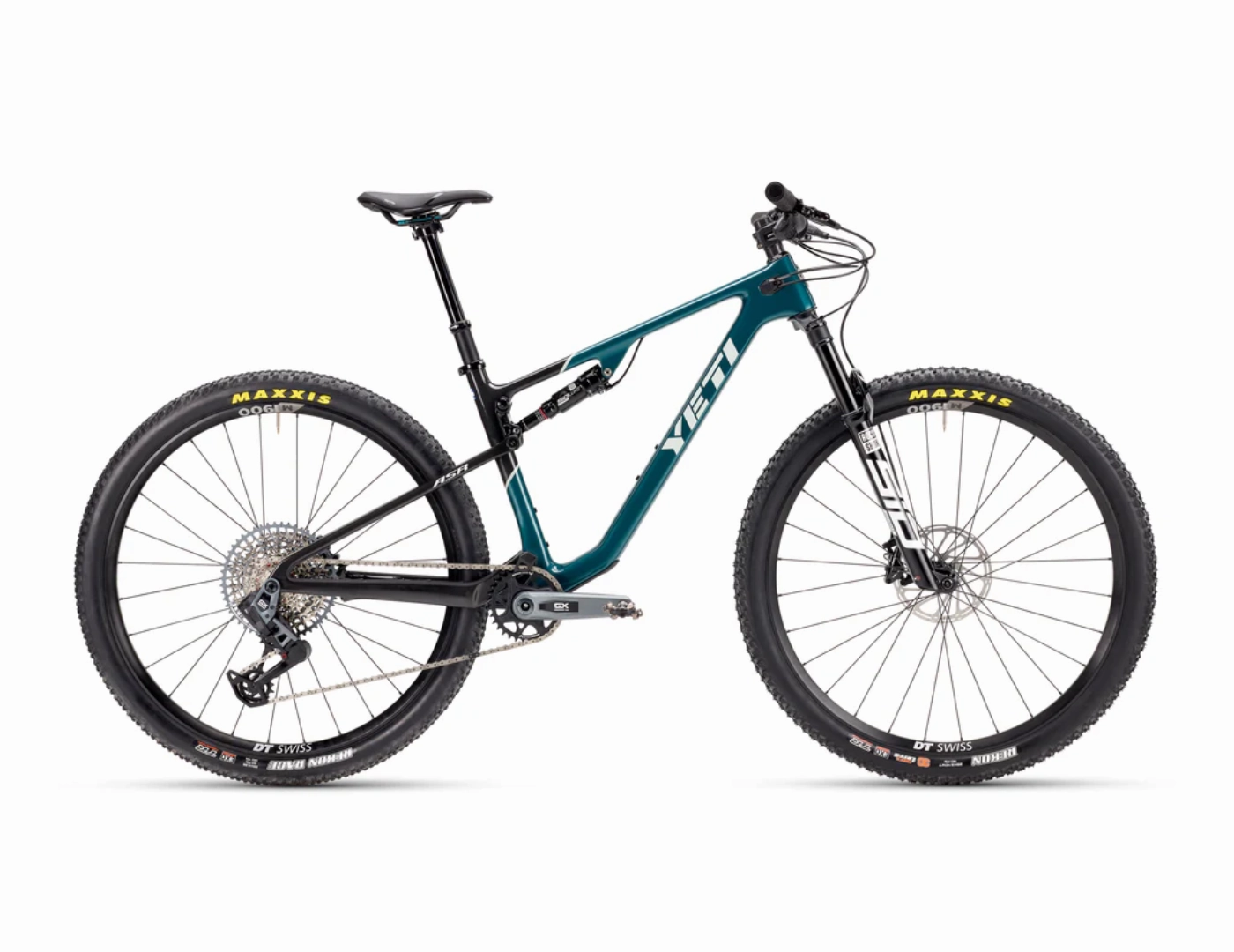

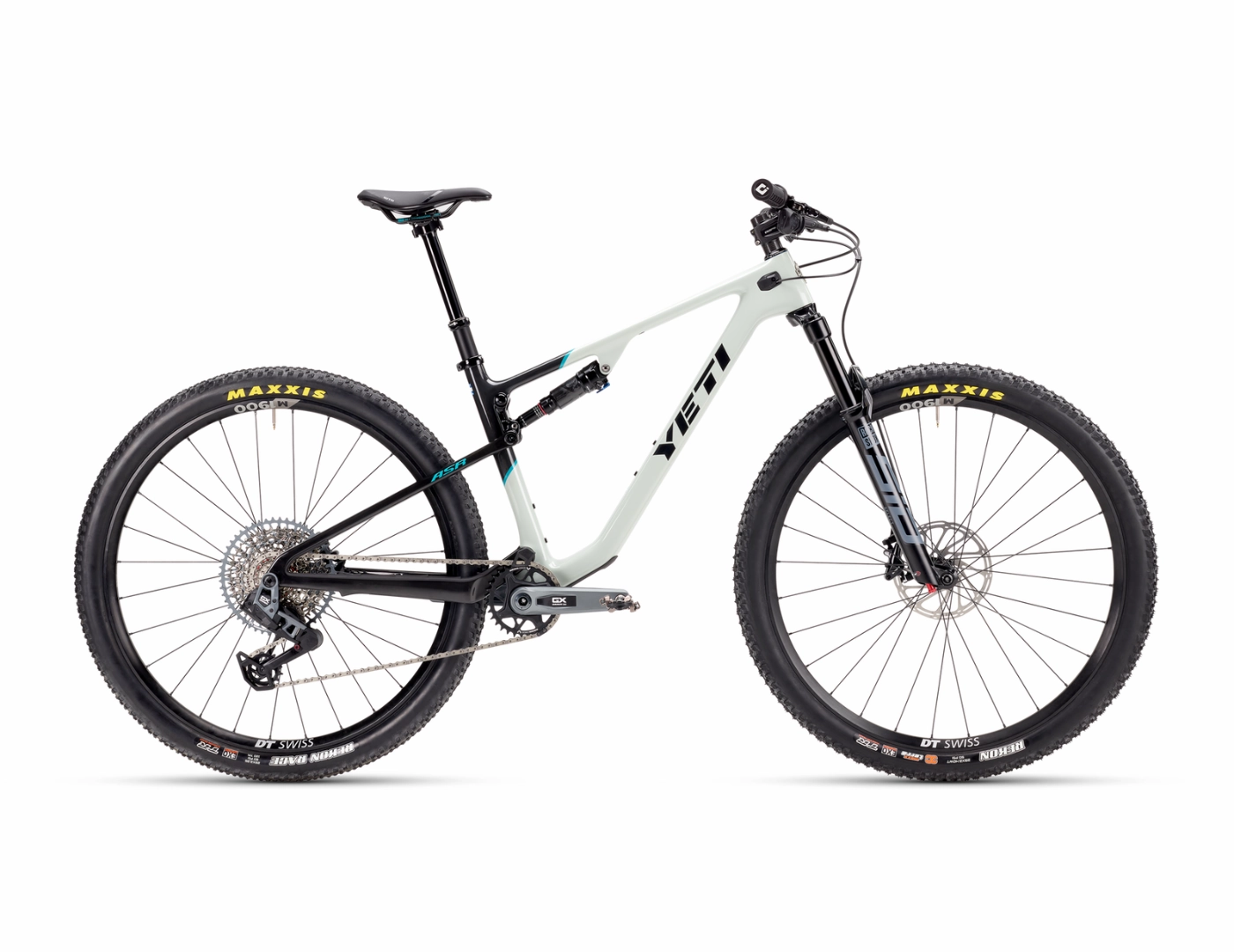

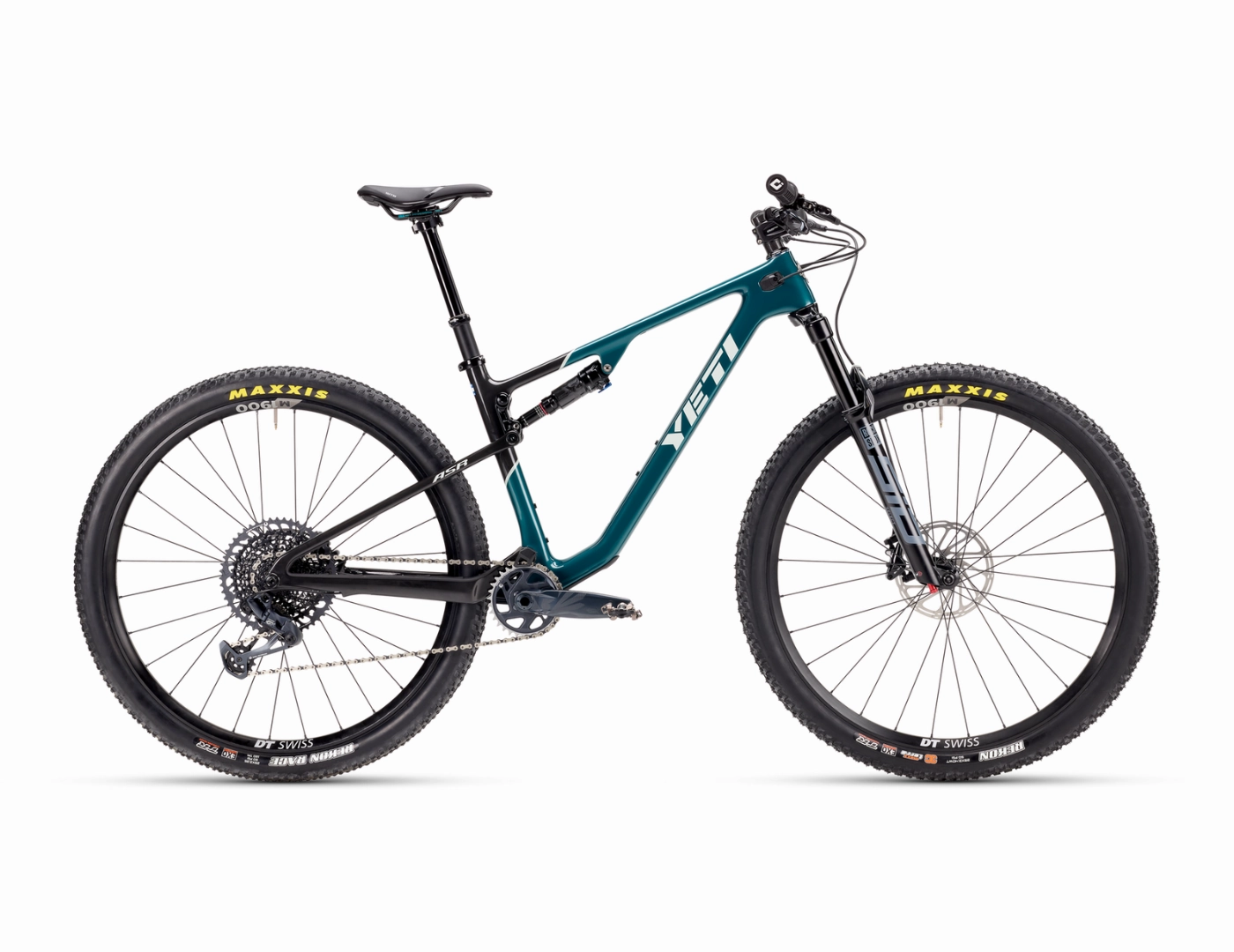

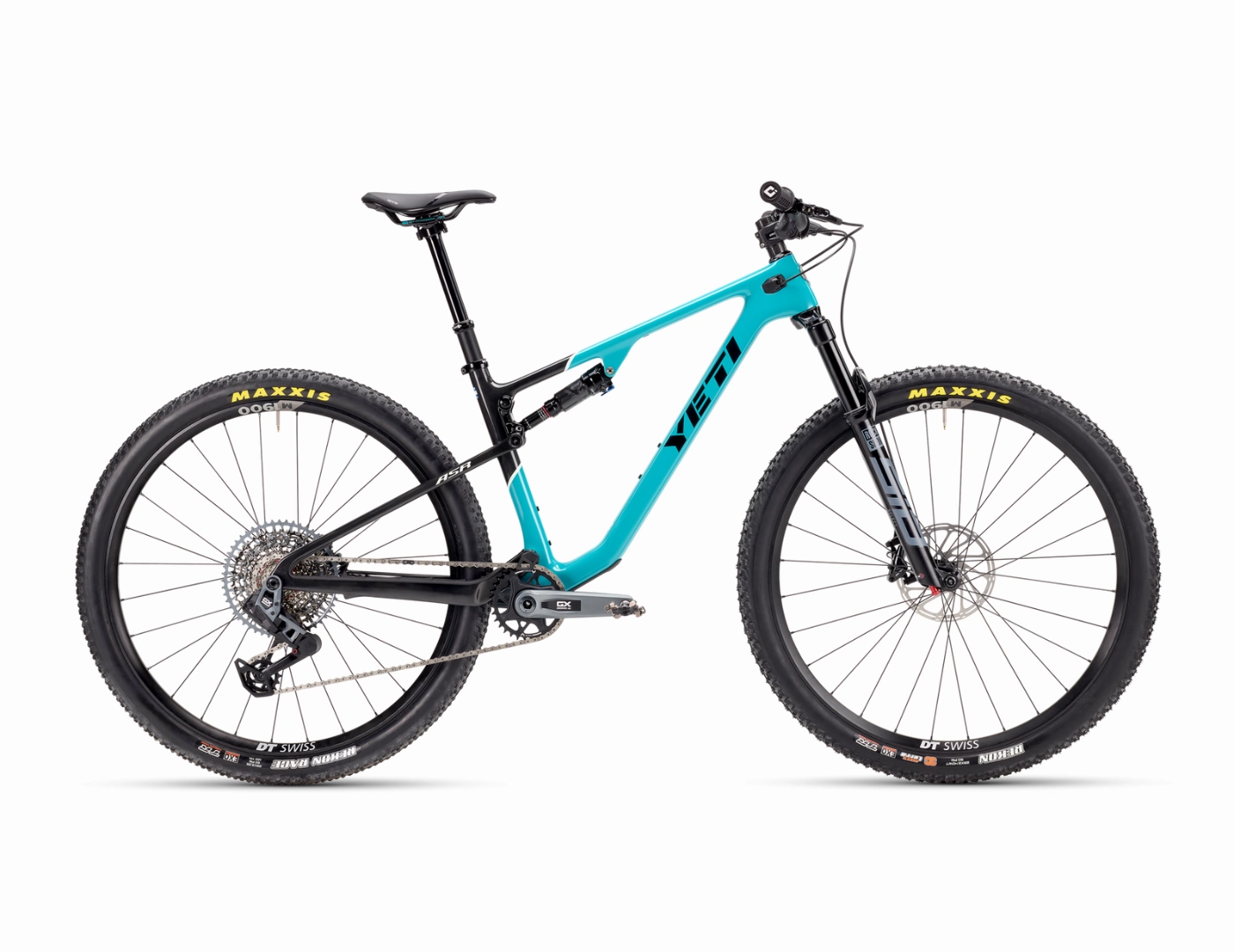

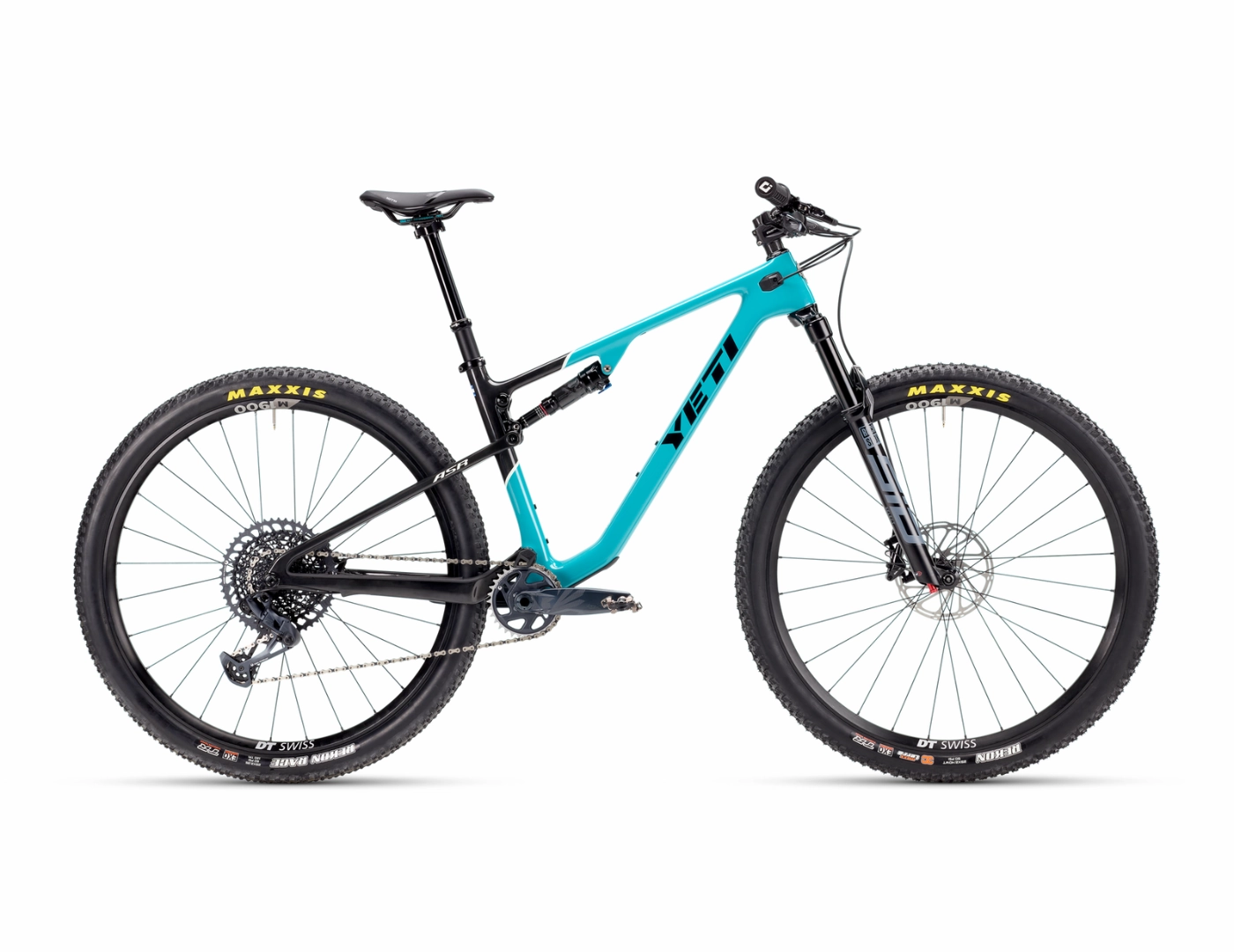

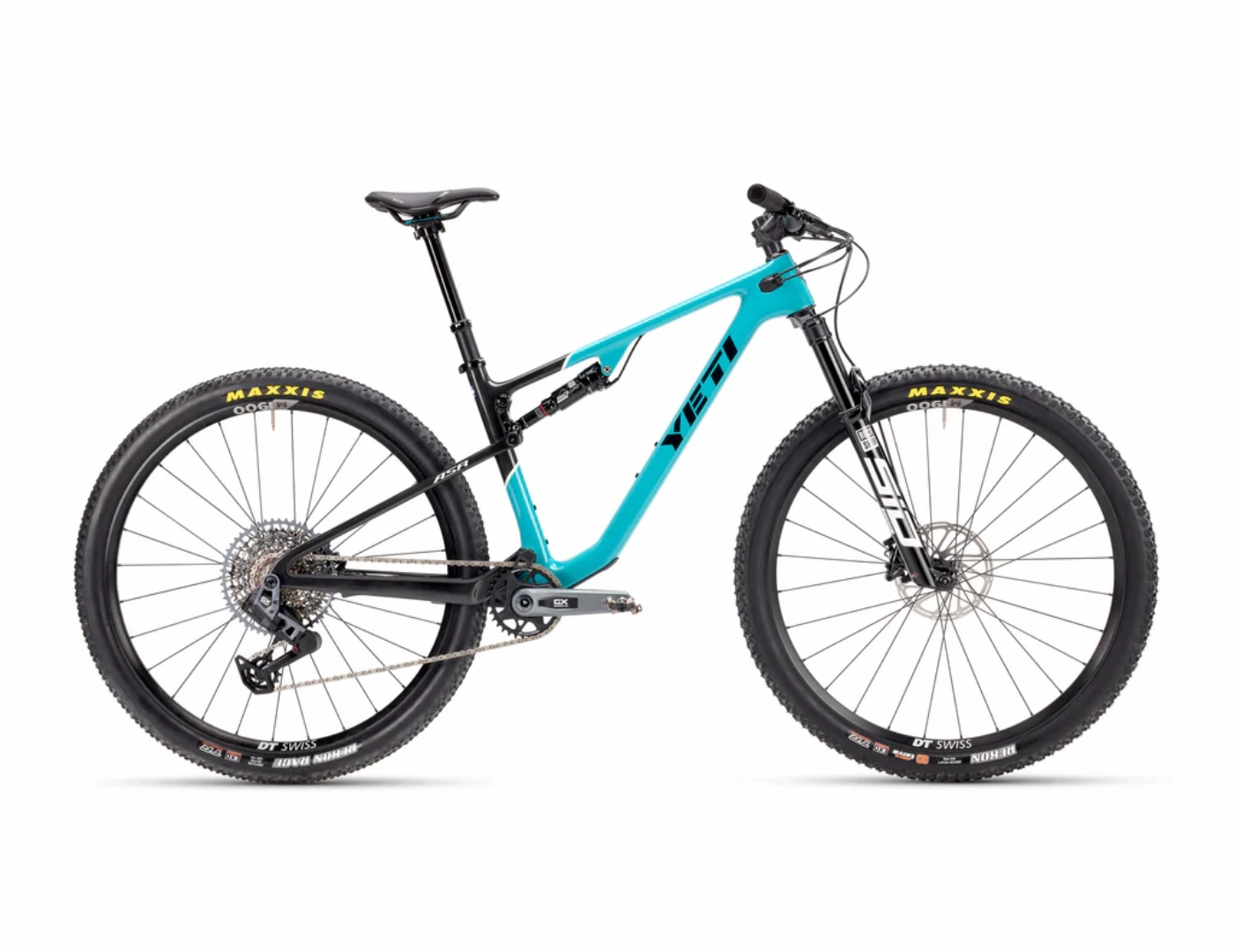

Description

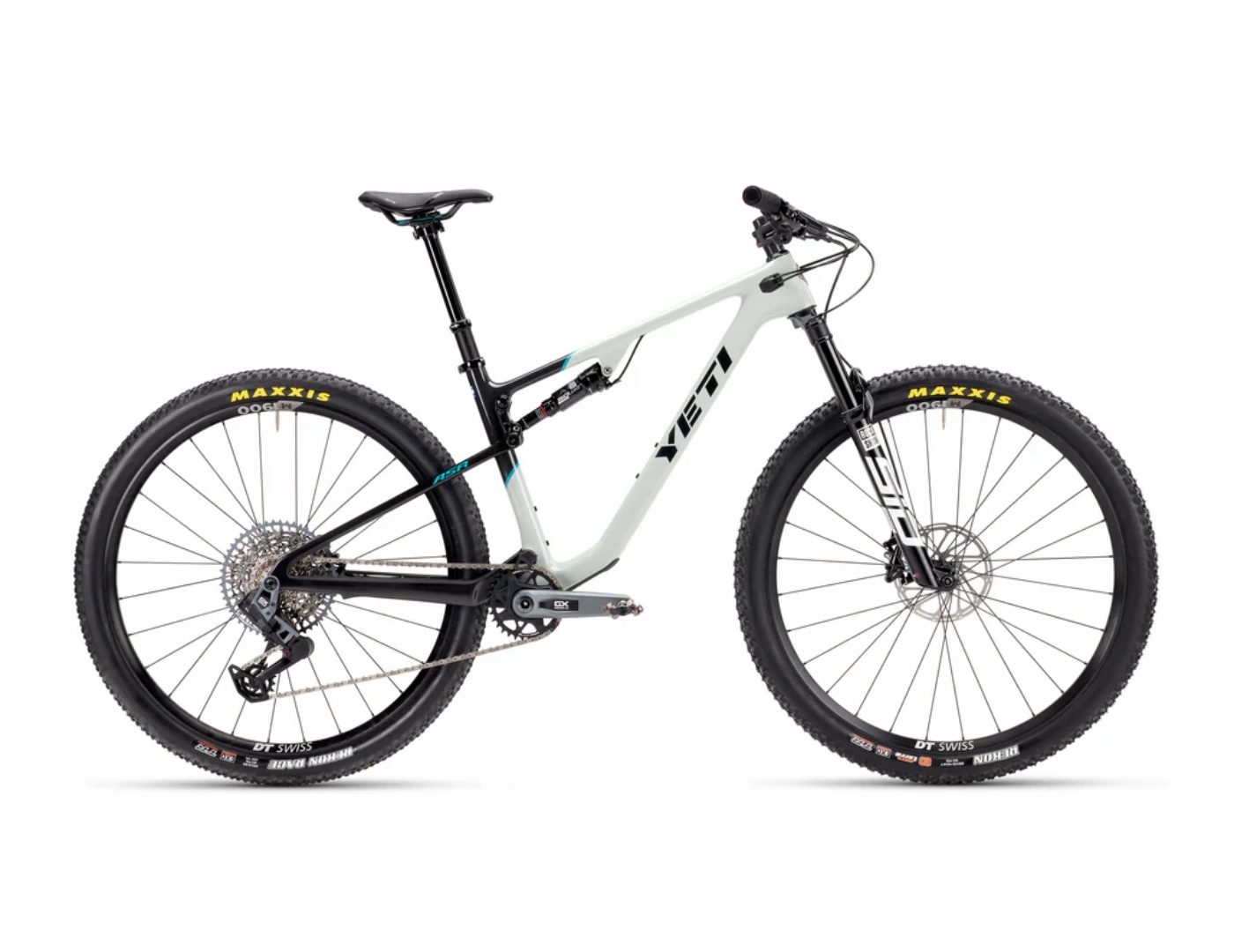

A decade ago Yeti peaced out of the lycra game. While they were busy getting down, XC got a lot more X, calling for the comeback of a legend. Flashing a crazy-light, zero - redundant carbon layup thats far beyond the previously possible. Featuring 115mm of flex stay suspension for 100% usable travel, and energy saving small-bump compliance. Helping todays racers be faster where they have to be. On first blush it may appear to have peers, but dont get it twisted. The reincarnated ASR is a lot like nothing else.
All C2 Bikes Now Upgraded to SRAM X01 Components
Yeti has upgraded all C2 bikes to feature the high-performance SRAM X01 (Cable) drivetrain. This includes the X01 Cassette, Shifter, Derailleur, X1 Carbon Cranks, and GX Chain
Specification
| C3 XO Transmission | C3 Factory | C2 | |||||||
| Details | C/Series Carbon Frame, 120mm SID 3P and SIDLUXE SELECT 3p, SRAM GX T-Type and G2 R Brakes | KIT C-Series Carbon Frame, 120mm SID 3P & SID LUXE ULTIMATE 3p, SRAM GX T-Type & LEVEL TL Brakes | C/Series Carbon Frame, 120mm SID 3P and SIDLUXE SELECT 3p, SRAM GX Eagle and G2 R Brakes | ||||||
| Frame | C/Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle. | C/Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle. | C/Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle. | ||||||
| Fork | ROCK SHOX SID SELECT 3P/120MMUpgradable | ROCK SHOX SID SELECT 3P/120MMUpgradable | ROCK SHOX SID SELECT 3P/120MMUpgradable | ||||||
| Material | C/SERIES | C/SERIES | C/SERIES | ||||||
| Weight | 26.09 | 25.8 | 25.87 | ||||||
| Travel | 115MM (4.5") | 115MM (4.5") | 115MM (4.5") | ||||||
| Rear Shock | ROCK SHOX SIDLUXE SELECT 3pUpgradable | ROCK SHOX SIDLUXE ULTIMATE 3P REMOTE | ROCK SHOX SIDLUXE SELECT 3pUpgradable | ||||||
| Wheelset | DT SWISS M1900 30MM | DT SWISS M1900 30MM | DT SWISS M1900 30MM | ||||||
| Rear Der | SRAM GX EAGLE AXS TRANSMISSION | SRAM GX EAGLE AXS TRANSMISSION | SRAM GX EAGLE | ||||||
| Shift | SRAM AXS POD CONTROLLER | SRAM AXS POD CONTROLLER | SRAM GX EAGLE | ||||||
| Crank | SRAM GX EAGLE TRANSMISSION 32T 170MM | SRAM GX EAGLE TRANSMISSION 32T 170MM | SRAM GX EAGLE 32T 170MM | ||||||
| BB | SRAM DUB BSA 73 | SRAM DUB BSA 73 | SRAM DUB BSA 73 | ||||||
| Cassette | SRAM GX EAGLE TRANSMISSION 10-52 | SRAM GX EAGLE TRANSMISSION 10-52 | SRAM GX EAGLE 1275 10-52 | ||||||
| Chain | SRAM GX EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE TRANSMISSION FLATTOP | SRAM GX EAGLE | ||||||
| Brakes | SRAM G2 R | SRAM LEVEL TL 2 PISTON | SRAM G2 R | ||||||
| Rotors | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | F/R SRAM CENTERLINE 180/SRAM CENTERLINE 160 | SRAM CENTERLINE 180/SRAM CENTERLINE 160 | ||||||
| Post | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS: 100MM, SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS-SM: 125MM, MD-XL: 150MM | FOX TRANSFER SL PERFORMANCE ELITE 31.6MM / XS: 100MM, SM: 125MM, MD-XL: 150MM | ||||||
| Front Tire | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | MAXXIS REKON 2.4 EXO | ||||||
| Rear Tire | MAXXIS REKON RACE 2.4 EXO | MAXXIS REKON RACE 2.35 EXO | MAXXIS REKON RACE 2.4 EXO | ||||||
| Headset | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | CANE CREEK 40 INTEGRATED | ||||||
| Bar | BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM | RIDE WIDE ALLOY ENDURO 35X760MM | BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM | ||||||
| Stem | BURGTEC ENDURO MK3 35X50MM | URGTEC ENDURO MK3 35X50MM | BURGTEC ENDURO MK3 35X50MM | ||||||
| Grips | ODI ELITE PRO | ODI ELITE PRO | ODI ELITE PRO | ||||||
| Seat | SOLANO CHROMOLY | SOLANO CHROMOLY | SOLANO CHROMOLY |
Geometry
| XS | SM | MD | LG | XL | ||
| A | SEAT TUBE LENGTH | 15.7 | 16.1 | 16.9 | 17.3 | 19.5 |
| B | EFFECTIVE TOPTUBE LENGTH | 21.8 | 22.6 | 23.6 | 24.5 | 25.7 |
| C | HEADTUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D | EFF. SEAT TUBE ANGLE | 75.5 | 75.5 | 75.5 | 75.5 | 75.5 |
| E | ACTUAL SEAT TUBE ANGLE | 70.4 | 70.8 | 71.2 | 71.6 | 72.1 |
| F | CHAINSTAY LENGTH | 17.0 | 17.1 | 17.2 | 17.3 | 17.4 |
| G | WHEELBASE | 44.2 | 45.0 | 46.2 | 47.3 | 48.7 |
| H | ESTIMATED BB HEIGHT | 13.2 | 13.2 | 13.2 | 13.2 | 13.2 |
| I | STANDOVER | 30.2 | 30.2 | 30.4 | 30.4 | 30.6 |
| J | HEADTUBE LENGTH | 3.6 | 3.6 | 4.0 | 4.4 | 5.2 |
| K | AXLE TO CROWN | 20.9 | 20.9 | 20.9 | 20.9 | 20.9 |
| L | OFFSET | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 |
| M | STACK | 23.3 | 23.3 | 23.6 | 24.0 | 24.8 |
| N | REACH | 15.7 | 16.5 | 17.5 | 18.3 | 19.3 |
| O | FRONT CENTER | 27.1 | 27.9 | 29.0 | 30.0 | 31.3 |
| P | Vertical Fork Travel | 4.3 | 4.3 | 4.3 | 4.3 | 4.3 |
