Unleash Your Trail Potential: Trek Marlin 7 Gen 3 - Keswick
Discover the Thrill of Adventure

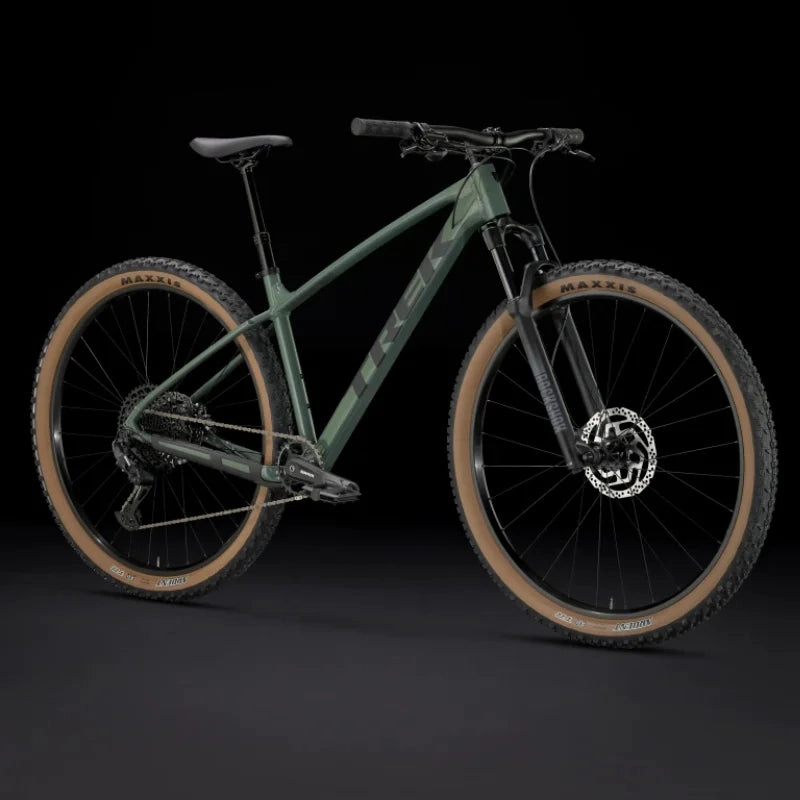

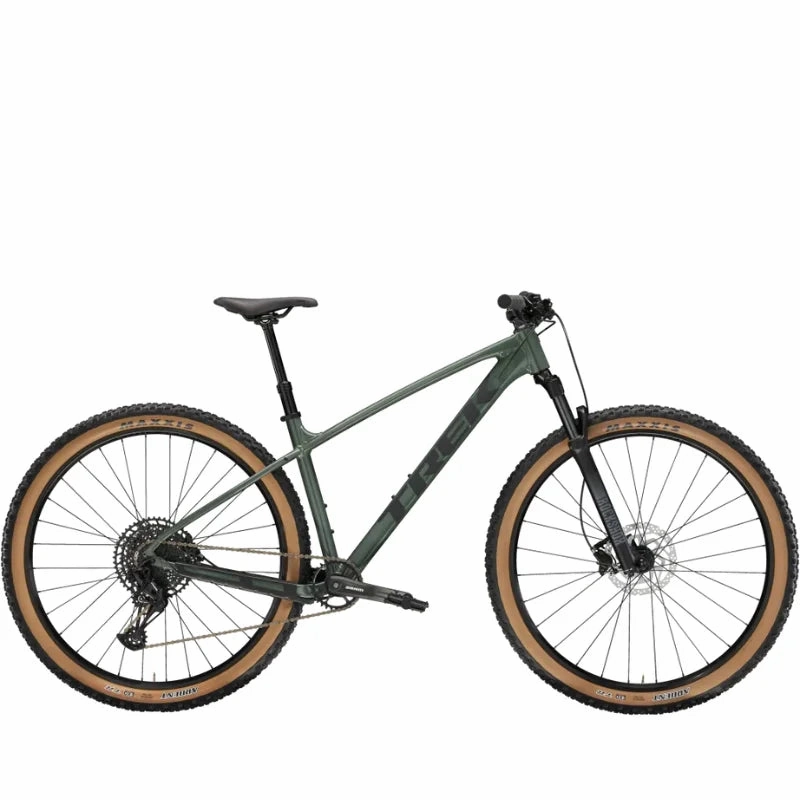

The Trek Marlin 7 Gen 3 in Keswick edition is your ultimate companion for conquering any trail and beyond. Engineered with confidence-boosting trail geometry, this bike strikes the perfect balance between performance and affordability.
Key Features:
Upgraded Suspension: Experience smoother rides over rocks and bumps with the enhanced RockShox suspension fork, providing 100mm of travel to tackle rough terrain effortlessly.

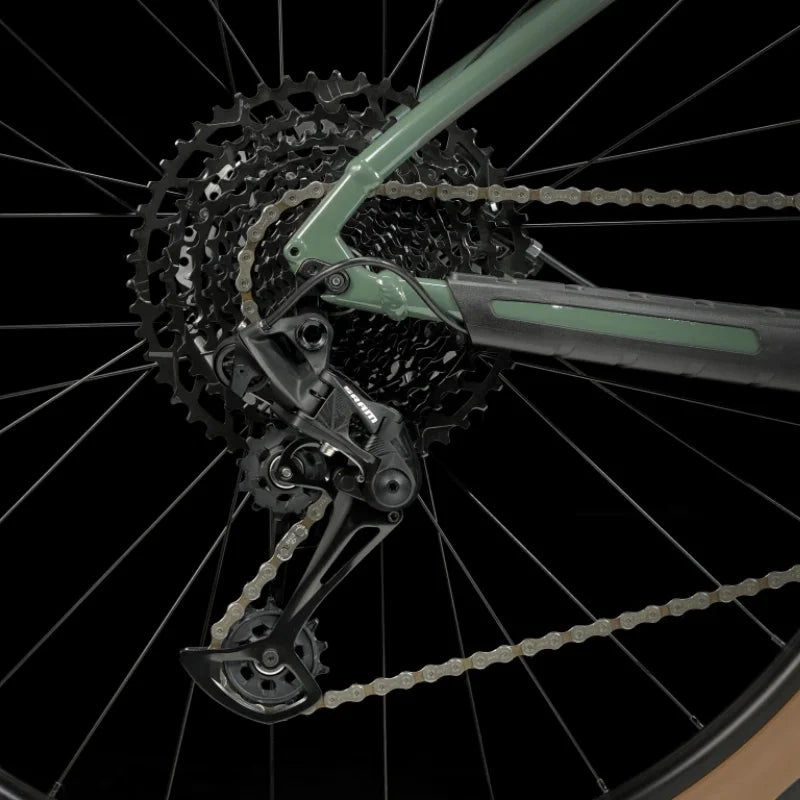

High-Performance Drivetrain: Enjoy the versatility of the SRAM 12-speed SX Eagle drivetrain, offering a wide gearing range for conquering steep climbs and speedy descents with ease.

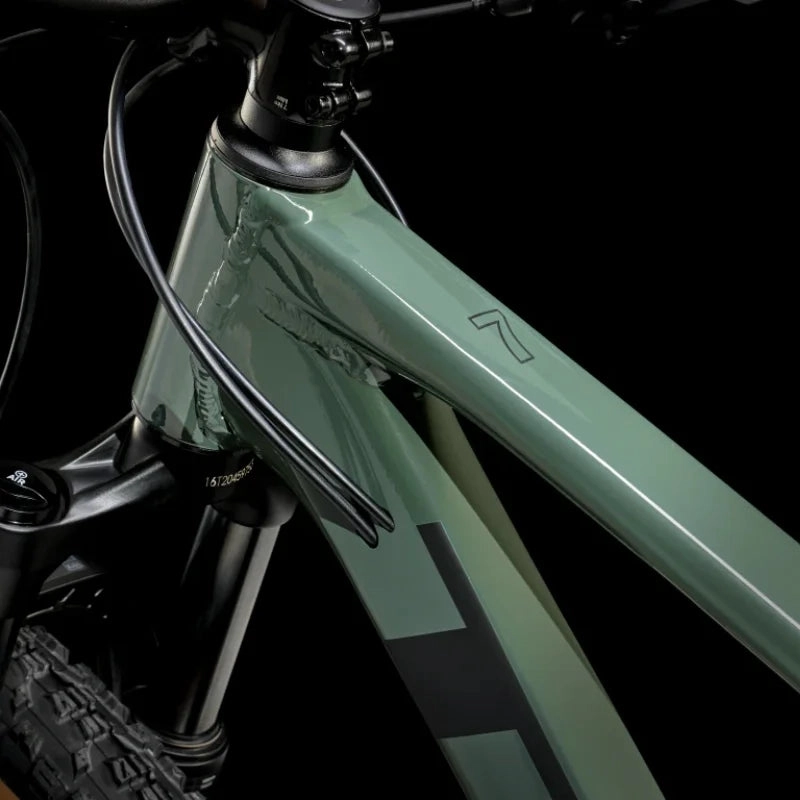

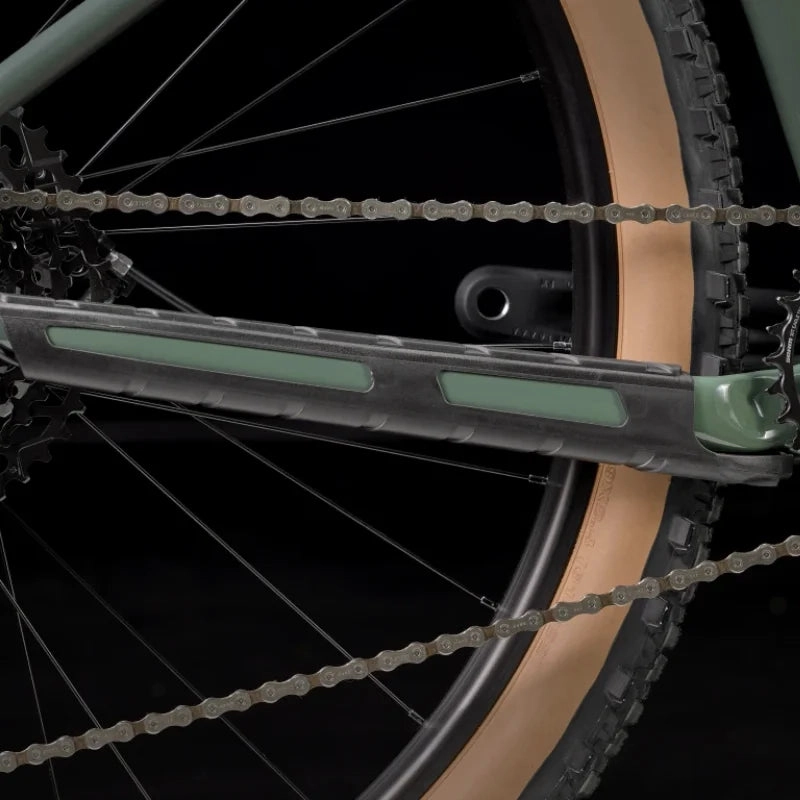

Trail-Optimized Frame: Crafted from lightweight aluminum, the frame boasts modern trail riding geometry and internal cable routing for a sleek appearance and protected cables.
Confidence-Inspiring Handling: The Marlin 7 features longer and slacker geometry, providing stability on steep trails and at higher speeds, empowering you to push your limits with confidence.

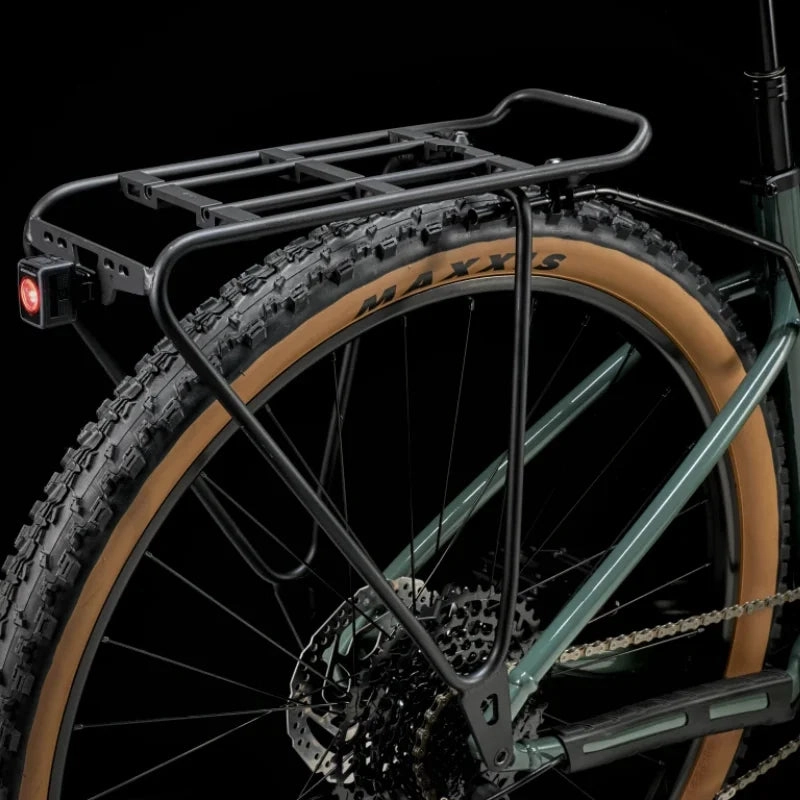

Versatile Design: Equipped with rack and mudguard mounts, the Marlin 7 is easily customizable for commuting or touring adventures, ensuring versatility beyond the trails.
Enhanced Accessibility: Internal routing facilitates the addition of a dropper post, allowing you to adjust saddle height on-the-fly for more confident descending on challenging terrain.
Optimized Fit: Designed for riders of all sizes, the Marlin Gen 3 offers improved accessibility with curved top tubes and lower standover heights in smaller sizes, ensuring a comfortable and secure riding experience for everyone.
Why Choose the Marlin 7:
- Serious trail capability with bigger tire clearance and internal dropper post routing.
- Upgraded RockShox fork for smooth rides over rough trails.
- Versatile design allows for easy accessorization for commuting or touring.
- Enhanced accessibility and optimized fit for riders of all sizes.
Experience the thrill of trail riding like never before with the Trek Marlin 7 Gen 3 - Keswick edition. Whether you're tackling challenging singletracks or exploring new trails, this bike is your ticket to endless adventure and unmatched performance.
?
Specification
Trek Marlin 7 Gen 3 Specification
FRAMESET
| ? Frame | Size: XXS , XS Size: S , M , ML , L , XL , XXL |
| Fork | Size: XXS Size: XS , S Size: M , ML , L , XL , XXL |
| Max compatible fork travel | 120mm, XXS: 80: 80mm |
WEIGHT
| Weight | M - 14.85 kg / 32.74 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | SRAM SX Eagle, 12-speed |
| Rear Derailleur | SRAM SX Eagle |
| Crank | Size: XXS Size: XS , S , M Size: ML , L , XL , XXL |
| Bottom Bracket | Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12-speed |
| Chain | SRAM SX Eagle, 12-speed |
| Max. Chainring Size | 1x: 34T, 2x: 36/22 |
WHEELS
| Hub Front | Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR |
| Hub Rear | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer Rear | 173x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |

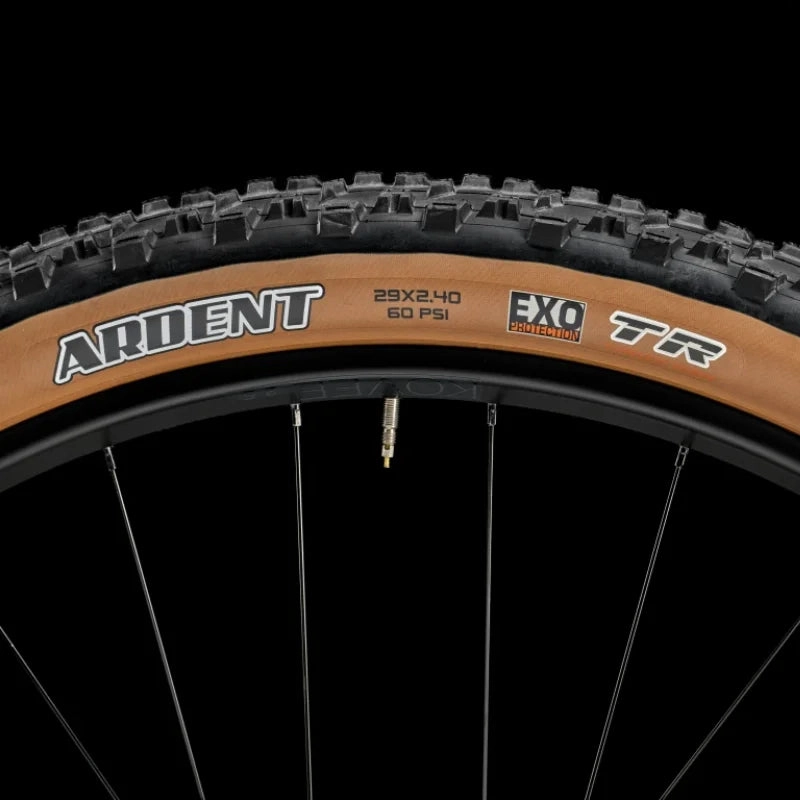

| Tyre | Size: XXS Size: XS , S Size: M , ML , L , XL , XXL |
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
COMPONENTS
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Size: XXS , XS , S Size: M Size: ML , L , XL , XXL |
| Handlebar | Size: XXS , XS Size: S Size: M , ML , L , XL , XXL |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Size: XXS , XS , S Size: M , ML , L Size: XL Size: XXL |
| Head set | Semi-integrated, 1-1/8" |

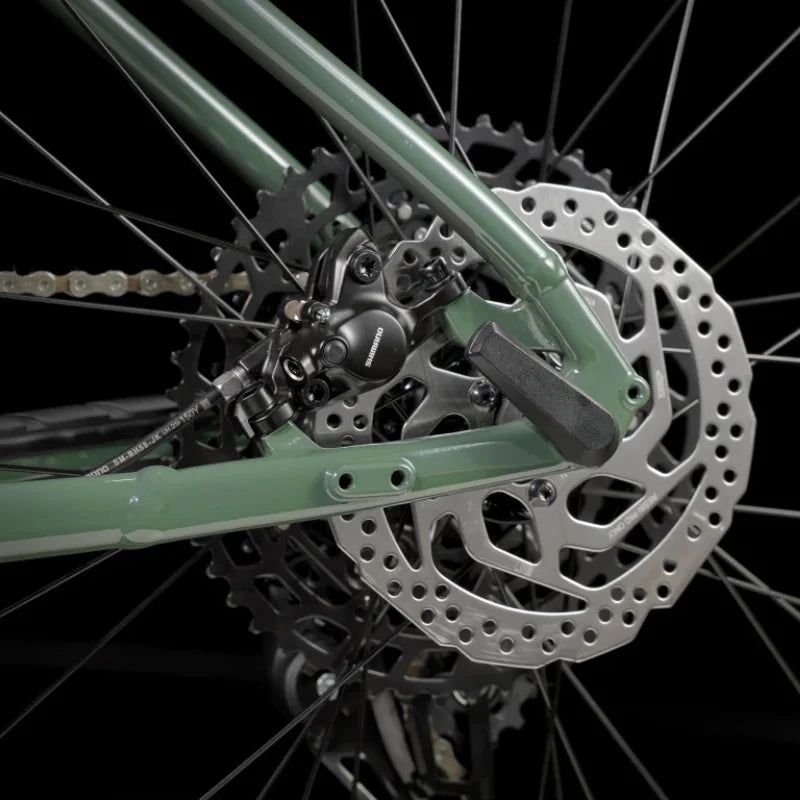

| Brake | Shimano MT200 hydraulic disc |
| Brake Rotor | Size: XXS , XS , S , M , ML , L , XL , XXL Size: M , ML , L , XL , XXL |
| Brake Set | Shimano MT200 hydraulic disc |
| Rotor Size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Sizing
Trek Marlin 7 Gen 3 Sizing
| Size | Rider Height | Inseam |
| 2XS | 135 - 145 cm (4'5" - 4'9") | 64 - 68 cm (25" - 27") |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" - 5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'11") | 81 - 86 cm (32" - 24") |
| L | 177 - 188 cm (5'10" - 6'2") | 84 - 89 cm (33" - 35") |
| XL | 188 - 195? cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| 2XL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Geometry
Trek Marlin 7 Gen 3 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 13.5" | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23.0" |
| Frame Size Letter | XXS | XS | S | M | ML | L | XL | XXL |
| Wheel Size | 26" | 27.5" | 27.5" | 29" | 29" | 29" | 29" | 29" |
| A - Seat Tube | 34.3 | 34.3 | 36.8 | 41.9 | 44.4 | 47 | 52.1 | 55.9 |
| B - Seat Tube Angle | 72.8?? | 73.5?? | 73.5?? | 71.9?? | 71.9?? | 71.9?? | 71.9?? | 71.9?? |
| Effective Seat Tube Angle | 72.8?? | 73.5?? | 73.5?? | 73.0?? | 73.0?? | 73.0?? | 73.0?? | 73.0?? |
| C - Head Tube Length | 9 | 9 | 9 | 9 | 9 | 10 | 12 | 12 |
| D - Head Angle | 68.6?? | 69.3?? | 69.3?? | 69.5?? | 69.5?? | 69.5?? | 69.5?? | 69.5?? |
| E - Effective Top Tube | 54.6 | 54.4 | 55.5 | 60.2 | 61.8 | 63.8 | 65.9 | 67.3 |
| F - Bottom Bracket Height | 29 | 29.2 | 30.2 | 31 | 31 | 31 | 31 | 31.1 |
| G - Bottom Bracket Drop | 5.2 | 5.8 | 5.8 | 4.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| H - Chainstay Length | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 | 43.8 |
| I - Offset | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 | 4.2 |
| J - Trail | 8.9 | 8.8 | 8.8 | 9.3 | 9.3 | 9.3 | 9.3 | 9.3 |
| K - Wheelbase | 105.2 | 104.9 | 106.6 | 110 | 111.6 | 113.7 | 115.9 | 117.3 |
| L - Standover | 65.7 | 65.9 | 68.6 | 74.8 | 75.8 | 75.7 | 76.9 | 80.4 |
| M - Frame Reach | 36.9 | 37.6 | 38.5 | 41.8 | 43.4 | 45.1 | 46.6 | 48 |
| N - Frame Stack | 57 | 56.5 | 57.4 | 60.2 | 60.2 | 61.1 | 63 | 63 |
?
