Trek Fuel EXe 9.8 GX AXS T-Type - Deep Smoke: Elevate Your Trail Experience

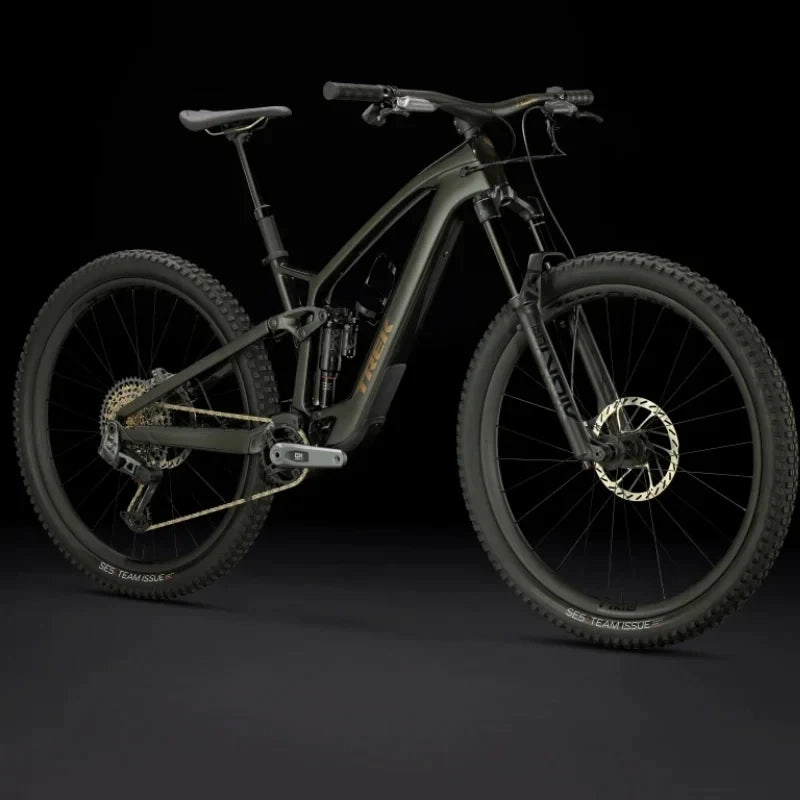

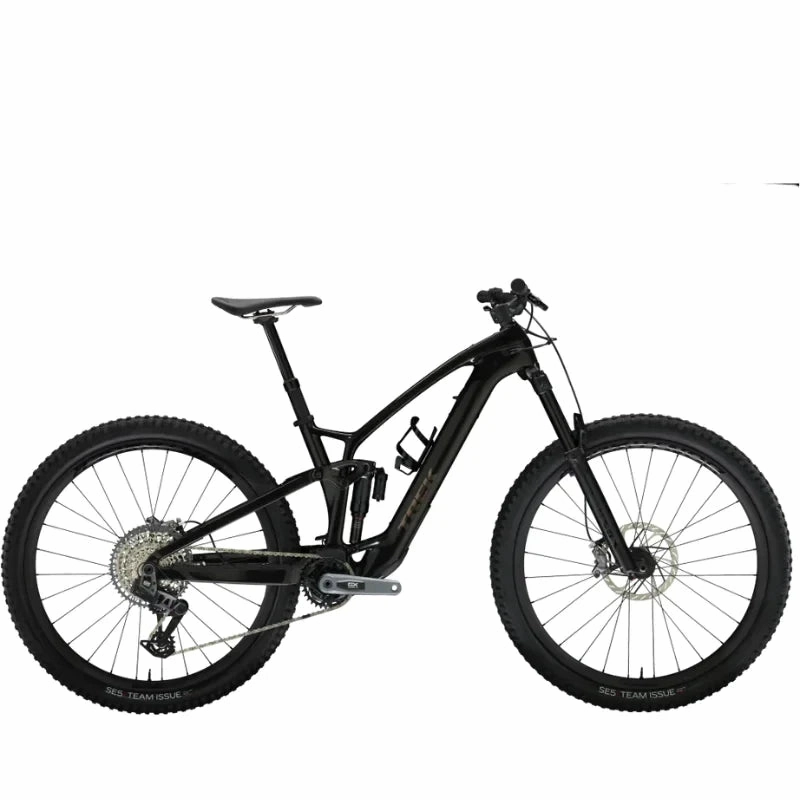

Introducing the Trek Fuel EXe 9.8 GX AXS, a trail-blazing e-mountain bike that redefines the boundaries of off-road adventure. Crafted with cutting-edge technology and a carbon fibre chassis, this bike delivers an exhilarating ride experience while providing a subtle electric boost when you need it most. With premium components, including a SRAM GX AXS transmission and RockShox suspension, the Fuel EXe 9.8 is ready to conquer any trail with confidence and style.
Perfect For: If you crave the thrill of shredding trails and conquering challenging terrain, the Fuel EXe 9.8 is your ultimate companion. Designed for riders who seek the performance of a traditional mountain bike combined with the added power of an electric motor, this bike is ideal for tackling technical ascents and exhilarating descents with ease.
Key Features:
- Carbon Fibre Chassis: Built on an OCLV Mountain Carbon frame, the Fuel EXe 9.8 offers a lightweight, stiff, and responsive platform that ensures agility and control on the trail.

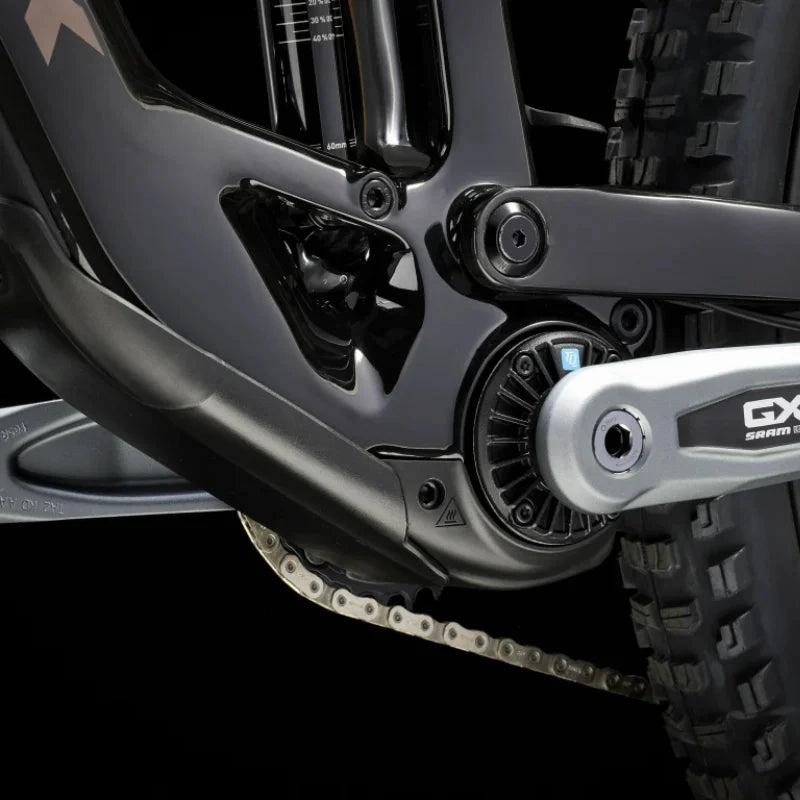

- Revolutionary Motor Technology: Experience the power and efficiency of the TQ harmonic pin ring transmission, seamlessly integrated with a fully encased 360 Wh battery. Enjoy a quiet and natural ride feel, with adaptive assist that enhances your pedal strokes without compromising the mountain biking experience.
- Premium Suspension: Equipped with a 150mm RockShox Lyrik Select fork and 140mm RockShox Super Deluxe Select rear suspension, this bike absorbs bumps and rough terrain with ease, providing a smooth and stable ride on even the most challenging trails.
- SRAM GX AXS Transmission: Enjoy crisp and precise shifting performance with SRAM's wireless GX AXS transmission, ensuring smooth gear changes even under load. Say goodbye to cluttered cockpit controls, as the minimalist design keeps your focus on the trail ahead.
Why You'll Be Obsessed:
- Trail-Optimized Performance: The Fuel EXe 9.8 delivers the agility and handling of your favorite trail bike, with the added advantage of adaptive pedal assistance on climbs, providing the perfect balance of power and control.
- Advanced Motor Technology: Experience the quiet and efficient performance of the TQ transmission, designed to seamlessly integrate with your riding style for a natural and immersive trail experience.

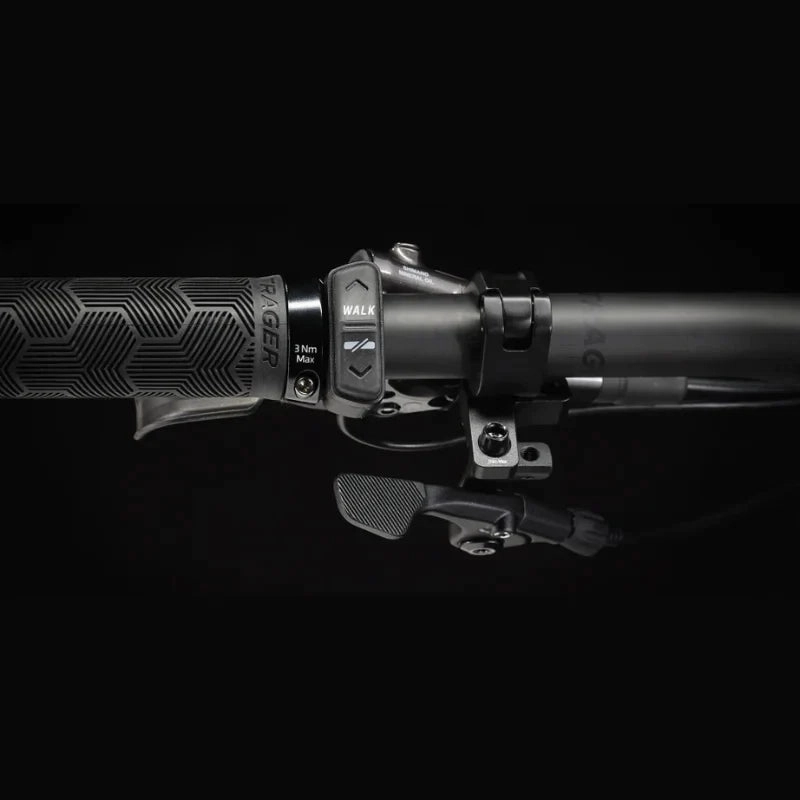

- Sleek and Intuitive Design: From the smart charge port to the integrated display and discreet controls, every aspect of the Fuel EXe 9.8 is designed to enhance your riding experience while maintaining the aesthetics of a traditional mountain bike.

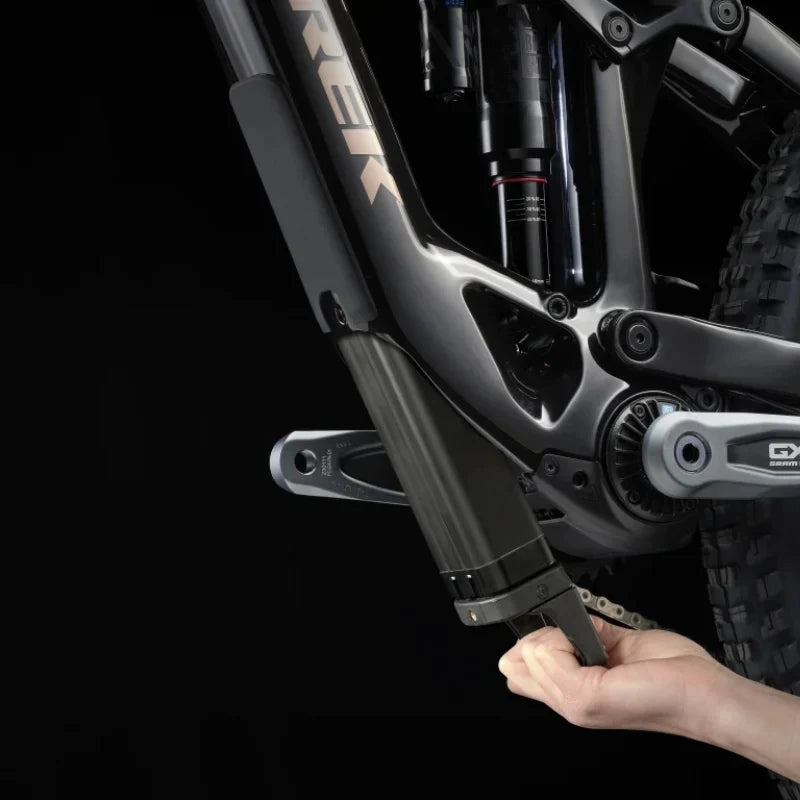

- Expandable Battery Options: With a simple Allen key, you can remove the battery for easy charging or upgrade to a range extender for extended ride adventures, ensuring you never run out of fuel on the trails.
Specification
Trek Fuel EXe 9.8 Specification
FRAMESET

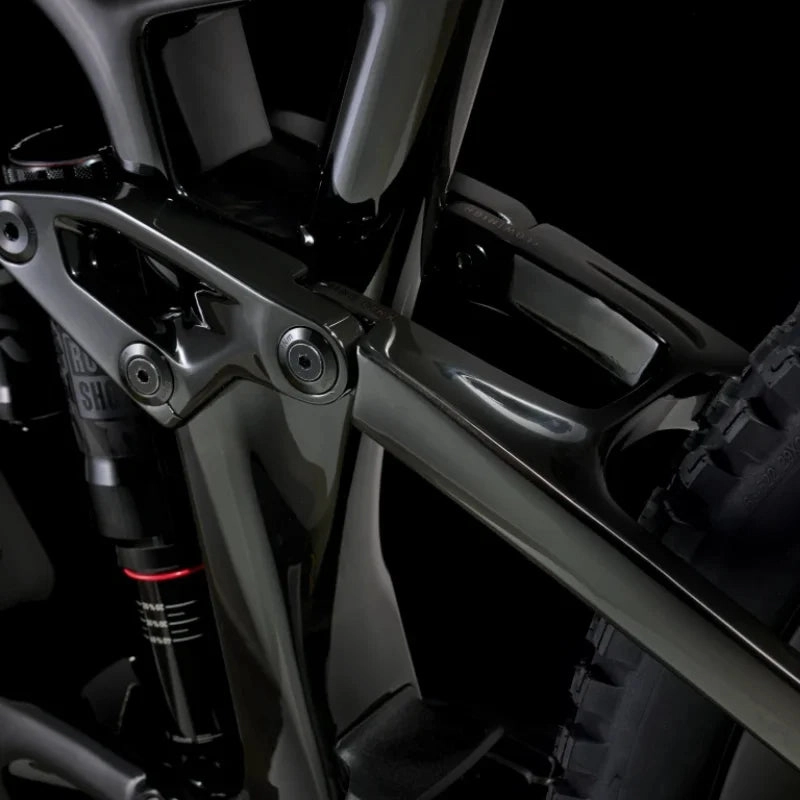

| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | RockShox Lyrik Select , DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |

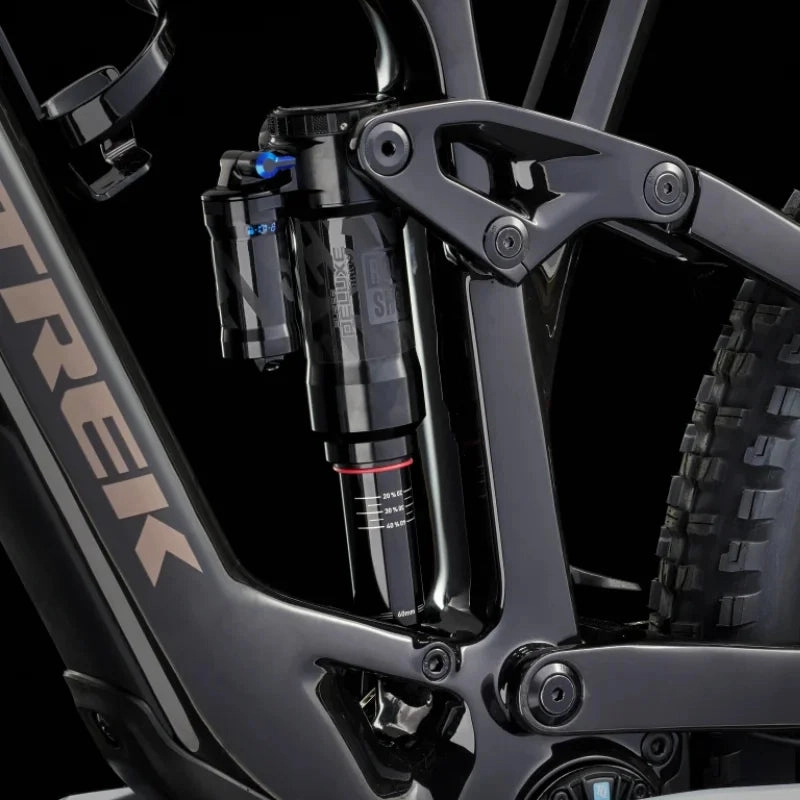

| Shock | RockShox Super Deluxe Select RT, 205mm x 60mm |
WHEELS
| Wheel Front | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Wheel Rear | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Tyre Part | Bontrager TLR sealant, 180 ml/ 6 oz. |
| Rim Strip | Bontrager TLR |
E-SYSTEM
| Battery | TQ 360Wh |

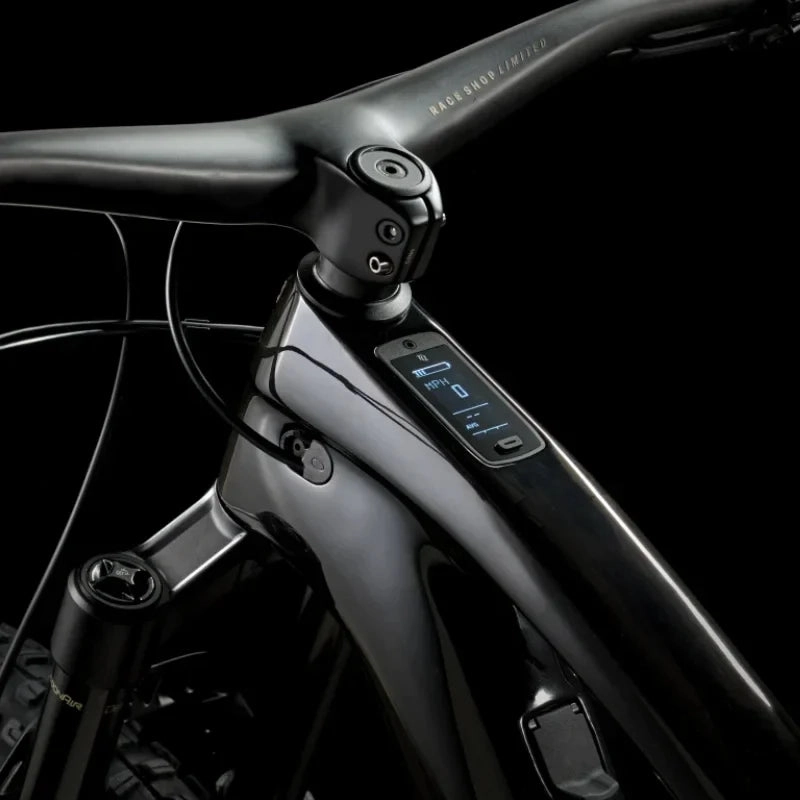

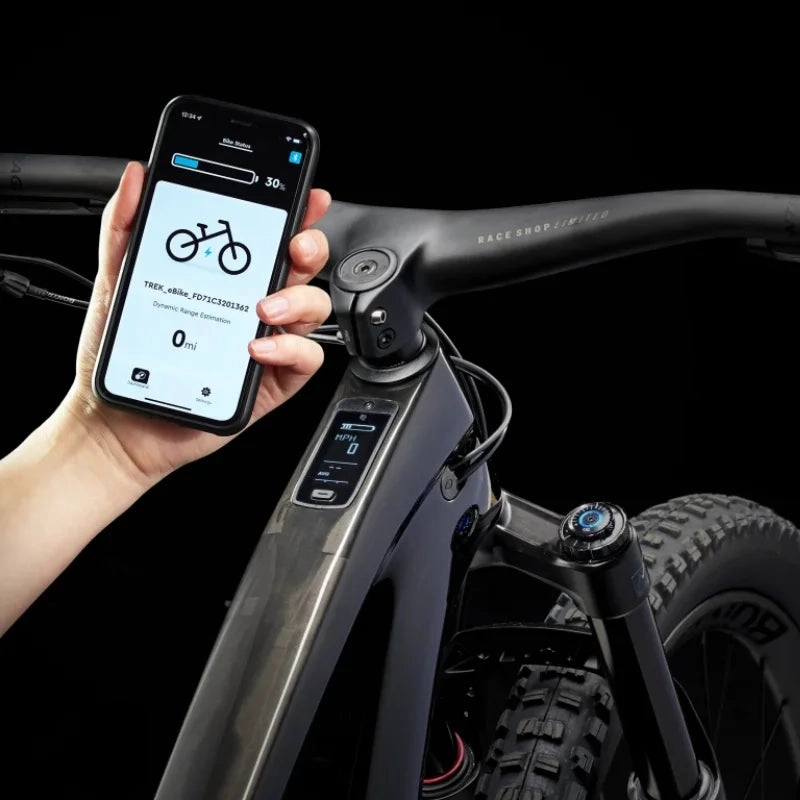

| Computer | TQ LED display with Bluetooth & ANT connectivity |
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
DRIVETRAIN
| Shifter | SRAM AXS POD |
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX, 165 mm length |
| Chainring | SRAM T-Type, 32T, alloy |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
COMPONENTS
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: S Size: M Size: L Size: XL |
| Handlebar/stem | Size: S Size: M, L, XL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | SRAM CODE Bronze 4-piston hydraulic disc Trek Fuel EXe 9.9 XX AXS T-Type Sizing |

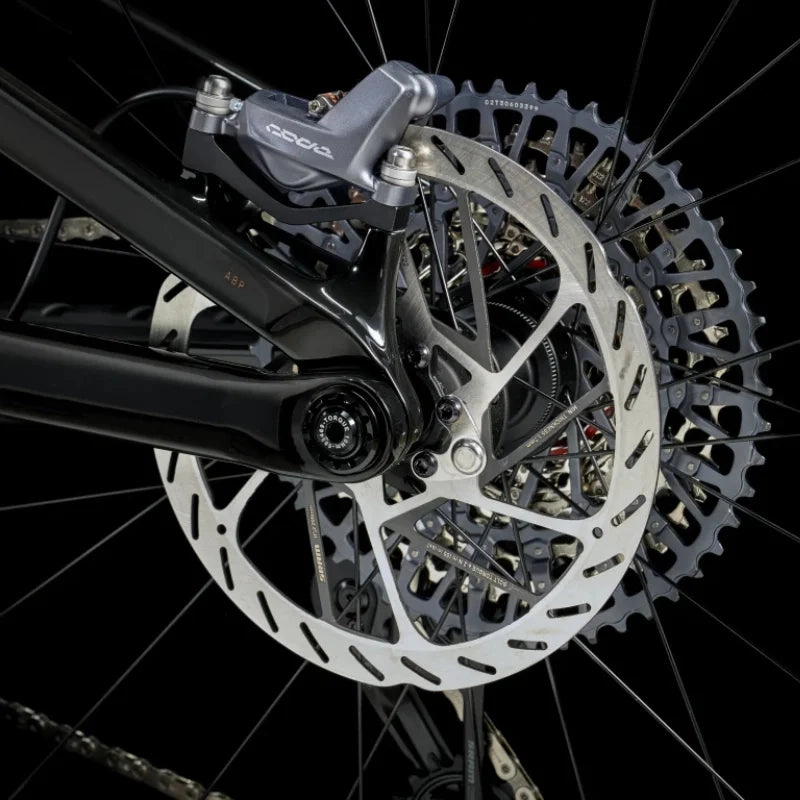

| Brake Rotor | SRAM 6-bolt, 200 mm |
Sizing
Trek Fuel EXe 9.8 Sizing
| Size | Rider Height | Inseam |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Geometry
Trek Fuel EXe 9.8 Geometry
All measurements are provided in cm unless otherwise stated.
Sizing Table
| Frame Size Number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
| Frame Size Letter | S | S | M | M | L | L | XL | XL |
| Geometry Position | High | Low | High | Low | High | Low | High | Low |
| Wheel Size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Seat Tube | 38.0 | 38.0 | 41.0 | 41.0 | 43.5 | 43.5 | 47.0 | 47.0 |
| Seat Tube Angle | 69.3 | 68.8 | 69.8 | 69.3 | 70.8 | 70.3 | 71.3 | 70.8 |
| Effective Seat Tube Angle | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 |
| Head Tube Length | 10.0 | 10.0 | 11.0 | 11.0 | 11.0 | 11.0 | 12.0 | 12.0 |
| Head Angle | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 |
| Effective Top Tube | 57.2 | 57.3 | 59.9 | 60.0 | 62.9 | 63.0 | 65.6 | 65.8 |
| Bottom Bracket Height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
| Bottom Bracket Drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
| Chainstay Length | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0c |
| Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
| Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
| Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
| Frame Reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.3 | 48.3 | 51.4 | 50.8 |
| Frame Stack | 61.6 | 62.0 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
