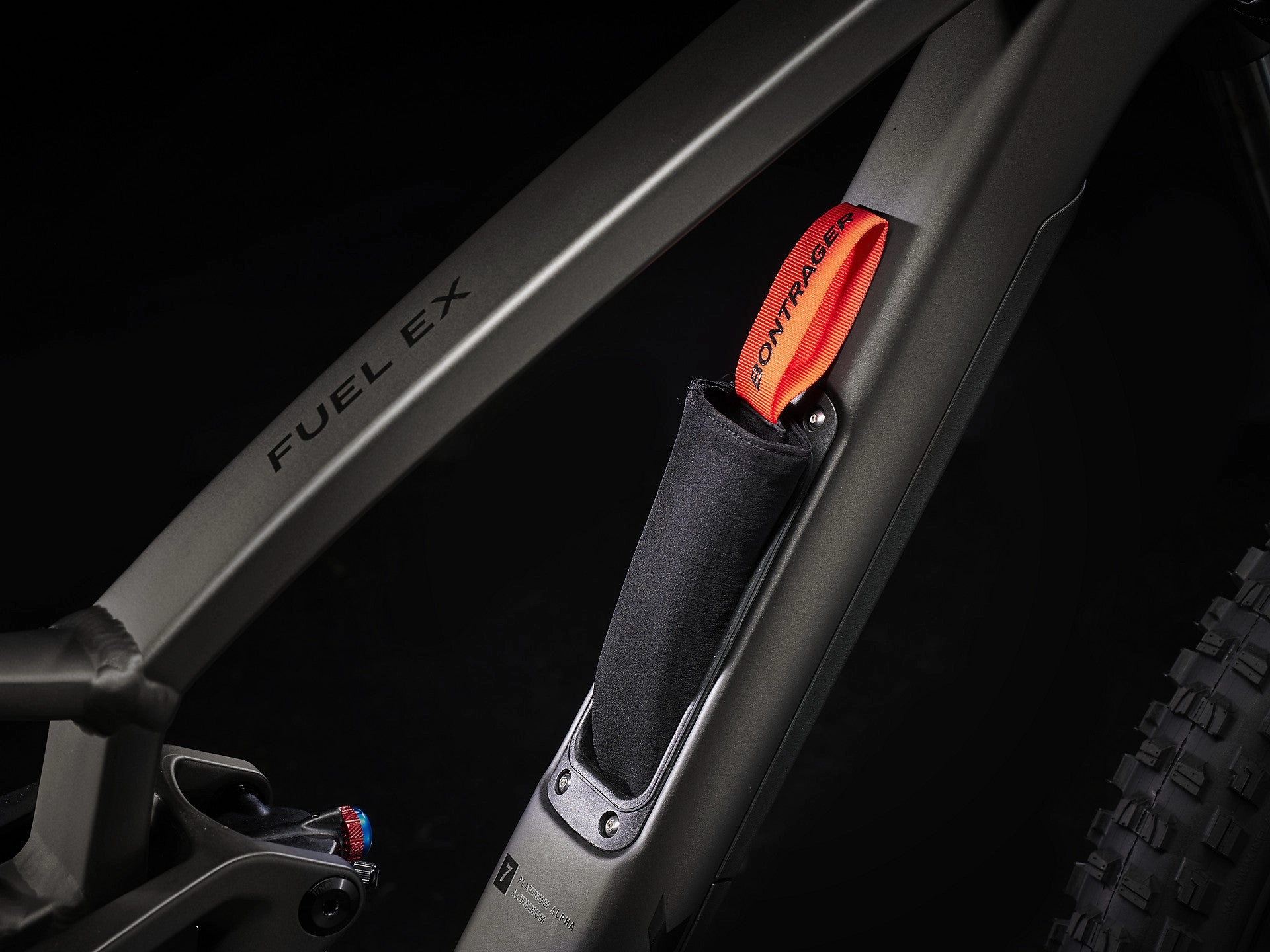

The Fuel EX 7 is a do-anything trail machine evolved to eat up singletrack. Upgraded 150 mm front and 140 mm rear suspension smooth out rough and technical descents, while a lightweight aluminium frame keeps things lively on the climbs. New in-frame storage and adjustable geometry give you all the perks that come with the carbon model, without the price tag. Tubeless wheels, and reliable Shimano SLX 1x12 drivetrain round-out this build for ultimate trail fun.
It's right for you if...
You're looking for a ride-anything full-suspension with stepped-up components, like a supple RockShox Gold RL fork that gobbles up rock gardens for fun and flowy descents.
The tech you get
A lightweight alloy full-suspension frame with 150 mm RockShox Gold RL fork with DebonAir spring for small bump compliance and a FOX Performance rear shock. Plus, a 1x12 Shimano SLX drivetrain and wide Bontrager wheels with tubeless tyres and a dropper post. New adjustable geometry that lets you take control of your set-up.
The final word
For the all-mountain rider, the Fuel EX 7 takes the cake. Its capable geometry is ready to rally the mountain, and upgraded suspension and drivetrain keep you riding all day.
The Walkthrough
Why you'll love it
- You get all-mountain power with upgraded components that are ready to progress with you on the trail
- We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5 wheels, S frames get to choose between 27.5 or 29, and sizes M and up get 29 wheels
- The dropper post gets your saddle out of the way when you're ripping corners and smashing descents.
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
- Guided internal routing, universal derailleur hanger, improved hardware and a threaded BB make maintenance a breeze
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Shock | Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm |
| Wheel front | |
|---|---|
| *Wheel rear | Size:XS , S |
| Size:S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle | |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| *Hub rear | Size:XS , S Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Size:XS , S Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle | |
| Skewer rear | |
| Rim | Bontrager Line Comp 30, Tubeless-Ready |
| *Tyre | Size:XS , S |
| Size:S , M , ML , L , XL , XXL | |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip |
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12 speed |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size:XS , S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
| Size:M , ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length | |
| Size:L , XL , XXL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length | |
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | |
| *Stem | Size:XS , S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 35 mm length |
| Size:M , ML , L , XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length | |
| Head set | |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| *Brake rotor | Size:XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 180 mm |
| Size:XS , S , M , ML , L , XL , XXL Shimano RT66, 6-bolt, 203 mm |
| Bag |
|---|
| Weight | M 15.97 kg/35.21 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
