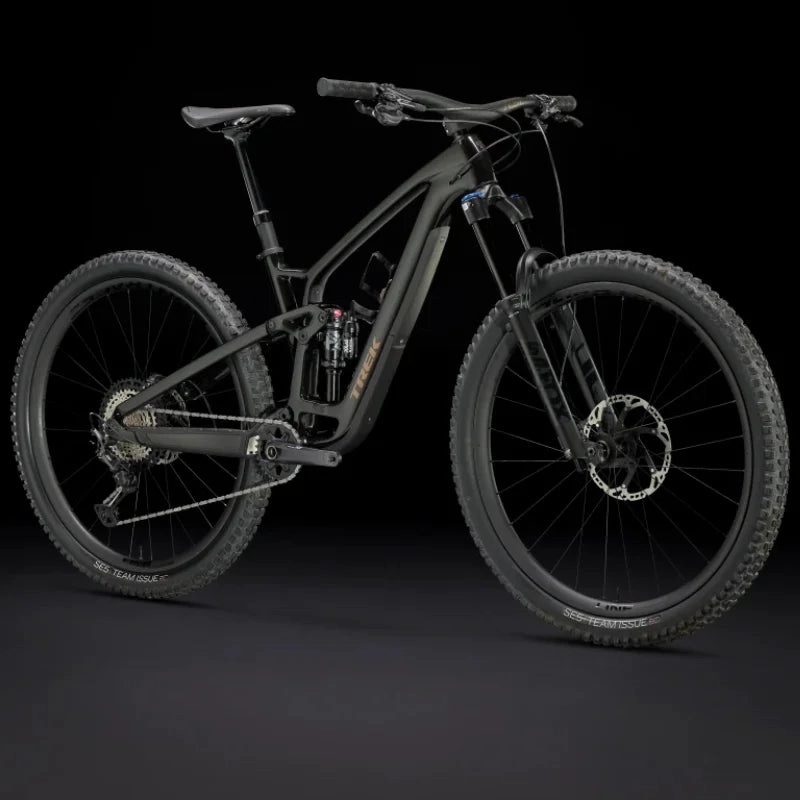

Trail Riding Evolution: Fuel EX 9.8 XT Gen 6
The Fuel EX 9.8 XT stands as a testament to playful capability and meticulous component selection, harmoniously blended with a light, full carbon frame that strikes the perfect balance between price and performance. Outfitted with a plush 150 mm front and 140 mm rear FOX Performance suspension package, it invites you to gracefully sail over the gnarliest of terrains, with carbon wheels that ensure pinpoint accuracy through the most challenging trails. The precision of a Shimano XT drivetrain rounds out the setup, providing seamless shifting for powerful descents and much-needed relief on relentless climbs.
Perfect Match for Trail Enthusiasts
If your heart races for long, flowy, and technical descents, and the thought of pedaling back to the top fuels your fire, the Fuel EX 9.8 XT is your ideal companion. Experience the undeniable benefits of a vibration-damping carbon frame and wheels, complemented by a suspension system that makes the rough seem smooth, offering a ride thats equally thrilling and efficient.
Technology that Leads
Equipped with a lightweight and stiff carbon frame paired with a comprehensive FOX Performance suspension setup, the Fuel EX 9.8 XT transforms rugged trails into your playground. Carbon wheels enhance the bikes responsiveness and precision, while the Shimano XT drivetrain ensures every shift is on point. Adjustable geometry and in-frame storage solutions reflect a thoughtful design tailored to meet every riders needs.
The Essence of Trail Riding
The Fuel EX 9.8 embodies the evolution of trail riding, featuring extended front-end geometry for confidently navigating steep descents and a steeper seat tube for optimized climbing posture. It's a bike that proudly showcases the components trail riders dream of upgraded suspension, carbon wheels, and a reliable Shimano XT drivetrain all chosen to elevate your ride.
Why It Captivates
The Fuel EX Gen 6 offers a blend of travel adjustability, stable handling, and a durable frame equipped with internal storage, making it a master of all trail conditions. An expanded size range ensures an ideal fit for all riders, complemented by wheel size options tailored to maximize control and performance. Ready to face any terrain with its lightweight carbon wheels and offering a suite of adjustable geometry settings, this bike is your gateway to a trail riding revolution, promising endless adventures and the ultimate riding experience.
Fuel EX 9.8 XT Gen 6 Specification
| Description | |

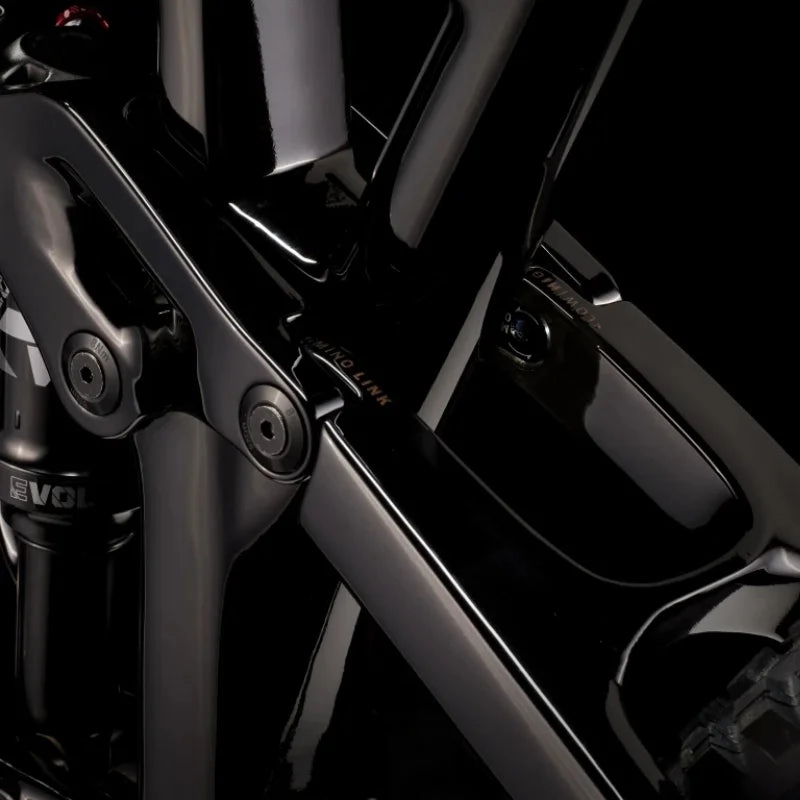

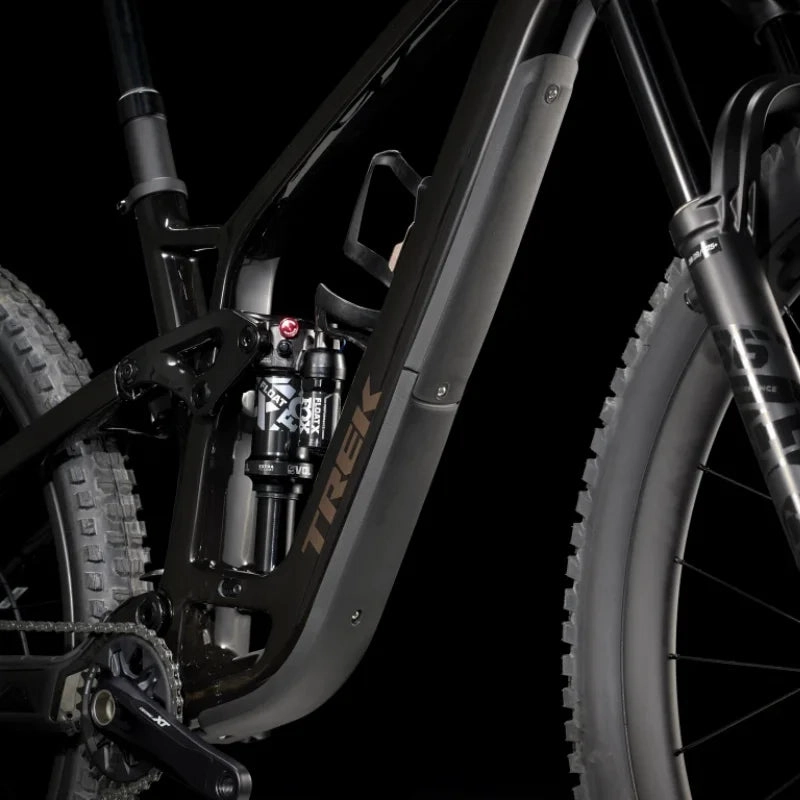

| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

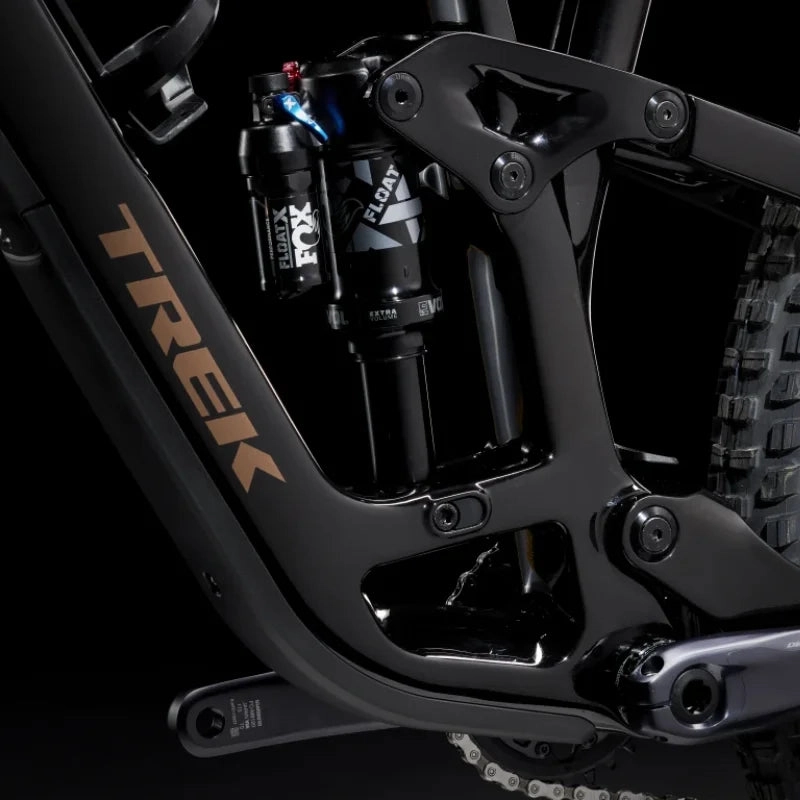

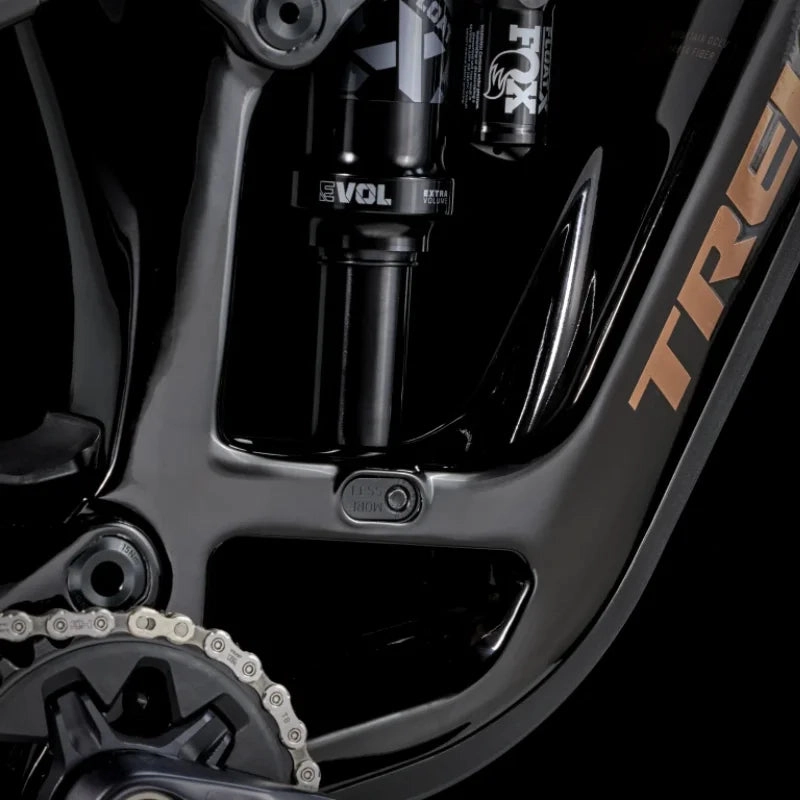

| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Wheel Front | Size: XS , S Size: S , M , ML , L , XL |
| Wheel Rear | Size: XS , S Size: S , M , ML , L , XL |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Size: XS , S
|
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano XT M8100, 12-speed |
| Cassette | Shimano Dura-Ace R9200, 11-30, 12-speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12-speed |
| Max. Charging Size | 1x: 50T, 2x: 54/40 |
| Wheel Front | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru-axle |
| Wheel Rear | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru-axle |
| Skewer Front | Bontrager Switch thru-axle, removable lever |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R4 320, 700x25 mm |
| Rim Strip | Bontrager TLR |
| Shifter | SRAM AXS POD |

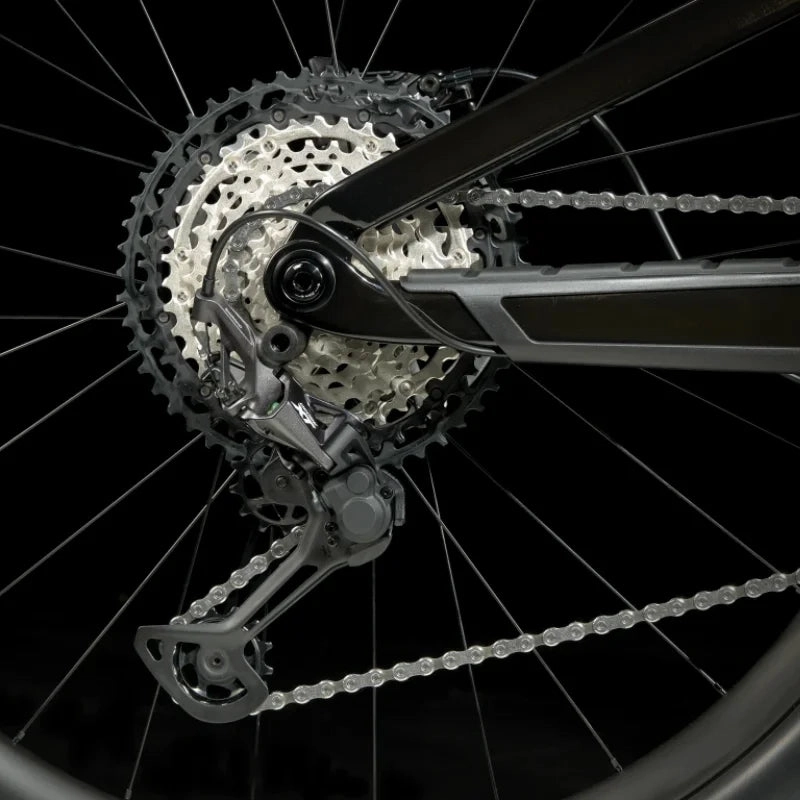

| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano XT M8120, 30T, 55 mm chain line, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L Size: XL |
| Handlebar/stem (integrated) | Size: XS , S Size: M , ML , L , XL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

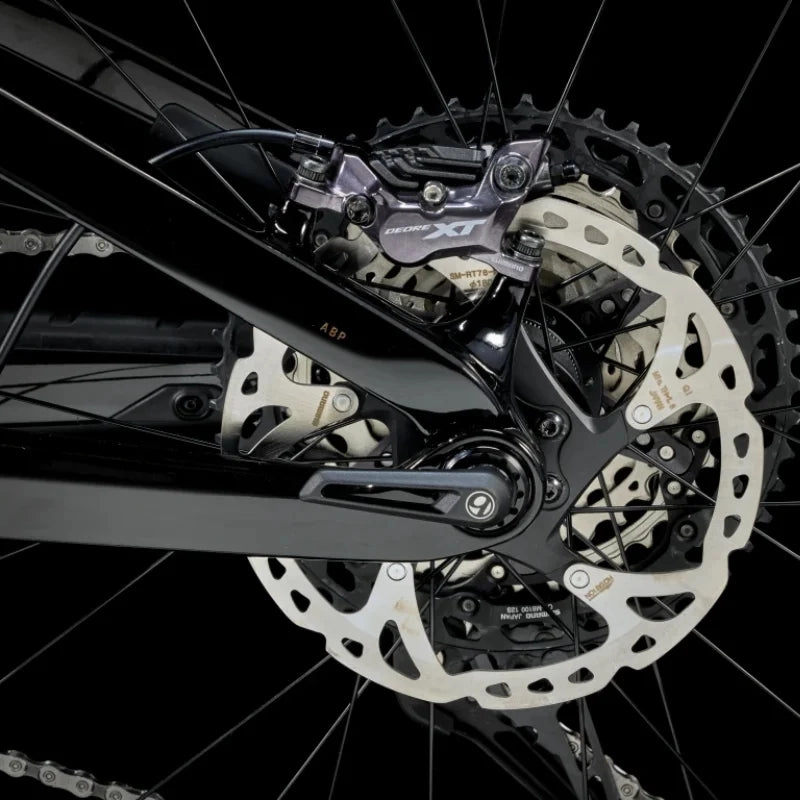

| Brake | Shimano XT M8120 4-piston hydraulic disc |
| Brake Rotor | Size: XS , S , M , ML , L , XL Size: M , ML , L , XL |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

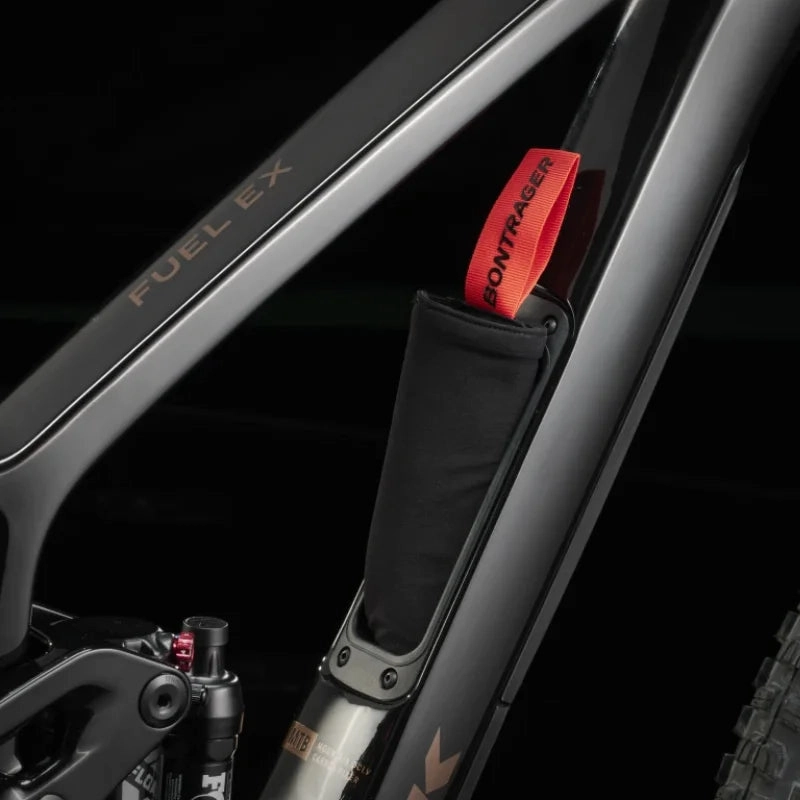

| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M - 14.30 kg / 31.53 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Fuel EX 9.8 XT Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Fuel EX 9.8 XT Gen 6 Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
