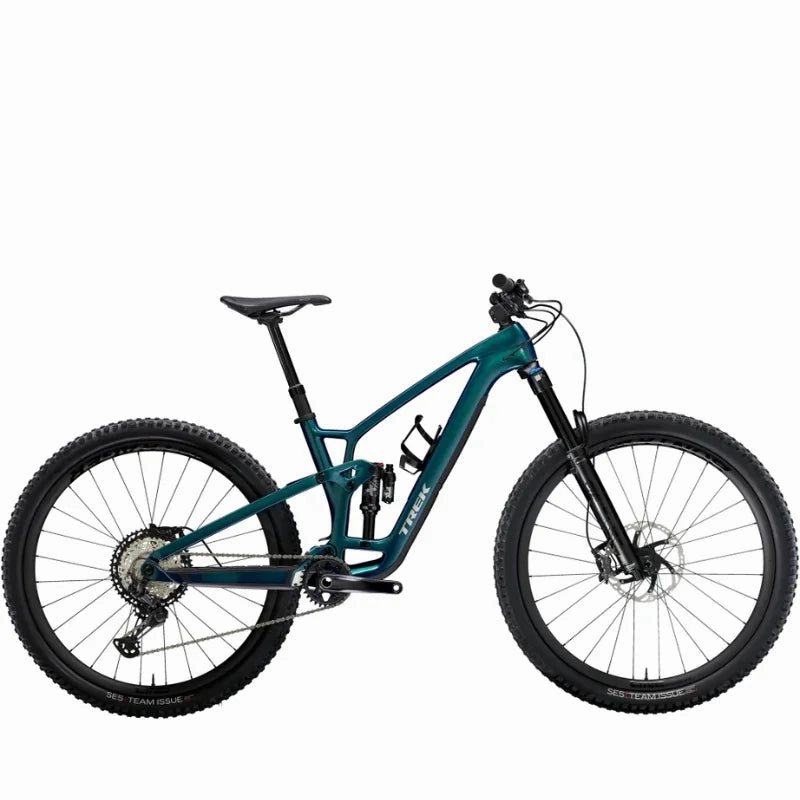

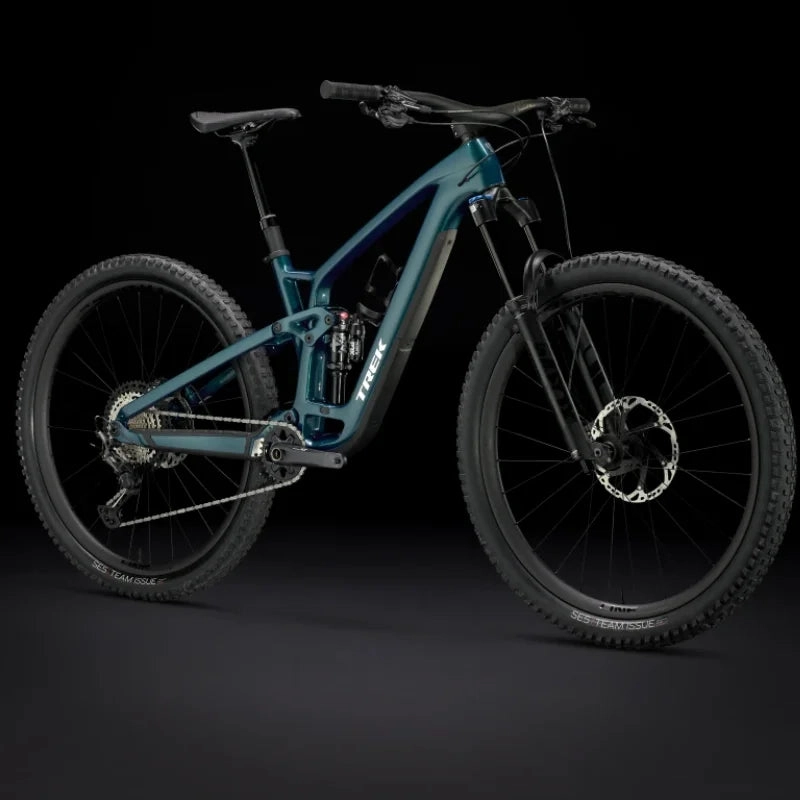

Unleash Your Trail Riding Potential with the Trek Fuel EX 9.8 XT Gen 6 in Dark Acquatic
The Trek Fuel EX 9.8 XT is a trail-blazing machine designed to conquer long, technical descents while maintaining the agility to pedal back up for more. Crafted from lightweight full carbon and outfitted with top-tier components like a FOX Performance suspension package and Shimano XT drivetrain, this bike strikes the perfect balance between performance and value.
Tailored for Trail Dominance: If you crave endless laps on flowy trails and demanding descents, the Fuel EX 9.8 XT is your ultimate companion. Its carbon frame, coupled with 150mm of front and 140mm of rear FOX Performance suspension, ensures smooth navigation through challenging terrain, while Shimano XT components deliver precision and power in every shift.
Premium Components, Perfect Balance: With a carbon frame and wheels, the Fuel EX 9.8 XT achieves the ideal balance of weight savings and durability. The Shimano XT drivetrain offers crisp shifting, while the FOX Performance suspension keeps you floating over rocks and roots with ease. Adjustable geometry and in-frame storage further enhance your riding experience.
The Epitome of Trail Evolution: Years of trail riding expertise culminate in the Fuel EX 9.8, featuring longer front-end geometry for tackling steep descents and a steeper seat tube angle for efficient climbing. Its cherry-picked components, including upgraded suspension and carbon wheels, ensure you're always ready for the next challenge.
Why You'll Embrace the Fuel EX 9.8 XT:
- Versatile Performance: Enjoy 140/150mm of travel with enhanced adjustability and stability, thanks to the latest Fuel EX Gen 6 design.
- Tailored Fit: With an expanded size range and optimized wheel sizes for each frame, you'll experience a perfect fit tailored to your riding style.
- Carbon Confidence: Conquer rough terrain with lightweight carbon wheels that maintain control and stability, even on the rowdiest trails.
- Streamlined Storage: In-frame storage ensures you can bring along all your essentials without sacrificing sleek aesthetics.

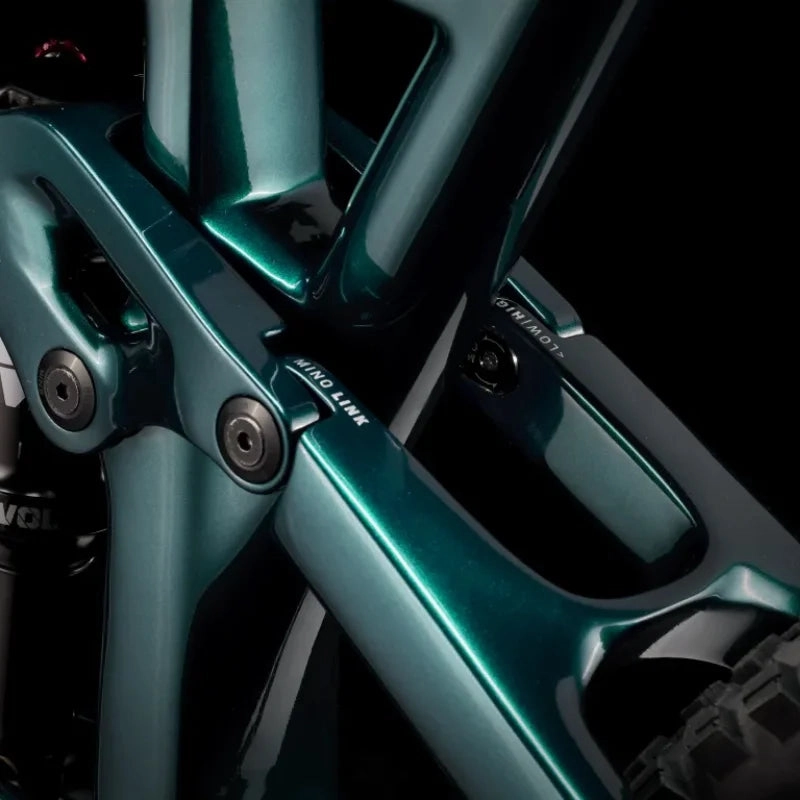

- Customizable Geometry: Choose from six different geometry configurations with the adjustable angle headset and Mino Link, allowing you to fine-tune your ride to perfection.
Conclusion: Elevate your trail riding experience with the Trek Fuel EX 9.8 XT Gen 6 in Dark Acquatic. With its blend of lightweight carbon construction, premium components, and innovative design features, this bike is ready to take on any trail with confidence and agility. Dominate descents, conquer climbs, and push your limits with the Fuel EX 9.8 XT!
Fuel EX 9.8 XT Gen 6 Specification
| Description | |
| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |
| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Wheel Front | Size: XS , S Size: S , M , ML , L , XL |
| Wheel Rear | Size: XS , S Size: S , M , ML , L , XL |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Size: XS , S
|
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano XT M8100, 12-speed |
| Cassette | Shimano Dura-Ace R9200, 11-30, 12-speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12-speed |
| Max. Charging Size | 1x: 50T, 2x: 54/40 |
| Wheel Front | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru-axle |
| Wheel Rear | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru-axle |
| Skewer Front | Bontrager Switch thru-axle, removable lever |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R4 320, 700x25 mm |
| Rim Strip | Bontrager TLR |
| Shifter | SRAM AXS POD |

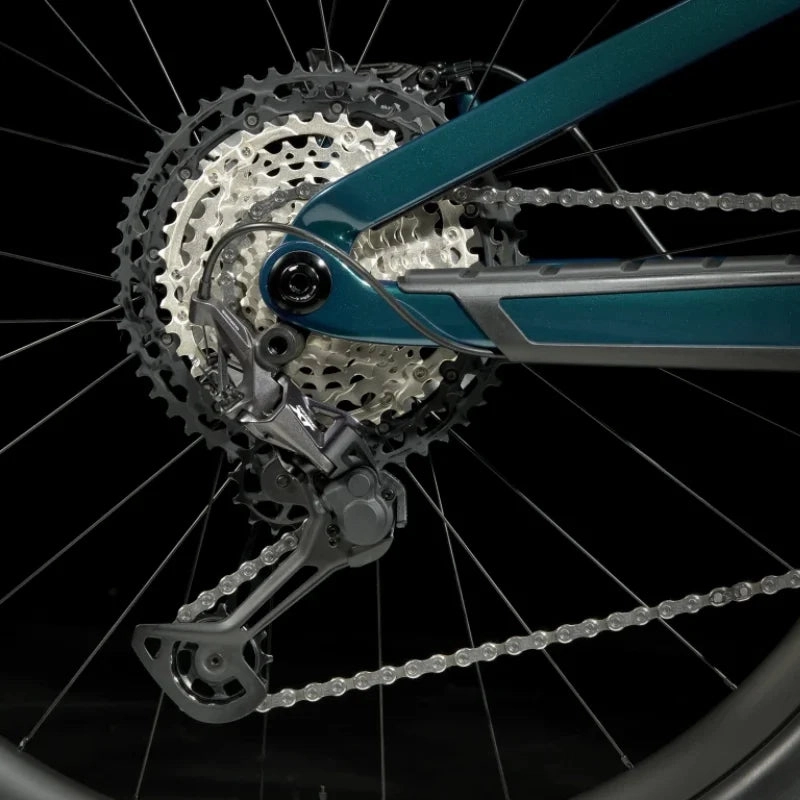

| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano XT M8120, 30T, 55 mm chain line, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L Size: XL |
| Handlebar/stem (integrated) | Size: XS , S Size: M , ML , L , XL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

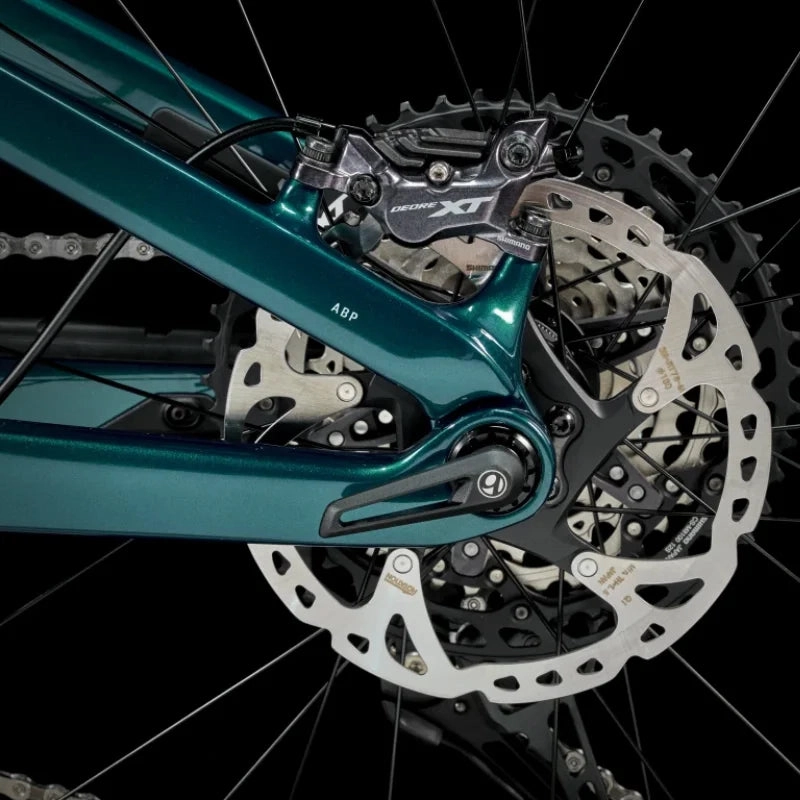

| Brake | Shimano XT M8120 4-piston hydraulic disc |
| Brake Rotor | Size: XS , S , M , ML , L , XL Size: M , ML , L , XL |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M - 14.30 kg / 31.53 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Fuel EX 9.8 XT Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Fuel EX 9.8 XT Gen 6 Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
