The REVO line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the REVO is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.

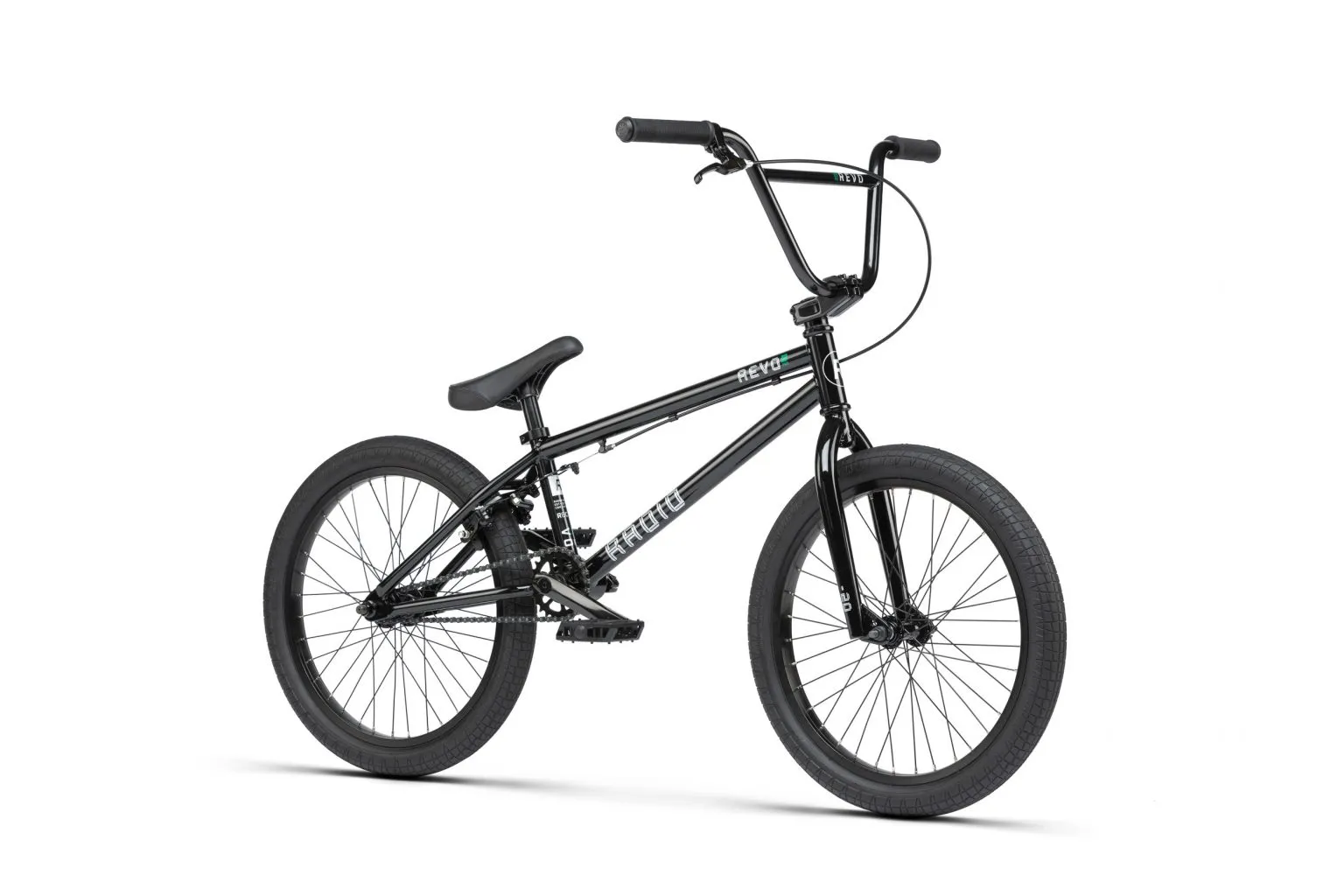

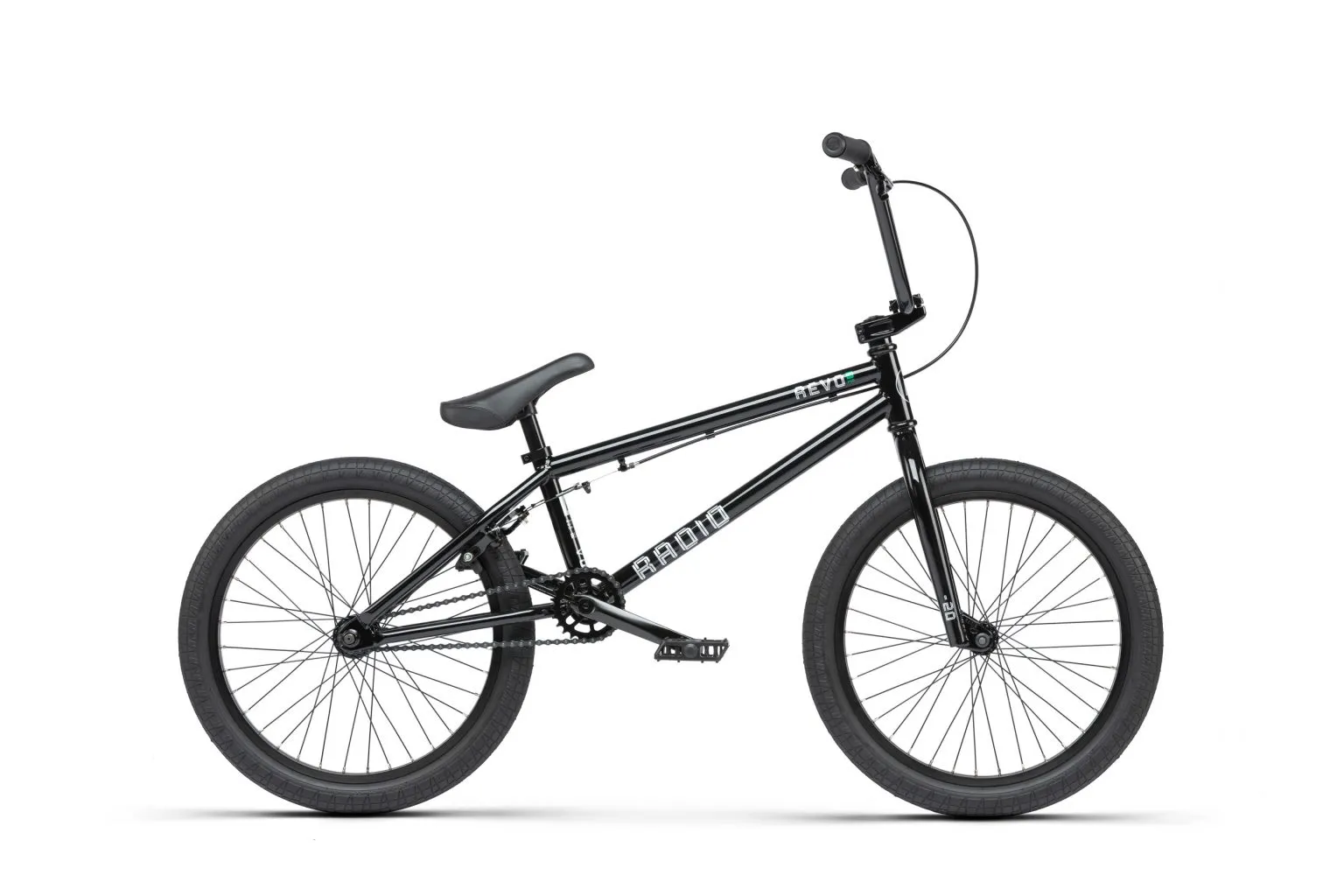

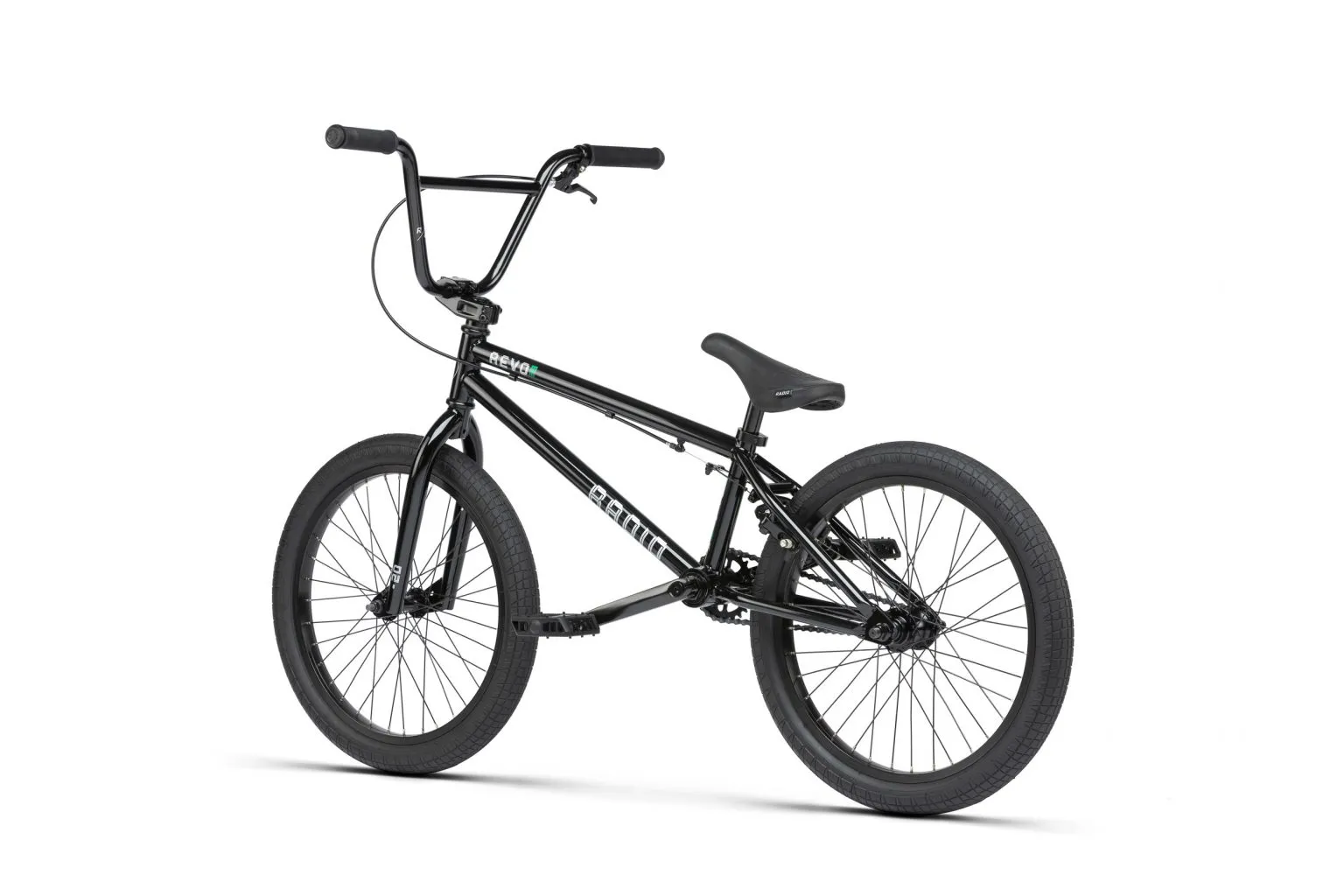

The Revo 20 PRO allows you to get your first taste of the BMX world on a solid and well-designed bike. Building on the Revo 20, the Revo PRO adds a 3pc crank upgrade making this machine even more dialled than ever before.
Specifications:
- Frame: Radio REVO PRO 20 frame, full 1020 hi-ten
- Fork: Radio AM 20 fork, 1020 hi-ten, crmo steerer

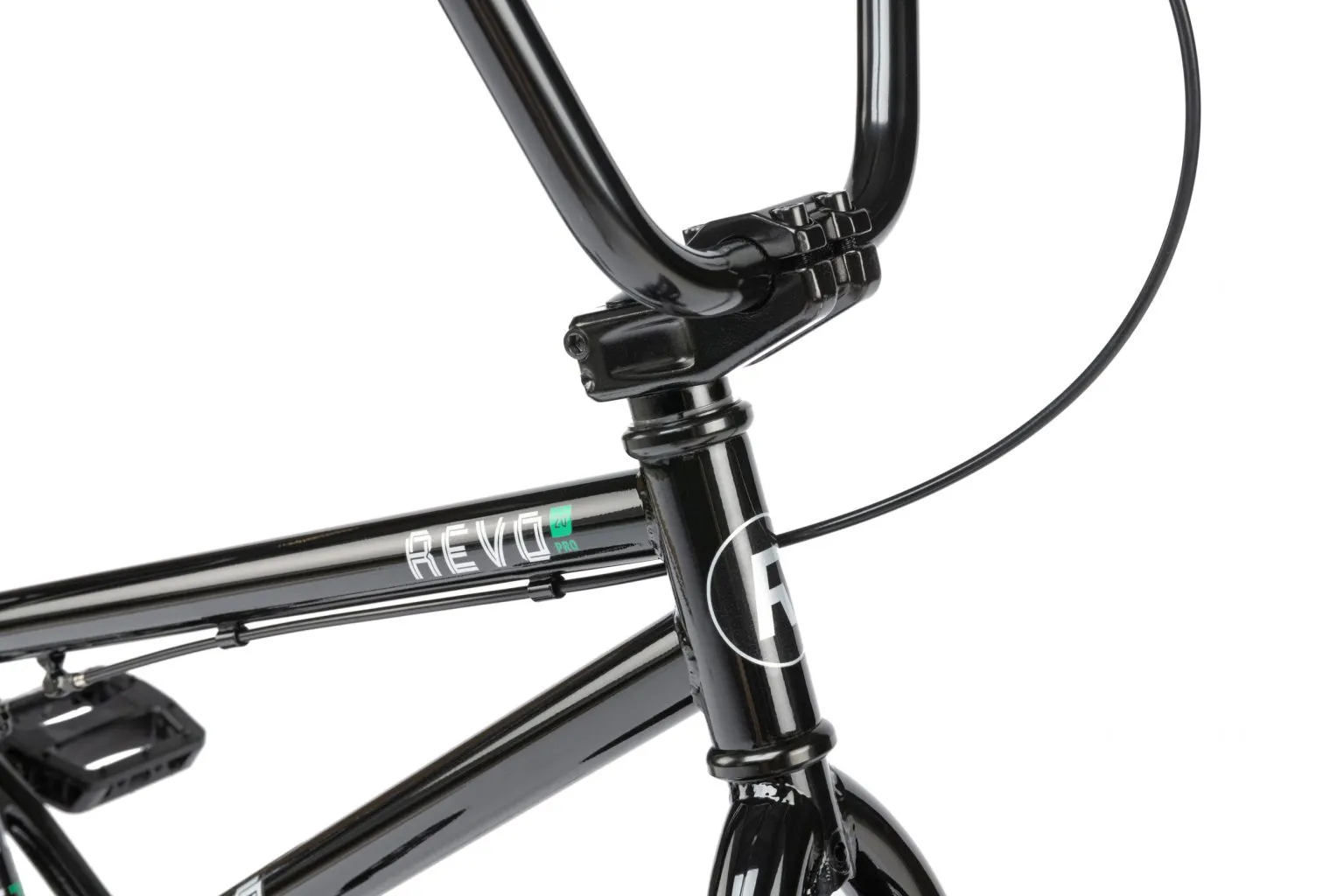

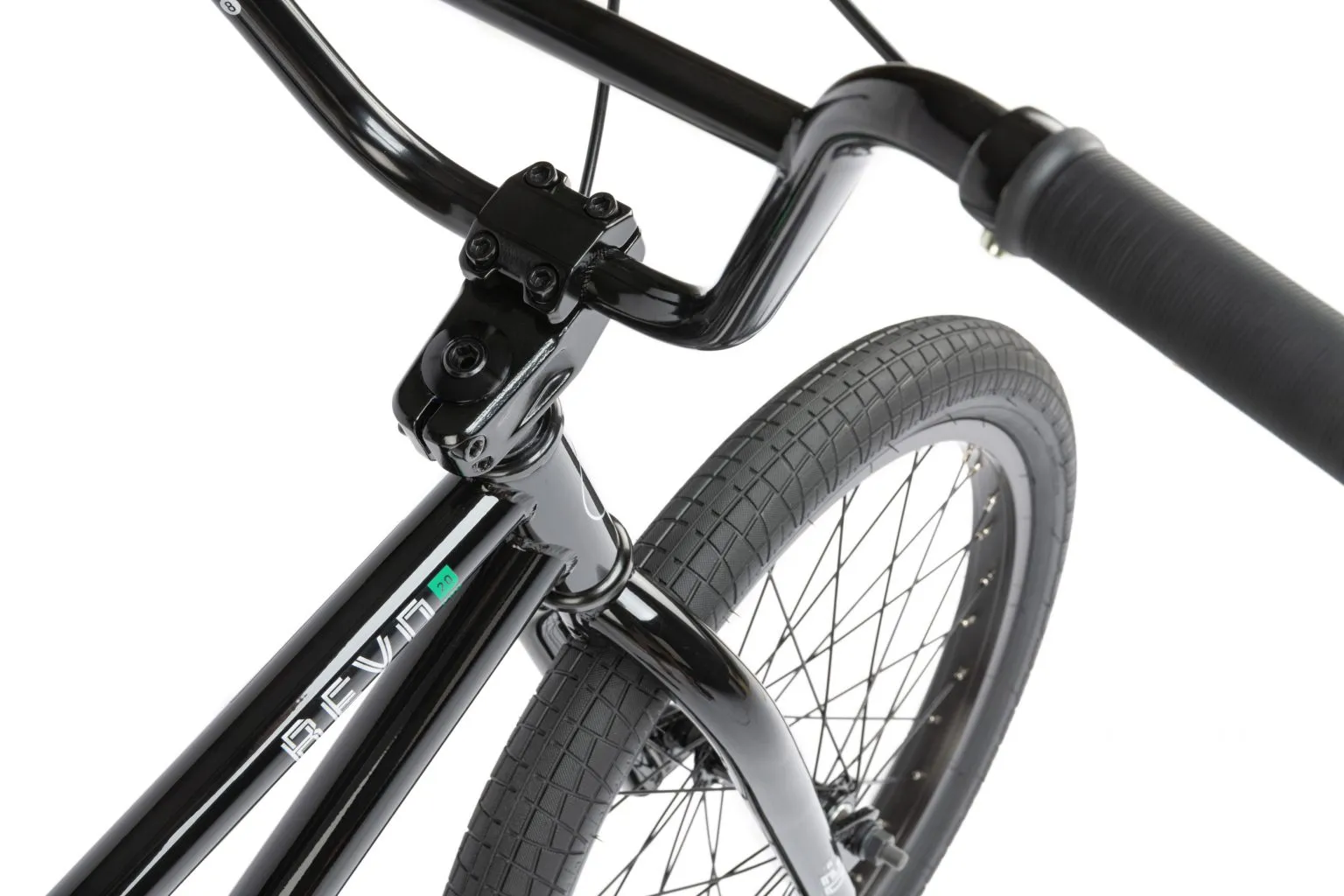

- Handlebar: Radio REVO PRO 20 bar, hi-ten
- Grips: Radio AM Grips, Flangeless , 150mm
- Stem: Salt AM Topload Stem, 50mm Reach
- Headset: FSA A-head-set loose ball
- Gyro: Holes for Removable Tabs
- Brake Lever: Radio AM Alloy Brake Lever
- Brake: Radio AM Alloy U-Brake Rear

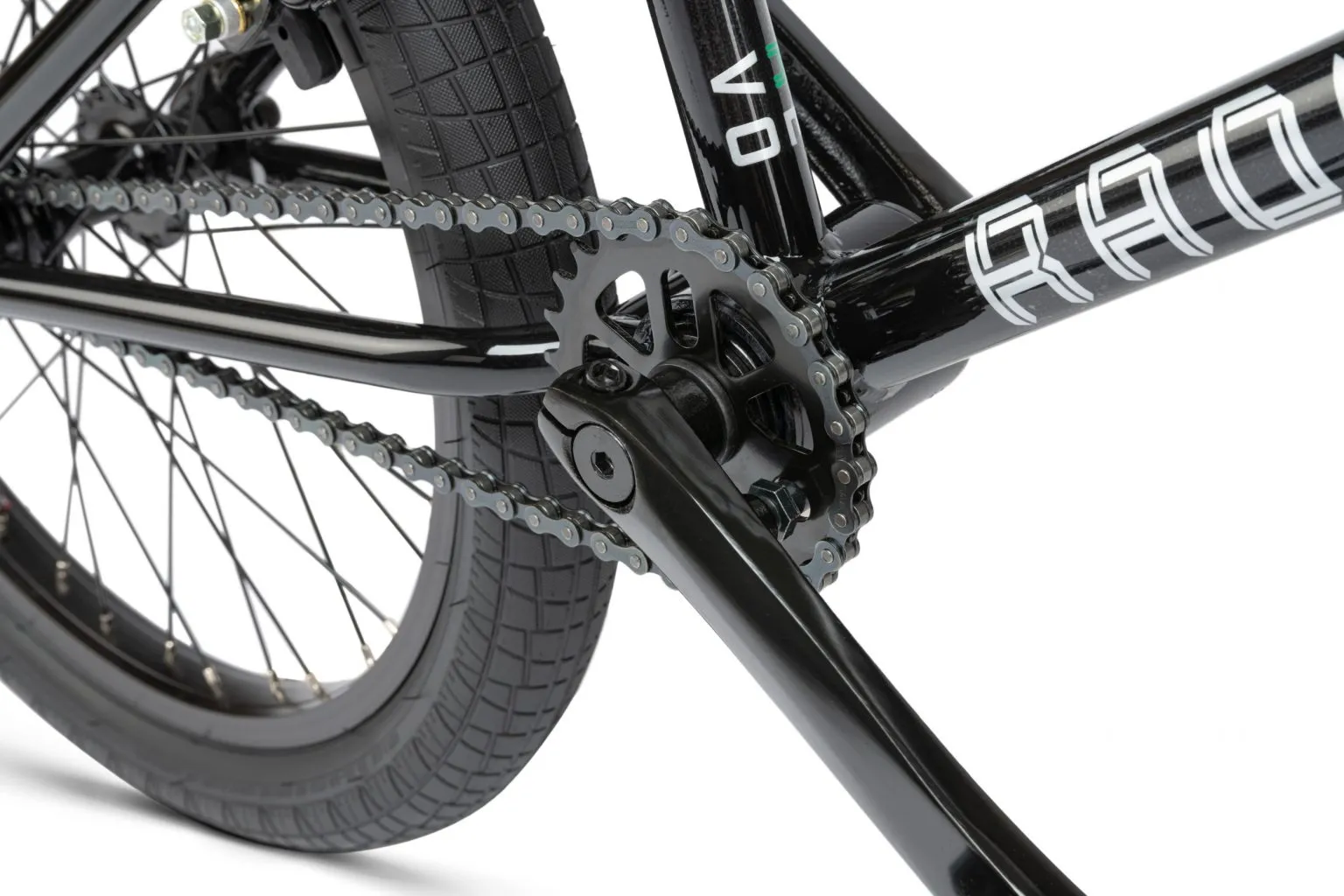

- Crank: Radio Rookie 3PC forged crank CrMo, 170mm

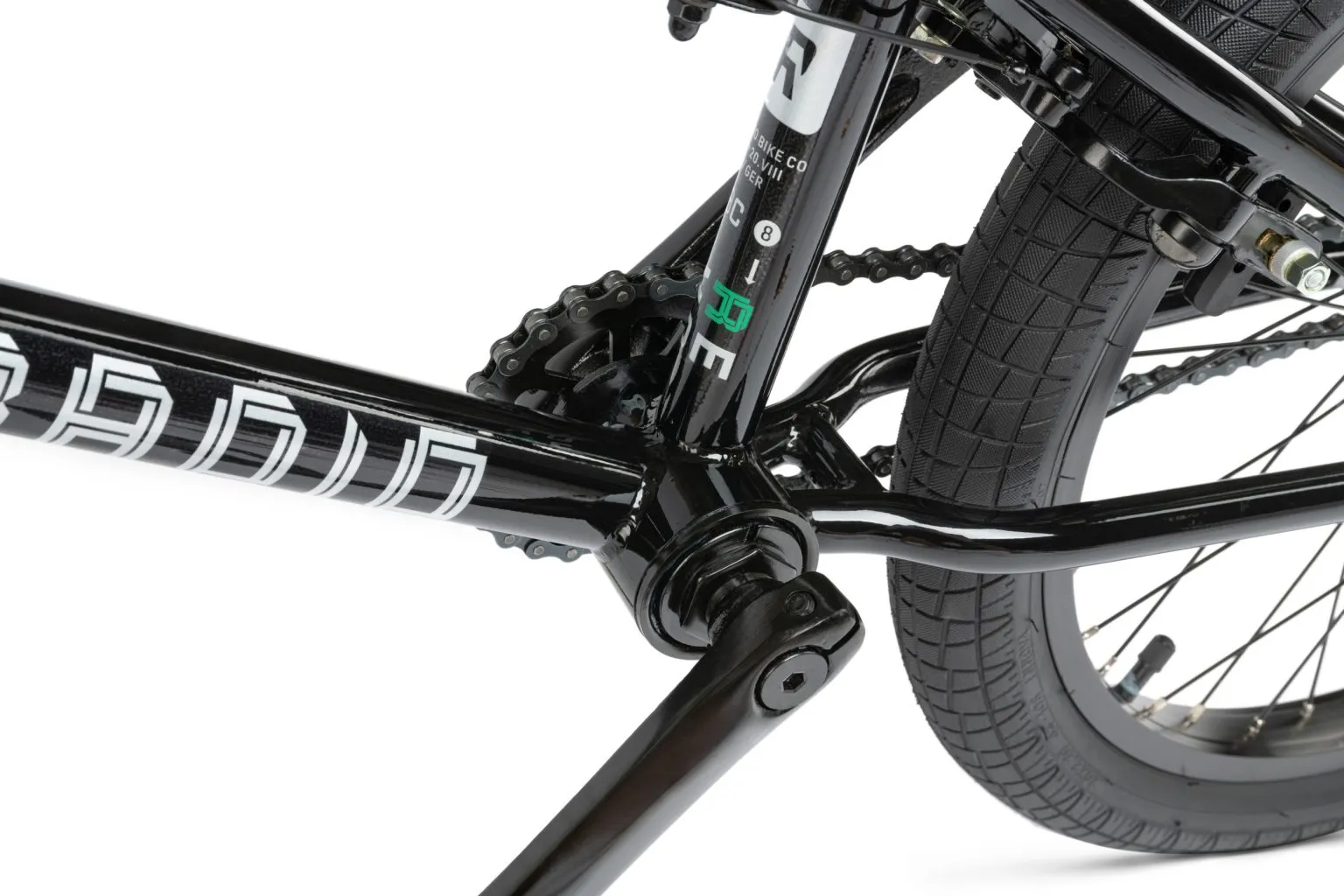

- BB: USA size, loose ball
- Pedals: Radio Rookie Nylon Pedals
- Chain: KMC S1 chain
- Sprocket: Radio ROOKIE sprocket, steel, 25T
- Driver: 9T Cassette

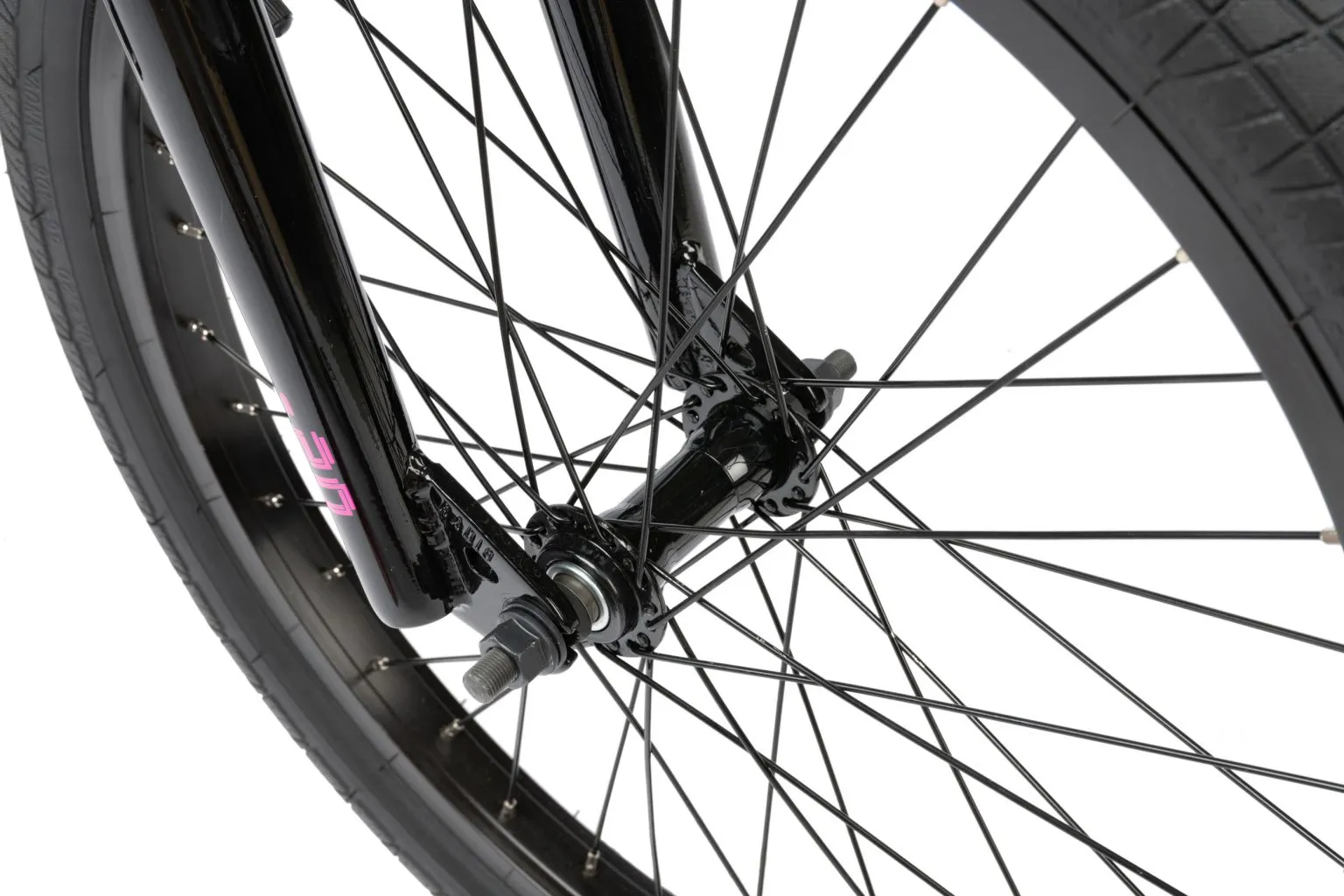

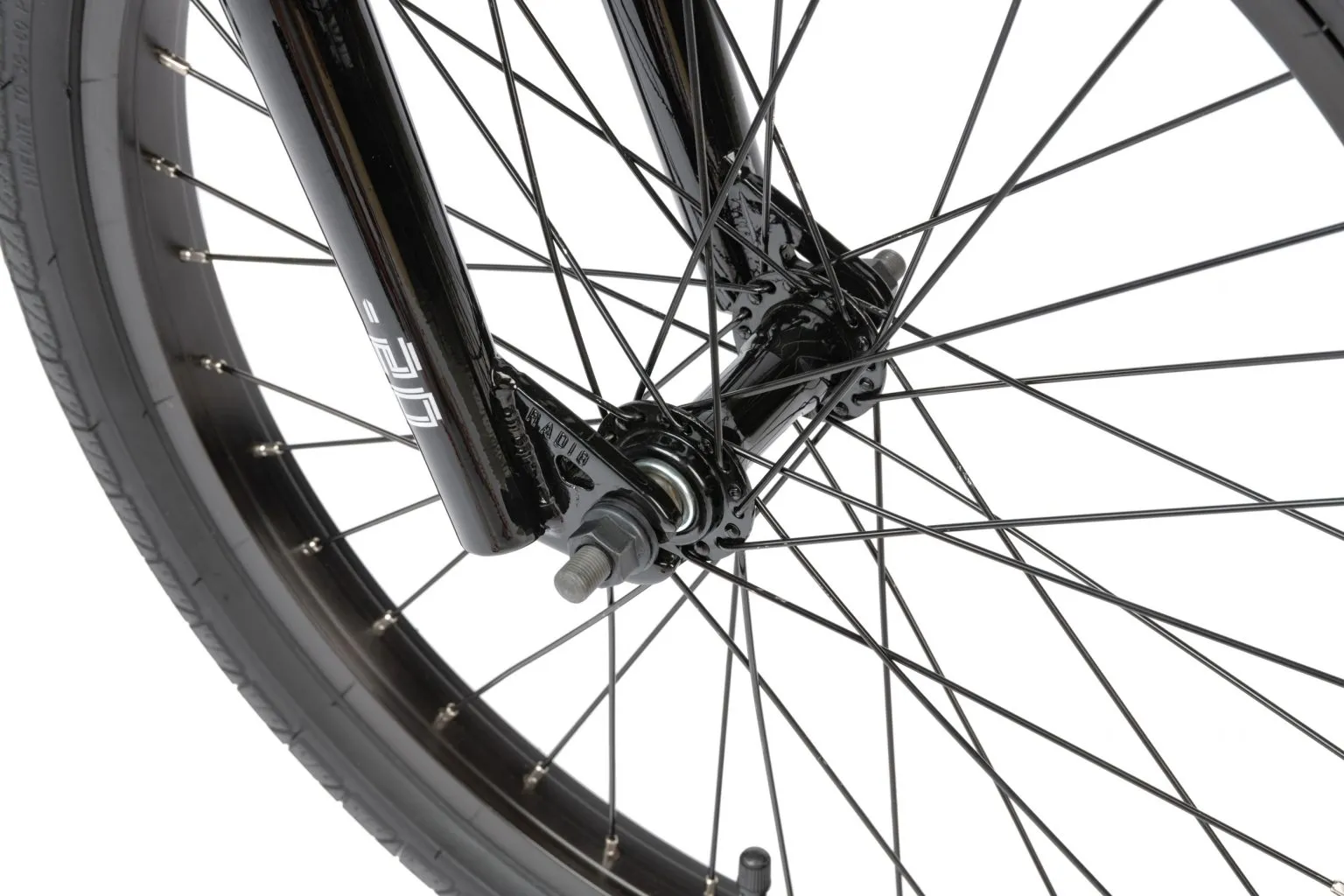

- Front Hub: Radio Rookie steel hub, lb, 36h

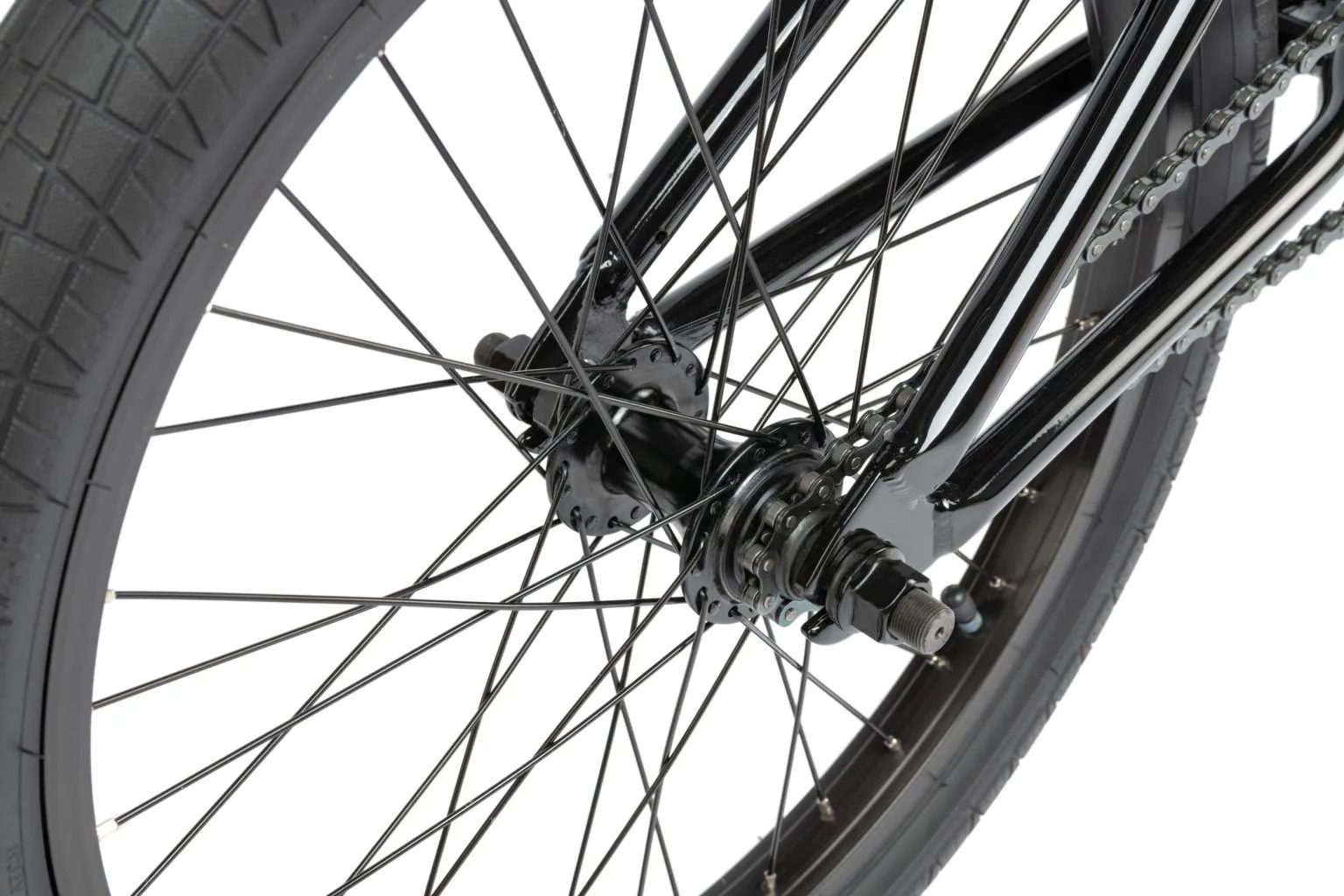

- Rear Hub: Radio ROOKIE cassette hub, steel, lb, 9T, 14mm axle, 36h
- Front Rim: SALT AM rim, straight single wall, 36h
- Rear Rim: SALT AM rim, straight single wall, 36h

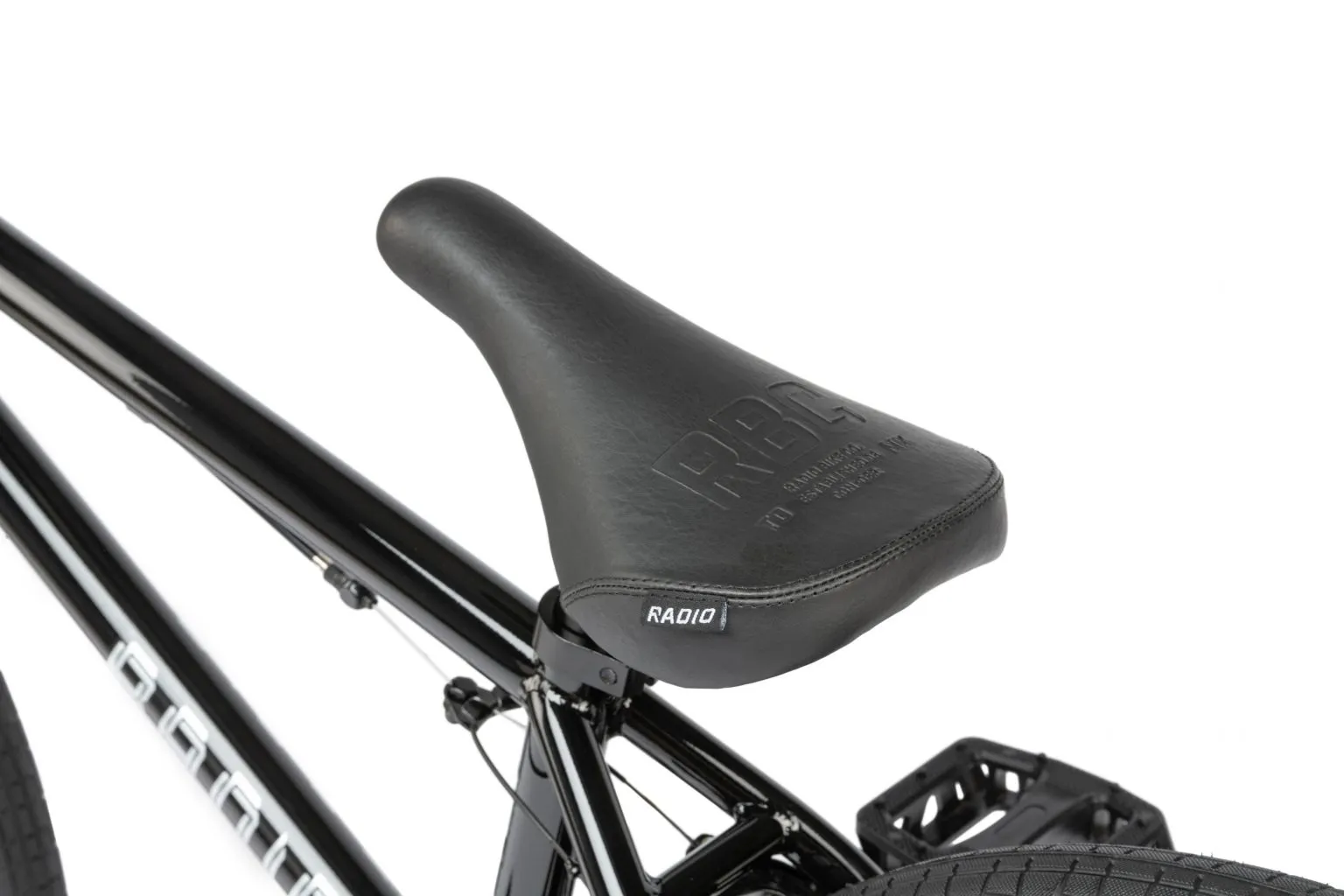

- Seat: Radio Century Slim Combo Seat
- Seat Post:
- Seat Clamp: Radio Slim Alloy Seat Clamp
- Tires: ROOKIE tires, 20x2.2, front & rear
- Weight: 12.51kg / 27.59lbs
Frame Geometry:
- Toptube: 20"
- Chainstays: 13"
- Headtube Angle: 75
- Seattube Angle: 71.5
- Bottom Bracket Height: 11.75"
- Standover Height: 7.8"
Handlebar Geometry:
- Rise: 8.6
- Width: 28.75
- Backsweep: 11
- Upsweep: 2
