Description
The Mountain Bikers eMTB

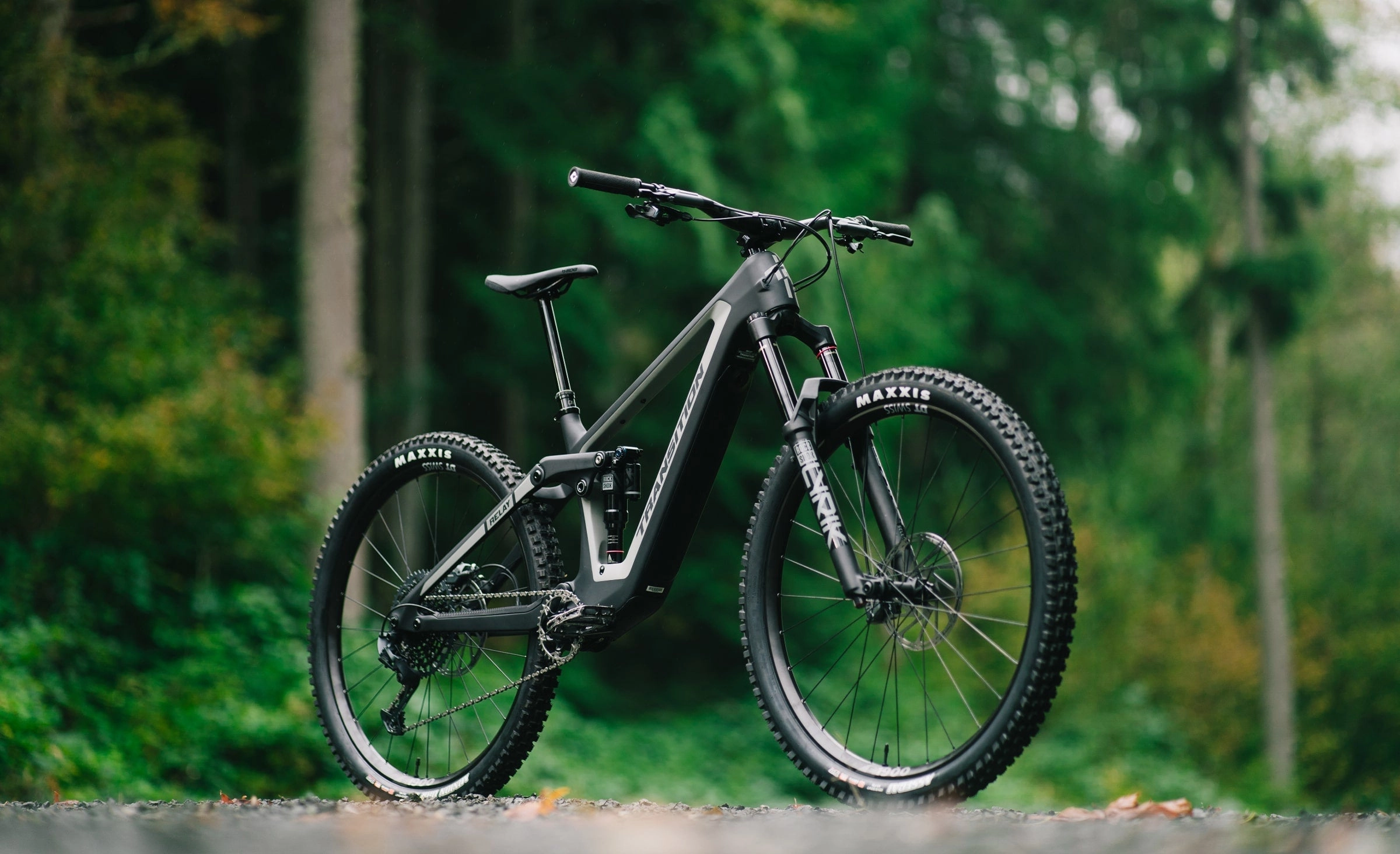

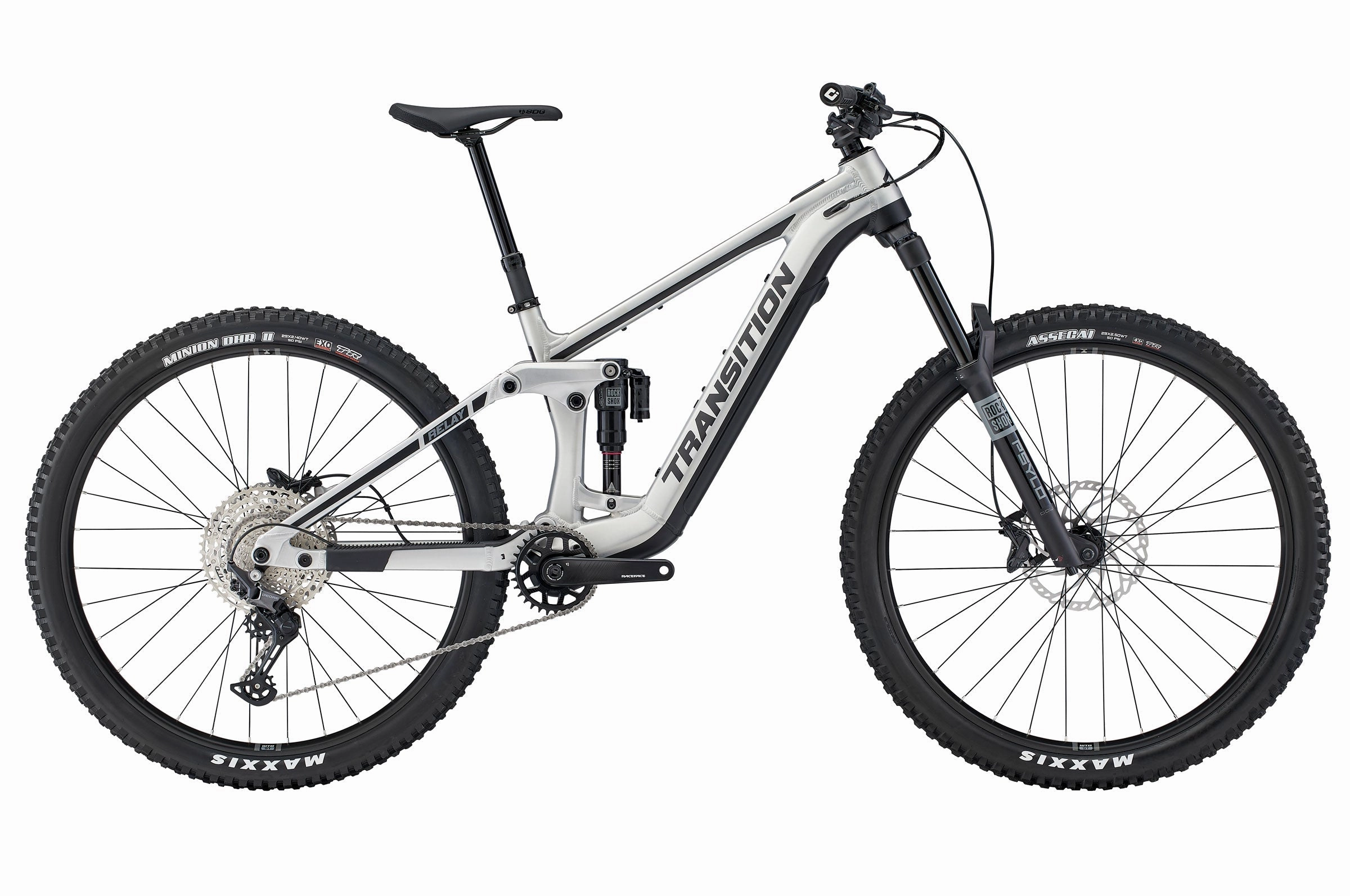

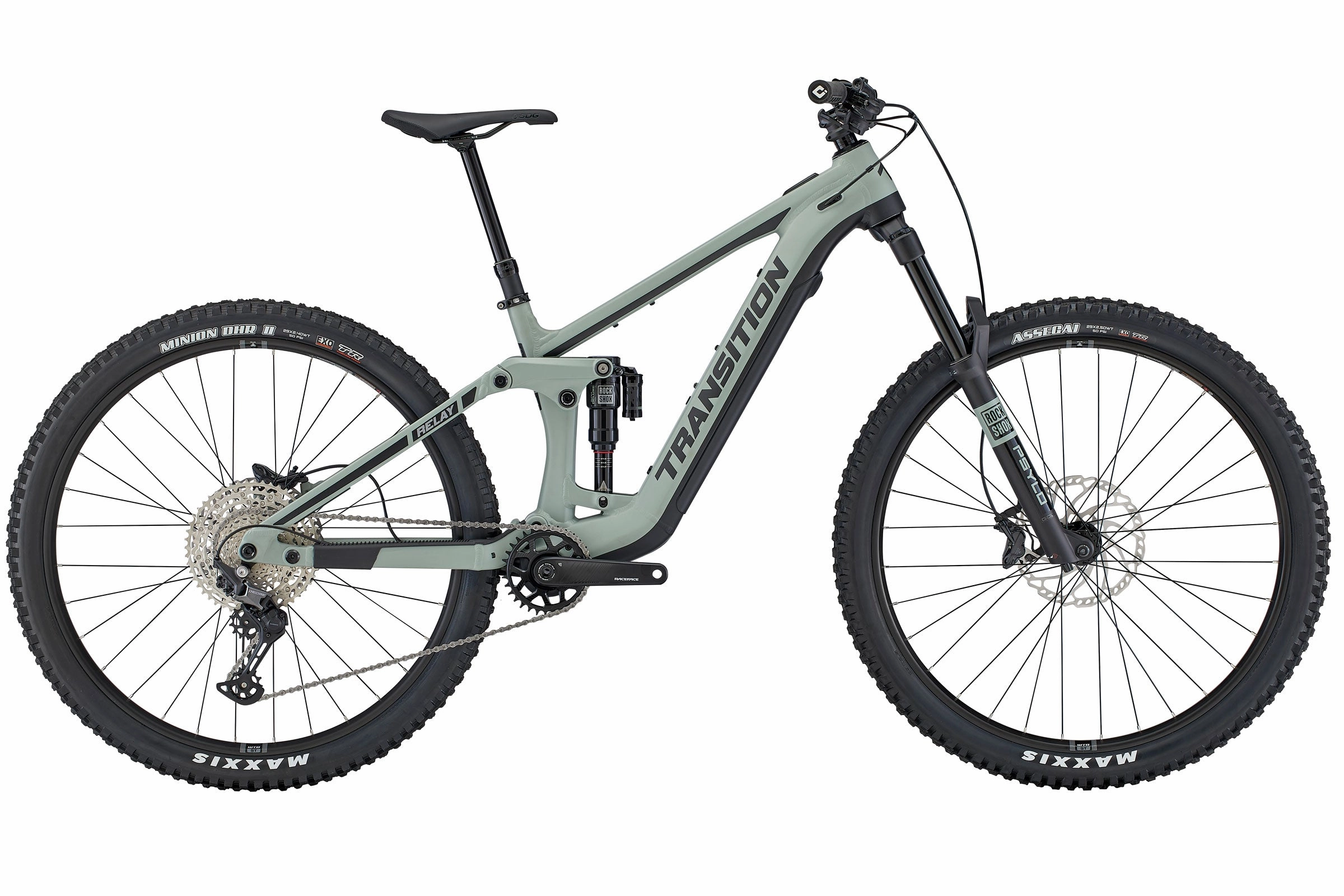

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
Specification
| COLOR OPTIONS | Raw Sea Salt |
| FRAME | Relay Alloy 160mm |
| WHEEL SIZE | 29" (X-Small 27.5") |
| DRIVE UNIT | Fazua Ride 60 |
| BATTERY | Fazua Energy 430 Take Out |
| DISPLAY | Fazua Top Tube LED Hub |
| ASSIST SWITCH | Fazua Ring Control |
| REAR SHOCK | RockShox SuperDeluxe Base (205x60mm) |
| FORK | RockShox Psylo Gold RC (160mm) |
| HEADSET | FSA No.55R |
| STEM | RaceFace Aefect R (40mm) |
| HANDLEBAR | RaceFace Chester 35 XS/SM(780x20mm) MD/LG/XL/XXL(780x35mm) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | SDG Tellis XS(125mm) SM(150mm) MD(170mm) LG(200mm) XL(230mm) |
| BRAKES | Shimano Deore M6120 4 Piston |
| ROTORS | Shimano RT66 (203mm) |
| SHIFTER | Shimano Deore M6100 iSpec EV |
| DERAILLEUR | Shimano Deore M6100 SGS 12sp |
| CASSETTE | Shimano Deore M6100 (10-51t) |
| CHAIN | Shimano Deore M6100 |
| CRANK | RaceFace Aeffect ETOR (165mm, X-Small 160mm) |
| CHAINRING | E*Thirteen Helix Race Direct Mount (32t) |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Double Butted |
| HUBS | Novatec D791SB-B15/D902SB-B12 |
| TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) |
| TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) |
| INCLUDED | Fazua Charger, Tubeless Valves & Sealant |
| WEIGHT | 48.66 lbs / 22.07 kg (Size MD, Including Battery) 43.65 lbs / 19.80 kg (Size MD, Excluding Battery) |
