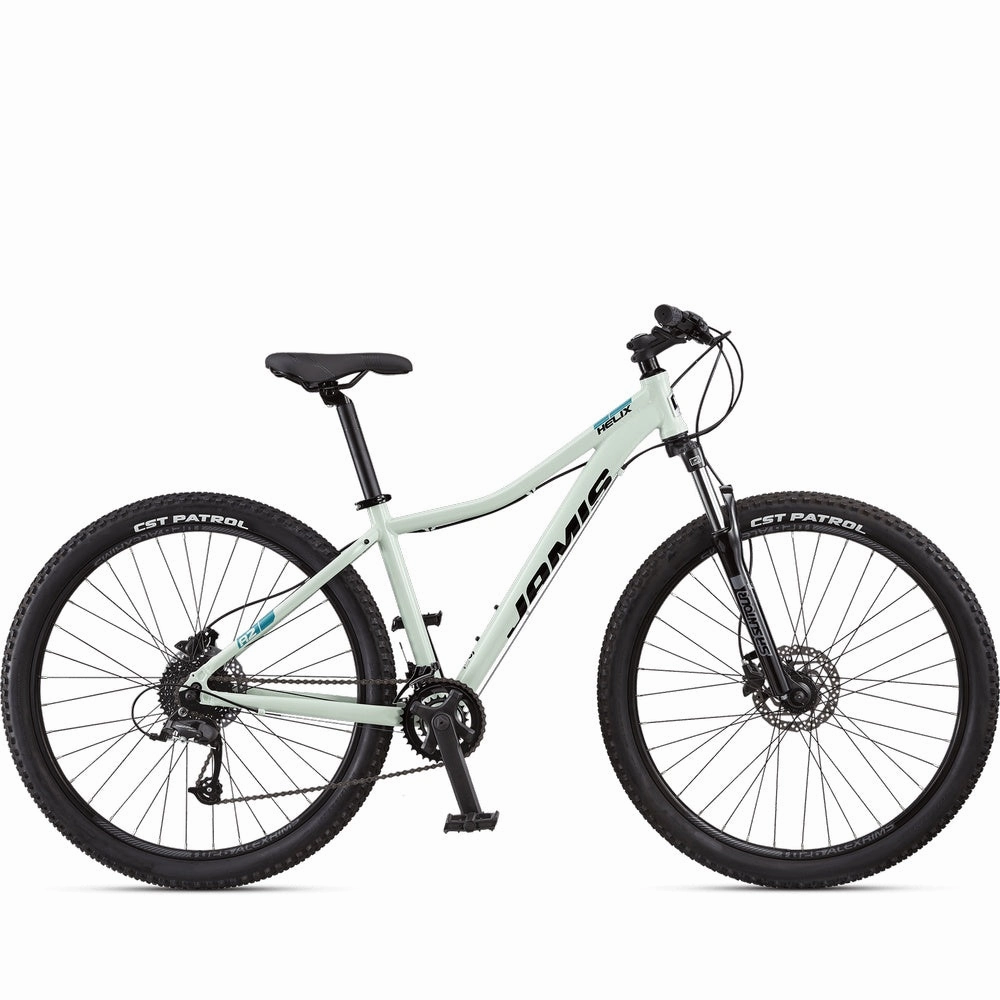

Jamis Helix A2 Women's Hardtail Mountain Bike Sugar Mint
Conquer any trail with the Jamis Helix A2 Women's Hardtail Mountain Bike. This responsive and reliable mountain bike features a lightweight 6061 aluminium frame, ensuring a comfortable and efficient ride. Equipped with an SR Suntour XCE 28 DS 27.5" coil spring fork with external preload adjustor for superior suspension, Shimano 8-speed drivetrain for smooth shifting, and powerful Shimano MT200 hydraulic disc brakes for confident stopping power. The durable Alex TD26 rims and Jamis components complete this performance-ready hardtail, perfect for women riders seeking adventure on diverse terrains.
Features
- 6061 aluminum frame
- SR Suntour XCE 28 DS 27.5, coil spring, external preload adjustor
- Alex TD26 27.5 rims, 32H, alloy disc hubs
- Shimano, 8-speed drivetrain
- Sealed cartridge bottom bracket
- Shimano MT200 hydraulic disc brakes
- Jamis XC alloy handlebar & stem
- Jamis ATB Sport saddle
Specification
| Frame | 6061 aluminium main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger |
| Fork | SR Suntour XCE 28 DS 27.5, coil spring, external preload adjustor, 28mm stanchions, aluminium lowers, 100mm travel |
| Headset | Zero-stack internal cup, 8mm cone spacer |
| Wheels | Alex TD26 27.5 double wall rims, 32H, alloy disc hubs, 14G black electroplated spokes |
| Tyres | CST Patrol, 27.5 x 2.25 |
| Derailleurs | Shimano Tourney rear and Altus front |
| Shifters | Shimano EF505, 28-speed |
| Chain | KMC Z8.3, 8-speed |
| Cassette | Shimano HG31, 8-speed, 11-32T |
| Crankset | Forged Alloy, 36/22T |
| BB Set | Sealed cartridge |
| Pedals | MTB platform, hi-impact resin |
| Brakeset | Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors |
| Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 680mm |
| Stem | Jamis XC alloy threadless, 31.8 x 10 rise x 75mm (14/16), 90mm (18) |
| Grips | Kraton |
| Seat Post | Jamis alloy micro-adjust, 31.6 x 350mm (14) 400mm (16/18) |
| Saddle | Jamis ATB Sport Womens |
| Colour | Sugar Mint |
| Weight | 14.5 kg |
Geometry
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | BB DROP | HEADTUBE | STANDOVER |
|---|---|---|---|---|---|---|---|---|---|
| A1, A2 | 14 (S) | 21.2 / 540 | 70 | 72.5 | 17.1 / 435 | 41 / 1029 | 1.8 / 46 | 4.1 / 105 | 26.3 / 668 |
| A1, A2 | 16 (M) | 22.1 / 560 | 70 | 72.5 | 17.1 / 435 | 41 / 1050 | 1.8 / 46 | 4.3 / 110 | 27.7 / 704 |
| A1, A2 | 18(L) | 22.9 / 580 | 70 | 72.5 | 17.1 / 435 | 42 / 1070 | 1.8 / 46 | 4.7 / 120 | 28.9 / 731 |
