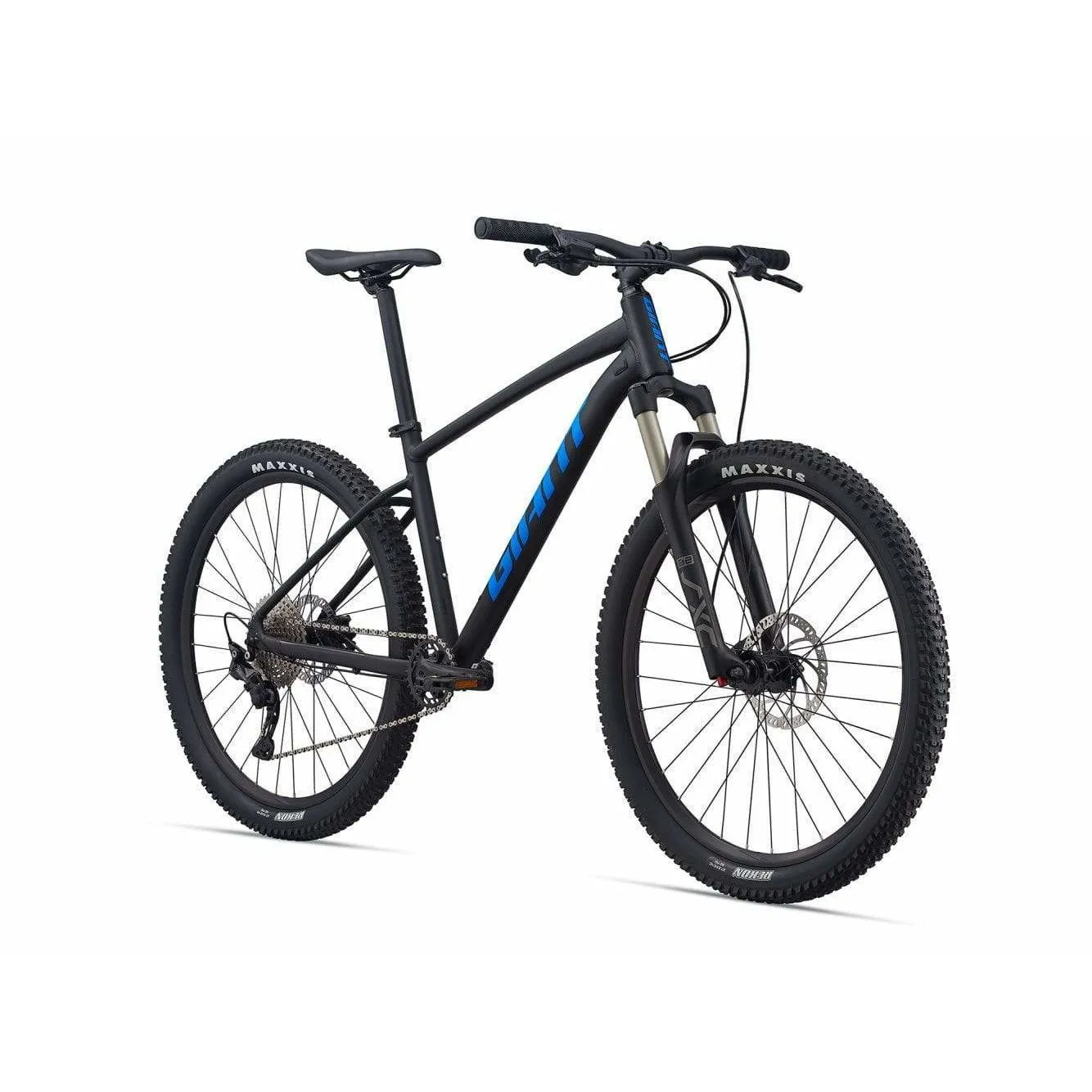

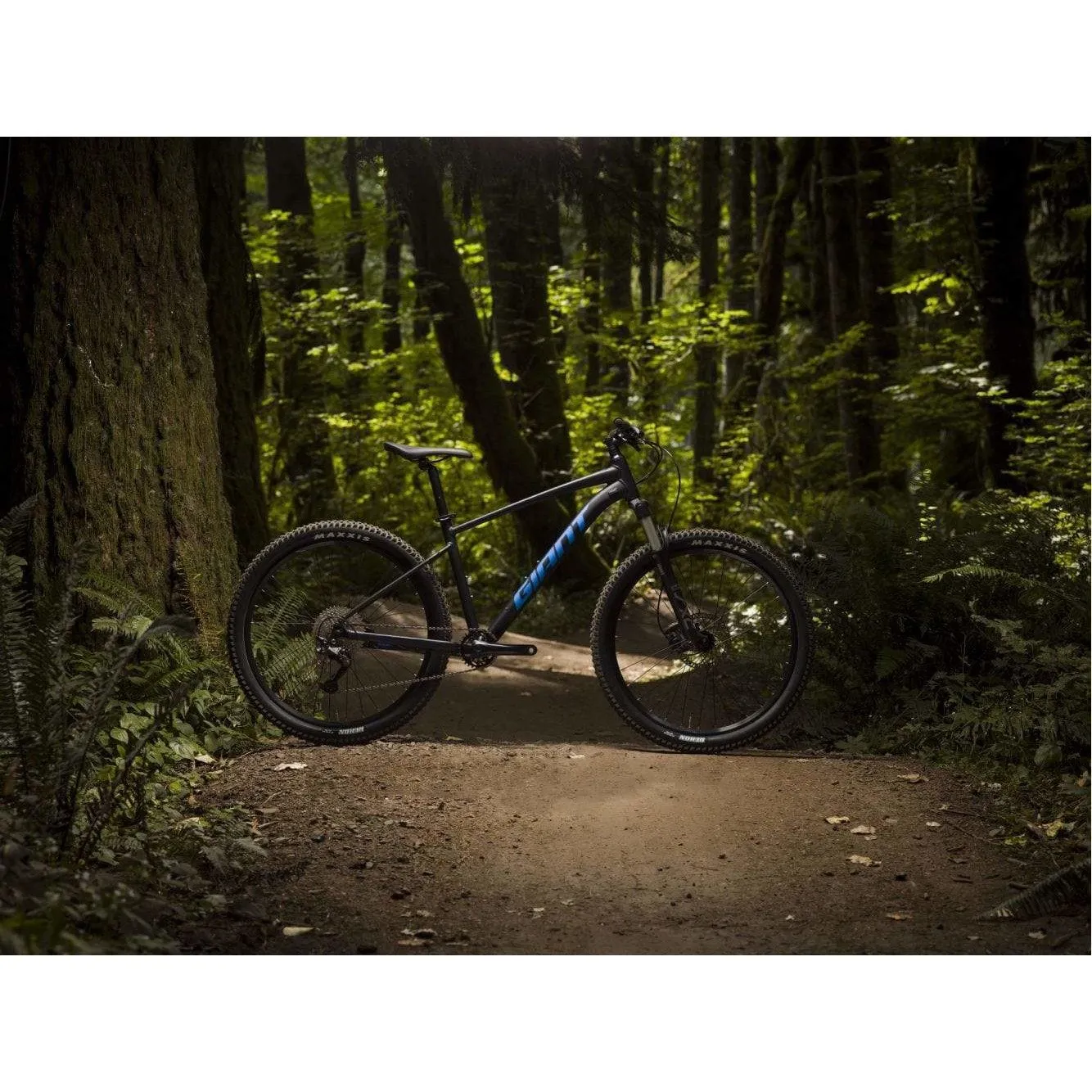

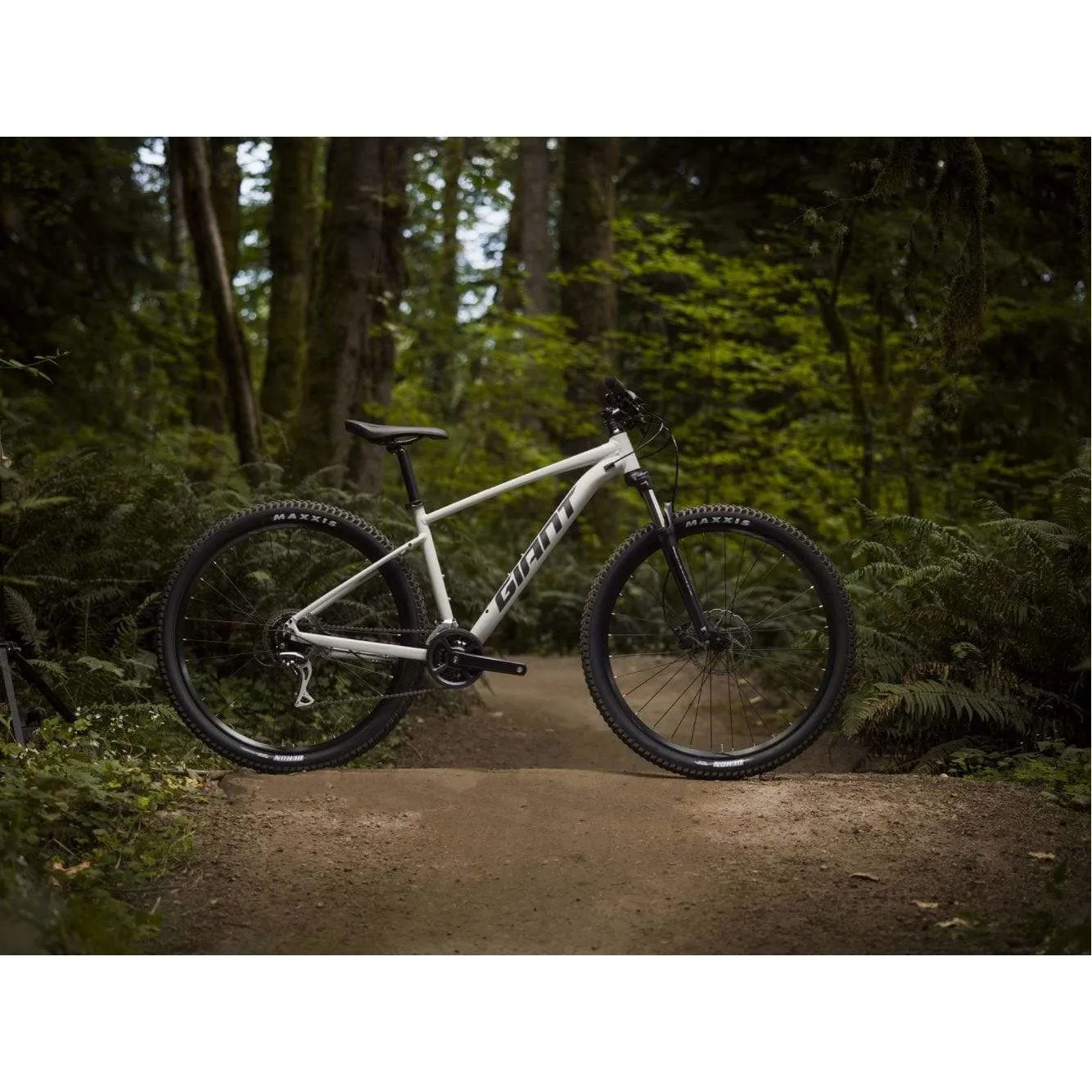

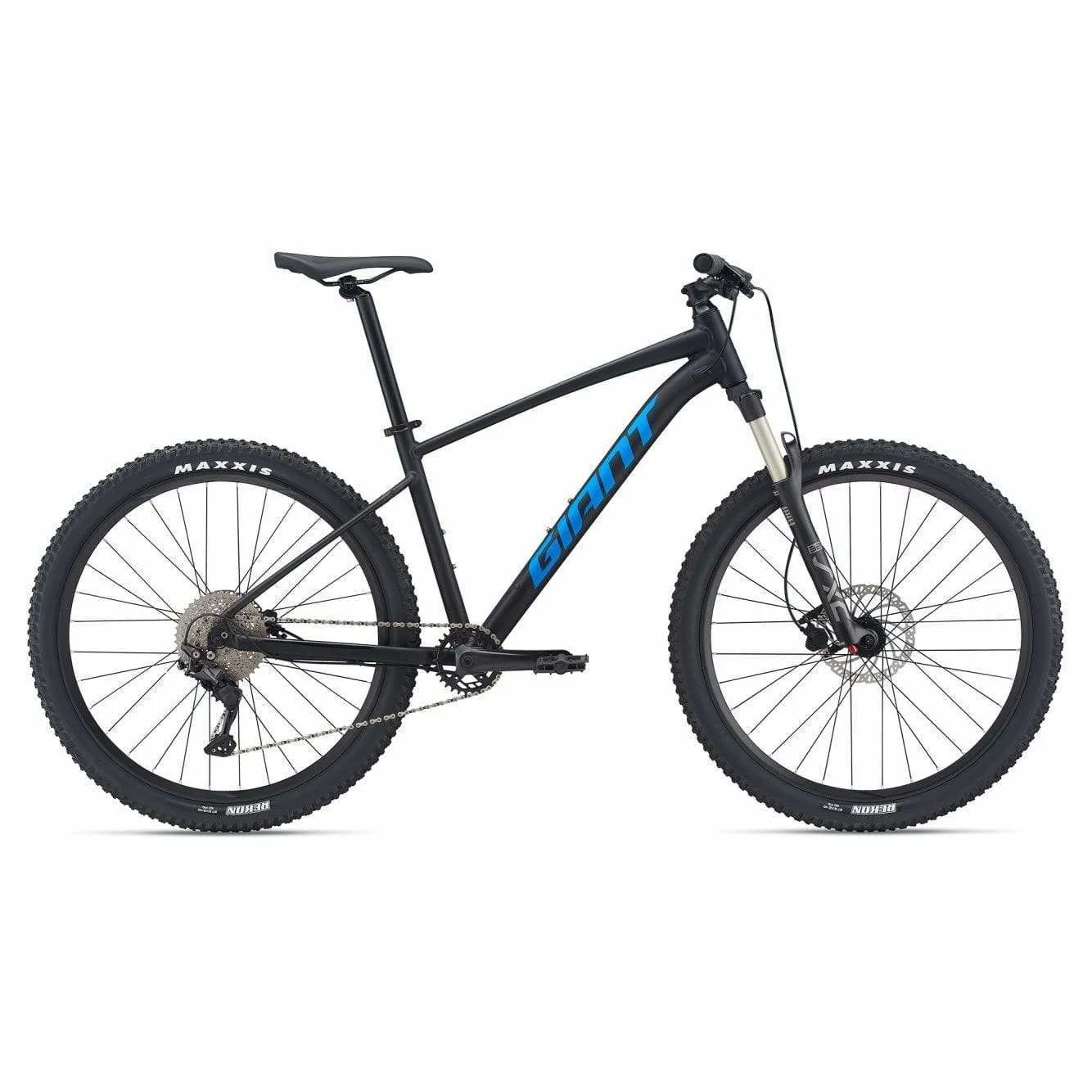

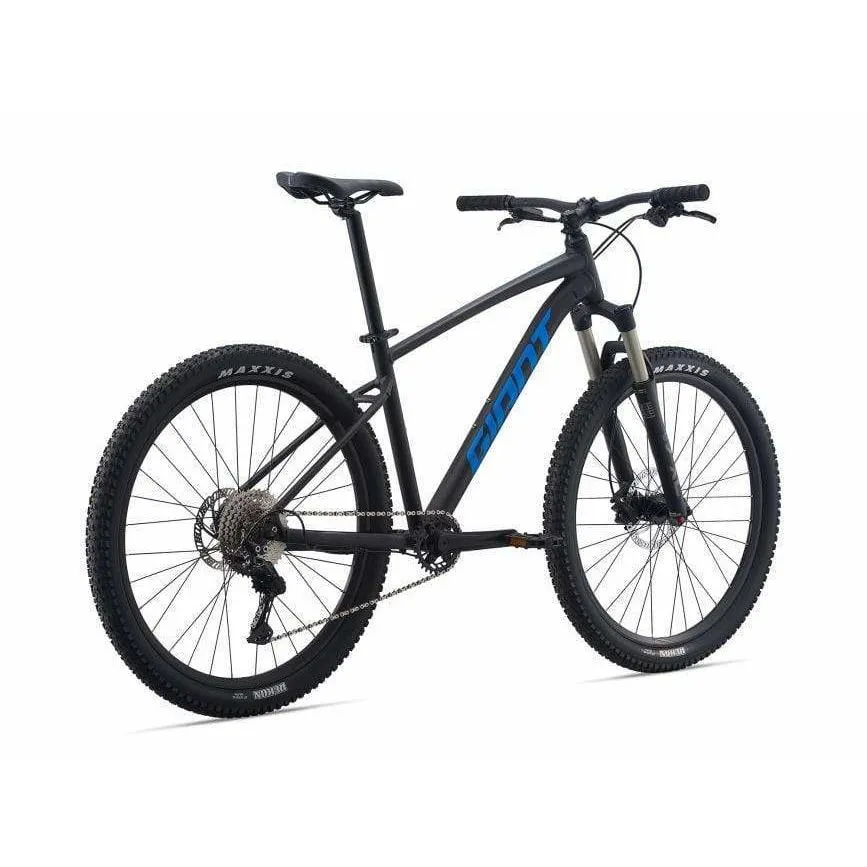

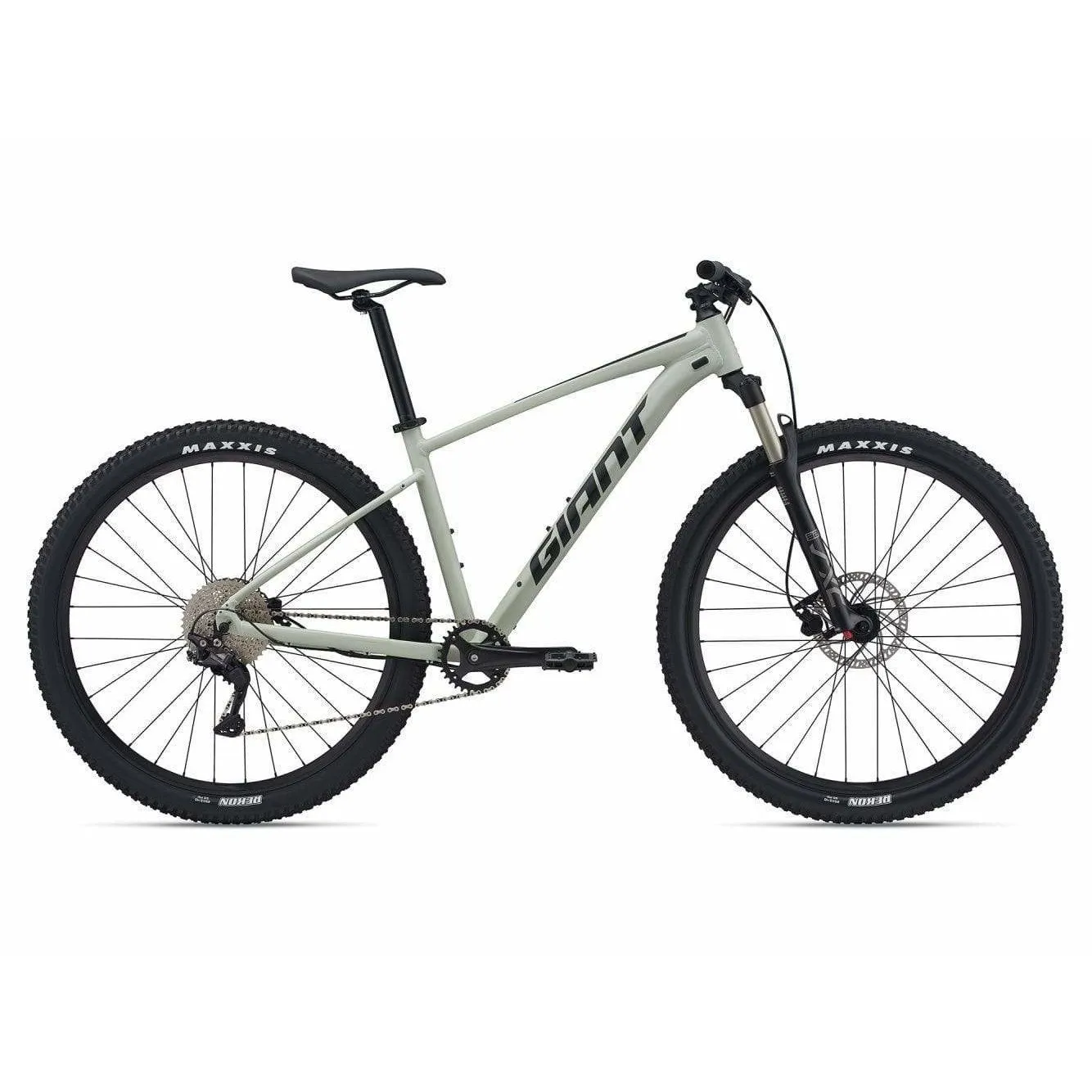

Get a feel for the trail with this all-new aluminum hardtail made for aspiring singletrack riders. It features stable, fast-rolling 29-inch or more-playful 27.5-inch wheels so you can push the pace on climbs and let loose on the descents.
Built on a new lightweight ALUXX aluminum frame that features classic hardtail design plus the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC or light trail terrain. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). Its a confident ride thats perfect for ambitious riders who want to take their off-road skills to the next level.
Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added XC control.
Specifications
| Sizes | 27.5: XS,S,M,L 29: S,M,L,XL,XXL |
|---|---|
| Colors | Desert Sage, Black |
| Frame | ALUXX-Grade Aluminum, disc |

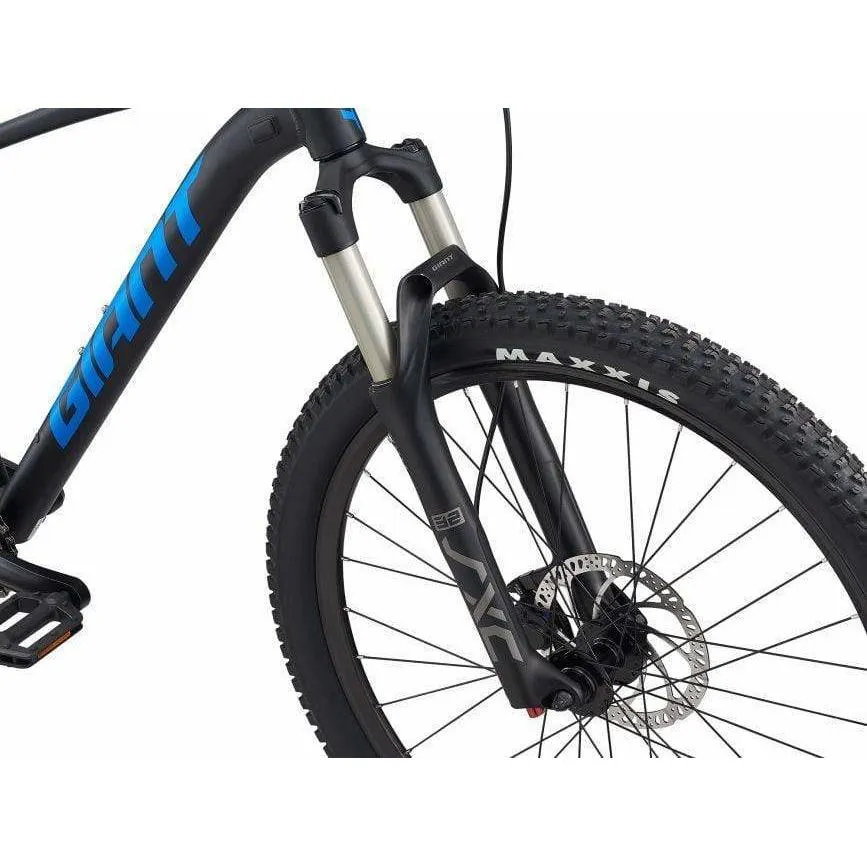

| Fork | SXC32-2 RL 29 or 27.5, air spring, 100mm or 80mm, QR, alloy steerer, rebound adjust |
| Shock | N/A |

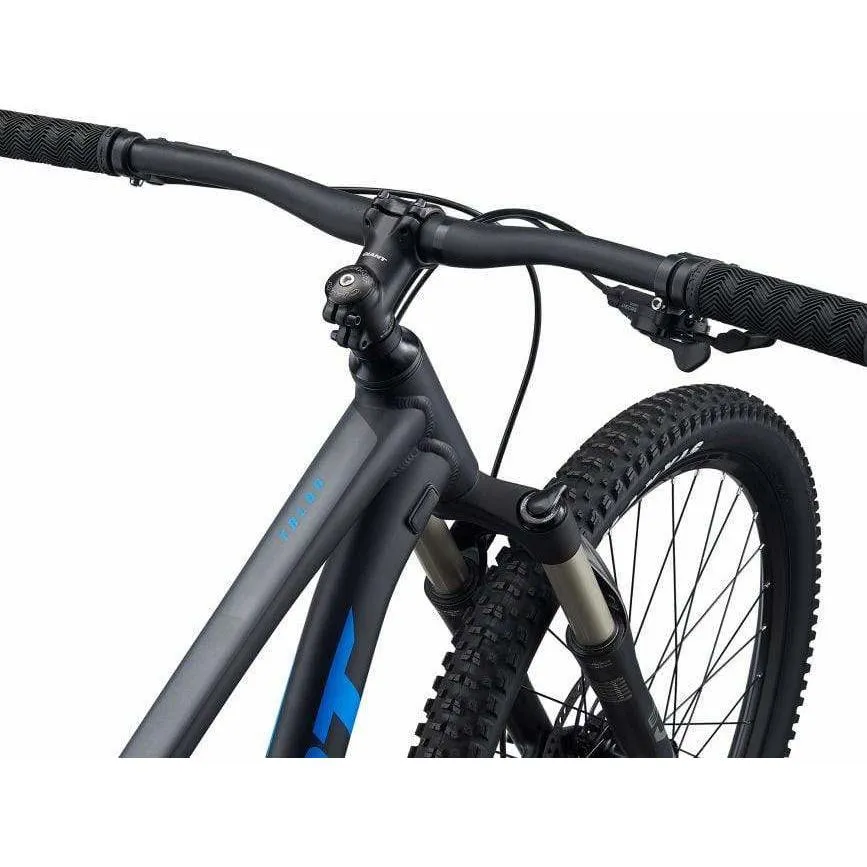

| Handlebar | Giant Connect Trail, 780x31.8 |
| Stem | Giant Sport, 7-degree |
| Seatpost | Giant Sport, 30.9 |
| Saddle | Giant custom |
| Pedals | MTB caged |
| Shifters | Shimano Deore |
| Front Derailleur | N/A |

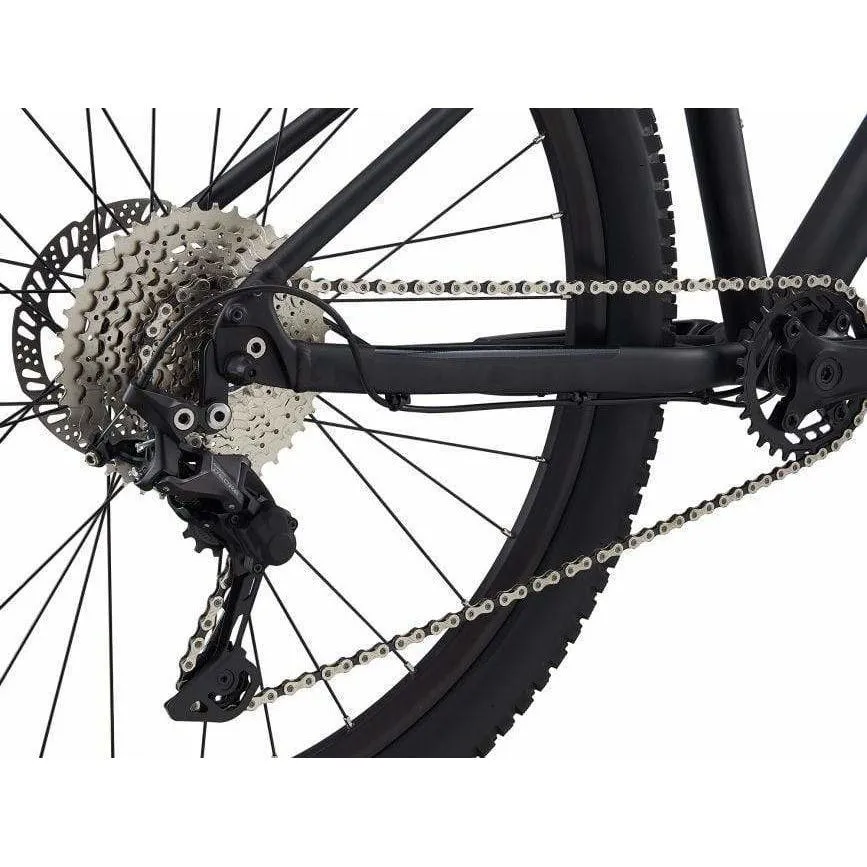

| Rear Derailleur | Shimano Deore |
| Brakes | Tektro TKD 143, hydraulic |
| Brake Levers | Tektro TKD 143, hydraulic |
| Cassette | Shimano Deore, 11x42 |
| Chain | KMC X10 |
| Crankset | ProWheel Charm, 30t or 32t |
| Bottom Bracket | cartridge |
| Rims | Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width |
| Hubs | [F]Giant Tracker Giant Sport QR, loose ball [R] Giant Tracker Giant Sport QR, loose ball |
| Spokes | stainless, 14g |
| Tires | Kenda Booster 27.5, wirebead |
| Weight | The most accurate way to determine any bikes weight is to have your local weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| XS (27.5") | S (27.5") | M (27.5") | |
|---|---|---|---|
| Seat Tube Length (mm) (inch) | 350/13.8 | 385/15.2 | 430/16.9 |
| Seat Tube Angle (degrees) | 74.0 | 74.0 | 74.0 |
| Top Tube Length (mm) (inch) | 544/21.4 | 569/22.4 | 597/23.5 |
| Head Tube Length (mm) (inch) | 95/3.7 | 115/4.5 | 130/5.1 |
| Head Tube Angle (degrees) | 67.5 | 67.5 | 67.5 |
| Fork Rake (mm) (inch) | 42/1.7 | 42/1.7 | 42/1.7 |
| Trail (mm) (inch) | 103/4.1 | 103/4.1 | 103/4.1 |
| Wheelbase (mm) (inch) | 1079/42.5 | 1106/43.5 | 1137/44.8 |
| Chain Stay Length (mm) (inch) | 440/17.3 | 440/17.3 | 440/17.3 |
| Bottom Bracket Drop (mm) (inch) | 45/1.8 | 45/1.8 | 45/1.8 |
| Stack (mm) (inch) | 533/21 | 571/22.5 | 598/23.5 |
| Reach (mm) (inch) | 385/15.2 | 405/15.9 | 425/16.7 |
| Stand Over Height (mm) (inch) | 686/27 | 711/28 | 748/29.4 |
| Handlebar Width (mm) (inch) | 780/30.7 | 780/30.7 | 780/30.7 |
| Stem Length (mm) (inch) | 40/1.6 | 50/2 | 60/2.4 |
| Crank Length (mm) (inch) | 165/6.5 | 170/6.7 | 175/6.9 |
| Wheel Size | 27.5" | 27.5" | 27.5" |
