- Lightweight 6066 triple butted and hydroformed aluminium frame
- Internal cable routing, WIRE PORT cable integration
- Full carbon tapered fork
- Shimano Tiagra 2 x 10-speed groupset
- Shimano Tiagra, hydraulic disc brakes
- MERIDA EXPERT SL wheelset
- Maxxis Detonator 700 x 32c tyres

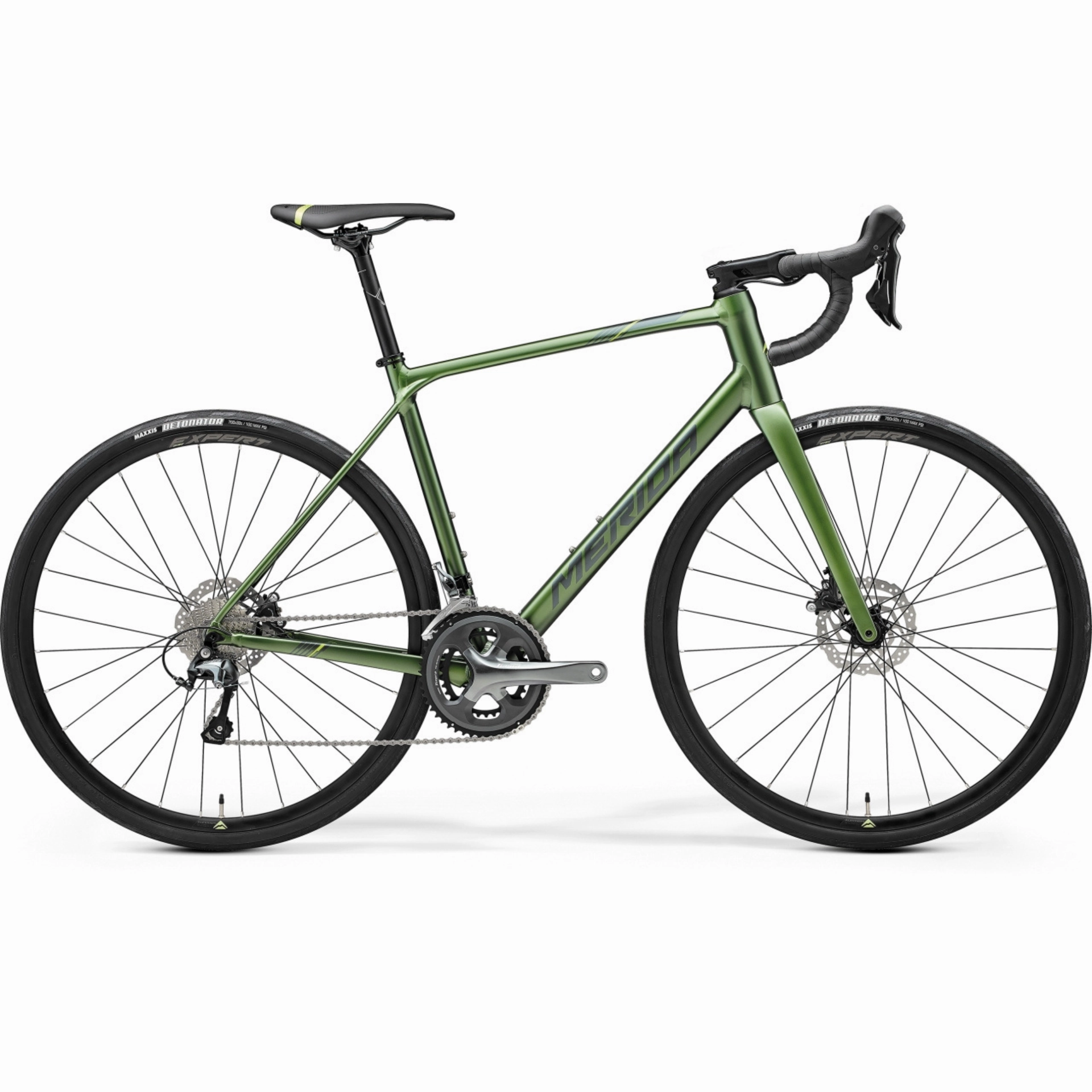

The latest iteration of Meridas comfort-orientated Scultura Endurance was an instant hit with the international cycling press. Besides being given a 'comfort' award by RennRad, it also managed to get a long list of compliments like 'excellent comfort', confidence inspiring', 'lively feel' and 'enjoyable' by reference cycling websites/magazines like Gran Fondo, Cyclingnews, Cyclingtips and Road.cc. Compared to its namesake, the Scultura, the Endurance has a more comfort-orientated geometry, plenty of tyre clearance and seamless integration of the latest standards. The Scultura Endurance 300 provides an affordable option in a lightweight 6066 triple butted and hydroformed aluminium frame with comfort orientated geometry and a full carbon fork for confidence inspiring handling. The reliable Shimano Tiagra 2x10 speed drivetrain is paired with matching Shimano Tiagra hydraulic disc brakes and rolls on Merida Expert SL wheelset with Maxxis Detonator 32c tyres.
| Axles: | FRONT: MERIDA EXPERT SL / REAR: MERIDA EXPERT SL, including removable lever, 6/4mm allen key |
|---|---|
| Bottom bracket: | SM-BB71-41B, Pressfit 86.5 |
| Brakes: | Shimano Tiagra, Hydraulic disc |
| Chain: | KMC X10 |
| Crankset: | Shimano Tiagra, 50-34T 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL |
| Derailleur rear: | Shimano Tiagra, GS |
| Fork: | SCULTURA ENDURANCE CF3 DISC, MAT Carbon, 700x35C Max Tyre Width |
| Frame: | SCULTURA ENDURANCE LITE, Aluminium, 700x35C Max/ 700x32C (with fender) Max Tyre Width, 100x12/142x12, BB86 Bottom Bracket |
| Freewheel: | Shimano CS-HG500, 12-28T, 10-speed Cassette |
| Grip: | MERIDA ROAD Expert |
| Handlebar: | MERIDA EXPERT SL, Aluminium, 380mm(XXS) , 400mm (XS-S) , 420mm (M), 440 (L-XL) |
| Handlebar stem: | MERIDA EXPERT CW, 31.8, Aluminium, -8 Rise 80 mm-XXS, 90 mm-XS, 100 mm-S/M, 110 mm-L, 120 mm-XL |
| Headset: | MERIDA-8151 Semi integrated HS |
| Hubs: | FRONT: VP CLK170F, 100x12, 28H, Centerlock / REAR: VP CLK270R, 142x12, 28H, Centerlock |
| Rim: | MERIDA EXPERT SL, 17mm Inner Width, 22mm Rim Height, Aluminium, Tubeless ready (tubeless tape and valves not included) |
| Rotor front: | Shimano RT10, 160mm |
| Rotor rear: | Shimano RT10, 160mm |
| Saddle: | MERIDA COMP SL, V-mount |
| Season: | 2022 |
| Seat clamp: | MERIDA EXPERT |
| Seat post: | MERIDA COMP CC, MAT aluminium, 27.2mm, 5 Setback |
| Tyre front: | Maxxis Detonator, 700x32C, fold |
| Tyre rear: | Maxxis Detonator, 700x32C, fold |
| Wheel size: | 700c |
