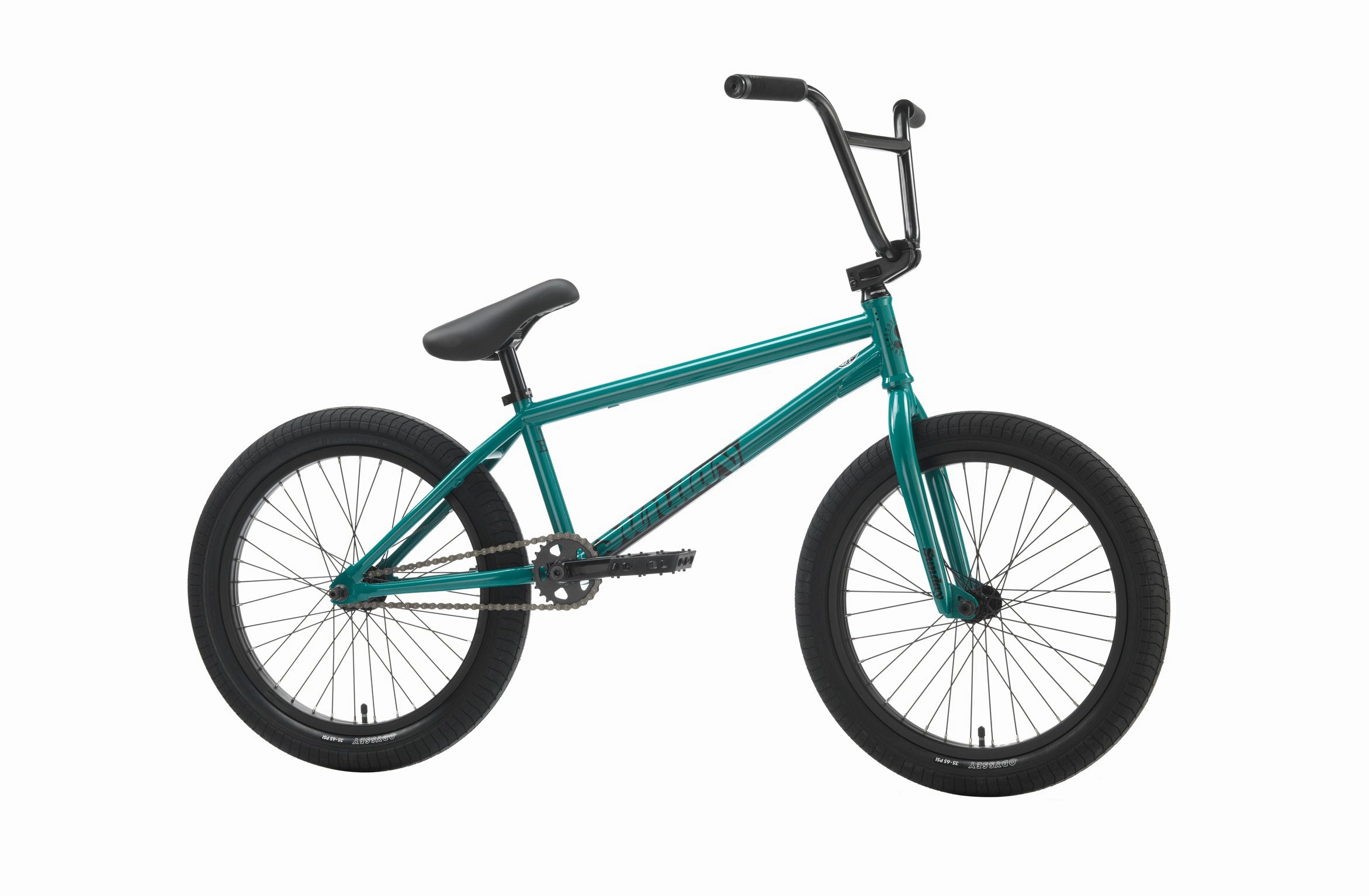

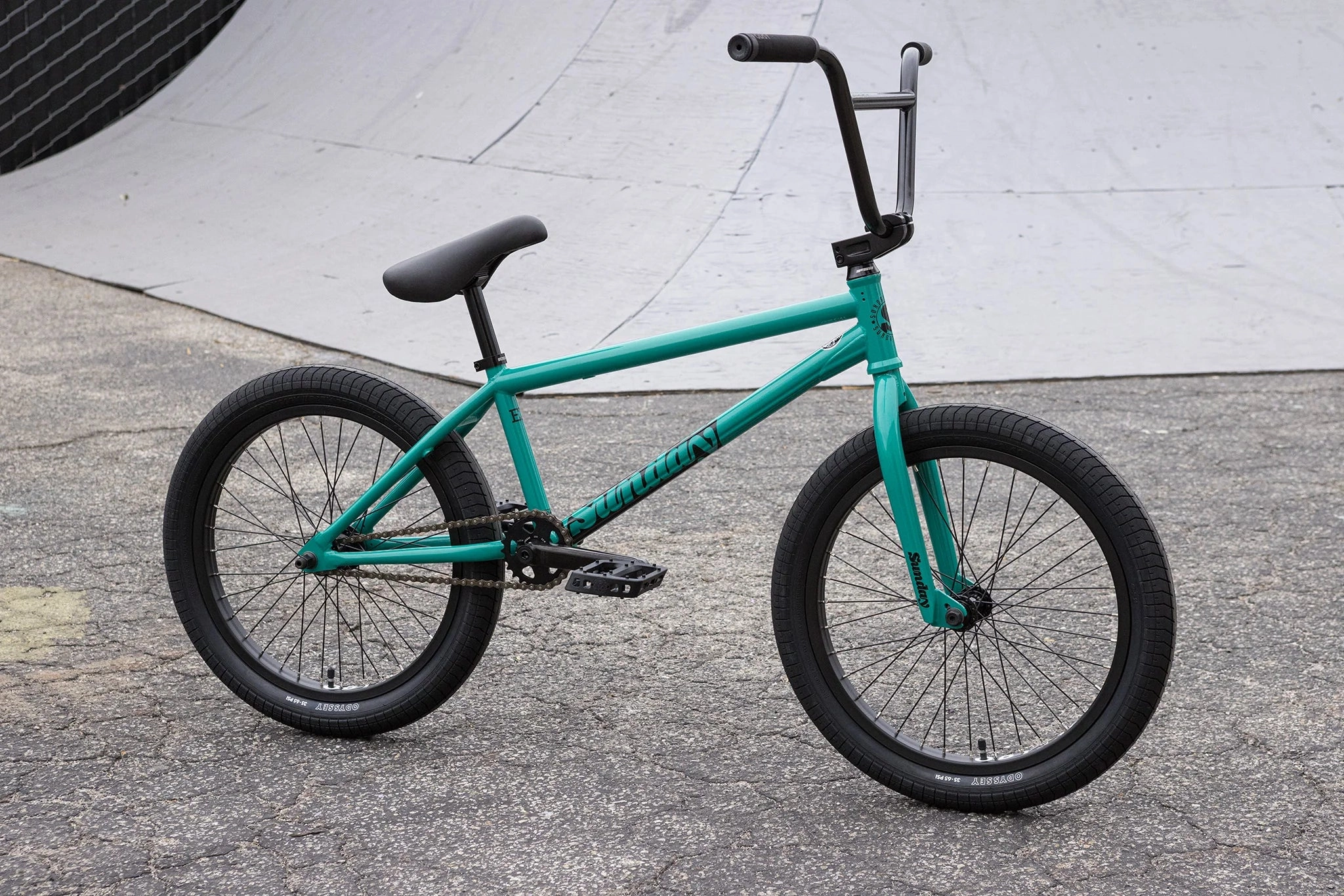

With a 100% chromoly frame, fork, and bars, the EX is a bike that is difficult to match.

Erik Elstrans signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EXs removable braking hardware mean business, even when your approach to riding is all about having fun - just like Eriks.

Key Features

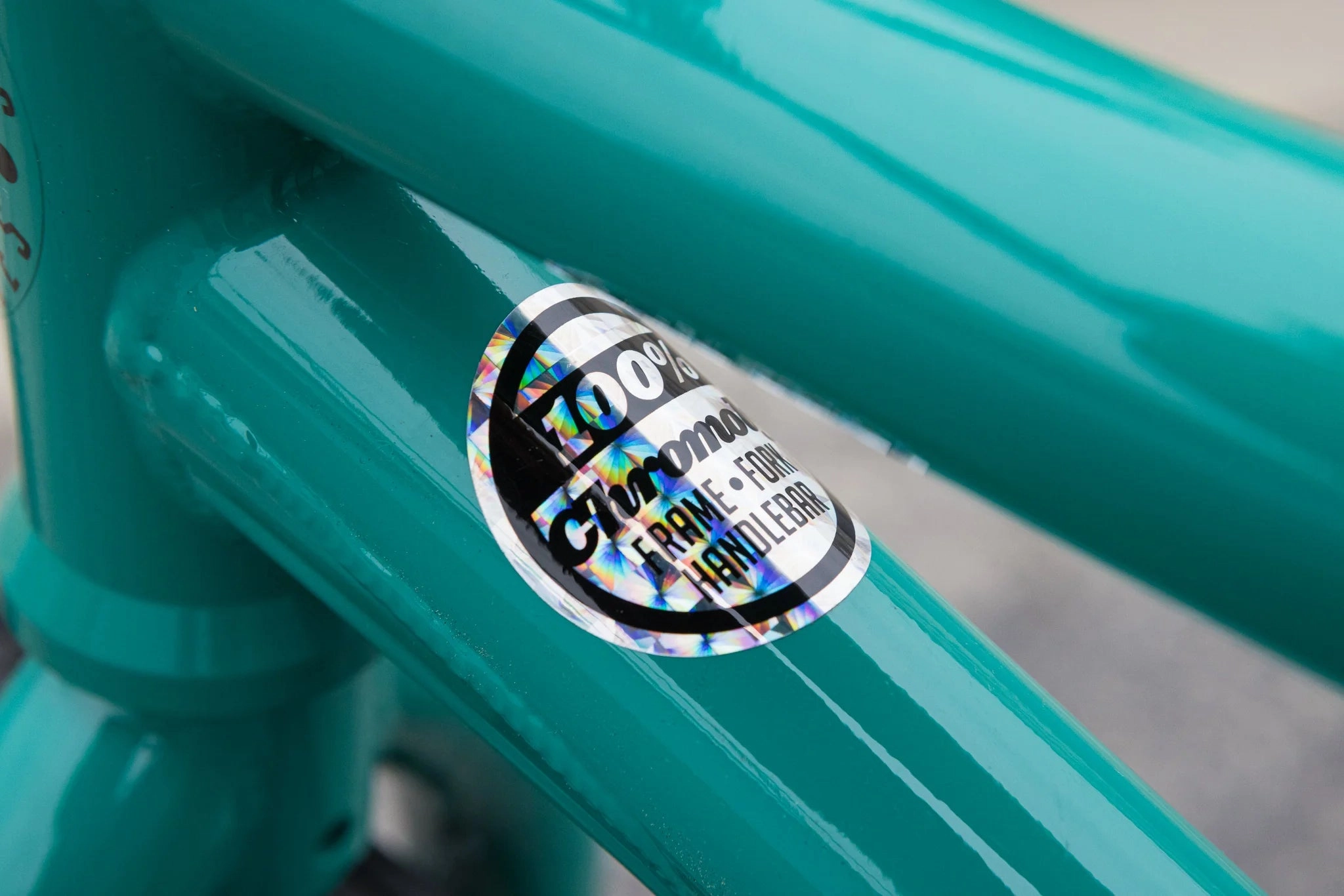

• 100% Chromoly Frame, Fork, and 2-piece Bars
• Sunday Signature Wave Down Tube
• Sunday Seeley Signature Grips
• FSA Conical Headset
• Sunday Sabretooth v2 25t Sprocket
• Sunday Saker 3-PC Cranks, 165mm
• Odyssey Path Pro OEM 2.40" Tires
• Odyssey Stage 2 Rims
• OdysseyC5 Cassette Hub
• Sealed Front and Rear Hubs


Specifications:

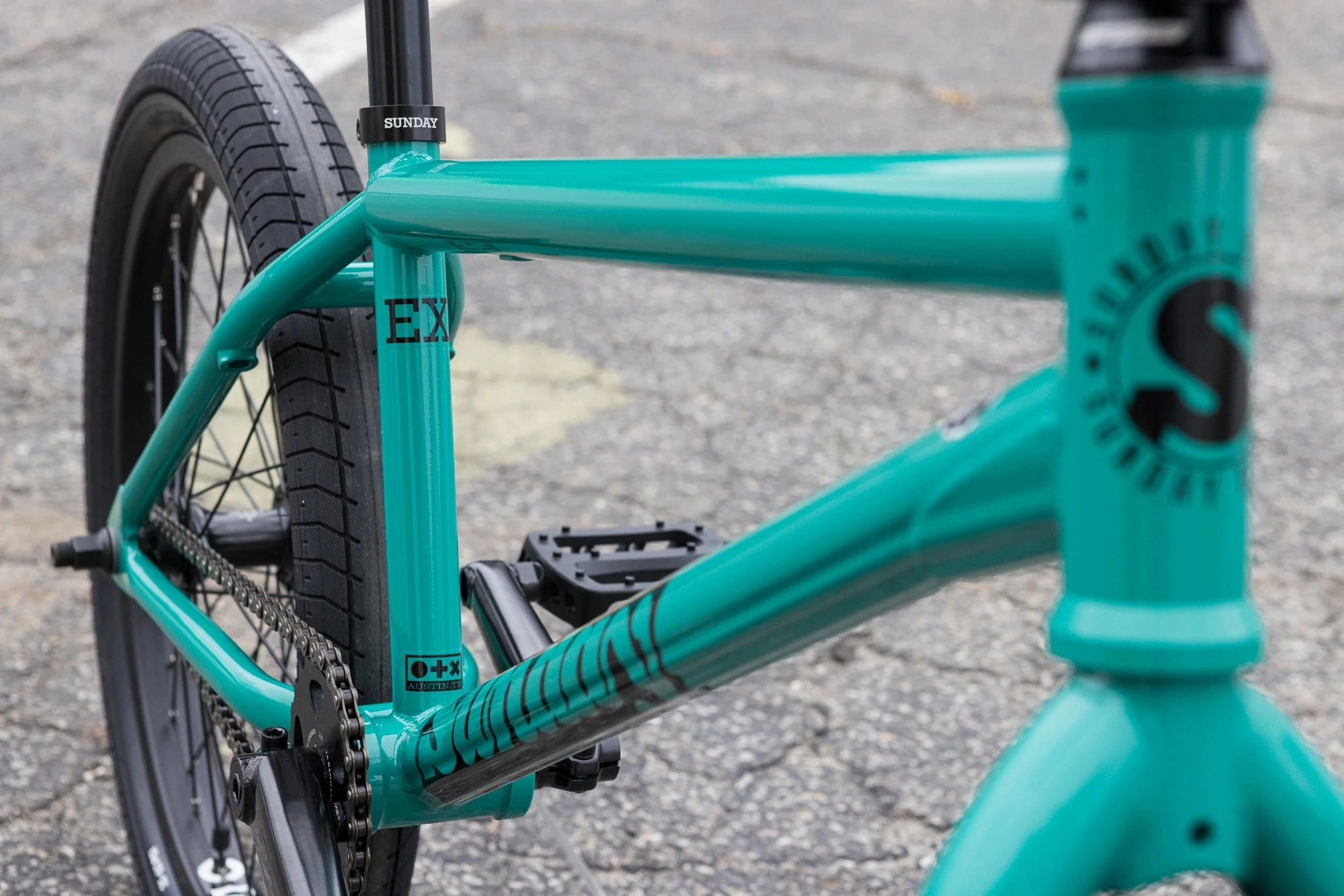

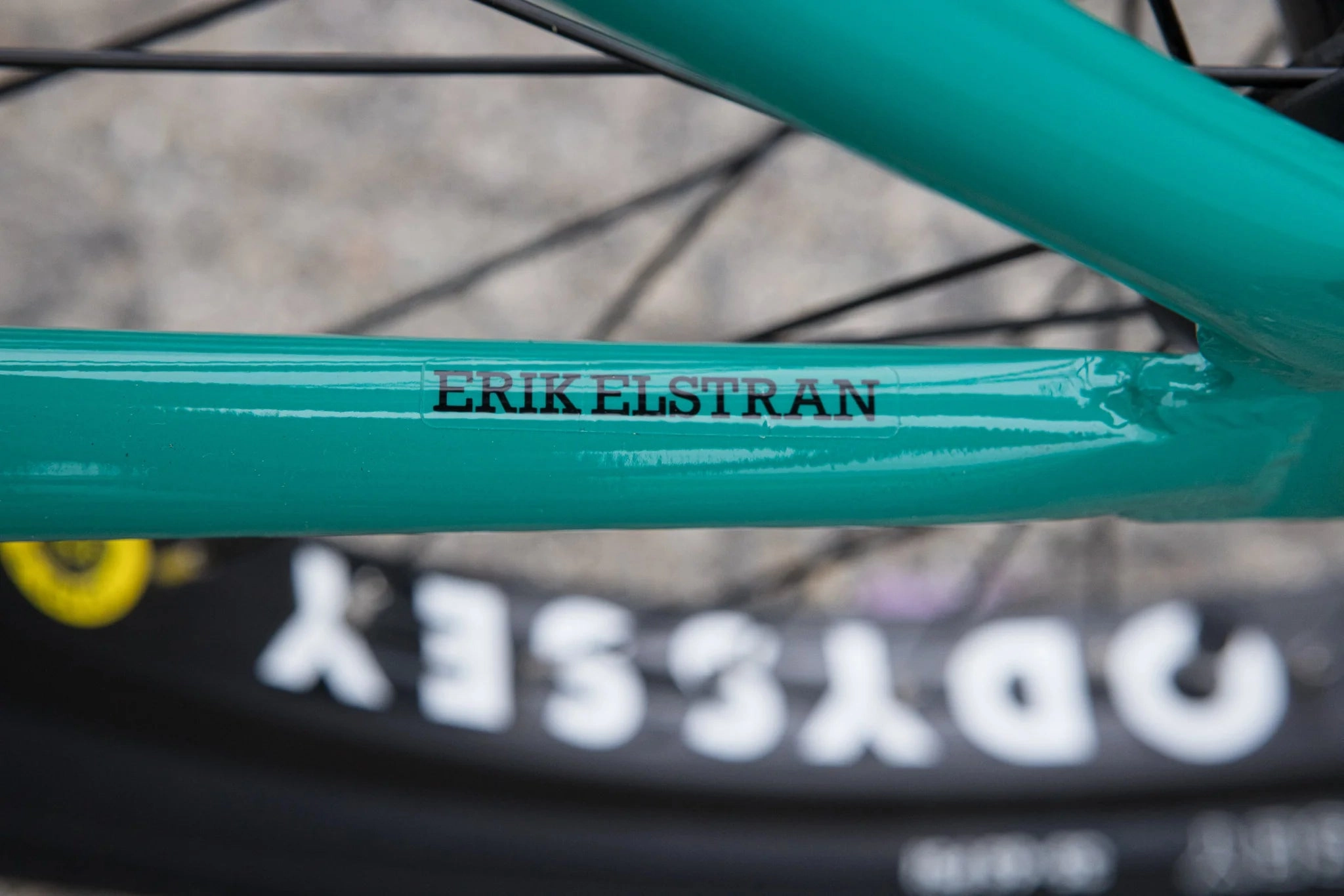

• Frame: Sunday EX, 21" TT, 100% chromoly frame with wave downtube, w/ removable brake hardware

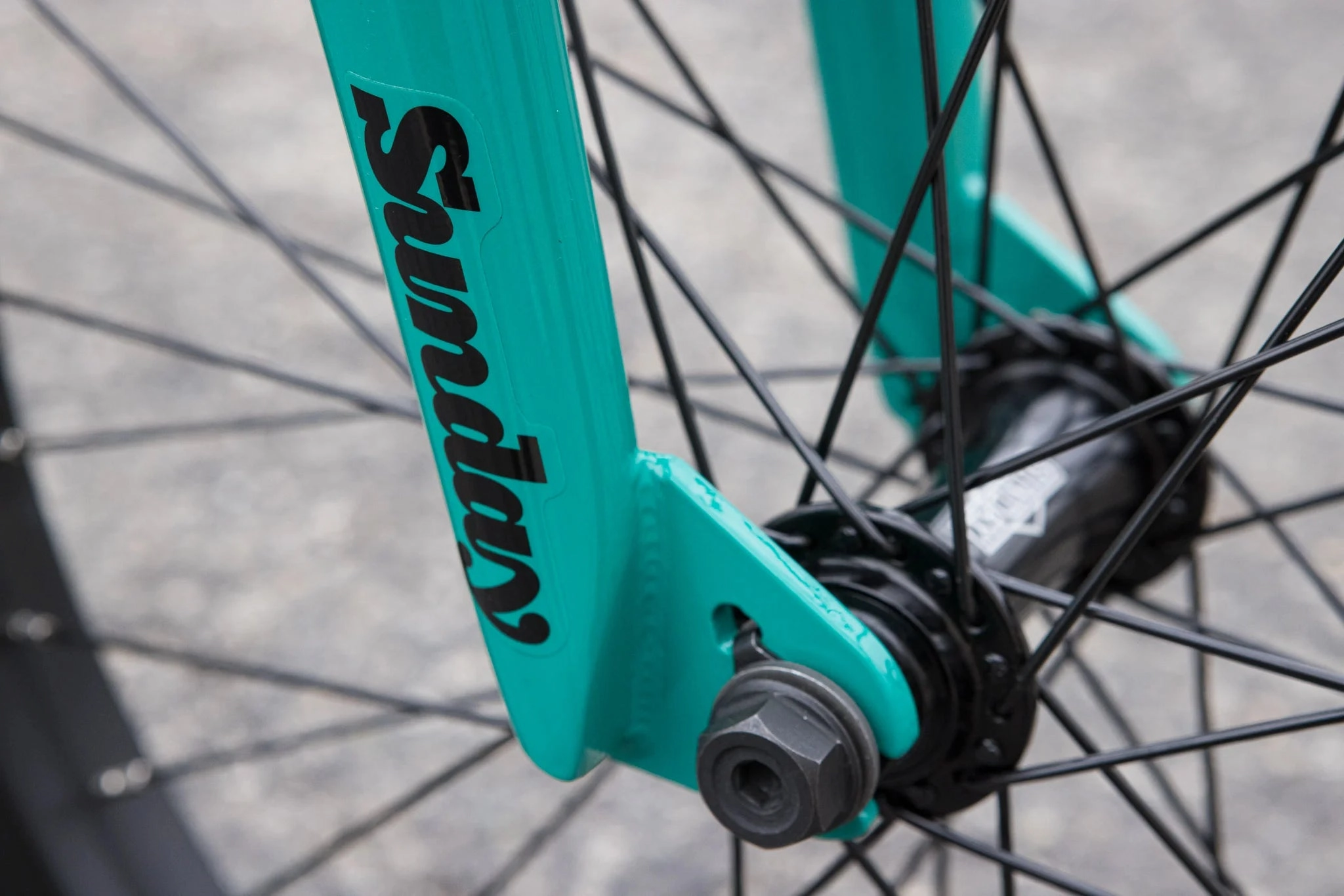

• Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
• Handlebar: Sunday, 100% chromoly, 2-piece

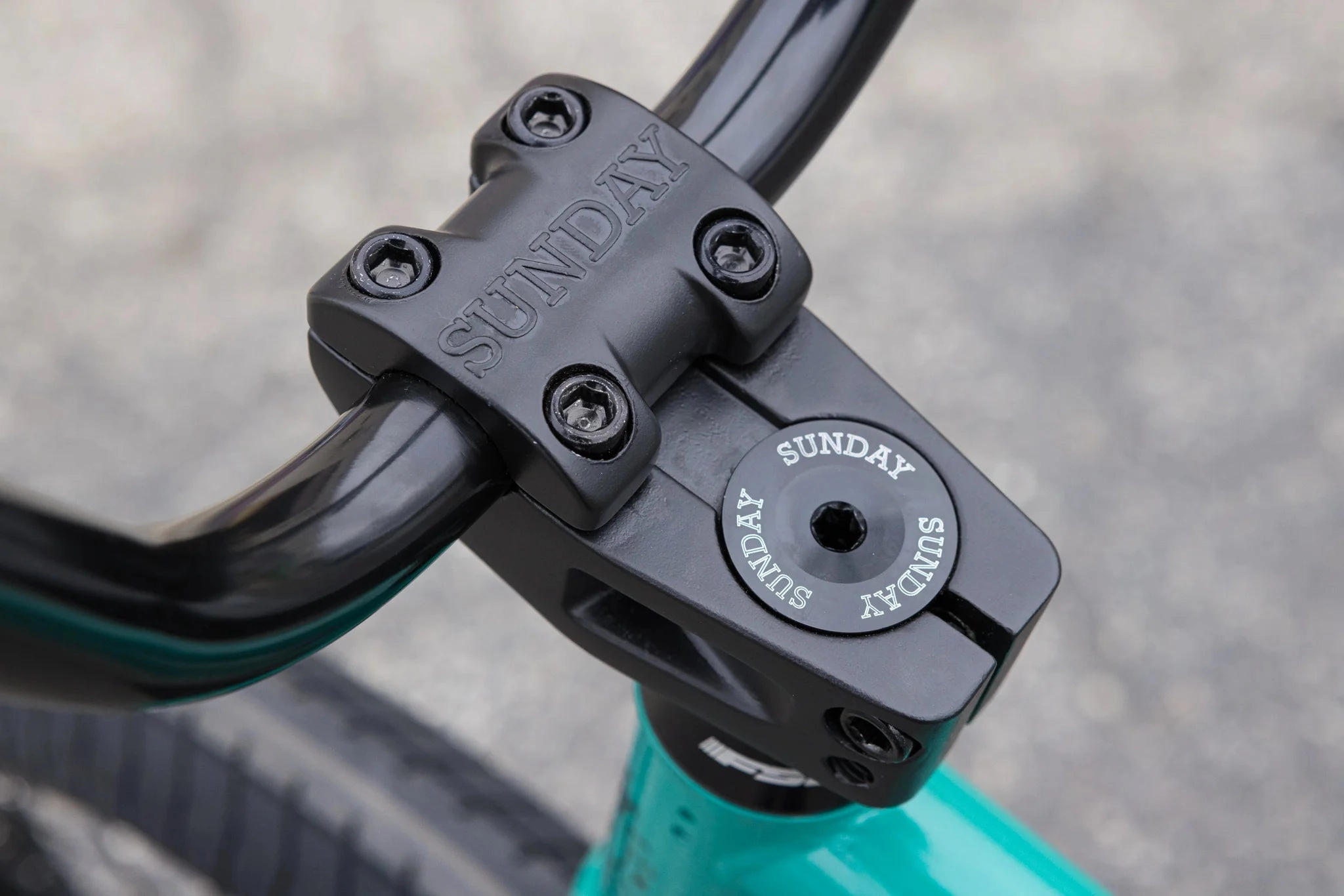

• Stem: Sunday Freeze top load

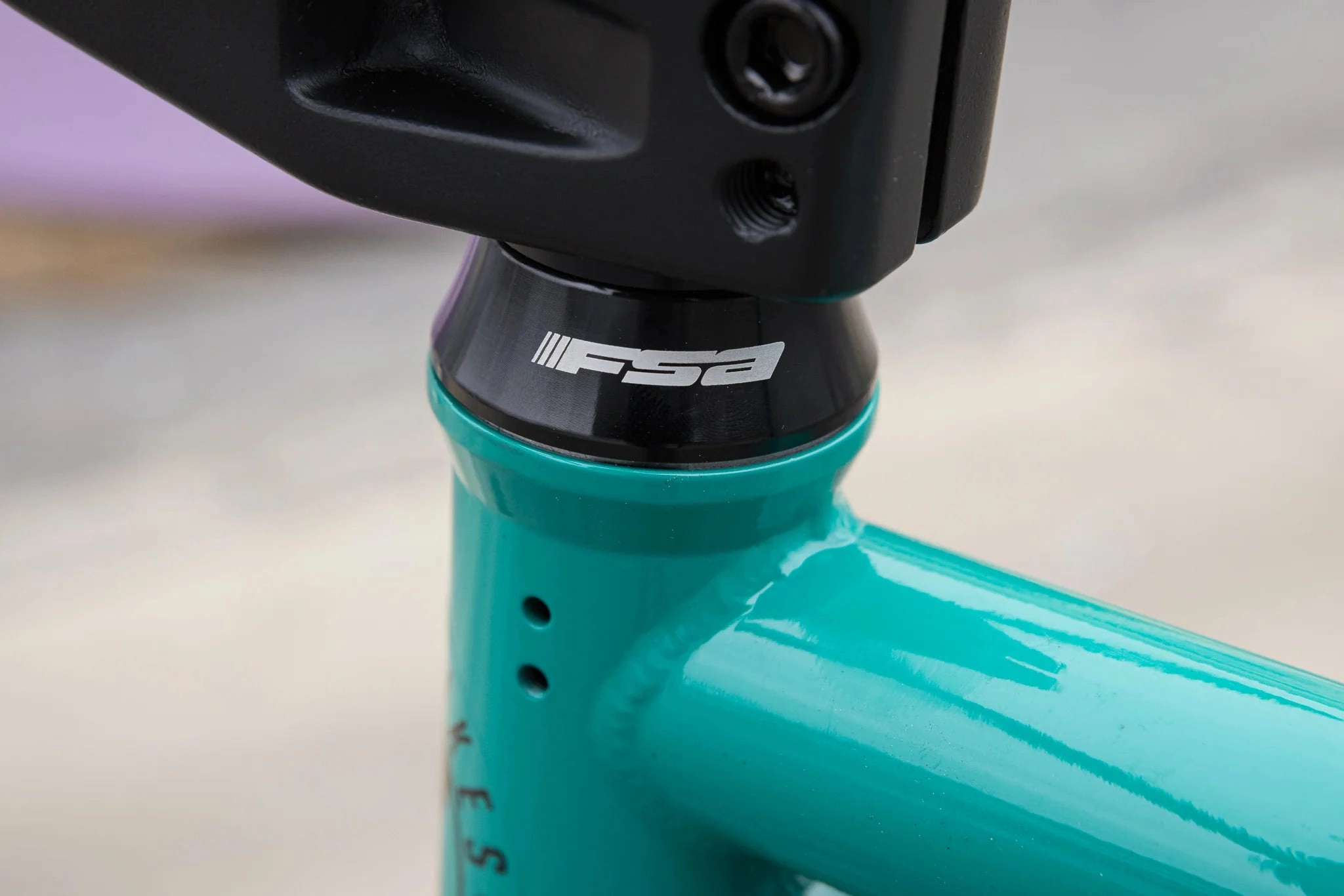

• Headset: FSA integrated conical, 1-1/8"
• Alloy Cap: Sunday M16, aluminum
• Brake Lever: Odyssey Springfield
• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic

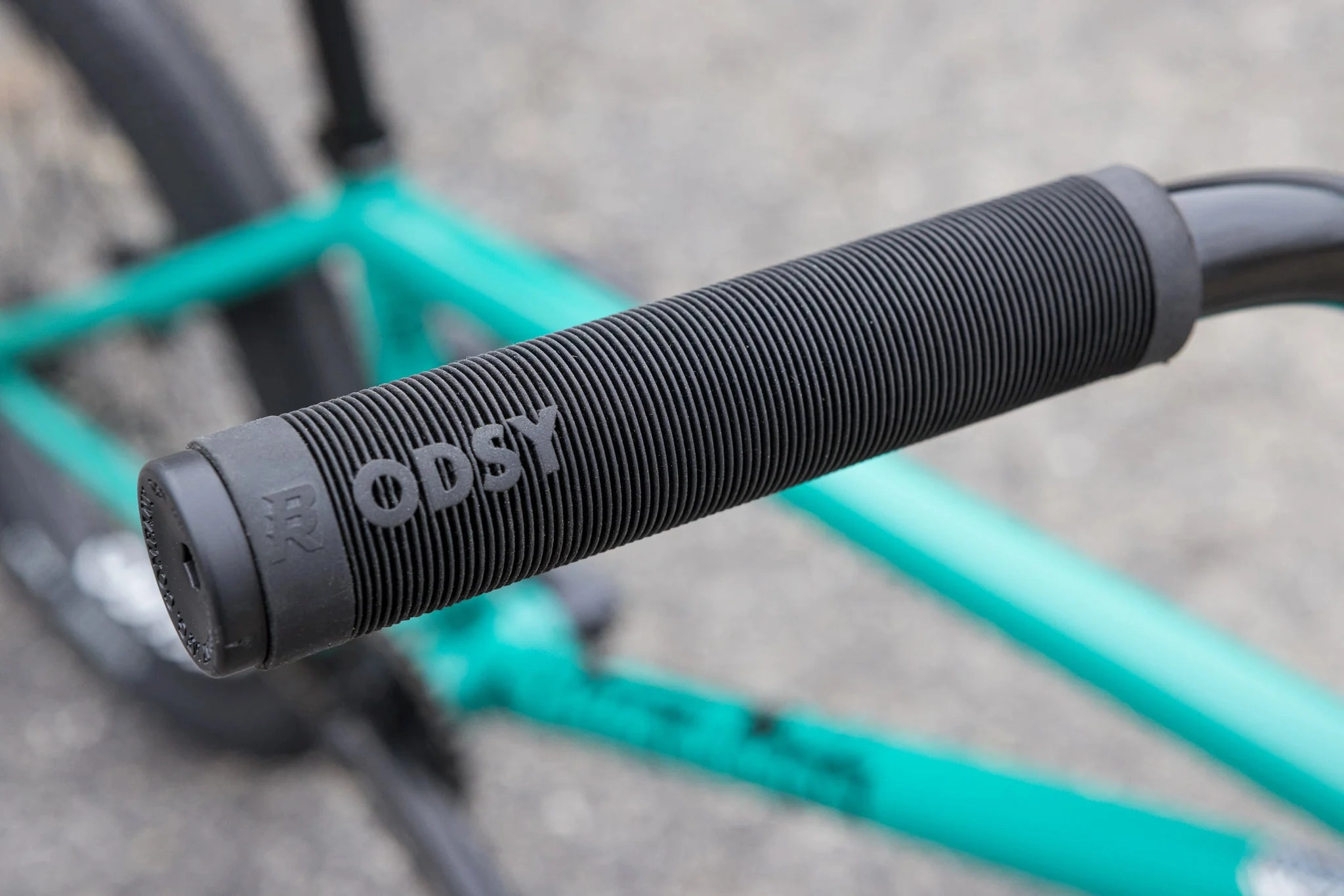

• Grips: Sunday Jake Seeley
• Seat: Sunday Badge, Pivotal
• Seat post: Sunday Pivotal
• Seat Clamp: Sunday

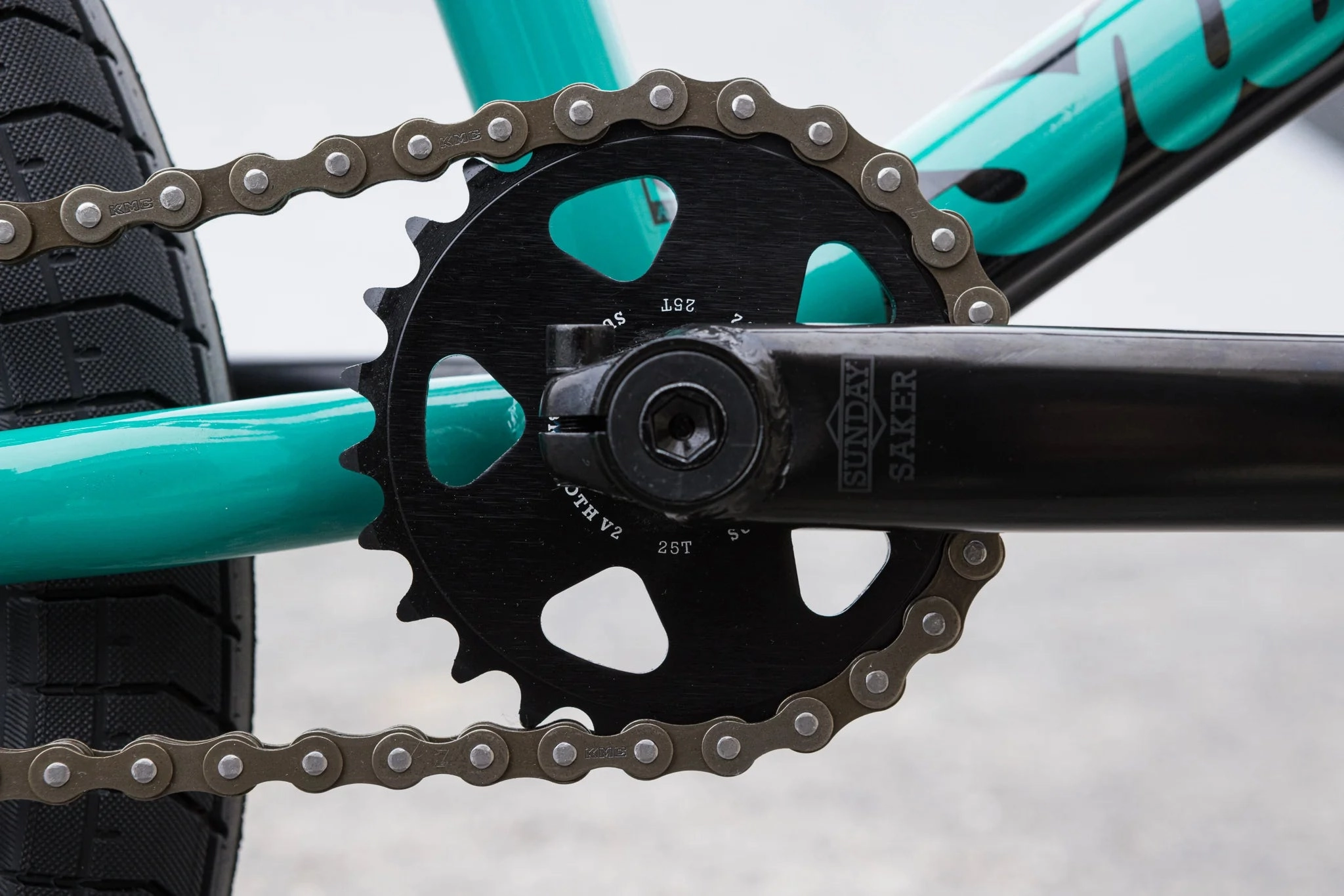

• Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminum
• Cranks: Sunday Saker, 165mm
• BB Parts: Sealed, Mid, 19mm

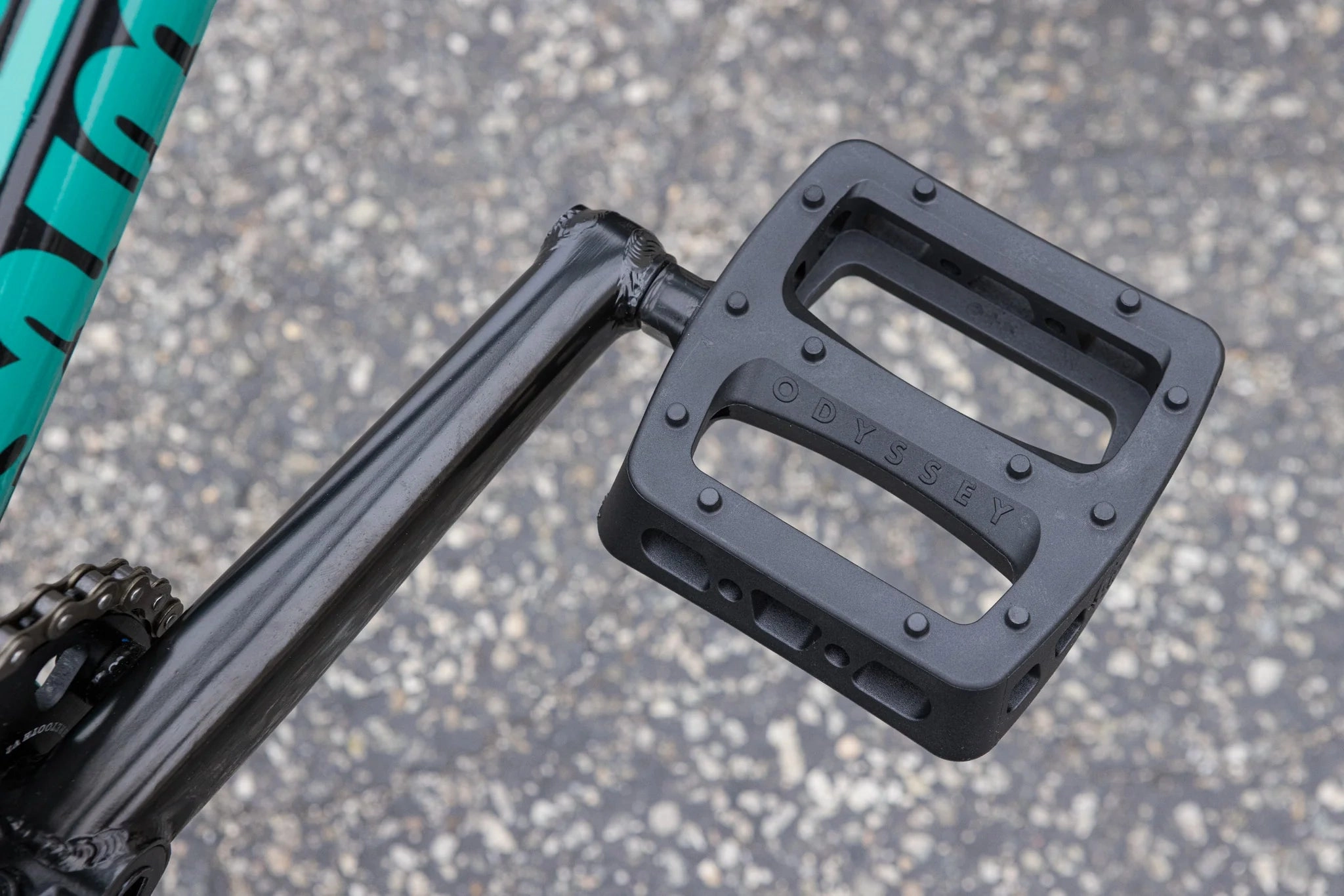

• Pedals: Odyssey Twisted PC Pro

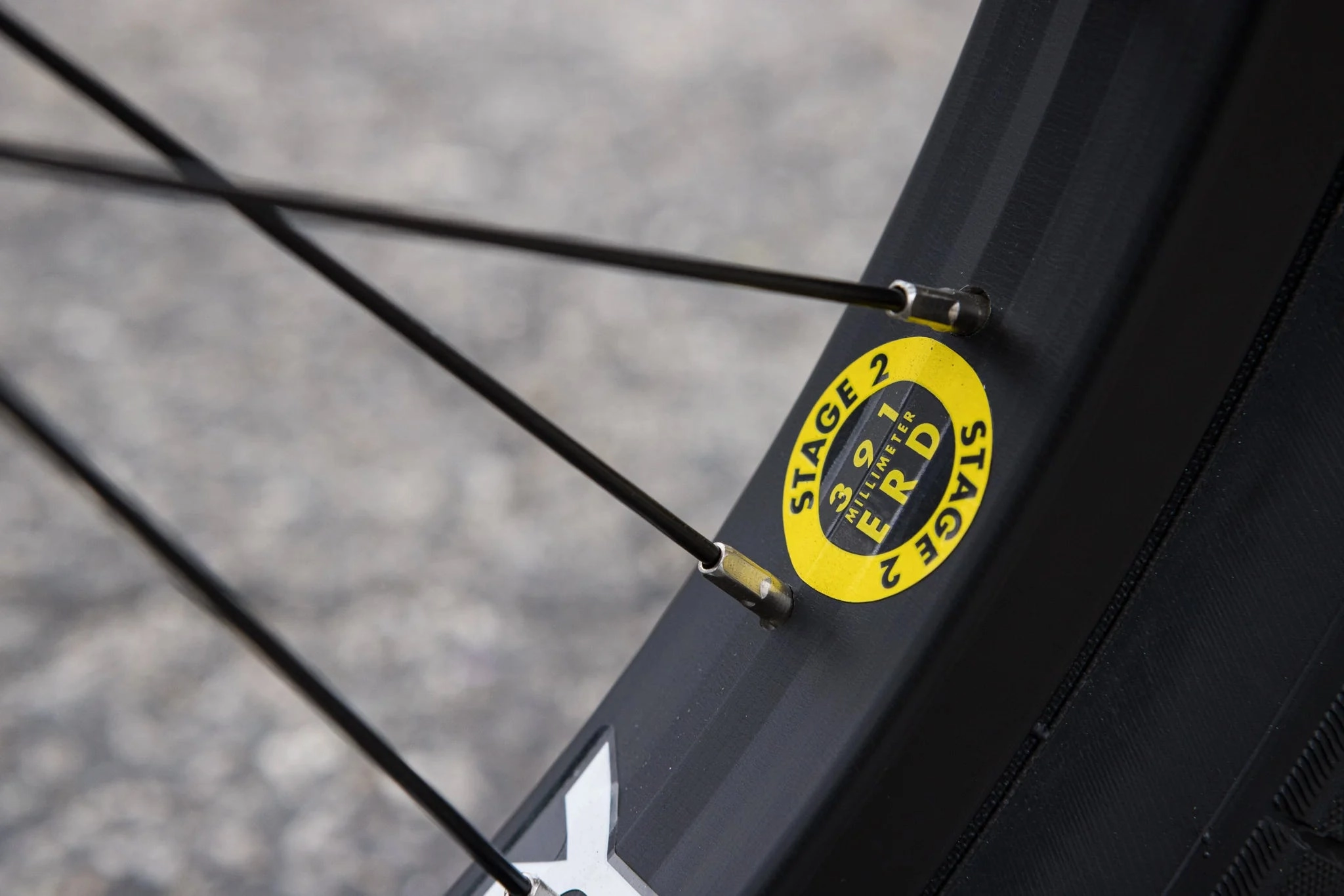

• Rims: Odyssey Stage 2, 20", 36H
• Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle

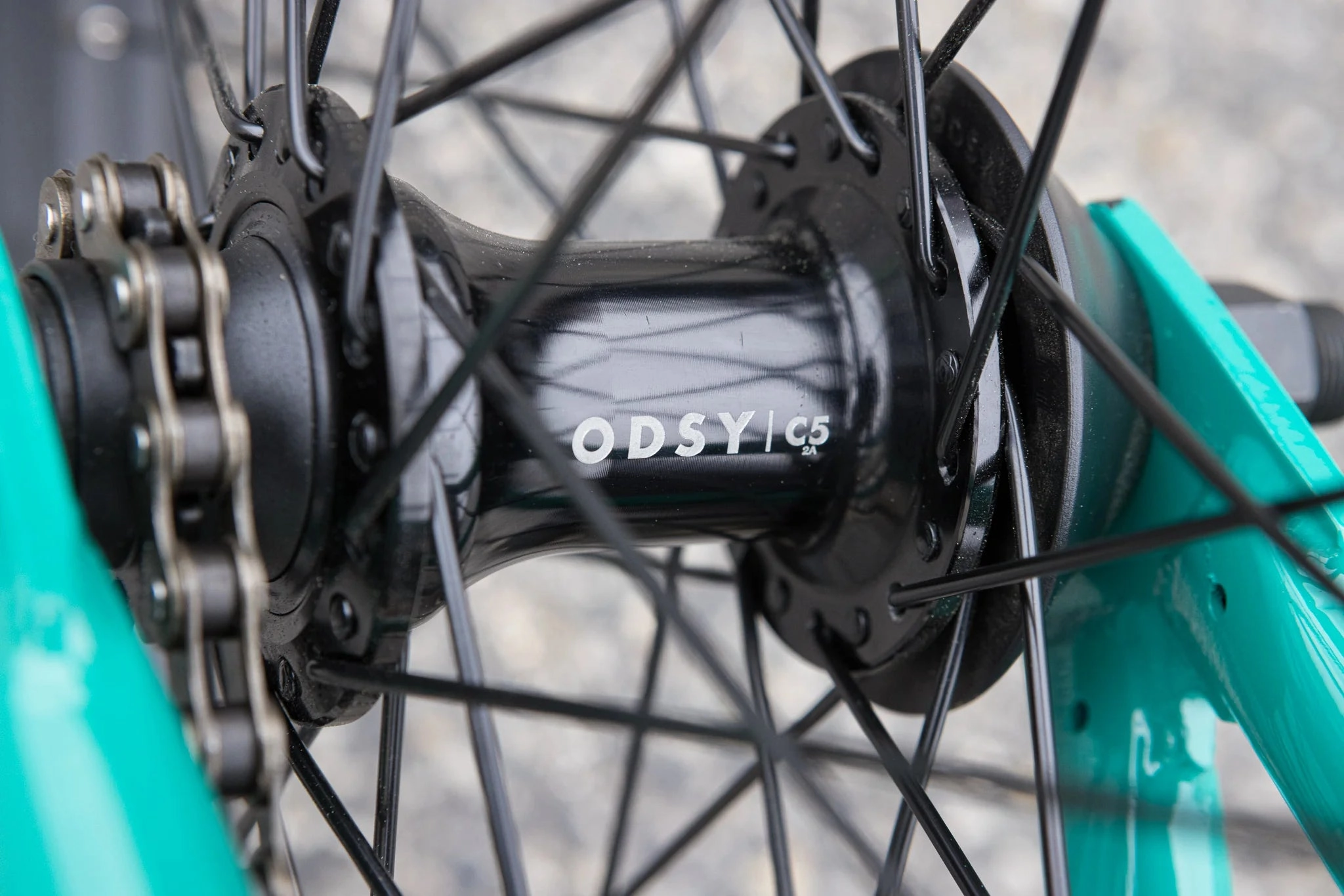

• Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
• Spokes: 14g steel, black

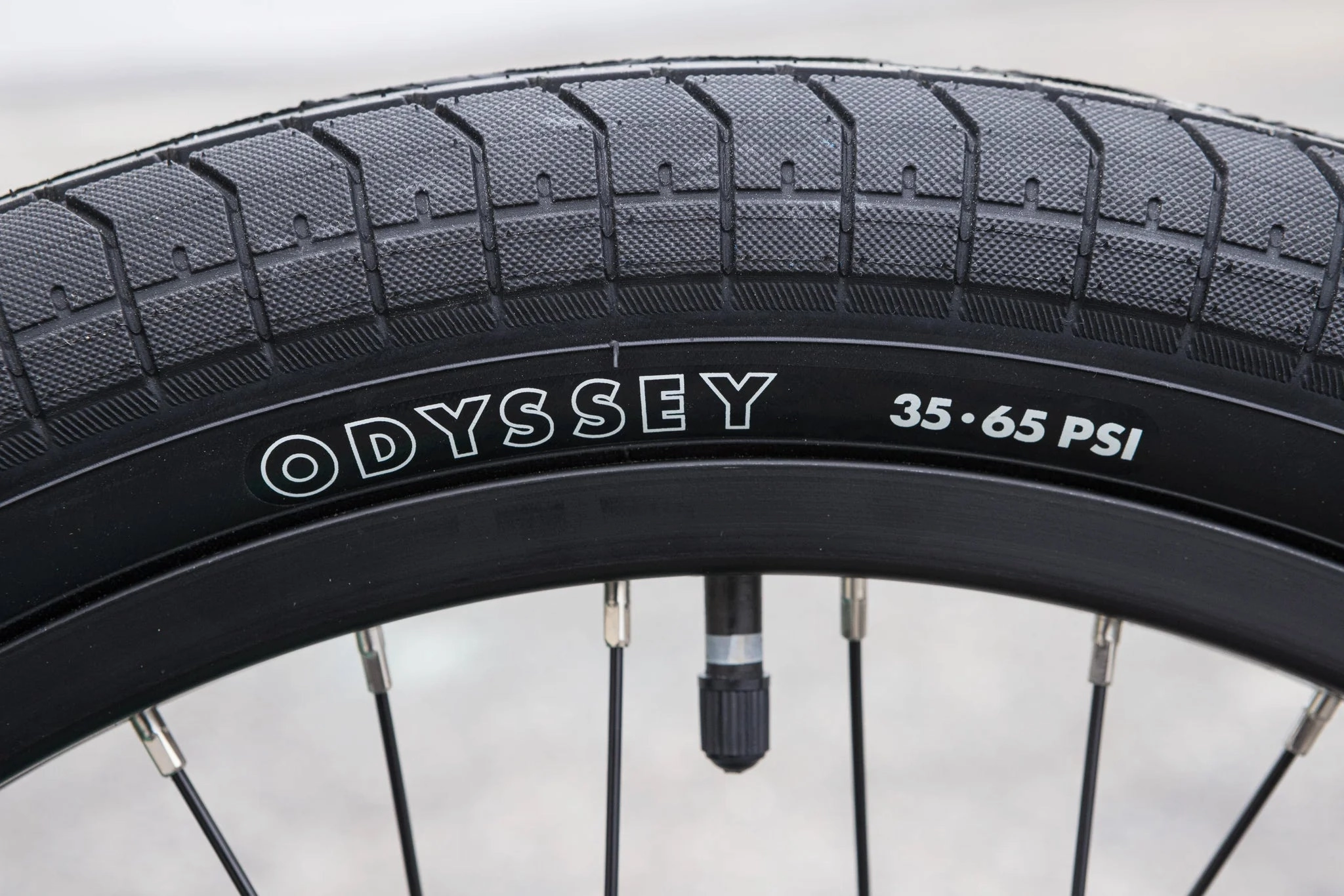

• Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
• Chain: KMC Z1 wide
• Approx. Weight: 25.75lbs (with brakes)

Frame Geometry

• Top Tube Length: 21"
• Head Tube Angle: 75
• Seat Tube Angle: 71
• Chainstay Length: 13.2-13.5
• Bottom Bracket Height: 11.5"
• Standover: 9"

Handlebar Geometry

• Rise: 9"
• Width: 29"
• Backsweep: 12
• Upsweep: 3

*Specs subject to change without notice.
