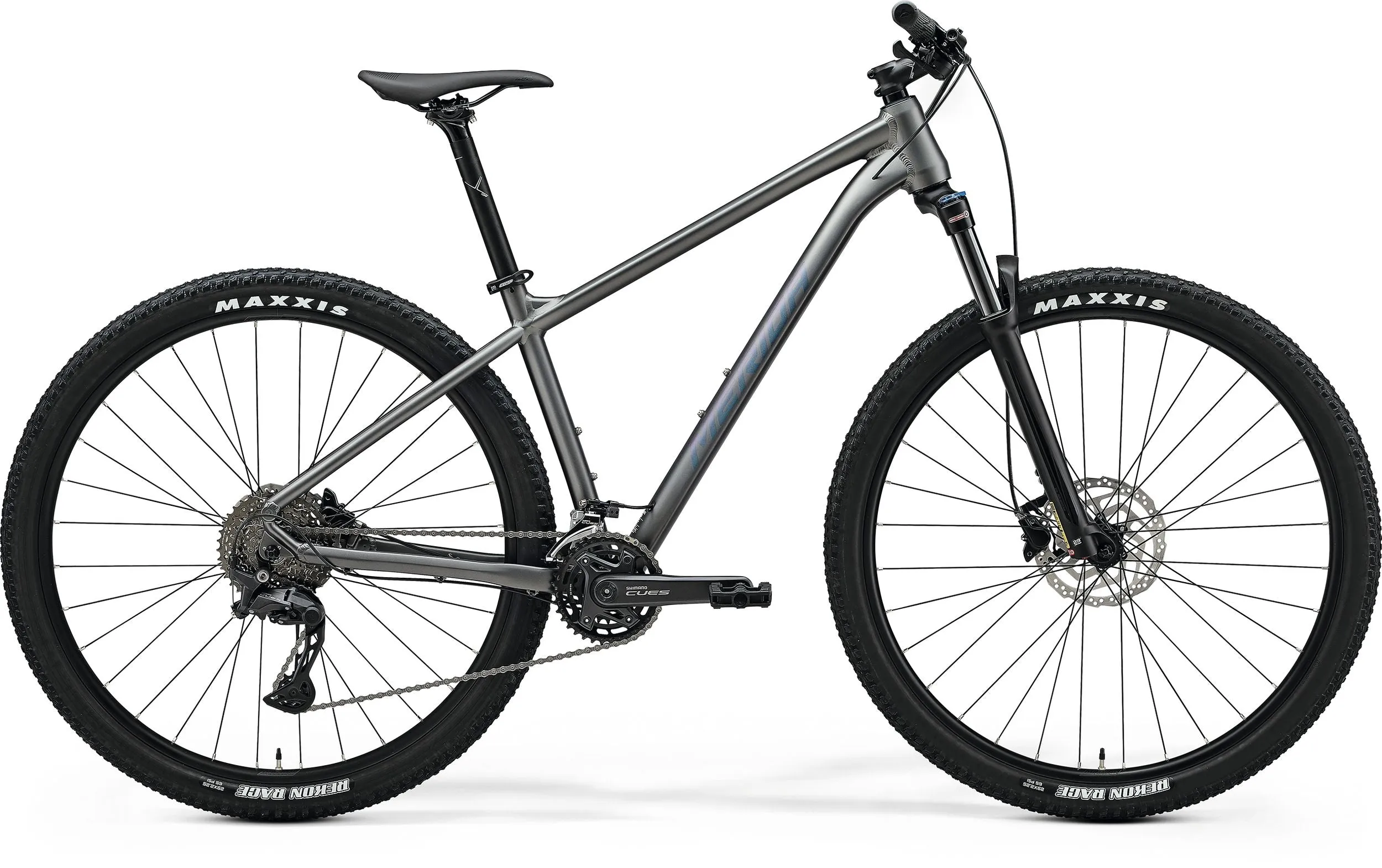

29er wheels offer fantastic 'roll over' ability and keep their speed well. Perfect for your next mountain bike outing. We pair our double butted aluminium frame with an air suspension fork and a double chainring 10-speed Shimano drivetrain for the perfect combination of comfort, control and gear range. The slightly more upright riding position in comparison to our more racy models puts less strain on the lower back and also improves the visibility of what lies ahead.
Features
- Double butted aluminium frame with 29er wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel air suspension fork with lockout
- Shimano CUES 10-speed drivetrain with double chainring setup
- Internal cable routing
Specifications
- Intended Use- Mountain
- Wheel Size- 29"
- Braking System- Hydraulic Disc
- Frame Material- Aluminium
- Fork Material- Aluminium
Components
- Frame- BIG.NINE TFS IV material: aluminum 29 wheelsize 135x9mm axle standard BSA bottom bracket standard
- Fork- Suntour XCR32 LOR Air 100mm suspension travel Lockout 44mm fork offset
- Bottom Bracket- Shimano LG500
- Chain- Shimano LG500
- Crank- Shimano CUES U6002 36-22 teeth 170 mm-S, 175 mm-M up
- Shift Levers- Shimano CUES U6000
- Cassette- Shimano LG400 11-39 teeth 10 speed
- Front Derailleur- Shimano CUES U6000
- Rear Derailleur- Shimano CUES U6020 SGS
- Grips/Bartape- MERIDA COMP EC
- Handlebar- MERIDA EXPERT CC material: aluminium 720mm width 10mm rise
- Stem- MERIDA COMP CC material: aluminium 31.8mm diameter 7 stem angle S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm
- Saddle- MERIDA COMP SL 25% recycled material V-mount
- Seatpost- MERIDA COMP CC material: aluminium 30.9mm diameter 0mm setback
- Front Brake- Shimano MT200 2 piston
- Rear Brake- Shimano MT200 2 piston
- Front Wheel- MERIDA COMP CC II 25mm inner width material: aluminium tubeless ready, Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock 135x9mm width rear hub 32 spoke holes Centerlock
- Rear Wheel- MERIDA COMP CC II 25mm inner width material: aluminium tubeless ready, Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock 135x9mm width rear hub 32 spoke holes Centerlock
- Tire- Maxxis Rekon Race 29x2.25" wire
- Pedal- VP VPE-891
