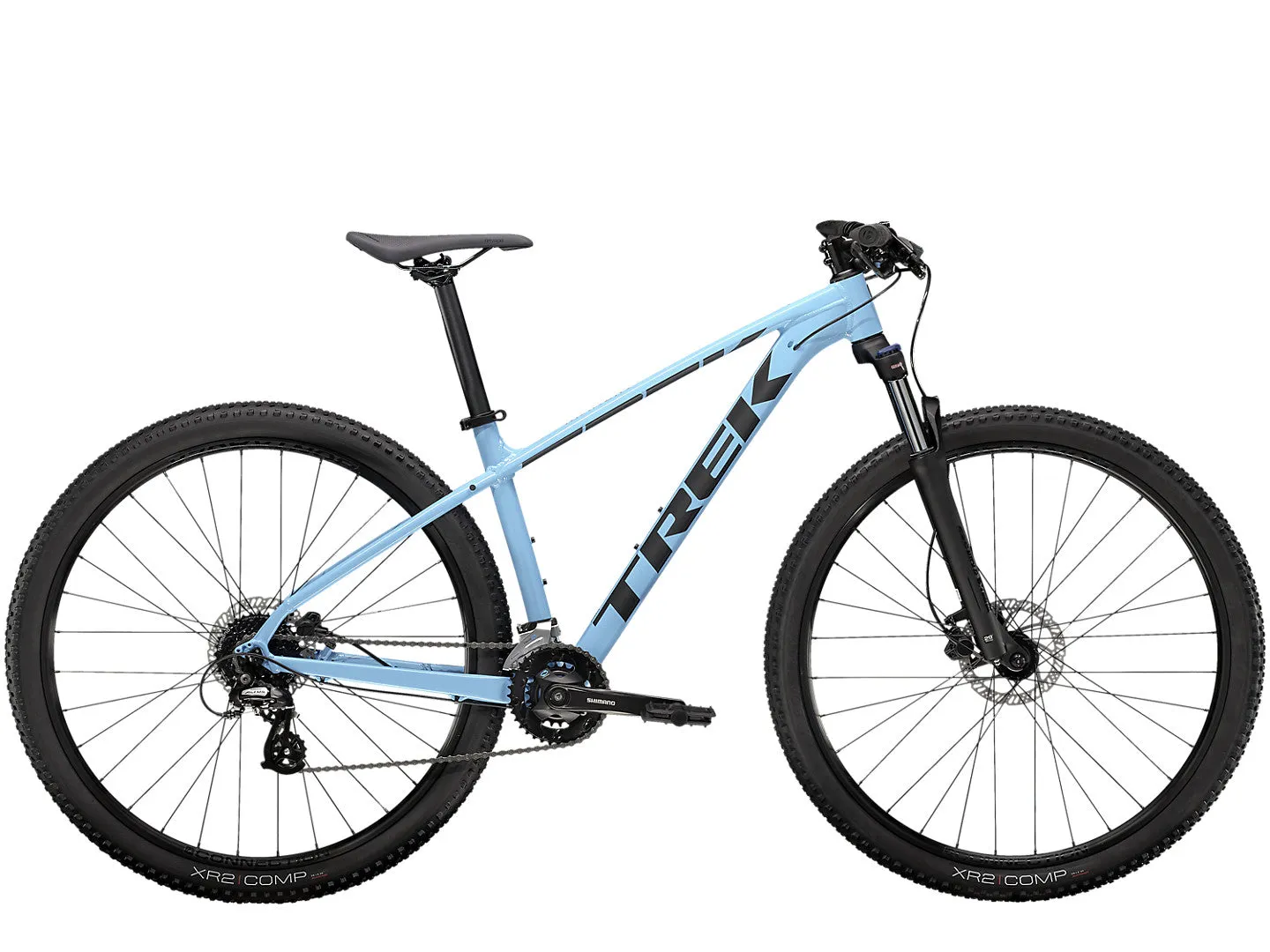

Name: Marlin 5 Azure
SKU: 281760

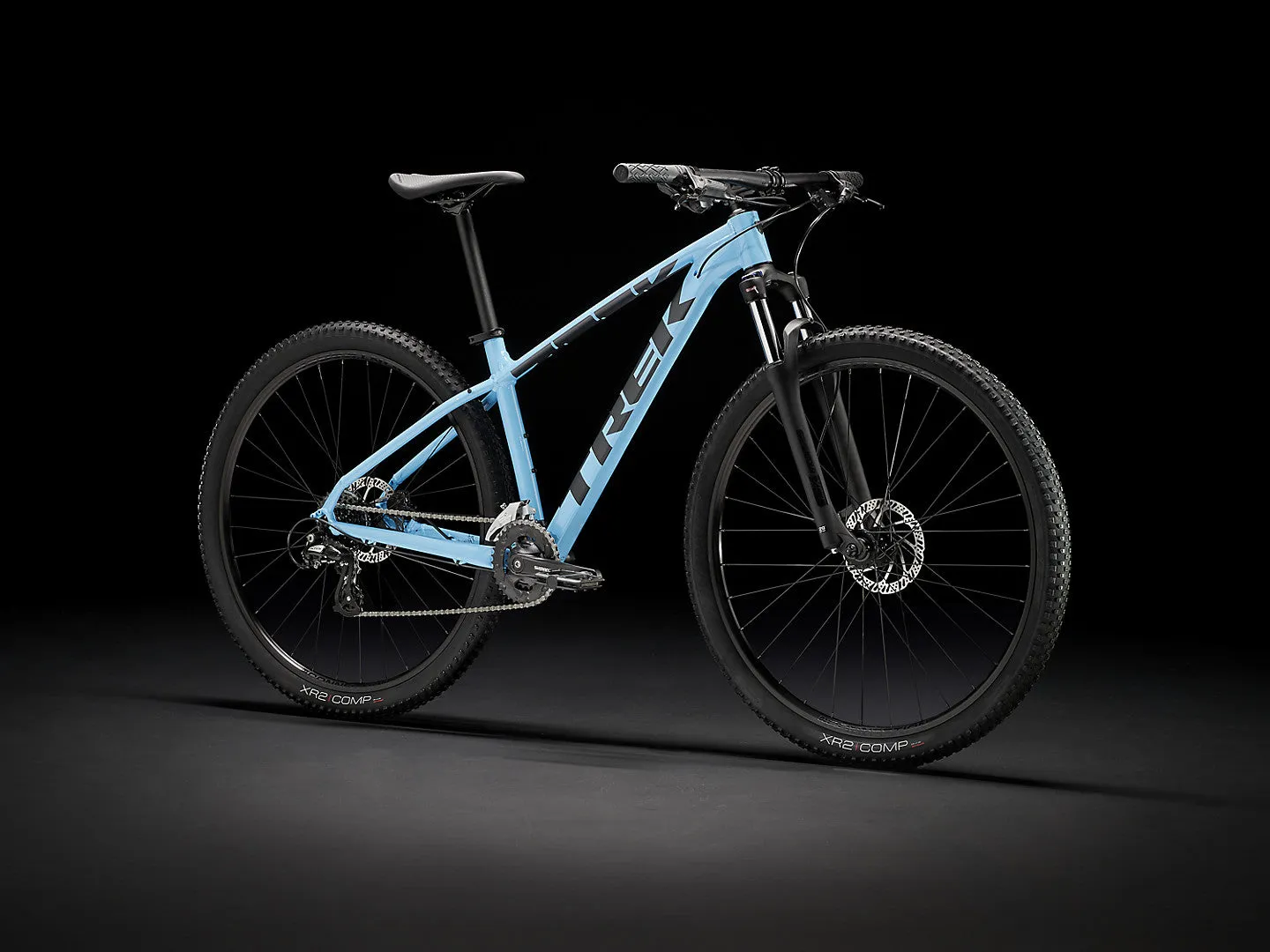

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

You're new to the trail and youre looking for a real mountain bike that doubles as a commuter and you want it all at an exceptional value.

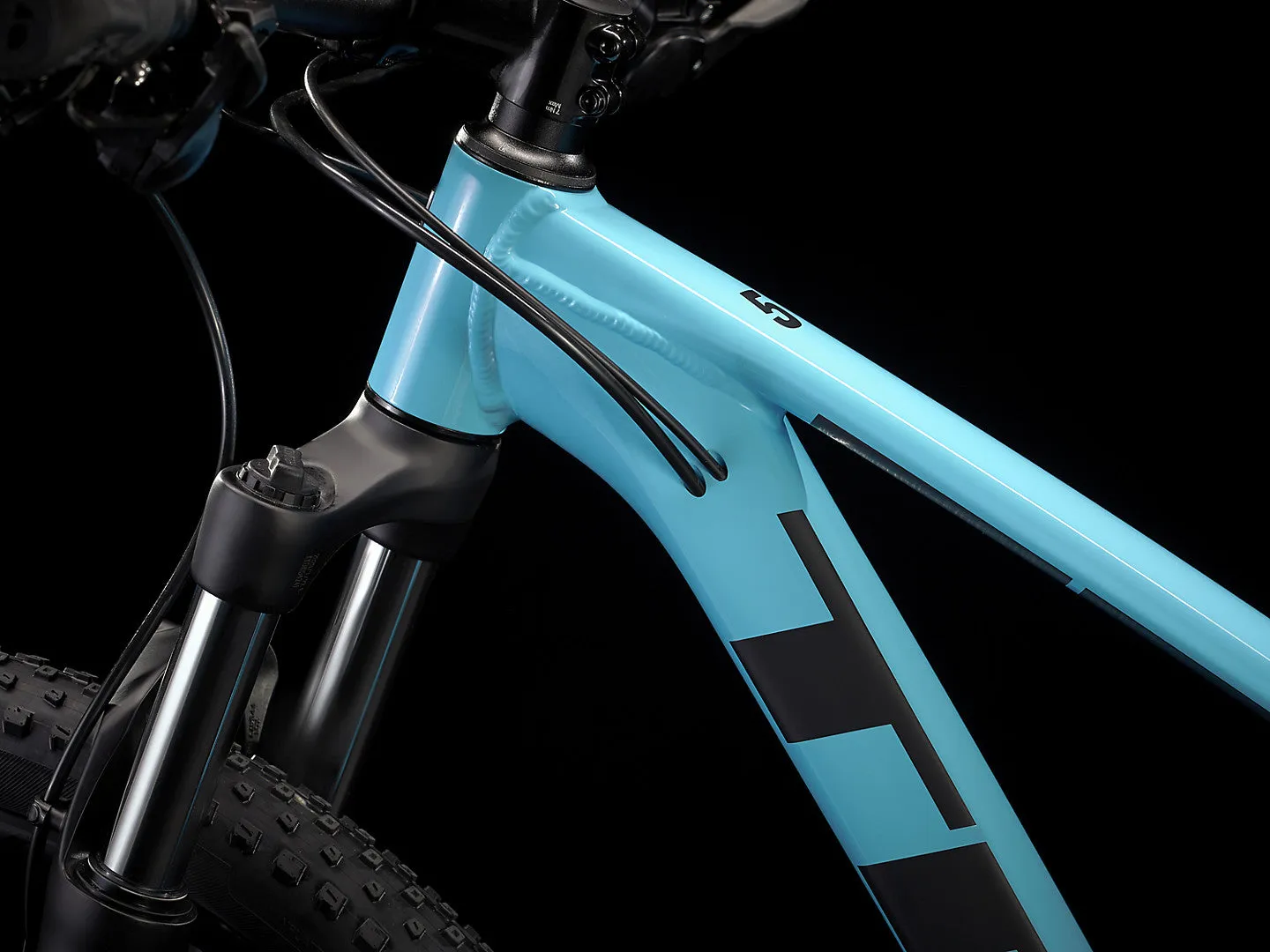

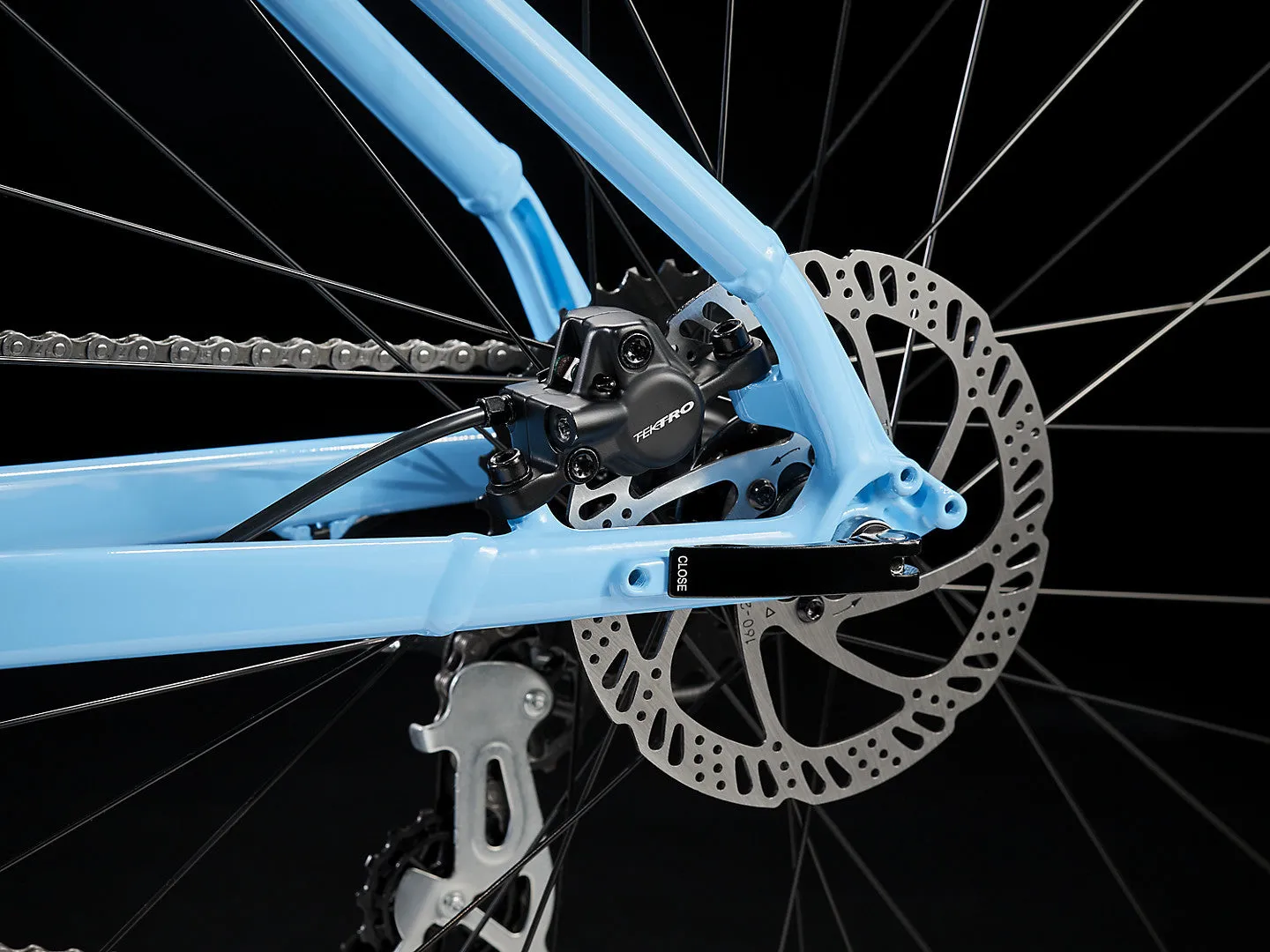

A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, 2x8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.

The Marlin 5 is a great ride for all your adventures. But it's also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.

It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

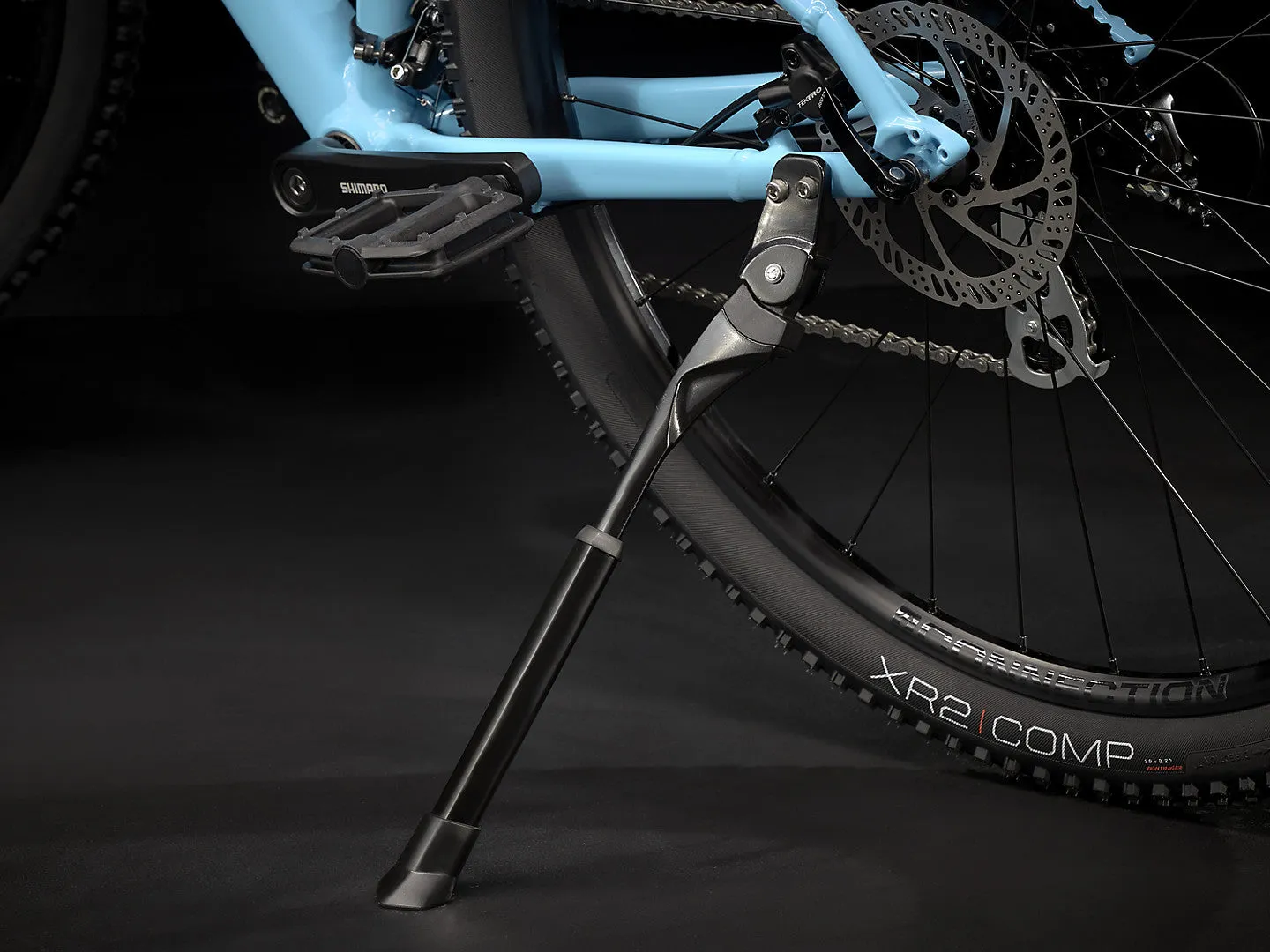

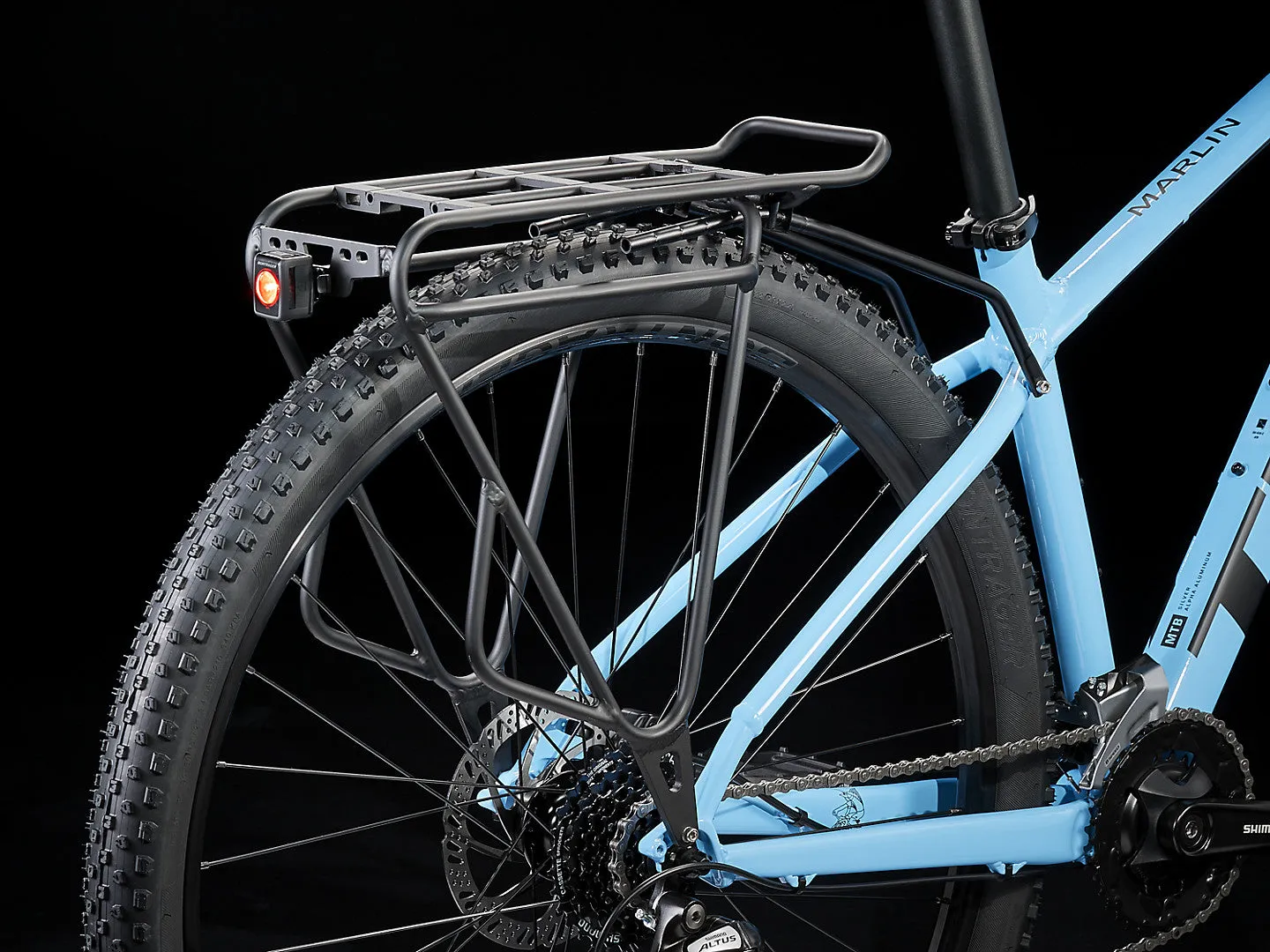

Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
Like every Trek, it's backed by a lifetime warranty

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

*spec applies to all sizes unless otherwise noted

Frame	Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR

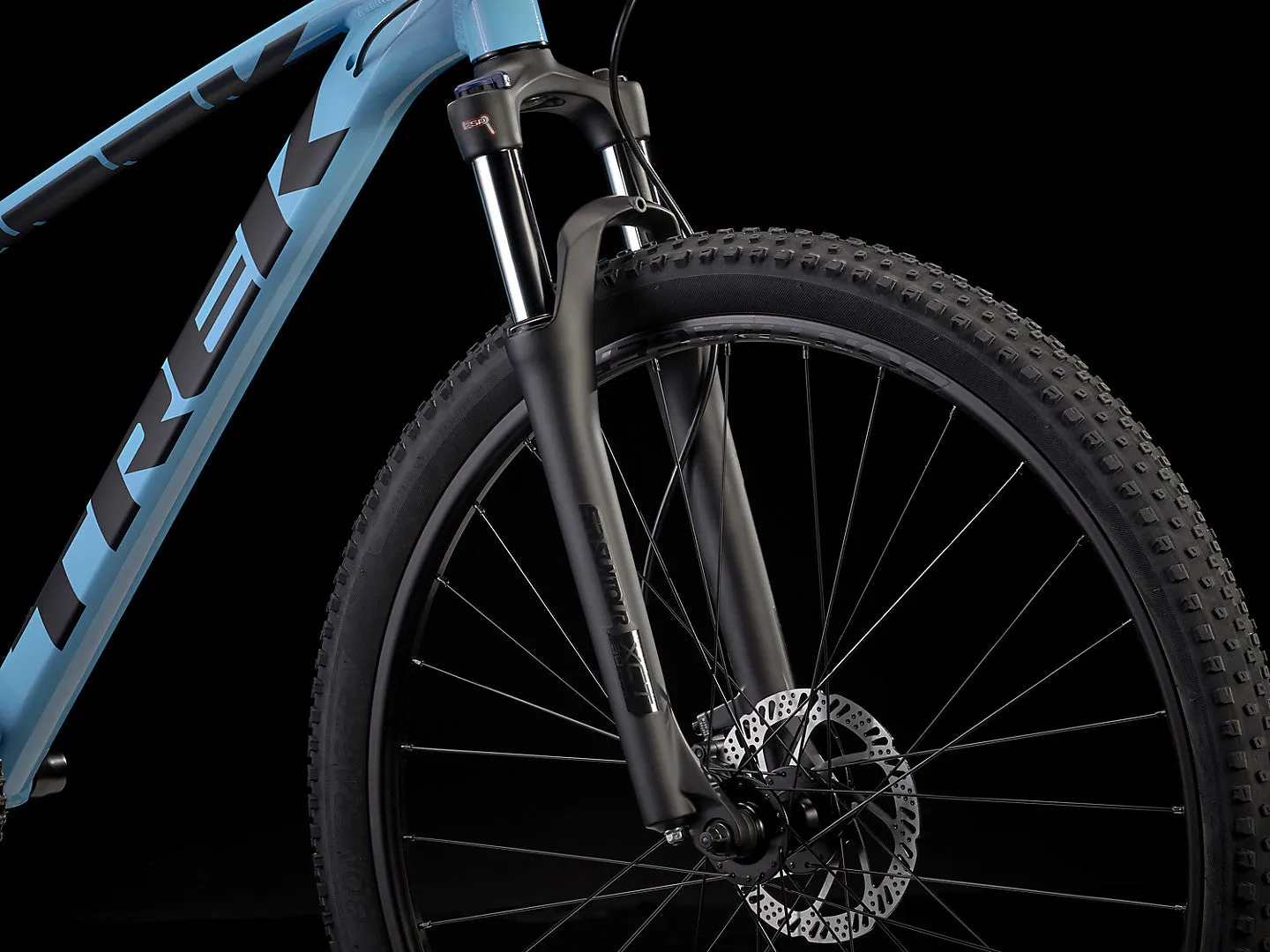

*Fork	Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel
	Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Hub front	Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

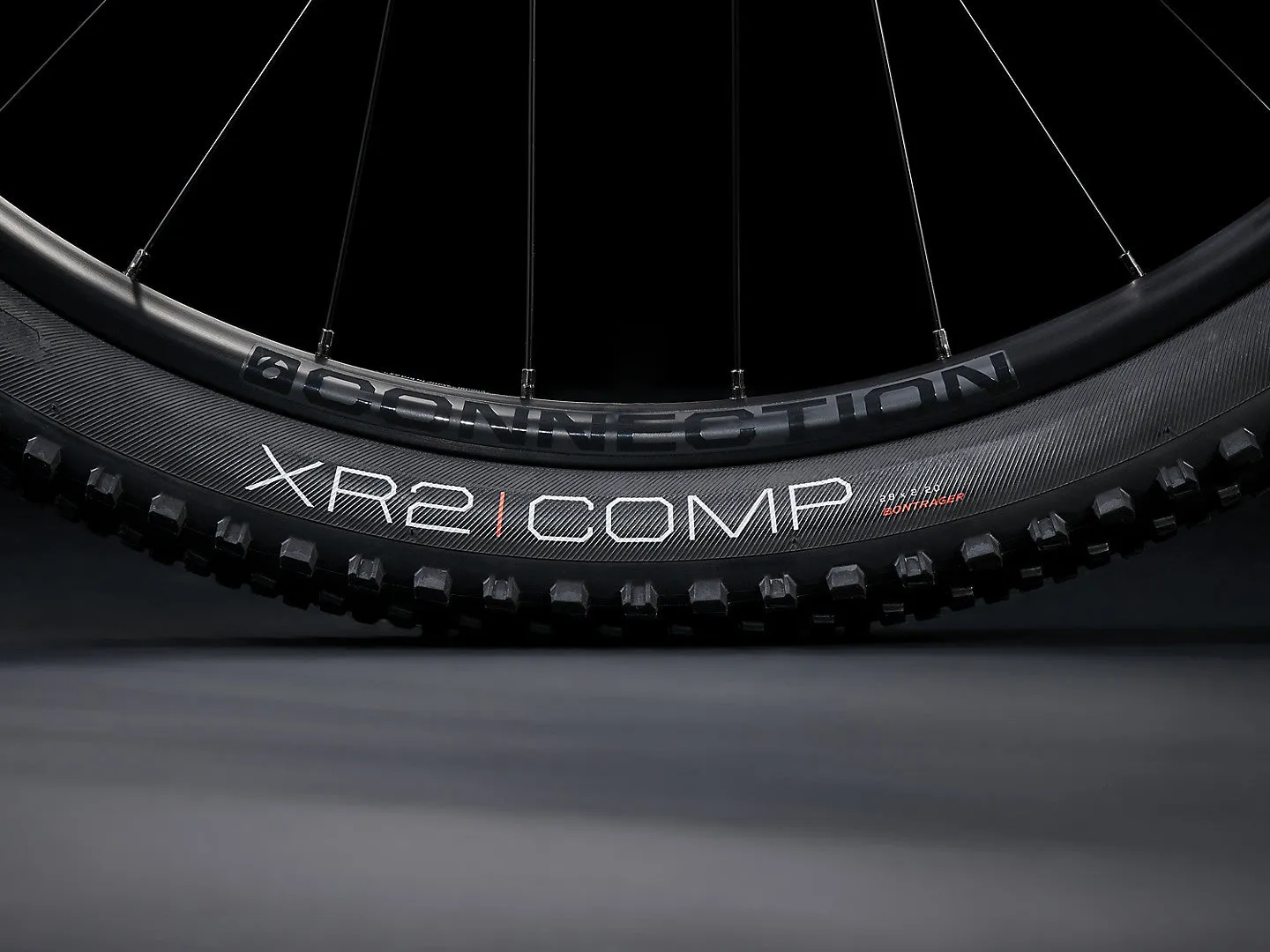

*Rim	Size: XXS Bontrager Connection, alloy, double-wall, 32-hole, 20 mm width, Schrader valve
*Rim	Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes	14 g stainless steel
*Tyre	Size: XXS
	Size: XS , S
	Size: M , ML , L , XL , XXL

Shifter	Shimano Altus M315, 8-speed
Front derailleur	Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
Rear derailleur	Shimano Altus M310

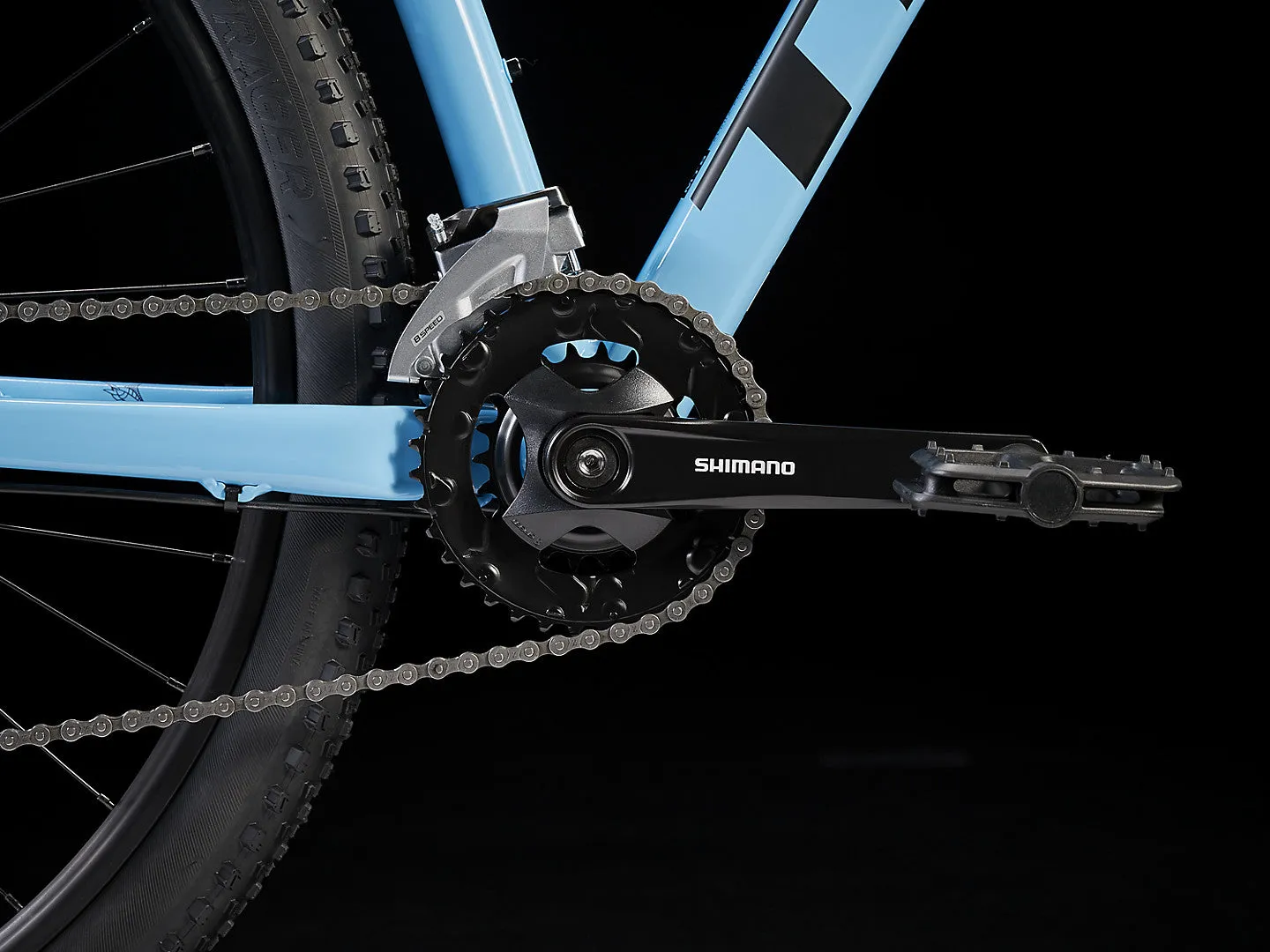

*Crank	Size: XXS Prowheel TM-CY10, 36/22, 160 mm length
	Size: XS , S , M Shimano M315, 36/22, 170 mm length
	Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length
Bottom bracket	VP BC73, 73 mm, threaded cartridge
Cassette	Shimano 8-speed, 12-32T
Chain	KMC Z8.3, 8 speed
Pedal

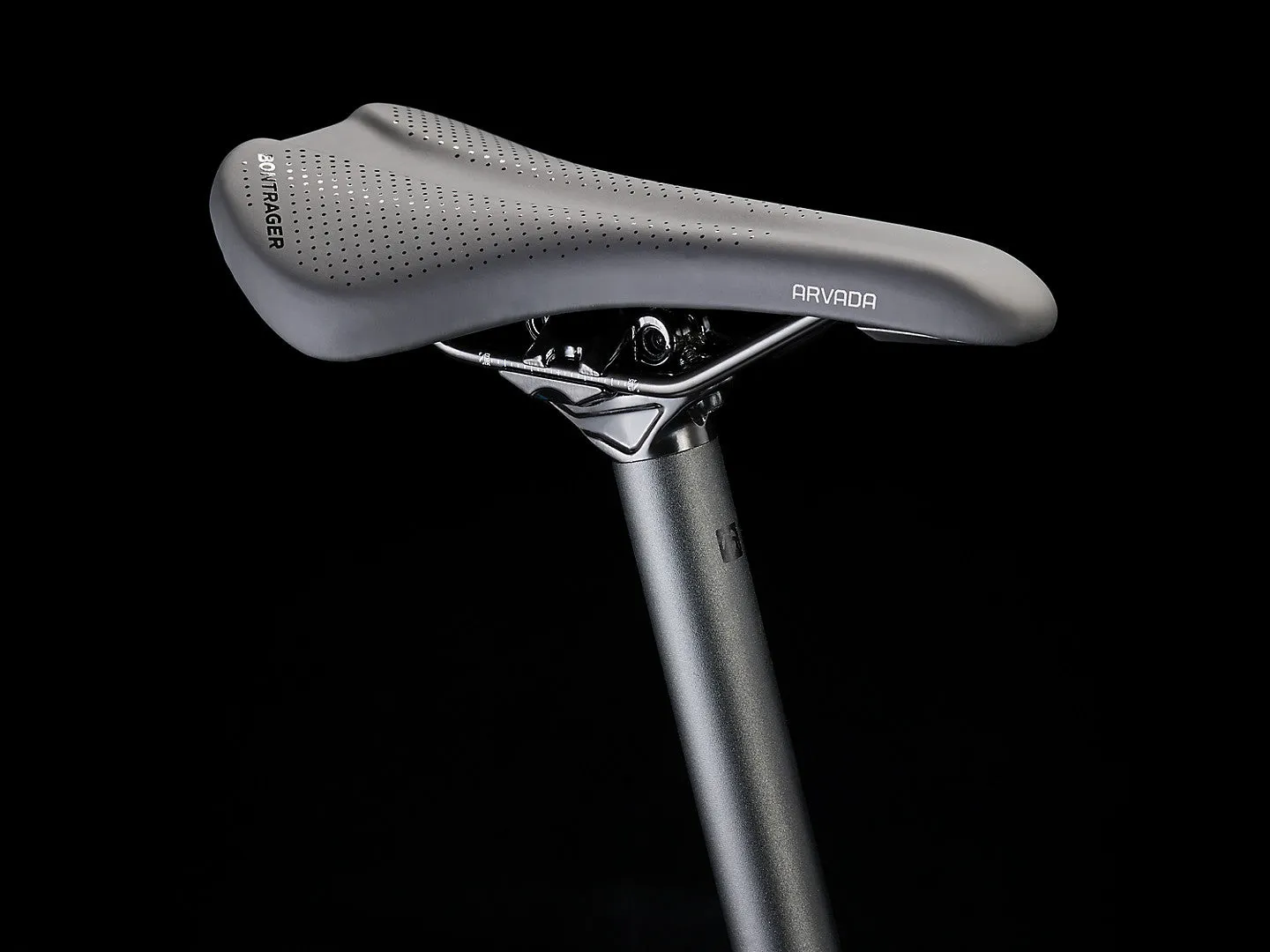

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length
	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

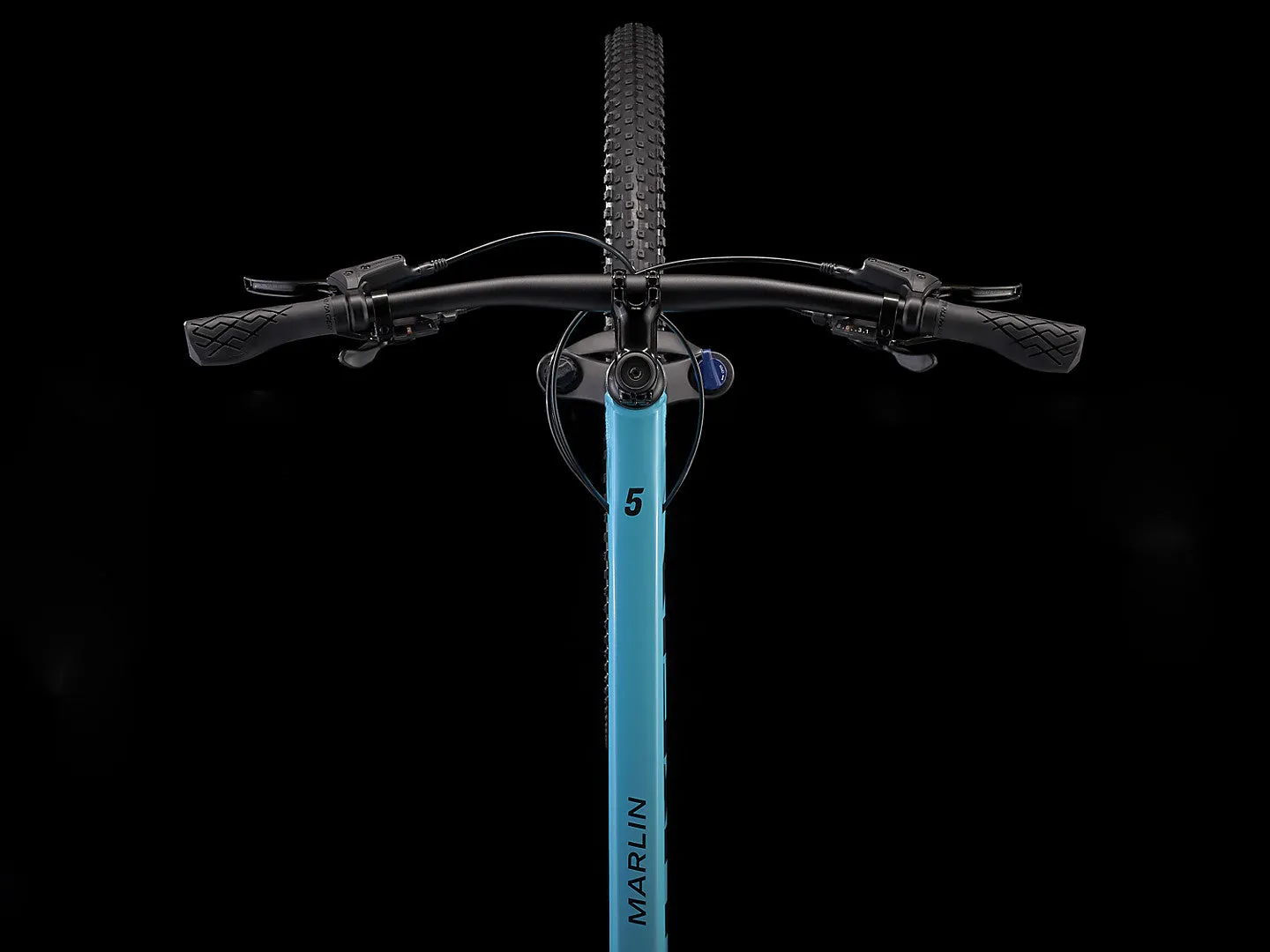

*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips
*Stem	Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
	Size: XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
	Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set	Semi-integrated, 1-1/8"
*Brake	Size: XXS , XS , S
*Brake	Size: M , ML , L , XL , XXL

Weight	M - 30.80 lb / 13.9725 kg
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.
