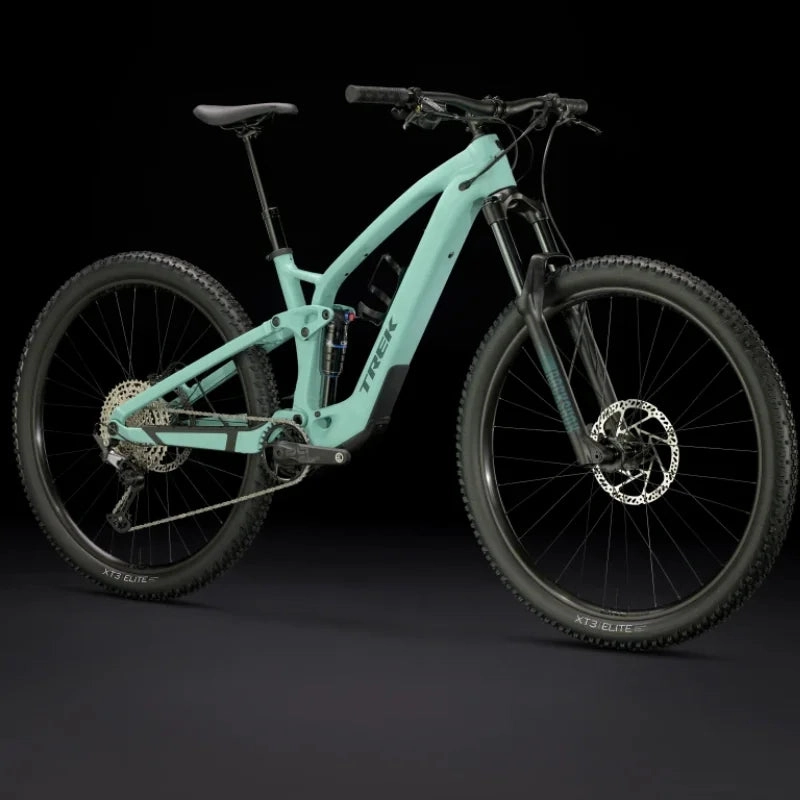

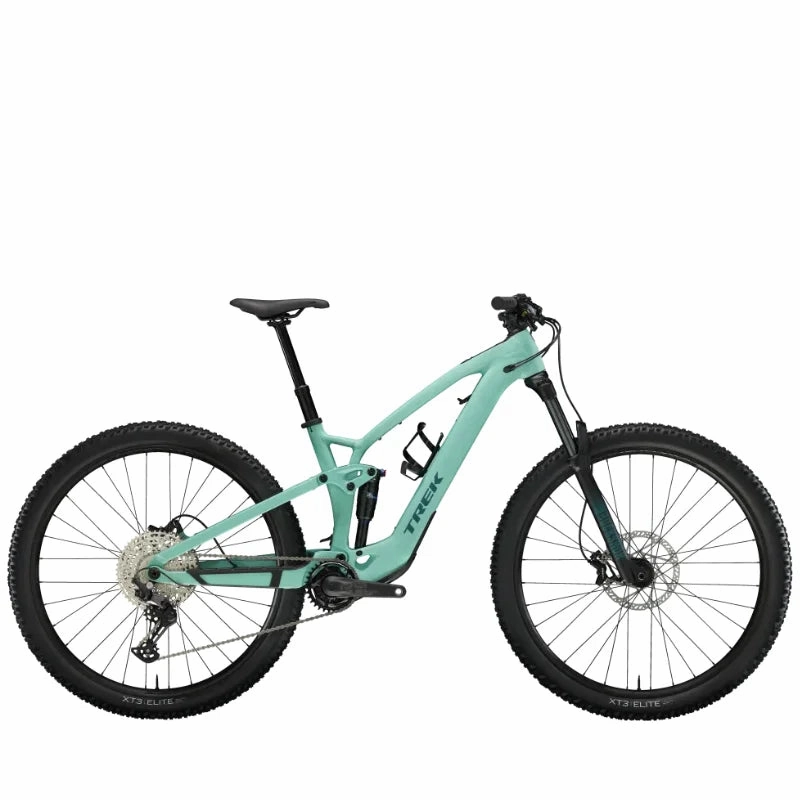

Trek Fuel EXe 5: Your Gateway to Enhanced Trail Adventures
The Trek Fuel EXe 5 ushers in a new era of aluminium electric mountain biking, offering an affordable entry into the e-MTB world without compromising the trail-ready capabilities and innovative technology found in its carbon siblings. This bike stands out with its remarkably compact drive system, delivering quiet and consistent power, accompanied by a streamlined display and remote for easy operation. Its stellar performance is rooted in a design that mimics the feel of a traditional mountain bike, now augmented with the perfect amount of pedal assist for those challenging climbs.
Ideal for: This bike is perfect for riders who yearn for the high-tech e-mountain biking experience at a price point that doesnt strain the wallet. It's designed for those eager to conquer more challenging terrain with ease, without giving up the authentic trail bike feel on descents. The Fuel EXe 5 offers a solid foundation with the flexibility for future upgrades, making it a smart choice for up-and-coming enthusiasts.
Key Features:

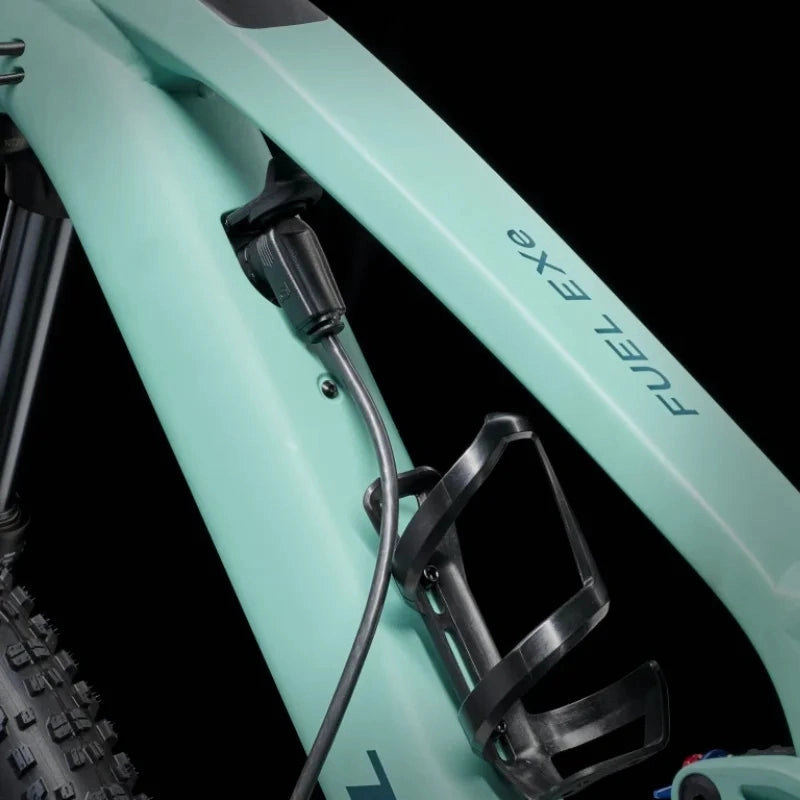

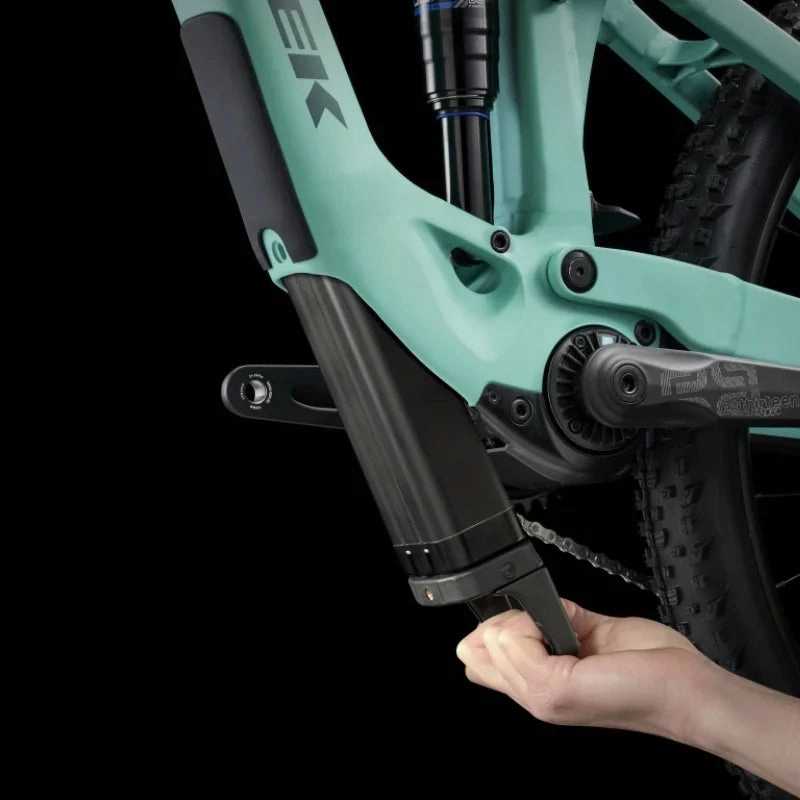

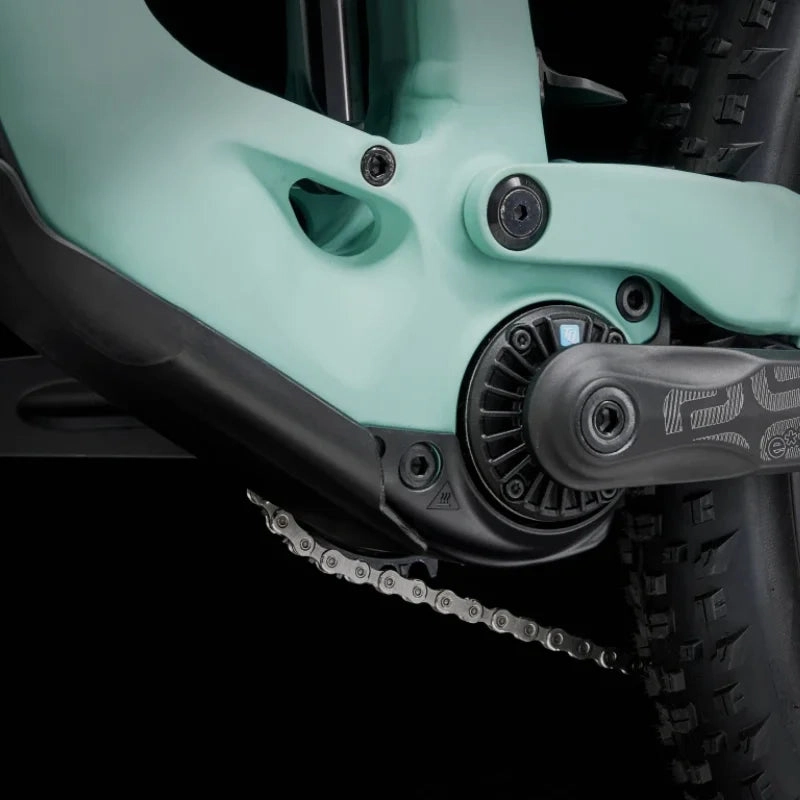

- Alpha Platinum Aluminium frame featuring the TQ HPR50 harmonic pin ring drive system, supported by a 360 Wh fully-encased removable battery and efficient charging port.

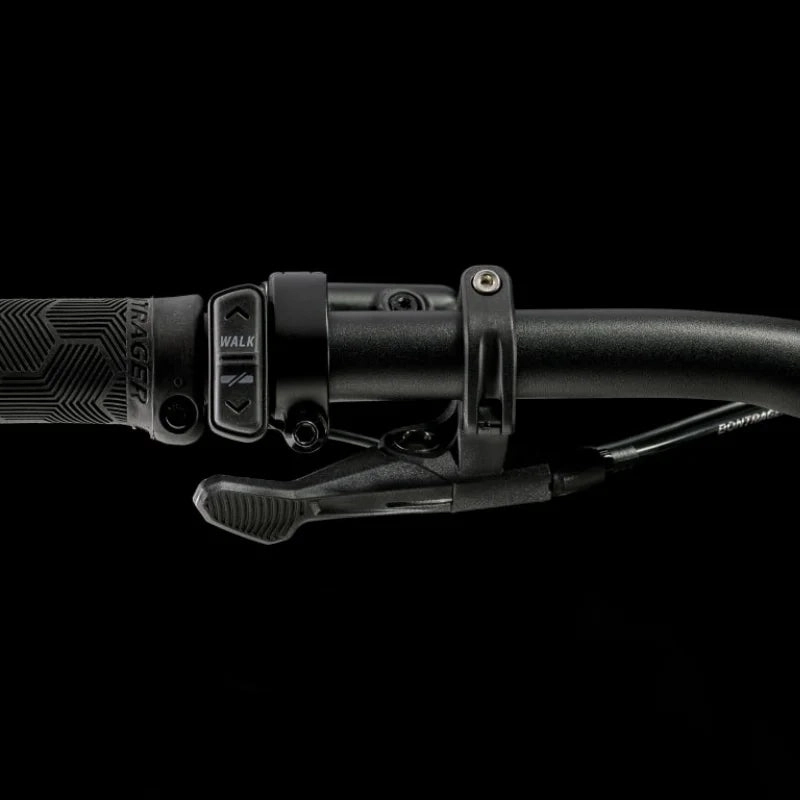

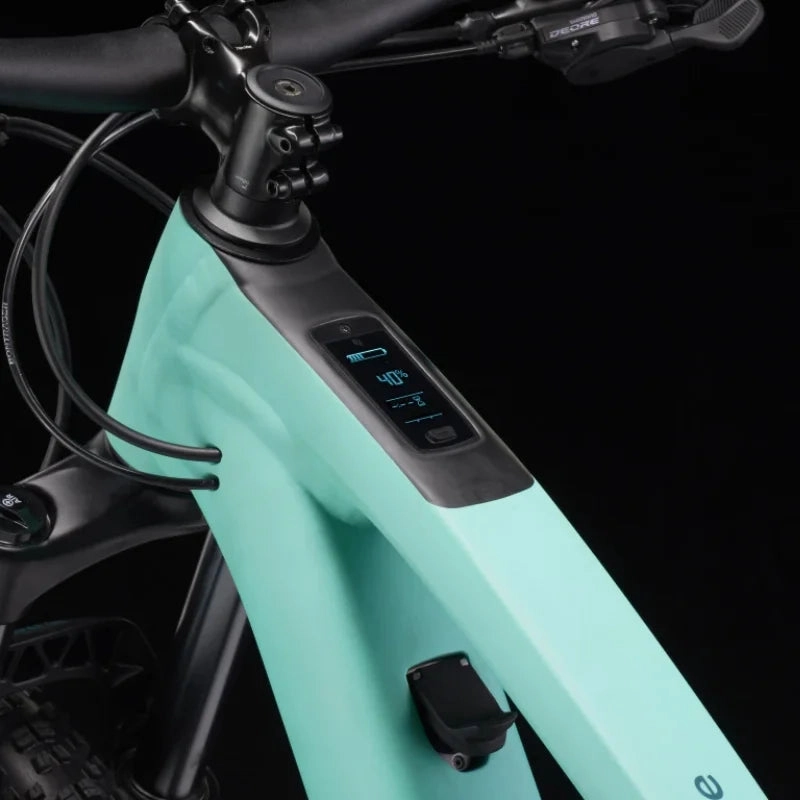

- User-friendly integrated LED display and handlebar remote for effortless adjustments on the move.
- 150 mm RockShox Recon Silver Solo air front suspension with motion control damper and lockout, alongside 140 mm X-Fusion Pro 2 rear suspension with a 2-position damper.
- Reliable 12-speed Shimano Deore shifting system, hydraulic disc brakes, and a versatile dropper post.
What Sets It Apart: The Trek Fuel EXe 5 bridges the gap between affordability and high-performance e-mountain biking. It delivers all the benefits of the cutting-edge technology found in premium models, such as the efficient TQ motor, within a budget-friendly aluminium package. The bikes thoughtful component selection ensures a smooth transition to electric without sacrificing the thrill and handling of traditional trail riding.
Reasons to Embrace It:
- Embrace the blend of classic trail biking fun with the modern twist of electric assist, making every climb more manageable and every descent even more thrilling.
- The TQ motor is optimized for silent operation and adaptive power, ensuring a harmonious ride that respects the riders input and the trails serenity.
- Simple, intuitive controls, including the sleek display and charging solutions, enhance the user experience without cluttering the bikes aesthetic.

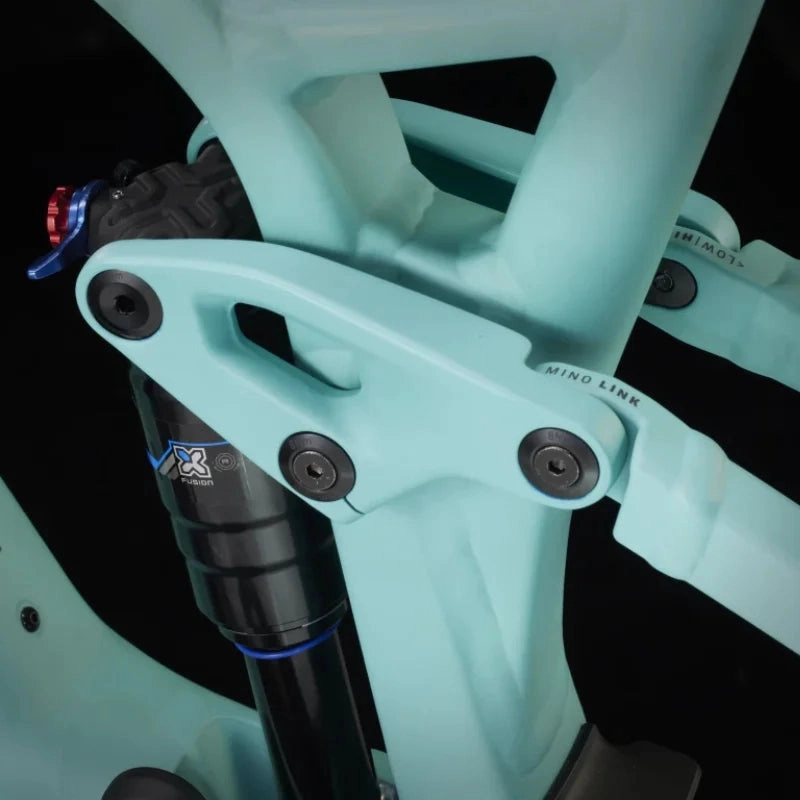

- Customization options such as Mino Link geometry adjustment and an adjustable angle headset allow for fine-tuning to personal riding preferences and conditions.
- Future-proof your adventure with the ability to easily integrate a range extender, ensuring longer rides and extended exploration without range anxiety.
The Trek Fuel EXe 5 is not just an e-mountain bike; it's a comprehensive trail companion that brings the future of biking within reach, ready to amplify your riding experience without diluting the essence of mountain biking.
Specification
| Description | |
| Frame | Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel |

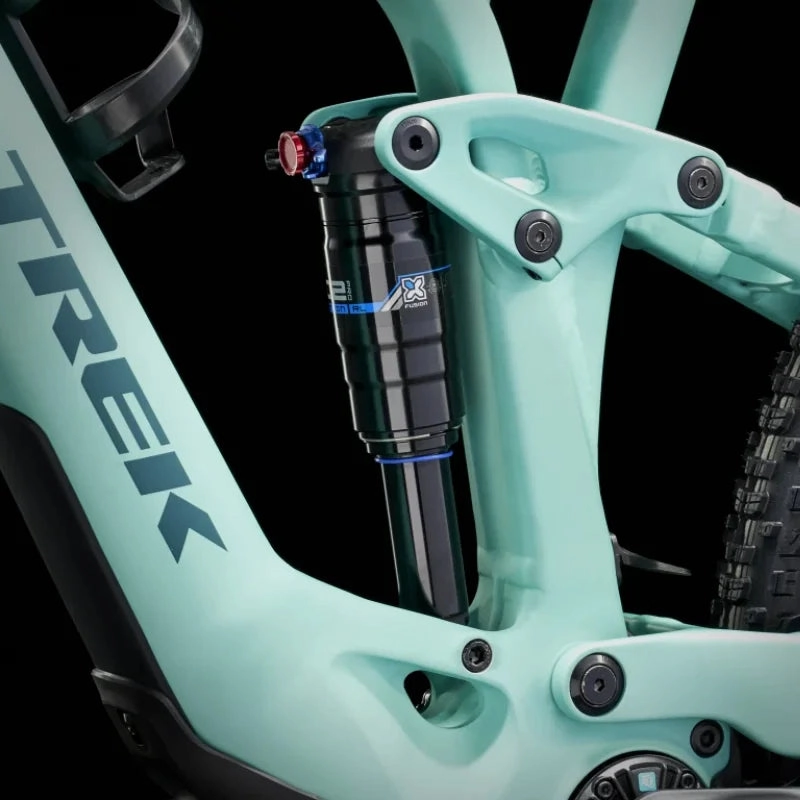

| Shock | X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm |
| Max compatible fork travel | 160mm (575mm axle-to-crown) |
| Hub Front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 32-Hole, Presta valve |
| Tyre | Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40" |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50", Fork: See manufacturer |
| Battery | TQ 360Wh |
| Computer | TQ LED display with Bluetooth & ANT connectivity |
| Motor | TQ-HPR50, 50Nm, 250 watt maximum continuous rated power, 300-watt peak power |
| Shifter | Shimano Deore M6100, 12-speed |
| Rear Derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 165 mm length |
| Chainring | E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: S Size: M Size: L, XL |
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |

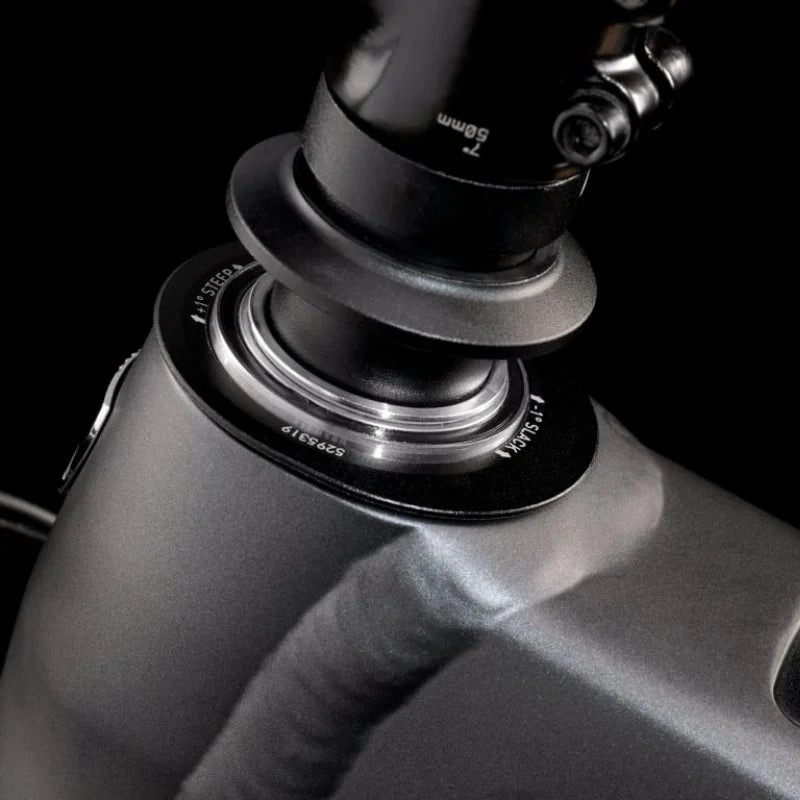

| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

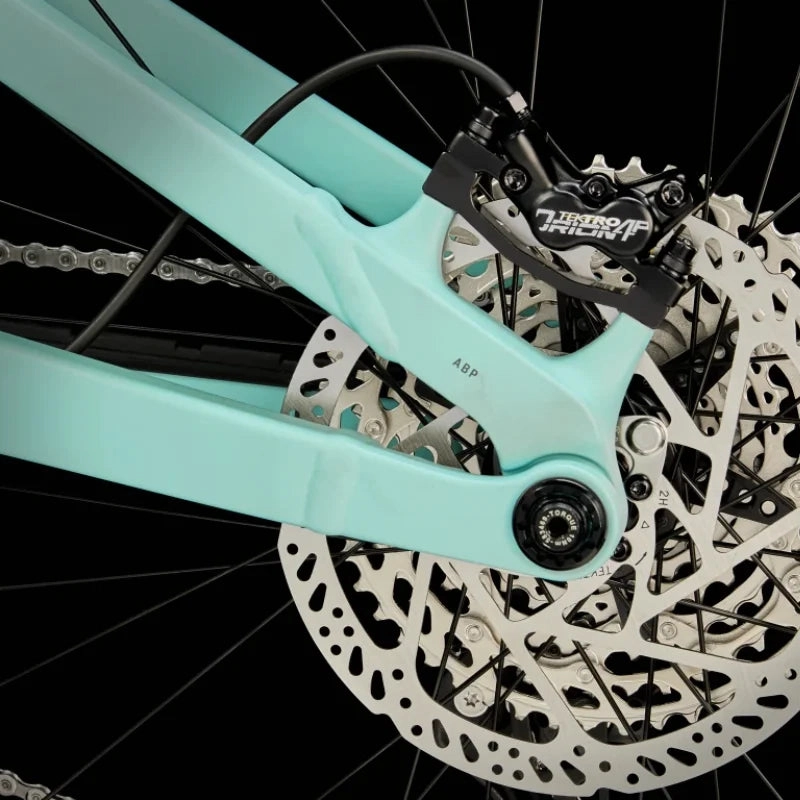

| Brake | Tektro HD-M745 hydraulic disc |
| Brake Rotor | Tektro, 6-bolt, 203 mm |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Electronics | TQ 4A charger |
| Weight | M - 20.25 kg / 44.65 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Geometry
Sizing Table
| Frame Size Number | 15.5" | 15.5" | 17.5" | 17.5" | 19.5" | 19.5" | 21.5" | 21.5" |
| Frame Size Letter | S | S | M | M | L | L | XL | XL |
| Geometry Position | High | Low | High | Low | High | Low | High | Low |
| Wheel Size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Seat Tube | 38.0 | 38.0 | 41.0 | 41.0 | 43.5 | 43.5 | 47.0 | 47.0 |
| Seat Tube Angle | 69.3 | 68.8 | 69.8 | 69.3 | 70.8 | 70.3 | 71.3 | 70.8 |
| Effective Seat Tube Angle | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 | 77.3 | 76.8 |
| Head Tube Length | 10.0 | 10.0 | 11.0 | 11.0 | 11.0 | 11.0 | 12.0 | 12.0 |
| Head Angle | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 | 65.3 | 64.8 |
| Effective Top Tube | 57.2 | 57.3 | 59.9 | 60.0 | 62.9 | 63.0 | 65.6 | 65.8 |
| Bottom Bracket Height | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 | 34.1 | 33.4 |
| Bottom Bracket Drop | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 | 3.2 | 3.9 |
| Chainstay Length | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0 | 43.8 | 44.0c |
| Offset | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 | 4.4 |
| Trail | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 | 12.4 | 12.7 |
| Wheelbase | 118.7 | 118.8 | 121.6 | 121.7 | 124.6 | 124.7 | 127.6 | 127.6 |
| Standover | 73.2 | 72.6 | 73.3 | 72.7 | 73.9 | 73.3 | 75.9 | 75.3 |
| Frame Reach | 43.4 | 42.8 | 45.9 | 45.3 | 48.3 | 48.3 | 51.4 | 50.8 |
| Frame Stack | 61.6 | 62.0 | 62.5 | 62.9 | 62.5 | 62.9 | 63.4 | 63.8 |
