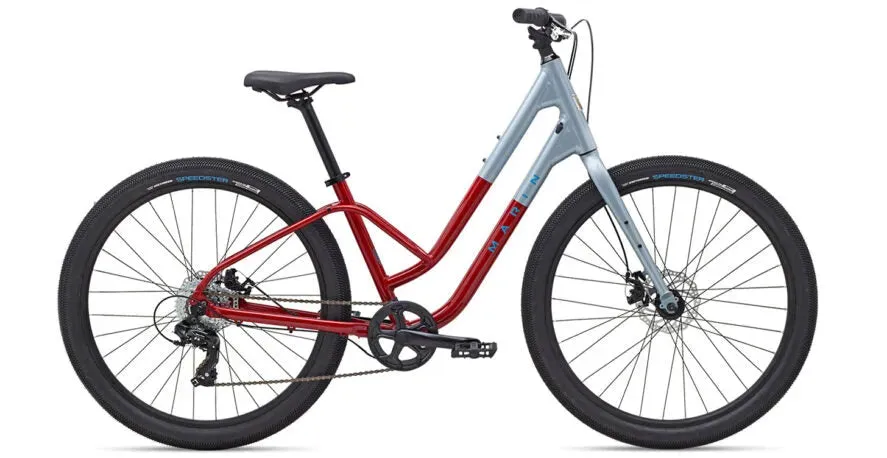

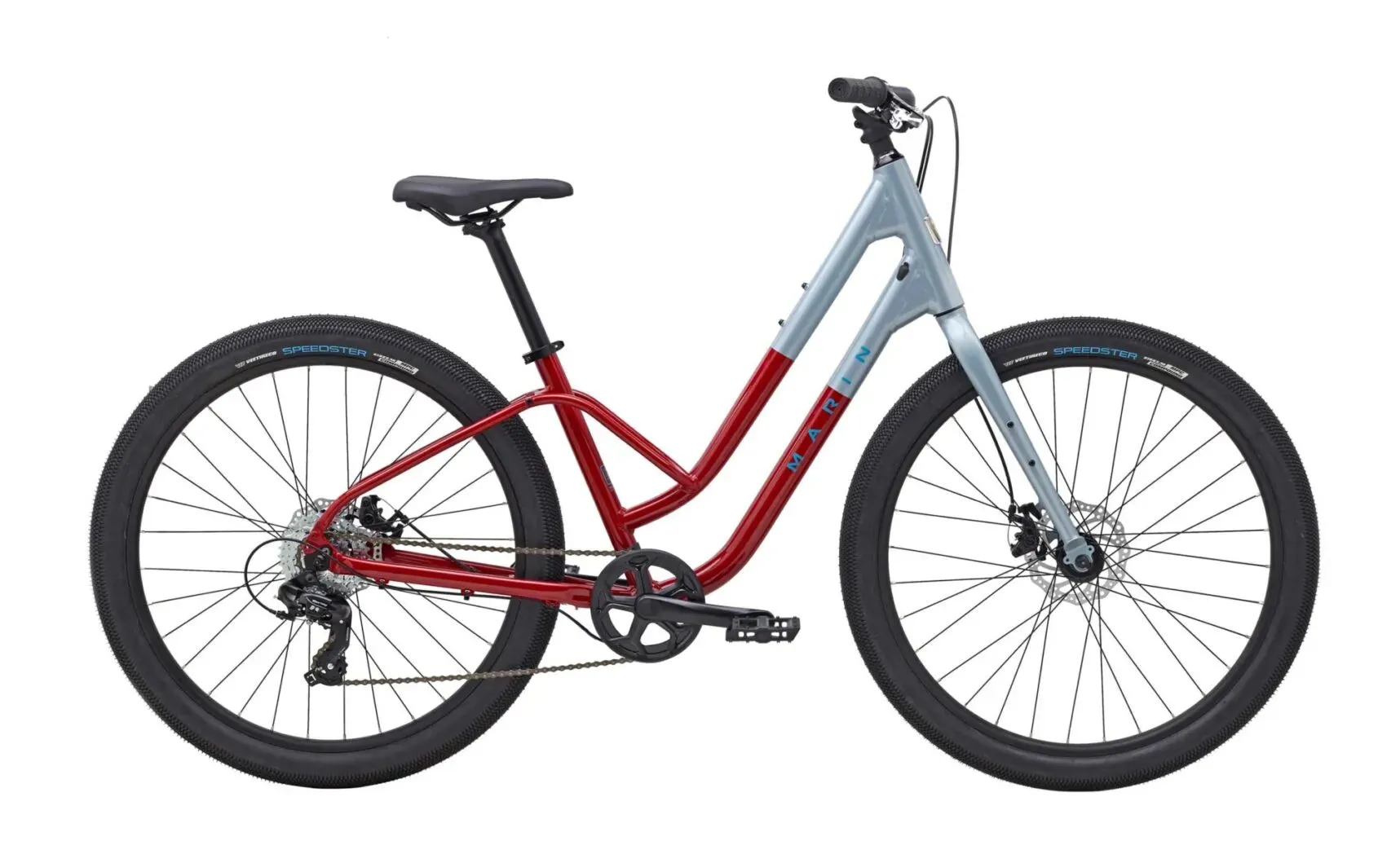

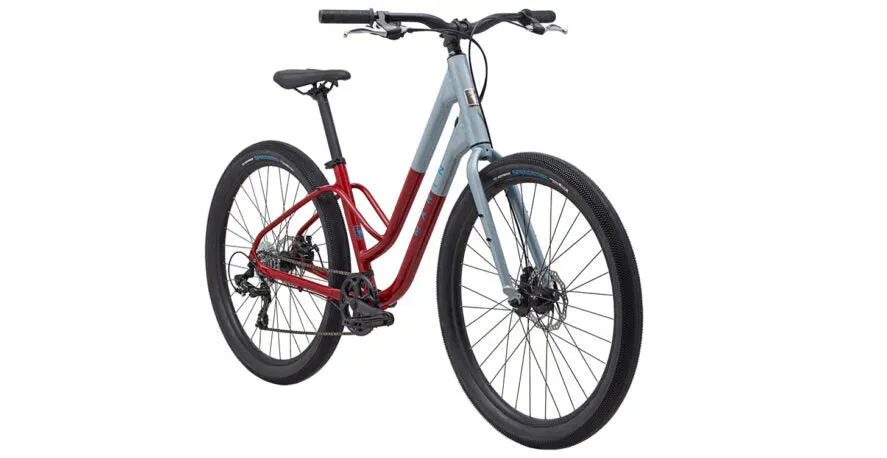

The Stinson is an updated take on the classic cruiser design for casual and comfortable path riding. Comfort Control Geometry allows riders to touch the ground with their foot for confident and safe riding and stopping.
Specifications
- Intended Use- Commuting
- Wheel Size- 27.5"
- Braking System- Mechanical Disc
- Frame Material- Aluminium
- Fork Material- Steel
Components
- Frame- Series 1 Comfort, 6061 Aluminum, 27.5 Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
- Fork- CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
- Bottom Bracket- Sealed Cartridge Bearings, Square Taper
- Chain- KMC Z8
- Crank- Alloy Crank, Steel 38T Chainring, Ring Guard
- Shift Levers- Shimano Altus 7-Speed RapidFire
- Cassette- SunRace 7-Speed, 11-34T
- Front Derailleur-
- Rear Derailleur- Shimano Tourney, 7-Speed
- Grips/Bartape- Marin County
- Handlebar- Marin Alloy, 60mm Rise, 30 Backsweep
- Stem- Marin Alloy
- Saddle- Marin Comfort
- Seatpost- Marin Alloy, 27.2mm
- Front Brake- Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
- Rear Brake- Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
- Front Wheel- Marin Aluminum Double Wall, Disc Specific
- Rear Wheel- Marin Aluminum Double Wall, Disc Specific
- Tire- Vee Tire Co. Speedster, 27.5x2.35, Puncture Protection
- Pedal- Marin Comfort Platform
Geometry
| S | M | L | |
| A STACK | 628.2 | 646.9 | 665.5 |
| B REACH | 340 | 355 | 370 |
| C HEADTUBE ANGLE | 68.5 | 68.5 | 68.5 |
| D HEADTUBE LENGTH | 210 | 230 | 250 |
| E SEATTUBE ANGLE | 67 | 67 | 67 |
| F SEATTUBE LENGTH | 382 | 406 | 444 |
| G TOPTUBE EFFECTIVE | 606.7 | 629.6 | 652.5 |
| H BB HEIGHT | 276.5 | 276.5 | 276.5 |
| I BB DROP | 68 | 68 | 68 |
| J CHAINSTAY | 485 | 485 | 485 |
| K WHEELBASE | 1083.9 | 1106.2 | 1128.6 |
| L STANDOVER HEIGHT | 510.57 | 510.57 | 510.57 |
| M FORK OFFSET | 40 | 40 | 40 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 700 | 700 | 700 |
| STEM LENGTH | 45 | 45 | 45 |
| CRANK LENGTH | 170 | 170 | 175 |
Additional Info
- Country of Origin: Indonesia
- Imported By: Ciclo Essentials Private Limited , B-55A , Sahakar Marg , Jaipur - 302005 , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Bicycles
