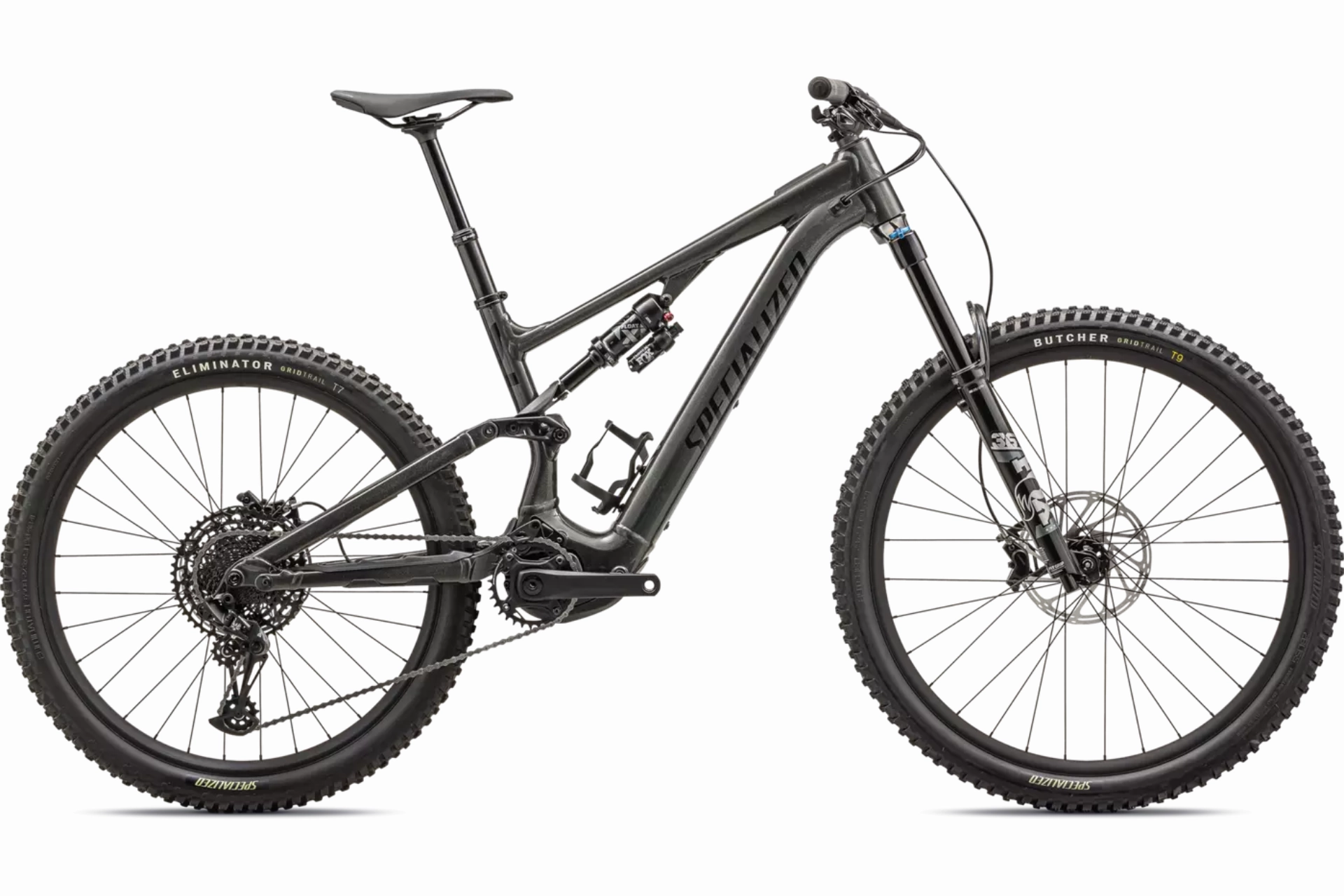

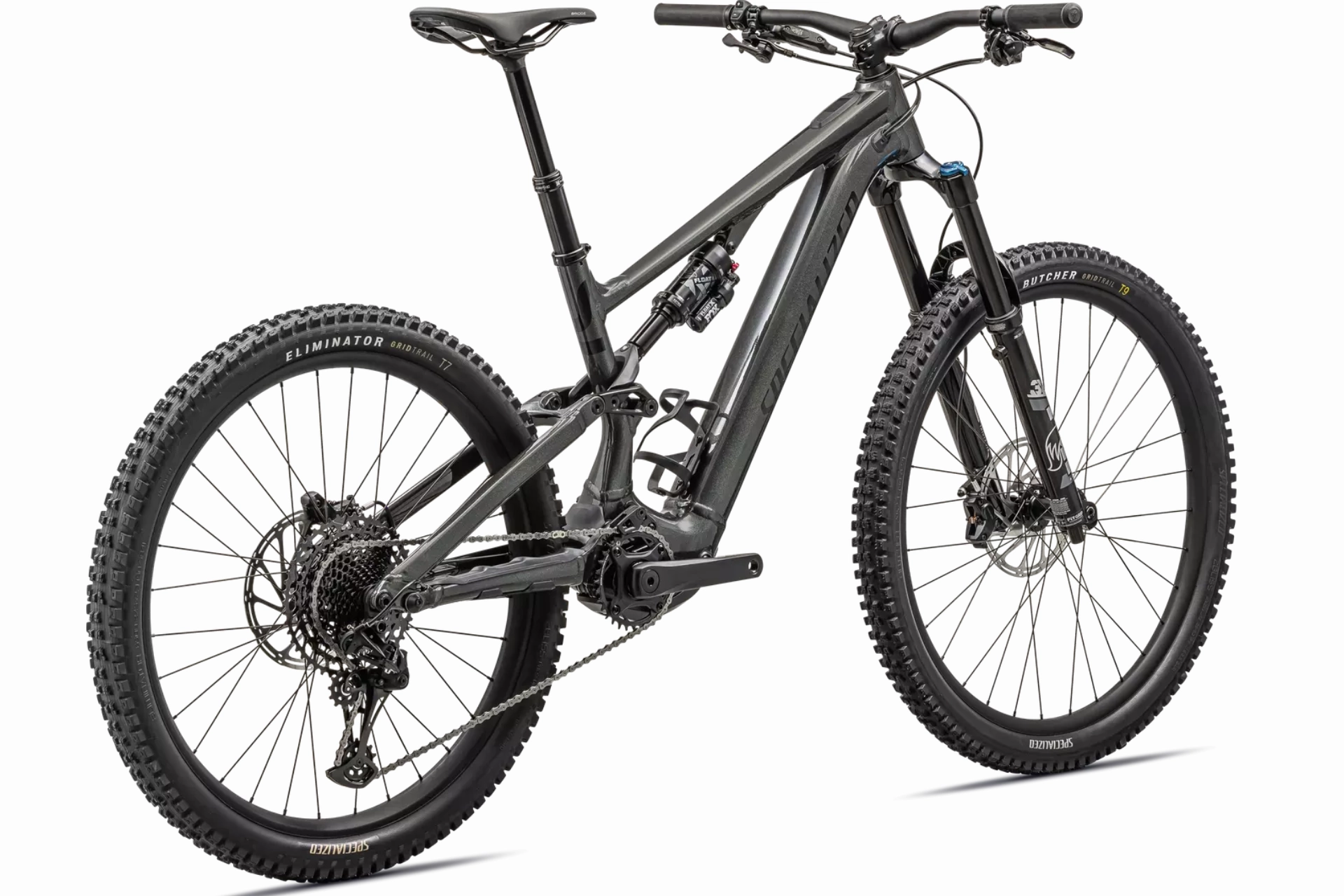

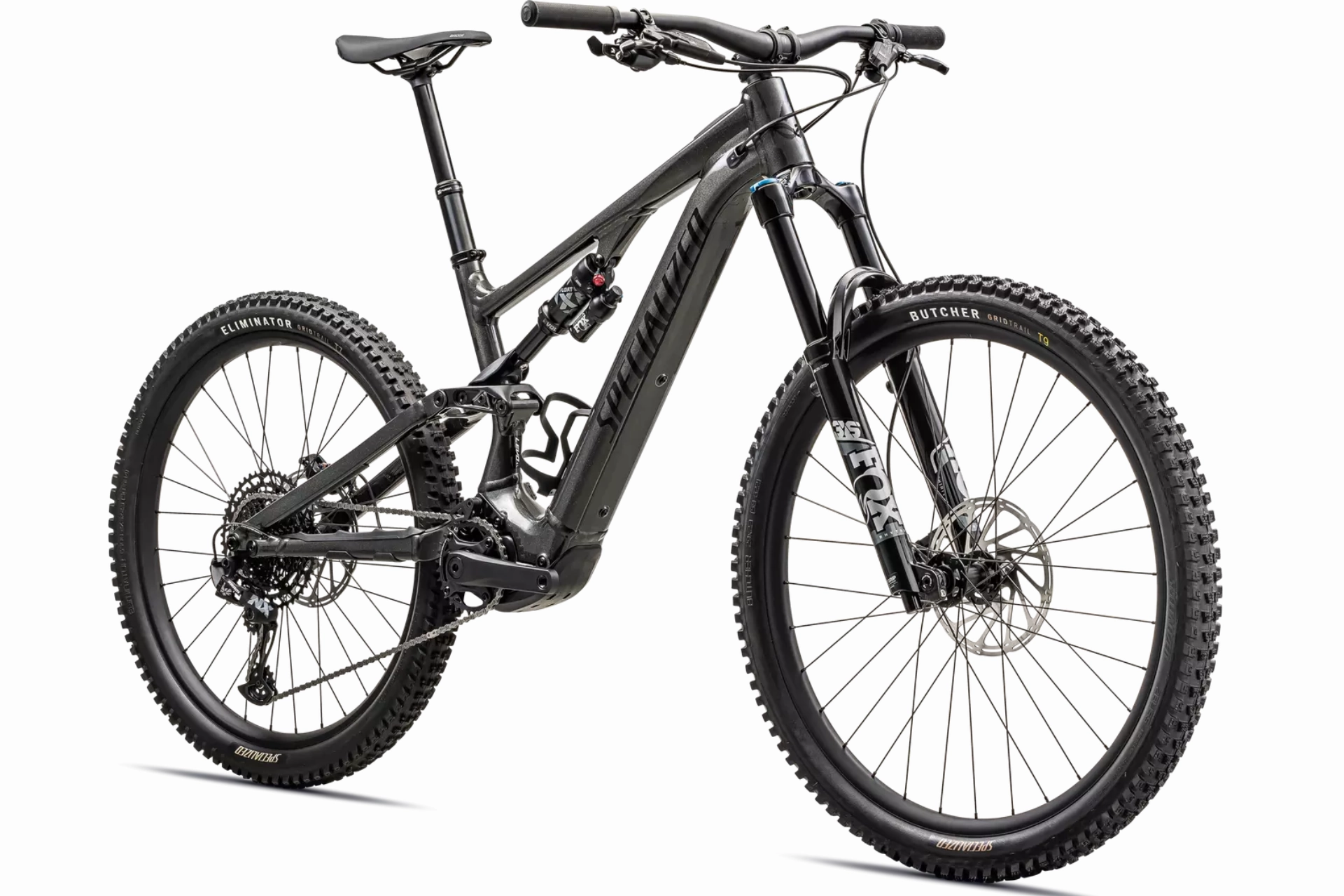

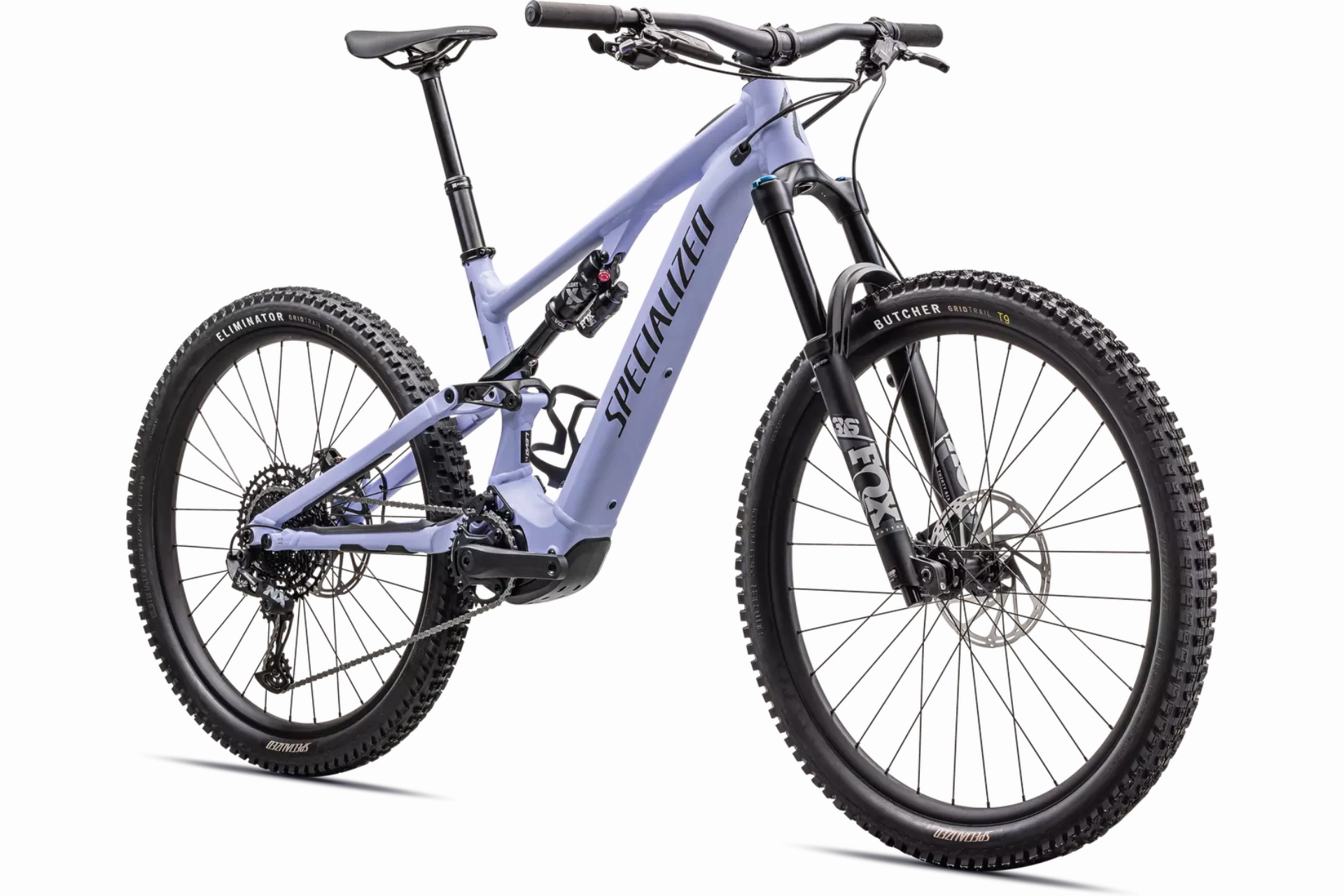

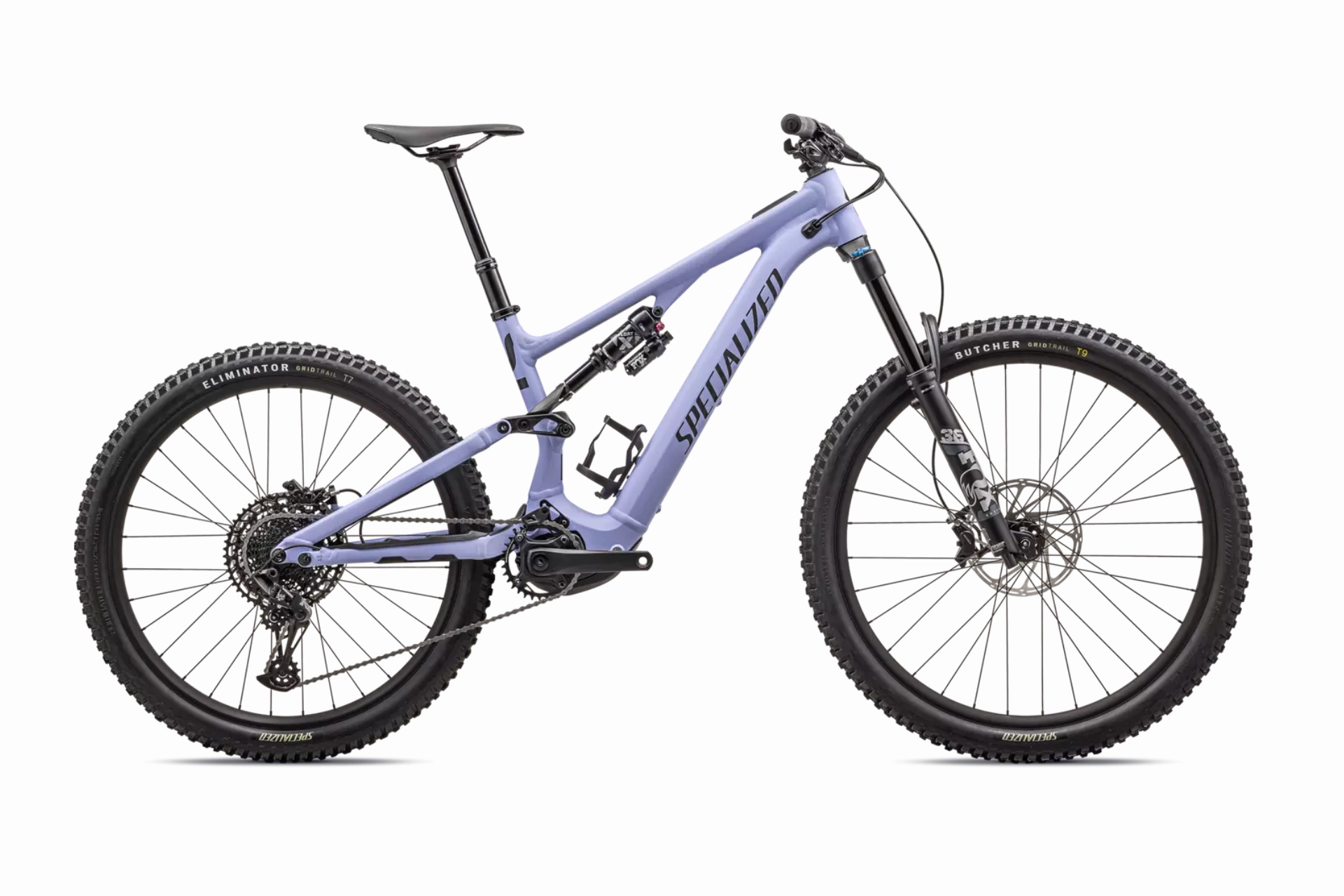

Turbo Levo SL Comp Alloy 2024

Turbo Levo SL Comp Alloy 2024

$ 54.75

$ 162.60

Unavailable
Turbo Levo SL Comp Alloy 2024

Turbo Levo SL Comp Alloy 2024

$ 54.75

$ 162.60

Size:
  • S1
  • S2
  • S3
  • S4
  • S5
  • S6
Colour:
  • Indigo
  • Charcoal
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

The Levo SL Alloy delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL Alloy. Youll be blown away by its unmatched combination of flawless handling, capability, and 2 X You amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know youll agree Levo SL Alloy is THE ULTIMATE TRAIL BIKE.

ITS ALL ABOUT THE RIDE When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL Alloy lean and responsive. Its tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE Everything starts here. Lively, precise ride feel. We tuned the entire chassisfront end, rear end, and the link that unifies themas a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63.5, 64.5, and 65.5 degrees.

LESS IS MORE The Levo SL Alloy is lean and responsive. Its curated component selection is light, yet capablefor true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL A 29 front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5 rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29 rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. Its the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in 2x You performance; its you pedaling, but a side of you only a Levo SL Alloy can bring out.

GO DEEP RANGE Levo SL Alloy features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, youre set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender into your bottle cagefor 50% more range.

MASTERMIND TCU Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Specialized app as well as the rider, all in a protected and easily visible display. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.

SPECIALIZED APP The Levo SL Alloy integrates fully with our Specialized app and lets you personalize your motor characteristics. You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Auto-Lock.

  • New alloy frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
Specification
ACCESSORIES
SWAT
SWAT CC tool in steerer tube
FRAMESET
Seat Binder
Alloy, 38.6mm
Frame
All new Levo SL Alloy Frame, M5 alloy, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.
SUSPENSION
Fork
Fox 36 Rhythm, 29", S1: 150mm, S2-S6: 160mm
Rear Shock
S1: Fox Float Performance Series, 210x50mm, S2-S6: Fox Float X Performance Series, 210x55mm
COCKPIT
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips
Specialized Trail Grips
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
BRAKES
Rear Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Front Brake
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
DRIVETRAIN
Chainrings
New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Crankset
SRAM Dub alloy cranks, 165/170/175mm
Rear Derailleur
SRAM NX Eagle, 12-speed
Chain
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Shift Levers
SRAM NX Eagle, trigger, 12-speed
WHEELS & TIRES
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5 x 2.3"
Rims
Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Presta, Standard Valve
E-BIKE
Wiring Harness
Custom Specialized wiring harness
Charger
Custom charger, 48V System w/ SL system charger plug
Motor
New Specialized 1.2 SL Custom Rx Trail Tuned Motor
UI/Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT /Bluetooth, w/Handlebar remote
Battery
Specialized SL1-320, fully integrated, 320Wh
WEIGHT
Weight
20.20kg (44 lb, 8.5 oz)
Weight Size
S4
Geometry

S1S2S3S4S5S6
Crank Length165165170170170175
Handlebar Width780780780780780780
Stem Length404040405050
Saddle Width155155143143143143
Seatpost Length100125150170170190
Stack609617626635645654
Reach405425445470495525
Head-Tube Length95100110120130140
Head-Tube Angle64.664.664.664.664.664.6
B-B Height343348348348348348
B-B Drop-34-29-29-29-29-29
Trail132132132132132132
Fork Length, Full560570570570570570
Fork Rake/Offset424242424242
Front-Center726752776806835869
Chain-Stay Length433432432432432432
Wheelbase115811841208123812671301
Top Tube Length, Horizontal560582604631659691
Bike Stand-Over Height727763766767773778
Seat-Tube Length385385405425445465
Seat-Tube Angle75.875.875.875.875.875.8
