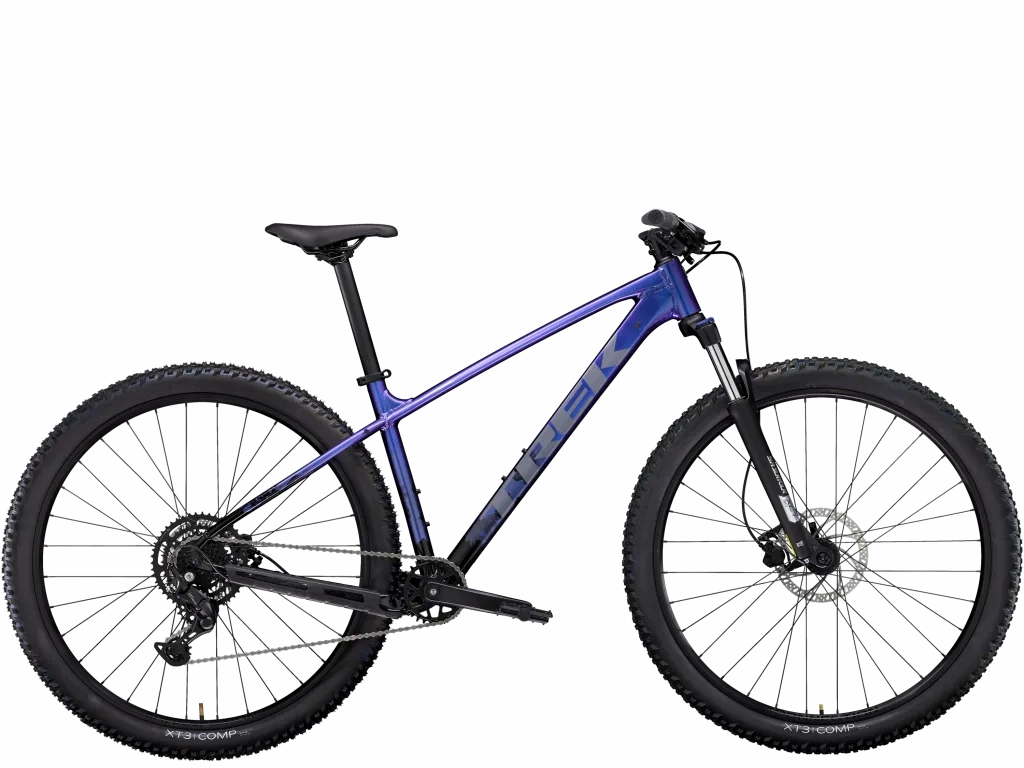

The Marlin 5 is a trail-capable daily rider, ideal for everyday adventures both on and off the trail. It boasts a trail-ready frame with a suspension fork, Shimano CUES 9-speed gears, and mounts for both a rack and kickstand, making it a perfect selection for trail enthusiasts or those in search of a comfortable, stable commuter bike with the durability of a genuine mountain bike.
It's right for you if...
You're new to the trail and you're looking for a real mountain bike that doubles as a commuter and you want it all at exceptional value.
The tech you get
A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, an upgraded 9-speed Shimano CUES drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.
The final word
The Marlin 5 is a great ride for all your adventures. It's also versatile and a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.
| *Frame | Size:XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size:S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew | |
| *Fork | Size:XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
| Size:S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel | |
| Size:M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel | |
| Max compatible fork travel | 120mm, XXS: 80mm |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| *Tyre | Size:? XS , S |
| Size:? M , ML , L , XL , XXL | |
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Shifter | Shimano U4000, 9-speed |
|---|---|
| Rear derailleur | Shimano CUES U4000 |
| *Crank | Size:XS Prowheel C10Y-NW, 30T steel narrow-wide ring, 160 mm length |
| Size:S , M , ML Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length | |
| Size:L , XL , XXL Prowheel C10Y-NW, 30T steel narrow-wide ring, 175 mm length | |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500 |
| Pedal | |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
| *Seatpost | Size:XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|---|---|
| Size:ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length | |
| *Handlebar | Size:XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size:S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width | |
| Size:M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width | |
| Grips | |
| *Stem | Size:XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size:M , ML , L | |
| Size:XL | |
| Size:XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length | |
| Head set | Semi-integrated, 1-1/8" |
| Brake rotor | |
| *Brake Set | Size:XS , S |
| Size:M , ML , L , XL , XXL | |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 15.10 kg / 33.29 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
***Trek reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| 2XS | 135 - 145 cm 4'5" - 4'9" | 64 - 68 cm 25" - 27" |
| XS | 145 - 155 cm 4'9" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 74 - 78 cm 29" - 31" |
| M | 165 - 176 cm 5'5" - 5'9" | 79 - 83 cm 31" - 33" |
| ML | 173 - 180 cm 5'8" - 5'11" | 81 - 86 cm 32" - 34" |
| L | 177 - 188 cm 5'10" - 6'2" | 84 - 89 cm 33" - 35" |
| XL | 188 - 195 cm 6'2" - 6'5" | 89 - 91 cm 35" - 36" |
| 2XL | 195 - 203 cm 6'5" - 6'8" | 91 - 97 cm 36" - 38" |
