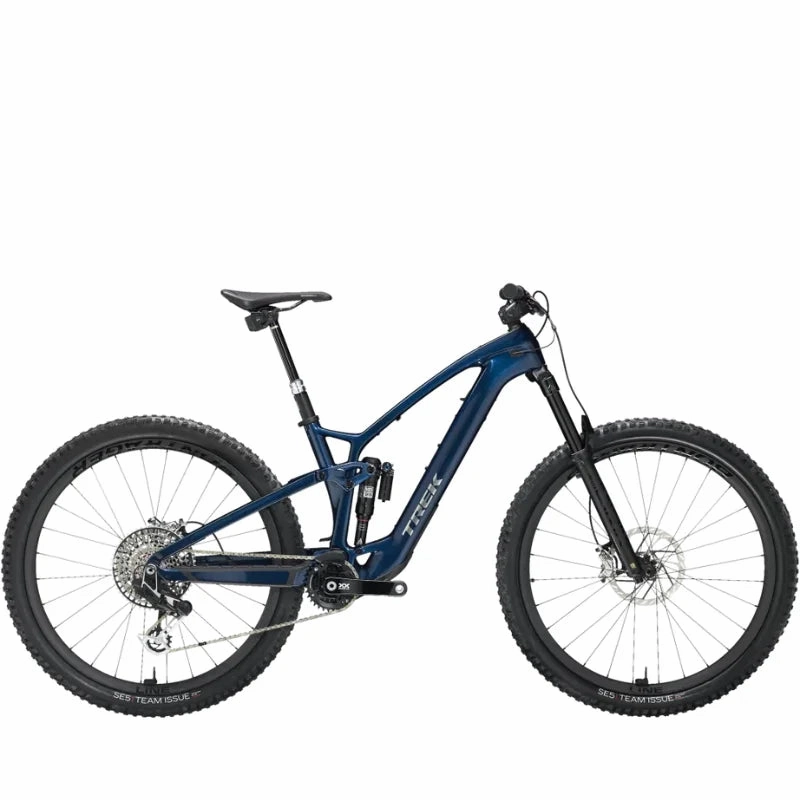

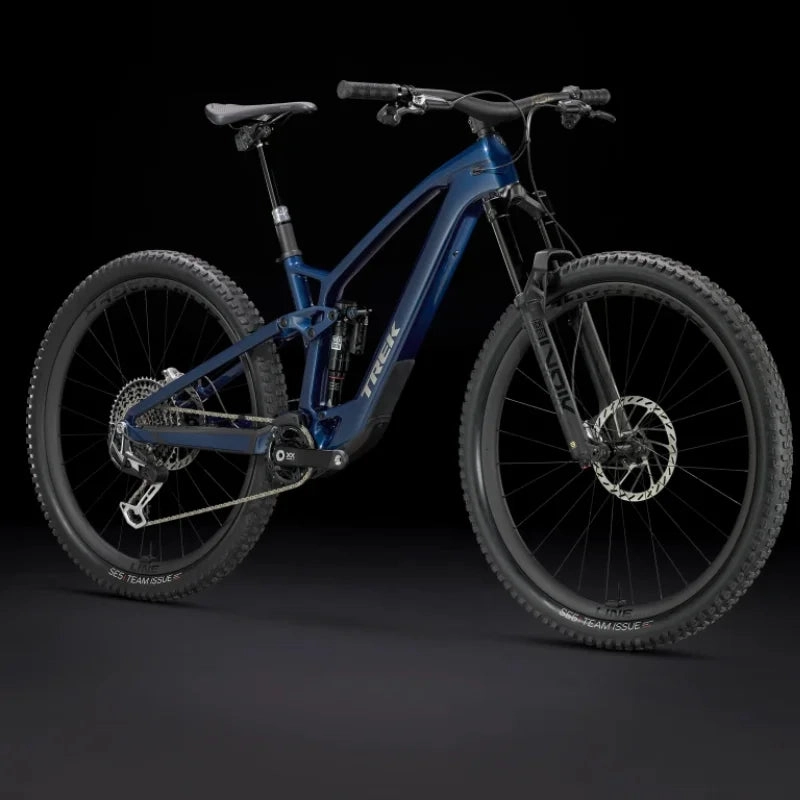

The Fuel EXe 9.9 XX AXS is mountain biking elevated. It rolls into untouched terrain that lies between traditional mountain bikes and electric bikes with new technology that silently blends in with nature and the finest components the industry offers. From its light and stiff carbon frame and wheels to a tiny but mighty TQ transmission, the EXe 9.9 is eager to rally any trail. It spares no expense, with a SRAM XX AXS transmission that's as light as it is precise, and it's loaded with an ultimate RockShox suspension package equipped with AirWiz technology to keep your set-up dialled just to your liking.
Specification
Trek Fuel EXe 9.9 XX AXS T-Type Specification
| Description | |

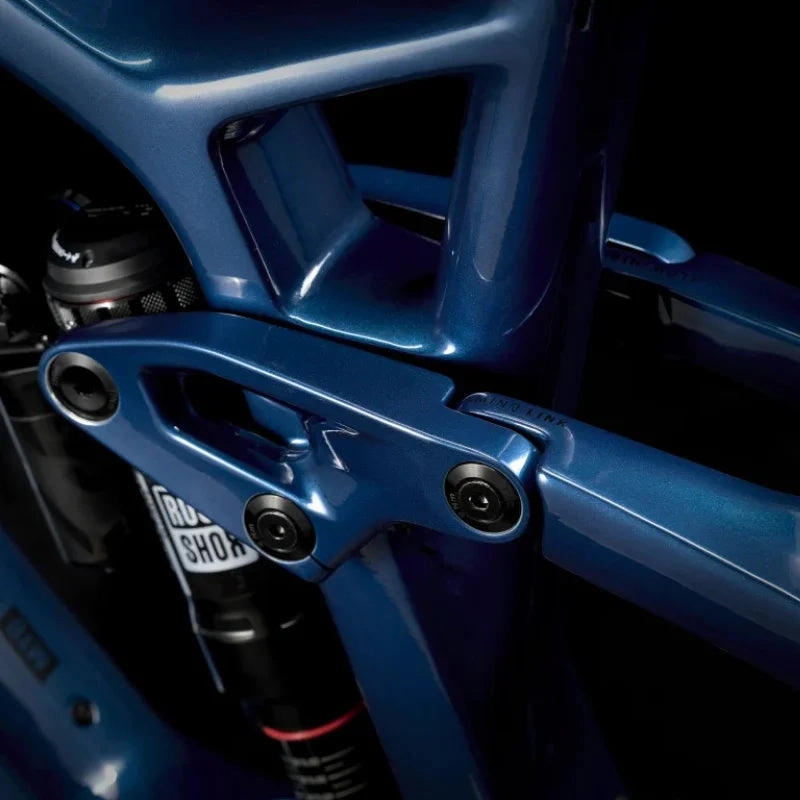

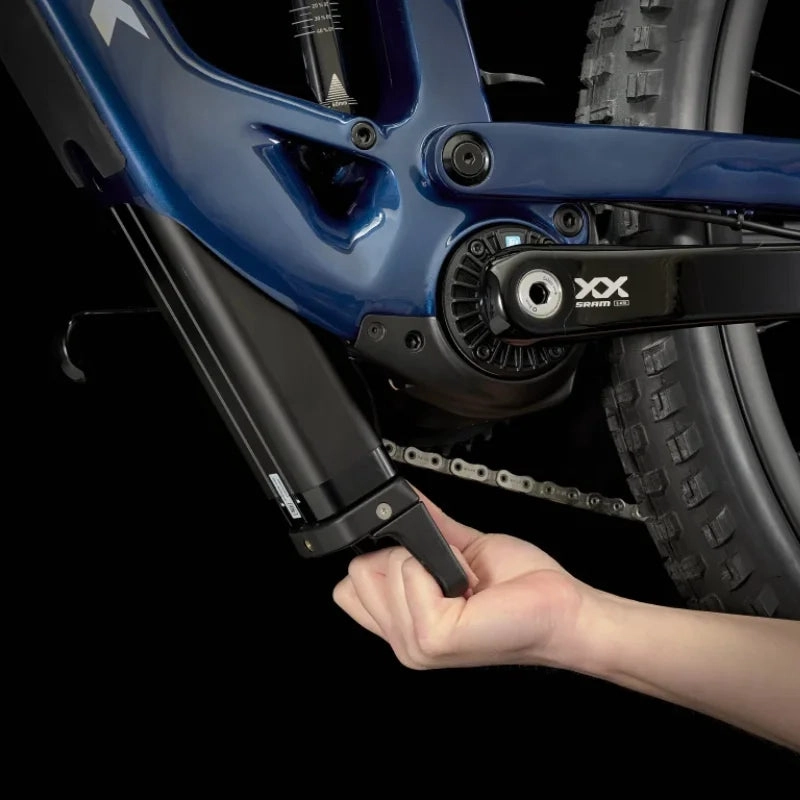

| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 150 mm travel |

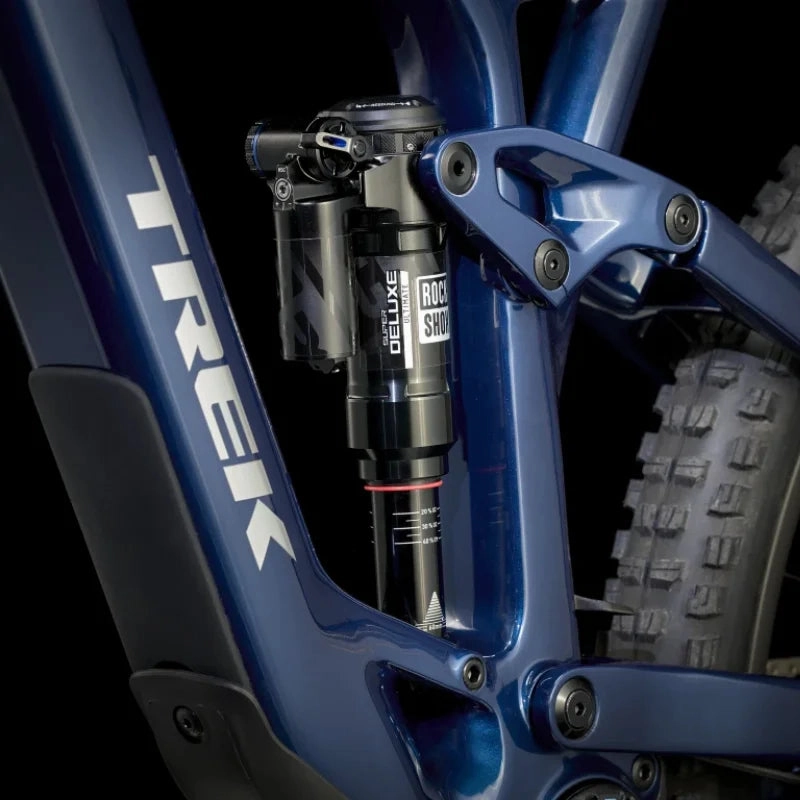

| Shock | RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205 mm x 60 mm |
| Max compatible fork travel | 180mm |
| Wheel Front | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
| Wheel Rear | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Tyre Part | Quarq TyreWiz tyre pressure monitors |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
| Battery | Size: S, M, L, XL Size: S, M, L, XL |

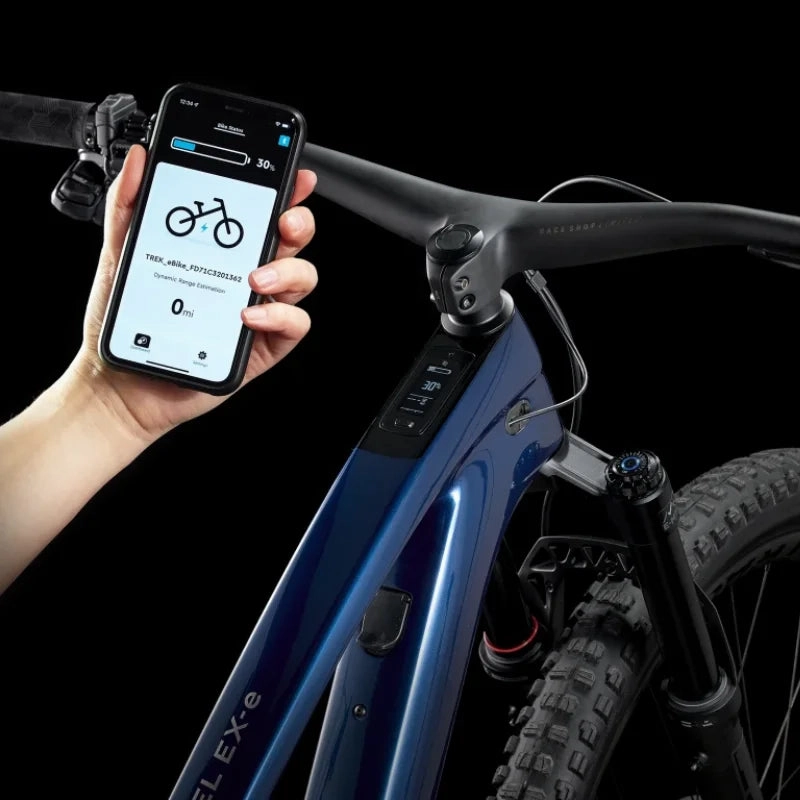

| Computer | TQ LED display with Bluetooth & ANT connectivity |

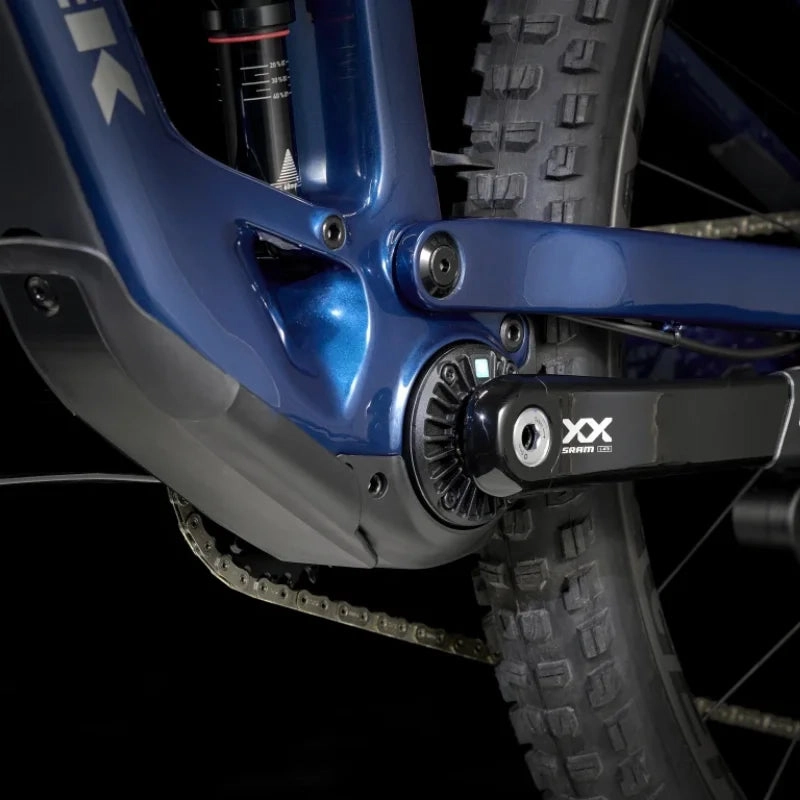

| Motor | TQ-HPR50, 50Nm, 250 watt maximum continuous rated power, 300 watt peak power |

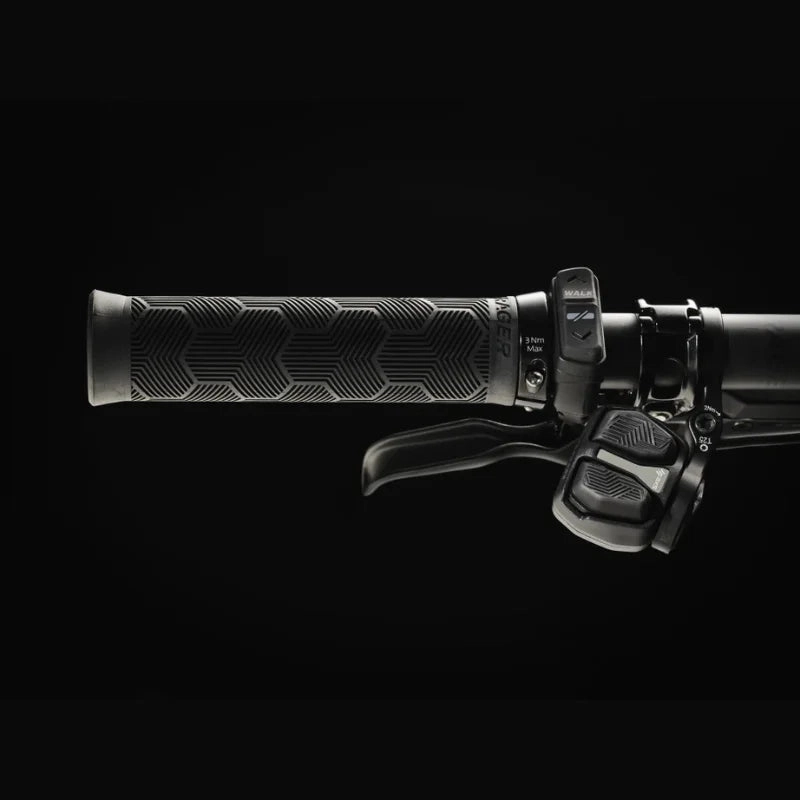

| Shifter | SRAM AXS POD Ultimate, paired with dropper |
| Rear Derailleur | SRAM XX Eagle, AXS, T-Type |
| Crank | SRAM XX, 165 mm length |
| Chainring | SRAM T-Type, 32T, alloy |
| Cassette | SRAM Eagle XS-1297, T-Type, 10-52, 12-speed |
| Chain | SRAM XX Eagle, T-Type, 12-speed |
| Max. Chainring Size | 1x: 34T, min 30T |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: S Size: M Size: L, XL |
| Handlebar/stem (integrated) | Size: S Size: M, L, XL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom |

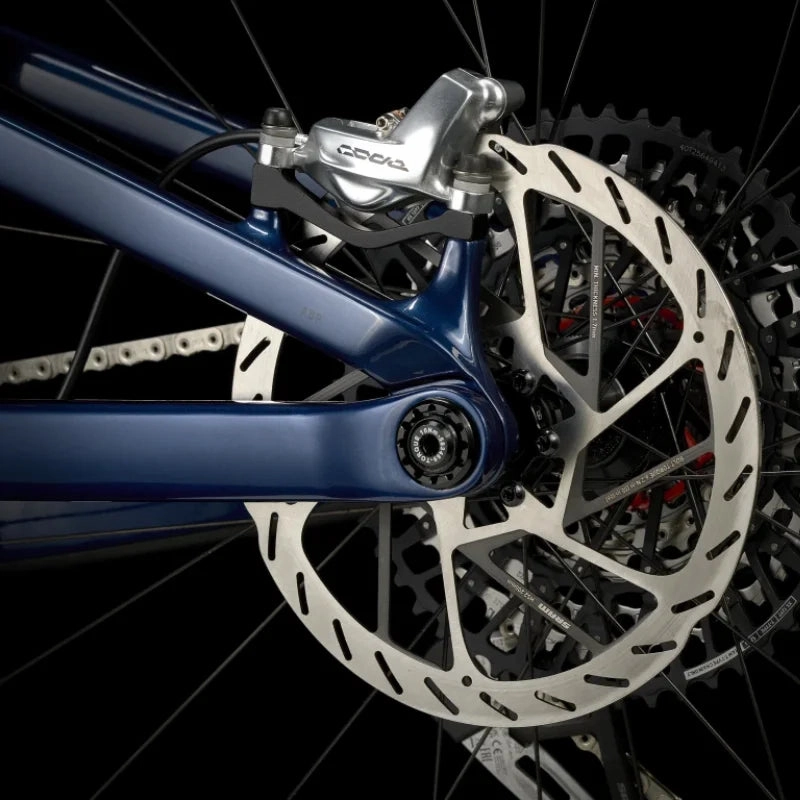

| Brake | SRAM Code Ultimate 4-piston hydraulic disc |
| Brake Rotor | Bontrager BITS Internal Frame Storage Bag |
| Brake Rotor | SRAM 6-bolt, 200 mm |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Electronics | TQ 4A charger |
| Tool | Bontrager BITS integrated multi-tool |
| Weight | M 18.50 kg/40.79 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek Fuel EXe 9.9 XX AXS T-Type Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Geometry
Trek Fuel EXe 9.9 XX AXS T-Type Geometry
All measurements are provided in cm unless otherwise stated.
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
