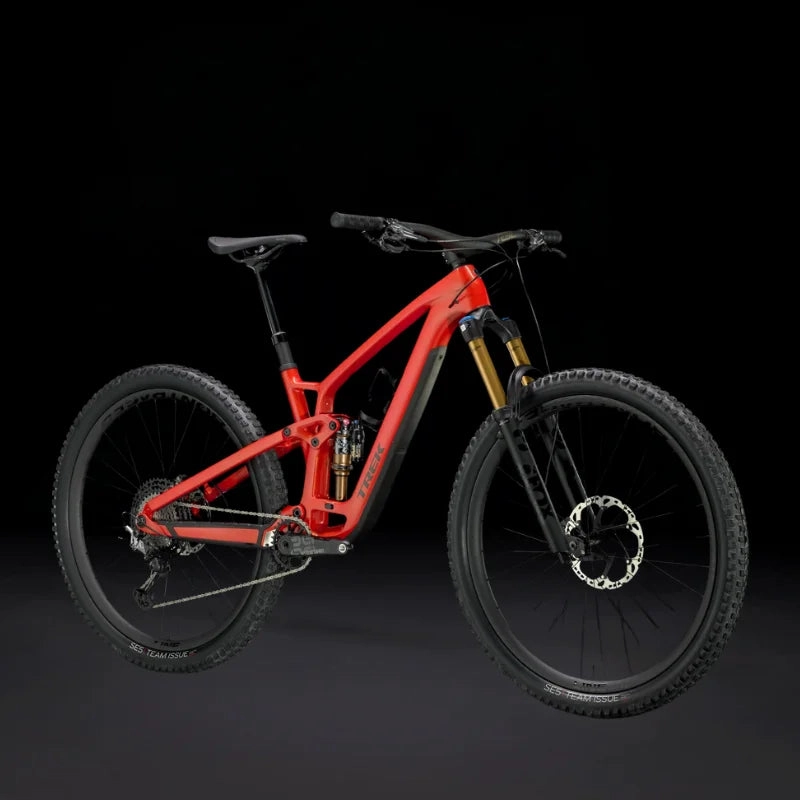

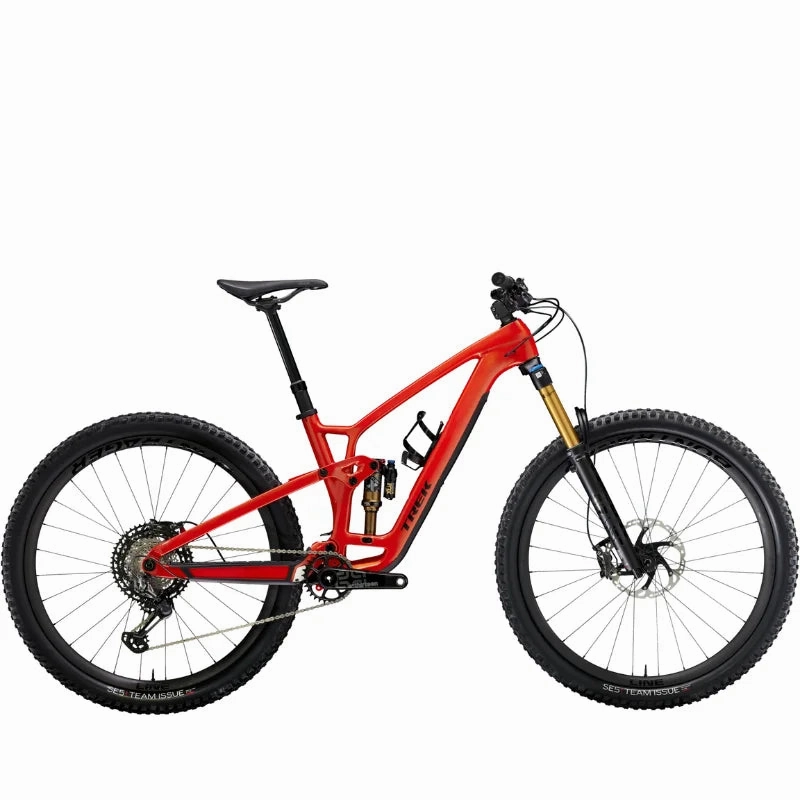

Premier Trail Performance: Trek Fuel EX 9.9 XTR Gen 6
The Trek Fuel EX 9.9 marries a lightweight and responsive carbon frame with the zenith of Shimano's drivetrain and exceptional suspension technology, crafting a mountain bike that excels in all conditions. Adorned with luxurious upgrades like Kashima-coated suspension, quick-reacting carbon wheels, an integrated one-piece bar and stem, and a stealthy multi-tool secreted within the steerer tube, this bike epitomizes top-tier trail riding.
Why the Trek Fuel EX 9.9 XTR Gen 6 Is Your Ultimate Trail Machine
- Frame:Ultra-Light OCLV Mountain Carbon, Agile and Stout
- Suspension:Premium 150 mm FOX Factory 36 Fork with Kashima Coat, 140 mm FOX Factory Float X Rear Shock
- Drivetrain:Shimano's Finest XTR 1x12, Unmatched Precision and Reliability
- Wheels:Lightweight Carbon Wheels, For Excellent Tracking and Quick Engagement
- Ideal for:Discerning Riders Seeking the Pinnacle of Trail Riding Performance and Technology
Designed for Discerning Riders
Crafted for those who demand versatility and excellence in their mountain biking experience, the Fuel EX 9.9 stands unrivaled. If your riding ethos encompasses both high-end performance and aesthetic, from an immaculate carbon frame and wheels to Shimano's premier drivetrain, without compromising on suspension quality, your search ends here.
Tech-Rich Build

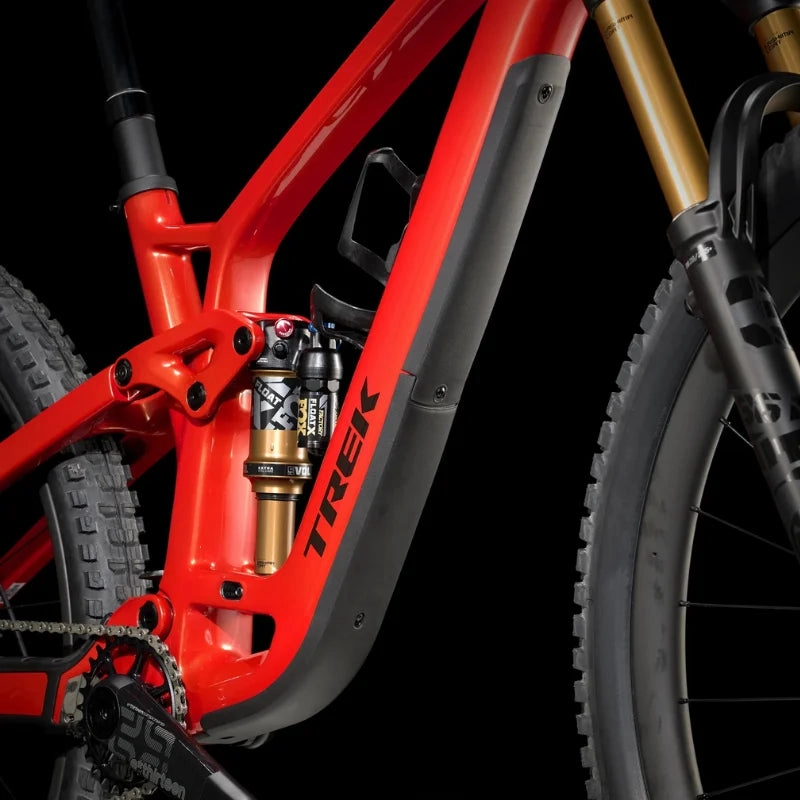

Featuring the sturdy yet nimble OCLV Mountain Carbon frame paired with a 150 mm FOX Factory 36 fork and FOX Factory Float X rear shock, this setup ensures the trail's challenges are met with unmatched agility. Shimano's XTR drivetrain provides unmatched shifting precision, complemented by carbon wheels for optimal performance through technical terrains. The bike's adjustable geometry and in-frame storage solution underscore its commitment to rider-focused design and functionality.
The Ultimate Trail Bike
As the quintessence of trail biking excellence, the Fuel EX 9.9 doesnt just rise to the occasionit defines it. A masterpiece built for riders who seek the apex in mountain biking technology, equipped with Shimano's XTR drivetrain, FOX Factory suspension, carbon wheels and frame. Its readiness for custom tuning enables you to tailor your ride to perfection.
Why It's Beyond Compare
The Fuel EX Gen 6 embodies the evolution of trail biking, offering 140/150 mm of adaptable travel, enhanced handling stability, and a durable frame equipped with internal storage for a seamless ride. With an expanded size range to fit all riders and optimal wheel sizes for unmatched performance and control, coupled with top-flight components, its a bike thats ready to tackle any trail. Innovative in-frame storage ensures your essentials are always within reach, while the adjustable geometry provides a myriad of setup options, ensuring that the Fuel EX 9.9 XTR Gen 6 is in a class of its own.
Specification
| Description | |

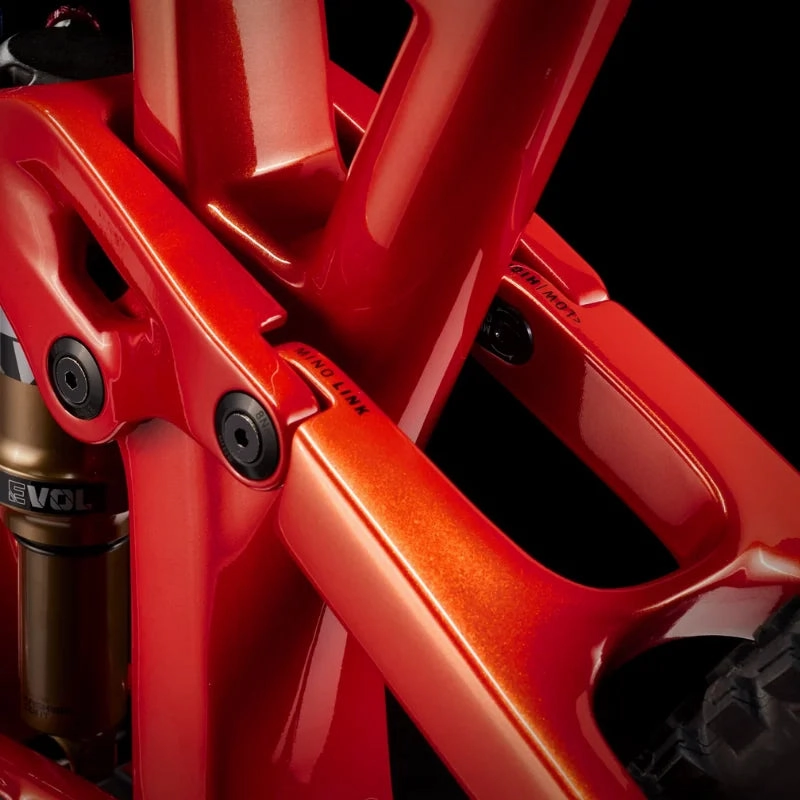

| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Size: XS , S , M , ML , L , XL Size: XS , S |

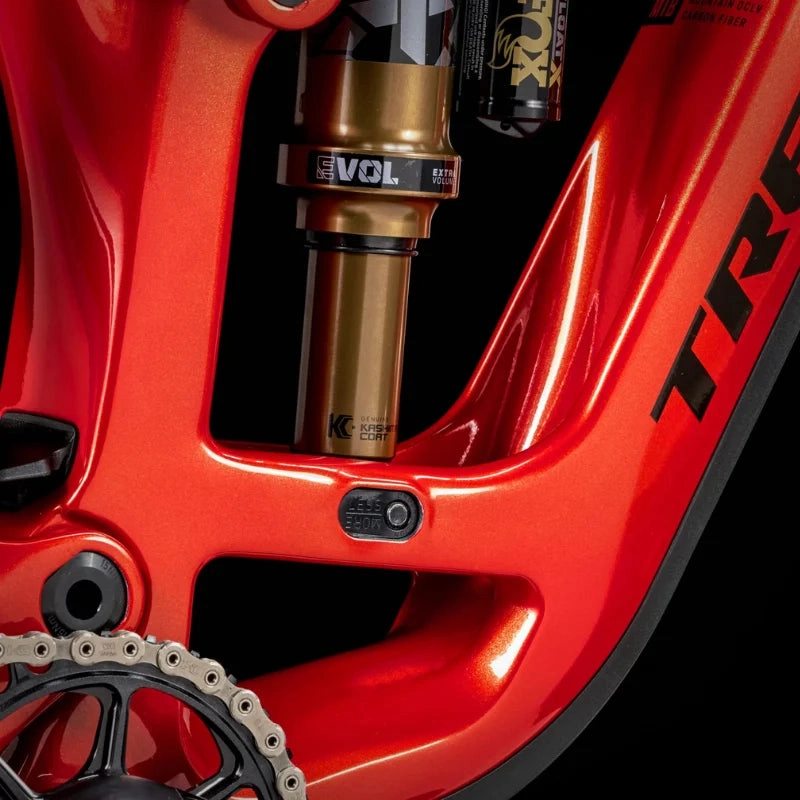

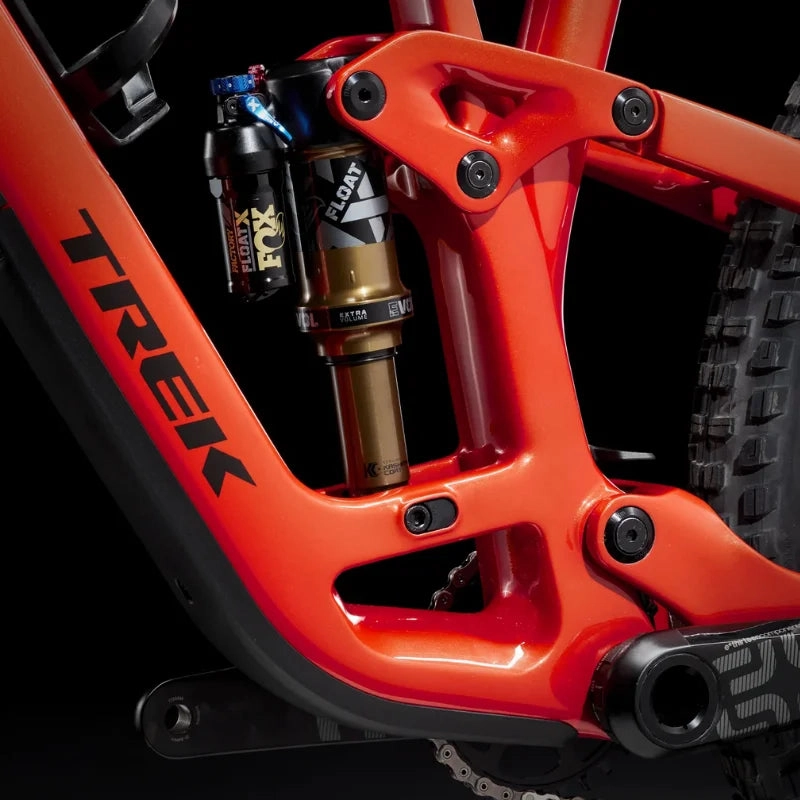

| Shock | Fox Factory Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Wheel Front | Size: XS , S Size: S , M , ML , L , XL |
| Wheel Rear | Size: XS , S |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Size: XS , S Size: XS , S Size: S , M , ML , L , XL Size: S , M , ML , L , XL |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
| Max. Charging Size | 1x: 50T, 2x: 54/40 |
| Rear Derailleur | Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog |
| Crank | E*thirteen TRS Race Carbon, 30T, 55 mm chain line, 170 mm length |
| Bottom Bracket | E*thirteen BB20-P, BSA threaded, 73 mm width |
| Cassette | Shimano Dura-Ace/XTR M9100, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L Size: XL |
| Handlebar/stem (integrated) | Size: XS , S Size: M , ML , L , XL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | Shimano XTR M9120 4-piston hydraulic disc |
| Brake Rotor | Size: XS , S , M , ML , L , XL Size: M , ML , L , XL |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

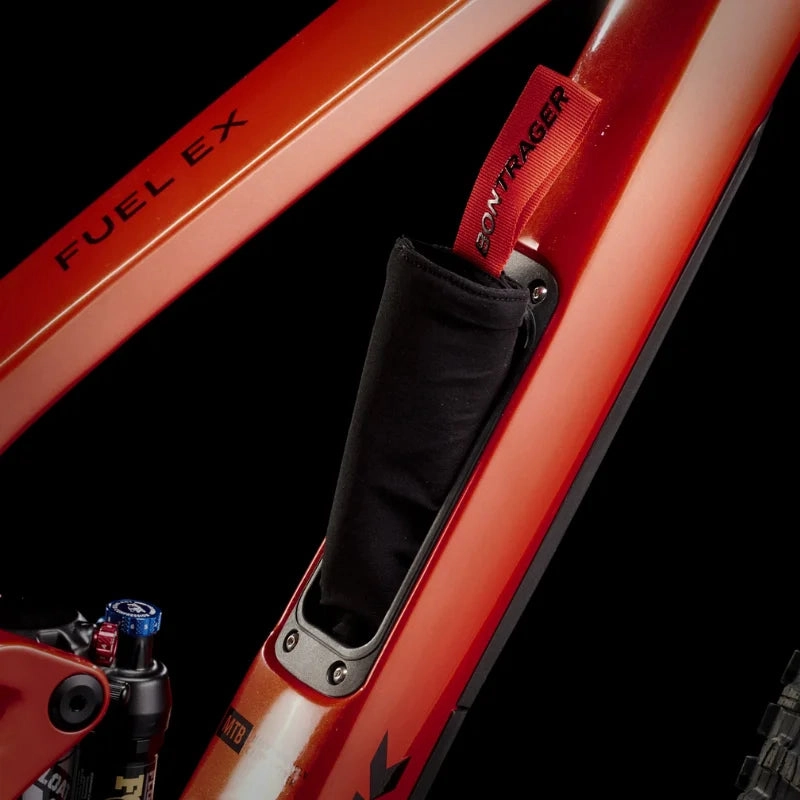

| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M - 13.80 kg / 30.43 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
