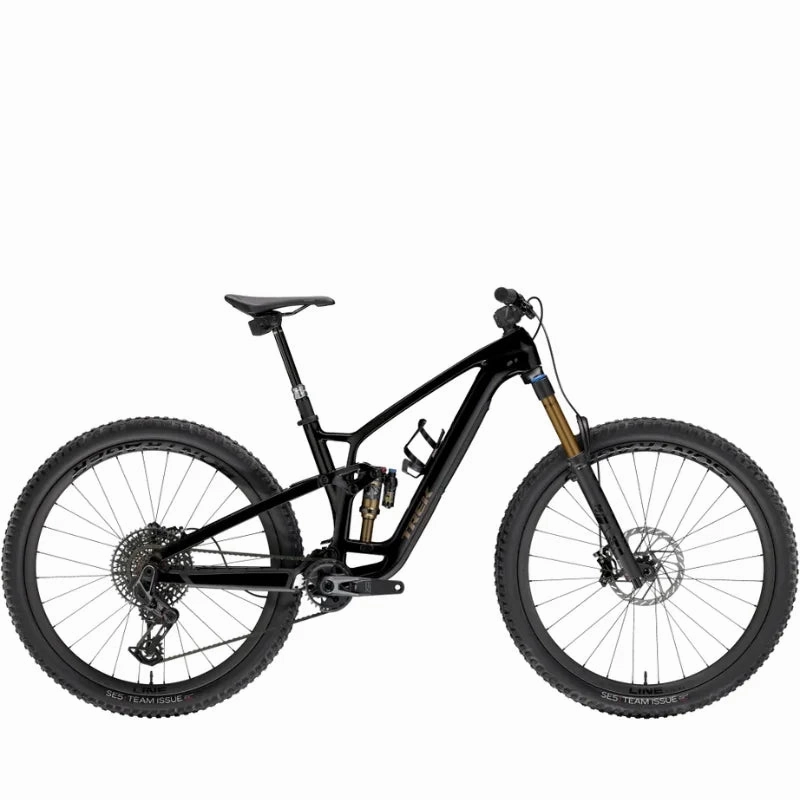

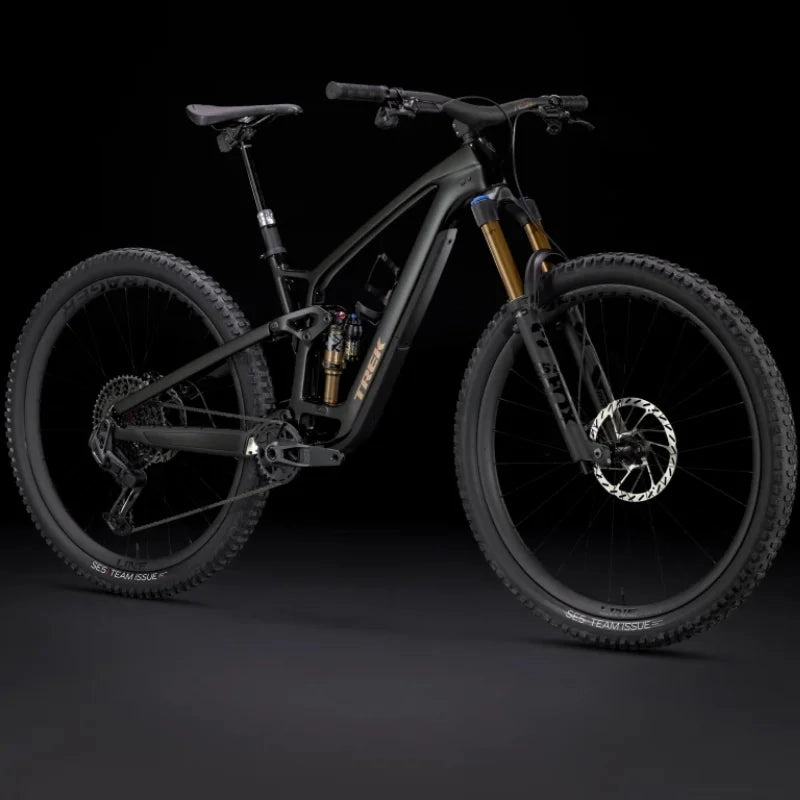

Trail Domination Redefined: Fuel EX 9.9 X0 AXS T-Type Gen 6
Empower your trail conquests with the Fuel EX 9.9 X0 AXS, a premium trail bike for those who covet unparalleled performance and craftsmanship. This exceptional ride fuses an elite carbon frame with the pinnacle of componentry. It boasts carbon fibre wheels for unmatched handling and a 150 mm Kashima-coated FOX Factory fork paired with a robust, fully wireless SRAM X0 transmission for absolute control over rugged terrains. The Fuel EX 9.9 X0 AXS stands as a testament to engineering excellence, ready to take on rock gardens, berms, and demanding climbs with unrivaled agility and precision.
Why Choose the Fuel EX 9.9 X0 AXS
- Frame:OCLV Mountain Carbon, Light and Stiff
- Wheels:Carbon Fibre, Precision Tracking
- Drivetrain:SRAM X0 AXS Fully Wireless Electronic, Top-Tier

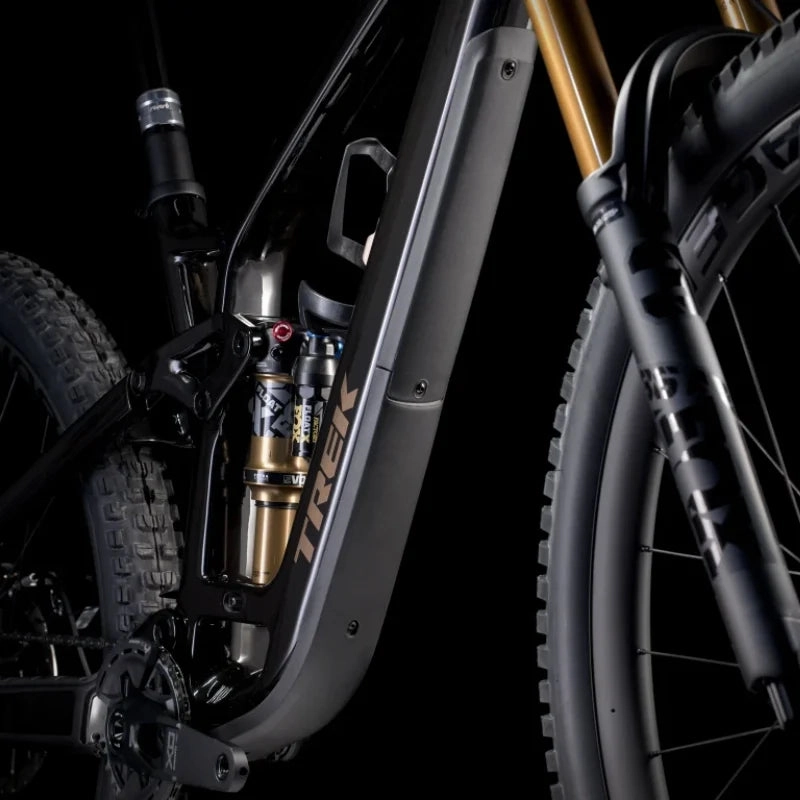

- Suspension:150 mm FOX Factory 36 Fork, 140 mm FOX Factory Float X Rear
- Ideal for:Discerning Riders Seeking Premium Mountain Performance
Trail Mastery Unleashed
The Fuel EX 9.9 X0 AXS encapsulates the essence of advanced trail riding, merging an ultra-light carbon frame with sophisticated suspension and drivetrain systems to navigate the most challenging terrains seamlessly. It reflects a symphony of strength, precision, and wireless technology, with SRAM's elite X0 AXS offering fluid, responsive shifting for a ride that knows no bounds.
Achieving Technical Excellence
Each aspect of this trail bike showcases the pinnacle of innovation. From the agile carbon frame, designed to withstand the rigors of the trail, to the SRAM's premier X0 AXS transmission for unparalleled gear changes, every detail has been perfected. The integration of the fox Factory suspension and carbon wheels ensures each ride is smooth, controlled, and relentless in pursuit of performance.
Trail Riding Perfection
The Fuel EX 9.9 X0 AXS does more than just navigate trails; it redefines them. Offering 140/150 mm of travel for comprehensive adaptability, stable handling, and a reinforced frame equipped with internal storage, it prepares you for any challenge. A wider size range guarantees a perfect fit for every rider, complemented by optimally sized wheels for superior control and dynamism. Ready to engage with the terrain with carbon wheels and streamlined in-frame storage, this bike also provides adjustable geometry options for a truly personalized riding experience, establishing the Fuel EX 9.9 X0 AXS as a beacon of trail refinement and exhilaration.
Specification
| Description | |

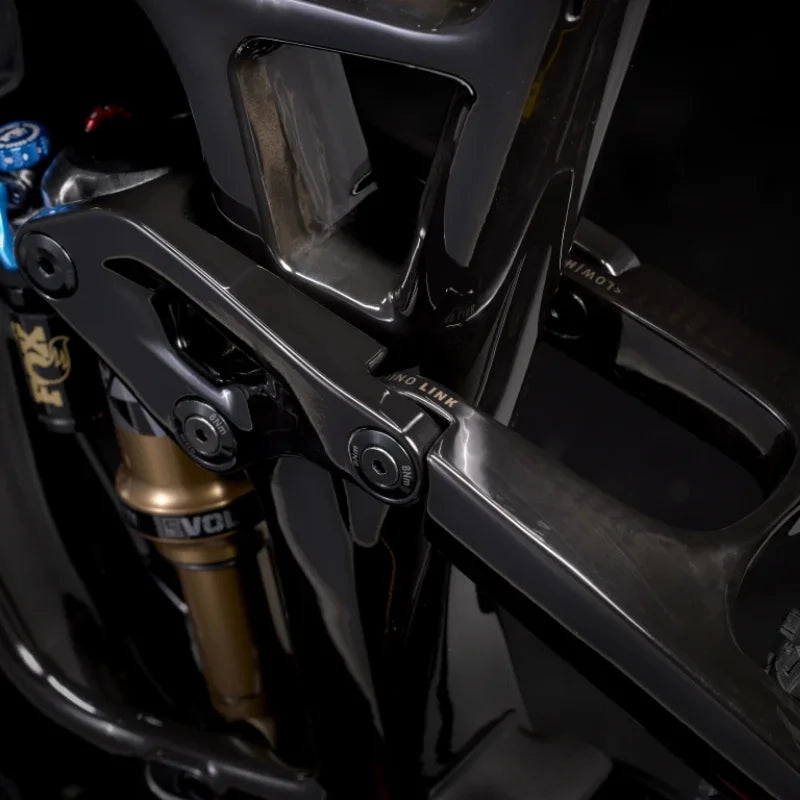

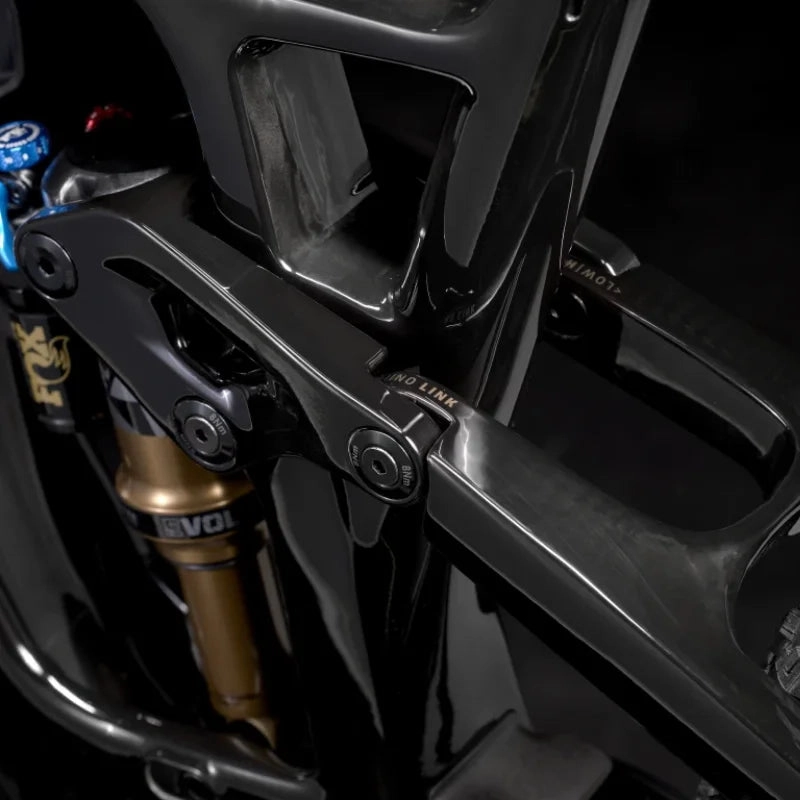

| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP2 damper, tapered steerer, 44 mm offset, Kashima Coat, Boost110, 15 mm Kabolt axle, 150 mm travel |

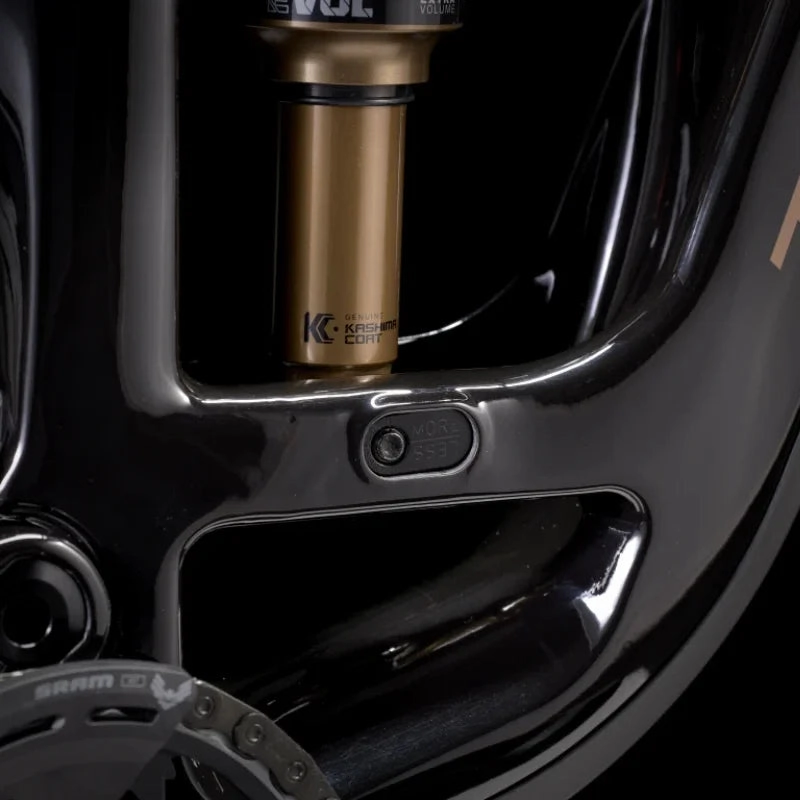

| Shock | Fox Factory Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Wheel Front | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
| Wheel Rear | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |

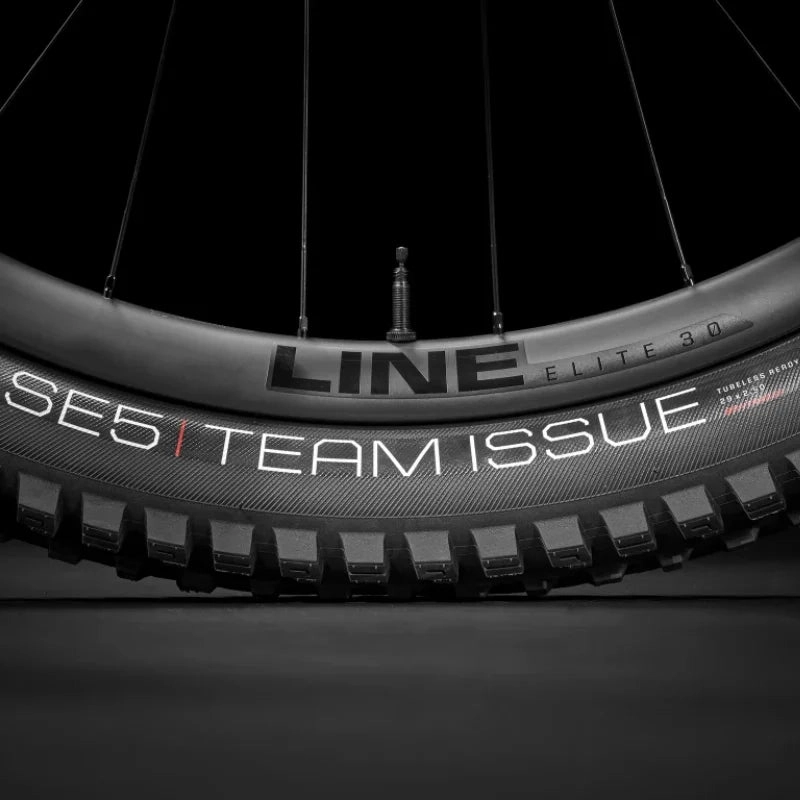

| Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29x2.50" |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | SRAM AXS POD Ultimate, paired with dropper |
| Cassette | Shimano Dura-Ace R9200, 11-30, 12-speed |
| Chain | Shimano Dura-Ace/XTR M9100, 12-speed |
| Max. Charging Size | 1x: 50T, 2x: 54/40 |
| Wheel Front | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru-axle |
| Wheel Rear | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru-axle |
| Skewer Front | Bontrager Switch thru-axle, removable lever |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R4 320, 700x25 mm |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | 32mm |
| Battery | SRAM eTap battery pack (with charger) |
| Shifter | SRAM AXS POD |

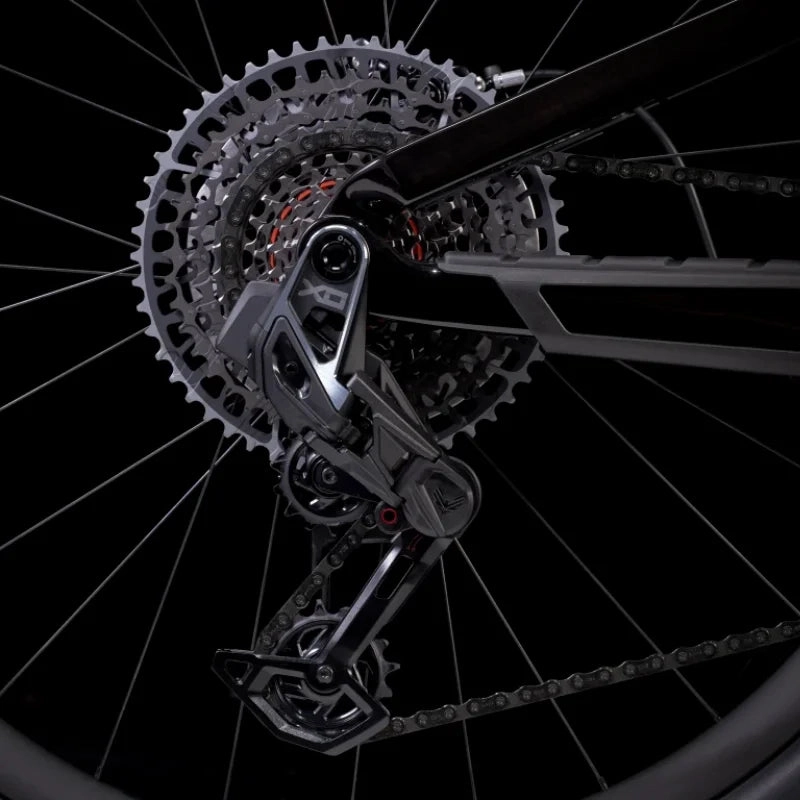

| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Crank | SRAM XX Eagle, DUB, 30T, T-Type, 55 mm chainline, 170 mm length |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1297, T-Type, 10-52, 12-speed |
| Chain | SRAM XX Eagle, T-Type, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Size: S
|
| Handlebar/stem (integrated) | Size: S
|
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

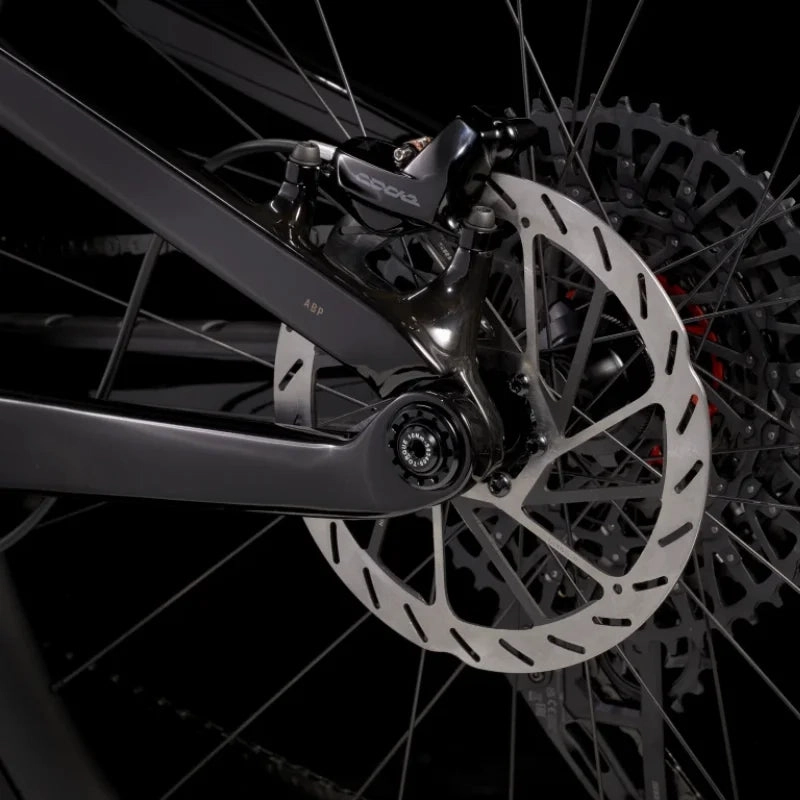

| Brake | SRAM Code Ultimate 4-piston hydraulic disc |
| Brake Rotor | Size: S , M , ML , L , XL
|
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

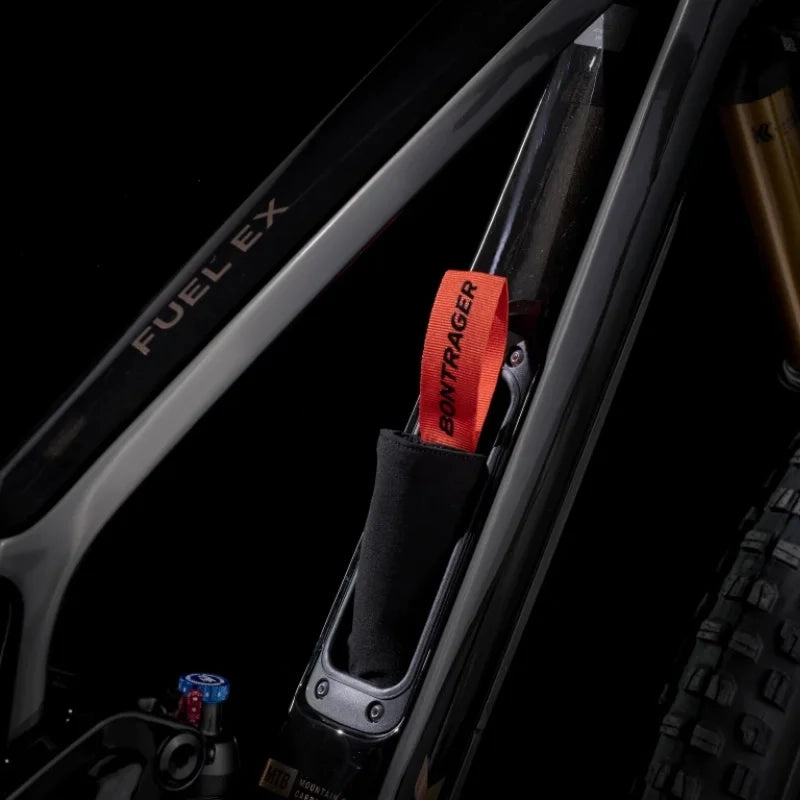

| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M - 14.35 kg / 31.64 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| 2XL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
