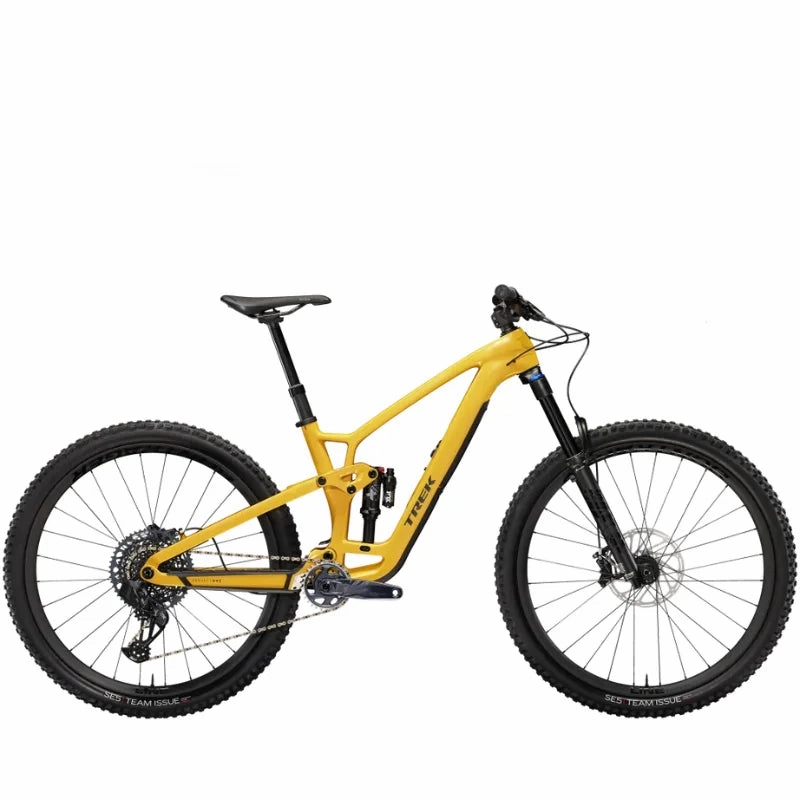

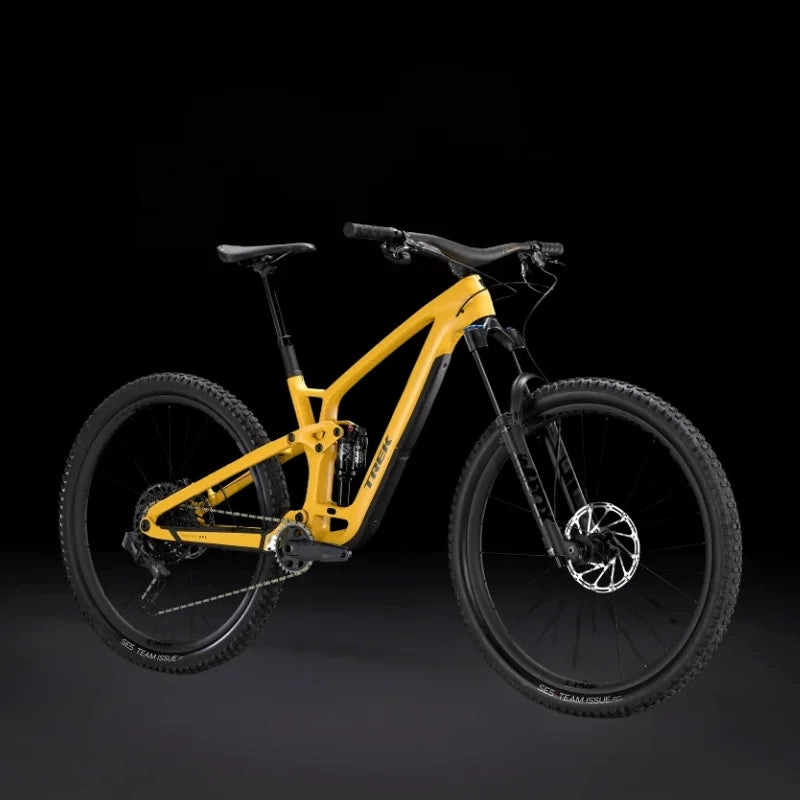

Fuel EX 9.8 GX AXS Gen 6: Elevating Your Trail Experience
The Fuel EX 9.8 is a dedicated trail bike equipped with a light and stiff carbon frame that excels in providing a smooth and quiet ride, ensuring stability in line choices. Loaded with cutting-edge technology like the wireless SRAM GX AXS drivetrain, offering a sleek appearance and customizable functionality. Featuring 150 mm front and 140 mm rear suspension for optimal control on rugged trails, and finished off with carbon Bontrager wheels boasting a quick-engaging hub.
Dissecting the Features for Fuel EX 9.8 GX AXS
- Frame:Lightweight, Stiff Carbon Frame with Sleek Design
- Suspension:150 mm Front RockShox Recon Silver Fork, 140 mm Rear X-Fusion Pro 2 Shock
- Drivetrain:SRAM GX AXS Wireless Shifting for Superior Performance
- Brakes:Hydraulic Disc Brakes for Consistent and Reliable Braking
- Ideal for:Riders Seeking Full Suspension Superiority and Advanced Technology with Wireless Shifting
Unleashing the Trail Performance The Fuel EX 9.8 GX AXS embodies an exceptional trail bike crafted for enthusiasts eager to delve into the world of full-suspension riding. Its carbon frame, complemented by premium suspension components, guarantees a poised and capable ride across varying terrains, providing a responsive and controlled experience.
Technological Excellence and Value This high-caliber trail bike boasts top-notch technology, featuring a robust SRAM GX AXS drivetrain, wireless shifting for a clean and efficient setup, and hydraulic disc brakes for superior stopping power. The fusion of a lightweight frame, progressive geometry, and meticulously chosen components strike a perfect balance between performance and value, delivering advanced trail technology within reach.
Embrace the Trail with Fuel EX 9.8 GX AXS Acting as a beacon of trail innovation, the Fuel EX 9.8 GX AXS empowers riders with seamless travel adjustments, enhanced adaptability, and steadfast handling within a sturdy frame equipped with internal storage. The expanded size range ensures a personalized fit for every rider, pairing each frame size with the most suitable wheel size configuration for optimized control and riding comfort. Equipped with cutting-edge wireless shifting and tubeless-ready wheels and tires for enhanced traction, the Fuel EX 9.8 GX AXS Gen 6 opens the doors to endless adventure, promising unbridled excitement on the trails.
Trek Fuel EX 9.8 GX AXS Gen 6 Specification
| Description | |

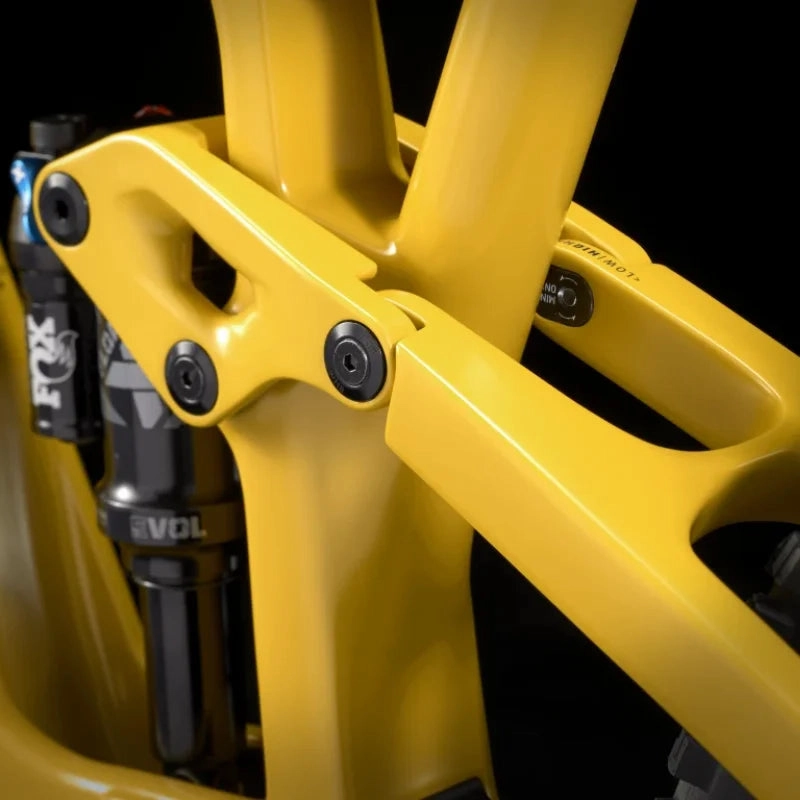

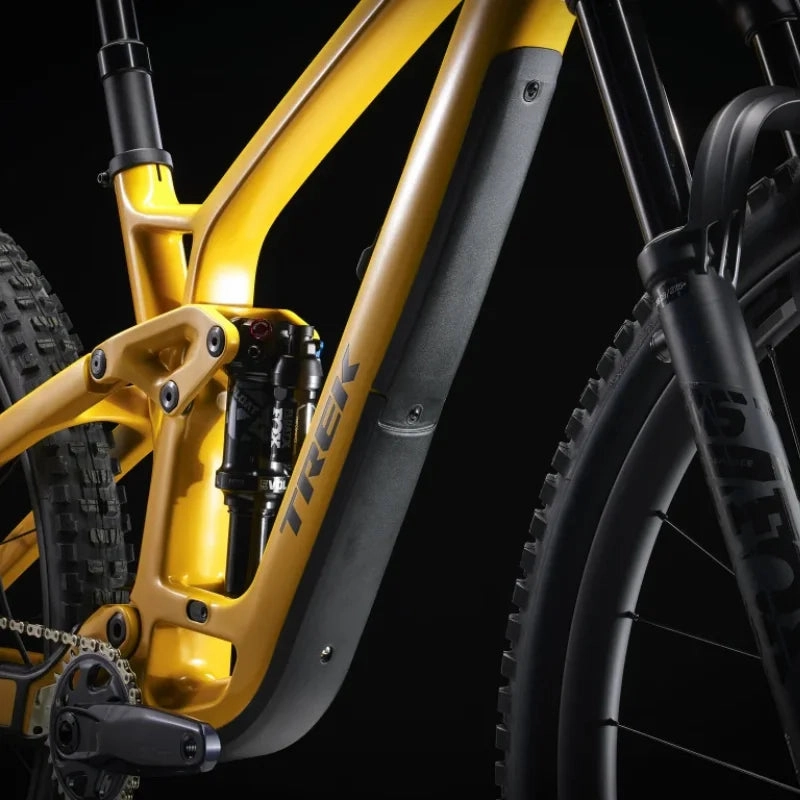

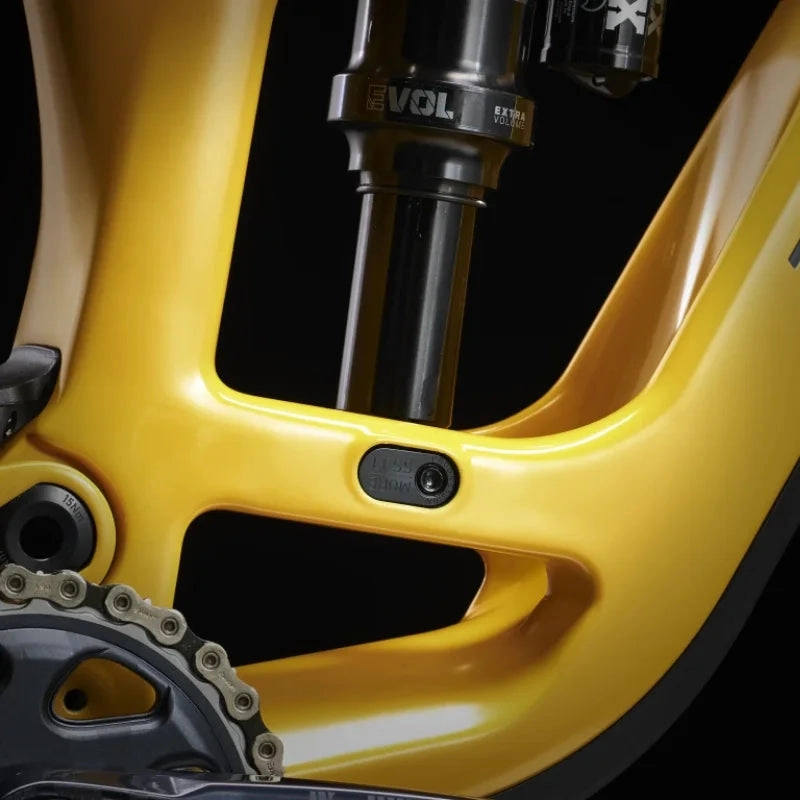

| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |

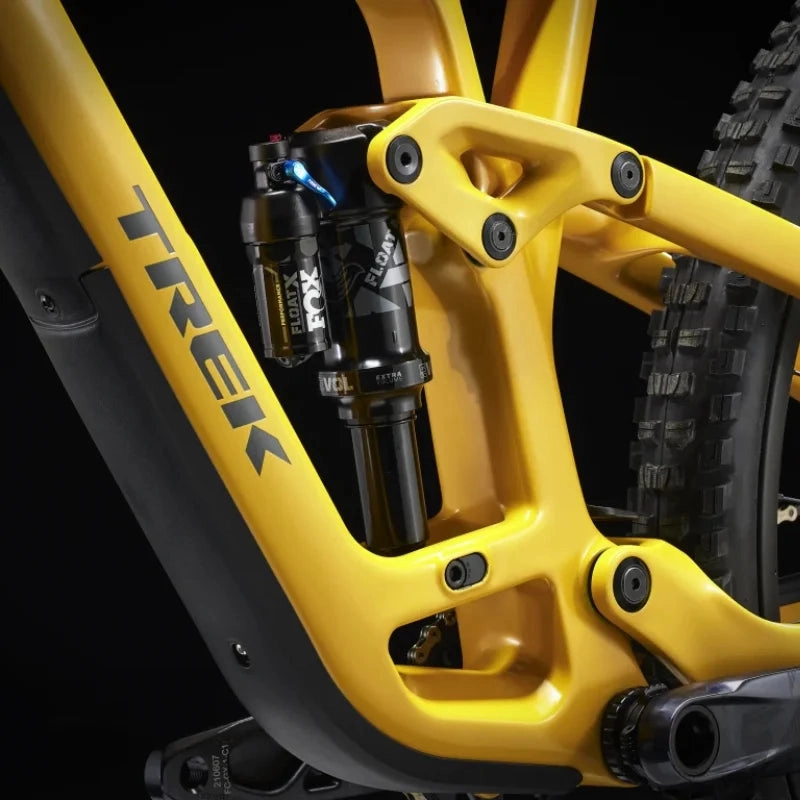

| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Wheel Front | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Wheel Rear | Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle, 29" |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Battery | SRAM eTap battery pack (with charger) |
| Shifter | SRAM GX Eagle AXS, 12 speed |
| Rear Derailleur | SRAM GX Eagle AXS |
| Crank | SRAM GX Eagle, DUB MTB Wide, 30T, 55 mm chainline, 170 length |
| Bottom Bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XG-1275, 10-52, 12-speed |
| Chain | SRAM GX Eagle, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Seatpost | Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length |
| Handlebar/stem (integrated) | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

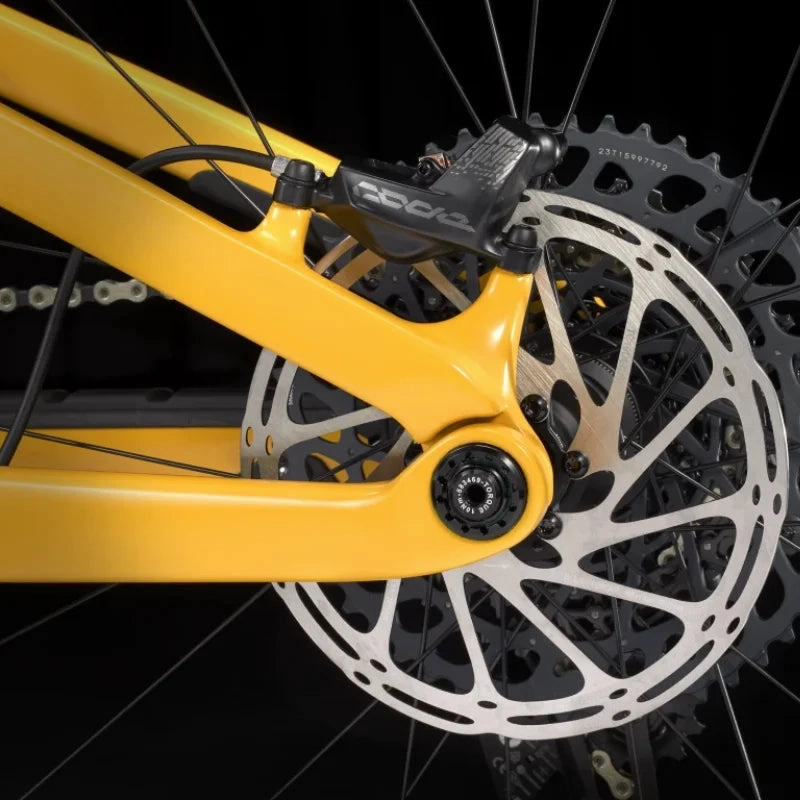

| Brake | SRAM Code R 4-piston hydraulic disc |
| Brake Rotor | Size: M Size: M |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

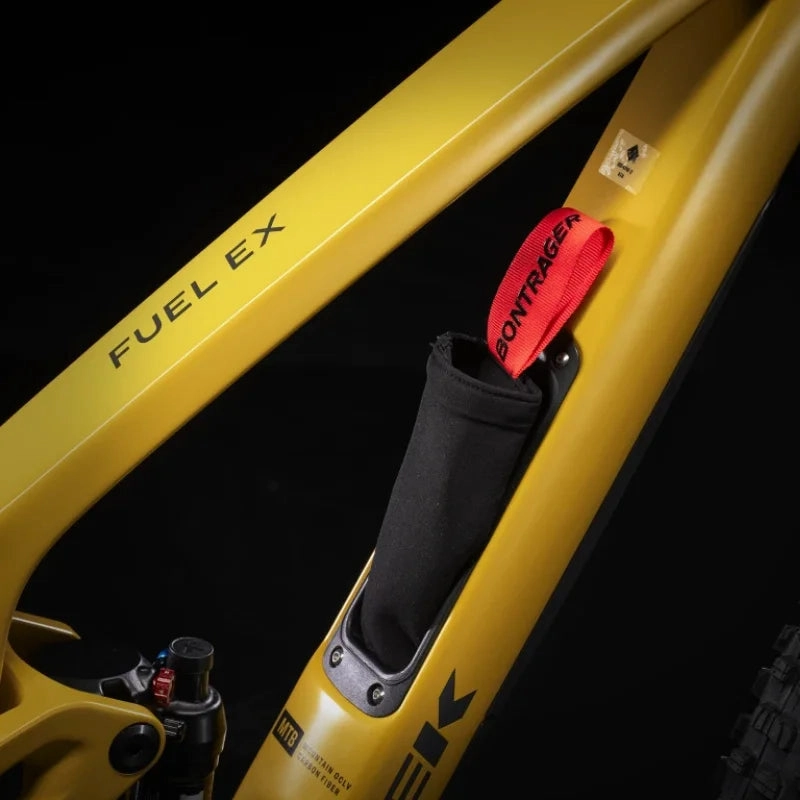

| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M 14.15 kg/31.21 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 136 kg (300 lb). |
Trek Fuel EX 9.8 GX AXS Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Trek Fuel EX 9.8 GX AXS Gen 6 Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
