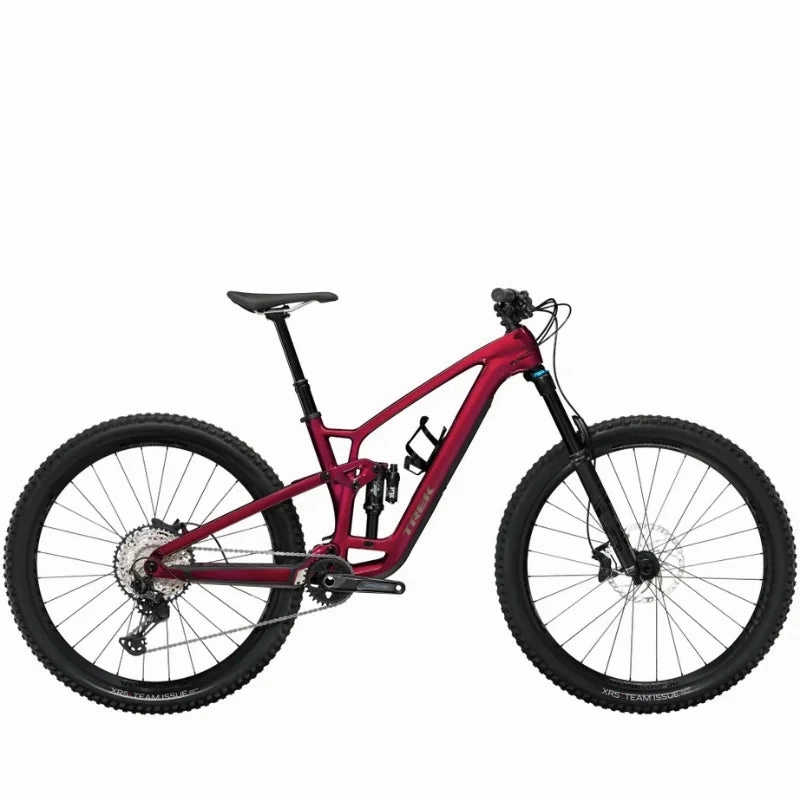

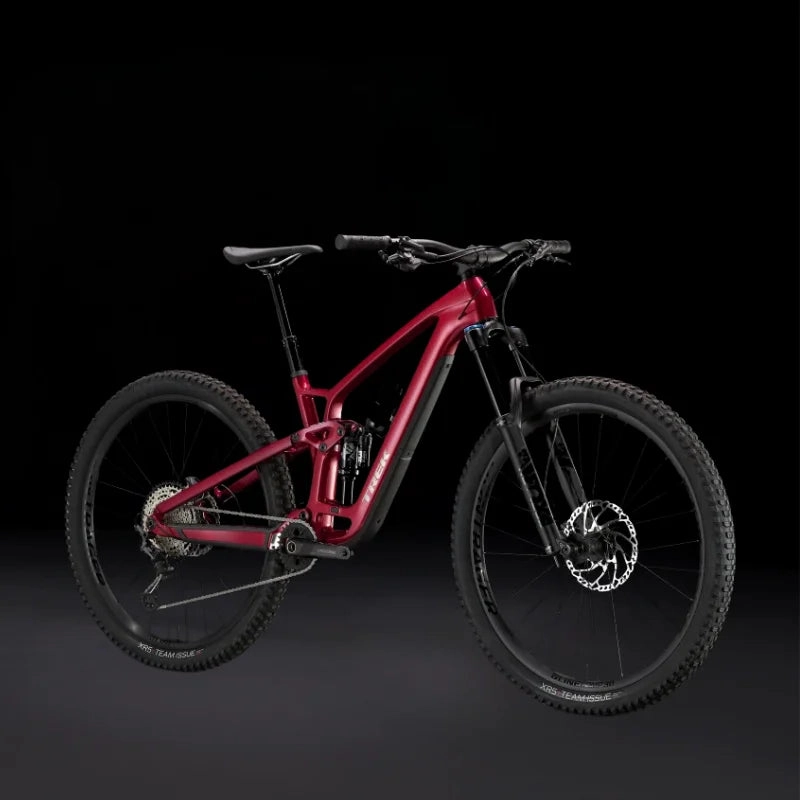

Fuel EX 9.7 Gen 6: The All-Mountain Ripper
The Fuel EX 9.7 stands out as an all-mountain gem that strikes the perfect balance between performance and affordability, offering a blend of quality components without compromising on excellence. Boasting a lightweight carbon frame and a meticulously chosen mix of Shimano SLX and XT parts, this bike ensures a harmonious combination of price and riding experience, complemented by the smooth handling of FOX's 150 mm front and 140 mm rear suspension.
Dissecting the Features for Trek Fuel EX 9.7 Gen 6
- Frame:Lightweight carbon frame for agility and responsiveness.
- Suspension:FOX 150 mm front Rhythm 36 fork and Performance Float X rear shock for trail compliance.
- Drivetrain:Shimano SLX and XT mix for reliability and durability.
- Brakes:Hydraulic disc brakes for precise stopping power.
- Ideal for:Balancing price and performance for all-mountain exploration.
For Whom It's Designed
If you crave the lightweight and smooth ride of a carbon frame while seeking dependable components without the premium price tag, the Fuel EX 9.7 is tailor-made for you.
Technological Delights

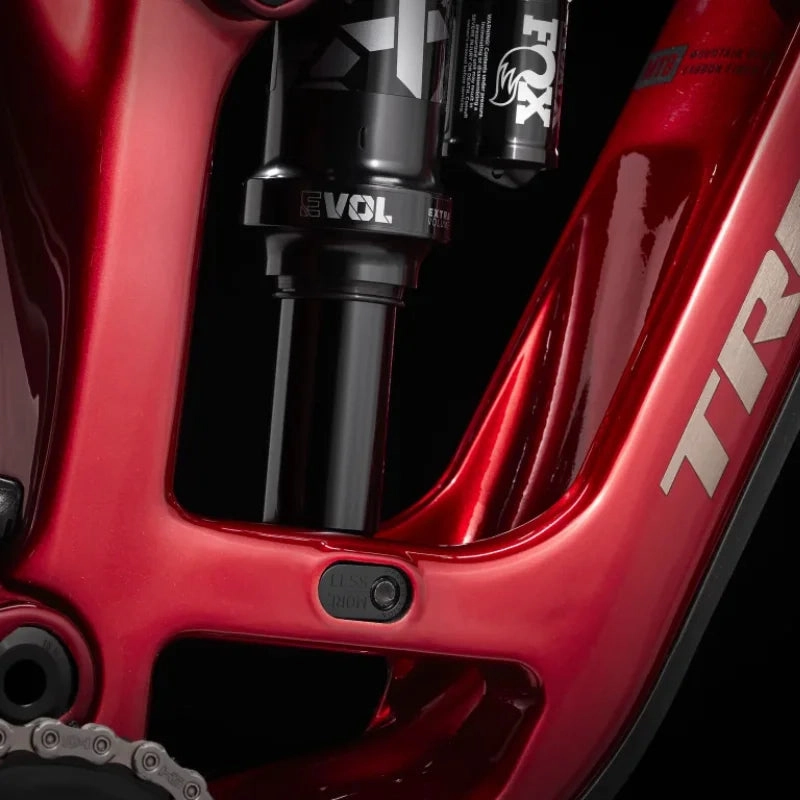

Featuring a light and rigid full carbon frame, a FOX Rhythm 36 fork with Float EVOL air spring and GRIP damper for excellent small bump compliance, along with a FOX Performance Float X rear shock. The ideal blend of Shimano SLX and XT components ensures reliable shifting and durability for your trail adventures. Additionally, the bike offers adjustable geometry and in-frame storage for a customized setup geared specifically towards your needs.
Final Thoughts
The Fuel EX 9.7 represents an evolved trail bike designed for riders who desire the best of both worlds. Its lively and stiff carbon frame, coupled with a FOX suspension setup and a Shimano XT and SLX drivetrain, offers a comprehensive package built to thrive in any terrain.
Trek Fuel EX 9.7 Gen 6 Specification
| Description | |

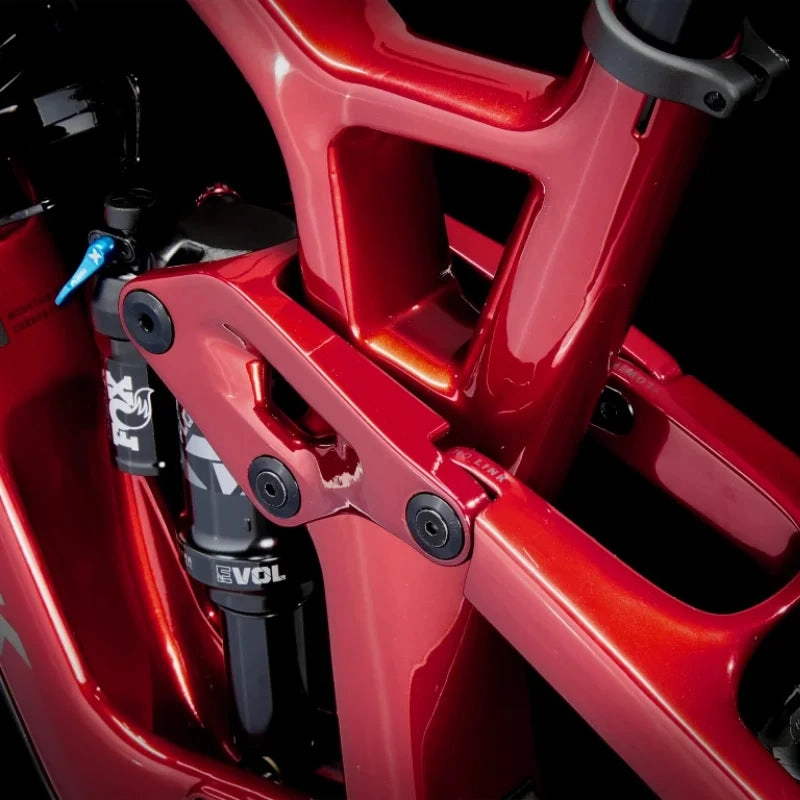

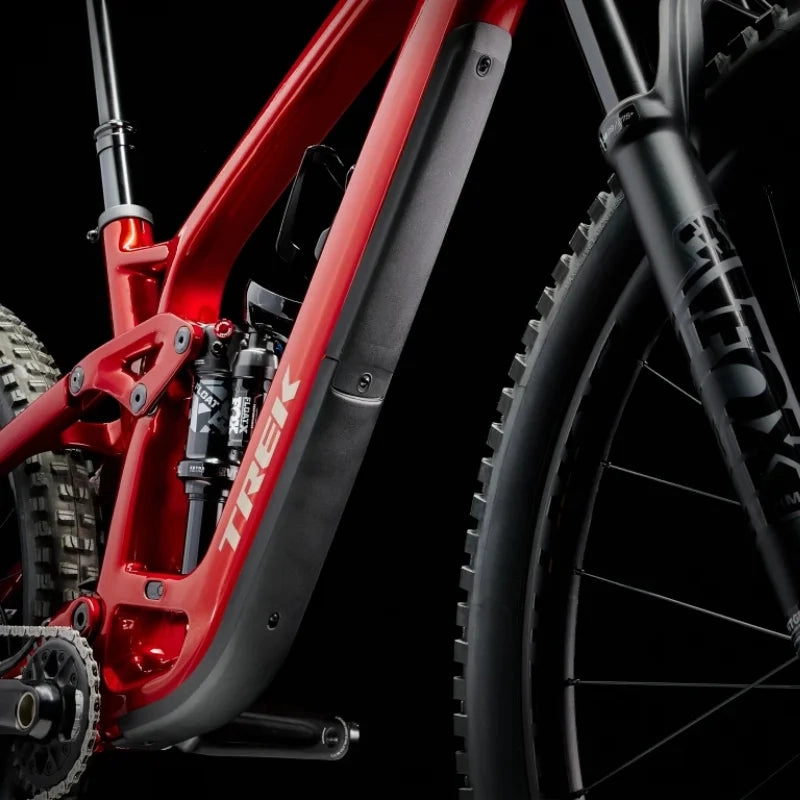

| Frame | OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Size: XS Size: S , M , ML , L , XL |

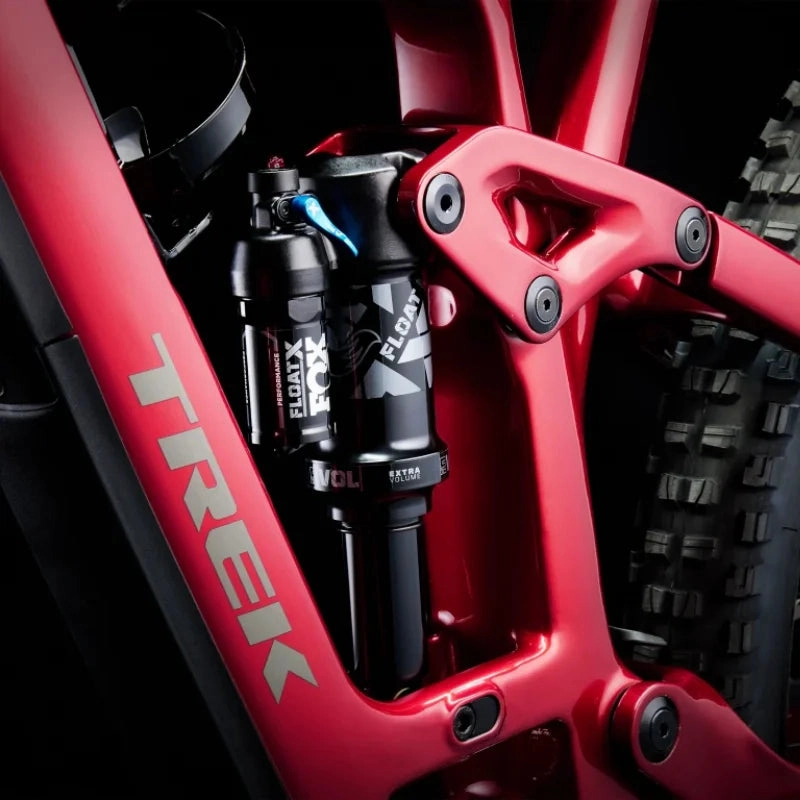

| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |

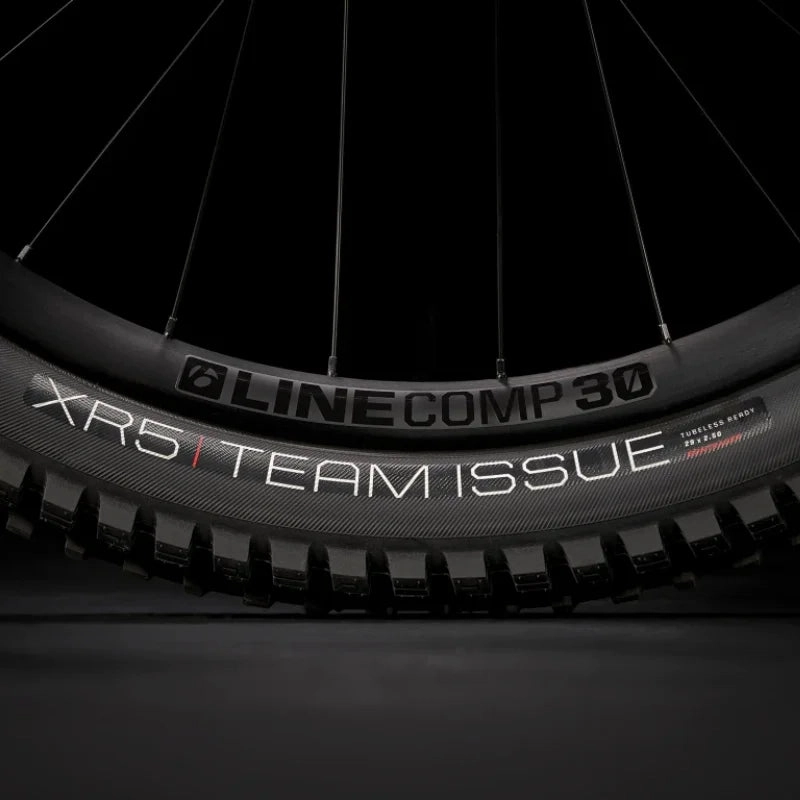

| Wheel Front | Size: XS Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Size: S , M , ML , L , XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
| Wheel Rear | Size: XS Size: S , M , ML , L , XL |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Shifter | Shimano SLX M7100, 12-speed |
| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom Bracket | Shimano SM-BB52, 73 mm, threaded external bearing |
| Cassette | Shimano SLX M7100, 10-51T, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L , XL |
| Handlebar | Size: XS , S Size: M , ML , L , XL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Size: XS , S Size: M , ML , L , XL |

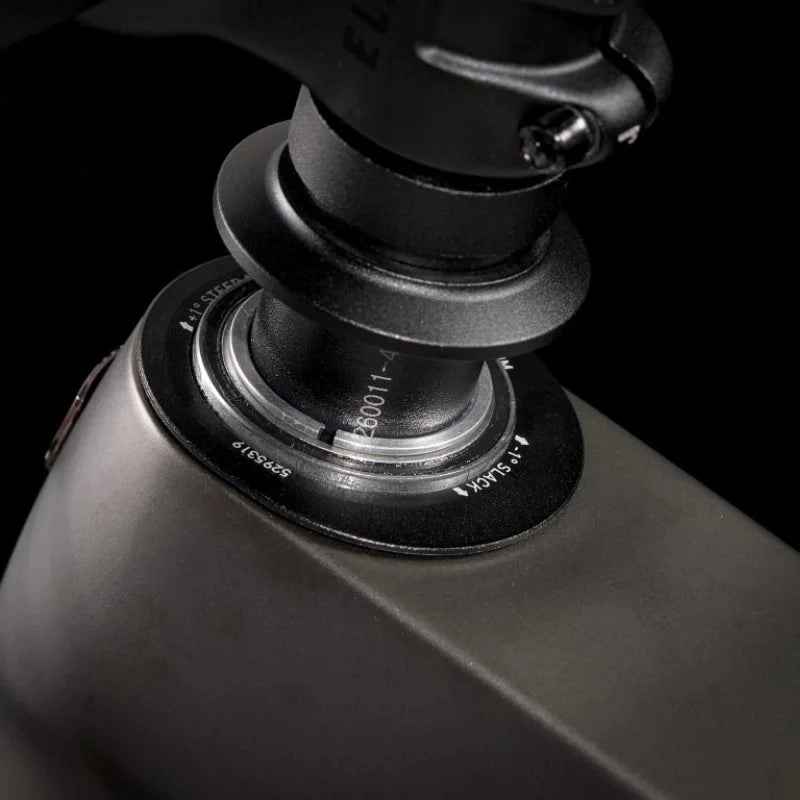

| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Size: XS , S , M , ML , L , XL Size: M , ML , L , XL |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |

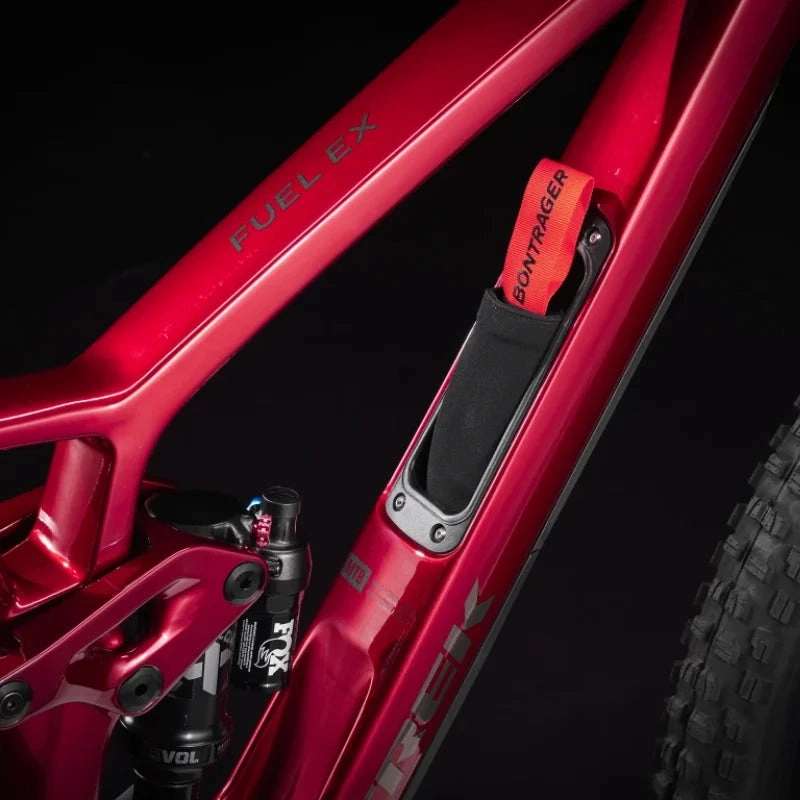

| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M 14.15 kg/31.21 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 136 kg (300 lb). |
Trek Fuel EX 9.7 Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
Trek Fuel EX 9.7 Gen 6 Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
