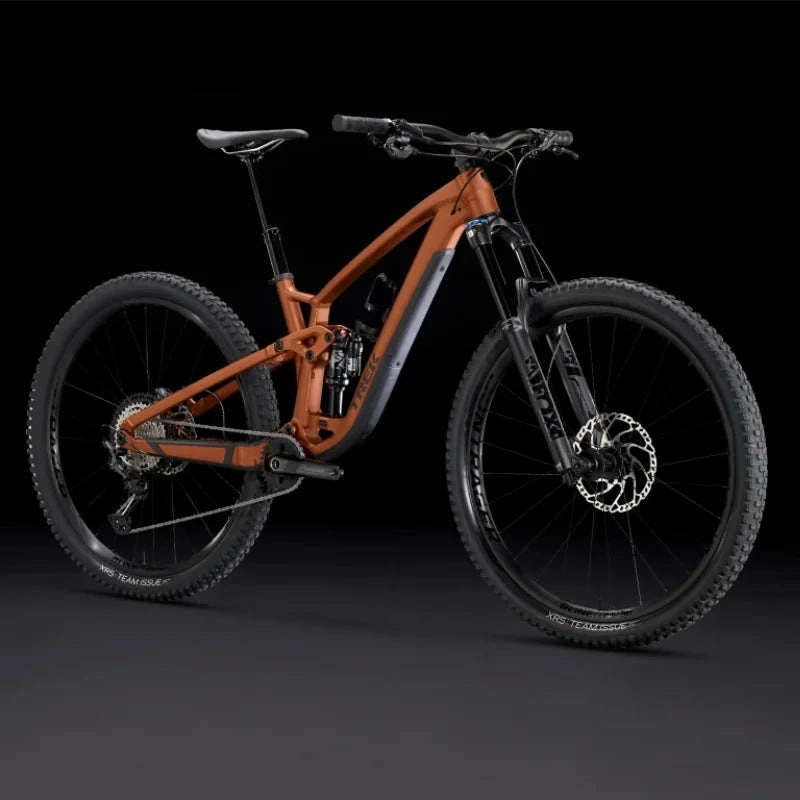

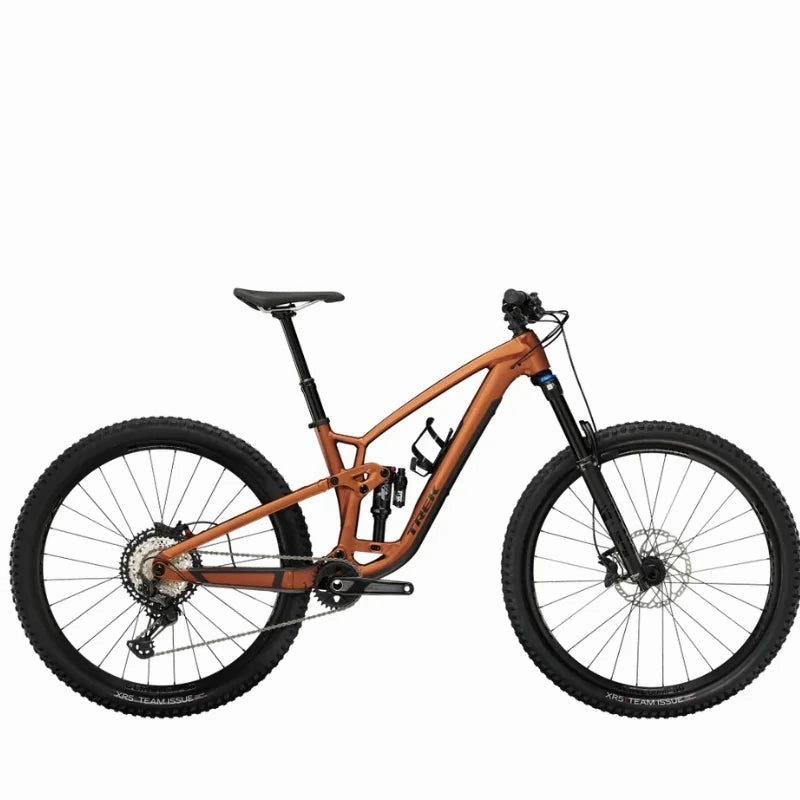

Conquer Every Trail with the Trek Fuel EX 8 Gen 6 in Matte Pennyflake
Unleash Your Trail Riding Adventures: The Trek Fuel EX 8 Gen 6 is the ultimate trail companion, engineered for riders who seek out thrilling descents and crave a bike that's equally eager to climb back up and do it all over again. With its robust alloy frame and upgraded Shimano XT drivetrain, this bike is built to handle anything the trail throws your way.

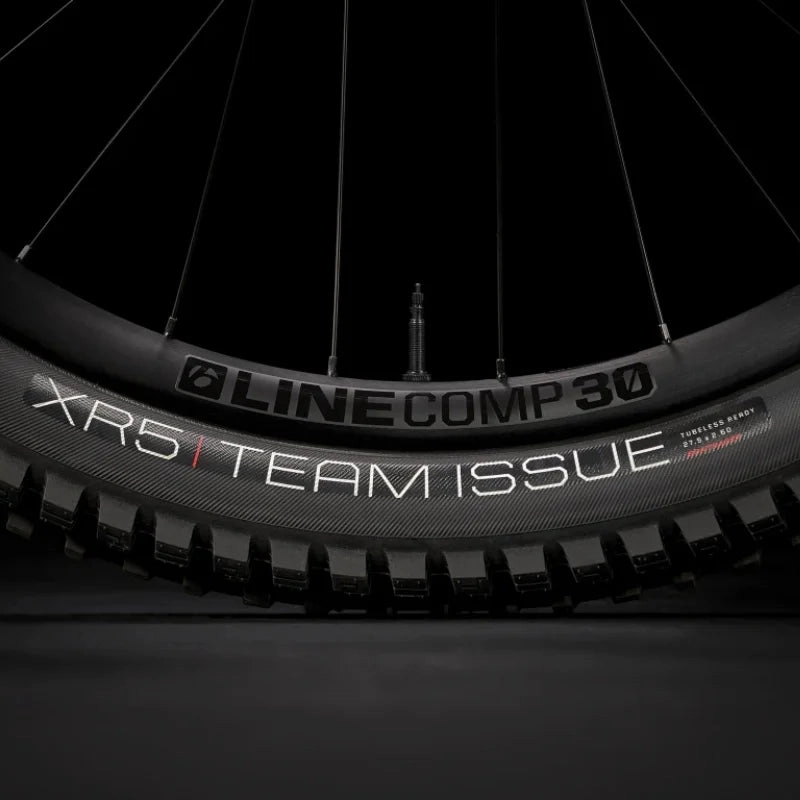

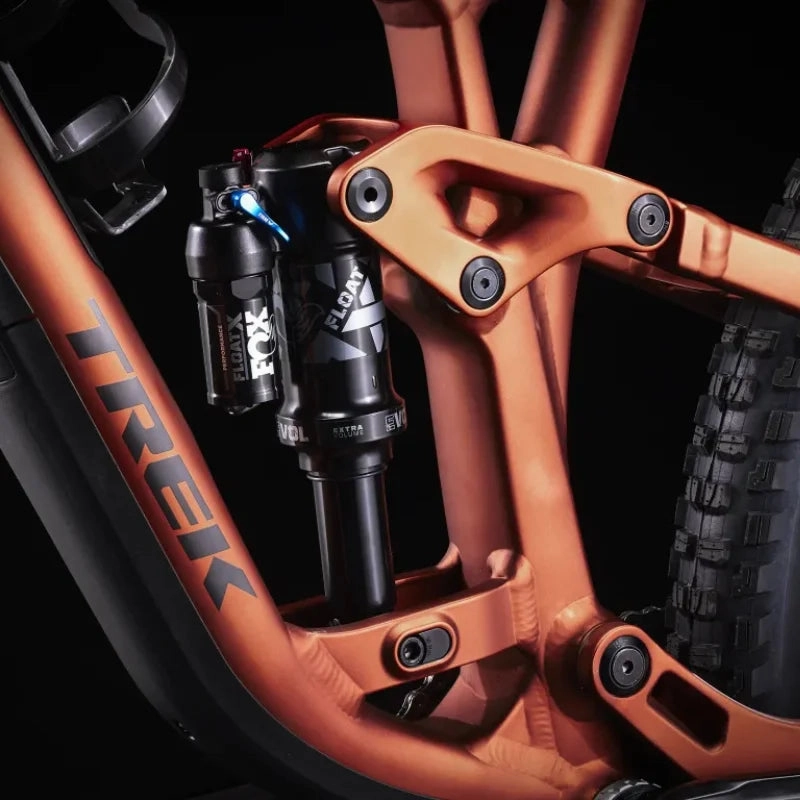

Precision Performance: Equipped with a 150mm Fox Rhythm fork and Fox Float X shock, the Fuel EX 8 effortlessly tackles rocks and roots, keeping you in control even on the most challenging terrain. The Shimano XT 12-speed drivetrain ensures smooth and precise shifting, while tubeless-ready Bontrager wheels provide reliability and traction on every ride.
Carbon-Level Features, Affordable Price: Experience the benefits of carbon-level performance without the hefty price tag. The Fuel EX 8 boasts new in-frame storage and adjustable geometry, delivering all the perks of its carbon counterpart at a fraction of the cost.

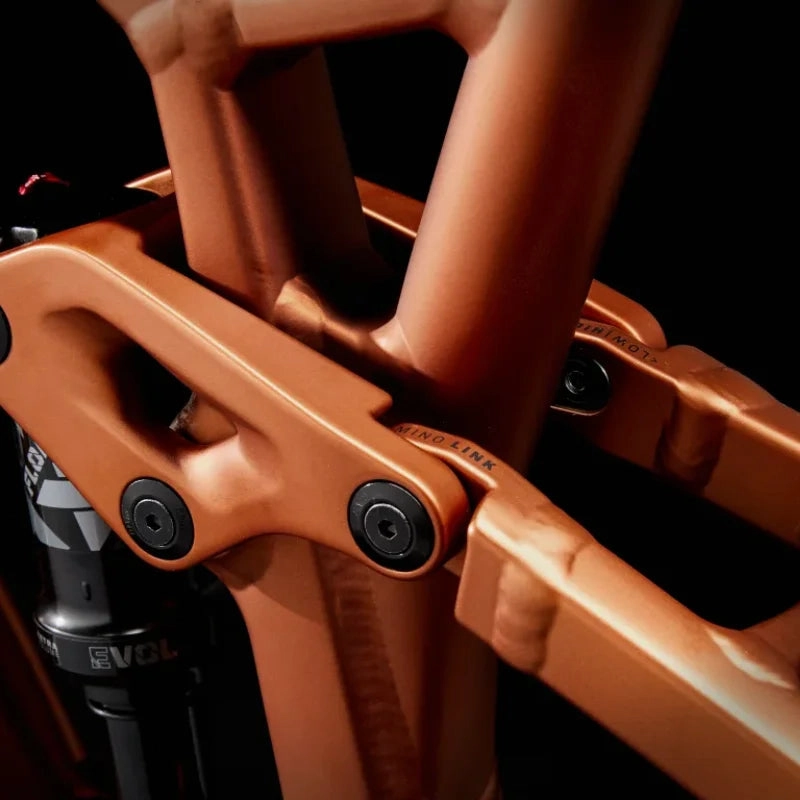

Tailored to Your Riding Style: Whether you're charging down steep descents or powering through technical climbs, the Fuel EX 8 adapts to your every move. With an adjustable angle headset and Mino Link, you can choose from six different geometry configurations to suit your preferences and conquer any trail with confidence.
Why Choose the Trek Fuel EX 8 Gen 6:
- Trail-Ready Performance: With its modern geometry and rugged construction, this bike is built to handle rough and rowdy singletrack with ease.
- Premium Components: Enjoy upgraded features such as 12-speed XT shifting and a FOX Rhythm 36 fork, ensuring top-notch performance on every ride.
- Versatile Fit: The expanded size range ensures a perfect fit for riders of all sizes, while optimized wheel sizes deliver the best ride quality for each frame size.
- Ease of Maintenance: Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB simplify maintenance and keep you on the trails longer.
Conclusion: Embark on your next trail adventure with confidence aboard the Trek Fuel EX 8 Gen 6 in Matte Pennyflake. With its unbeatable combination of performance, versatility, and affordability, this bike is your ticket to exploring new trails and pushing your limits like never before. Experience the thrill of the ride with the Trek Fuel EX 8 Gen 6!
Specification
Trek Fuel EX 8 Gen 6 Specification
FRAMESET
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Size: XS , S Size: S , M , ML , L , XL , XXL |

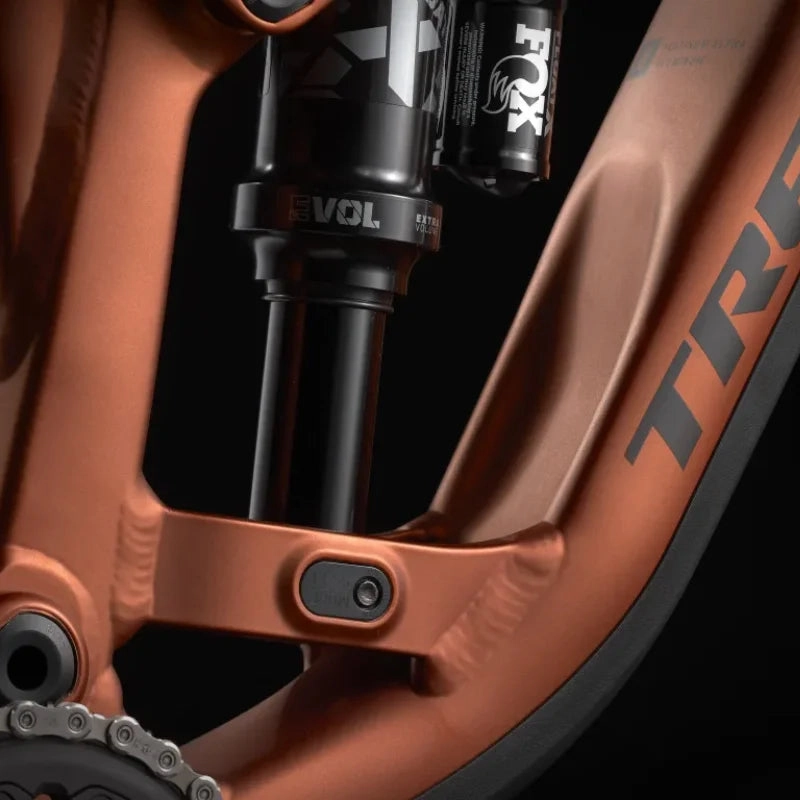

| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
WHEELS
| Wheel Front | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Wheel Rear | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29 x 2.50" (XS & S: 27.5 x 2.50"); Fork: See manufacturer |
DRIVETRAIN
| Shifter | Shimano XT M8100, 12-speed |

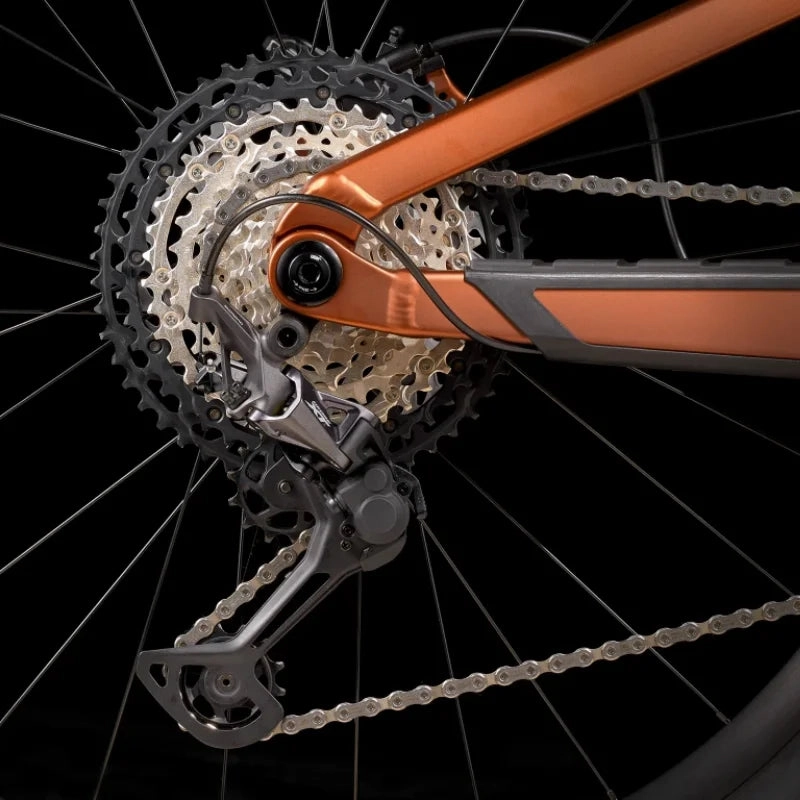

| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 34T round, 32T oval, min 28T |
COMPONENTS
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L , XL , XXL |
| Handlebar | Size: XS , S Size: M , ML , L , XL , XXL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Size: XS , S Size: M , ML , L , XL , XXL |

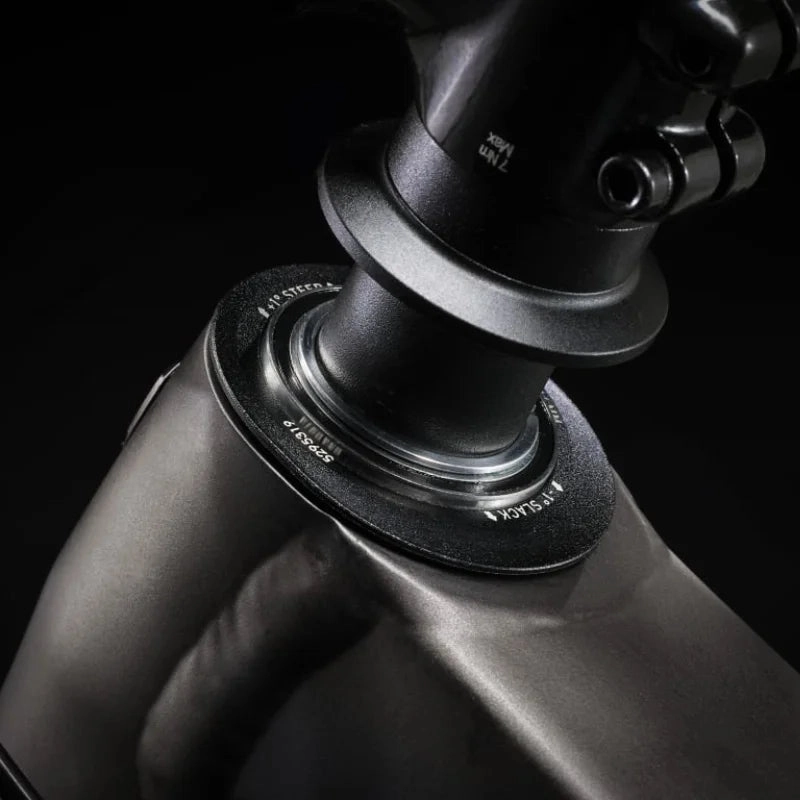

| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

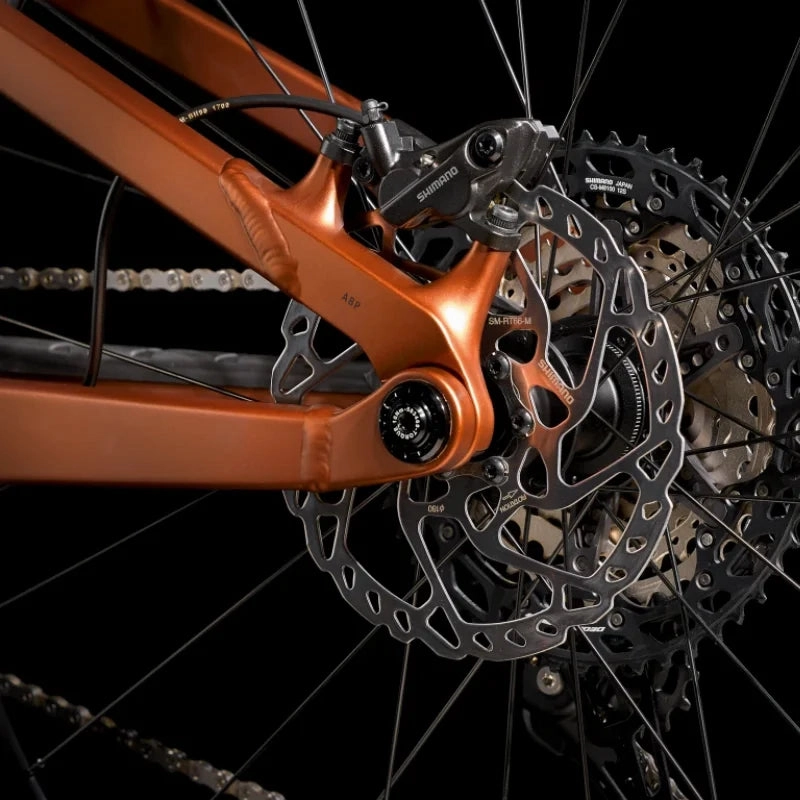

| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Size: XS , S , M , ML , L , XL , XXL Size: XS , S , M , ML , L , XL , XXL |
| Rotor Size | Max brake rotor sizes - Frame: 203 mm, Fork: see fork manufacturer |
ACCESSORIES

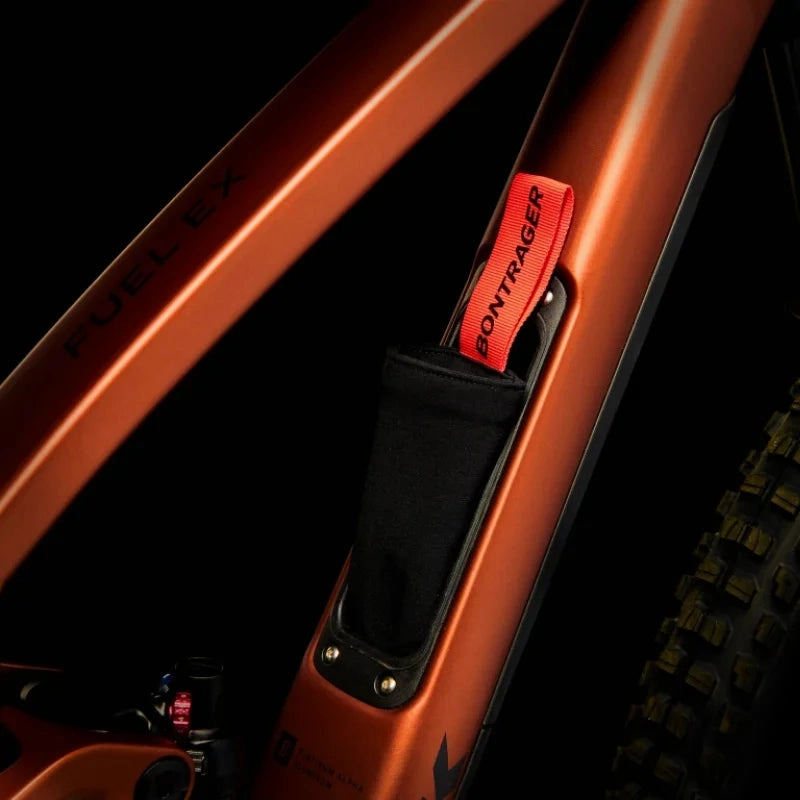

| Bag | Bontrager BITS Internal Frame Storage Bag |
WEIGHT
| Weight | M - 15.65 kg / 34.51 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb) |
Sizing
Trek Fuel EX 8 Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| 2XL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Geometry
Trek Fuel EX 8 Gen 6
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
