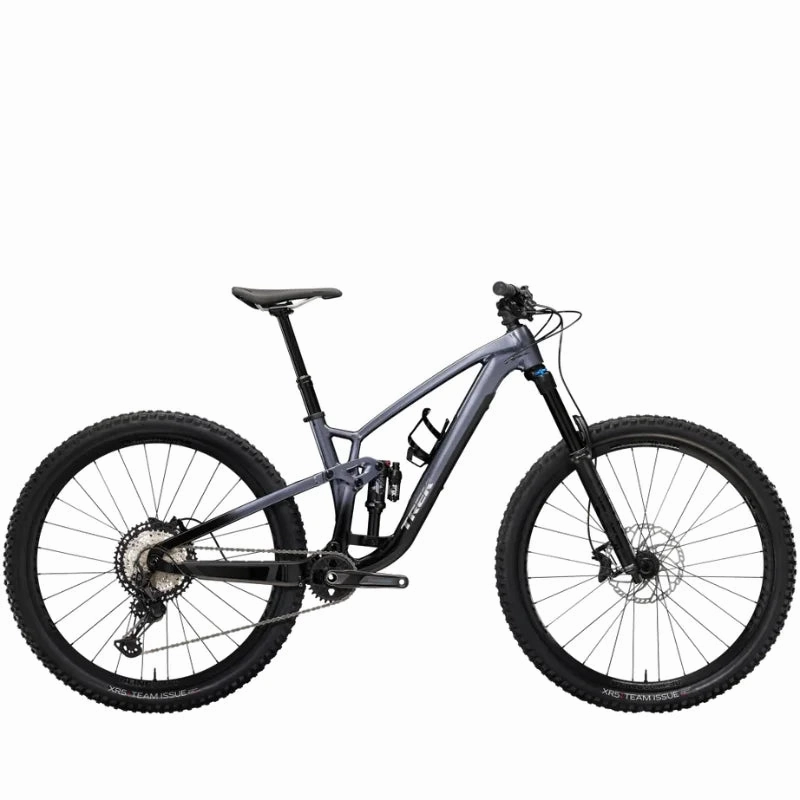

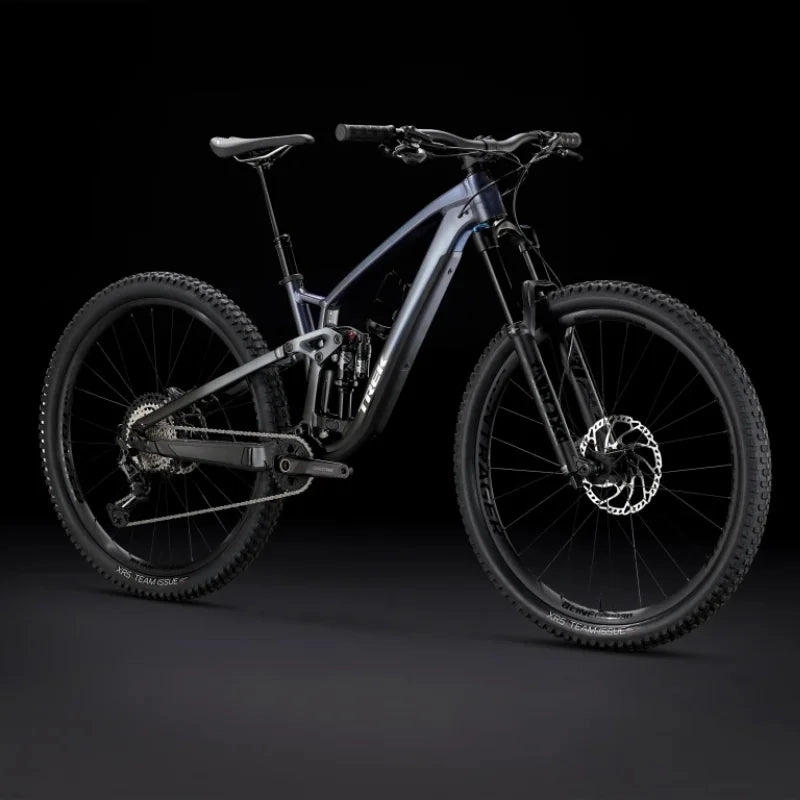

Unleash Your Trail Riding Adventures with the Trek Fuel EX 8 Gen 6 in Galactic Grey to Black Fade
Conquer Every Trail: The Trek Fuel EX 8 Gen 6 is the ultimate trail companion, designed for riders who crave adrenaline-fueled descents and seamless climbs. Whether you're tackling rocky terrain or flowing singletrack, this bike is ready to push the limits and keep you in control every step of the way.

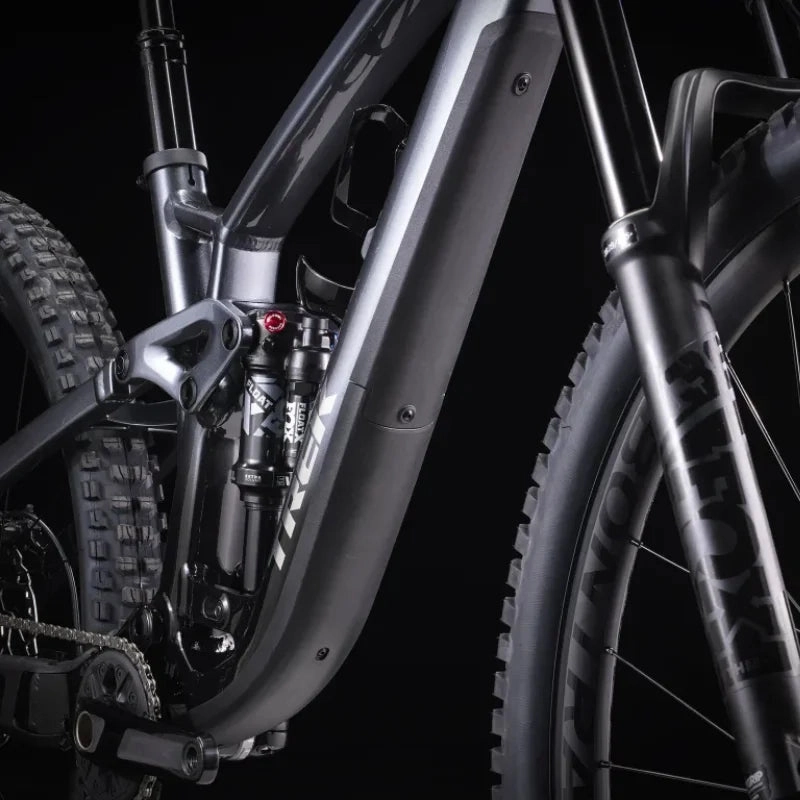

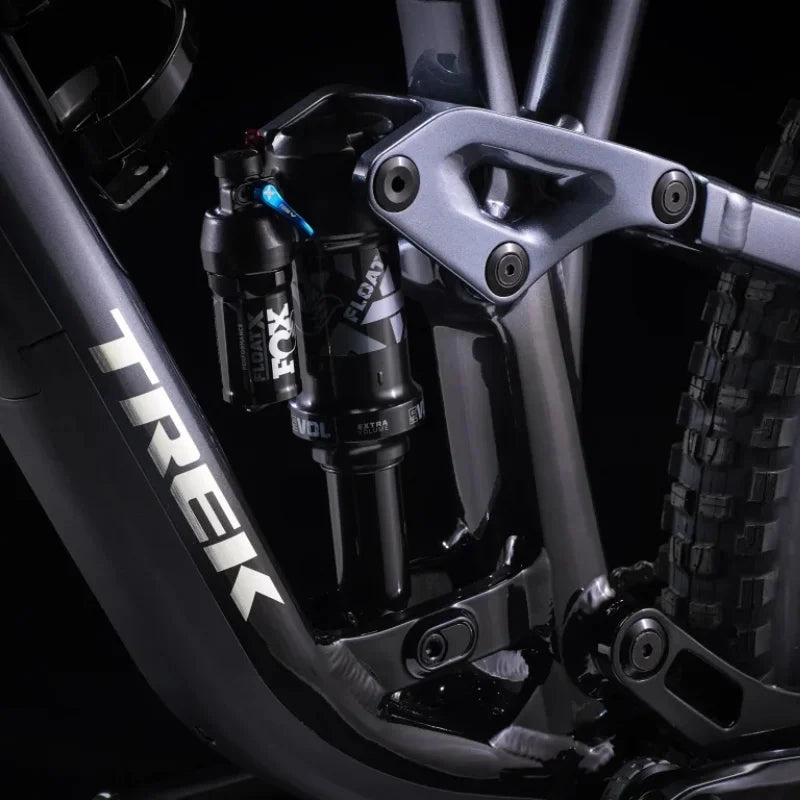

Precision Performance: Crafted with a robust alloy frame and upgraded Shimano XT drivetrain, the Fuel EX 8 delivers smooth and precise shifting, ensuring you're always in the right gear for the trail ahead. With a 150mm FOX Rhythm fork and FOX Performance Float X rear shock, you'll glide over rocks and roots with confidence and control.

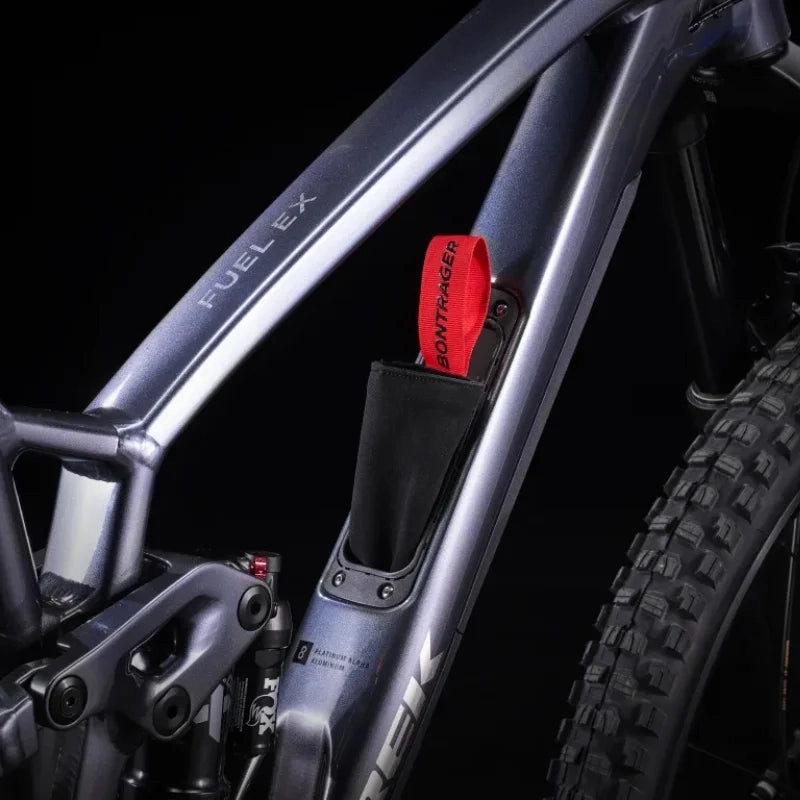

Advanced Features, Affordable Price: Experience the benefits of carbon-level performance without breaking the bank. The Fuel EX 8 features new in-frame storage and adjustable geometry, giving you the versatility and customization options of higher-end models at a fraction of the cost.

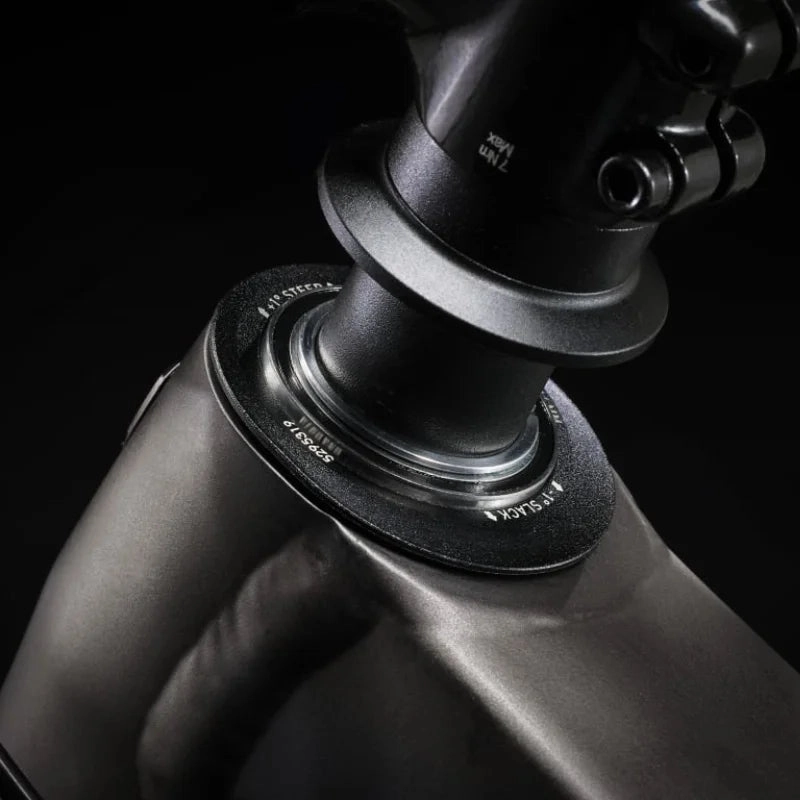

Tailored to Your Needs: Whether you're charging down steep descents or powering up technical climbs, the Fuel EX 8 is designed to adapt to your riding style. With an adjustable angle headset and Mino Link, you can choose from six different geometry configurations to suit your preferences and tackle any trail with confidence.
Why Choose the Trek Fuel EX 8 Gen 6:
- Trail-Ready Performance: Designed to handle rough and rowdy terrain, this bike features modern geometry that's optimized for aggressive trail riding.
- Upgraded Components: Enjoy the benefits of premium components, including 12-speed XT shifting and a FOX Rhythm 36 fork, for maximum performance on every ride.
- Versatile Fit: With an expanded size range and tailored wheel sizes for each frame size, the Fuel EX 8 ensures a perfect fit for riders of all proportions.
- Ease of Maintenance: Guided internal routing, universal derailleur hanger, improved hardware, and a threaded BB make maintenance and upkeep a breeze, so you can spend more time on the trails.
Conclusion: Embark on your next trail riding adventure with confidence aboard the Trek Fuel EX 8 Gen 6. With its unbeatable combination of performance, versatility, and affordability, this bike is your ticket to exploring new trails and pushing your limits like never before. Experience the thrill of the ride with the Trek Fuel EX 8 Gen 6 in Galactic Grey to Black Fade!
Specification
Trek Fuel EX 8 Gen 6 Specification
FRAMESET

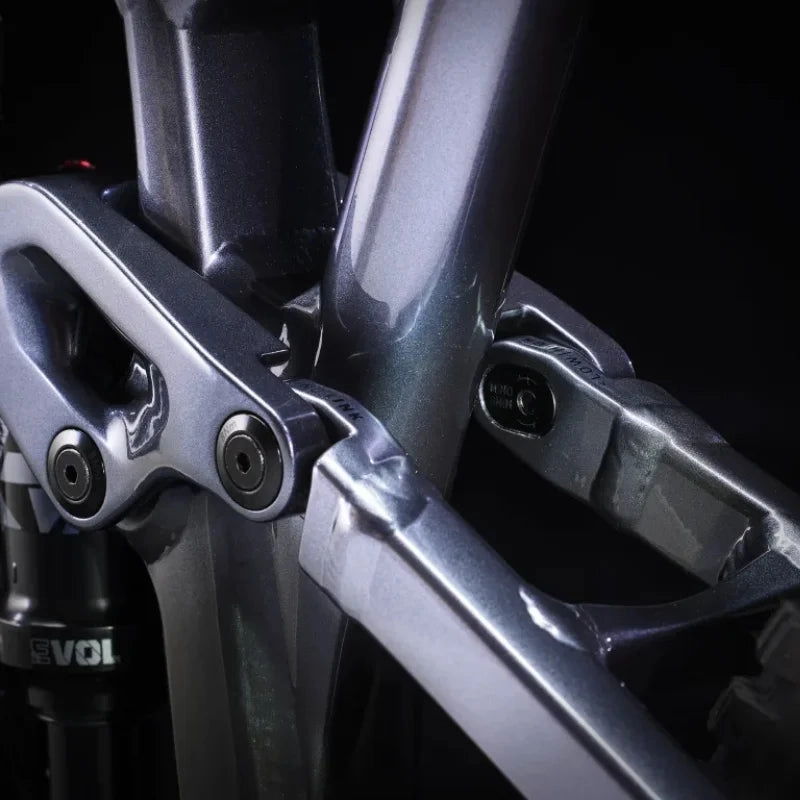

| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Shock | Fox Performance Float X, 2-position damper, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
WHEELS
| Wheel Front | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Wheel Rear | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |

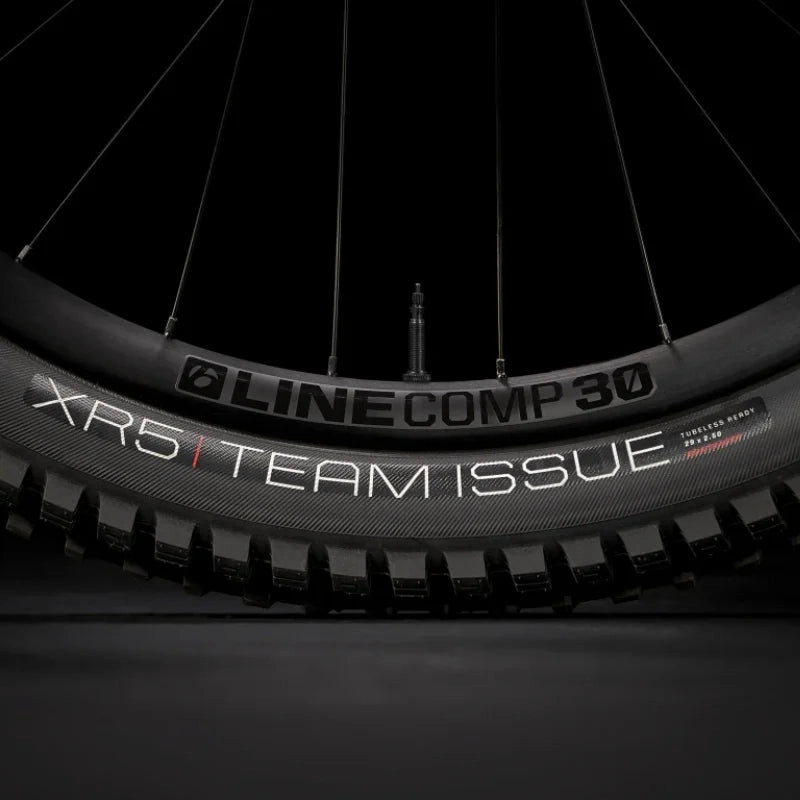

| Tyre | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29 x 2.50" (XS & S: 27.5 x 2.50"); Fork: See manufacturer |
DRIVETRAIN
| Shifter | Shimano XT M8100, 12-speed |

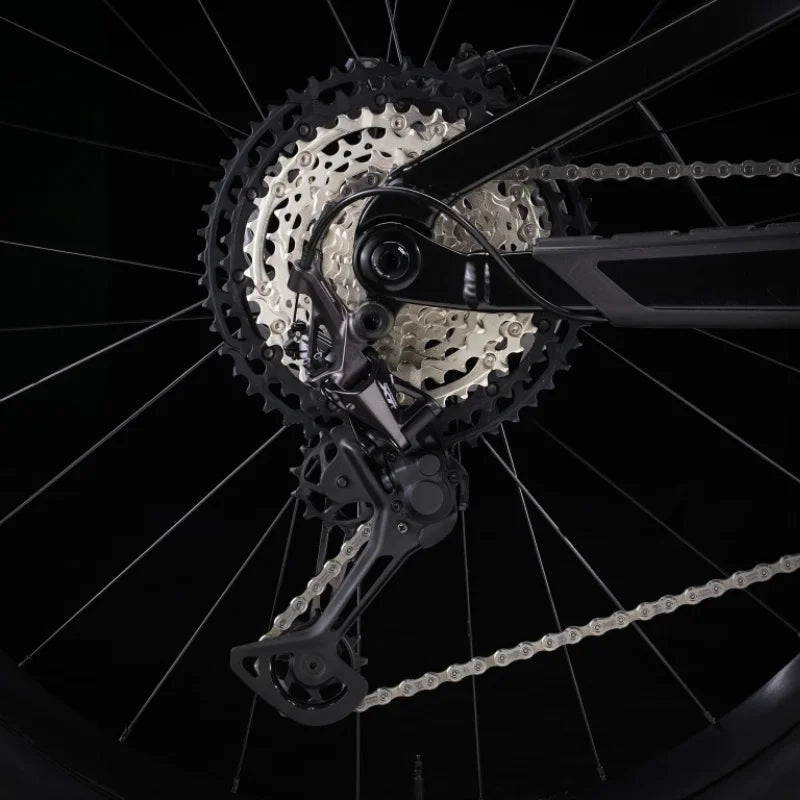

| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano XT M8100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 34T round, 32T oval, min 28T |
COMPONENTS
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L , XL , XXL |
| Handlebar | Size: XS , S Size: M , ML , L , XL , XXL |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Size: XS , S Size: M , ML , L , XL , XXL |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

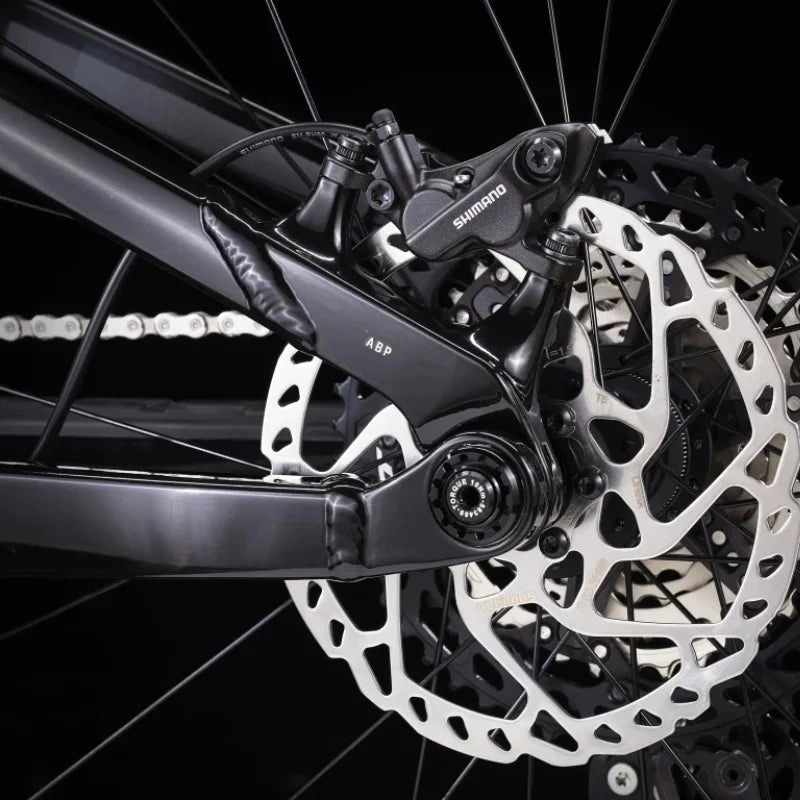

| Brake | Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper |
| Brake Rotor | Size: XS , S , M , ML , L , XL , XXL Size: XS , S , M , ML , L , XL , XXL |
| Rotor Size | Max brake rotor sizes - Frame: 203 mm, Fork: see fork manufacturer |
ACCESSORIES
| Bag | Bontrager BITS Internal Frame Storage Bag |
WEIGHT
| Weight | M - 15.65 kg / 34.51 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb) |
Sizing
Trek Fuel EX 8 Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| 2XL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Geometry
Trek Fuel EX 8 Gen 6 Gen 6
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
