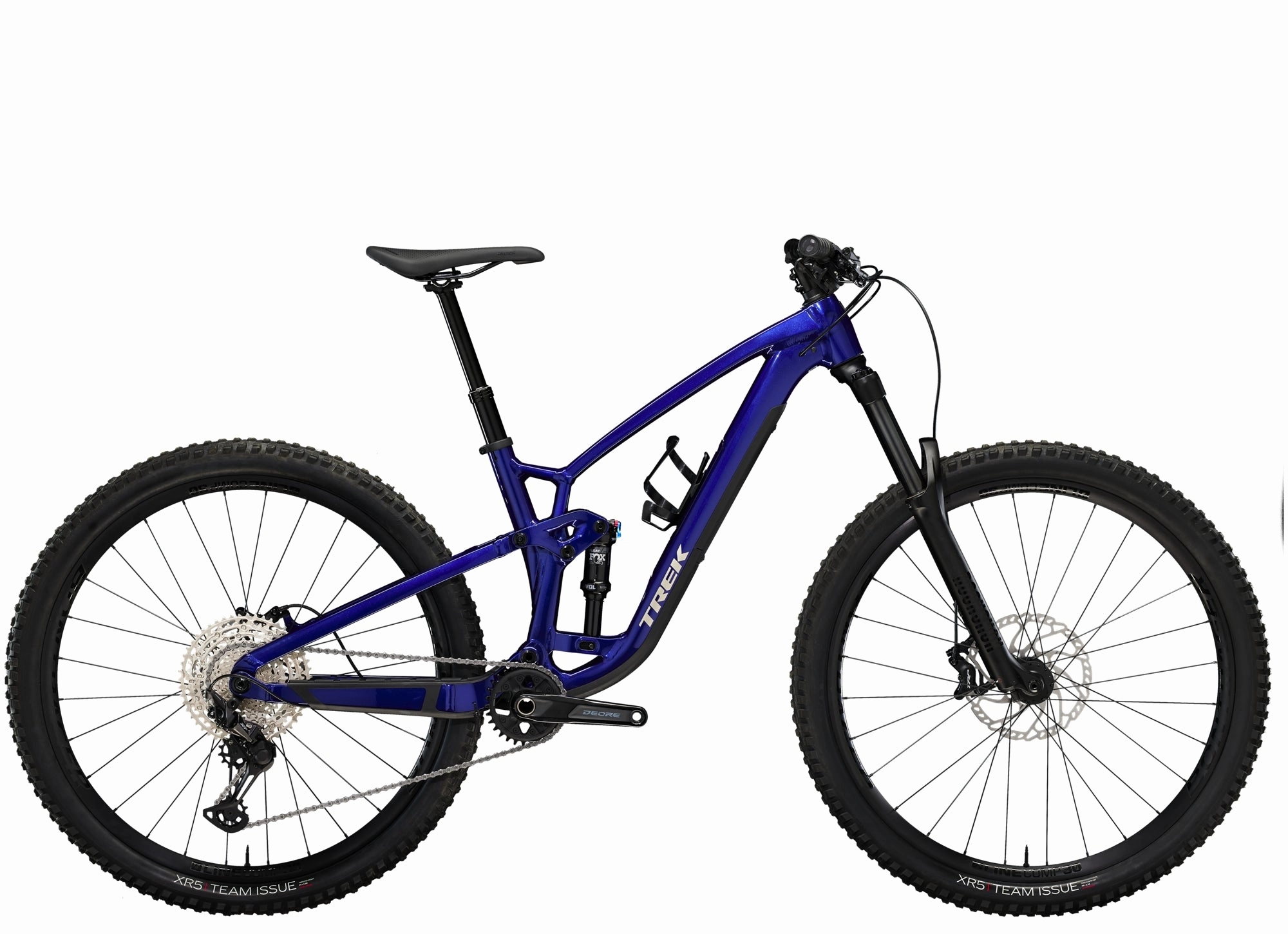

Trek Fuel EX 7 Gen 6: The Versatile Trail Machine
The Trek Fuel EX 7 Gen 6 is a versatile trail bike designed to handle various terrains with ease. Featuring upgraded 150 mm front and 140 mm rear suspension to smooth out rough descents, while the lightweight aluminium frame ensures agility during climbs. With added in-frame storage and adjustable geometry, this model offers the benefits of its higher-end counterpart at a more affordable price. Tubeless wheels and a reliable Shimano SLX 1x12 drivetrain complete the setup for a thrilling trail experience.
Ideal for: Ideal for riders seeking a full-suspension trail bike with enhanced components, such as the RockShox Gold RL fork for a plush ride over rugged terrains and smooth descents.
Key Features:
- Lightweight alloy full-suspension frame with 150 mm RockShox Gold RL fork and FOX Performance rear shock.
- Shimano SLX 1x12 drivetrain for efficient and precise gear changes.
- Wide Bontrager wheels with tubeless tyres and a dropper post for enhanced performance and control.
- Adjustable geometry to tailor the setup based on riding preferences.
Final Thoughts: The Fuel EX 7 is an excellent choice for all-mountain riders, offering capable geometry and upgraded components for an exhilarating trail adventure. The advanced suspension and drivetrain provide a reliable and enjoyable riding experience.
Reasons to Love It:
- Upgraded components provide power for conquering varied trails and progressing skill levels.
- Expanded size range ensures a comfortable fit for all riders, with optimized wheel sizes for each frame category.
- The dropper post enhances maneuverability for aggressive cornering and descents.
- Adjustable angle headset and Mino Link offer versatile geometry configurations to suit individual preferences.
- Maintenance features like guided internal routing, universal derailleur hanger, improved hardware, and a threaded bottom bracket allow for easy upkeep.
Specification
Trek Fuel EX 7 Gen 6 Specifications
| Description | |
| Frame | Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel |
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Shock | Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 185 mm x 55 mm |
| Max compatible fork travel | 160mm |
| Wheel Front | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Wheel Rear | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Size: XS , S Size: S , M , ML , L , XL , XXL |
| Tyre Part | Bontrager TLR sealant, 180 ml/ 6 oz |
| Rim Strip | Bontrager TLR |
| Max Tyre Size | Frame: 29x2.60", Fork: See manufacturer |
| Shifter | Shimano SLX M7100, 12-speed |
| Rear Derailleur | Shimano XT M8100, long cage |
| Crank | Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length |
| Bottom Bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. Chainring Size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: XS , S Size: M , ML Size: L , XL , XXL |
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Stem | Size: XS , S Size: M , ML , L , XL , XXL |
| Head Set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | Size: XS , S , M , ML , L , XL , XXL Size: XS , S , M , ML , L , XL , XXL |
| Brake Rotor | Size: XS , S , M , ML , L , XL , XXL Size: XS , S , M , ML , L , XL , XXL |
| Rotor Size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Bag | Bontrager BITS Internal Frame Storage Bag |
| Weight | M 15.97 kg/35.21 lb (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek Fuel EX 7 Gen 6 Sizing
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm (4'9" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 74 - 78 cm (29" - 31") |
| M | 165 - 176 cm (5'5" -5'9") | 79 - 83 cm (31" - 33") |
| M/L | 173 - 180 cm (5'8" - 5'9") | 79 - 83 cm (31" - 33") |
| L | 177 - 188 cm (5'10" - 5'11") | 81 - 86 cm (32" - 34") |
| XL | 188 - 195 cm (6'2" - 6'5") | 89 - 91 cm (35" - 36") |
| 2XL | 195 - 203 cm (6'5" - 6'8") | 91 - 97 cm (36" - 38") |
Geometry
Trek Fuel EX 7 Gen 6 Geometry
Sizing Table
| XS | S 27.5 | S 29 | M | ML | L | XL | XXL | |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 | 29 | 29 | 29 |
| Frame Reach | 400.2 | 430.2 | 425.0 | 450 | 470 | 485 | 515 | 545 |
| Effective Top Tube | 516.2 | 550.5 | 553.8 | 584.1 | 607.4 | 626.9 | 661.8 | 696.6 |
| Seat Tube | 360.0 | 380.0 | 380.0 | 410.0 | 420.0 | 435.0 | 470.0 | 500.0 |
| Seat Tube Angle | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 | 70.8 |
| Effective Seat Tube Angle | 78.6 | 78.2 | 78.6 | 78.2 | 77.5 | 77.2 | 76.6 | 76.0 |
| Frame Stack | 574.1 | 574.1 | 612.3 | 616.8 | 621.3 | 634.9 | 634.9 | 648.4 |
| Bottom Bracket Height | 332.0 | 332.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 | 335.0 |
| Chainstay Length | 435.0 | 435.0 | 435.0 | 435.0 | 440.0 | 440.0 | 445.0 | 450.0 |
| Wheelbase | 1144.8 | 1174.8 | 1185.9 | 1213.0 | 1233.1 | 1250.2 | 1286.7 | 1323.2 |
| Standover | 716.8 | 723.8 | 736.8 | 736.8 | 741.8 | 747.8 | 766.8 | 773.8 |
| Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| Trail | 121.6 | 121.6 | 129.2 | 129.2 | 129.2 | 129.3 | 129.3 | 129.3 |
