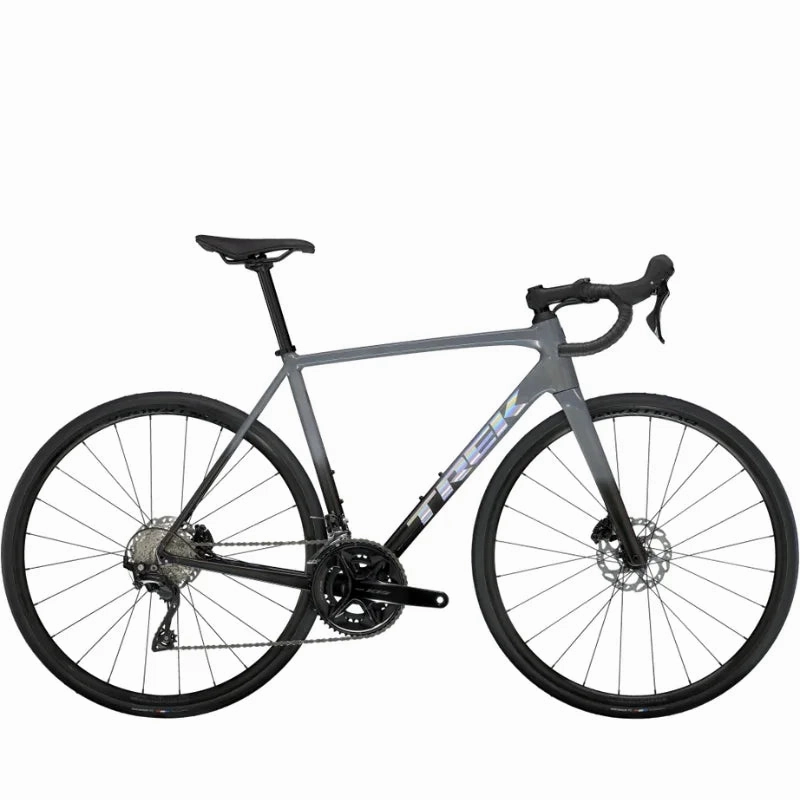

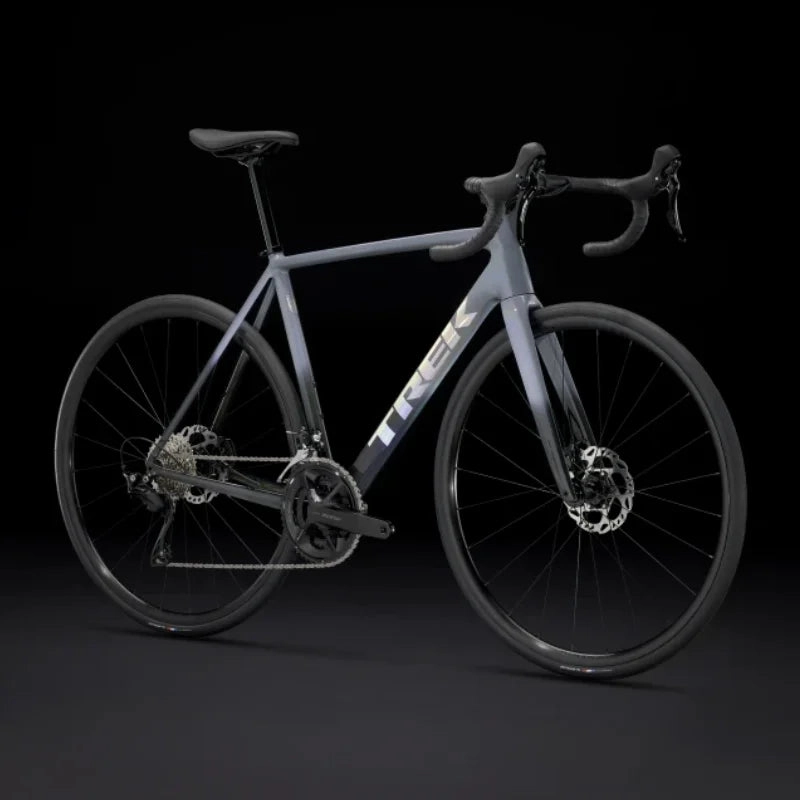

Trek monda ALR 5 - Slate Prismatic/Black: Master the Race with Lightweight Precision
Embrace the race with the monda ALR 5 Disc, a remarkably light and agile alloy road race bike that challenges the status quo. Advanced Kammtail alloy tube shapes and H1.5 race geometry merge to craft a bike with the aesthetics and handling prowess of a high-end carbon frame, all while positioned at an aluminum price point. Enhanced with notable upgrades like the reliable Shimano 105 drivetrain and hydraulic disc brakes that ensure stopping power in any condition, this machine is primed for energetic club rides and competitive racing.
Designed For: Riders seeking the pinnacle of lightweight performance in an affordable alloy package will find the monda ALR 5 an ideal choice. If you crave the refined appearance and handling of a carbon frame and the undeniable stopping capability of disc brakes, your search ends here.
Innovative Technologies:
- Built on an ultra-light 300 Series Alpha Aluminium frame, incorporating aerodynamically efficient Kammtail shaped tubes.
- Invisible Weld Technology enhances frame aesthetics and strength, paired with an monda SL carbon fork for vibration damping.
- Comprehensive internal cable routing within both the frame and fork maintains a clean aesthetic while ensuring optimal performance.

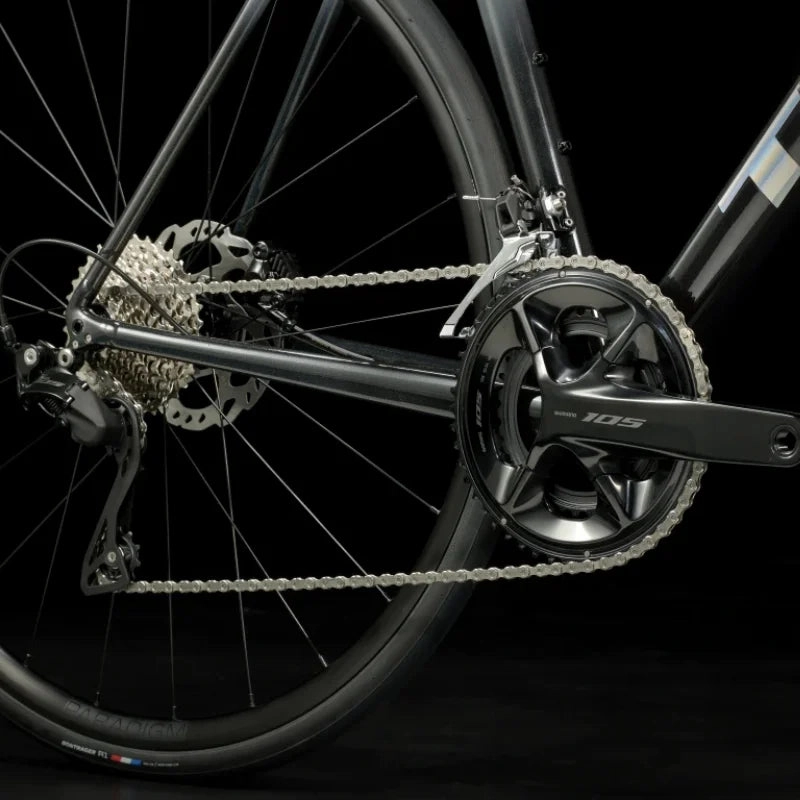

- Boasts a full 2x12 Shimano 105 drivetrain for seamless shifting and reliable performance.

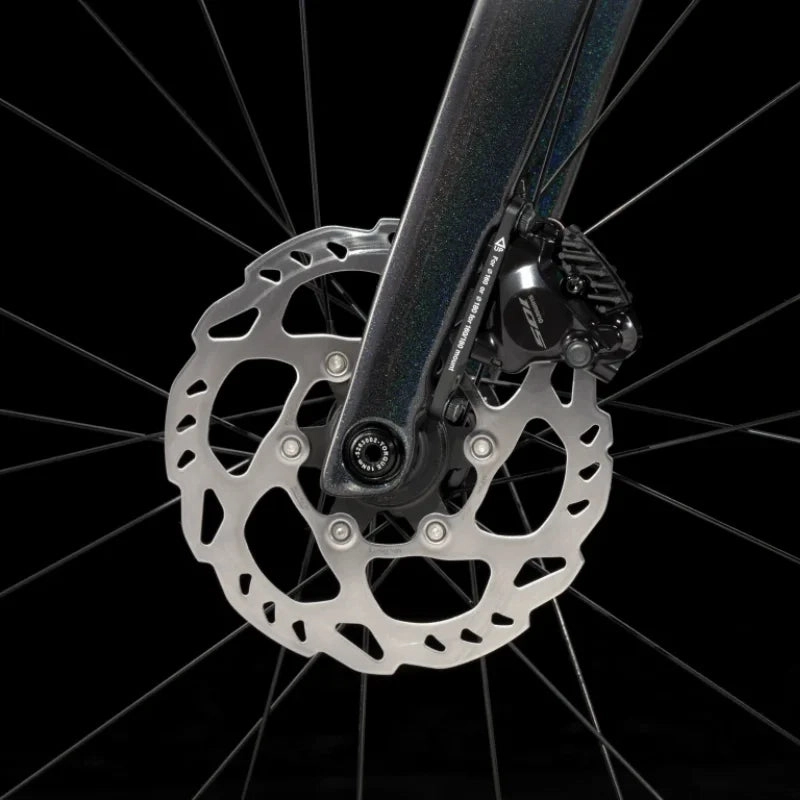

- Equipped with powerful flat-mount hydraulic disc brakes and tubeless-ready wheels for adaptable riding.
The Ultimate Statement: The monda ALR 5 synthesizes the advanced features of a carbon-like alloy frame with the performance reliability of a Shimano 105 drivetrain. This bike redefines what's possible in its category, offering race-ready adaptability and exceptional versatility.
Highlights You'll Appreciate:
- The ultra-light alloy frame is built with racing in mind, incorporating meticulously tidy cable routing for a sleek profile.
- Experience dynamic climbing, precise cornering, and assured descending, thanks to its finely tuned geometry.
- Kammtail tube shapes further enhance the monda ALR's speed, making it even more formidable against competitors.
- Sharing the geometry of Trek's highest-tier carbon monda racing bikes, it offers a ride quality that competes head-to-head with far pricier carbon models.
- Internal cable routing not only extends the life of your cables but also contributes significantly to the bikes streamlined appearance.
The Trek monda ALR 5 - Slate Prismatic/Black stands as a testament to performance-focused engineering, offering riders a sophisticated, fast, and profoundly enjoyable road cycling experience that rivals and even surpasses more expensive counterparts.
SPECIFICATIONS
Trek monda ALR 5 Specifications
FRAMESET
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
| Fork | monda ALR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
WEIGHT
| Weight | 56 - 9.05 kg / 19.96 lbs (with tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
DRIVETRAIN
| Shifter | Shimano 105 R7120, 12-speed |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Size: 47 Size: 50, 52 Size: 54, 56, 58 Size: 60, 62 |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
WHEELS
| Hub Front | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru-axle |
| Skewer Front | Bontrager Switch thru-axle, removable lever |
| Hub Rear | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru-axle |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpis, 700x28 mm |
| Max tyre size | 28 mm |
COMPONENTS
| Saddle | Size: 47, 50, 52 Size: 54, 56, 58, 60, 62 |
| Seatpost | Size: 47, 50, 52, 54 Size: 56, 58, 60, 62 |
| Handlebar | Size: 47, 50 Size: 52 Size: 54, 56, 58 Size: 60, 62 |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: 47 Size: 50 Size: 52, 54 Size: 56 Size: 58, 60, 62 |
| Brake | Shimano 105 hydraulic disc |
| Brake Rotor | Shimano RT70, center lock, 160mm |
| Rotor Size | Max brake rotor sizes: 160 mm front and rear |
SIZING
Trek monda ALR 5 Sizing
| Size | Rider Height | Inseam |
| 47 | 152 - 158 (5'0" - 5'2") | 71 - 75 cm (28" - 30") |
| 50 | 158 - 163 cm (5'2" - 5'4") | 74 - 77 cm (29" - 30") |
| 52 | 163 - 168 cm (5'4" - 5'6") | 76 - 79 cm (30" - 31") |
| 54 | 168 - 174 cm (5'6" - 5'9") | 78 - 82 cm (31" - 32") |
| 56 | 174 - 180 cm (5'9" - 5'11") | 81 - 85 cm (32" - 33") |
| 58 | 180 - 185 cm (5'11" - 6'1") | 84 - 87 cm (33" - 34") |
| 60 | 185 - 190 cm (6'1" - 6'3") | 86 - 90 cm (34" - 35") |
| 62 | 190 - 195 cm (6'3" - 6'5") | 89 - 92 cm (35" - 36") |
GEOMETRY
Trek monda ALR 5 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| Seat Tube Angle | 74.6 | 74.6 | 74.2 | 73.7 | 73.3 | 73.8 | 72.8 | 72.5 |
| Head Tube Length | 10.0 | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| Head Angle | 72.1 | 72.1 | 72.8 | 73.0 | 73.5 | 73.8 | 73.9 | 73.9 |
| Effective Top Tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| Bottom Bracket Drop | 7.2 | 7.2 | 7.2 | 7.0 | 7.0 | 6.8 | 6.8 | 6.8 |
| Chainstay Length | 41.0 | 41.0 | 41.0 | 41.0 | 41.0 | 41.1 | 41.1 | 41.2 |
| Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4.0 | 4.0 | 4.0 | 4.0 |
| Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101.0 |
| Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| Frame Reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| Frame Stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62.0 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64.0 | 67.0 | 69.0 | 71.0 | 73.0 |
| Saddle rail height max (w/short mast) | 61.5 | 64.5 | 67.5 | 70.0 | 73.0 | 75.0 | 77.0 | 79.0 |
| Saddle rail height min (w/tall mast) | 59.0 | 62.0 | 65.0 | 67.5 | 70.5 | 72.5 | 74.5 | 76.5 |
| Saddle rail height max (w/tall mast) | 65.0 | 68.0 | 71.0 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
