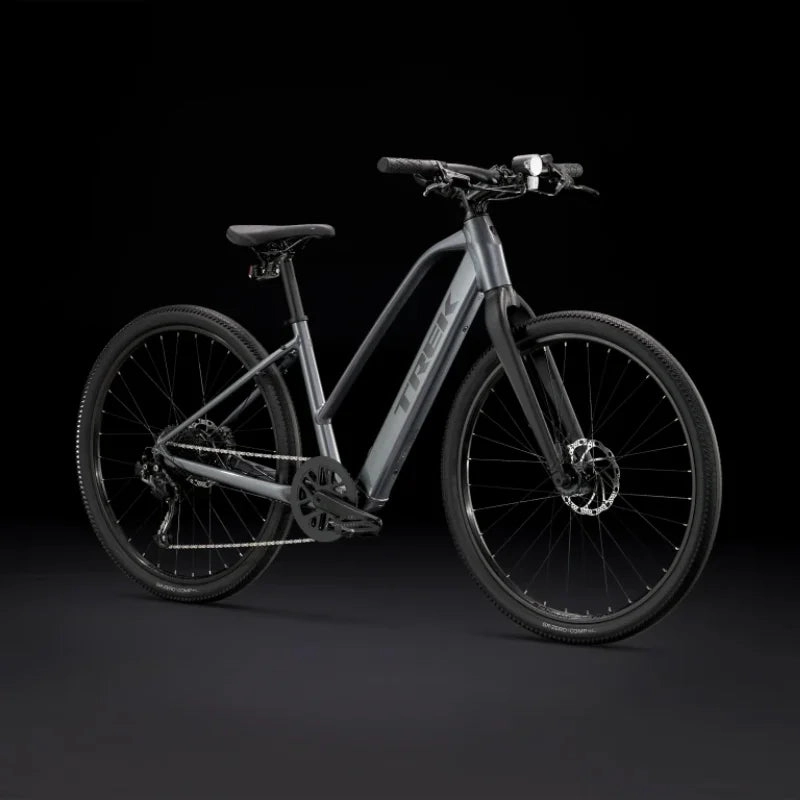

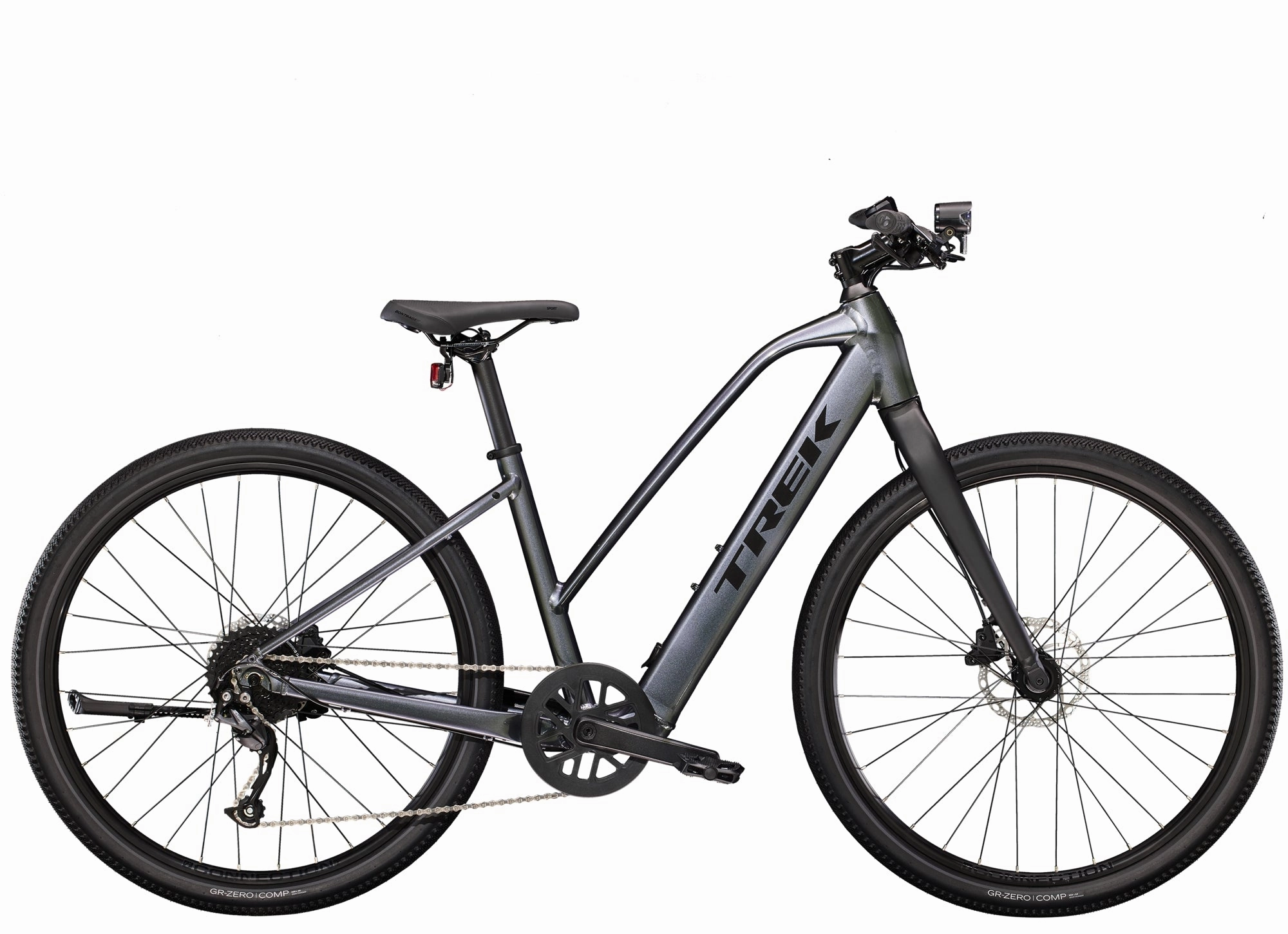

Trek Dual Sport 2 Stagger - Galactic Grey: Your Ultimate Hybrid Adventure Companion
Introducing the Trek Dual Sport 2 Stagger, a lightweight and versatile hybrid electric bike engineered for adventure on both road and light trails. Featuring an intuitive pedal-assist system, this bike provides a natural-feeling boost that enhances exploration and effortlessly conquers uphill climbs. With stiff wheels, wide tires, and a range-extending battery option, it offers confidence and capability on varied terrain, making every ride an exhilarating experience.
Perfect For: If you seek a lightweight and user-friendly hybrid e-bike that seamlessly integrates into your daily errands and weekend adventures, the Dual Sport 2 Stagger is your ideal choice. Designed for versatility and simplicity, it provides a capable boost that enhances your riding experience without compromise.
Cutting-Edge Technology: Constructed from a lightweight aluminum frame with a stagger design for easy mounting and dismounting, the Dual Sport 2 Stagger features Trek's proprietary pedal-assist system with a powerful hub motor. With a 250 Wh battery offering a range of up to 55 kilometers per charge, it ensures extended exploration with ease. Equipped with stiff 650b wheels, wide 50c tires, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, and integrated lights powered by the battery, this bike delivers comfort, control, and convenience on any terrain. Additionally, the kickstand adds practicality to your daily rides.
Final Verdict: Experience the unparalleled capability and confidence of the Dual Sport series with the added advantage of electric assistance. The Dual Sport 2 Stagger empowers you to conquer hills with ease and embark on adventures beyond your imagination.
Why It's Your Perfect Match:
- As our lightest hybrid e-bike, it offers enhanced maneuverability for parking and portability.

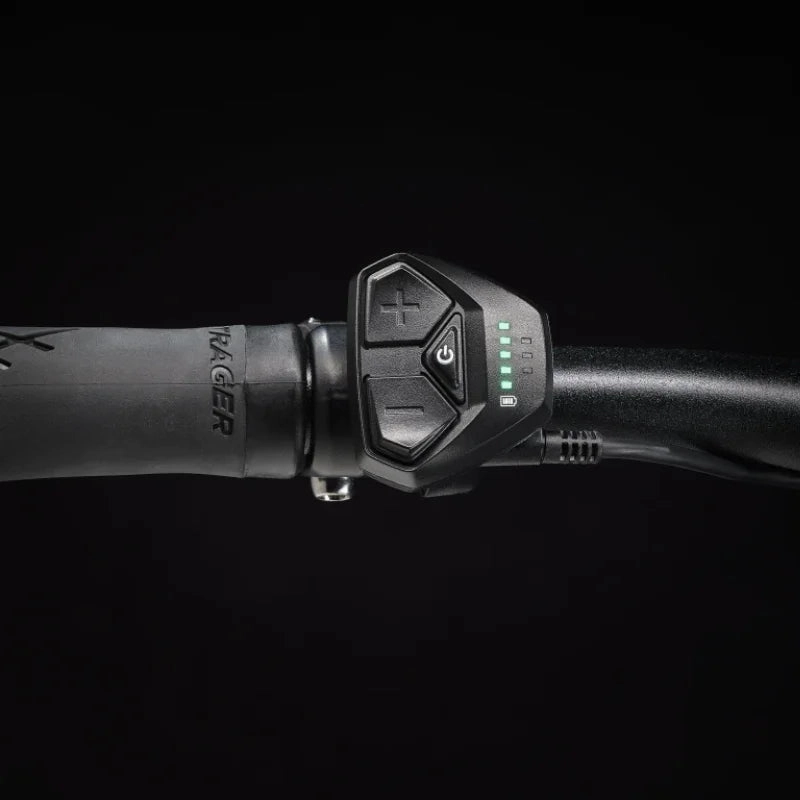

- The pedal-assist system features a hub motor for a natural ride feel, with a simple LED remote indicating your assist setting.
- Stiff wheels and wide tires provide terrain-smoothing comfort and confidence without the added weight of a suspension fork.

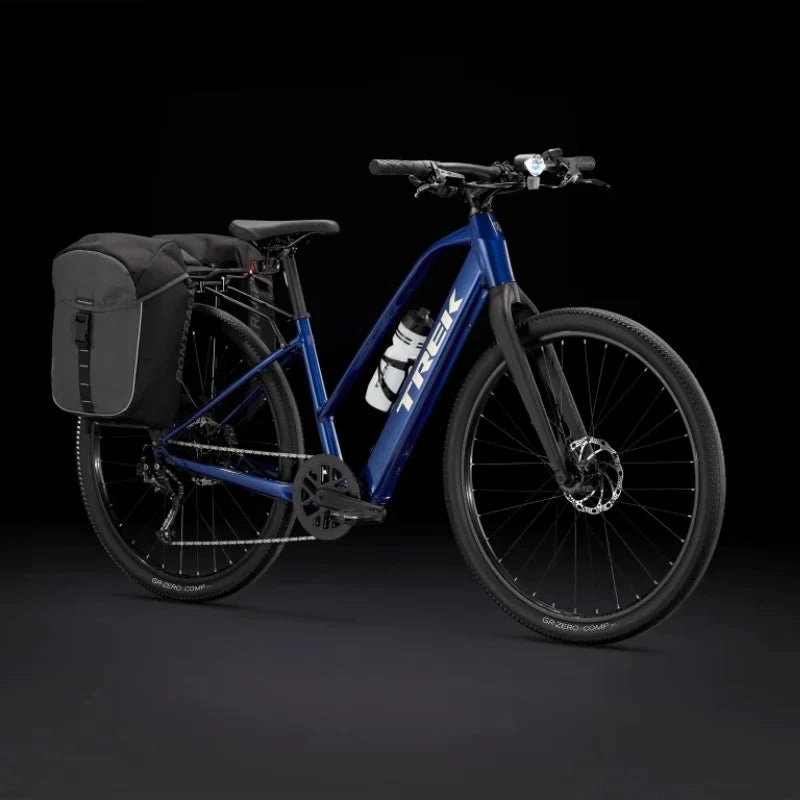

- Easy accessorization with mudguards and a rear rack allows you to carry everything you need for your adventures.
- Extend your range with a 250 Wh plug-and-play Range Extender battery, doubling your exploration possibilities.
Specification
Trek Dual Sport 2 Stagger
FRAMESET
| Frame | Lightweight aluminium frame with integrated cables and integrated battery, water bottle mounts |

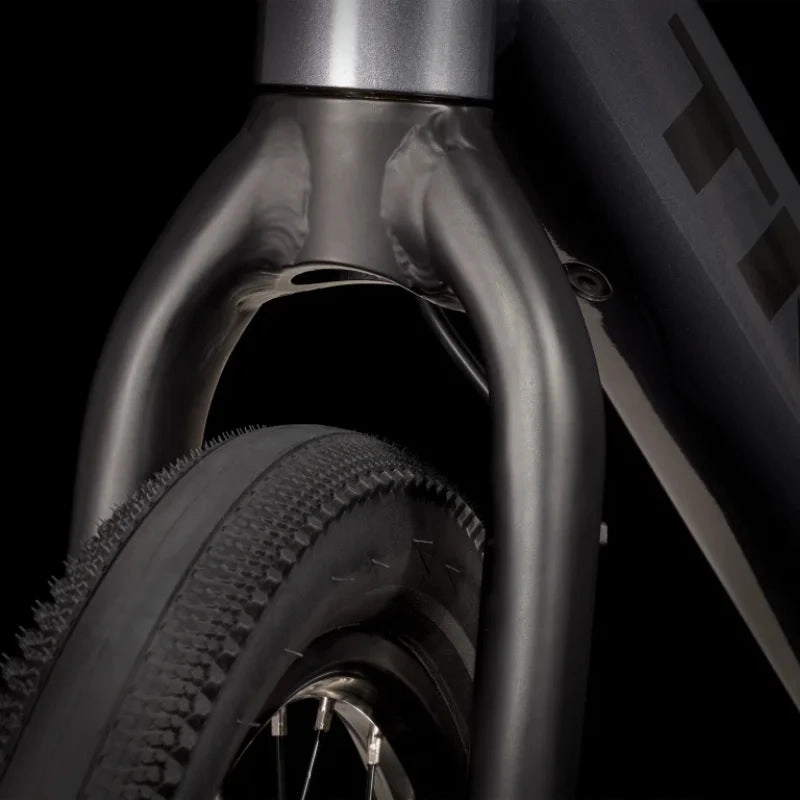

| Fork | DS alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm bolt-on skewer |
WHEELS
| Wheel Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front | 135x5 mm bolt-on |

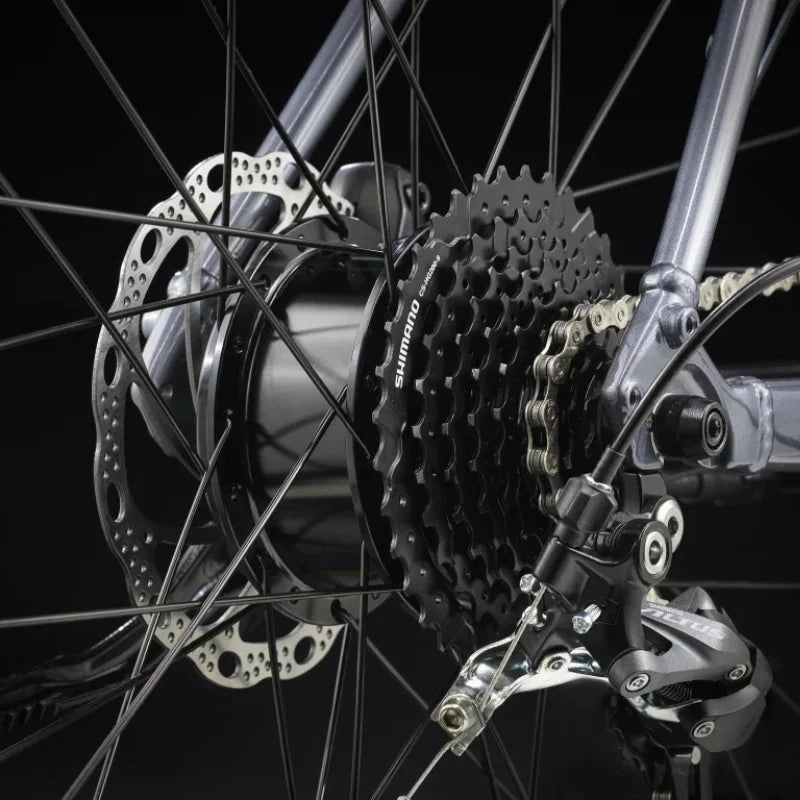

| Hub Rear | Hyena hub driver motor, 40 Nm, 250 W |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" with or without mudguards |
E-SYSTEM

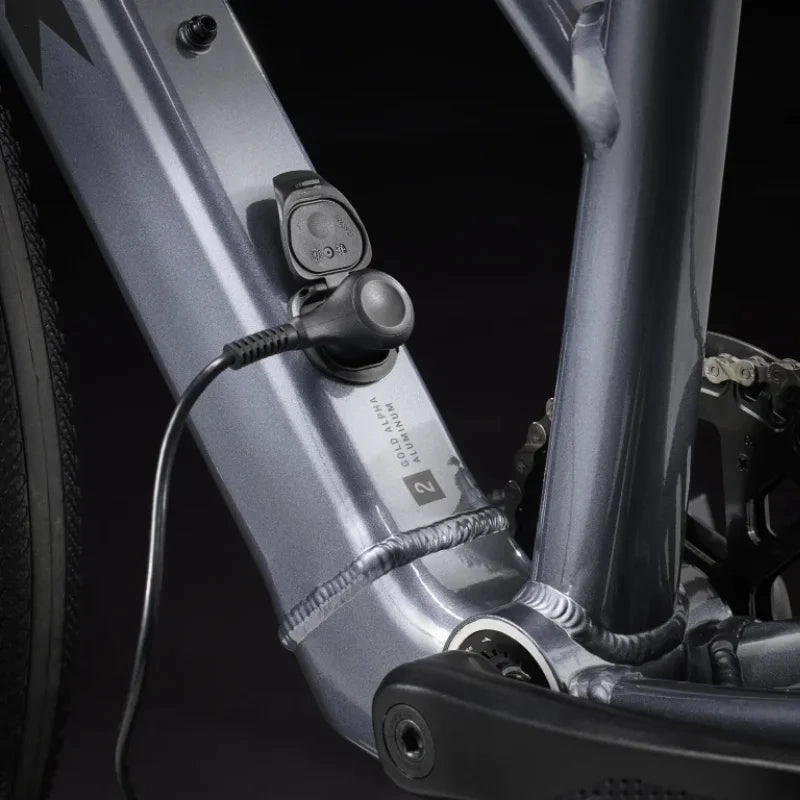

| Battery | 250 Wh, integrated in down tube |
| Charger | 2A, 42V, output, 100V-240V AC input |
| Computer | LED display |
DRIVETRAIN
| Shifter | Shimano Altus M2010, 9-speed |
| Rear Derailleur | Shimano Altus M2000, long cage |
| Crank | Size: S, M Size: L |
| Bottom Bracket | Torque sensor, threaded, 122.5 mm spindle |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | KMC X9 |
| Pedal | Bontrager City pedals |
| Max. Chainring Size | 1x: 42T |
COMPONENTS
| Saddle | Bontrager Sport |
| Seatpost | Size: S, M Size: L |

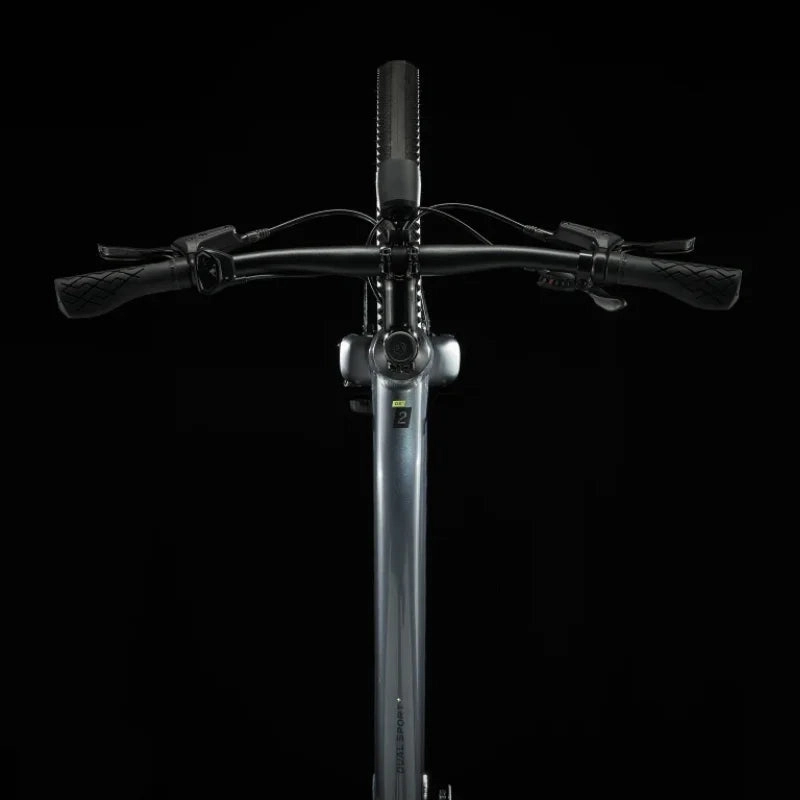

| Handlebar | Size: S, M Size: L |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Stem | Size: S, M Size: L |

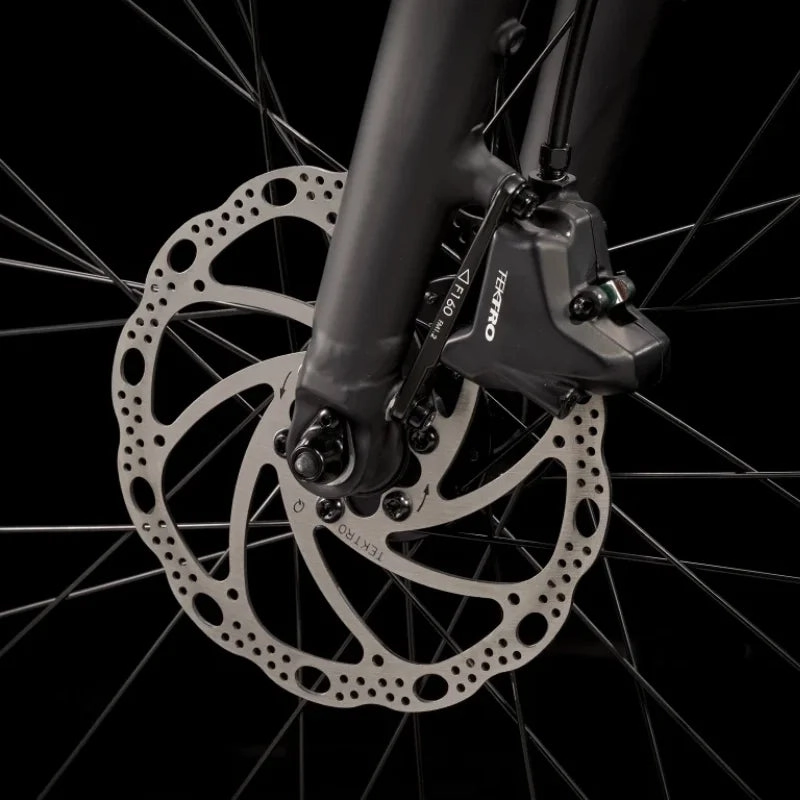

| Brake | Shimano hydraulic disc, MT200 lever, UR300 calliper |
| Brake Rotor | Shimano RT26, 6-bolt,160 mm |
ACCESSORIES

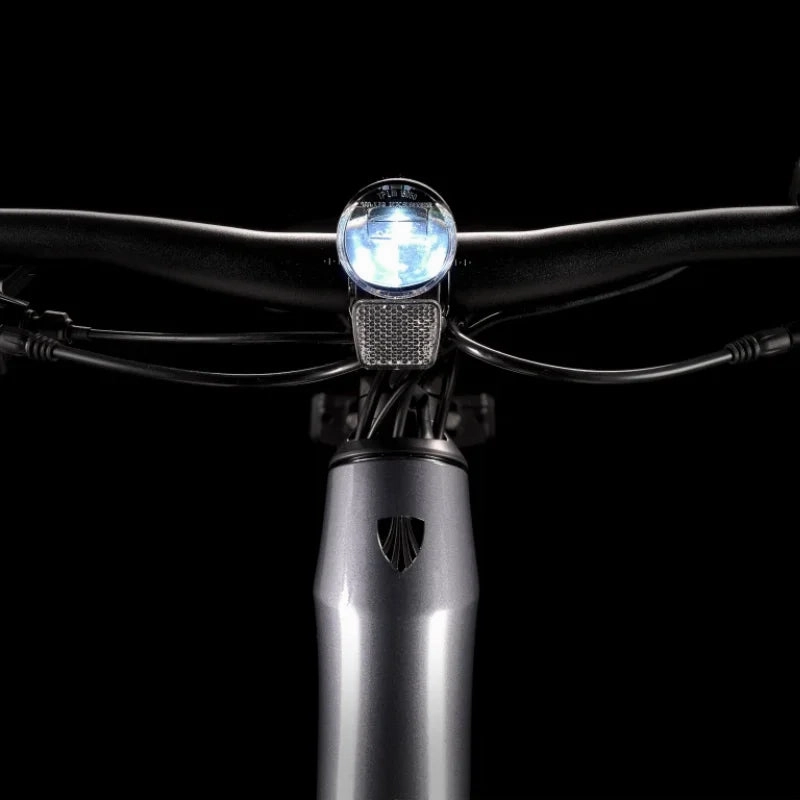

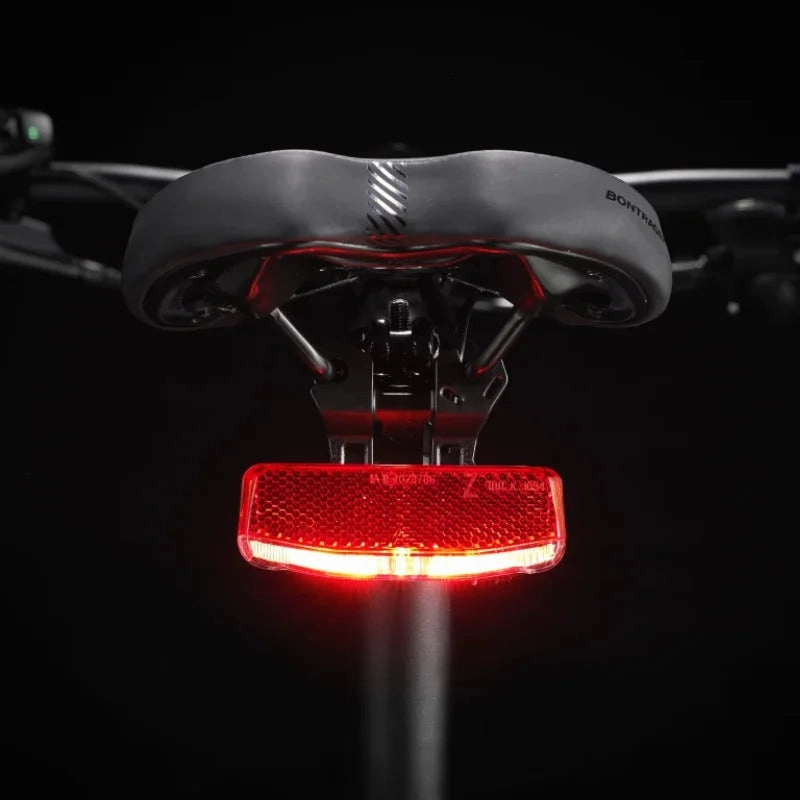

| Light | Size: S, M, L Size: S, M, L |
| Kickstand | Alloy, rear mount. |
WEIGHT
| Weight | M - 17.28 kg / 38.1 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek Dual Sport 2 Stagger Sizing
| Size | Rider Height | Inseam |
| S | 155 - 165 cm (5'1" - 5'5") | 72 - 78 cm (28" - 31") |
| M | 165 - 175 (5'5" - 5'9") | 77 - 83 cm (30" - 33") |
| L | 175 - 186 cm (5'9" - 6'1") | 82 - 88 cm (32" - 35") |
Geometry
Trek Dual Sport 2 Stagger Geometry
All measurements provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 45 | 50 | 55 |
| Frame Size Letter | S | M | L |
| Wheel Size | 27.5" | 27.5" | 27.5" |
| A - Seat Tube | 40.8 | 46.3 | 50.7 |
| B - Seat Tube Angle | 73.5 | 73.0 | 73.0 |
| C - Head Tube Length | 15.5 | 17.0 | 20.0 |
| D - Head Angle | 70.0 | 70.5 | 71.0 |
| E - Effective Top Tube | 56.9 | 57.4 | 59.2 |
| F - Bottom Bracket Height | 27.8 | 27.8 | 27.8 |
| G - Bottom Bracket Drop | 7.0 | 7.0 | 7.0 |
| H - Chainstay Length | 46.8 | 46.8 | 46.8 |
| I - Offset | 5.0 | 5.0 | 5.0 |
| J - Trail | 7.6 | 7.3 | 6.9 |
| K - Wheelbase | 109.2 | 109.5 | 110.9 |
| L - Standover | 65.5 | 67.2 | 69.3 |
| M - Frame Reach | 38.2 | 38.5 | 39.3 |
| N - Frame Stack | 60.4 | 62.0 | 65.0 |
