| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5mm QR |
|---|---|
| Fork |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | |
| Rim | |
| Spokes | 14 g stainless steel, black |
| Tyre | |
| Max tyre size | 27.5x2.00" |

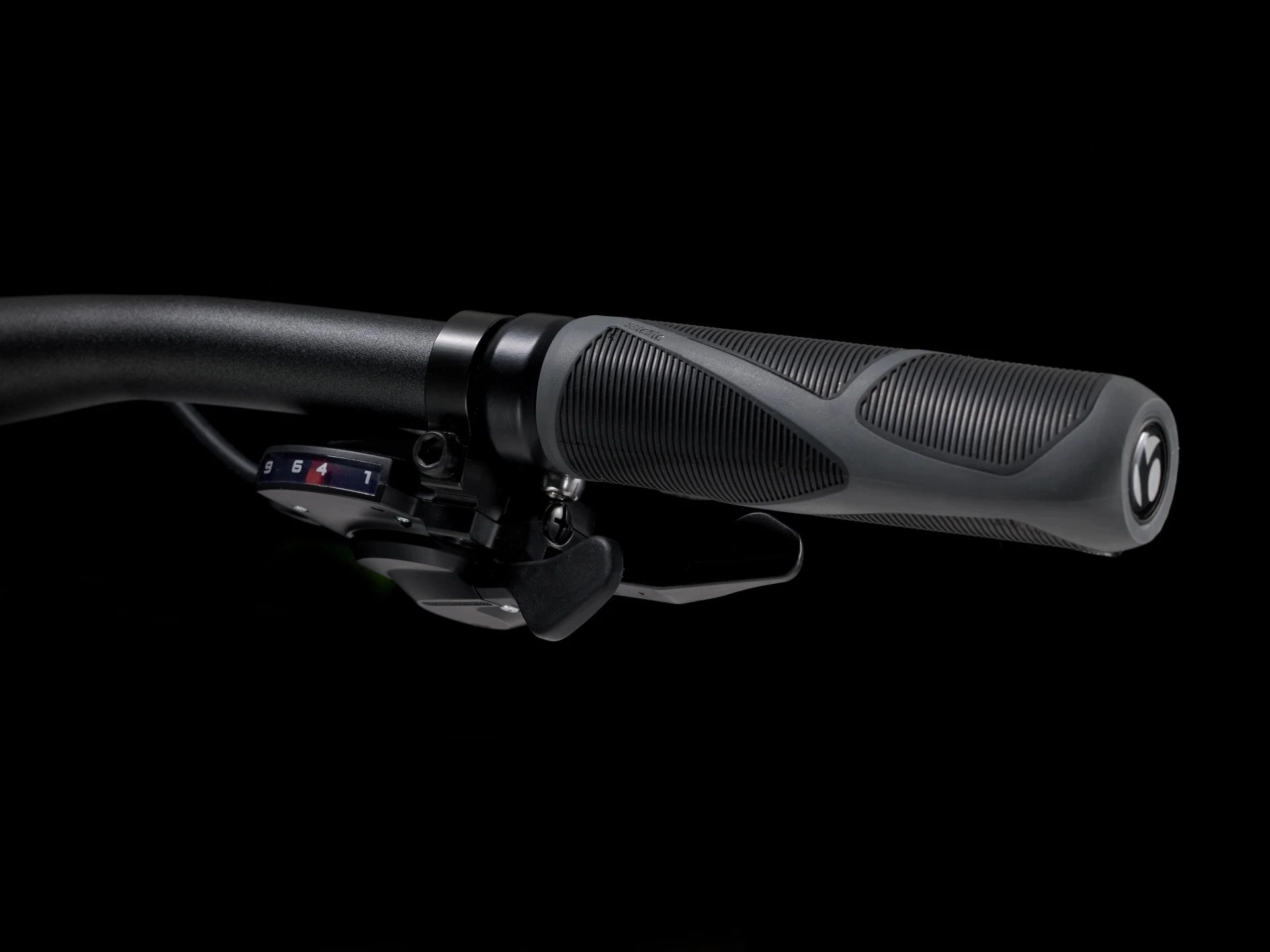

| Shifter | Shimano U4000, 9-speed |
|---|---|

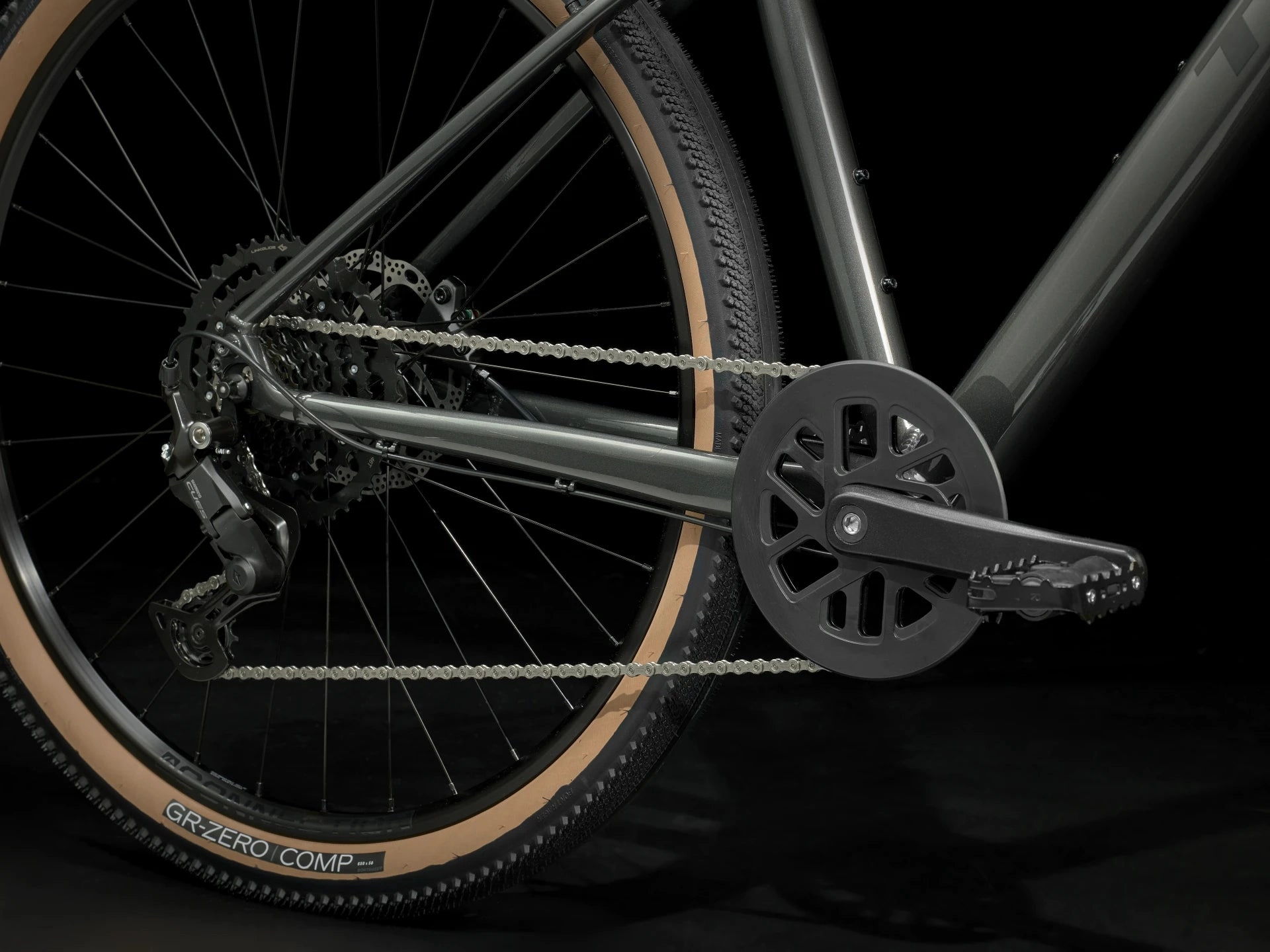

| Rear derailleur | Shimano CUES U4000 |
| Crank | |
| Bottom bracket | Sealed cartridge, 68 mm |
| Chain | Shimano LG500 |
| Pedal | Wellgo nylon body, alloy cage |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
| Saddle | |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar | Size:XS, S Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
| Size:M | |
| Size:L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 690 mm width | |
| Grips | Bontrager Satellite |

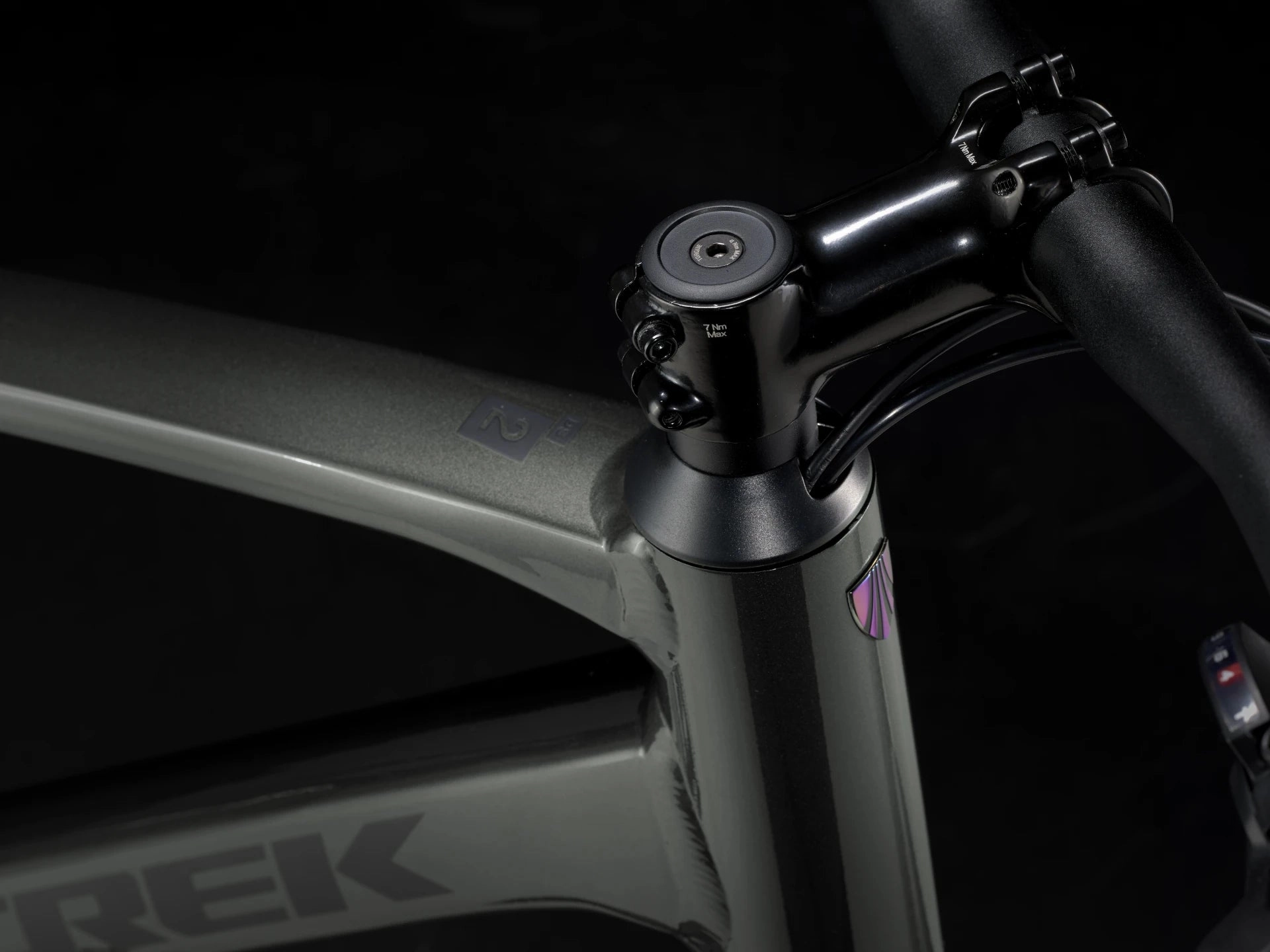

| *Stem | Size:XS, S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
| Size:M, L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length | |
| Size:XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length | |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Brake Set | |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
WEIGHT
| Weight | M - 12.79 kg / 28.2 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
Trek Dual Sport 2 Gen 5 Sizing
| Size | Rider Height | Inseam |
| XS | 147 - 155 cm (4'10" - 5'1") | 69 - 73 cm (27" - 29") |
| S | 155 - 165 cm (5'1" - 5'5") | 72 - 78 cm (28" - 31") |
| M | 165 - 175 cm (5'5"- 5'9") | 77 - 83 cm (30" - 33") |
| L | 175 - 186 cm (5'9" - 6'1") | 82 - 88 cm (32" - 35") |
| XL | 186 - 197 cm (6'1" - 6'6") | 87 - 93 cm (34" - 37") |
Geometry
Trek Dual Sport 2 Gen 5 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Letter | M | L | XL |
| Wheel Size | 27.5" | 27.5" | 27.5" |
| A - Seat Tube | 42.0 | 46.5 | 52.0 |
| B - Seat Tube Angle | 73.3 | 72.8 | 71.8 |
| C - Head Tube Length | 16.5 | 19.0 | 21.5 |
| D - Head Angle | 70.3 | 70.8 | 71.8 |
| E - Effective Top Tube | 56.5 | 58.5 | 61.5 |
| F - Bottom Bracket Height | 28.9 | 28.9 | 28.9 |
| G - Bottom Bracket Drop | 6.0 | 6.0 | 6.0 |
| H - Chainstay Length | 44.7 | 44.7 | 44.7 |
| I - Offset | 3.9 | 3.9 | 3.9 |
| J - Trail | 8.3 | 8.0 | 7.4 |
| K - Wheelbase | 106.3 | 107.2 | 107.9 |
| L - Standover | 76.1 | 80.0 | 84.3 |
| M - Frame Reach | 38.5 | 39.1 | 40.1 |
| N - Frame Stack | 59.8 | 62.4 | 65.2 |
