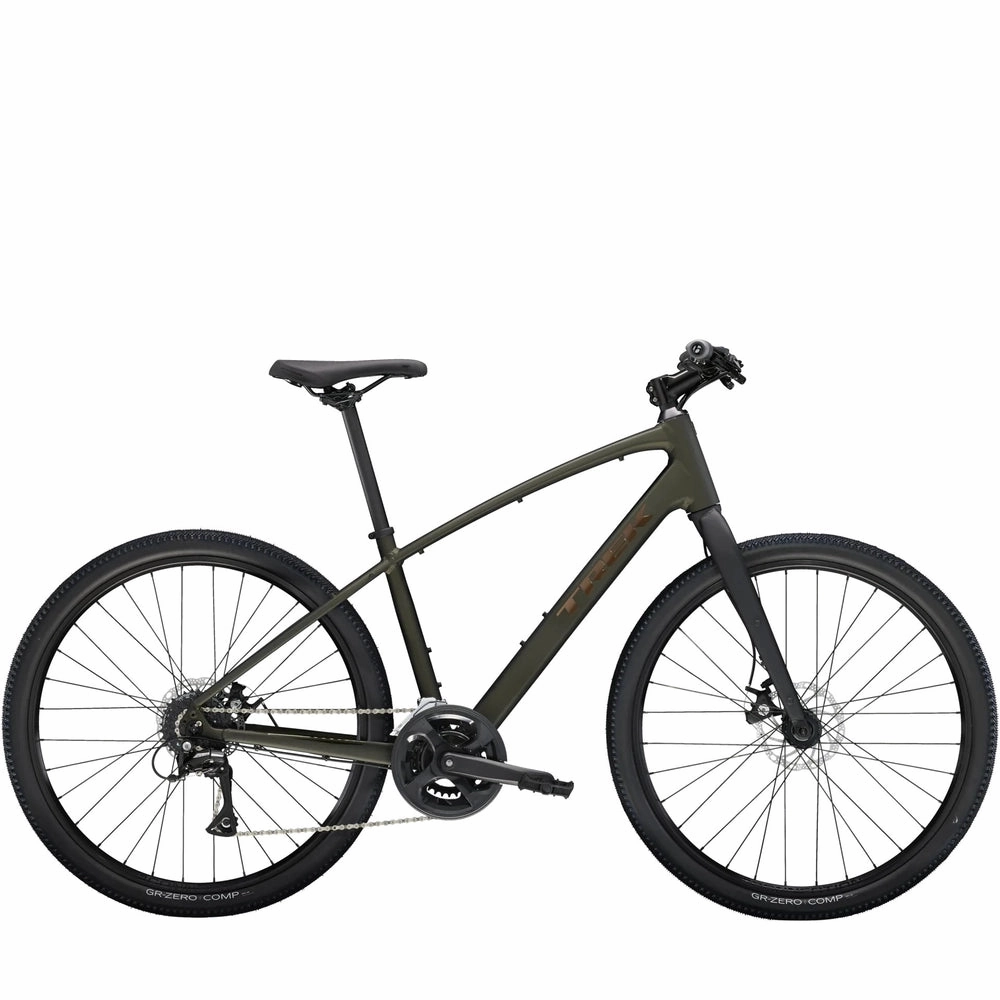

Trek Dual Sport 1 Gen 5 Flat Bar Road Bike - Black Olive
The Trek Dual Sport 1 hybrid bike offers versatile performance and all-day comfort. Its lightweight frame, durable drivetrain, and powerful brakes deliver a confident ride on roads, gravel paths, and bike trails. Wide tyres smooth out rough surfaces for an enjoyable experience on any terrain.
It's right for you if...
You want a sturdy and light hybrid bike that's efficient on the road and comfortable on rougher terrain and even light trails. You value confidence, stability, versatility and performance on recreational rides, fitness rides and commutes that cover a variety of terrain.
Why You'll Love it
- Wide wheels and wide tyres give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
- Versatile light gravel tyres are fast on the road and grippy on rougher terrain
- Rack and mudguard mounts make it easy to customise for your commute or rail trail adventure
- The cables are routed internally, keeping them safe from the elements and elevating the bike's sleek looks
Features
Float your roll
New 27.5" wheels with 2" tyres give you extra traction and cushioning on rough roads, light gravel and city pot holes.
So fresh and sleek
Internal routing keeps cables tucked neatly inside the frame for a look that's clean and a ride that's rattle-free.
Gold metal

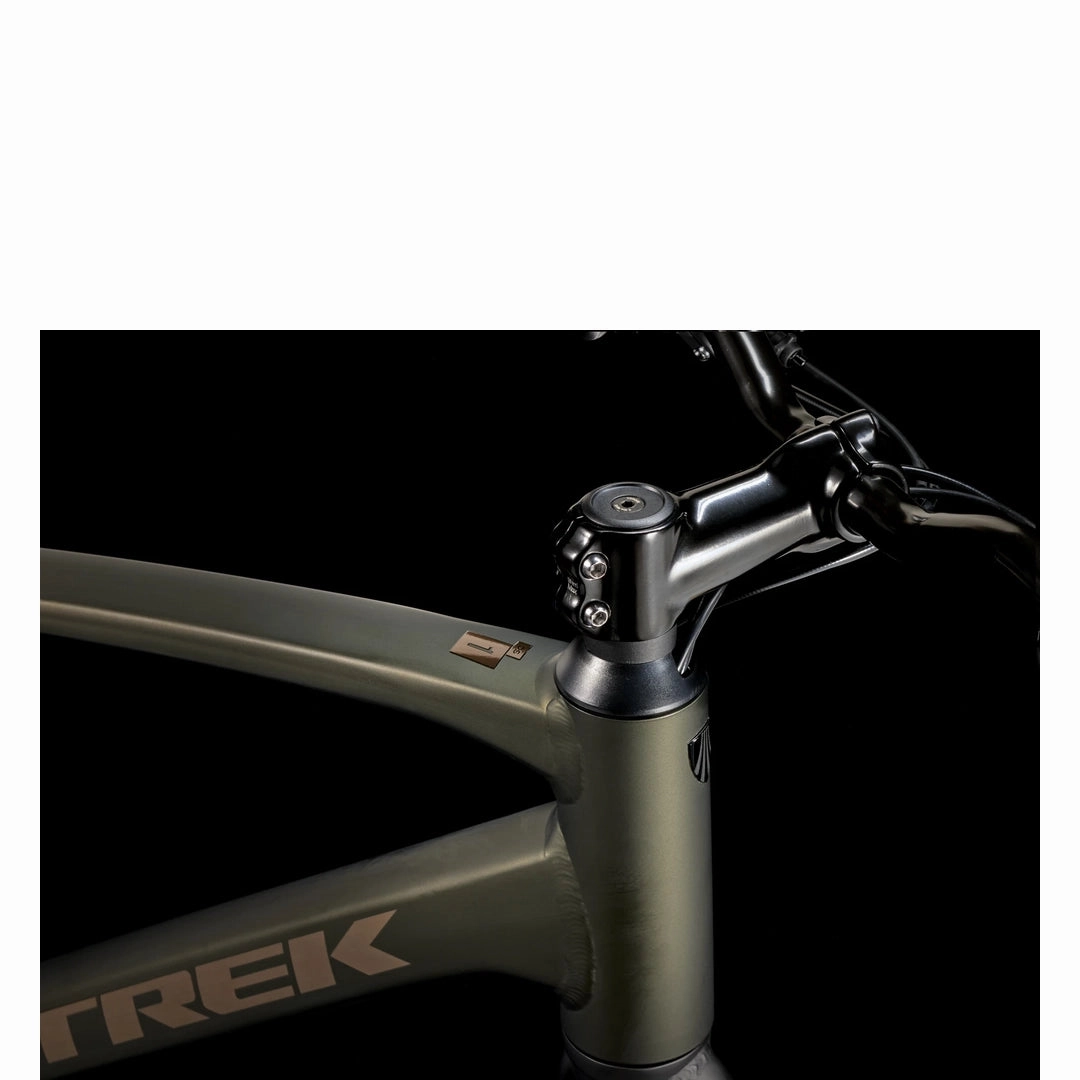

The Alpha Gold Aluminium frame is light, tough and ready for anywhere you roll, from road to trail and beyond.
Specification
| Frameset | |
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |

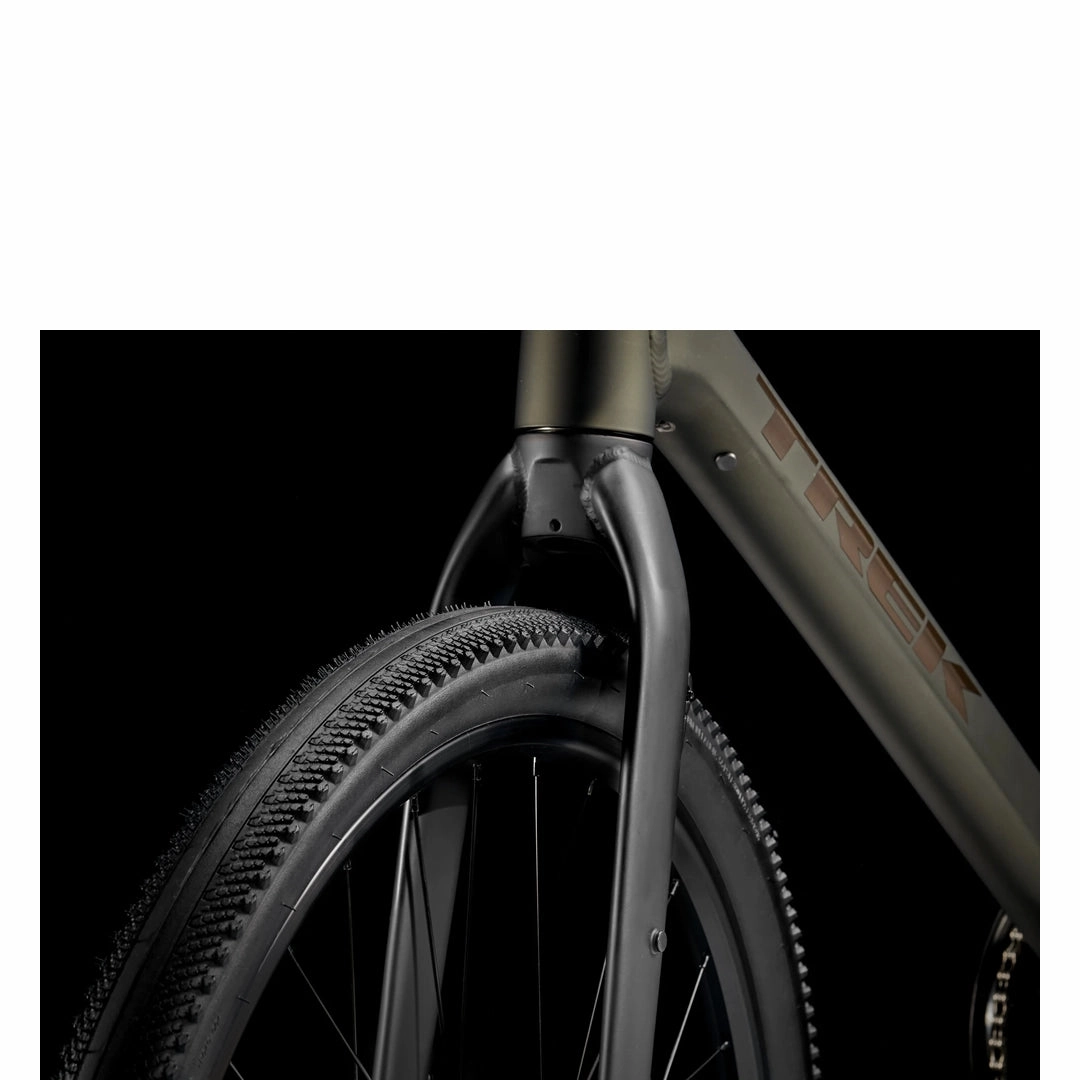

| Fork | Dual Sport steel, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR |
| Wheels | |
| Hub Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front | 139x5 mm bolt-on |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer Rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max Tyre Size | 27.5x2.00" |

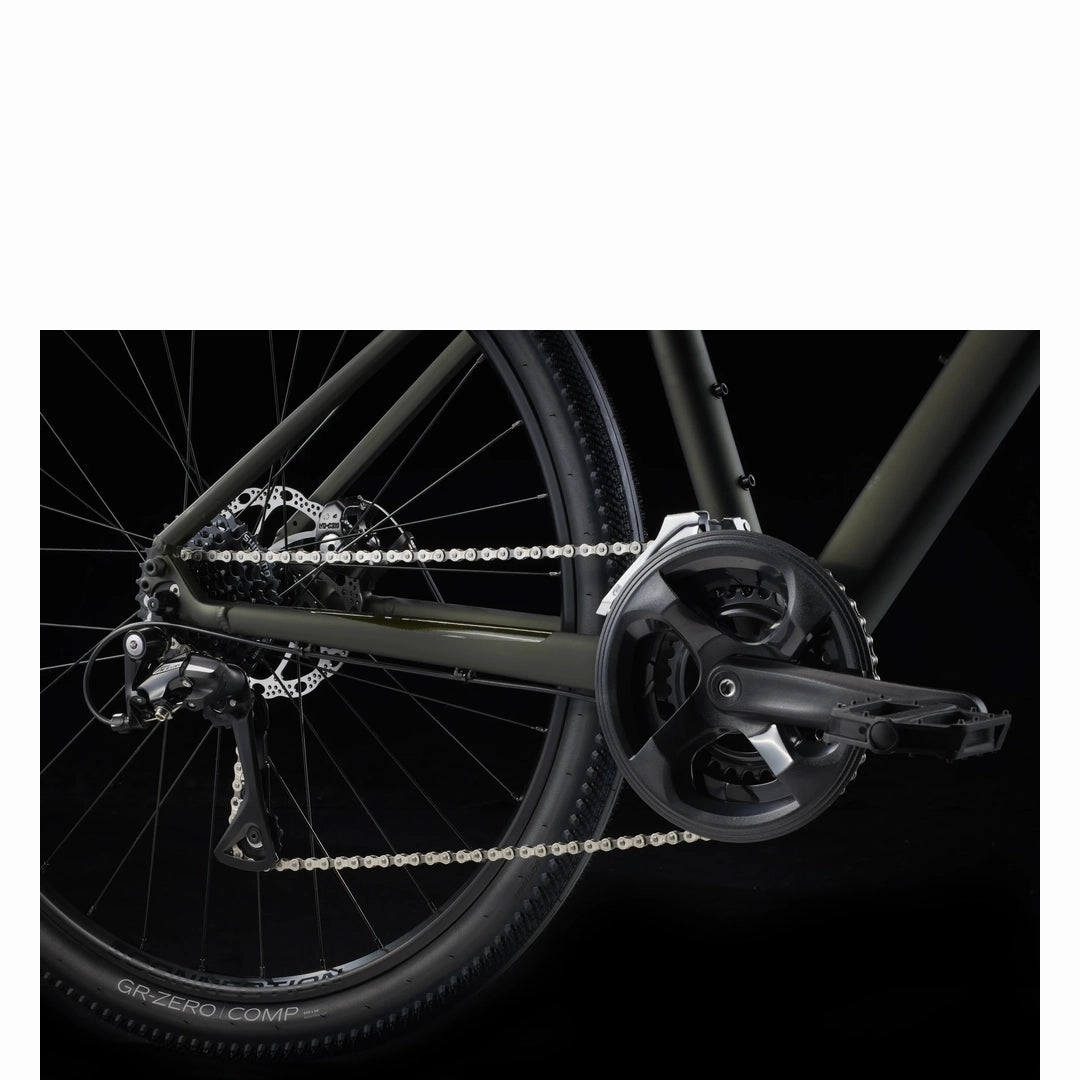

| Drivetrain | |
| Shifter | Size: XS, S, M, L, XL Shimano EF500, 2-speed Size: XS, S, M, L, XL Shimano EF500, 8-speed |
| Front Derailleur | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Rear Derailleur | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom Bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. Chainring Size | 1x: 42T, 2x/3x: 48T |
| Components | |
| Saddle | Bontrager Sport |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

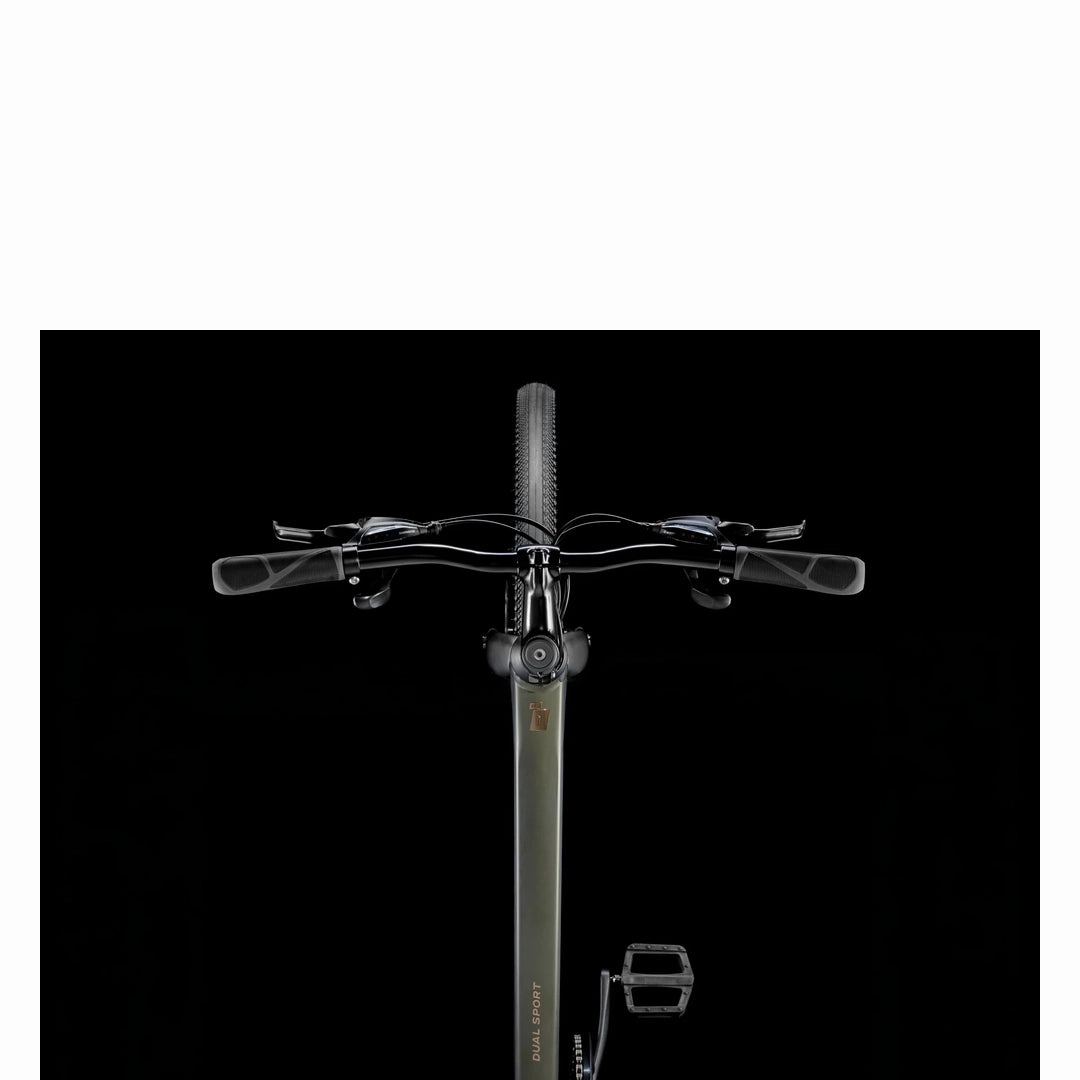

| Handlebar | Size: XS, S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |

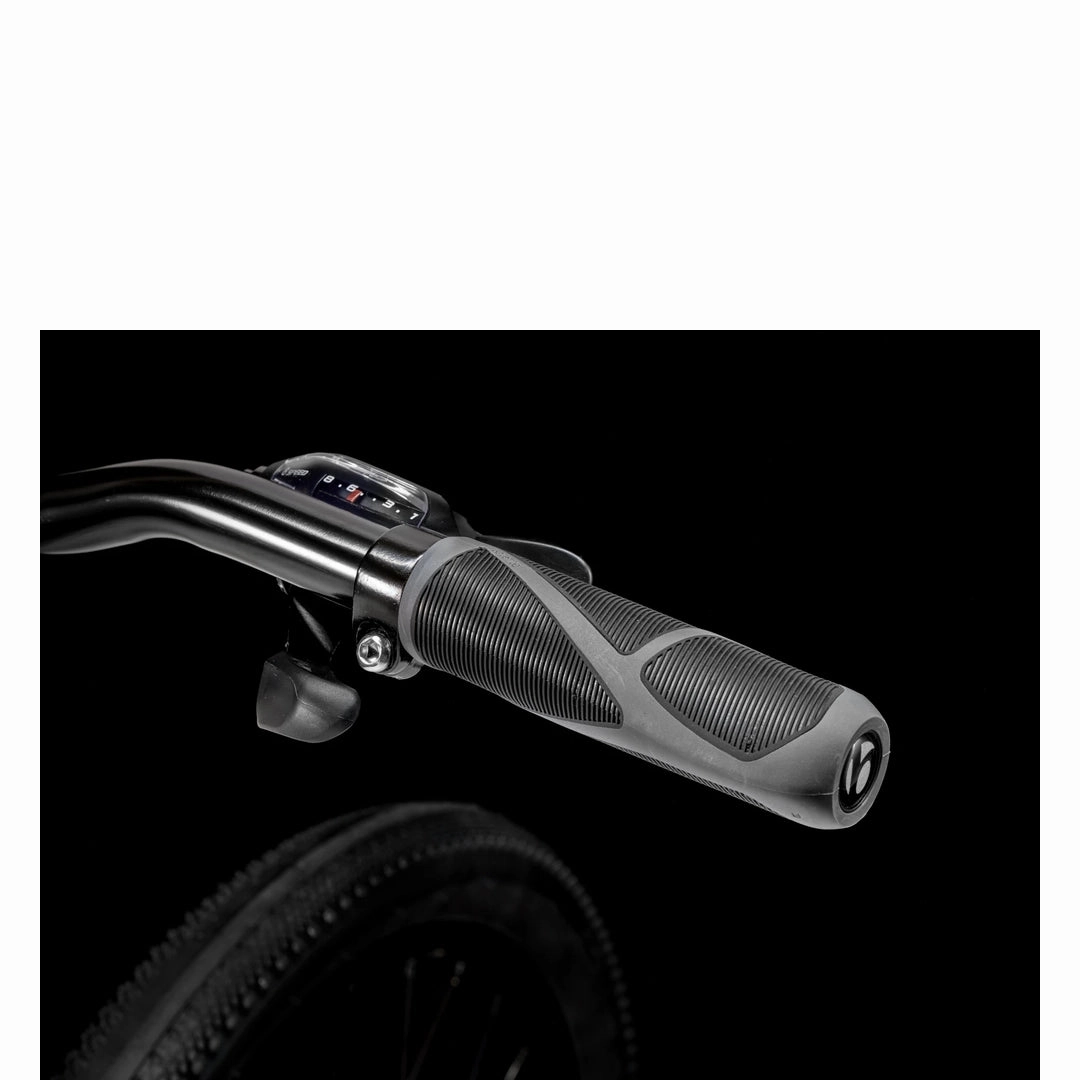

| Grips | Bontrager Satellite |
| Stem | Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |

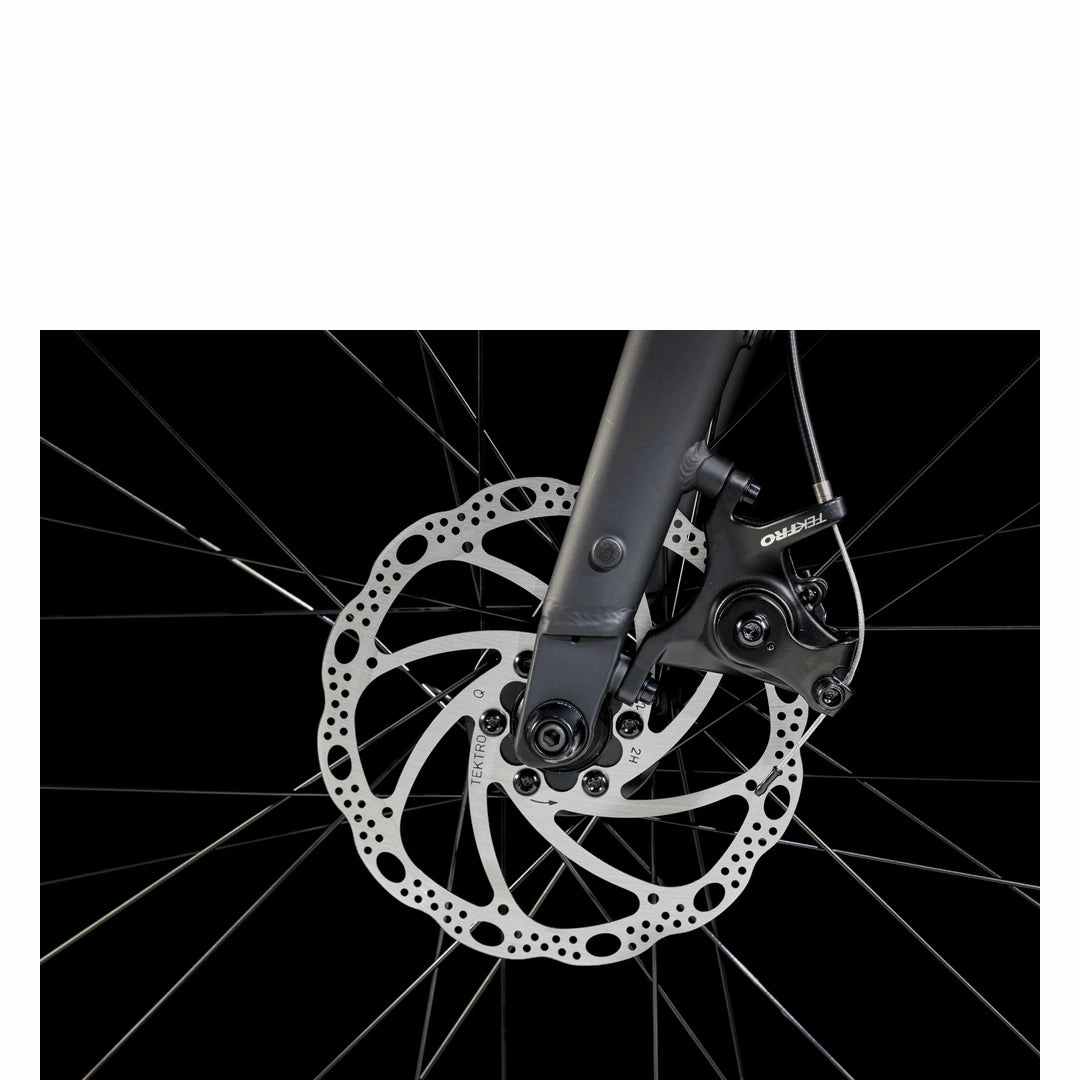

| Brake | Tektro MD-U310 mechanical disc |
| Brake Rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor Size | Max brake rotor sizes: 160 mm front and rear |
| Weight | |
| Weight | M - 14.05 kg / 30.98 lb |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS | 147 - 155 cm 4'10" - 5'1" | 69 - 73 cm 27" - 29" |
| S | 155 - 165 cm 5'1" - 5'5" | 72 - 78 cm 28" - 31" |
| M | 165 - 175 cm 5'5" - 5'9" | 77 - 83 cm 30" - 33" |
| L | 175 - 186 cm 5'9" - 6'1" | 82 - 88 cm 32" - 35" |
| XL | 186 - 197 cm 6'1" - 6'6" | 87 - 93 cm 34" - 37" |
Geometry
| Frame size letter | Wheel size | A Seat tube | B Seat tube angle | C Head tube length | D Head angle | E Effective top tube | F Bottom bracket height | G Bottom bracket drop | H Chainstay length | I Offset | J Trail | K Wheelbase | L Standover | M Frame reach | N Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 27.5" | 33.0 | 74.3 | 11.5 | 69.3 | 53.0 | 28.9 | 6.0 | 44.7 | 3.9 | 9.0 | 104.5 | 68.3 | 37.6 | 54.7 |
| S | 27.5" | 37.5 | 73.8 | 14.0 | 69.8 | 54.5 | 28.9 | 6.0 | 44.7 | 3.9 | 8.7 | 105.2 | 72.3 | 37.8 | 57.3 |
| M | 27.5" | 42.0 | 73.3 | 16.5 | 70.3 | 56.5 | 28.9 | 6.0 | 44.7 | 3.9 | 8.3 | 106.3 | 76.1 | 38.5 | 59.8 |
| L | 27.5" | 46.5 | 72.8 | 19.0 | 70.8 | 58.5 | 28.9 | 6.0 | 44.7 | 3.9 | 8.0 | 107.2 | 80.0 | 39.1 | 62.4 |
| XL | 27.5" | 52.0 | 71.8 | 21.5 | 71.8 | 61.5 | 28.9 | 6.0 | 44.7 | 3.9 | 7.4 | 107.9 | 84.3 | 40.1 | 65.2 |
