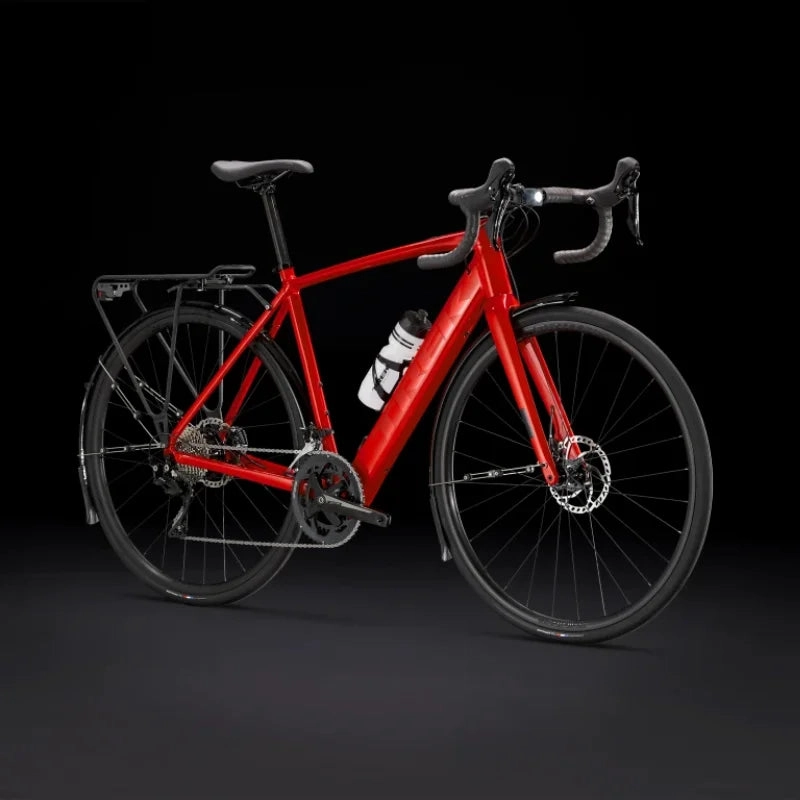

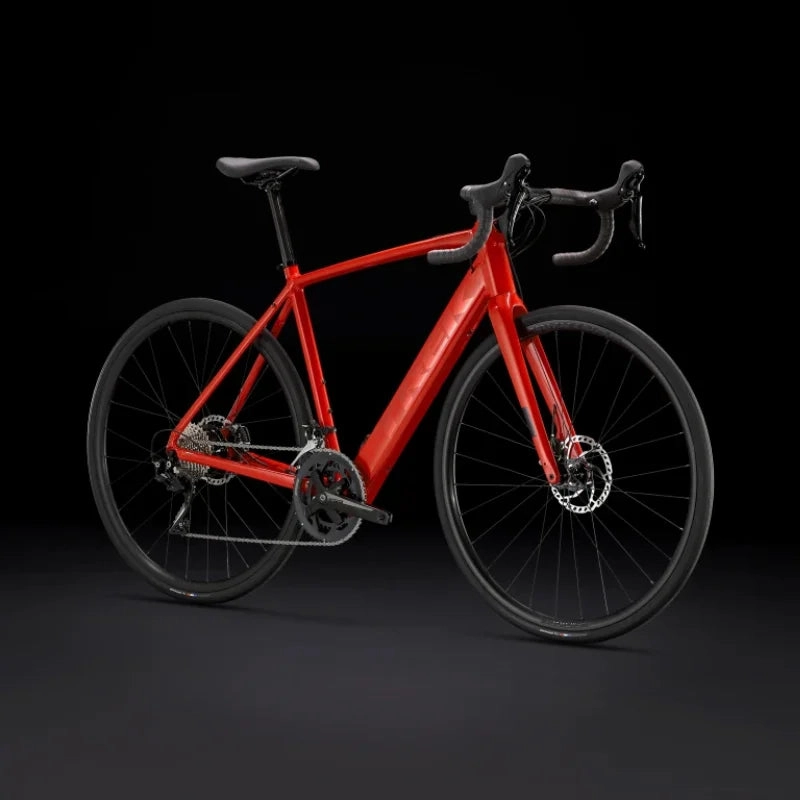

Trek Domane AL 5 - Viper Red: Unleash Your Road Riding Potential
Experience the exhilaration of road cycling like never before with the Trek Domane AL 5. This lightweight alloy e-road bike combines the agility and performance of a traditional road bike with the added power and versatility of electric assistance. Whether you're tackling challenging climbs, pushing the pace on training rides, or exploring new routes with friends, the Domane AL 5 delivers an unparalleled riding experience that redefines what's possible on the road.
Perfect For: Ideal for road cyclists seeking the perfect blend of performance and versatility, the Domane AL 5 is designed for riders who want to elevate their road riding experience without compromising on the traditional feel of a road bike. Whether you're a seasoned rider looking to conquer challenging terrain or a newcomer seeking extra support on longer rides, this e-road bike is your ticket to unlocking new levels of enjoyment and achievement on the road.
Key Features:
- HyDrive Pedal Assist System: Experience a natural and intuitive ride feel with the HyDrive hub motor, providing seamless assistance up to 25 km/h. The 250 Wh battery offers an impressive range of up to 90 kilometres per charge, ensuring you can tackle any road with confidence and ease.

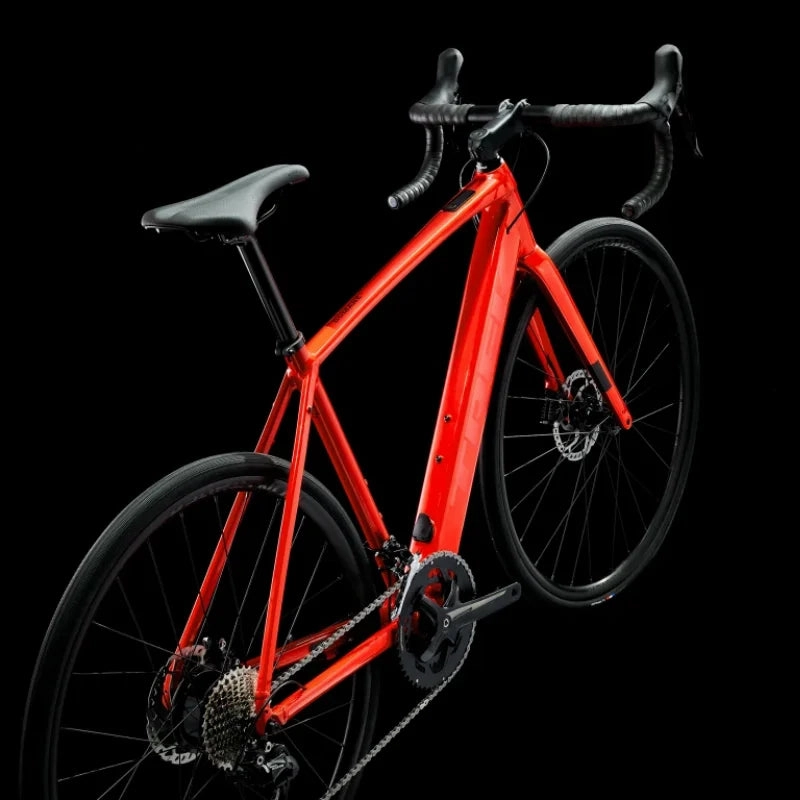

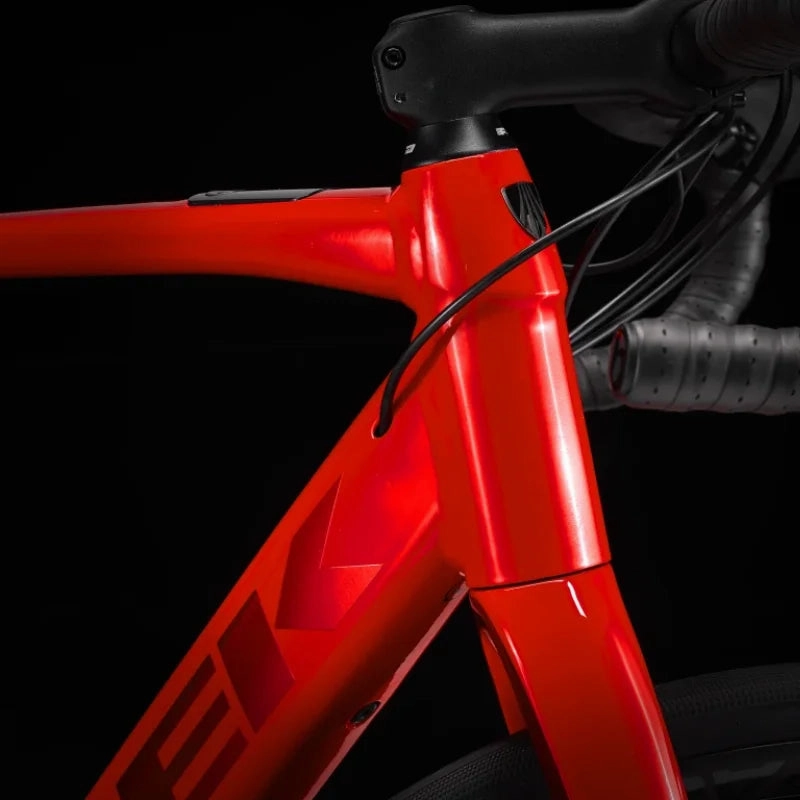

- Lightweight Aluminium Frame: Crafted from high-quality aluminium, the Domane AL 5 frame and fork strike the perfect balance between strength, durability, and agility. Enjoy responsive handling and efficient power transfer, whether you're climbing steep gradients or sprinting on flat roads.

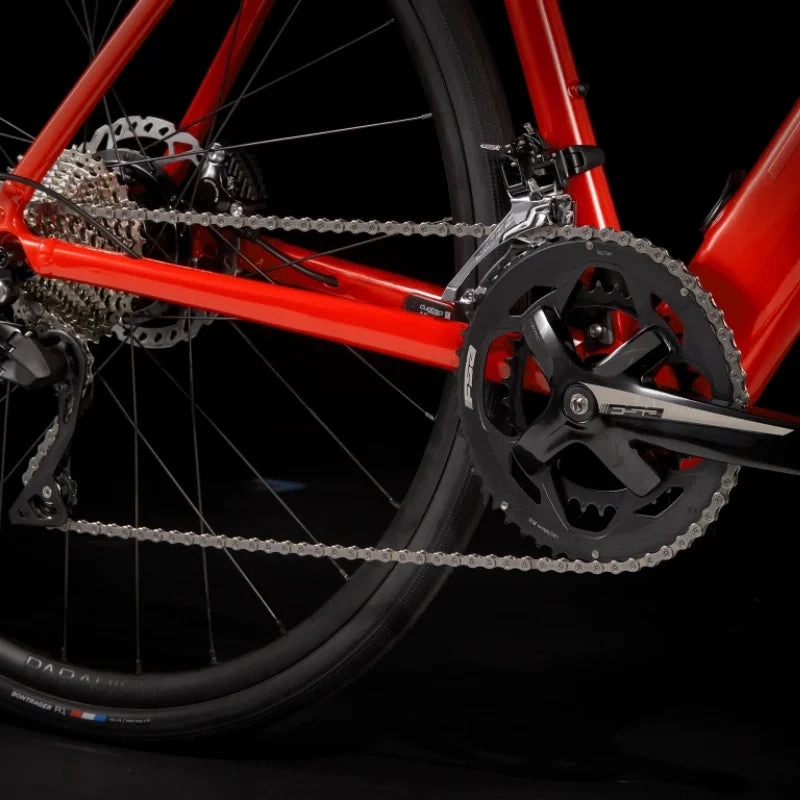

- Shimano 105 2x11 Drivetrain: Benefit from smooth and reliable shifting performance with the Shimano 105 2x11 drivetrain, offering a wide range of gearing options to conquer varied terrain with ease. Whether you're spinning up climbs or cruising at high speeds, this drivetrain ensures optimal efficiency and precision.
- Elite IsoZone Handlebars: Enhance comfort and control on long rides with vibration-absorbing Elite IsoZone handlebars, minimizing road buzz and fatigue for a smoother and more enjoyable ride experience.
Why You'll Love It:
- Authentic Road Bike Feel: Despite its electric assistance, the Domane AL 5 retains the classic characteristics of a traditional road bike, allowing you to enjoy the thrill of road cycling with added support when you need it most.

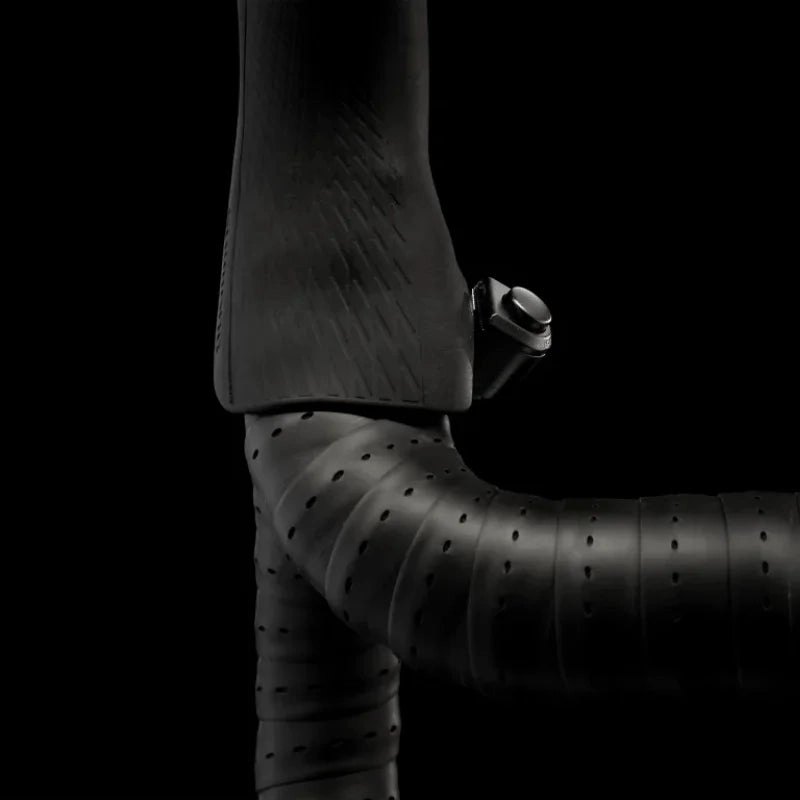

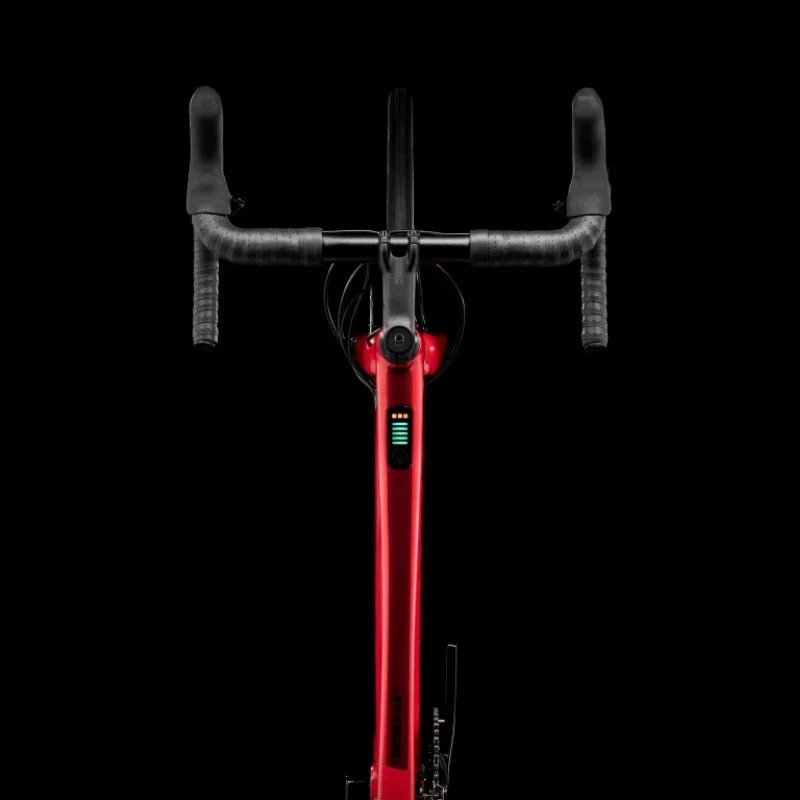

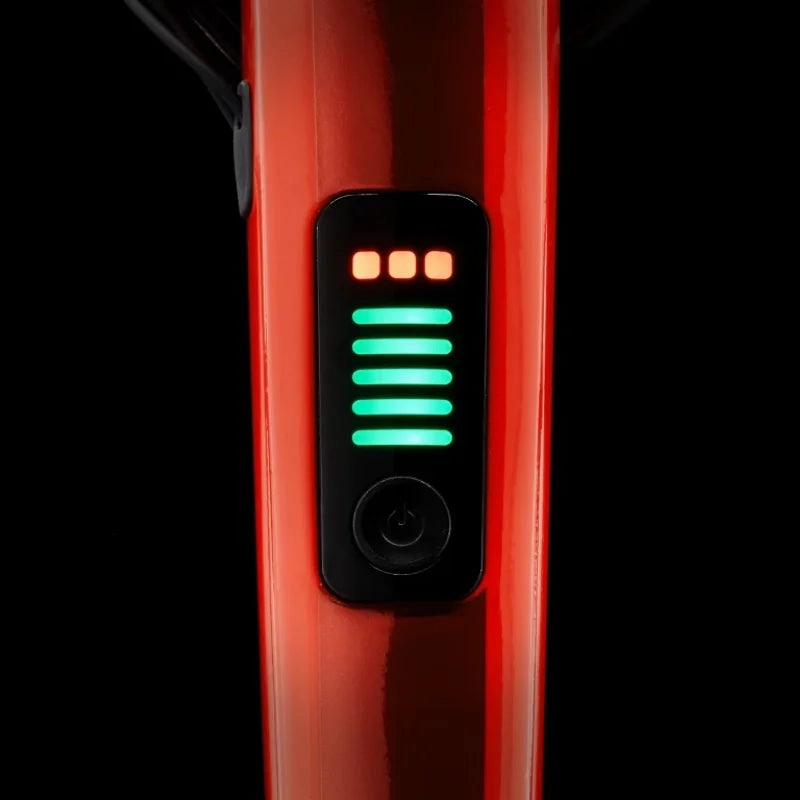

- Intuitive Assist System: The HyDrive pedal assist system offers seamless integration and effortless control, allowing you to adjust ride settings and monitor essential metrics such as speed and battery level with ease.
- Endurance Geometry: Designed for comfort and stability, the Domane AL 5 features stable Endurance Geometry that inspires confidence on long rides and challenging descents, ensuring you stay comfortable and in control mile after mile.
- Extended Range Option: With the option to add a 250 Wh plug-and-play Range Extender battery, you can double your riding range and tackle epic adventures with confidence, knowing you have plenty of power to explore new horizons.
Experience the ultimate fusion of performance and innovation with the Trek Domane AL 5. Whether you're chasing personal bests, exploring scenic routes, or simply enjoying the freedom of the open road, this e-road bike empowers you to ride further, faster, and with greater confidence than ever before.
Specification
Trek Domane AL 5 Specification
FRAMESET
| Frame | 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts |
| Fork | Domane carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle |
| Shock | Endurance |
WEIGHT
| Weight | 56 - 14.06 kg / 31 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-SYSTEM
| Battery | 250 Wh, integrated in down tube |

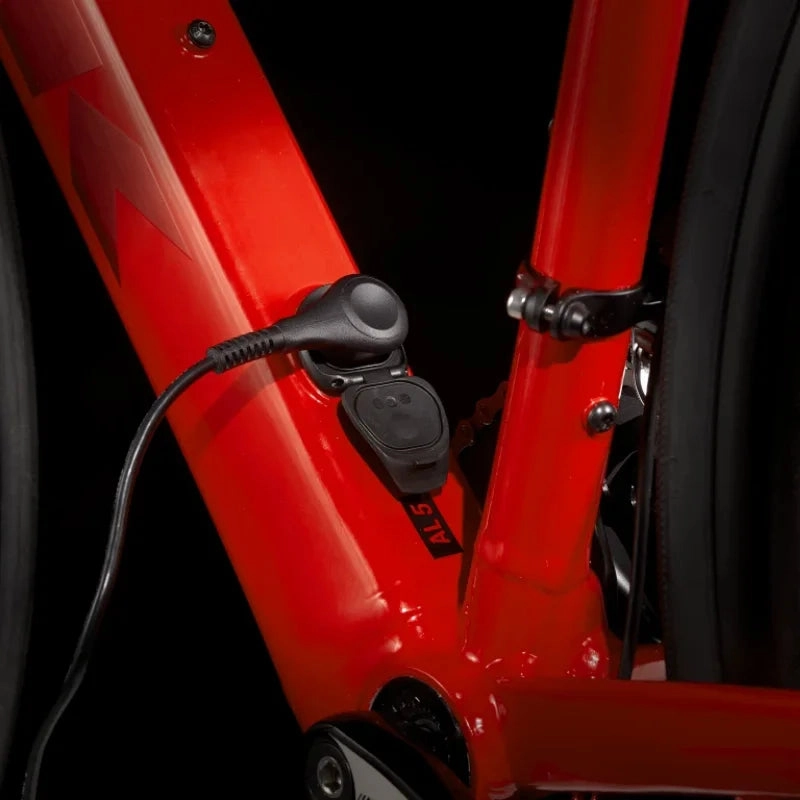

| Charger | 2A, 42V output, 100V240V AC input |
WHEELS
| Hub Front | Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle |
| Skewer Front | Bontrager Switch thru axle, removable lever |
| Hub Rear | Hyena hub drive motor, 40 Nm, 250 W |
| Rim | Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Max Tyre Size | 38mm without mudguards, 32mm with mudguards |
DRIVETRAIN
| Shifter | Size: 49, 52 Size: 54, 56, 58, 61 |
| Front Derailleur | Shimano 105 R7000, 31 mm clamp |
| Rear Derailleur | Shimano 105 R7000, long cage, 34T max cog |
| Crank | Size: 49 Size: 52 Size: 54, 56 Size: 58, 61 |
| Bottom Bracket | Torque sensor, threaded, 110 mm spindle |
| Cassette | Shimano 105 HG700-11, 11-34, 11-speed |
| Chain | Shimano HG601, 11-speed |
| Max. Chainring Size | 2x: 50/34 |
COMPONENTS
| Saddle | Size: 49, 52 Size: 54, 56, 58, 61 |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar/stem | Size: 49 Size: 52 Size: 54, 56 Size: 58, 61 |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: 49 Size: 52, 54 Size: 56, 58 Size: 61 |
| Head Set | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom |

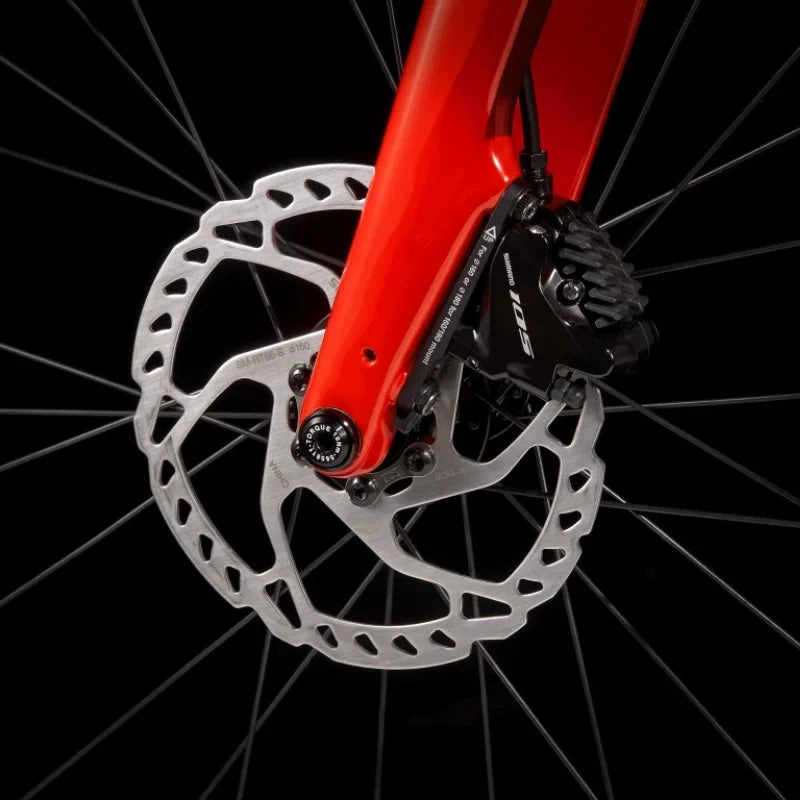

| Brake | Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin |
| Brake Rotor | Shimano RT66, 6-bolt, 160 mm |
| Rotor Size | Max brake rotor sizes: 160mm front & rear |
Sizing
Trek Domane AL 5 Sizing
| Size | Rider Height | Inseam |
| 49 | 156 - 163 cm (5'1" - 5'4") | 74 - 77 cm (29" - 30") |
| 52 | 163 - 168 cm (5'4" - 5'6") | 76 - 79 cm (30" - 31") |
| 54 | 168 - 174 cm (5'6" - 5'9") | 78 - 82 cm (31" - 32") |
| 56 | 174 - 180 cm (5'9" - 5'11") | 81 - 85 cm (32" - 33") |
| 58 | 180 - 185 cm (5'11" - 6'1") | 84 - 87 cm (33" - 34") |
| 61 | 185 - 191 cm (6'1" - 6'3") | 86 - 90 cm (34" - 34") |
Geometry
Trek Domane AL 5 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Number | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube | 44.0 | 47.5 | 50.0 | 52.5 | 54.8 | 56.7 |
| Seat Tube Angle | 74.6 | 74.2 | 73.7 | 73.3 | 73.0 | 72.7 |
| Head Tube Length | 11.0 | 13.0 | 14.5 | 16.0 | 18.0 | 22.0 |
| Head Angle | 70.8 | 71.3 | 71.3 | 71.9 | 72.0 | 72.1 |
| Effective Top Tube | 51.7 | 53.0 | 54.2 | 55.4 | 56.7 | 58.6 |
| Bottom Bracket Drop | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.8 |
| Chainstay Length | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 | 43.0 |
| Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| Trail | 6.7 | 6.4 | 6.4 | 6.5 | 6.5 | 6.4 |
| Wheelbase | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 104.3 |
| Standover | 72.7 | 75.3 | 77.2 | 79.4 | 80.9 | 82.5 |
| Frame Reach | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.5 |
| Frame Stack | 54.0 | 56.1 | 57.5 | 59.1 | 61.1 | 64.6 |
| Stem Length | 80.0 | 90.0 | 90.0 | 100.0 | 100.0 | 110.0 |
