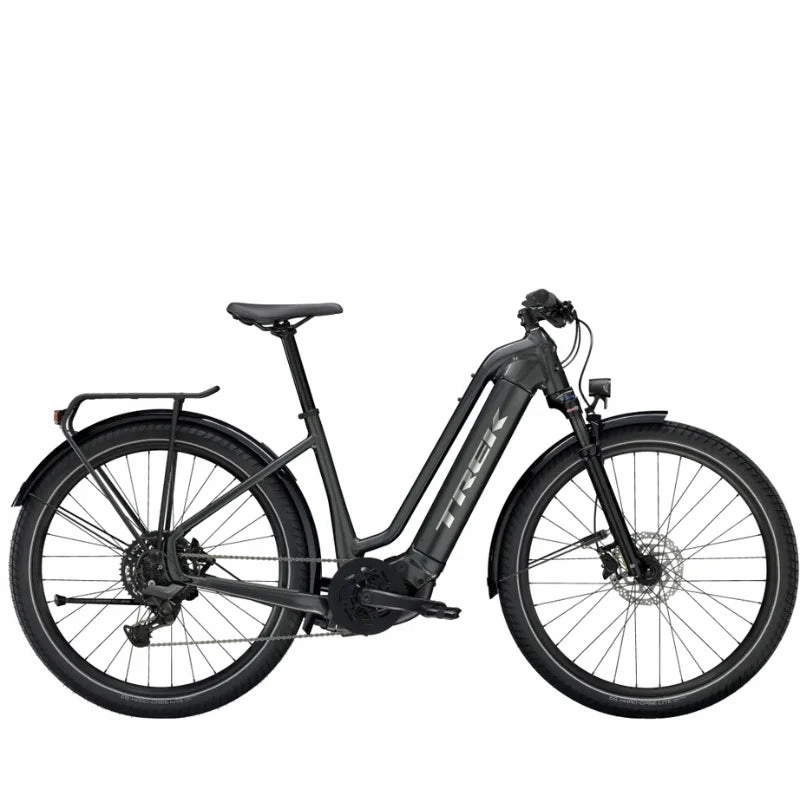

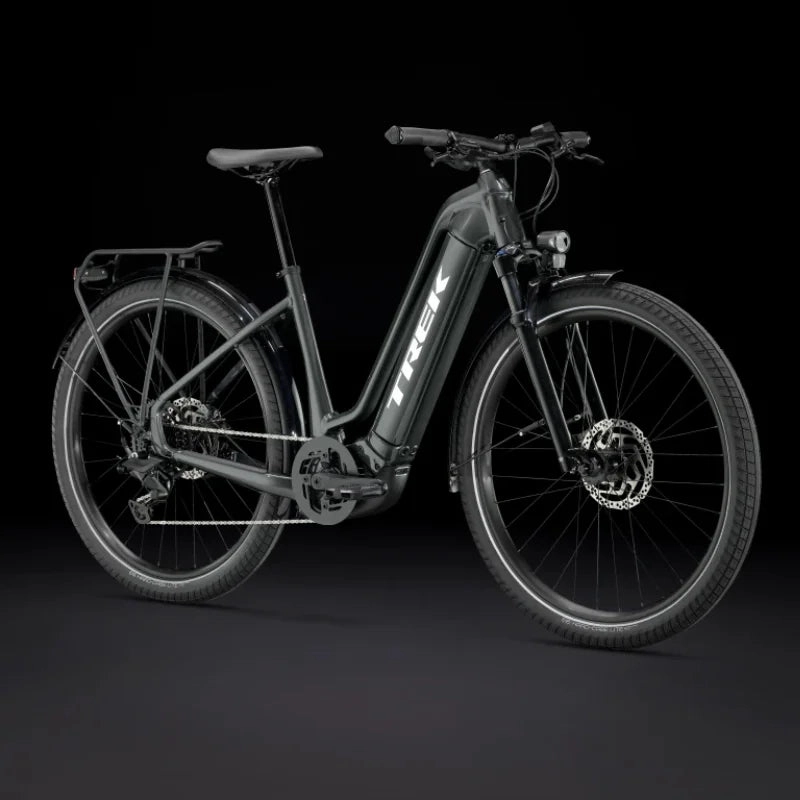

Trek Allant 7 Lowstep: The Pinnacle of Performance e-Biking
The Trek Allant 7 Lowstep stands as an award-winning performance e-bike tailored for those who desire a blend of style, durability, and the comfort of suspension in their daily commuting and riding endeavors. Equipped with the highly responsive Bosch smart system, top-quality components, and a multitude of meticulously considered design features, this e-bike represents a sophisticated solution for everyday urban navigation.
Designed for: Ideal for riders seeking an e-bike that doesn't compromise on performance, comfort, or aesthetics. This bike is perfect for those who appreciate the advanced connectivity and customization options offered by Bosch's smart system, including activity tracking, navigation, and Bluetooth connectivity for an enhanced riding experience.
Tech Specs:

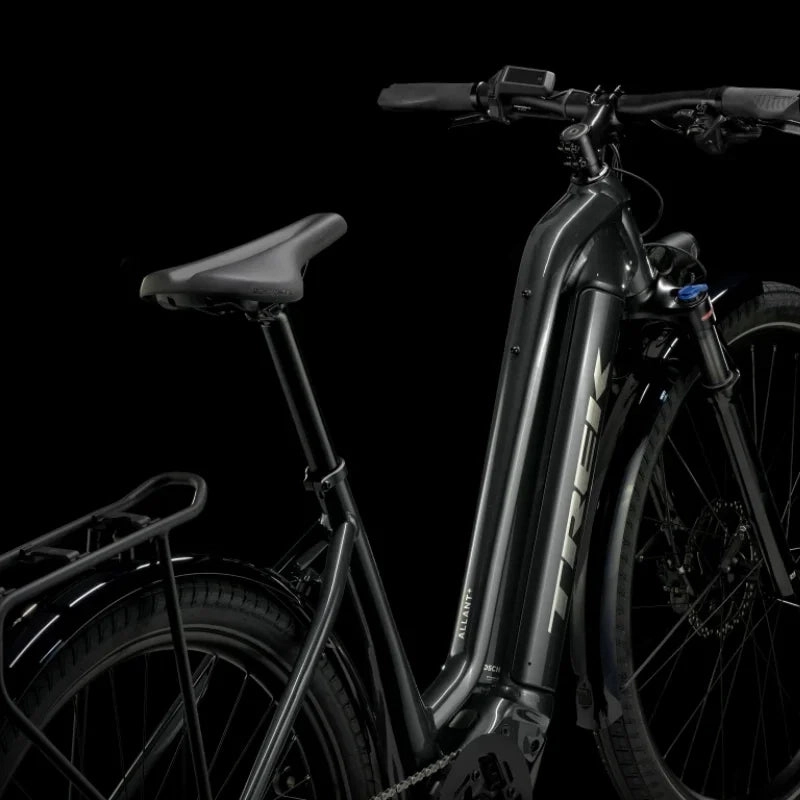

- A hydroformed aluminum frame with stagger geometry encloses the long-lasting 500Wh integrated battery.

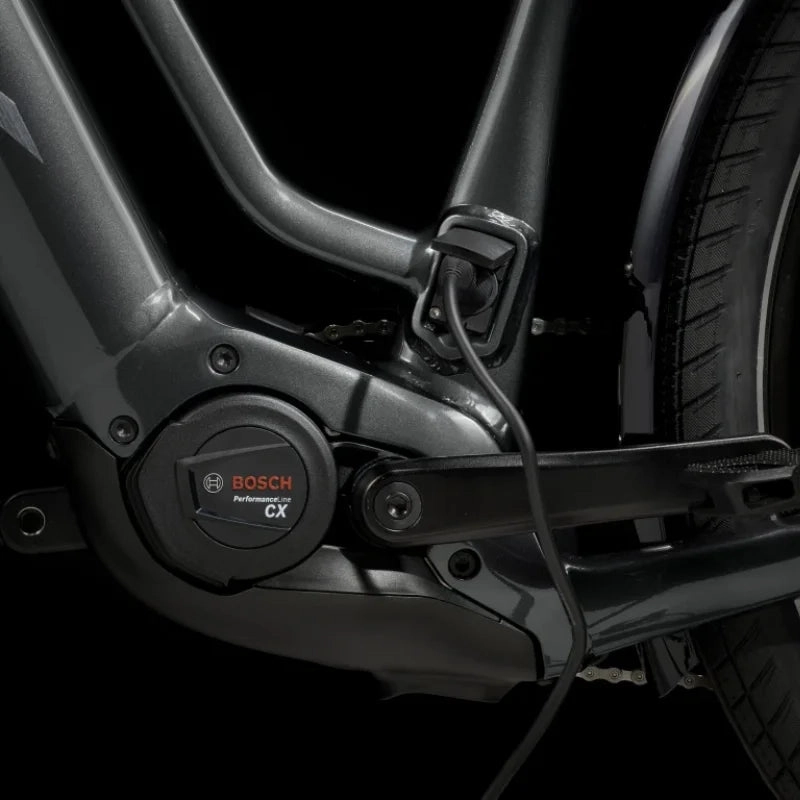

- An ultra-powerful Bosch Performance Line CX smart system drive unit, ensuring assistance up to 25 k/ph with a Purion 200 controller for streamlined operation.
- Enjoy smoother rides with a suspension fork featuring lockout capability, a 9-speed Shimano CUES drivetrain for reliable shifting, and 4-piston hydraulic disc brakes for unwavering stopping power.

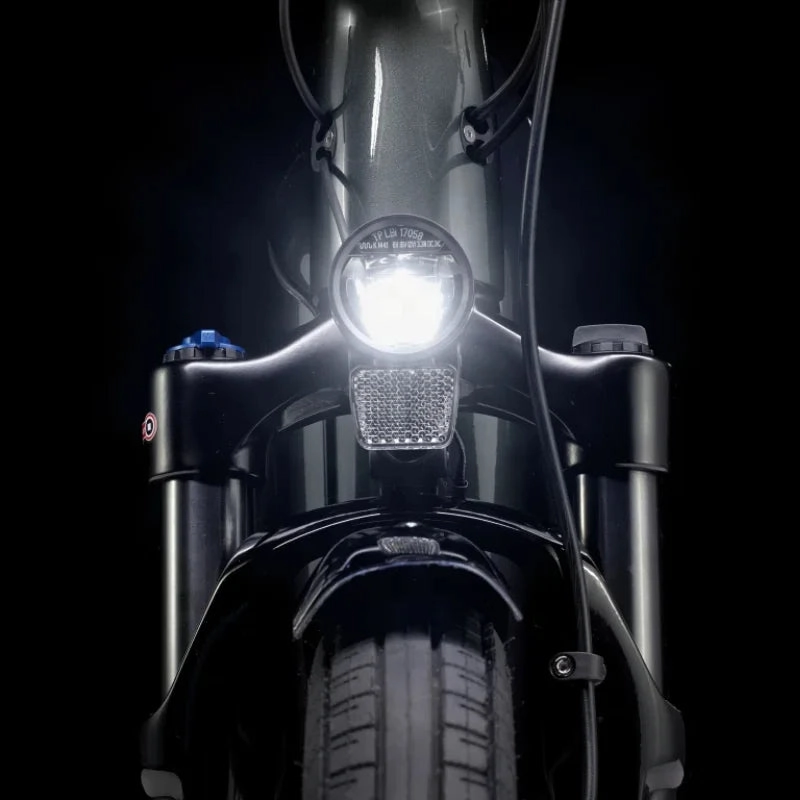

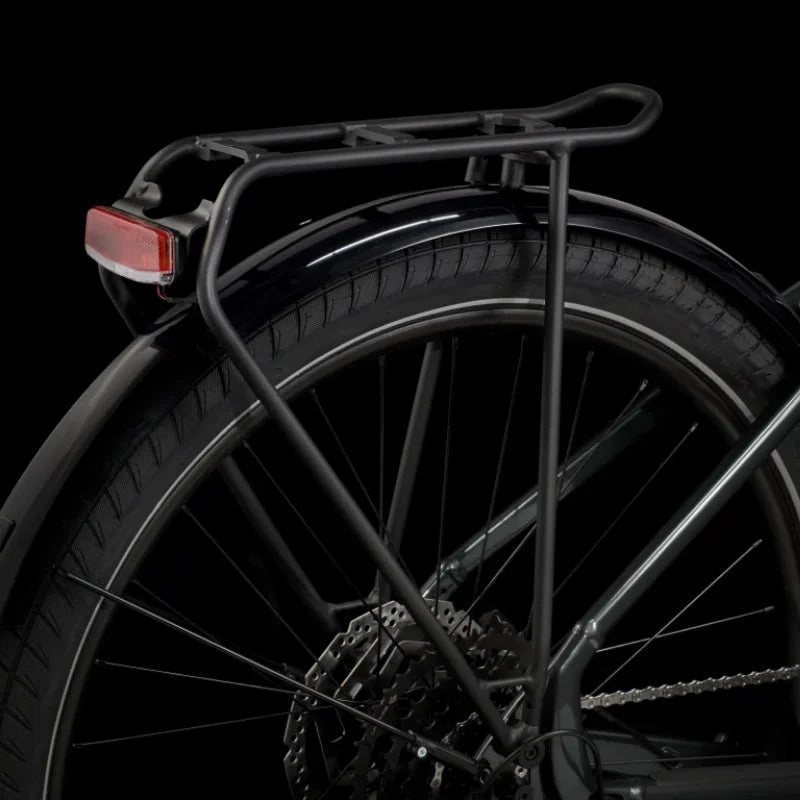

- Fully equipped with an integrated front and rear lighting system, fenders, and a rear rack for added convenience.
Why It Sets the Bar: The Allant 7 is outfitted with the state-of-the-art Bosch Performance Line CX smart system, including a smart LED remote and Kiox 300 display for seamless interaction, a fully integrated battery for a sleek appearance, and a suspension fork to absorb road imperfections, making every ride smooth and enjoyable. The bike is also distinguished by its durable and reliable componentry, ensuring it is ready for the long haul.
Key Highlights:
- The advanced Bosch smart system offers impressive support and responsiveness, alongside Bluetooth integration for ride planning and activity monitoring.

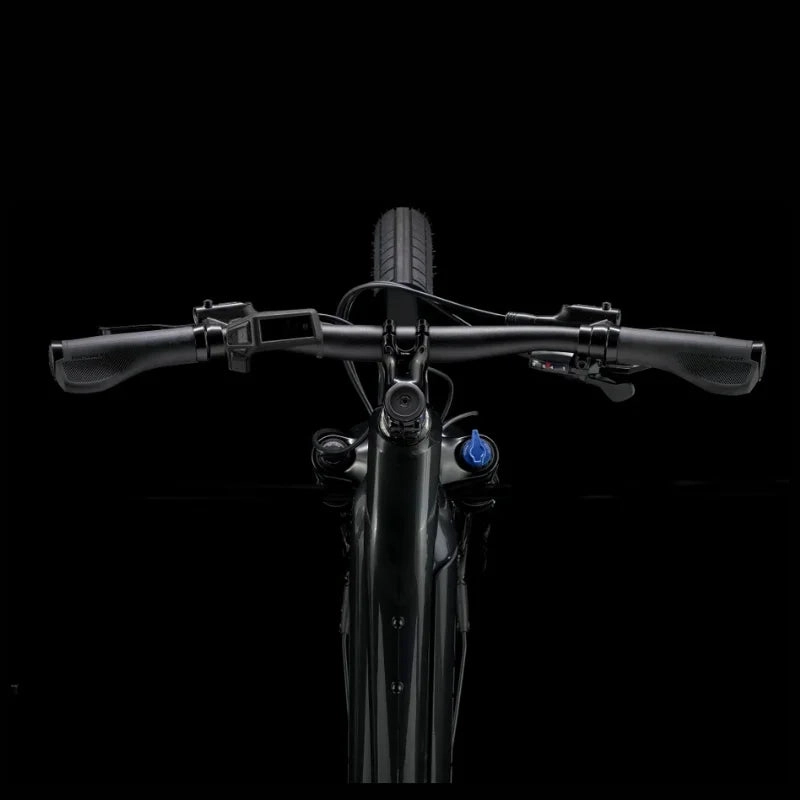

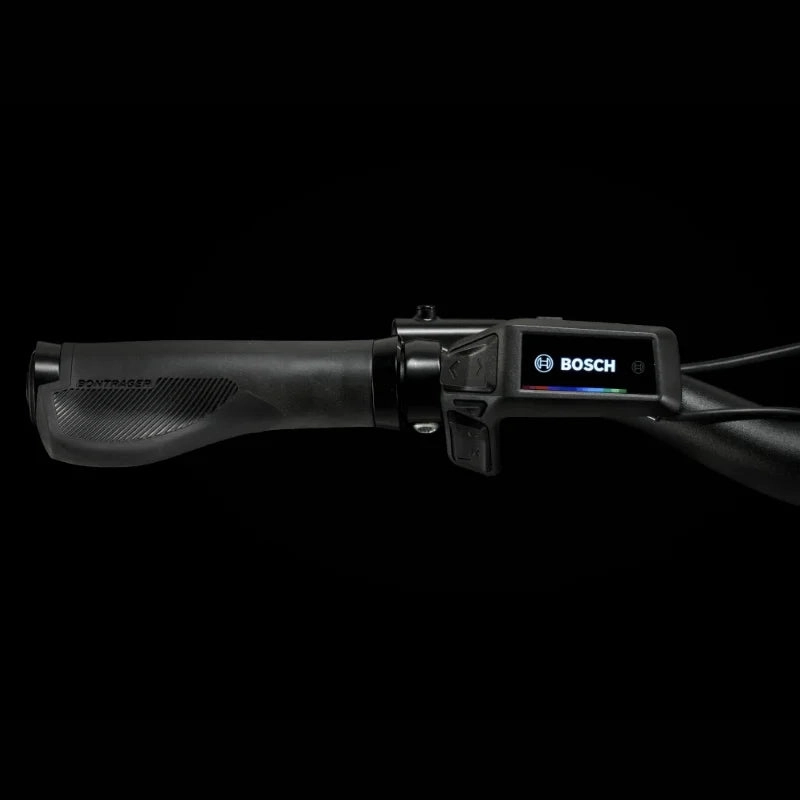

- The sleek Bosch Purion 200 controller provides at-a-glance speed, distance, and battery life information.

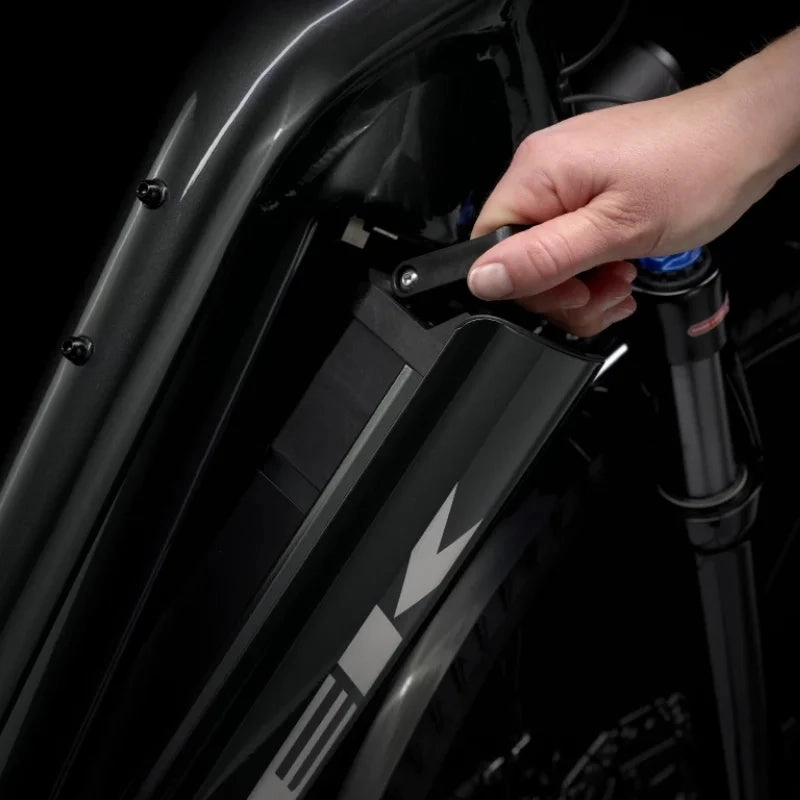

- Trek's Removable Integrated Battery (RIB) system melds aesthetics and practicality, concealing the battery within the frame while allowing easy removal for charging.
- The lockout feature on the fork enhances ride efficiency by adapting to different terrains, ensuring optimal performance regardless of the road surface.
- Comes ready with essential accessories such as mudguards and lights, powered directly from the bike's battery, solidifying its status as a comprehensive urban riding solution.
Discover the unmatched blend of performance, comfort, and style with the Trek Allant 7 Lowstep, your ultimate companion for effective and enjoyable e-biking in the city and beyond.
Specification
Trek Allant 7 Lowstep Specification
FRAMESET
| Frame | High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armor, post-mount disc, 135x5 QR |
| Fork | SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel |
| Max compatible fork travel | 63mm |
WEIGHT
| Weight | M - 25.50 kg / 56.22 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | Shimano U4000, 9-speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crank | Size: S, M Size: L, |
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 48T |
WHEELS
| Hub Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front | 114x5 mm QR |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, 135x5 mm QR |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim | Size: 49, 52, 54, 56, 58, 61 Size: 49, 52, 54, 56, 58, 61 |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max. Chainring Size | See service manual |
COMPONENTS
| Saddle | Size: 49, 52 Size: 54, 56, 58, 61 |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Handlebar | Size: S, M Size: L |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: S Size: M Size: L |
| Brake | Shimano MT200 hydraulic disc |
| Brake Rotor | Shimano RT26, 6-bolt,180 mm |
| Rotor Size | Max brake rotor sizes: 180 mm front and rear |
Sizing
Trek Allant 7 Lowstep Sizing
| Size | Rider Height | Inseam |
| S | 155 - 165 cm (5'1" - 5'5") | 72 - 78 cm (28" - 31") |
| M | 165 - 175 cm (5'5" - 5'9") | 77 - 83 cm (30" - 33") |
| L | 175 - 186 cm (5'9" - 6'1") | 82 - 88 cm (32" - 35") |
Geometry
Trek Allant 7 Lowstep Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Letter | S | M | L |
| Wheel Size | 27.5" | 27.5" | 27.5" |
| A - Seat Tube | 45.0 | 45.0 | 49.1 |
| B - Seat Tube Angle | 73.0 | 73.0 | 73.0 |
| C - Head Tube Length | 15.0 | 17.5 | 23.5 |
| D - Head Angle | 69.0 | 69.5 | 70.0 |
| E - Effective Top tube | 58.3 | 59.3 | 62.4 |
| F - Bottom Bracket Height | 29.9 | 29.9 | 29.5 |
| G - Bottom Bracket Drop | 6.0 | 6.0 | 6.0 |
| H - Chainstay Length | 48.7 | 48.7 | 48.7 |
| I - Offset | 4.4 | 4.4 | 4.4 |
| J -Trail | 9.0 | 8.6 | 7.9 |
| K - Wheelbase | 113.8 | 114.1 | 114.4 |
| L - Standover | 47.6 | 47.8 | 47.7 |
| M - Frame Reach | 39.8 | 40.0 | 40.2 |
| N - Frame Stack | 60.6 | 63.1 | 66.1 |
