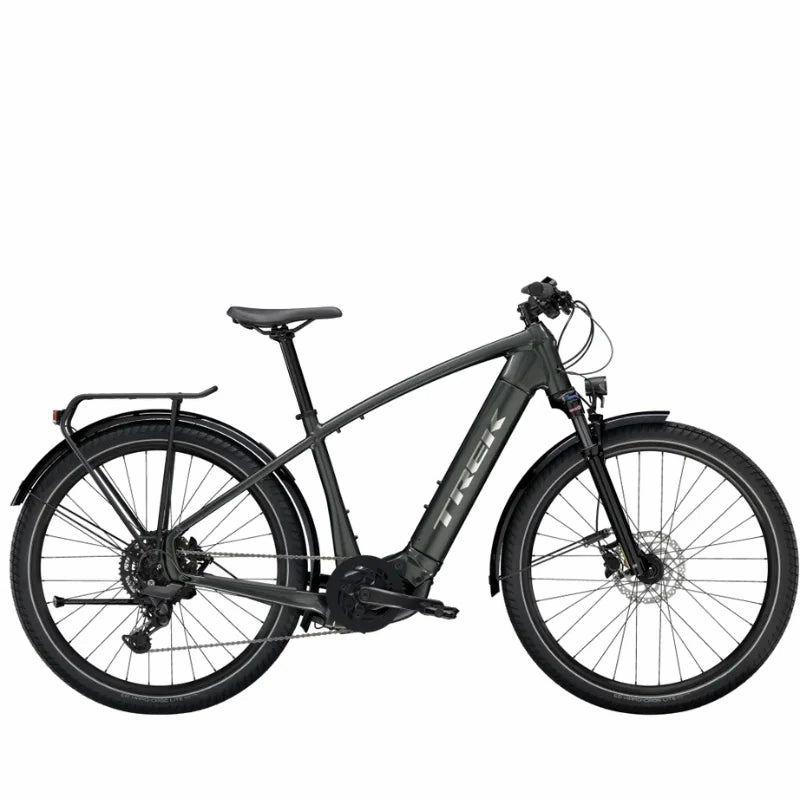

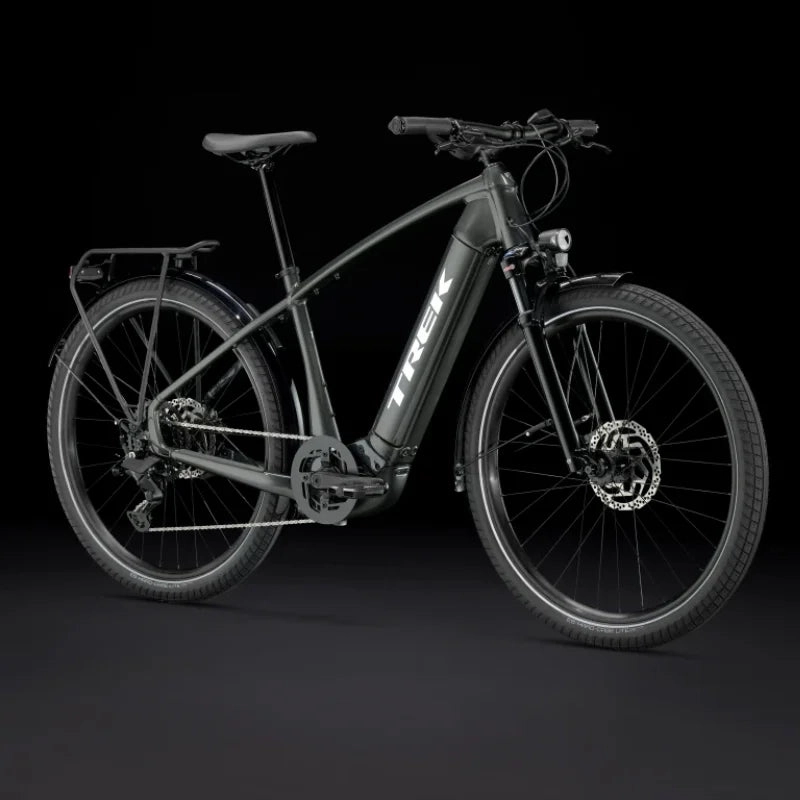

Trek Allant 7 - Elevating E-Biking Performance
The Trek Allant 7 in Lithium Grey stands as a distinguished performance e-bike crafted to meet the needs of riders and commuters who seek a durable and stylish ride with the added benefit of a suspension fork for a smoother journey. Enhanced by the potent and interconnected Bosch smart system, top-tier components, and meticulous design features, this electric bike provides a savvy solution for daily urban mobility.
Is It Right for You? Ideal for those in search of an e-bike that excels in performance, comfort, and aesthetic appeal. If seamless connectivity and customization options are essential to your riding experience, including activity tracking, navigation, and Bluetooth connectivity, this bike is a perfect fit.
Technical Specifications for Trek Allant 7 - Lithium Grey:

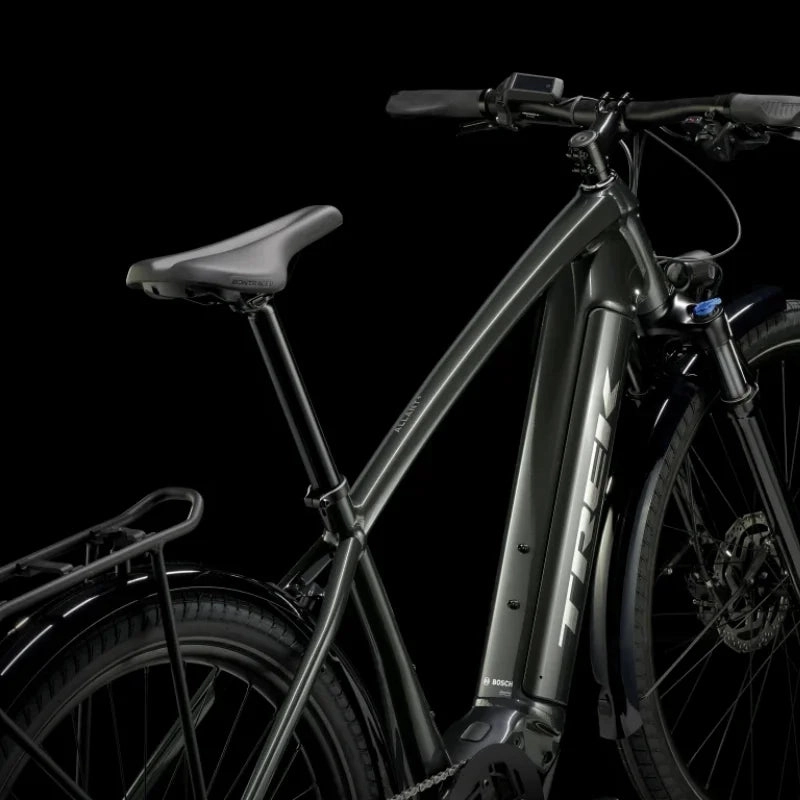

- Constructed with a hydroformed aluminum frame featuring stagger geometry to encase a durable 500Wh integrated battery.

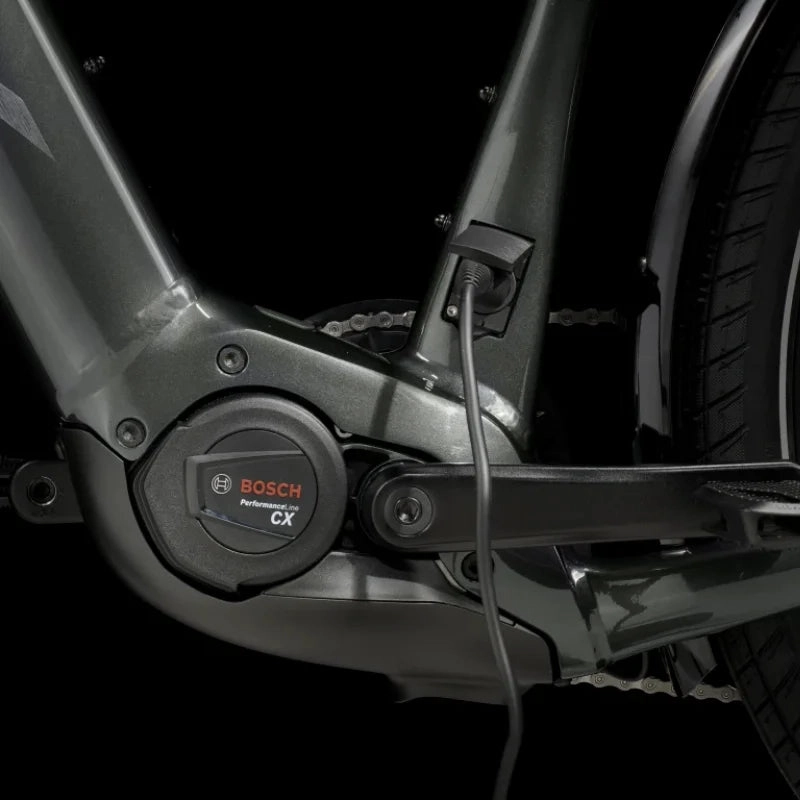

- Powered by the high-performance Bosch Performance Line CX smart system drive unit, enabling speeds up to 25 k/ph, managed effortlessly by the Purion 200 controller.
- Enjoy a comfortable ride with the suspension fork equipped with lockout capabilities, a dependable 9-speed Shimano CUES drivetrain for seamless gear shifts, and reliable 4-piston hydraulic disc brakes for safe and effective stopping power.

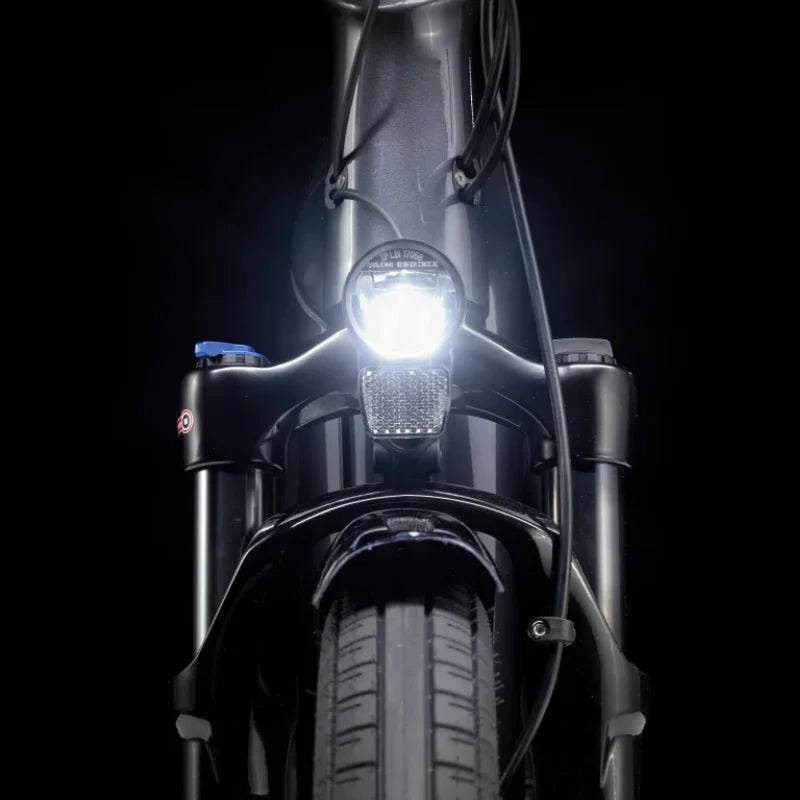

- Fully equipped with an integrated front and rear lighting system, fenders to shield you from splashes, and a rear rack for added convenience during your cycling adventures.
The Ultimate Verdict: The Allant 7 emerges as a sophisticated e-bike brimming with the mighty Bosch smart system, an integrated battery, a bump-smoothing suspension fork, practical features for daily riding, and a selection of quality components meticulously chosen for their reliability and durability in the long run.

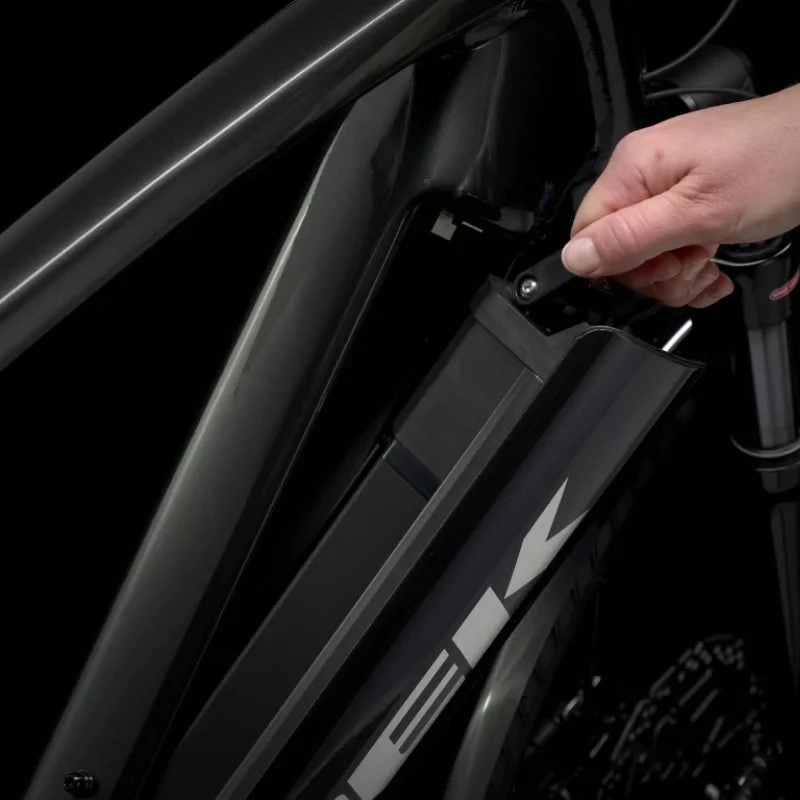

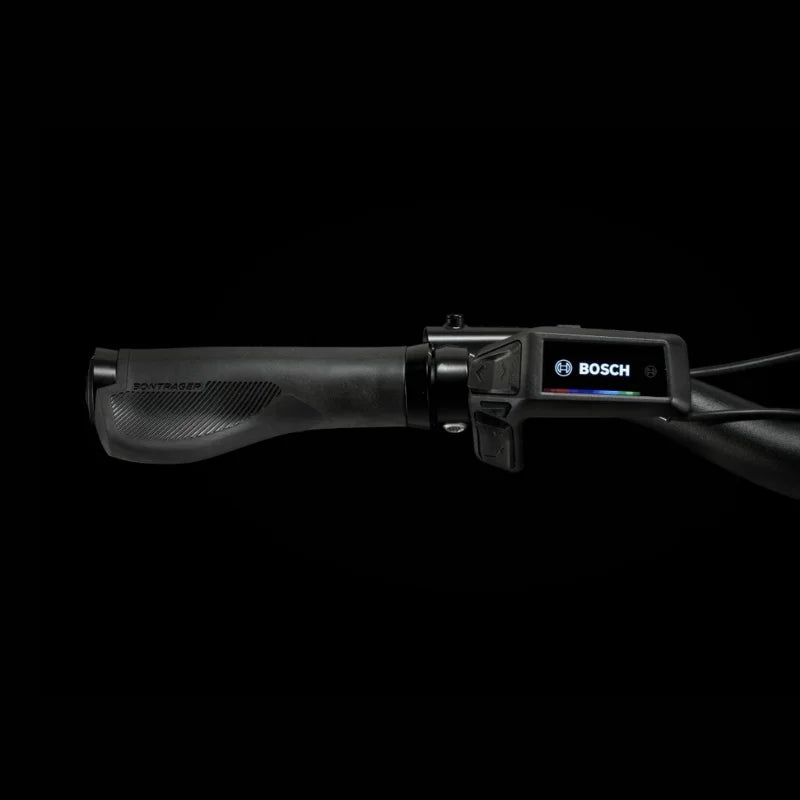

Reasons to Adore It: Experience the robust Bosch smart system offering ample support and responsiveness, coupled with Bluetooth connectivity for effortless activity tracking and ride scheduling. Revel in the elegance and efficiency of the compact Bosch Purion 200 controller for quick monitoring of speed, distance, and battery status. Appreciate Trek's innovative Removable Integrated Battery (RIB) system, seamlessly hiding the battery within the frame for a sleek appearance and easy off-bike charging and storage. The fork's lockout feature ensures an efficient ride experience - close it for smooth roads and open it up for rough terrains. Fully equipped with practical accessories like mudguards and lights powered by the battery, this e-bike is all set for your exploration and rides.
Discover the unmatched blend of performance and style with the Trek Allant 7 in Lithium Grey, your premier choice for efficient and enjoyable urban e-biking adventures.
Specification
Trek Allant 7Specification
FRAMESET
| Frame | High-performance hydroformed alloy, Removable Integrated Battery, Range Boost-compatible, internal cable routing, Motor Armor, post-mount disc, 135x5 QR |
| Fork | SR Suntour XCR32, coil spring, preload adjuster, lockout,100 mm QR, 63 mm travel |
| Max compatible fork travel | 63mm |
WEIGHT
| Weight | M - 25.50 kg / 56.22 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
DRIVETRAIN
| Shifter | Shimano U4000, 9-speed |
| Rear Derailleur | Shimano CUES U4000 |
| Crank | Size: M Size: L, XL |
| Chainring | ProWheel 40T narrow/wide steel, w/alloy guard |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| Chain | Shimano LG500, 9/10/11-speed |
| Pedal | Bontrager City pedals |
| Max. chainring size | 1x: 48T |
WHEELS
| Hub Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer Front | 114x5 mm QR |
| Hub Rear | Bontrager alloy, sealed bearing, 6-bolt, 135x5 mm QR |
| Skewer Rear | Bontrager Switch thru-axle, removable lever |
| Rim | Size: 49, 52, 54, 56, 58, 61 Size: 49, 52, 54, 56, 58, 61 |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim Strip | Bontrager TLR |
| Max. Chainring Size | See service manual |
COMPONENTS
| Saddle | Size: 49, 52 Size: 54, 56, 58, 61 |
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Handlebar | Size: 49 Size: 52 Size: 54, 56 Size: 58, 61 |
| Handlebar Tape | Bontrager Supertack Perf tape |
| Stem | Size: 49 Size: 52, 54 Size: 56, 58 Size: 61 |
| Brake | Shimano RX400 hydraulic disc |
| Brake Rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor Size | Max brake rotor sizes: 160mm front & rear |
Sizing
Trek Allant 7 Sizing
| Size | Rider Height | Inseam |
| M | 165 - 175 cm (5'5" - 5'9") | 77 - 83 cm (30" - 33") |
| L | 175 - 186 cm (5'9" - 6'1") | 82 - 88 cm (32" - 35") |
| XL | 186 - 197 cm (6'1" - 6'6") | 87 - 93 cm (34" - 37") |
Geometry
Trek Allant 7 Geometry
All measurements are provided in cm unless otherwise stated.
SIZING TABLE
| Frame Size Letter | M | L | XL |
| Wheel Size | 27.5" | 27.5" | 27.5" |
| A - Seat Tube | 44.6 | 49.1 | 53.4 |
| B - Seat Tube Angle | 73.0 | 73.0 | 73.0 |
| C - Head Tube Length | 16.5 | 19.5 | 23.0 |
| D - Head Angle | 69.5 | 70.0 | 70.5 |
| E - Effective Top tube | 59.5 | 60.7 | 62.2 |
| F - Bottom Bracket Height | 29.5 | 29.5 | 29.5 |
| G - Bottom Bracket Drop | 6.0 | 6.0 | 6.0 |
| H - Chainstay Length | 48.7 | 48.7 | 48.7 |
| I - Offset | 4.4 | 4.4 | 4.4 |
| J -Trail | 9.6 | 9.1 | 7.9 |
| K - Wheelbase | 114.6 | 115.0 | 116.4 |
| L - Standover | 79.5 | 83.7 | 87.9 |
| M - Frame Reach | 40.5 | 40.8 | 41.2 |
| N - Frame Stack | 62.3 | 65.2 | 69.8 |
