Description
TAKE YOUR KID TO THE NEXT LEVEL

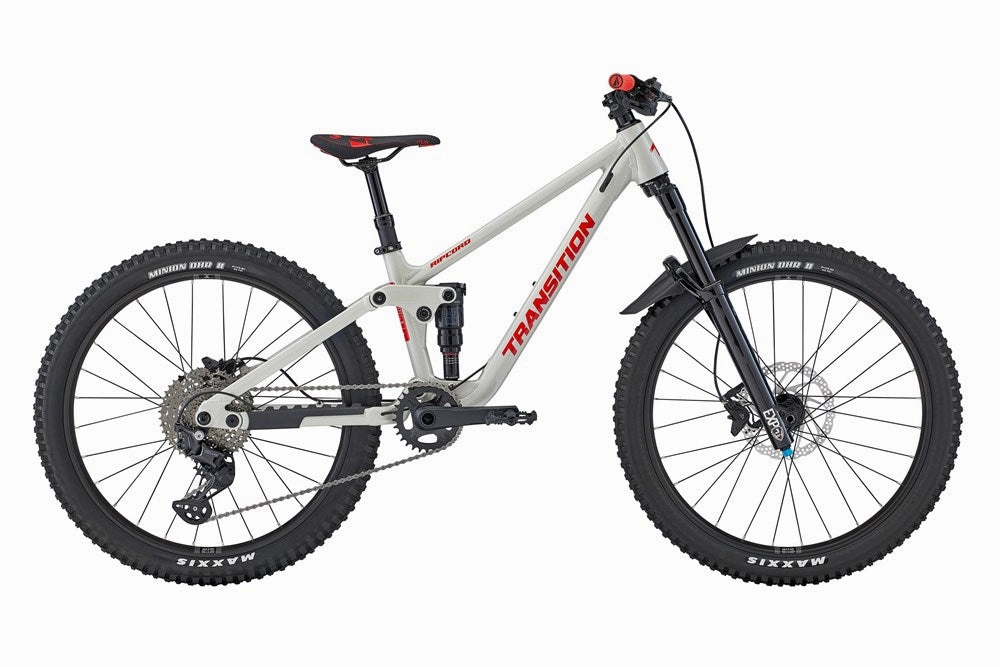

The all-new Ripcord delivers maximum smiles everywhere from the backyard to the bikepark. The Ripcord has been taking kids to the next level for years, and this redesign will surely turn it up to 11. The Ripcord has evolved to share the best features of our adult bikes, utilizing our Giddy Up linkage design and vertical shock layout. With 130mm of travel, riders have more capability and forgiveness in bike parks and for sidewalk kickers alike. The ultra low standover inspires confidence and fits a wider range of riders with a 365mm reach, 65 degree headtube angle, and 395mm chainstays. The new frame has internal dropper post routing and comes equipped with a dropper from the get go. This little ripper is ready to GiddyUp!
Specification
| FRAME | Ripcord Alloy 130mm |
| WHEEL SIZE | 24" |
| REAR SHOCK | RockShox Deluxe Select (165x42.5mm) |
| FORK | Manitou Junit Expert (130mm) |
| HEADSET | FSA No.57E |
| STEM | Trans-X (35mm) |
| HANDLEBAR | SDG Slater JR (600x19mm) |
| GRIPS | SDG Slater JR |
| SADDLE | SDG Fly JR |
| SEATPOST | SDG Tellis Dropper (Youth Specific 75mm) |
| BRAKES | Shimano MT410 Short Reach |
| ROTORS | Shimano RT56 (180/160mm) |
| SHIFTER | Shimano Cues SL-U6050 Short Reach (10sp) |
| DERAILLEUR | Shimano Deore RD-M5130 Short Cage (10sp) |
| CASSETTE | Shimano CS-LG400 Linkglide (11-43t) |
| CHAIN | Shimano CN-LG500 Linkglide |
| CRANK | Samox 2 Piece Alloy (Direct Mount 30t/145mm) |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Straight Gauge |
| HUBS | Sealed Bearing (12x148mm Rear / 15x110mm Front) |
| TIRE/FRONT | Maxxis Minion DHRII (2.3) |
| TIRE/REAR | Maxxis Minion DHRII (2.3) |
| INCLUDED | SDG Slater Jr Pedals Fidlock Twist Bike Base |
Geometry
| A.REACH | 365 | |
| B.STACK | 515 | |
| C.EFFECTIVE TOPTUBE LENGTH | 482 | |
| D.SEATTUBE LENGTH | 315 | |
| E.SEATTUBE ANGLE | 76 | |
| F.HEADTUBE LENGTH | 100 | |
| G.HEADTUBE ANGLE | 65 | |
| H.CHAINSTAY LENGTH | 395 | |
| I.WHEELBASE | 1047 | |
| J.BOTTOM BRACKET DROP | 0 | |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 310 | |
| L.STANDOVER (LOWEST POINT) | 580 | |
| M.STANDOVER (150MM IN FRONT OF BB) | 690 | |
