Description
The Mountain Bikers eMTB

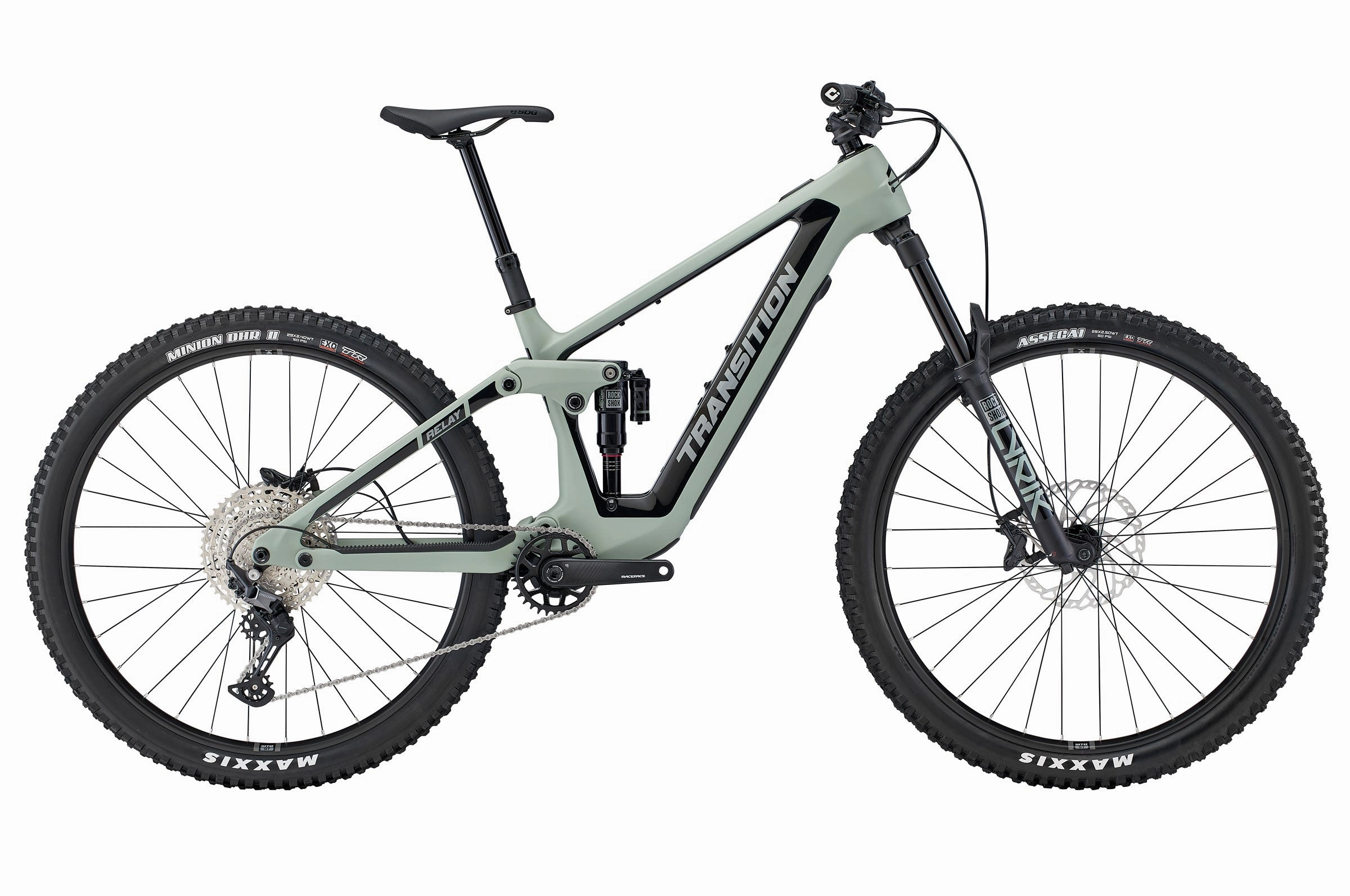

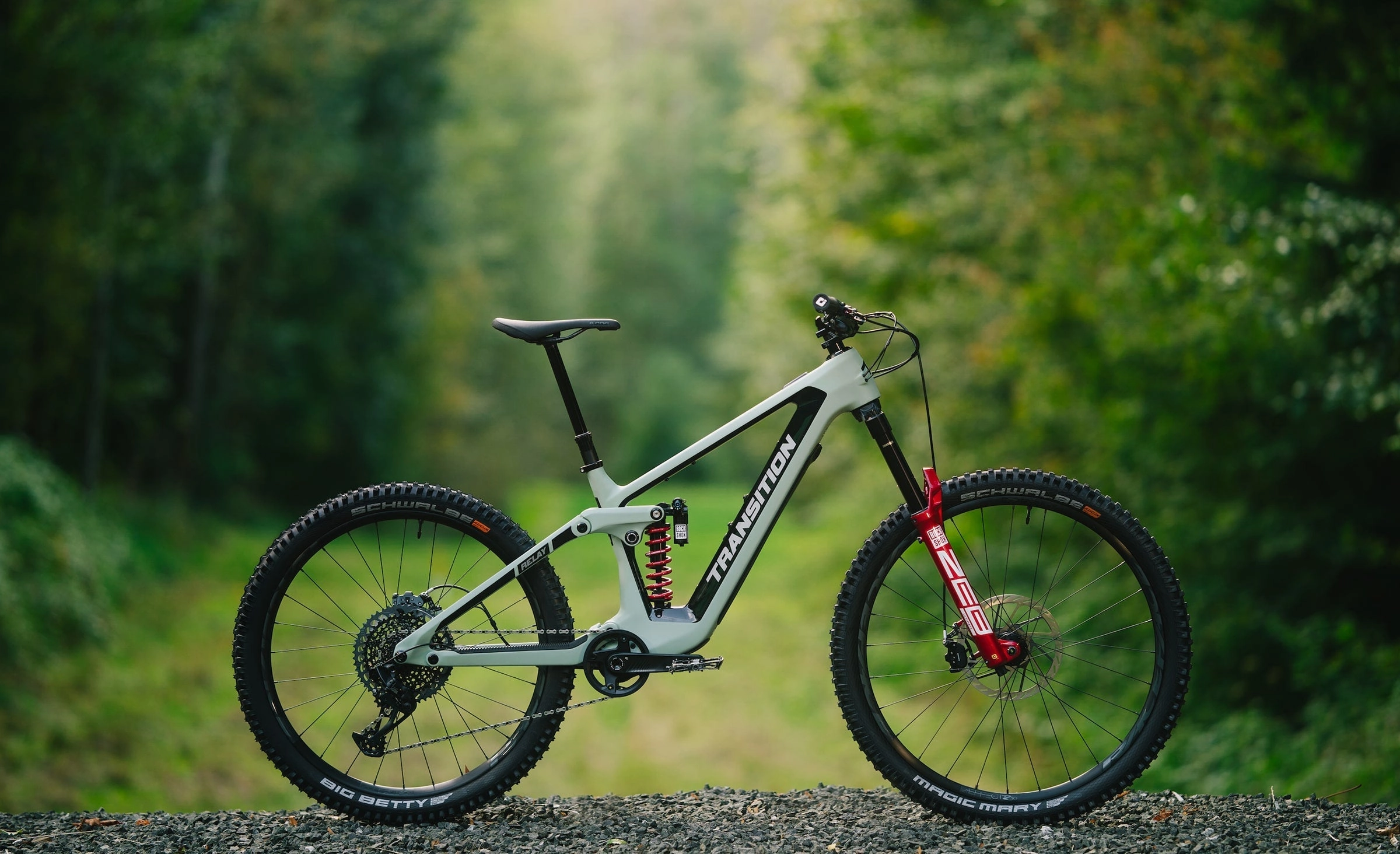

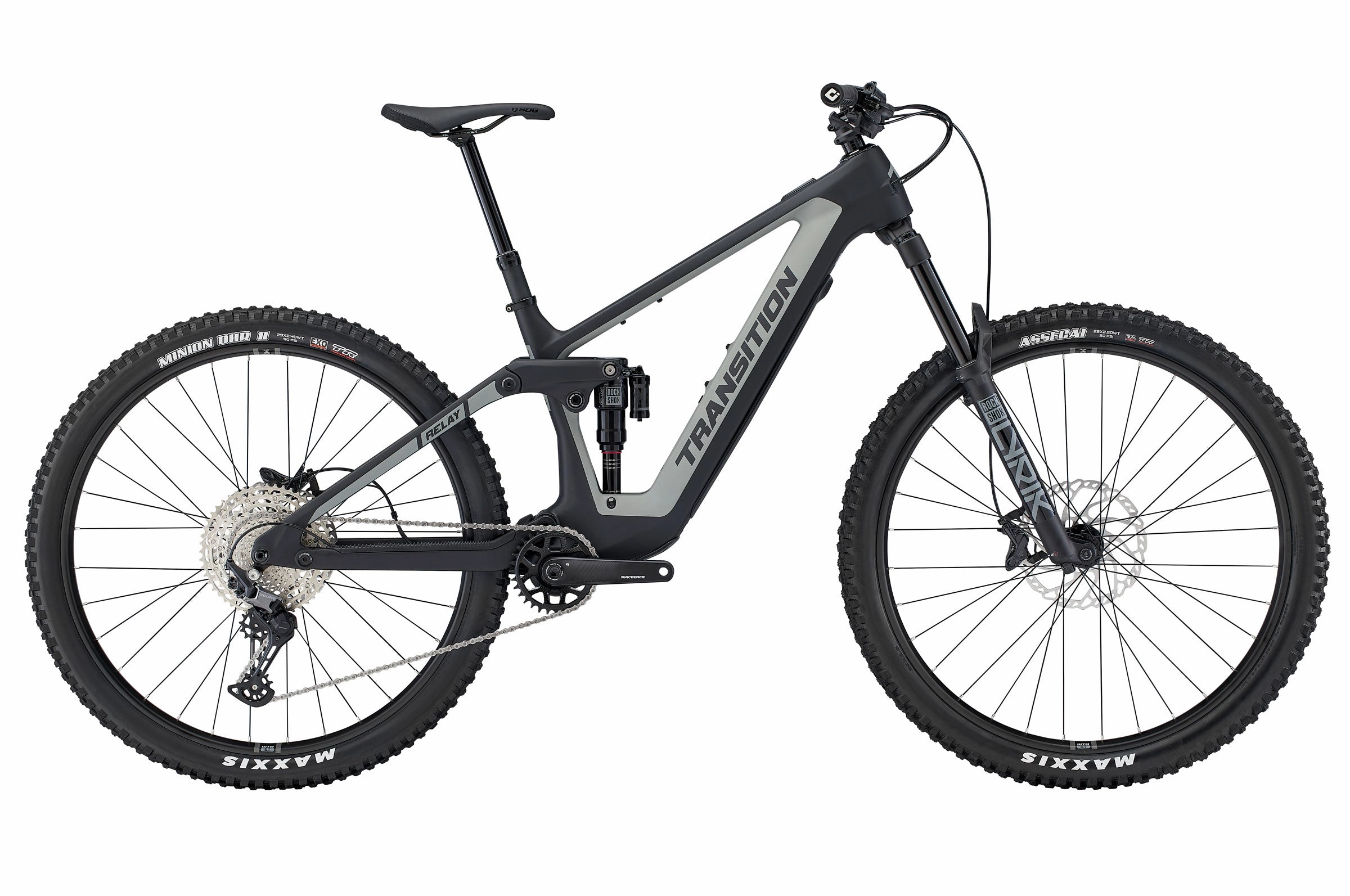

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
Specification
| FRAME | Relay Carbon 160mm | Relay Carbon 160mm |
| WHEEL SIZE | 29" (X-Small 27.5") | 29" (X-Small 27.5") |
| DRIVE UNIT | Fazua Ride 60 | Fazua Ride 60 |
| BATTERY | Fazua Energy 430 Take Out | Fazua Energy 430 Take Out |
| DISPLAY | Fazua Top Tube LED Hub | Fazua Top Tube LED Hub |
| ASSIST SWITCH | Fazua Ring Control | Fazua Ring Control |
| REAR SHOCK | RockShox SuperDeluxe Select (205x60mm) | RockShox Super Deluxe Ultimate (205x60mm) |
| FORK | RockShox Lyrik Base (160mm) | RockShox Lyrik Ultimate (160mm) |
| HEADSET | FSA No.55R | FSA No.55R |
| STEM | RaceFace Aefect R (40mm) | ANVL Swage (40mm) |
| HANDLEBAR | RaceFace Chester 35 XS/SM(780x20mm) MD/LG/XL/XXL(780x35mm) | OneUp Carbon XS/SM(800x20) MD/LG/XL/XXL(800x35) |
| GRIPS | ODI Elite Flow Lock-On | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 | SDG Bel Air 3 LUX |
| SEATPOST | SDG Tellis XS(125mm) SM(150mm) MD(170mm) LG(200mm) XL(230mm) | OneUp Dropper Post XS(120mm) SM(150mm) MD(190mm) LG(210mm) XL/XXL(240mm) |
| BRAKES | Shimano Deore M6120 4 Piston | SRAM Maven Silver |
| ROTORS | Shimano RT66 (203mm) | SRAM HS2 (200mm) |
| SHIFTER | Shimano Deore M6100 iSpec EV | SRAM POD Ultimate Bridge MMX |
| DERAILLEUR | Shimano Deore M6100 SGS 12sp | SRAM XO AXS Eagle Transmission |
| CASSETTE | Shimano Deore M6100 (10-51t) | SRAM XS 1295 T-Type (10-52t) |
| CHAIN | Shimano Deore M6100 | SRAM XO Eagle Transmission |
| CRANK | RaceFace Aeffect ETOR (165mm, X-Small 160mm) | RaceFace Era Carbon ETOR (165mm, X-Small 160mm) |
| CHAINRING | E*Thirteen Helix Race Direct Mount (32t) | SRAM XX Direct Mount (32t) |
| RIMS | WTB ST i30 | DT Swiss XM 481 |
| SPOKES | Pillar Double Butted | DT Swiss Competition |
| HUBS | Novatec D791SB-B15/D902SB-B12 | DT Swiss 350 Classic DEG |
| TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) | Maxxis Assegai 3C EXO (2.5) |
| TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) | Maxxis Minion DHRII 3C EXO (2.4) |
| INCLUDED | Fazua Charger, Tubeless Valves & Sealant | Fazua Charger, SRAM AXS Battery Charger Tubeless Valves & Sealant |
| WEIGHT | TBD | TBD |
Geometry
| XS | SM | MD | LG | XL | 2XL | |||
| A.REACH | 410/405 | 430/422 | 460/452 | 485/477 | 510/502 | 535/527 | ||
| B.STACK (CARBON) | 590/588 | 615/615 | 628/634 | 637/643 | 646/652 | 655/661 | ||
| B.STACK (ALLOY) | 595/593 | 620/620 | 628/634 | 637/643 | 646/652 | 655/661 | ||
| C.EFFECTIVE TT LENGTH | 523/532 | 553/564 | 586/597 | 614/631 | 642/665 | 671/696 | ||
| D.SEAT TUBE LENGTH (CARBON) | 380 | 390 | 410 | 430 | 460 | 490 | ||
| D.SEAT TUBE LENGTH (ALLOY) | 410 | 410 | 410 | 430 | 460 | 490 | ||
| E.EFFECTIVE ST ANGLE | 79.7/79.3 | 79.1/78.4 | 78.4/77.7 | 77.8/77.1 | 77.3/76.6 | 77/76.3 | ||
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 560 | 600 | 660 | 720 | 780 | 820 | ||
| ACTUAL ST ANGLE | 71/70.6 | 71/70.3 | 71/70.3 | 71/70.3 | 71/70.3 | 71/70.4 | ||
| SEAT TUBE OFFSET AT BB | 90 | 90 | 90 | 90 | 90 | 90 | ||
| F.HEAD TUBE LENGTH (CARBON) | 100 | 100 | 115 | 125 | 135 | 145 | ||
| F.HEAD TUBE LENGTH (ALLOY) | 105 | 105 | 115 | 125 | 135 | 145 | ||
| G.HEAD TUBE ANGLE | 64/63.6 | 64/63.3 | 64/63.3 | 64/63.3 | 64/63.4 | 64/63.4 | ||
| H.CHAINSTAY LENGTH | 436 | 442/440 | 442/440 | 448/446 | 448/446 | 448/446 | ||
| I.WHEELBASE | 1167/1172 | 1208/1211 | 1244/1247 | 1280/1282 | 1309/1312 | 1338/1341 | ||
| J.BOTTOM BRACKET DROP | 15/11 | 25 | 25 | 25 | 25 | 25 | ||
| K.ESTIMATED BB HEIGHT | 340/343 | 350 | 350 | 350 | 350 | 350 | ||
