Description
The Purebred Party Animal

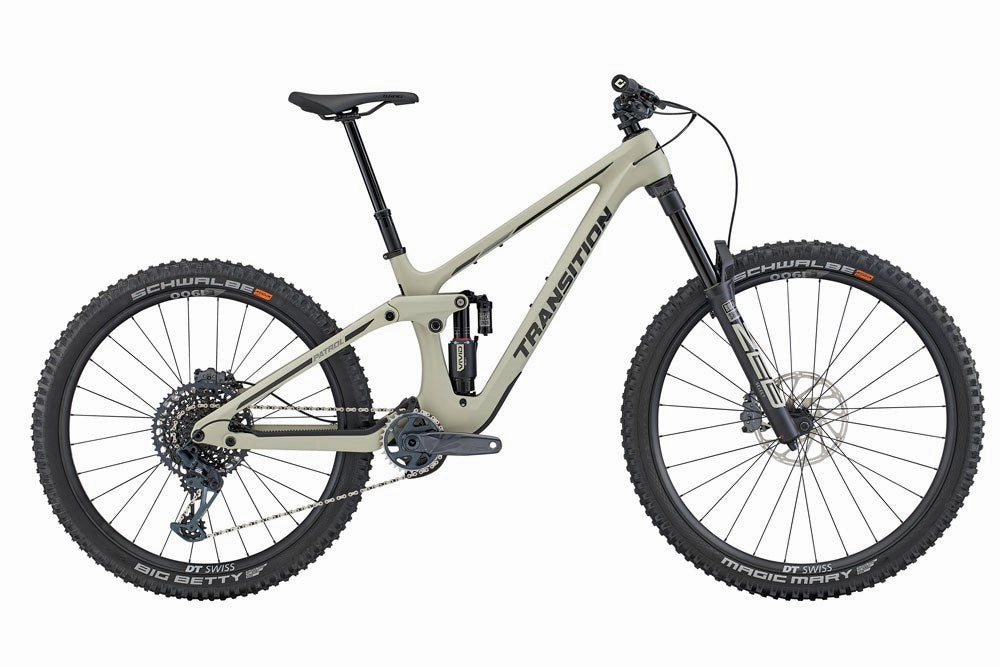

The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Specification
| FRAME | Patrol Carbon 160mm |
| WHEEL SIZE | Mixed |
| REAR SHOCK | RockShox Vivid Select (205x60mm) |
| FORK | RockShox ZEB Select (160mm) |
| HEADSET | FSA NO.55R/57 |
| STEM | ANVL Swage (40mm) |
| HANDLEBAR | ANVL Mandrel Alloy 35 SM(800x20mm) MD(800x30mm) LG/XL(800x40mm) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | OneUp Dropper Post SM(150mm) MD(180mm) LG/XL(210mm) |
| BRAKES | SRAM Maven Bronze |
| ROTORS | SRAM Centerline (200mm) |
| SHIFTER | SRAM GX Eagle |
| DERAILLEUR | SRAM GX Eagle |
| CASSETTE | SRAM XG 1275 (10-52t) |
| CHAIN | SRAM GX Eagle |
| CRANK | SRAM GX Alloy DUB (32t/165mm) |
| CHAINGUIDE | OneUp Bash Guide |
| RIMS | RaceFace Aeffect R |
| SPOKES | RaceFace 2.0/1.7/2.0 |
| HUBS | RaceFace Trace 28H |
| TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft (2.4) |
| TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft (2.4) |
| INCLUDED | Tubeless Valves & Sealant |
| WEIGHT | TBD |
Geometry
| SM | MD | LG | XL | |
| REACH | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 |
| STACK | 623 / 628 | 623 /628 | 632 / 637 | 641 / 646 |
| EFFECTIVE TT LENGTH | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 |
| SEAT TUBE LENGTH | 360 | 390 | 430 | 460 |
| EFFECTIVE ST ANGLE | 79.6 / 79.1 | 78.8 / 78.3 | 78.1 / 77.6 | 77.5 / 77 |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 |
| ACTUAL ST ANGLE | 70.5 / 70 | 70.5 / 70 | 70.5 / 70 | 70.5 / 70 |
| SEAT TUBE OFFSET AT BB | 100 | 100 | 100 | 100 |
| HEAD TUBE LENGTH | 100 | 100 | 110 | 120 |
| HEAD TUBE ANGLE | 63.5 / 63 | 63.5 / 63 | 63.5 / 63 | 63.5 / 63 |
| CHAINSTAY LENGTH | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 |
| WHEELBASE | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 |
| BOTTOM BRACKET DROP | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 |
| ESTIMATED BB HEIGHT | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 |
| STAND OVER HEIGHT | 675 / 685 | 690 / 700 | 705 / 715 | 720 / 730 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
