Description
A real mountain bike to fuel the imagination

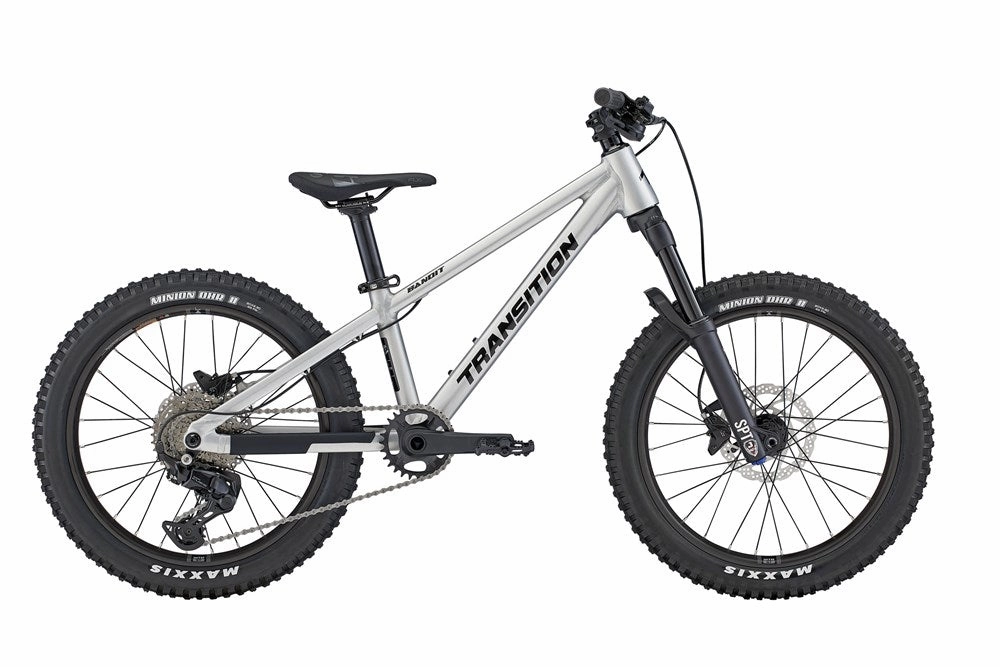

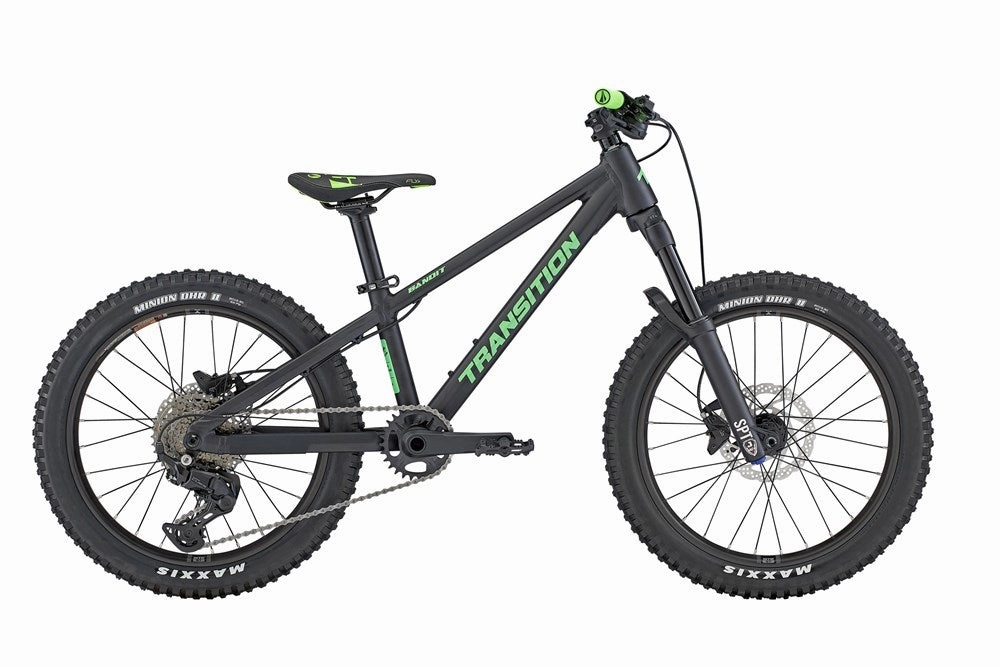

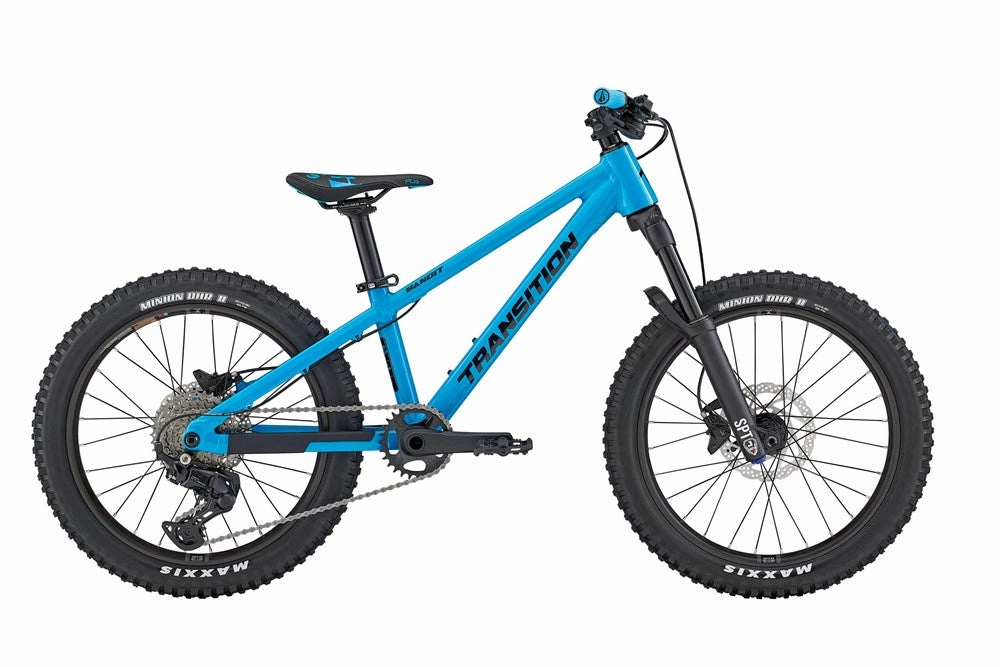

Take their love for riding to the next level on the all new Bandit
Kids are progressing faster and younger than ever, so we designed the Bandit with geometry that provides stability and confidence, while being intuitive and easy to ride. With 20 wheels, a 100mm travel fork, and a carefully selected mix of youth-specific components, we've ensured that everything on this bike is tailored to give the rider a bike that truly fits their size, weight, and use. The result is an accessible yet high-performance bike that both kids and parents will be excited about.
Specification
| FRAME | Bandit Alloy |
| WHEEL SIZE | 20" |
| FORK | Manitou Junit Sport (100mm) |
| HEADSET | FSA No.57E |
| STEM | Trans-X (35mm) |
| HANDLEBAR | SDG Slater JR (600x19mm) |
| GRIPS | SDG Slater JR |
| SADDLE | SDG Fly JR |
| SEATPOST | Trans-X SP66 |
| BRAKES | Shimano MT410 Short Reach |
| ROTORS | Shimano RT56 (160mm) |
| SHIFTER | Shimano Cues SL-U4050 Short Reach (9sp) |
| DERAILLEUR | Shimano Cues RD-U4000 (9sp) |
| CASSETTE | Shimano CS-LG400 Linkglide (11-36t) |
| CHAIN | Shimano CN-LG500 Linkglide |
| CRANK | Samox 2 Piece Alloy (Direct Mount 28t/135mm) |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Straight Gauge |
| HUBS | Sealed Bearing (12x148mm Rear / 15x110mm Front) |
| TIRE/FRONT | Maxxis Minion DHRII (2.3) |
| TIRE/REAR | Maxxis Minion DHRII (2.3) |
| INCLUDED | SDG Slater Jr Pedals, Fidlock Twist Bike Base |
Geometry
| A.REACH | 310 | |
| B.STACK | 457 | |
| C.EFFECTIVE TOPTUBE LENGTH | 433 | |
| D.SEATTUBE LENGTH | 260 | |
| E.SEATTUBE ANGLE | 75 | |
| F.HEADTUBE LENGTH | 100 | |
| G.HEADTUBE ANGLE | 66 | |
| H.CHAINSTAY LENGTH | 350 | |
| I.WHEELBASE | 905 | |
| J.BOTTOM BRACKET DROP | 5 | |
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 255 | |
| L.STANDOVER (LOWEST POINT) | 485 | |
| M.STANDOVER (125mm IN FRONT OF BB) | 585 | |
