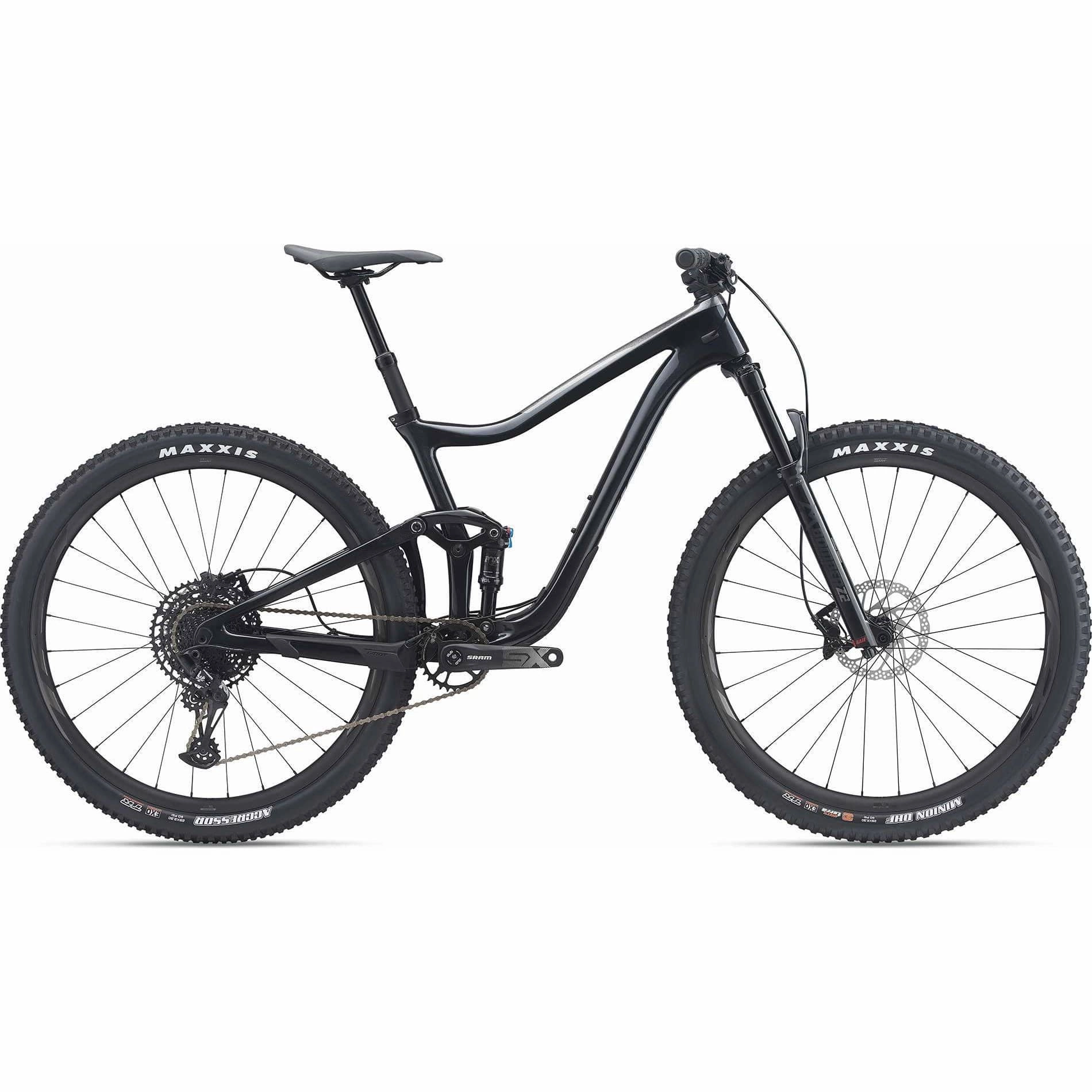

Amp up your trail-riding speed with this lively 29er that climbs, descends and rails rugged singletrack. With its lightweight composite frameset and progressive frame geometry, it delivers smooth-riding confidence on the trickiest terrain.
This new member of the Trance family is designed with a longer travel suspension setup for added control on the most challenging trails. The full composite frame is engineered The Trance Advanced Pro 29 features a full composite frame thats fitted with our most up-to-date Maestro suspension. The Advanced Forged composite rocker arm and trunnion-mount shock help produce 115mm of smooth rear-wheel travel thats active and sensitive to small bumps, giving you killer traction and confident control. And the frame geometry is updated with progressive headtube and seattube angles, shorter chainstays and a longer toptubeall engineered to balance the speed and control of its 29-inch wheels with the quickness and agility you need to rail corners, hammer through rock gardens and do it all with confidence and control.
KEY PERFORMANCE FACTORS
29er confidence and control
Larger 29-inch diameter wheels roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.
Progressive Suspension
Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 115mm of full rear-wheel travel (and 130mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Trail-tuned chassis
The lightweight Advanced-grade composite frameset features fast trail-riding geometry including an aggressive 66.5-degree headtube angle and 74.5-degree seattube angle, plus a 44mm fork offset. The result is agile and efficient climbing capabilities plus added control for high-speed descents.
Specifications
| Sizes | S, M, L, XL |
|---|---|
| Colors | Metallic Black/Glitter Gray/Chrome |
| Frame | Advanced-Grade Composite front and rear triangles, 115mm Maestro suspension |
| Fork | Marzocchi Z2, 130mm, GRIP damper, Boost 15x110 QR, 44mm offset, custom tuned for Giant |
| Shock | Fox Float DPS Performance, 165/42.5, custom tuned for Giant |
| Handlebar | Giant Contact TR35, 780x35mm, 20mm rise |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch dropper with remote, 30.9 |
| Saddle | Giant Romero SL, SST rails |
| Pedals | N/A |
| Shifters | SRAM SX Eagle |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM SX Eagle |
| Brakes | Shimano MT400 hydraulic 4-piston, 180mm |
| Brake Levers | Shimano MT401 |
| Cassette | SRAM SX Eagle, 12-speed, 11x50 |
| Chain | SRAM SX Eagle |
|---|---|
| Crankset | SRAM SX Eagle, DUB, 30t |
| Bottom Bracket | SRAM, press fit |
| Rims | Giant TR-1 29 alloy WheelSystem |
| Hubs | [F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF, tubeless, 29x2.3, 3C, EXO, TR [R] Maxxis Aggressor, tubeless, 29x2.3, 3C, EXO, TR |
| Extras | Tubeless prepared |
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| SEAT TUBE LENGTH(inch) | 15 | 17 | 18.3 | 19.5 | |
| SEAT TUBE ANGLE | 74.5 | 74.5 | 74.5 | 74.5 | |
| TOP TUBE LENGTH(inch) | 23.3 | 24.1 | 24.9 | 25.7 | |
| HEAD TUBE LENGTH(inch) | 3.7 | 4.3 | 4.3 | 4.7 | |
| HEAD TUBE ANGLE | 66.5 | 66.5 | 66.5 | 66.5 | |
| FORK RAKE(inch) | 1.7 | 1.7 | 1.7 | 1.7 | |
| TRAIL(inch) | 4.6 | 4.6 | 4.6 | 4.6 | |
| WHEELBASE(inch) | 45.4 | 46.3 | 47.1 | 48 | |
| CHAIN STAY LENGTH(inch) | 17.1 | 17.1 | 17.1 | 17.1 | |
| BOTTOM BRACKET DROP(inch) | 1.4 | 1.4 | 1.4 | 1.4 | |
| STACK(inch) | 23.6 | 24.1 | 24.1 | 24.5 | |
| REACH(inch) | 16.8 | 17.4 | 18.2 | 18.9 | |
| STAND OVER HEIGHT(inch) | 27.9 | 29.1 | 30 | 30.9 | |
| HANDLEBAR WIDTH(inch) | 30.7 | 30.7 | 30.7 | 30.7 | |
| STEM LENGTH(inch) | 1.6 | 1.6 | 2 | 2.4 | |
| CRANK LENGTH(inch) | 6.5 | 6.7 | 6.7 | 6.7 | |
| WHEEL SIZE | 29" | 29" | 29" | 29" |
