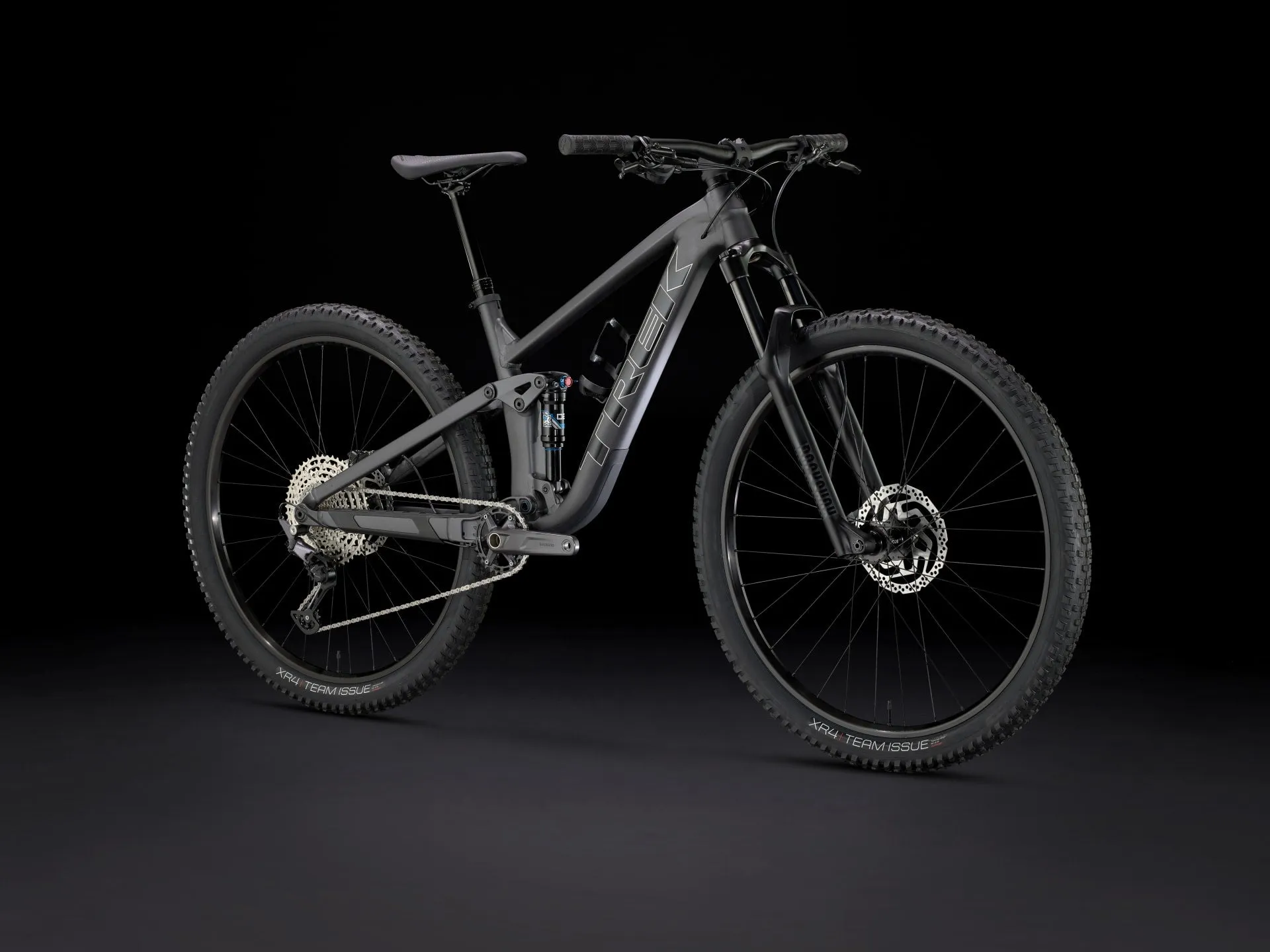

The Top Fuel 5 is a full-suspension mountain bike thats equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full-suspension trail bike.
It's right for you if...
Youve fallen in love with mountain biking, and are ready for the confidence, traction and capability of a full-suspension bike. Youre looking for a rugged frame and solid parts spec that pack performance without breaking the bank.
The tech you get
A lightweight aluminium frame with internal storage, 130 mm RockShox Recon Silver RL fork, 120 mm of rear travel with an X-Fusion Pro 2 shock and a wide-range 1x12 Shimano Deore drivetrain. Plus, tubeless-ready rims, hydraulic disc brakes and a dropper post.
The final word
A solid full suspension bike at a wallet-friendly price. The best-value bike in the Top Fuel line-up is made for having a blast going fast on just about any trail.
The Walkthrough
Why you'll love it
- This bikes killer suspension set-up is both efficient and ready to party

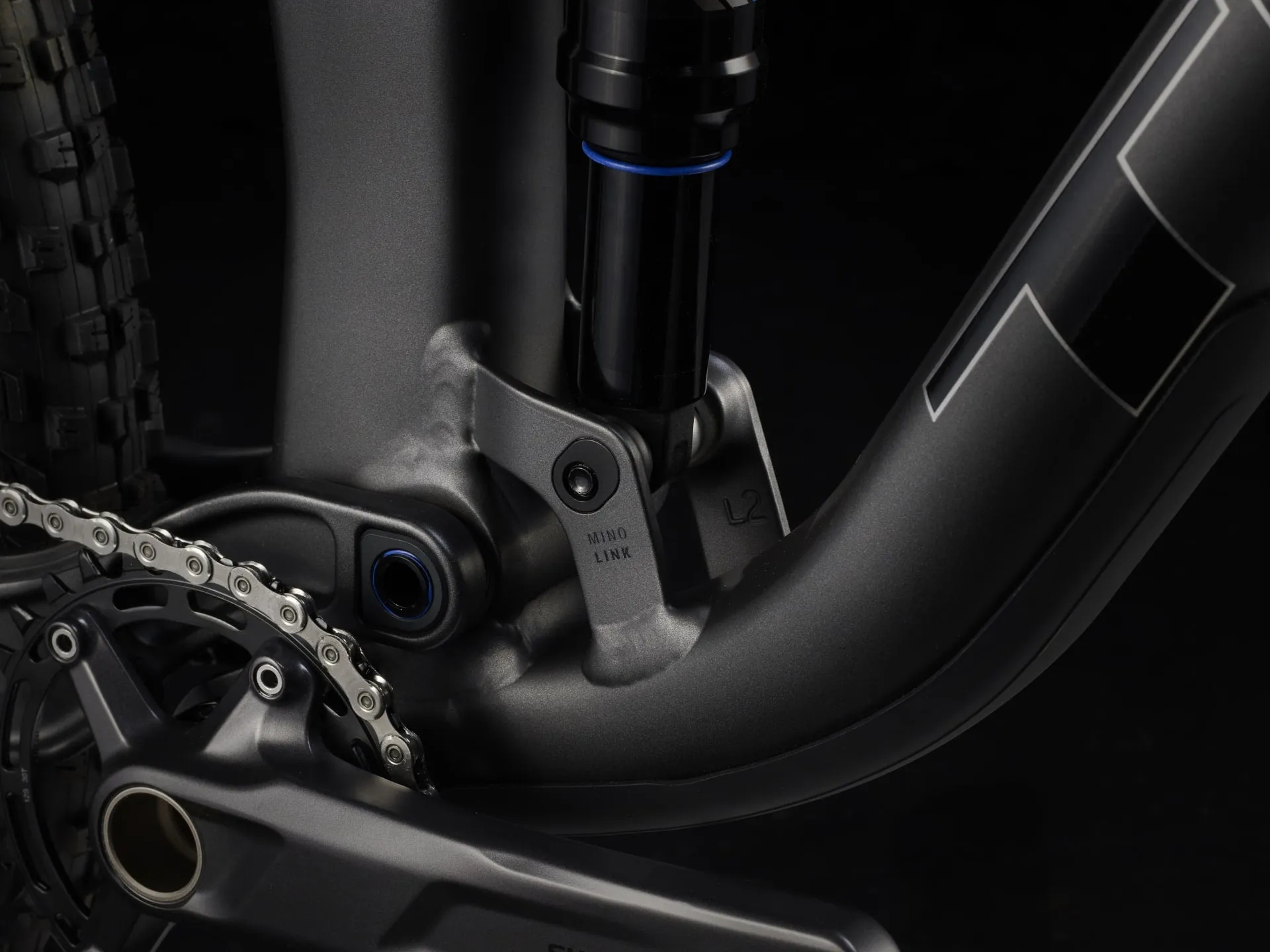

- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride

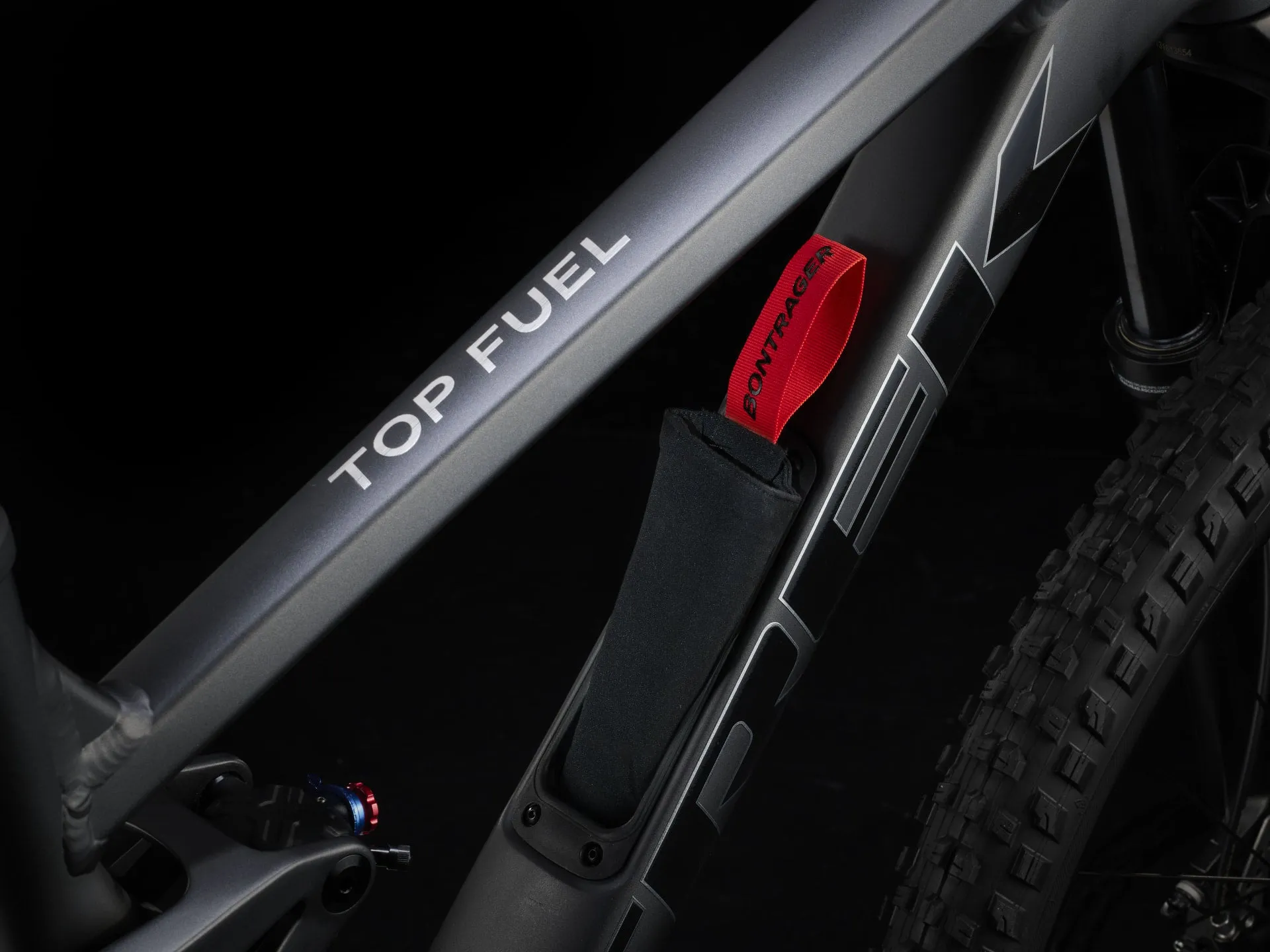

- A sleek internal storage compartment gives you a versatile spot to stow tools and gear

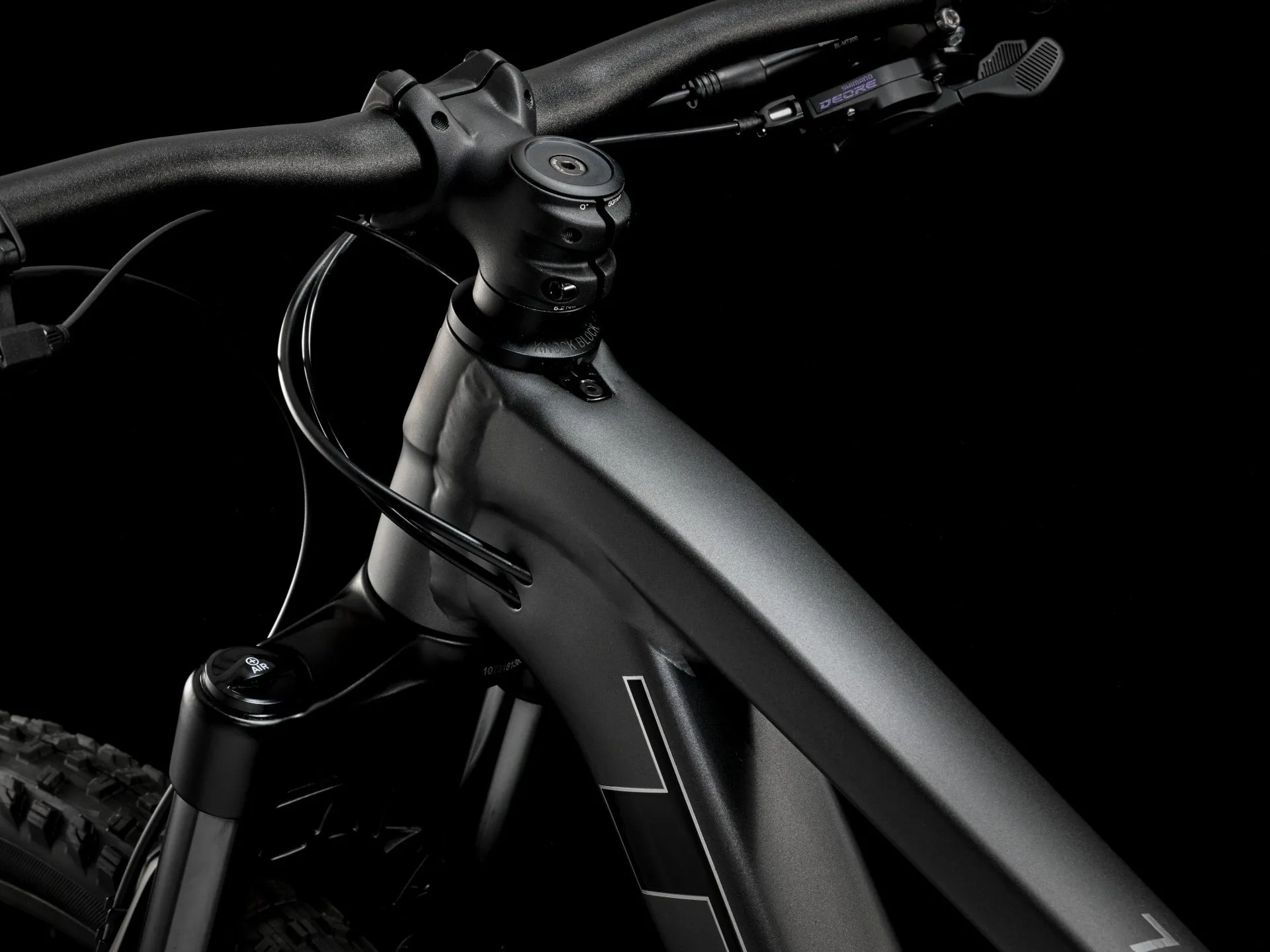

- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
*Please note spec applies to all sizes unless listed separately
| Frame | Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel |

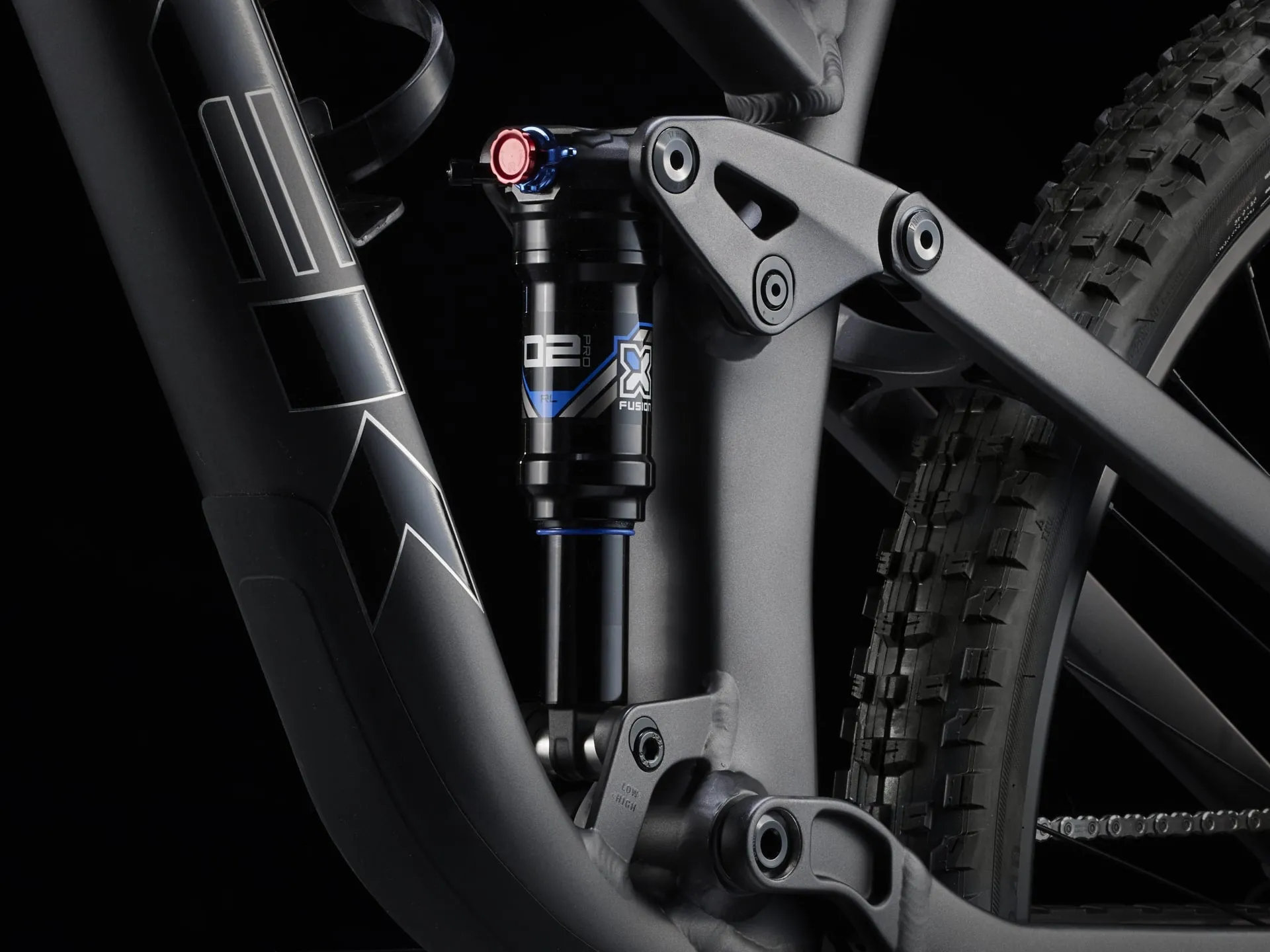

| Shock | X-Fusion Pro 2, 2-position damper, 185 mm x 50 mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15mm thru-axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | |
| Tyre | |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|

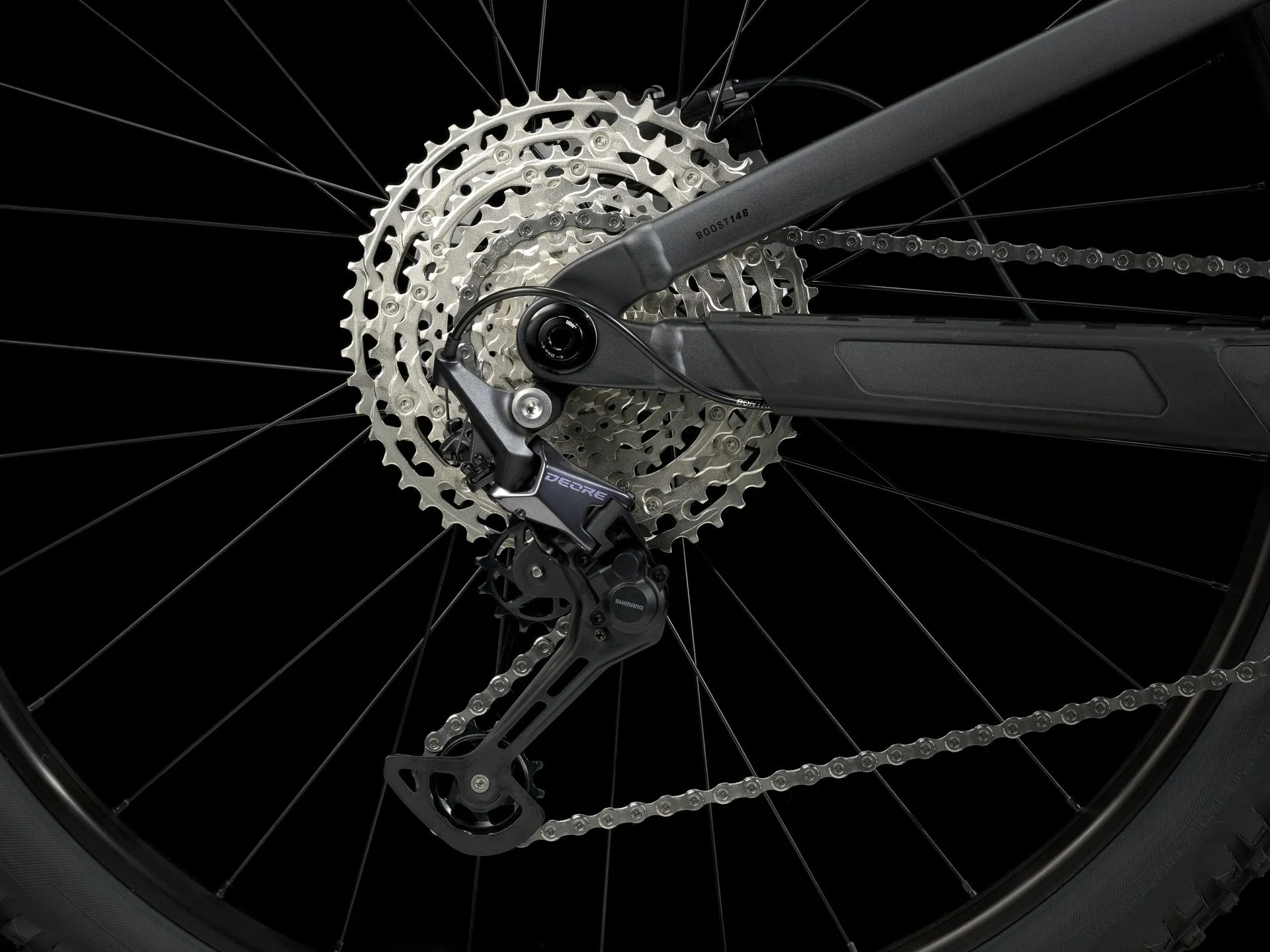

| Rear derailleur | Shimano Deore M6100, long cage |

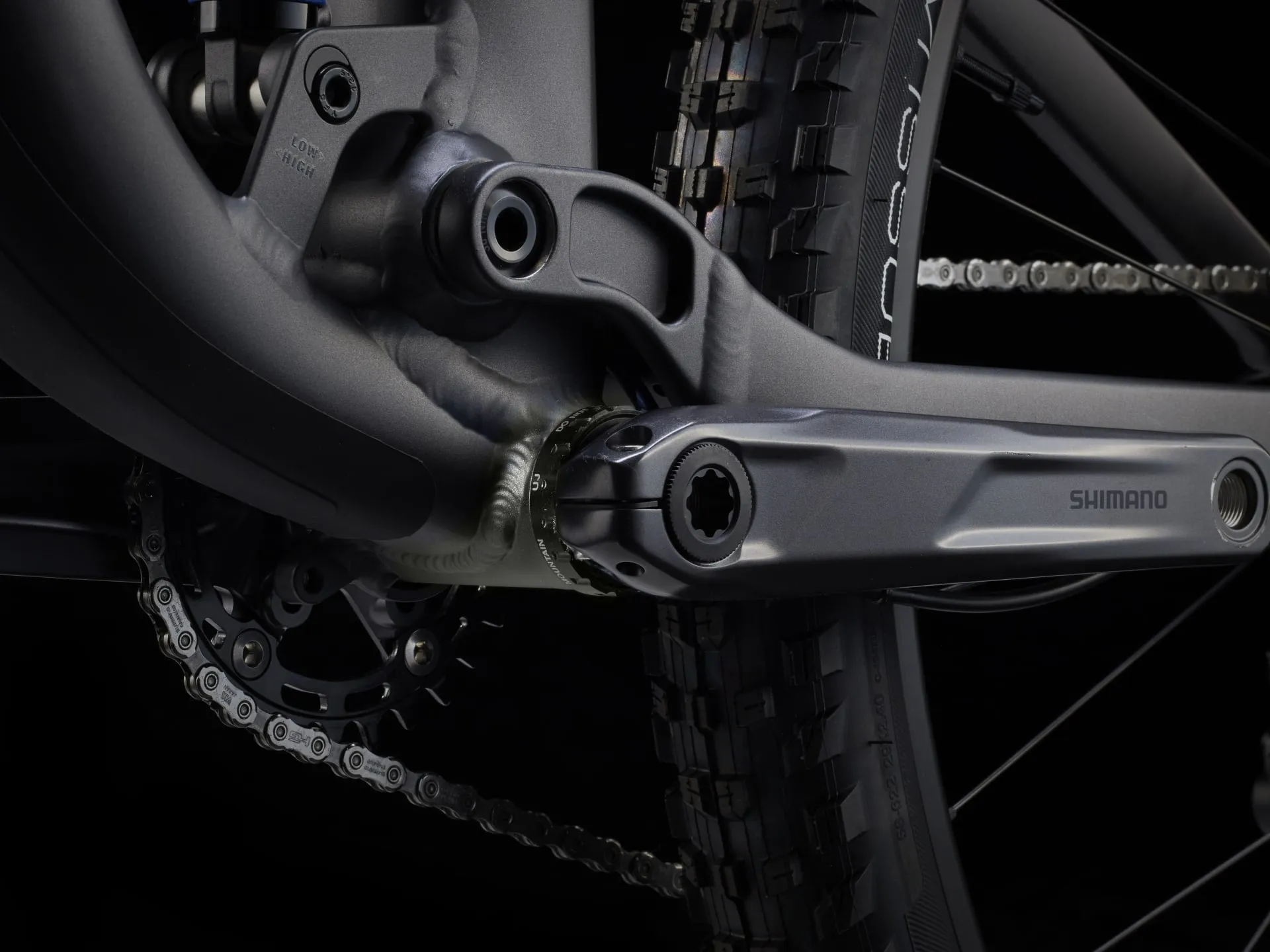

| Crank | Shimano MT512, 30T ring, 55 mm chain line, 170 mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 36T round, 34T oval, min 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size:S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
| Size:M, ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length | |
| Size:L, XL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length | |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | |
| Stem | |
| Head set | |

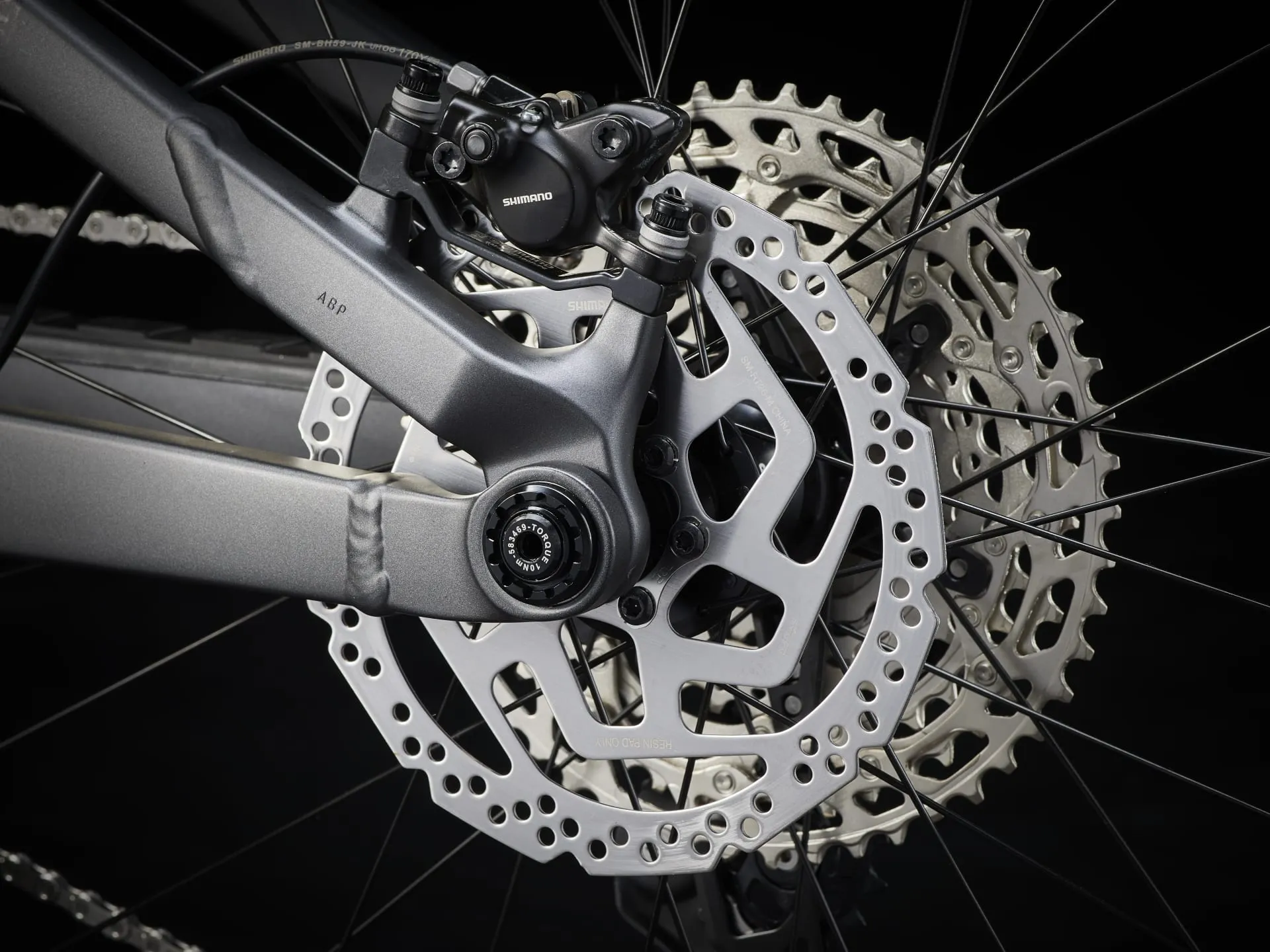

| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano RT26, 6-bolt,180 mm |
| Rotor size | Max brake rotor sizes Frame: 180 mm, Fork: see fork manufacturer |
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
| Weight | M - 15.60 kg/34.4 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
