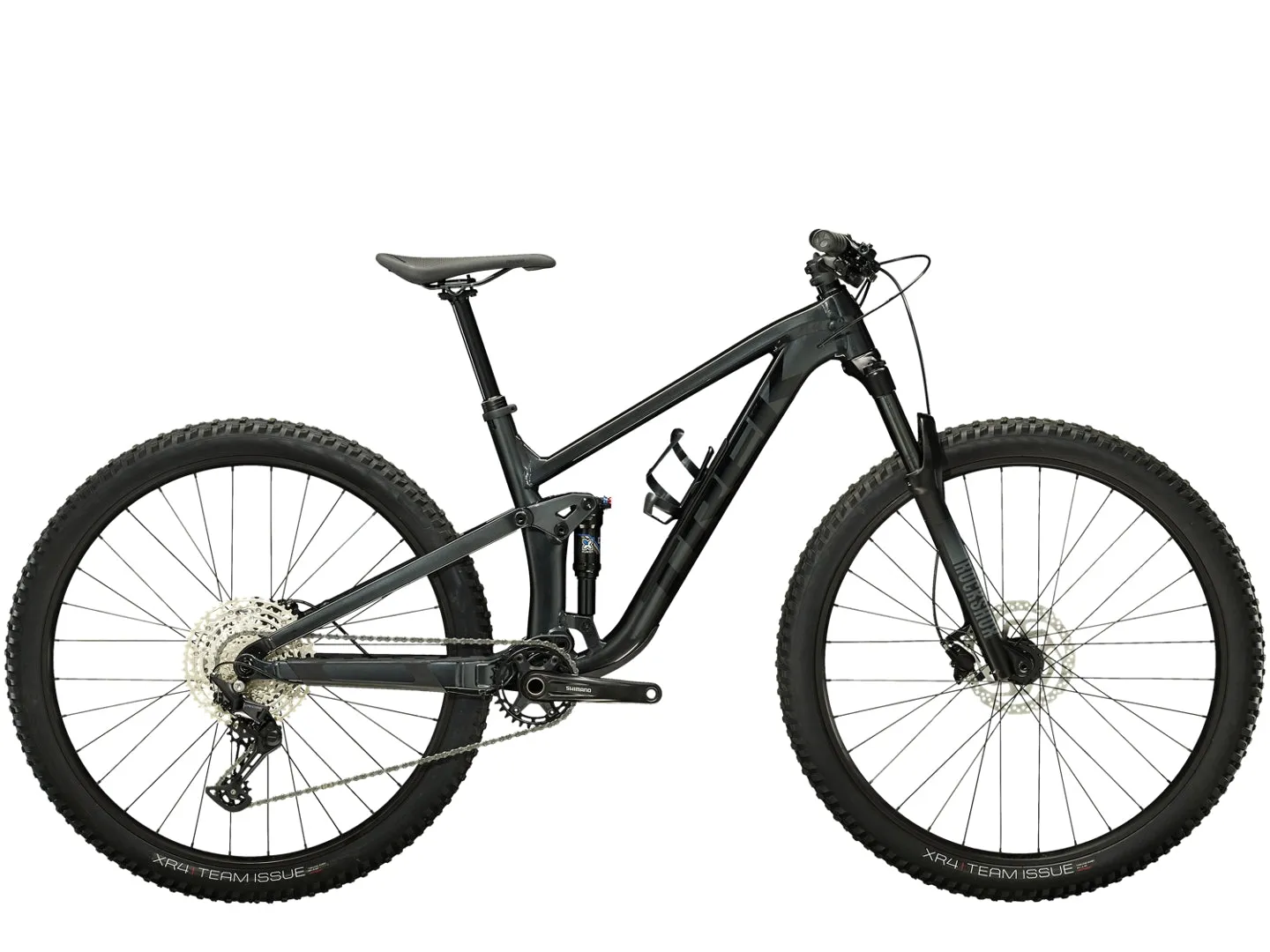

The Top Fuel 5 is a full-suspension mountain bike thats equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full-suspension trail bike.
It's right for you if...
Youve fallen in love with mountain biking, and are ready for the confidence, traction and capability of a full-suspension bike. Youre looking for a rugged frame and solid parts spec that pack performance without breaking the bank.
The tech you get
A lightweight aluminium frame with internal storage, 120 mm RockShox Recon fork, 120 mm of rear travel with an X-Fusion Pro 2 shock and a wide-range 1x12 Shimano Deore drivetrain. Plus, tubeless-ready rims, hydraulic disc brakes and a dropper post.
The final word
A solid full suspension bike at a wallet-friendly price. The best-value bike in the Top Fuel line-up is made for having a blast going fast on just about any trail.
The Walkthrough
favorite_borderWhy you'll love it
- This bikes killer suspension set-up isboth efficient and ready to party
- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride

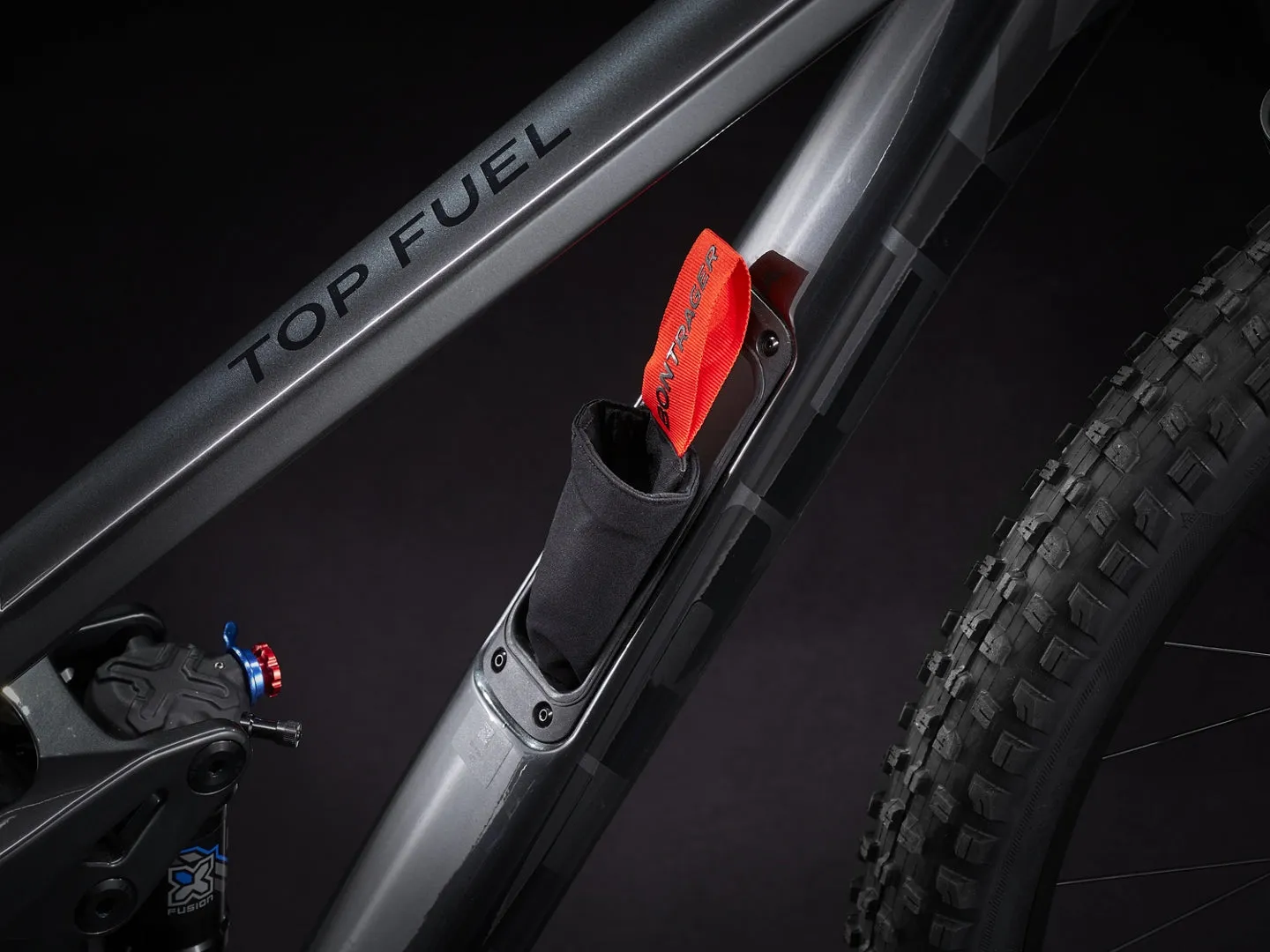

- A sleek internal storage compartment gives you a versatile spot to stow tools and gear

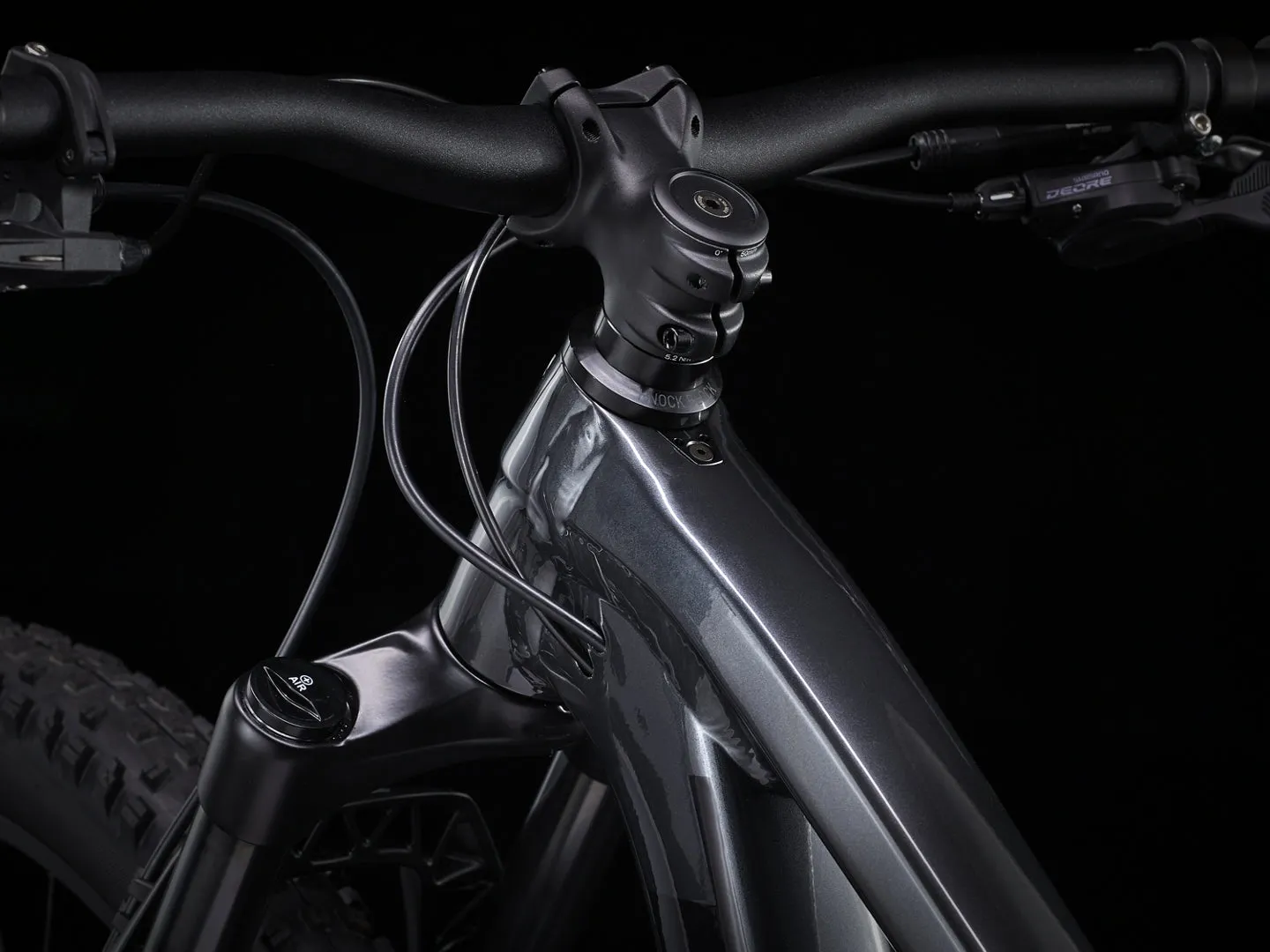

- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
Specifications
*spec applies to all sizes unless otherwise noted
| Frame | Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |

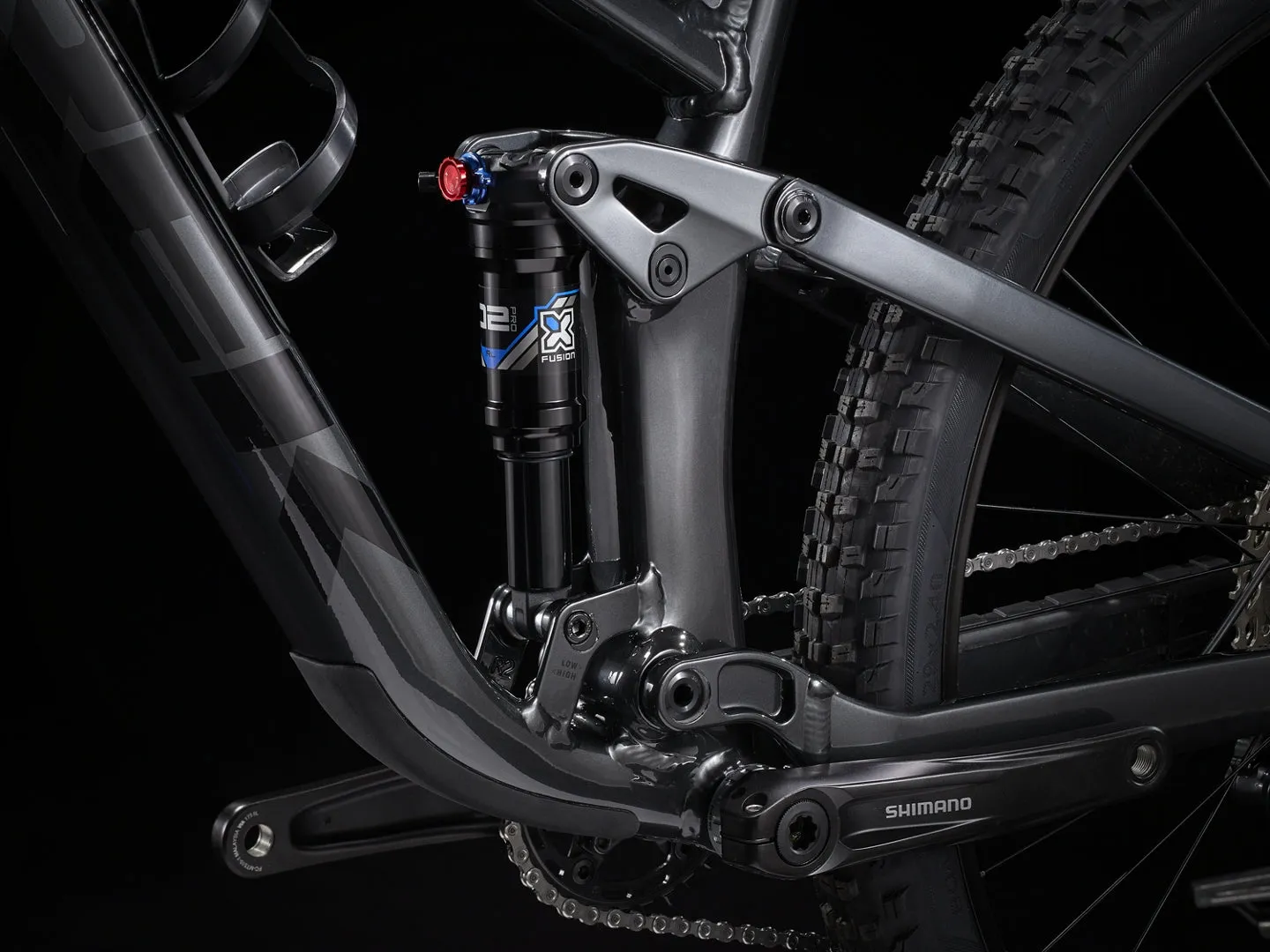

| Shock | X-Fusion Pro 2, 2-position damper, 185 mm x 50 mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15mm thru-axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle |
| Skewer rear | |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
| *Tyre | Size: S, M, M/L, L, XL Bontrager XT3 Expert, wire bead, 60 tpi, 29x2.40" |
| Size: S, M, M/L, L, XL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40" | |
| *Tyre part | Size: S, M, M/L, L, XL Bontrager TLR sealant, 180 ml/6 oz |
| Size: S, M, M/L, L, XL Bontrager TLR valve, 50mm | |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.5" Fork: see manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|

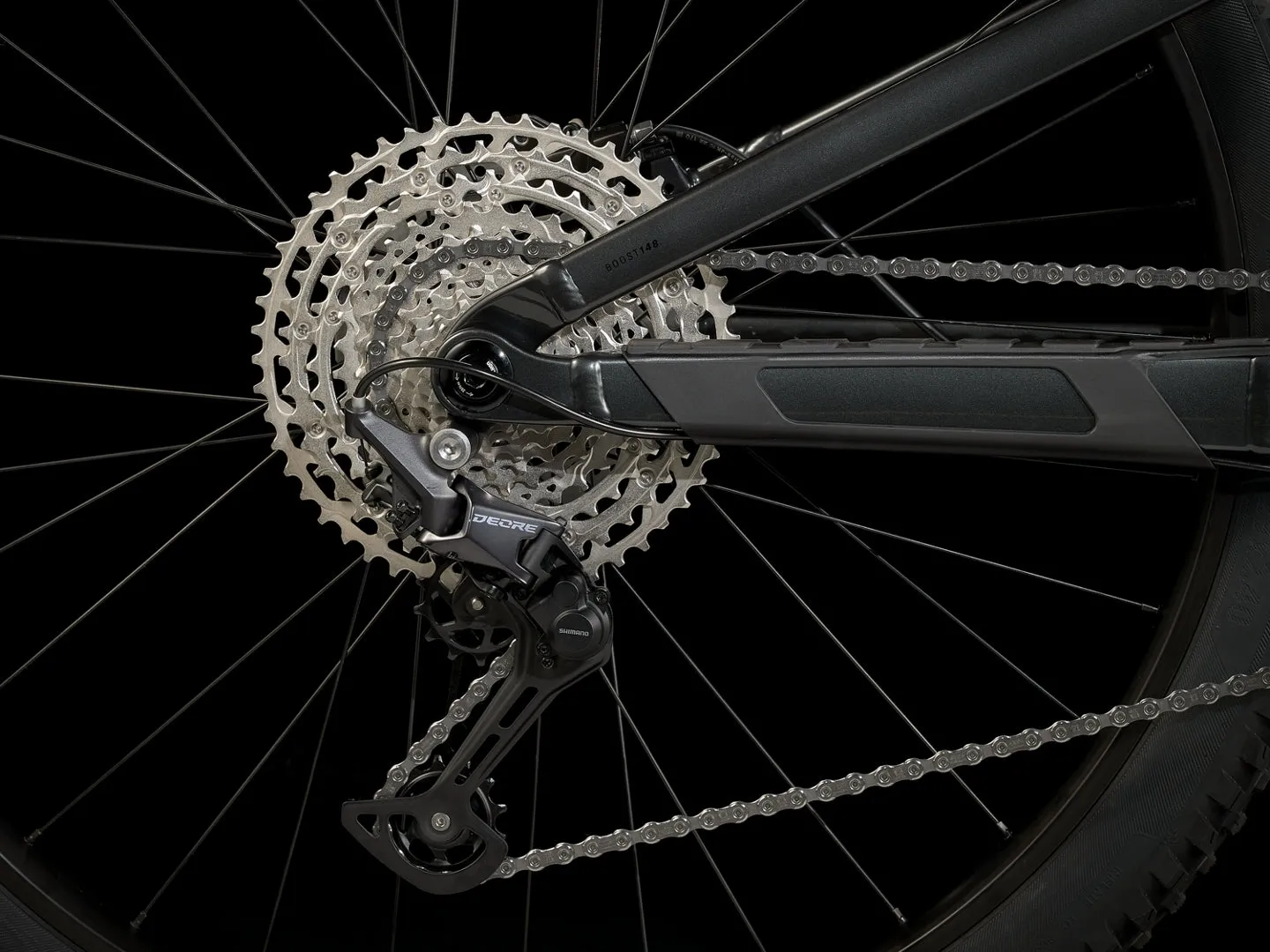

| Rear derailleur | Shimano Deore M6100, long cage |
| *Crank | Size: S, M, M/L, L Shimano MT512, 30T ring, 55 mm chain line, 170 mm length |
| Size: XL Shimano MT512, 30T ring, 55 mm chain line, 175 mm length | |
| Bottom bracket | Shimano SM-BB52, 73 mm, threaded external bearing |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | Max: 36T (oval - 34T) Min: 28T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
| Size: M, M/L TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length | |
| Size: L, XL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length | |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | |
| Stem | |
| Head set | |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: S, M, M/L, L, XL Shimano RT26, 6-bolt,180 mm |
| Size: S, M, M/L, L, XL Shimano RT26, 6-bolt,160 mm |
| Bag |
|---|
| Weight | M - 15.52 kg / 34.22 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing & Tech
Proper bike fit is essential for best performance and comfort. Any size and geometry measurements shown on trekbikes.com are for general comparison purposes only. To find your perfect fit, visit an authorised retailer, where an expert skilled at sizing will help you find the appropriate bike and size for your individual needs.
