FRAMESET

FRAME
ROGUE 27.5" LADIES SPECIFIC 6061 Aluminium FRAME
MODERN GEOMETRY / MACHINE FORMED TUBING / STANDARD 135mm QR 9mm REAR AXLE / DISC ONLY

SIZE
XS-S-M

SUSPENSION
FORK
TRC 565D 27.5" COIL 100mm
27.5/ 100mm / COIL SPRING / 25.4mm STANCHIONS /ALLOY LOWER LEG 9mm QR / MECHANICAL LOCKOUT

FORK FENDER
N/A

REAR SHOCK
N/A
N/A

DRIVETRAIN

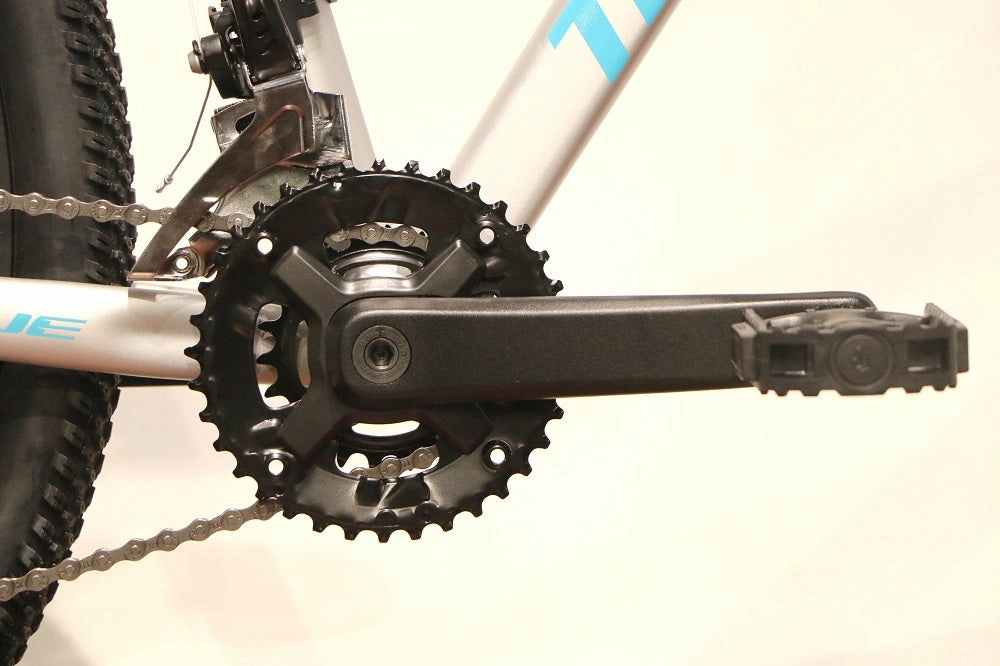

CHAINWHEEL
PROWHEEL TM-CY10 36-22T
PROWHEEL / 32T / 2 X 8 SPEED / ALLOY CRANK / STEEL CHAINRING / NO GUARD / S C 170mm CRANKARM / M L XL C 175mm CRANKARM

DERAILLEUR FRONT
MICROSHIFT 2 X 8

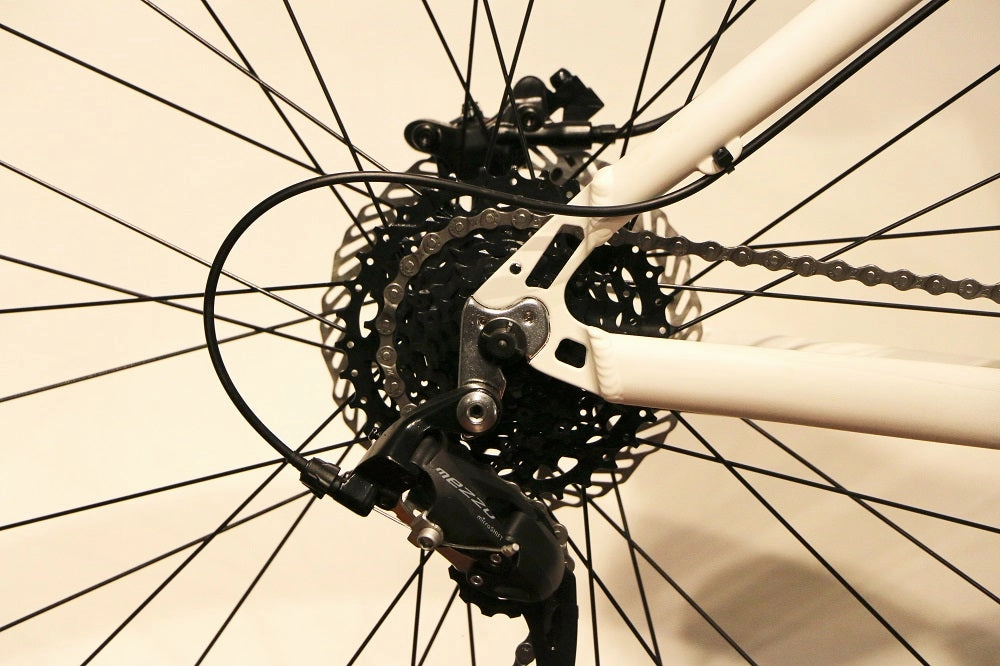

DERAILLEUR REAR
MICROSHIFT MEZZO RD-M36L 2 X 8

SHIFTER LEFT
TS39-28 TRIGGER 2 X 8

SHIFTER RIGHT
TS39-28 TRIGGER 2 X 8

CHAIN
KMC Z7

FREEWHEEL
MICROSHIFT CS-H081 11-34T

BB SET
CH-52, One Piece, BC1.3724T, One piece

SPEED
2 x 8 SPEED

BRAKES
BRAKE LEVER
NUTT

BRAKE FRONT
NUTT Y-2 WITH 180mm ROTOR

BRAKE REAR
NUTT Y-2 WITH 160mm ROTOR

BRAKE CABLE
BLACK

WHEELS
RIMS
TR COMP RIM 28H
TR MD16 AL6061 36H 27.5 MATT BLACK

HUB FRONT
ALLOY Q/R DISC BLACK
DC-1420, 14Gx28H, Q/R-M9x100x108mm

HUB REAR
ALLOY Q/R DISC BLACK
14G DC-1425, 8/9/10s, 14Gx28H, Q/R-M10x135x145mm

SPOKES
STEEL, ED BLACK 14Gx290mm / 14Gx288mm

TUBE
27.5 A/V

TYRES
CHAOYANG VICTORY 27.5" X 2.1
CY H-5129 29X2.1 27TPI WIRE BEAD BLACK WALL

COMPONENTS
GRIP
TR ERGO GRIP

HANDLEBAR
TR COMP FLAT H/BAR 720mm
TR HB-M003 FLAT 720mm

HANDLEBAR STEM
TR COMP H/BAR STEM
TR SM-001 ALLOY OVERSIZED XS/S = 60mm / M = 80mm

HEADSET
FP-871, Ball retainer, Semi, 28.64452mm

SPACER
10mm X 2 PCS

SADDLE
CL-6402

SEAT POST
TR COMP 31.6mm
TR SP-003D RIGID ALLOY 31.6mm 350mm

SEAT CLAMP
PROMAX 327 Q

PEDAL
PP BODY/STEEL CAGE

WEIGHT
BIKE WEIGHT
14.1 kg Mezzu Microshift
