StumpJumper EVO Expert (2023)

StumpJumper EVO Expert (2023)

$ 64.55

$ 258.20

Unavailable
StumpJumper EVO Expert (2023)

StumpJumper EVO Expert (2023)

$ 64.55

$ 258.20

Color:

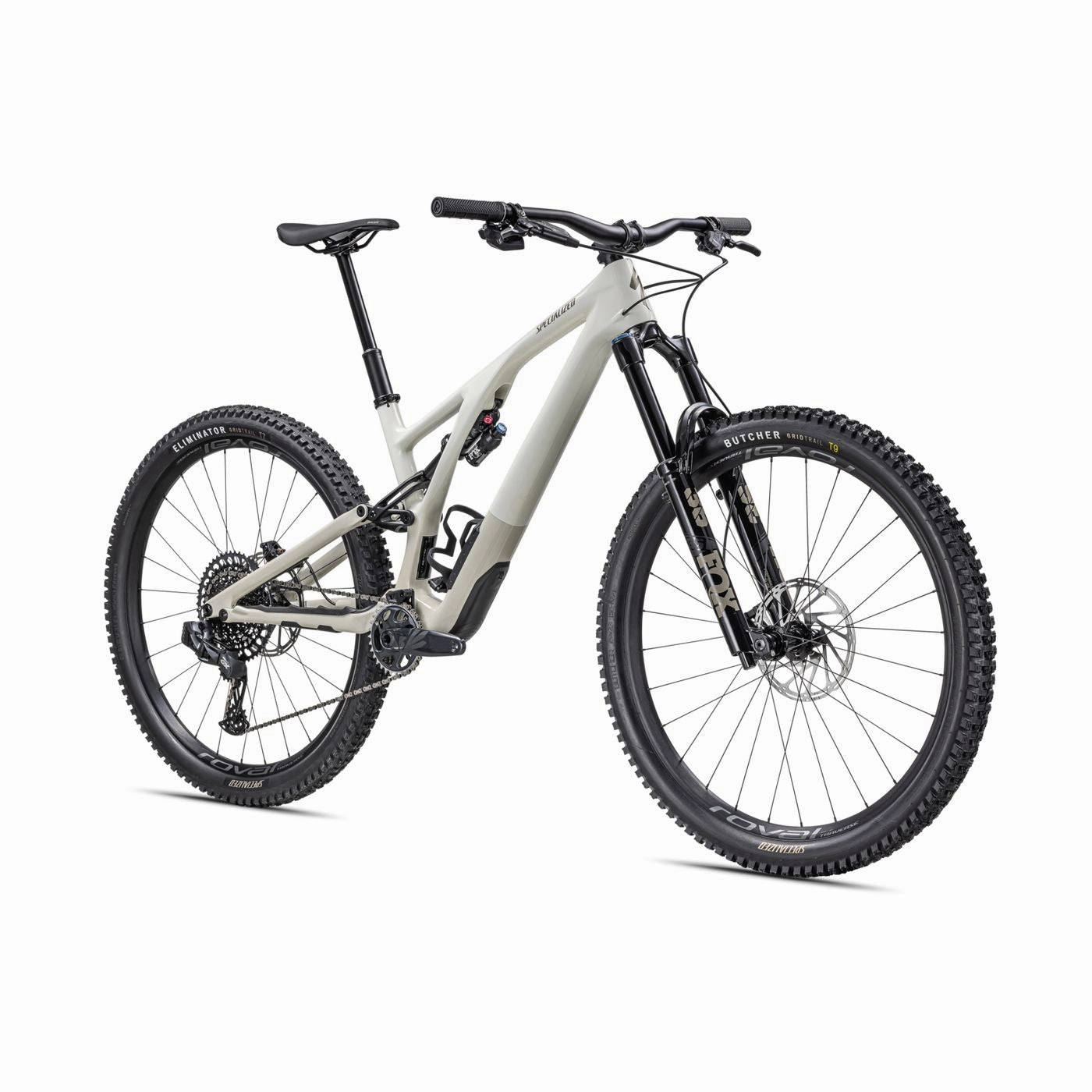

  • White

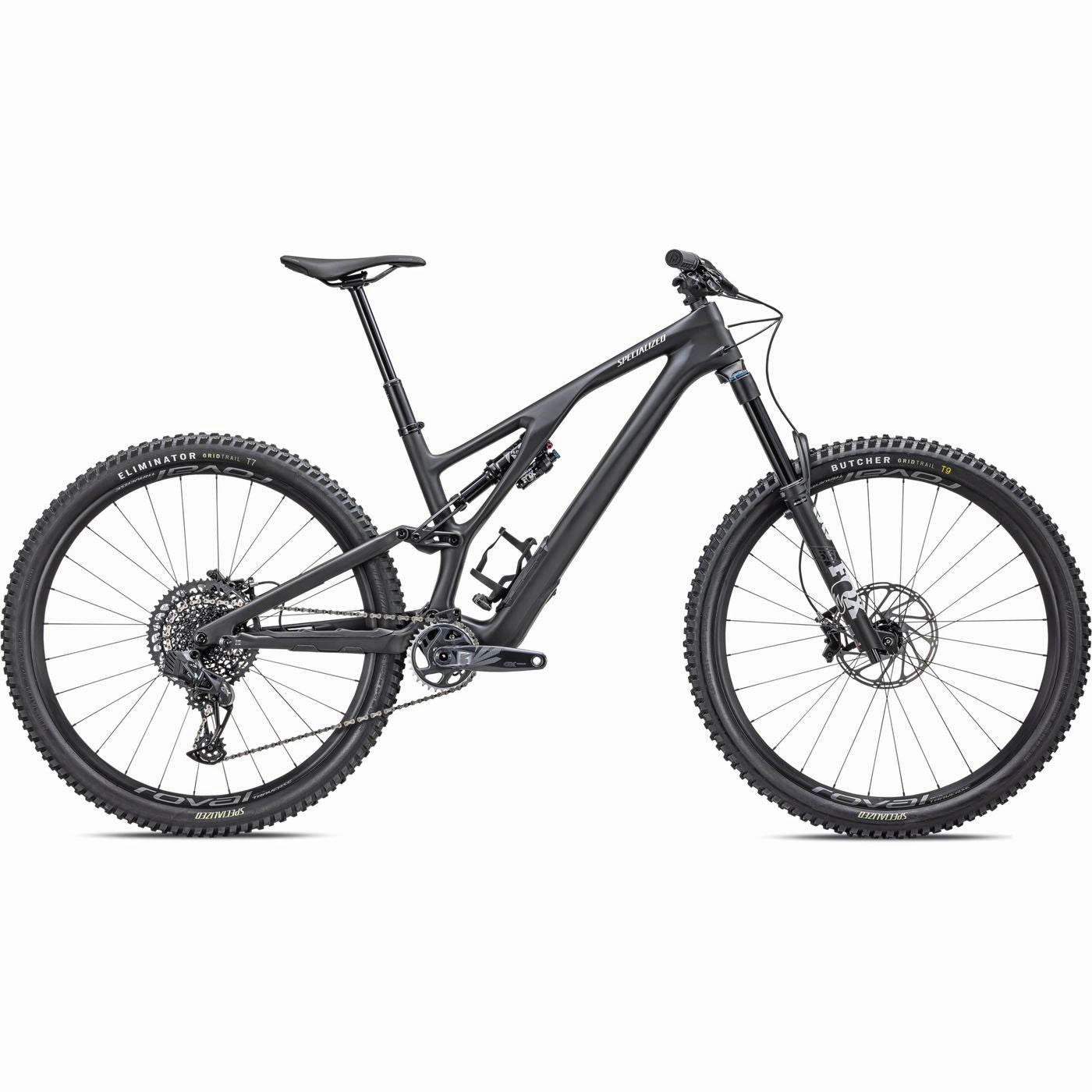

  • Black
Size:
  • S1
  • S2
  • S3
  • S4
  • S5
  • S6
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

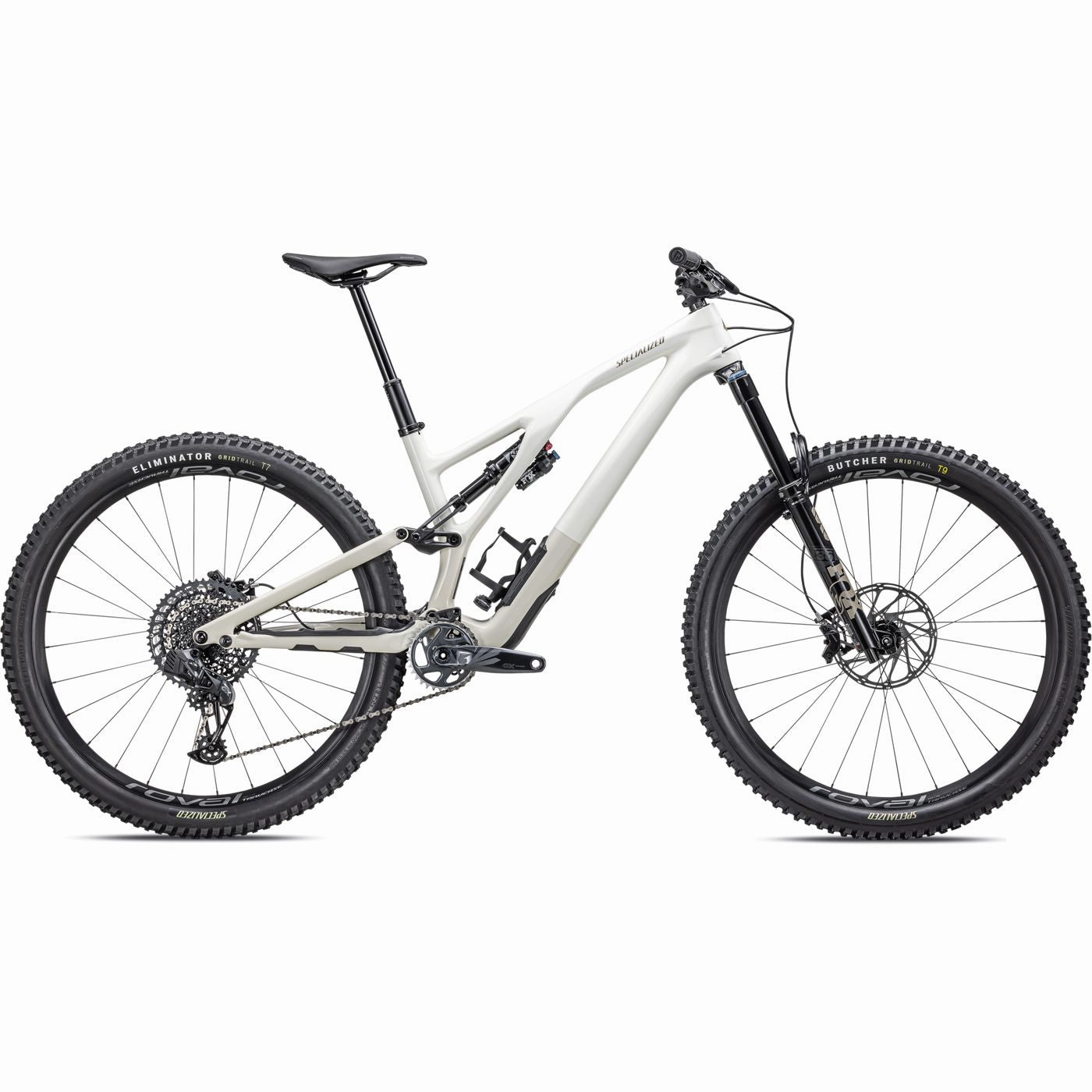

Introducing the trail-taming beast of 2023 - the Specialized StumpJumper EVO Expert Full Suspension 29" Mountain Bike!

Get ready to rock the trails with total control and confidence, as this bad boy comes equipped with unparalleled bump-eating suspension. No matter how wild and rowdy those trails may get, the StumpJumper EVO Expert keeps you in charge!

So, buckle up, thrill-seekers, because the all-new StumpJumper EVO Expert is here to take you on the ride of a lifetime. Wherever those trails may lead, this bike is ready to shred and make every adventure an epic one! Get ready to unleash theFUN and become the trail-master you were born to be. Are you ready to ride the legend?

Features:

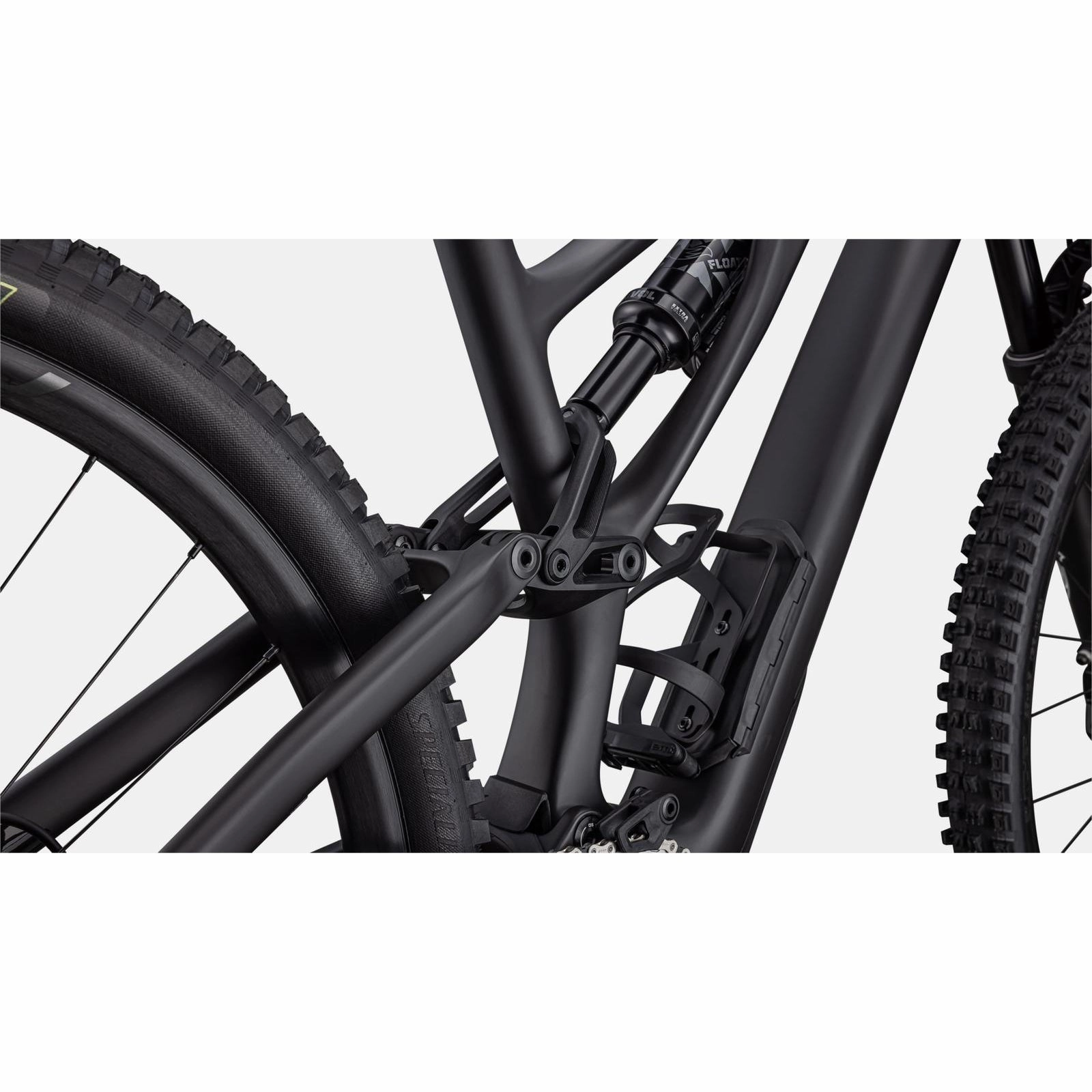

  • All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, weve not only improved the pedaling performance of the Stumpjumper, but weve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
  • The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
  • Rider-First Engineered frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether youre a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, youll experience the same ride traits rail-sharp cornering and balanced front and rear stiffness at the lightest-possible weight.
  • We introduced the SWAT door on the Stumpjumper in 2016, adding room IN your frame for those oh sh**t necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT Bladder, giving you an extra 22oz of water storage the same size as a small water bottle hidden in your downtube.

Specifications


Rims

Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready

Inner Tubes

Standard, Presta valve

Front Hub

Roval, sealed cartridge bearings, 15x110mm spacing, 28h

Rear Hub

Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 29x2.3"

Spokes

DT Swiss Competition Race

Front Tire

Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"

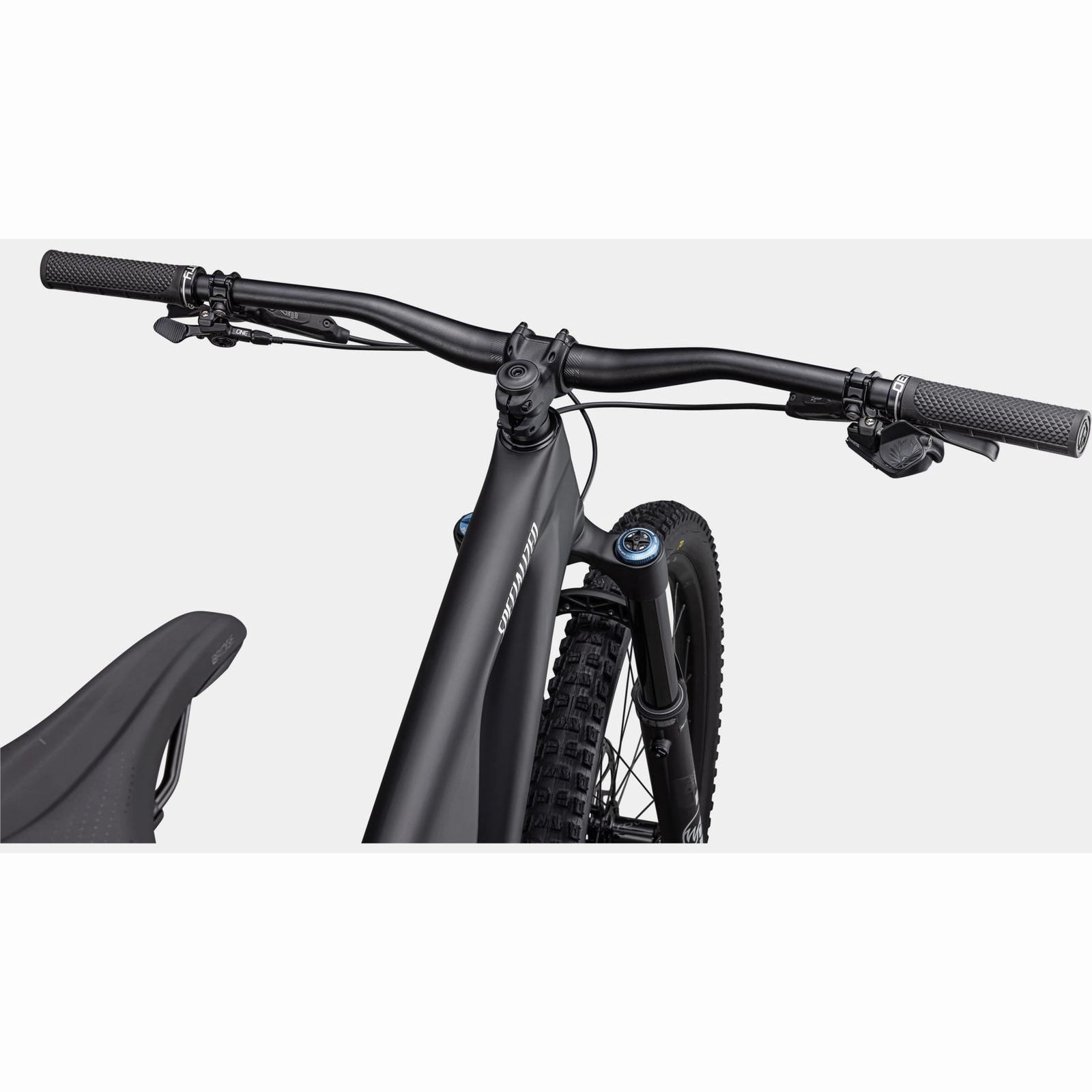

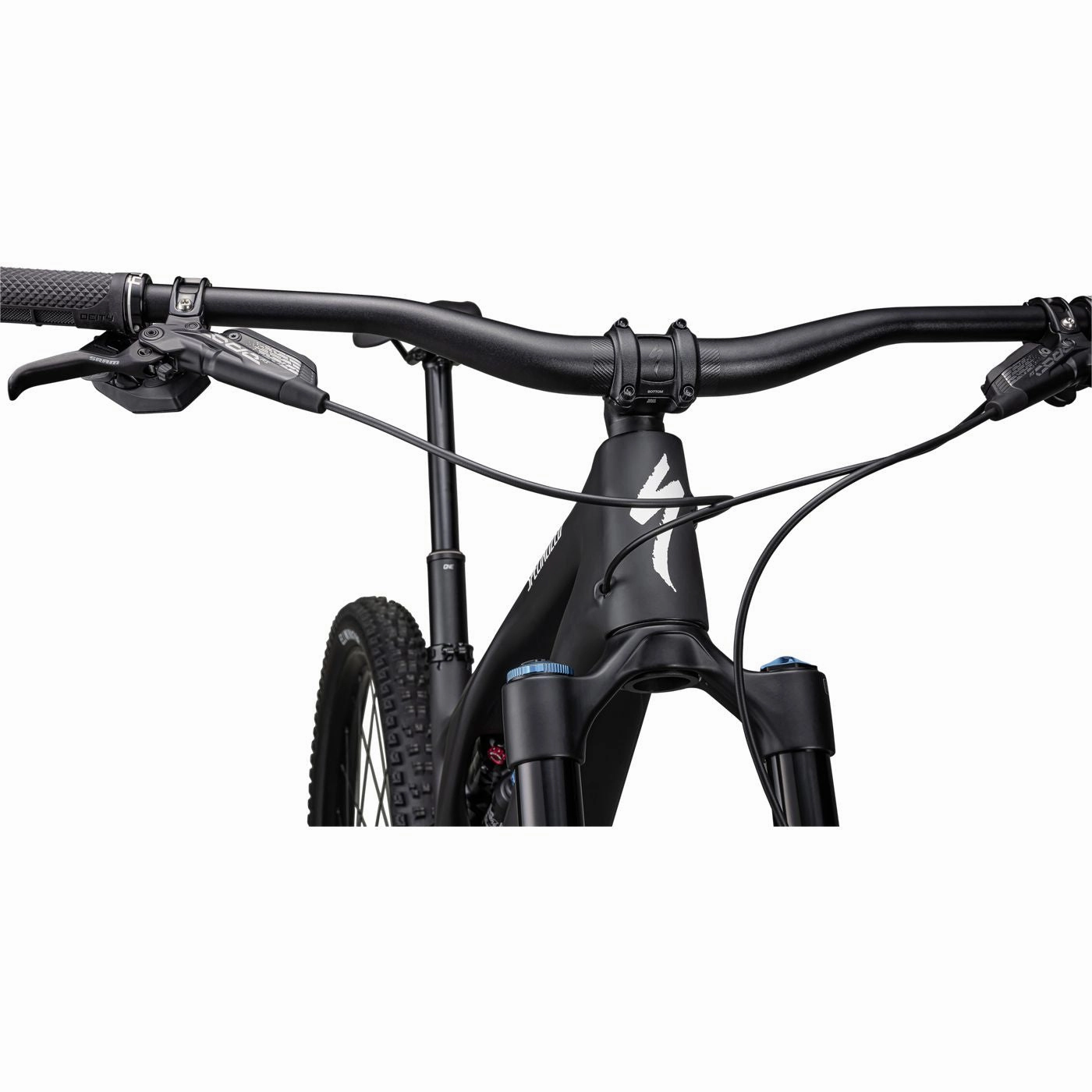

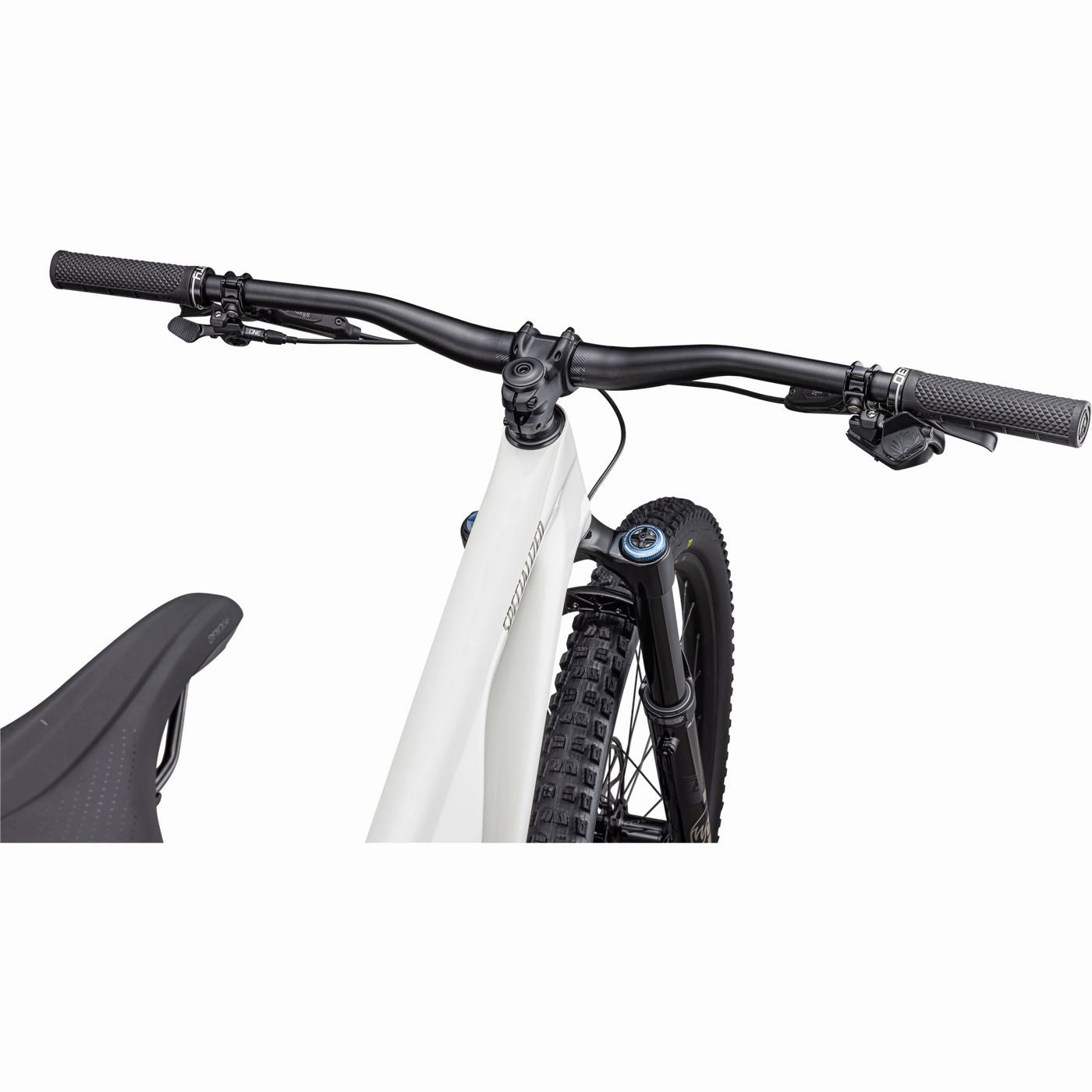

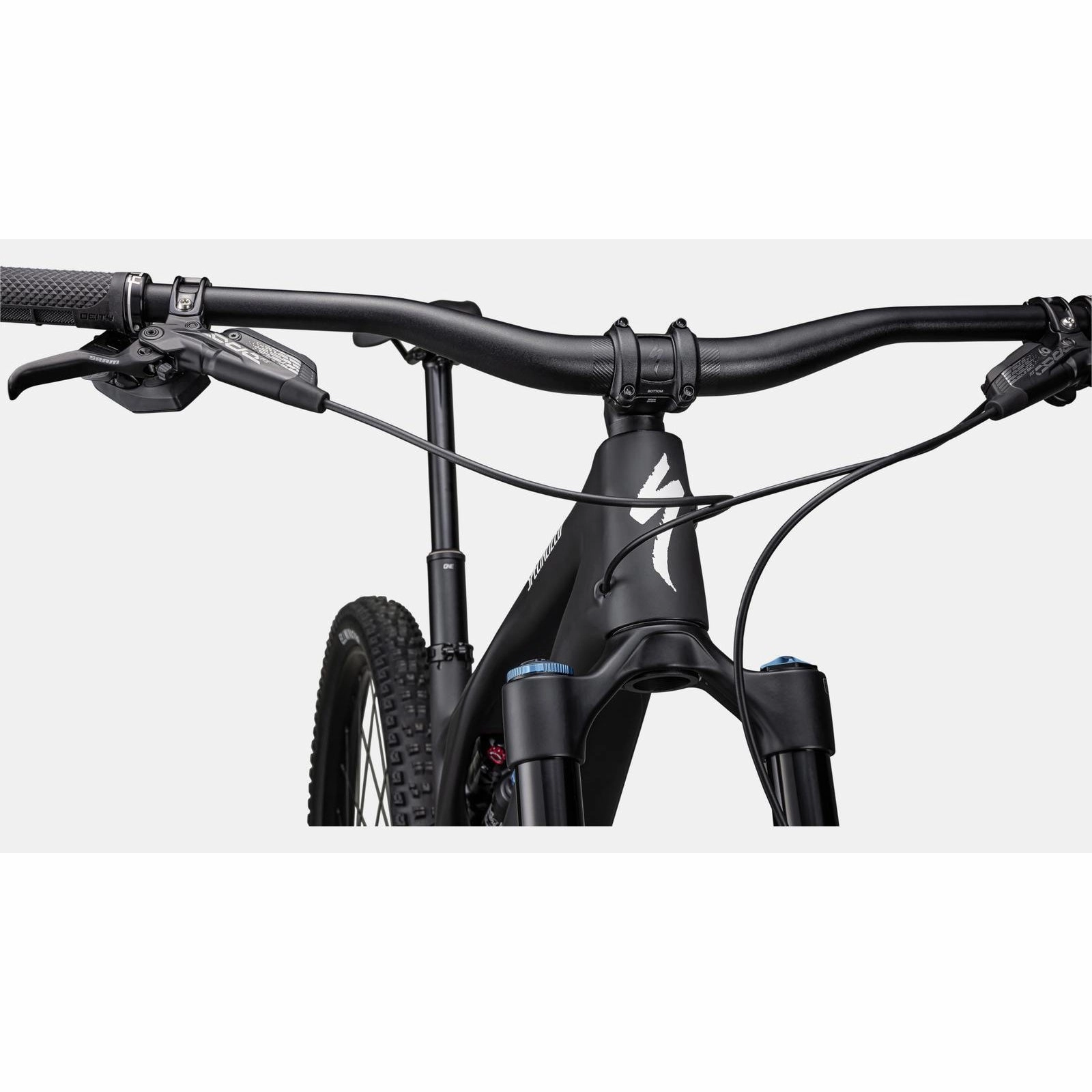

Handlebars

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp

SeatPost

OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

Grips

Deity Grips

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Stem

Alloy Trail Stem, 35mm bar bore

Cassette

Sram XG-1275, 12-speed, 10-52t

Chain

SRAM GX Eagle, 12-speed

Crankset

SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t
Rear DerailleurSRAM GX Eagle AXS, w/ battery cover

Shift Levers

SRAM GX Eagle AXS Controller

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

Chainrings

32T

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

SWAT

Increased-volume SWAT Door integration with 22oz SWAT Bladder

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

Seat Binder

Alloy, 38.6mm

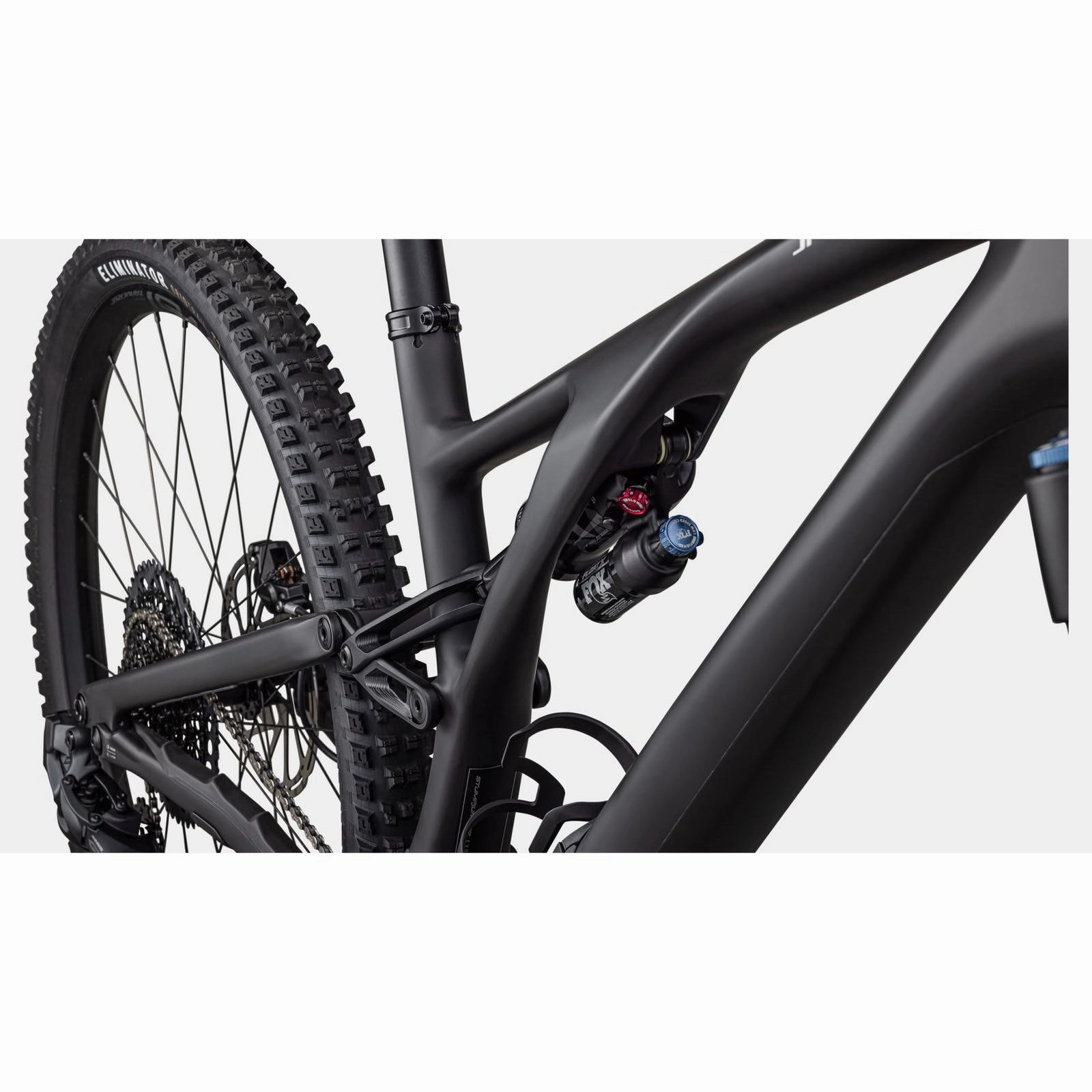

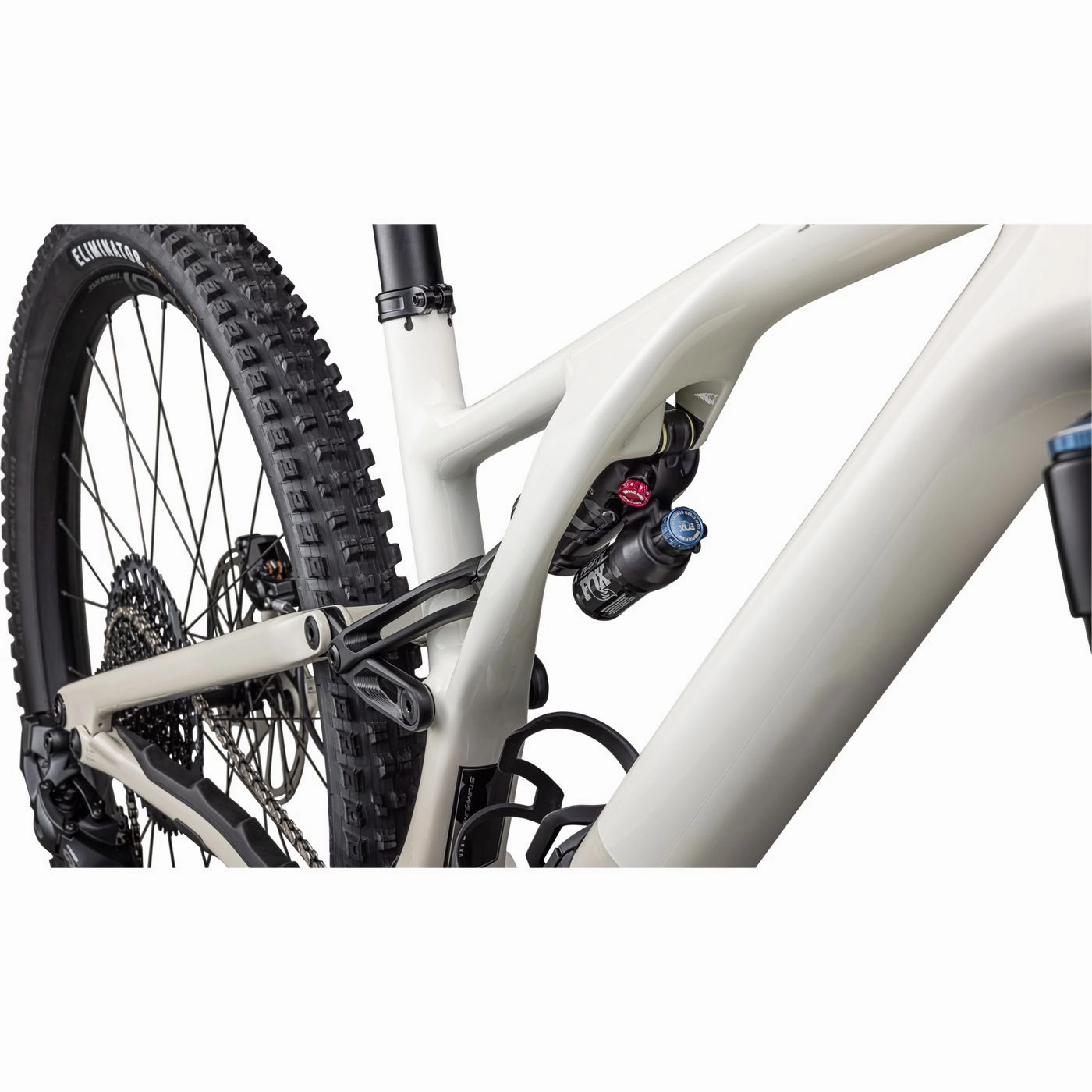

Rear Shock

FOX FLOAT X Performance Elite, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm

Fork

FOX FLOAT 36 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

Geometry

S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Seatpost Length120mm150mm150mm180mm210mm210mm
Handlebar Width800mm800mm800mm800mm800mm800mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Stack613mm617mm626mm635mm644mm654mm
Reach408mm428mm448mm475mm498mm528mm
Headtube Length95mm95mm105mm115mm125mm135mm
Headtube Angle64.564.564.564.564.564.5
BB Height335mm340mm340mm340mm340mm340mm
BB Drop40mm35mm35mm35mm35mm35mm
Trail131mm131mm131mm131mm131mm131mm
Fork Length (full)561mm571mm571mm571mm571mm571mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center732mm756mm780mm809mm838mm873mm
Chainstay Length438mm438mm438mm438mm448mm448mm
Wheelbase1167mm1191mm1216mm1247mm1285mm1319mm
Top-tube Length (horizontal)538mm564mm590mm623mm647mm679mm
Bike Standover Height733mm764mm763mm762mm767mm770mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle7877.677.276.97777
Max Seatpost Insertion180mm180mm200mm220mm240mm260mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
