Description

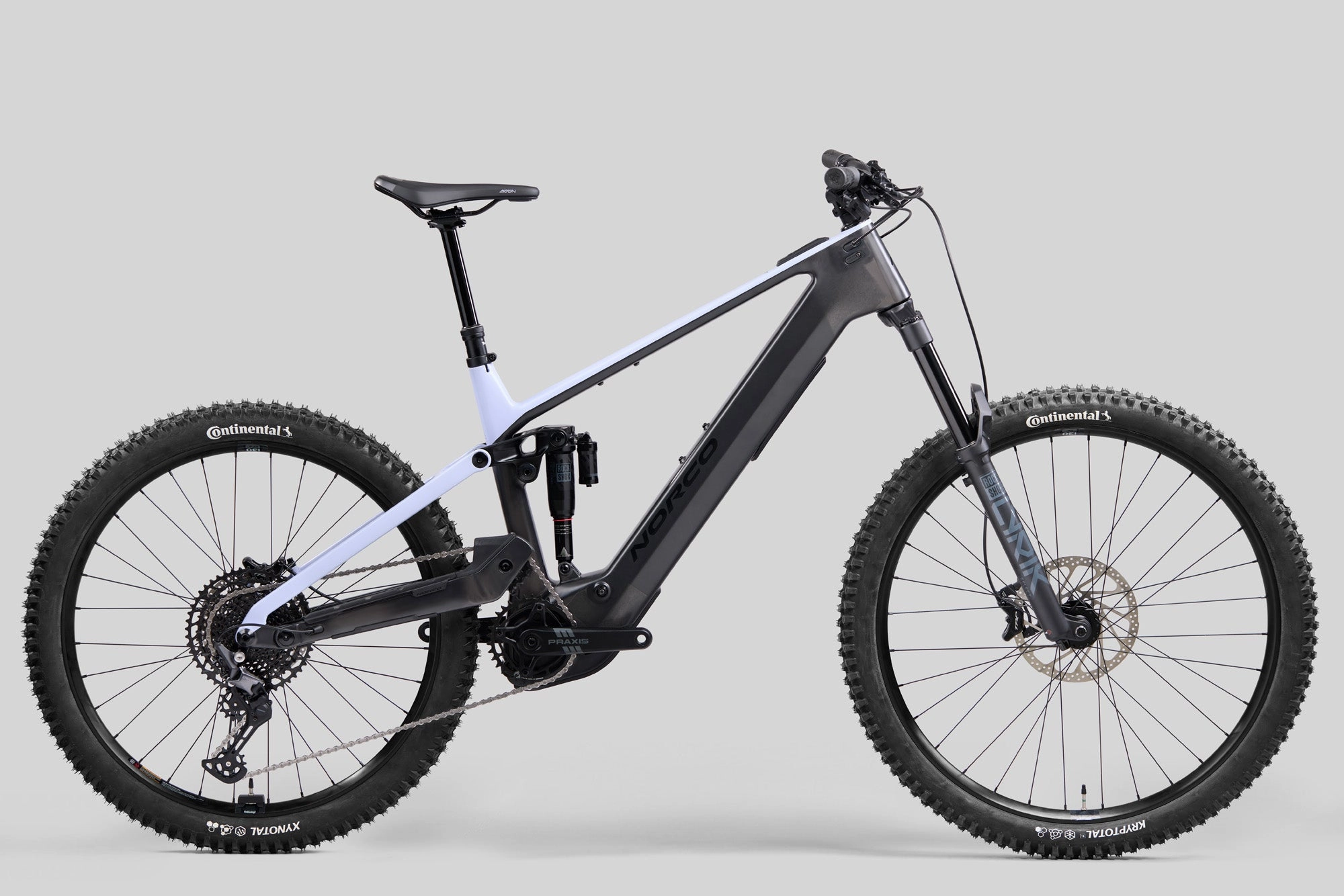

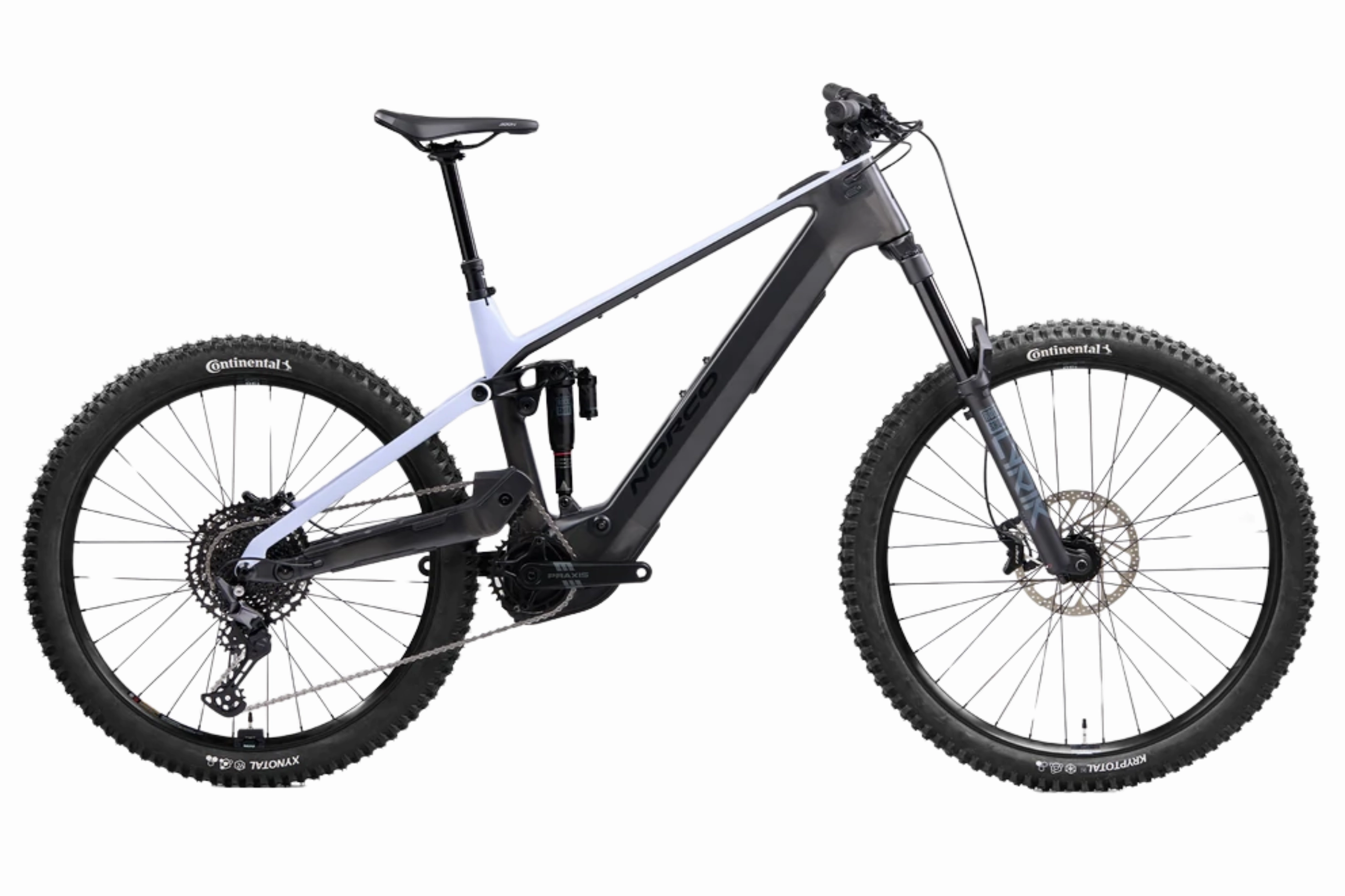

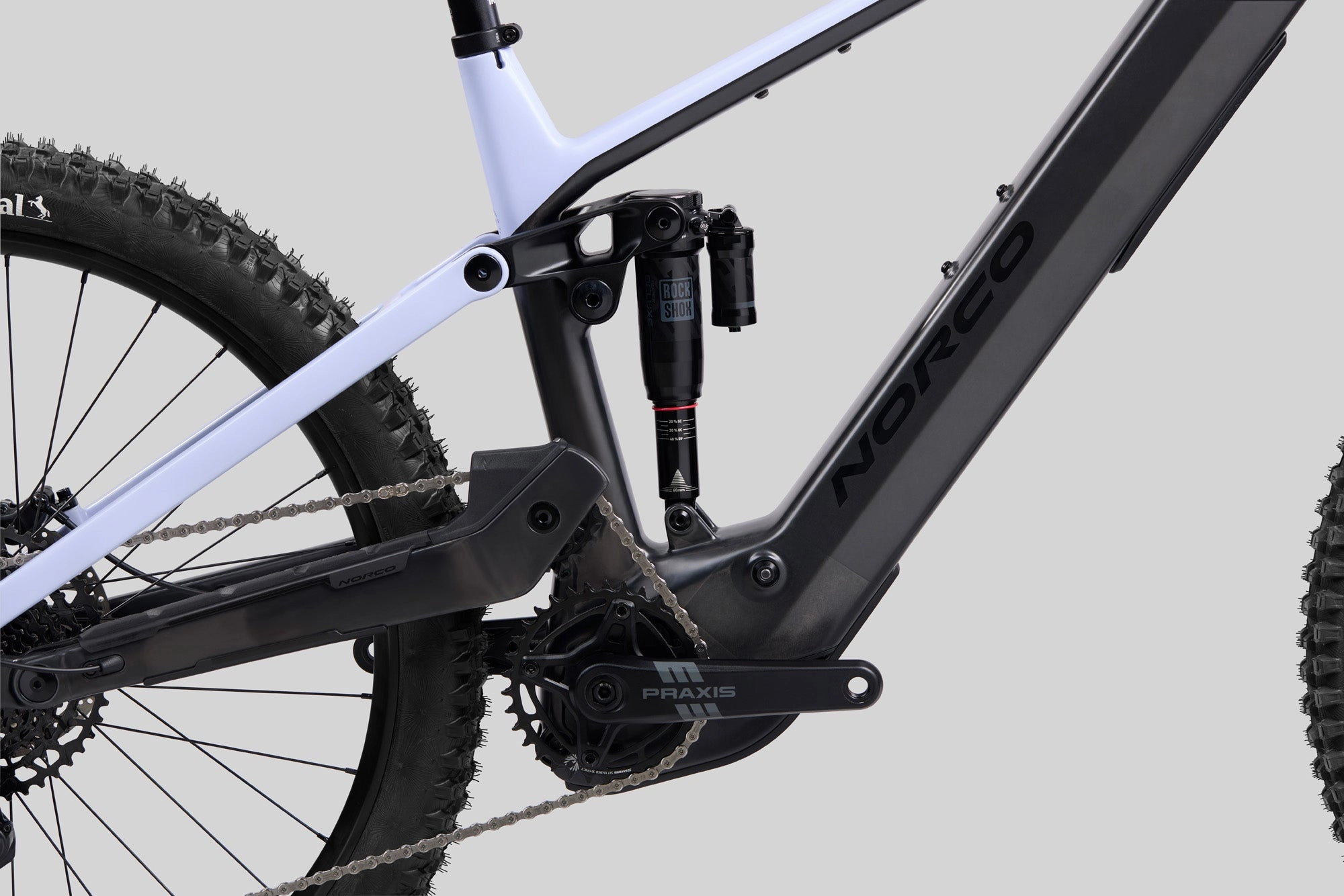

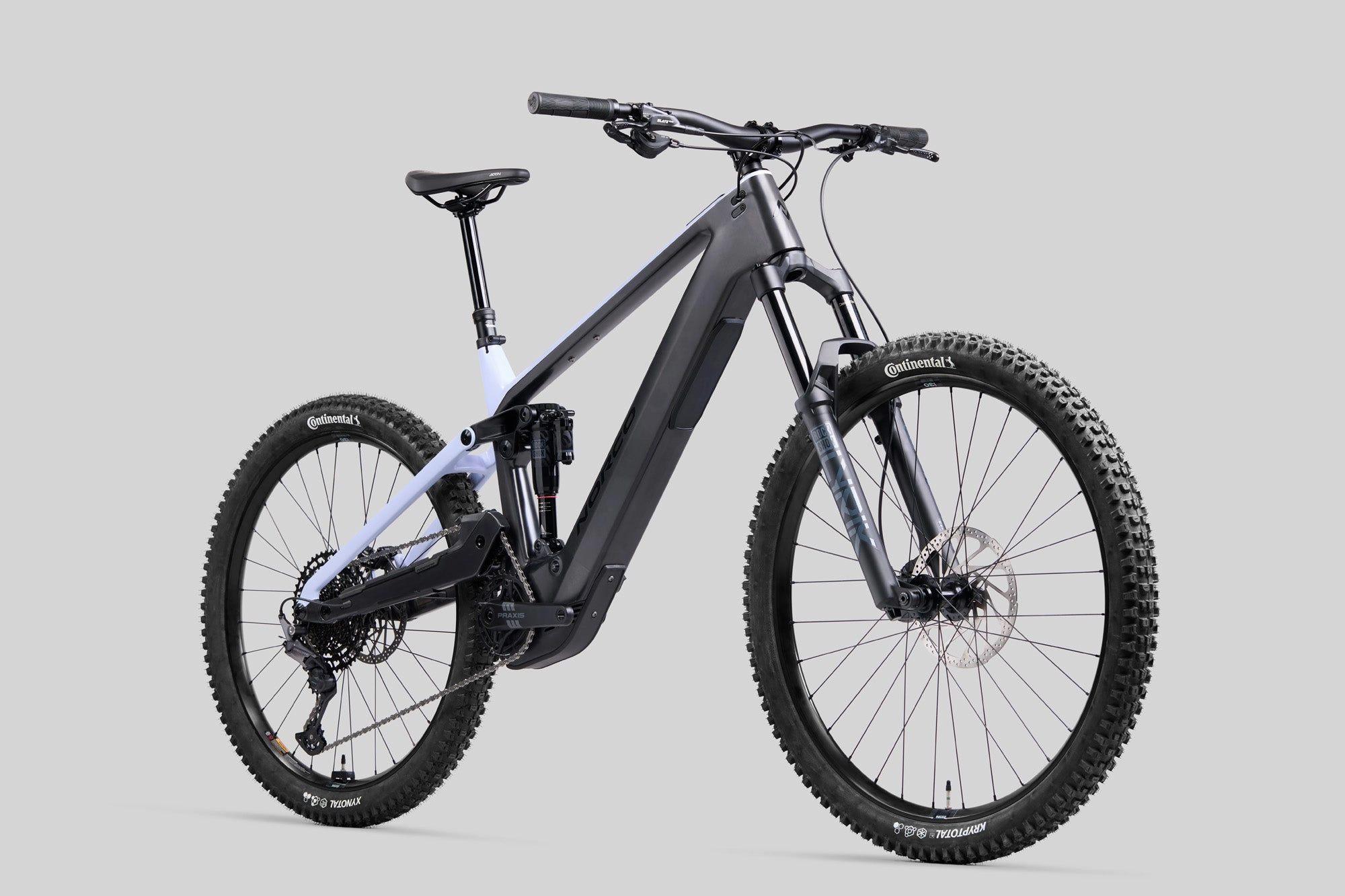

Start fast and finish strong on the new Sight VLT CX. Now with the new Bosch Performance Line CX motor, its almost 20% lighter than our previous generation, so you can commit harder and ride longer than ever before. The high pivot suspension layout with 160/150mm travel provides smooth, confident handling through rough terrain; this bike punches above its weight without losing playfulness.
Specification
| Frame | Carbon Frame, 150mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned |
| Fork | Rock Shox Lyrik Select 160mm |
| Rear Shock | Rock Shox Super Deluxe Select, 205x60mm TR |
| Rear Shifter | Shimano Deore SL-M6100-R, 12spd |
| Rear Derailleur | Shimano Deore RD-M6100, 12spd |
| Crankset | Praxis HD Aluminum Bosch Cranks, 34T, 165mm |
| Bottom Bracket | Bosch BDU38 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12spd |
| Chain | Shimano Deore CN-M6100, 12spd |
| Front Brake | TRP Slate EVO, Metallic Pads |
| Front Brake Rotor | TRP RS01E, 203mm, 2.3mm Thickness, 6 Bolt |
| Rear Brake | TRP Slate EVO, Metallic Pads |
| Rear Brake Rotor | TRP RS01E, 180mm, 2.3mm Thickness, 6 Bolt |

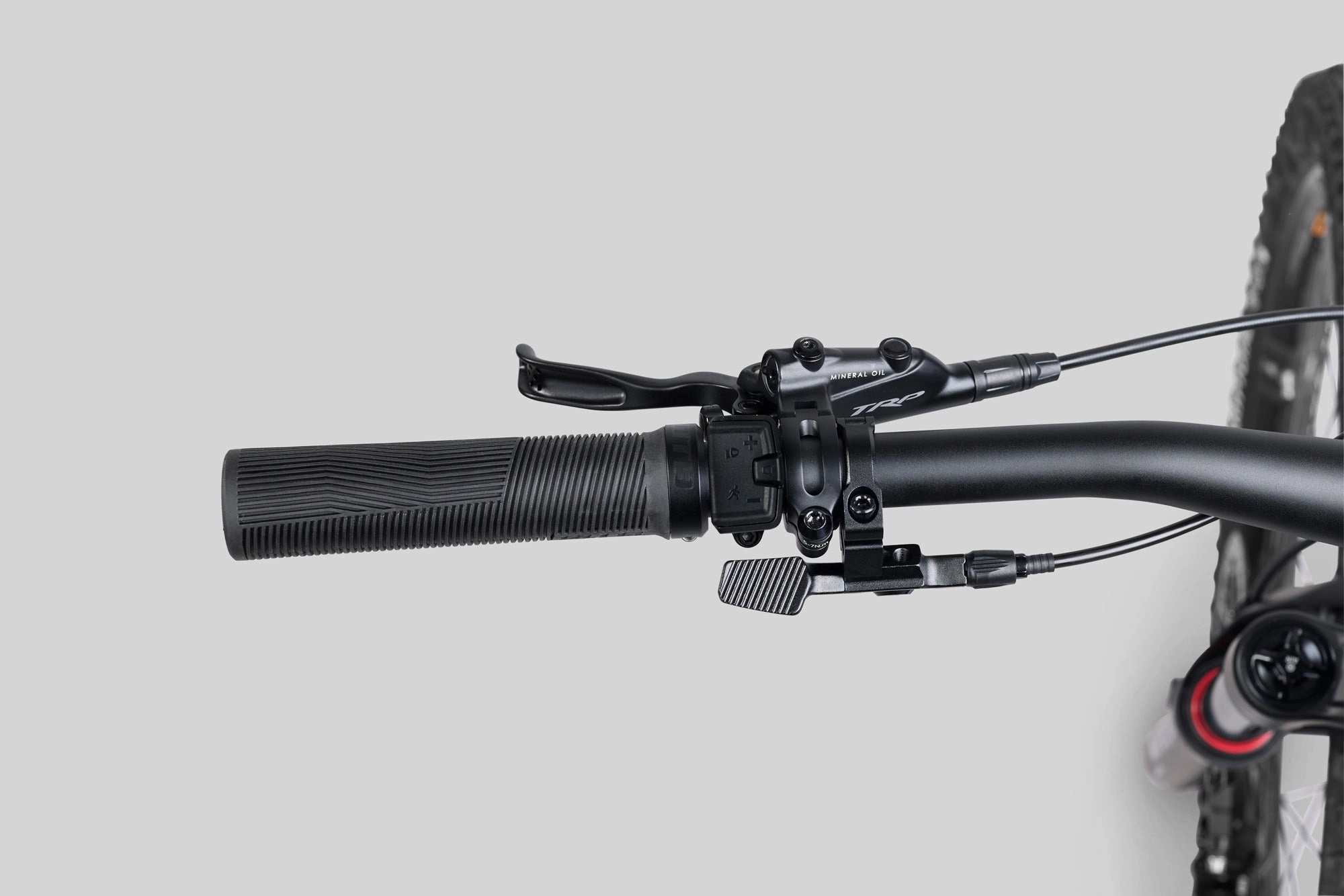

| Brake Levers | TRP Slate EVO |

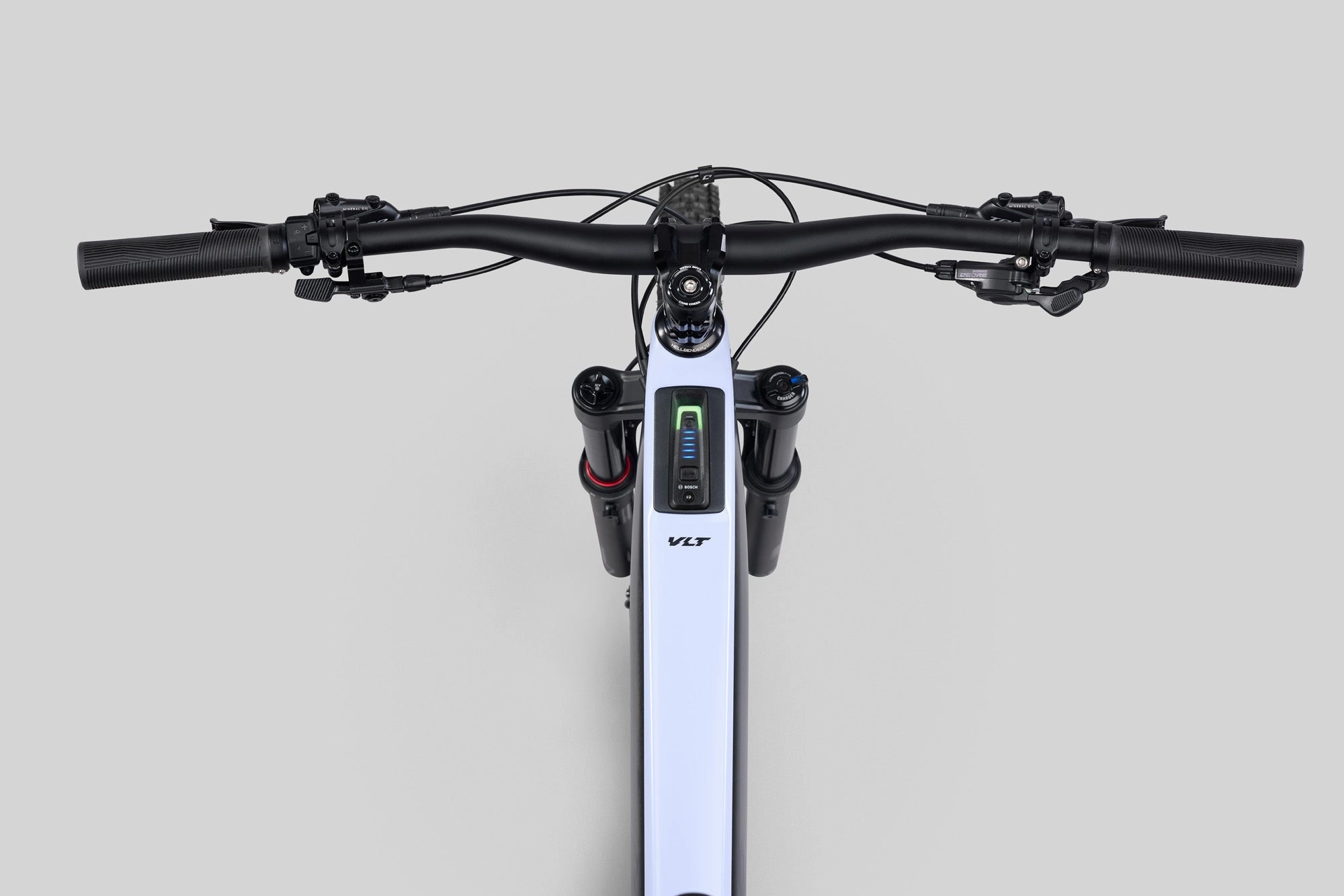

| Handlebar | Norco 6061 DB Alloy, 800mm, 25mm |
| Stem | Norco Alloy, 40mm Length, 35mm Clamp |
| Seatpost | TranzX YSP23, 31.6mm, 125mm (S1) -150mm (S2) -170mm (S3) -200mm (S4, S5) |
| Headset | FSA No.55 Sealed Bearing, 1 1/8" - 1.5" Tapered, ( ZS44/28.6 | ZS56/40 ) |
| Saddle | Fizik Terra Aidon X5 |
| Grips | WTB Wavelength, 130mm Length |
| Seatpost Clamp | Norco Alloy Nutted Clamp 34.9mm ID |
| Front Hub | Bear Pawls BMB-013, 15x110 Boost, 32H, 6 Bolt |
| Rear Hub | Bear Pawls BMB-007, 12x148 Boost, HG, 32H, 6 Bolt |
| Rims | WTB STi30,30 mm, 32H, 29"-27.5 F/R |
| Front Tire | Continental Kryptotal-F, Enduro, Soft, 29" x 2.4", Foldable |
| Rear Tire | Continental Xynotal, Enduro, Soft, 27.5" x 2.4", Foldable |
| Spokes/Nipples | Sapim Sprint DB Spokes |
| Drive Unit | Drive Unit Performance Line CX BDU38 |
| Battery | Bosch PowerTube 800 Wh |
| Switch | Bosch BRC 3300 Mini Remote 22.2mm |
| Power Button | Bosch BRC 3100 System Controller |
| Weight | 22.67 kg (50 lbs) |
| Weight Size | S3 |
| Feature 1 | Bosch Smart System Rim Magnet |
| Feature 2 | Bosch PowerMore 250 Range Extender (Not Included) |
Geometry
| SZ 2 | SZ 3 | SZ 4 | SZ5 | ||
| Travel (mm front/mm rear) | 29"/27.5" | 2160/150 | 3160/150 | 4160/150 | 5160/150 |
| Reach | 29"/27.5" | 2447.5 | 3472.5 | 4497.5 | 5522.5 |
| Stack | 29"/27.5" | 2627 | 3636 | 4645 | 5654 |
| Head Tube Angle | 29"/27.5" | 264 | 364 | 464 | 564 |
| Fork Offset | 29"/27.5" | 244 | 344 | 444 | 544 |
| Seat Tube Length | 29"/27.5" | 2395 | 3415 | 4445 | 5475 |
| Effective Seat Tube Angle | 29"/27.5" | 277.25 | 377.5 | 477.75 | 578 |
| Rear Centre Length | 29"/27.5" | 2432 | 3436 | 4440 | 5444 |
| Rear Centre Length at Sag | 29"/27.5" | 2441 | 3445 | 4449 | 5453 |
| Bottom Bracket Drop | 29"/27.5" | 225/5 | 325/5 | 425/5 | 525/5 |
| Bottom Bracket Height | 29"/27.5" | 2349 | 3349 | 4349 | 5349 |
| Horizontal Top Tube | 29"/27.5" | 2589 | 3613 | 4637 | 5661 |
| Wheelbase | 29"/27.5" | 21222 | 31255 | 41289 | 51322 |
| Standover | 29"/27.5" | 2701 | 3711 | 4714 | 5729 |
| Head Tube Length | 29"/27.5" | 2115 | 3125 | 4135 | 5145 |
| Trail | 29"/27.5" | 2133 | 3133 | 4133 | 5133 |
| Recommended Seatpost Drop | 29"/27.5" | 2150 | 3170 | 4200 | 5200 |
| Maximum Post Insertion | 29"/27.5" | 2250 | 3270 | 4300 | 5330 |
| Stem Length | 29"/27.5" | 240 | 340 | 440 | 540 |
| Crank Length | 29"/27.5" | 2165 | 3165 | 4165 | 5165 |
| Tire Size | 29"/27.5" | 22.35" 2.6" | 32.35" 2.6" | 42.35" 2.6" | 52.35" 2.6" |
| Water Bottle Compatible | 29"/27.5" | 21 x 620 mL | 31 x 750 mL | 41 x 750 mL | 51 x 750 mL |
