Description
SEND-IT-ALL ON THE ALL NEW SENTINEL
A bike that says yes to every trail, every ride and begs for more.
The Sentinel rides the lines between planted bottomless sender and playful, poppy trail pony. This leaves it right in the sweet spot, as we like to call it. It's versatile attitude helps riders excel and push their limits, making it the one bike most will need. Its intuitive nature is easy to get acquainted with; you'll find yourself sending lines, jumps, and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost. It's time to Send-It-All.
Specification
| CARBON DEORE | |
| FRAME | Sentinel Carbon 150mm |
| WHEEL SIZE | 29" (X-Small 27.5") |
| REAR SHOCK | RockShox Super Deluxe Select (205x60mm) |
| FORK | RockShox Lyrik Base (160mm) |
| HEADSET | FSA No.57E |
| STEM | RaceFace Aeffect R (40mm) |
| HANDLEBAR | RaceFace Chester XS/SM (800x20mm) MD/LG/XL/XXL (800x35mm) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | SDG Tellis XS (125mm) SM (150mm) MD (170mm) LG (200mm) XL/XXL (230mm) |
| BRAKES | Shimano Deore M6120 4 Piston |
| ROTORS | Shimano RT66 (203mm) |
| SHIFTER | Shimano Deore M6100 iSpec EV |
| DERAILLEUR | Shimano Deore M6100 SGS 12sp |
| CASSETTE | Shimano Deore M6100 (10-51t) |
| CHAIN | Shimano Deore M6100 |
| CRANK | Shimano Deore M6100 (30t/165mm) |
| RIMS | WTB ST i30 |
| SPOKES | Pillar Double Butted |
| HUBS | Novatech D791SB/D902SB |
| TIRE/FRONT | Maxxis Assegai 3C EXO/TR (2.5) |
| TIRE/REAR | Maxxis Minion DHRII 3C EXO/TR (2.4) |
| INCLUDED | Fidlock Twist Bike Base Tubeless Valves & Sealant |

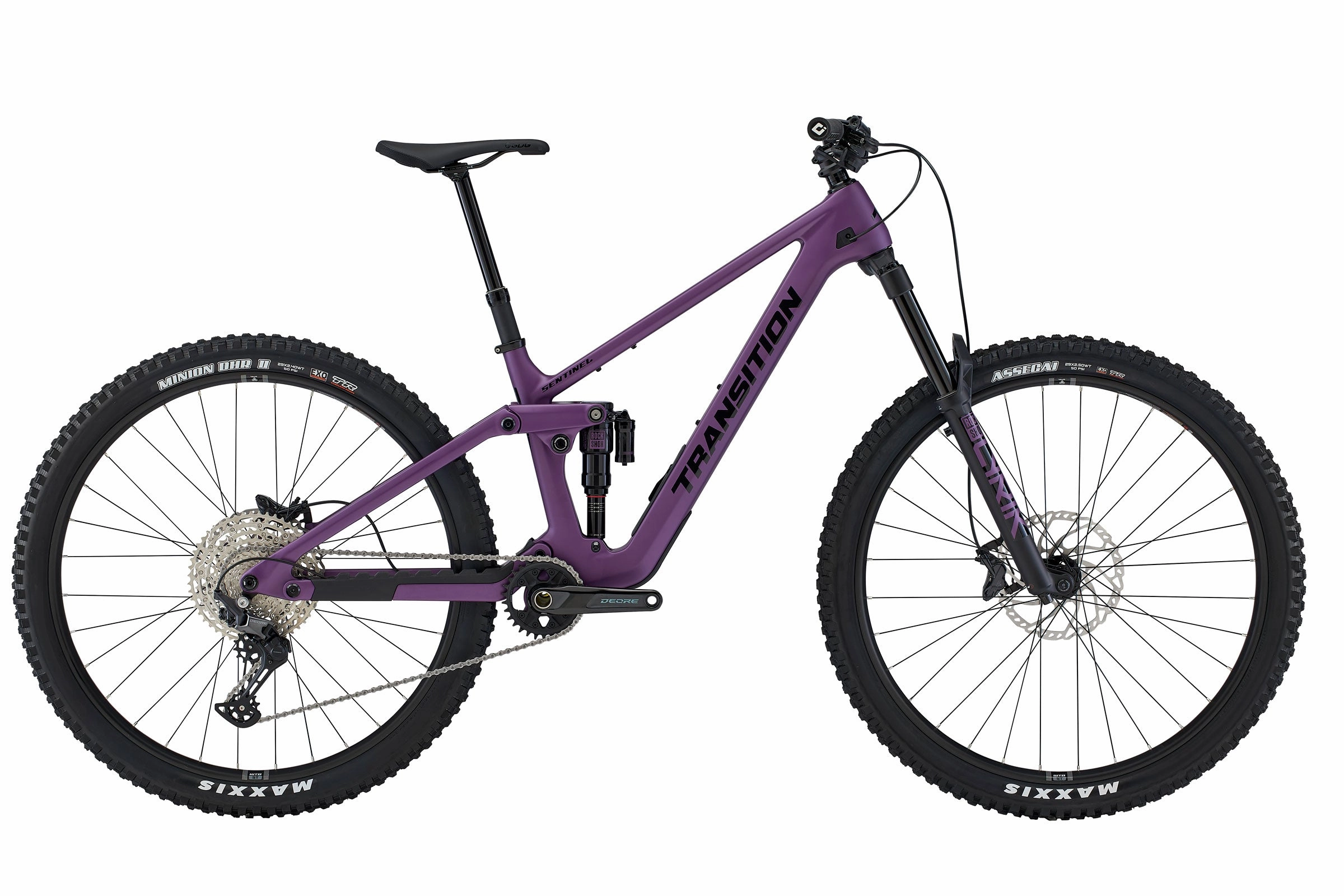

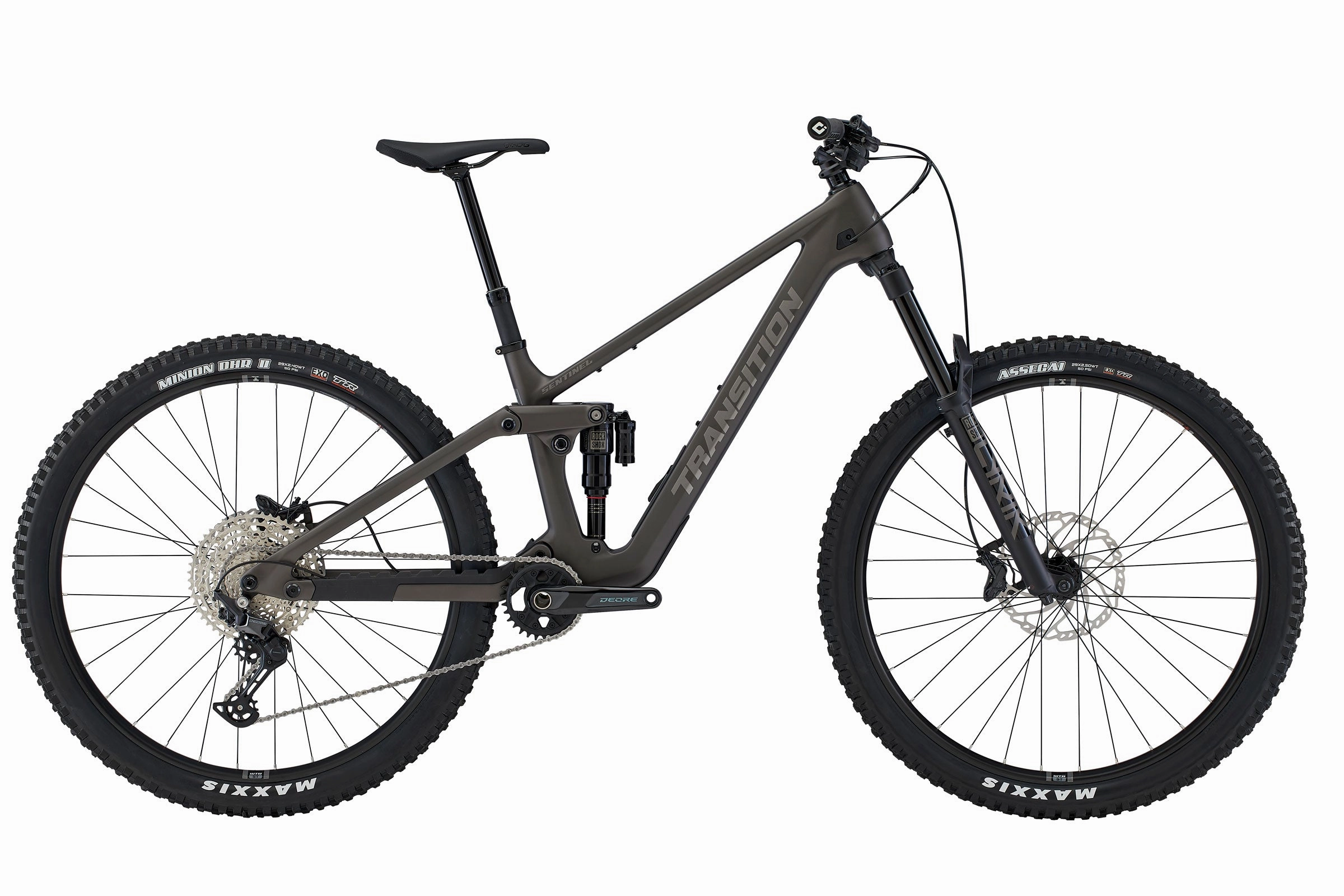

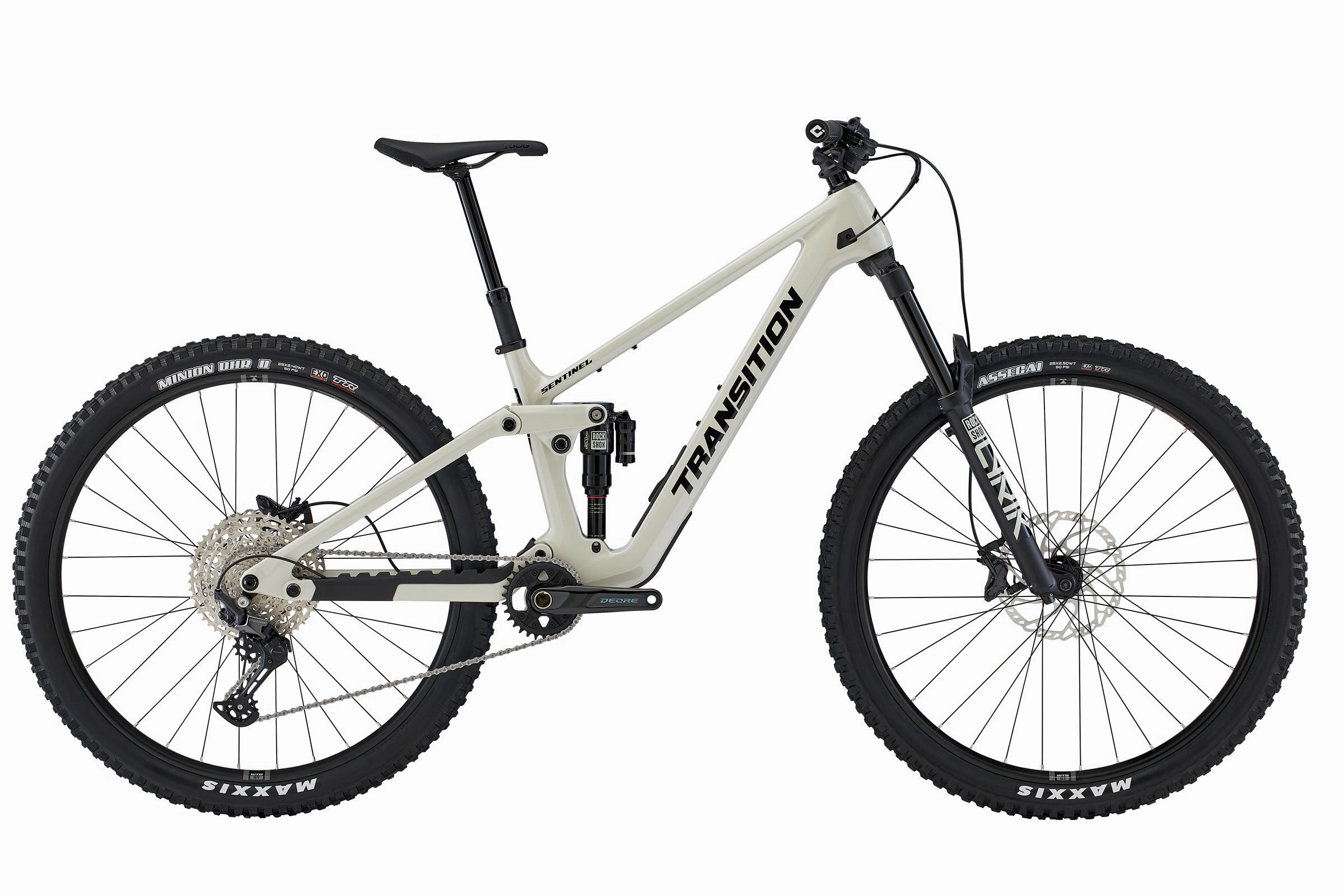

| COLOR OPTIONS | Deep Purple Graphite Grey Glacier White |
| WEIGHT | 33.6 lbs/15.21 kg (Size MD) |
Geometry
| XS | SM | MD | LG | XL | 2XL | |
| A. REACH | 415 | 430 / 426 | 455 / 451 | 480 / 476 | 505 / 501 | 530 / 526 |
| B. STACK | 592 | 615 / 618 | 621 / 624 | 633 / 636 | 642 / 646 | 651 / 655 |
| C. CARBON EFFECTIVE TT LENGTH | 527 | 549 | 577 | 605 | 632 | 660 |
| ALLOY EFFECTIVE TT LENGTH | 534 | 557 | 586 | 614 | 642 | 670 |
| D. SEAT TUBE LENGTH | 360 | 360 | 390 | 430 | 460 | 490 |
| E. CARBON EFFECTIVE ST ANGLE | 79.8 | 79.3 / 78.9 | 78.7 / 78.3 | 78.3 / 77.9 | 77.9 / 77.5 | 77.6 / 77.2 |
| ALLOY EFFECTIVE ST ANGLE | 79.2 | 78.7 / 78.2 | 77.9 / 77.5 | 77.3 / 76.9 | 76.8 / 76.4 | 76.5 / 76.2 |
| SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 560 | 600 | 660 | 720 | 780 | 820 |
| CARBON SEAT TUBE OFFSET AT BB | 69 | 69 | 69 | 69 | 69 | 69 |
| ALLOY SEAT TUBE OFFSET AT BB | 87 | 87 | 87 | 87 | 87 | 87 |
| F. HEAD TUBE LENGTH | 100 | 100 | 110 | 120 | 130 | 140 |
| G. HEAD TUBE ANGLE | 64 | 64 / 63.6 | 64 / 63.6 | 64 / 63.6 | 64 / 63.6 | 64 / 63.6 |
| H. CARBON CHAINSTAY LENGTH | 436 | 442 / 440 | 442 / 440 | 448 / 446 | 448 / 446 | 448 / 446 |
| ALLOY CHAINSTAY LENGTH | 434 | 442 / 440 | 442 / 440 | 446 / 444 | 446 / 444 | 446 / 444 |
| I. CARBON WHEELBASE | 1173 | 1208 | 1237 | 1273 | 1302 | 1332 |
| ALLOY WHEELBASE | 1171 | 1208 | 1237 | 1271 | 1300 | 1330 |
| J. BOTTOM BRACKET DROP | 15 | 25 / 11 | 25 / 11 | 25 / 11 | 25 / 11 | 25 / 11 |
| K. ESTIMATED BB HEIGHT | 340 | 350 / 344 | 350 / 344 | 350 / 344 | 350 / 344 | 350 / 344 |
