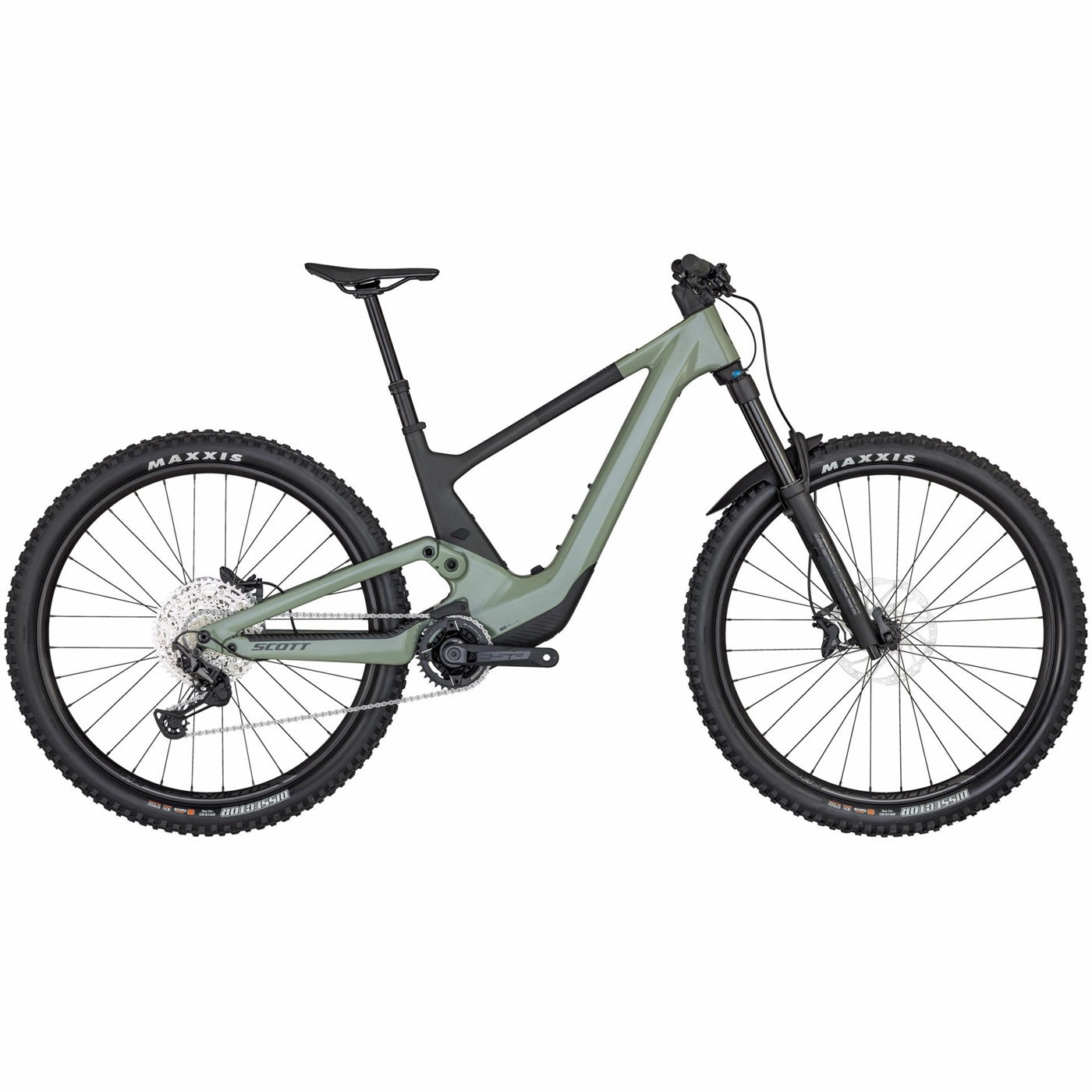

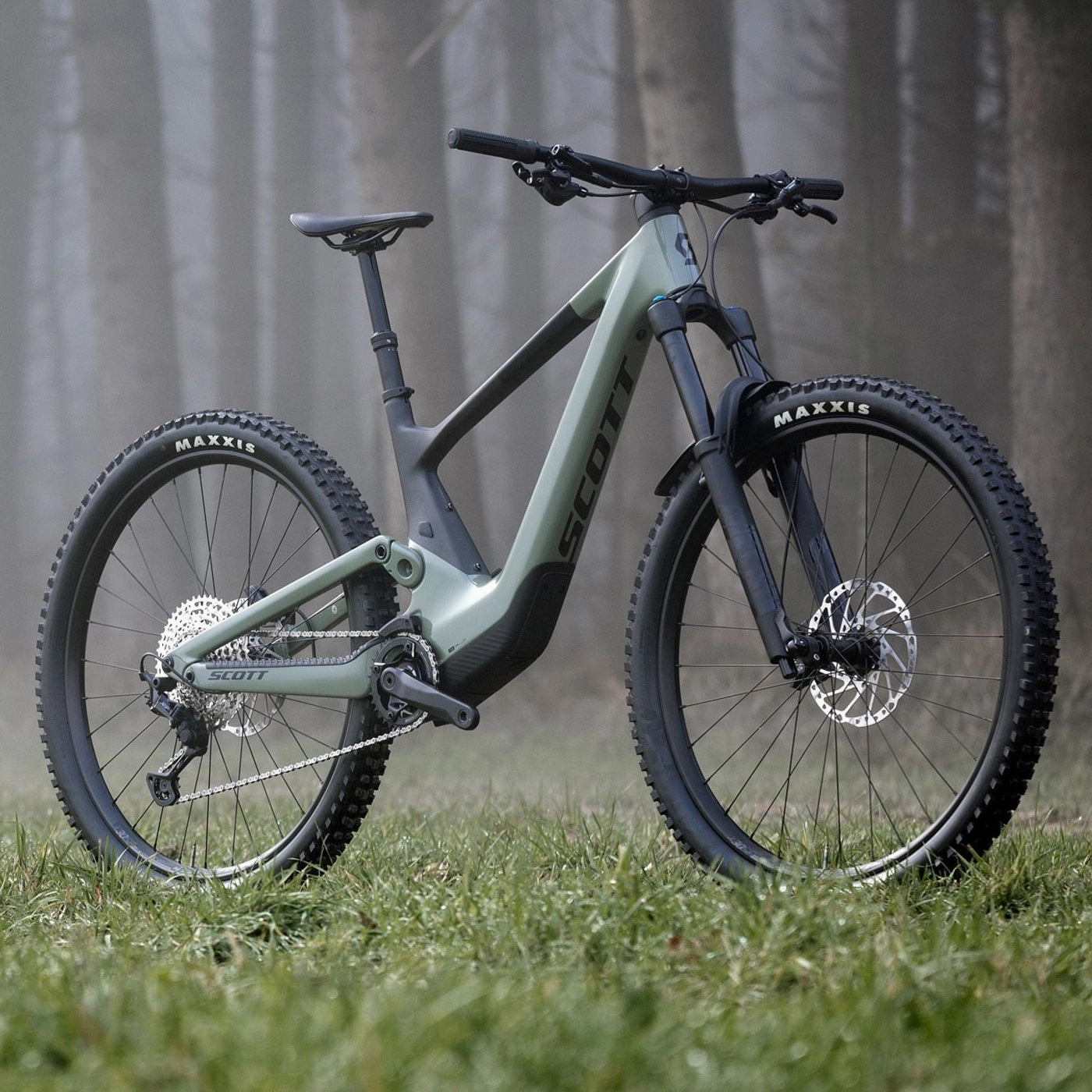

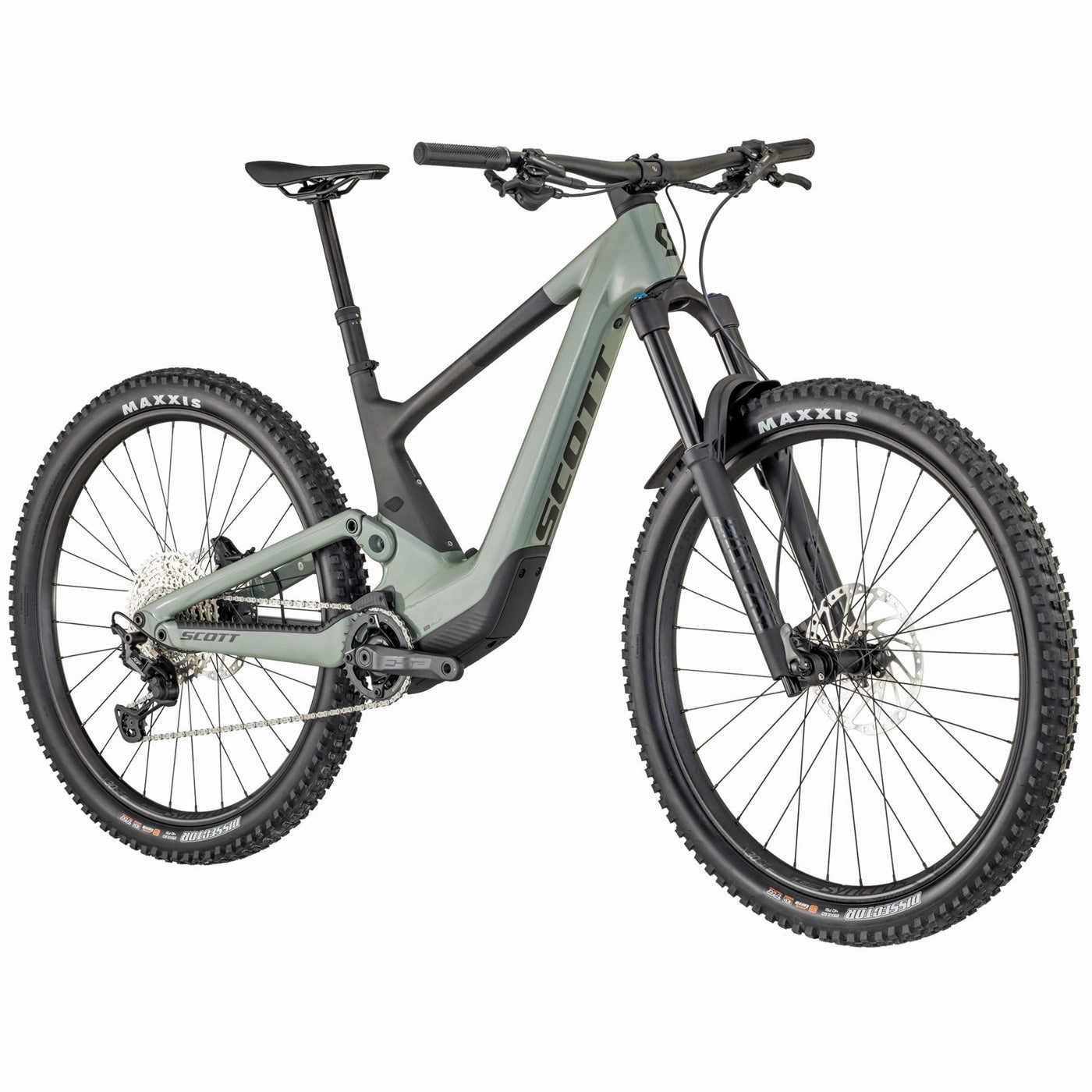

Imagine giving the best trail bike in the world a secret weapon. With the Scott Voltage eRIDE, this is exactly what we have done. Designed for MTB enthusiasts who want a nimble, lightweight, and capable trail bike with the addition of a compact and quiet motor, the brand new Voltage eRIDE exceeds expectations, trail after trail.
- Frame: Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready.
- Travel: Front: 160mm / Rear: 155mm.
- Fork: FOX 36 Float Rhythm Air Grip 3 modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 160mm travel.

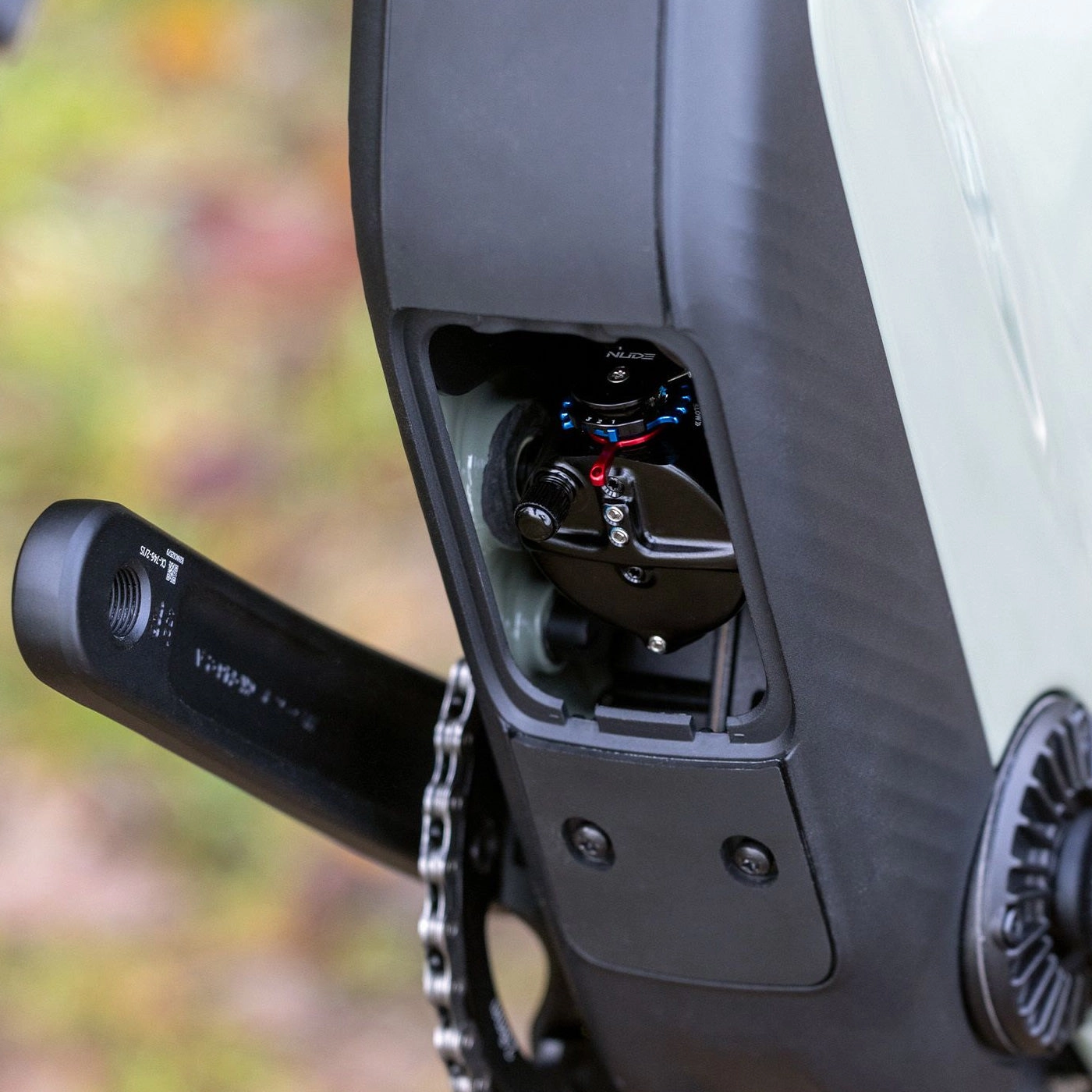

- Rear shock: FOX NUDE 6T EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Low Speed Adj. / Custom large Air volume / Reb. Adj. Travel 155-100-Lockout / T185X55mm.
- Remote control: SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes.
- Motor: TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph.
- Battery: TQ Internal 360Wh.
- Screen: TQ HPR Bluetooth / ANT / Dedicated Smartphone app.
- Charger: TQ 100-240V-4A.
- Rear derailleur: Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed.
- Shifters: Shimano Deore SL-M6100-IR / Rapidfire Plus I-spec EV clamp.
- Crankset: FSA Alloy crankset / 175mm / 34T.
- Chain guide: e*thirteen / e*spec Slider.
- Chainring: Scott custom spider / FSA 12Speed 34T chainring.
- Chain: Shimano CN-M6100.
- Cassette: Shimano CS-M6100 / 10-51 T.
- Brakes: Shimano Deore M6120 4-Piston Disc.
- Brake disc: Shimano SM-RT64 CL / F&R 203mm.
- Handlebar: Syncros Hixon 1.5 Alloy 7050 Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8 / 780mm.
- Grips: Syncros Endurance lock-on grips.
- Stem: Syncros AM 1.5 Syncros Cable Integration System 4 rise / 7050 Alloy / 31.8mm / 1 1/8".
- Seatpost: Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm.
- Saddle: Syncros Tofino 1.5 Regular Titanium rails.
- Headset: Syncros - Acros Angle adjust & Cable Routing HS System Stainless / -0.6 head angle adjustment ZS56/28.6 ZS56/40 MTB.
- Front hub: Formula CL-811 / 15x110mm.
- Rear hub: Formula CL-148M / 12x148mm.
- Spokes: Stainless Black 15G / 1.8mm.
- Rim: Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready.
- Front tire: Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra.
- Rear tire: Maxxis Dissector / 2.6" / 60TPI Foldable Tubeless Ready / EXO 3C maxx Terra.
- Extras: Syncros Fork Fender.
- Weight in kg (approx.): 19.5 (with tubes).
- Weight in lbs (approx.): 42.99 (with tubes).
- Color: Green/black.
