S-Works Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

Specification

E-bike

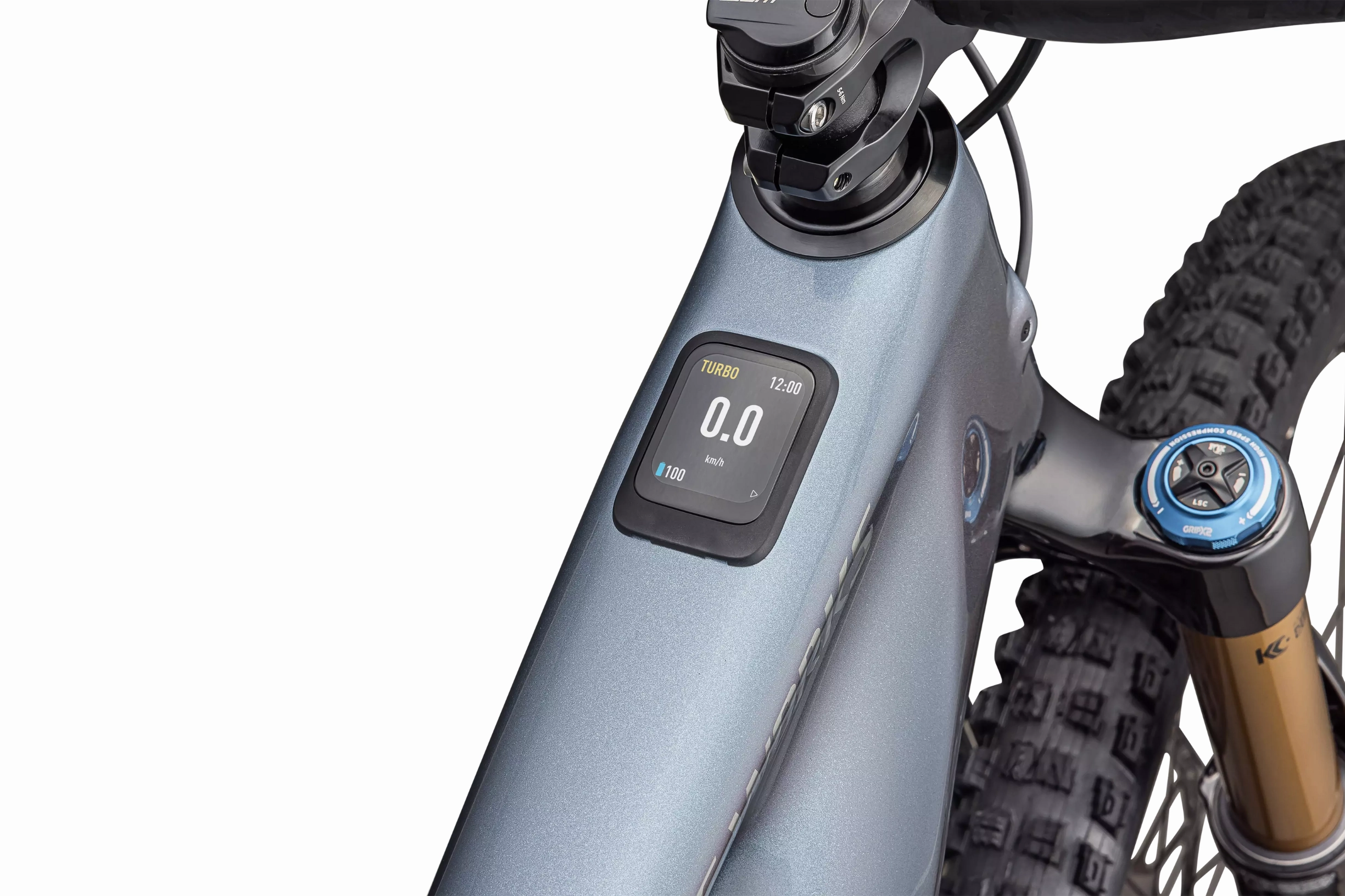

UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

Charger: Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

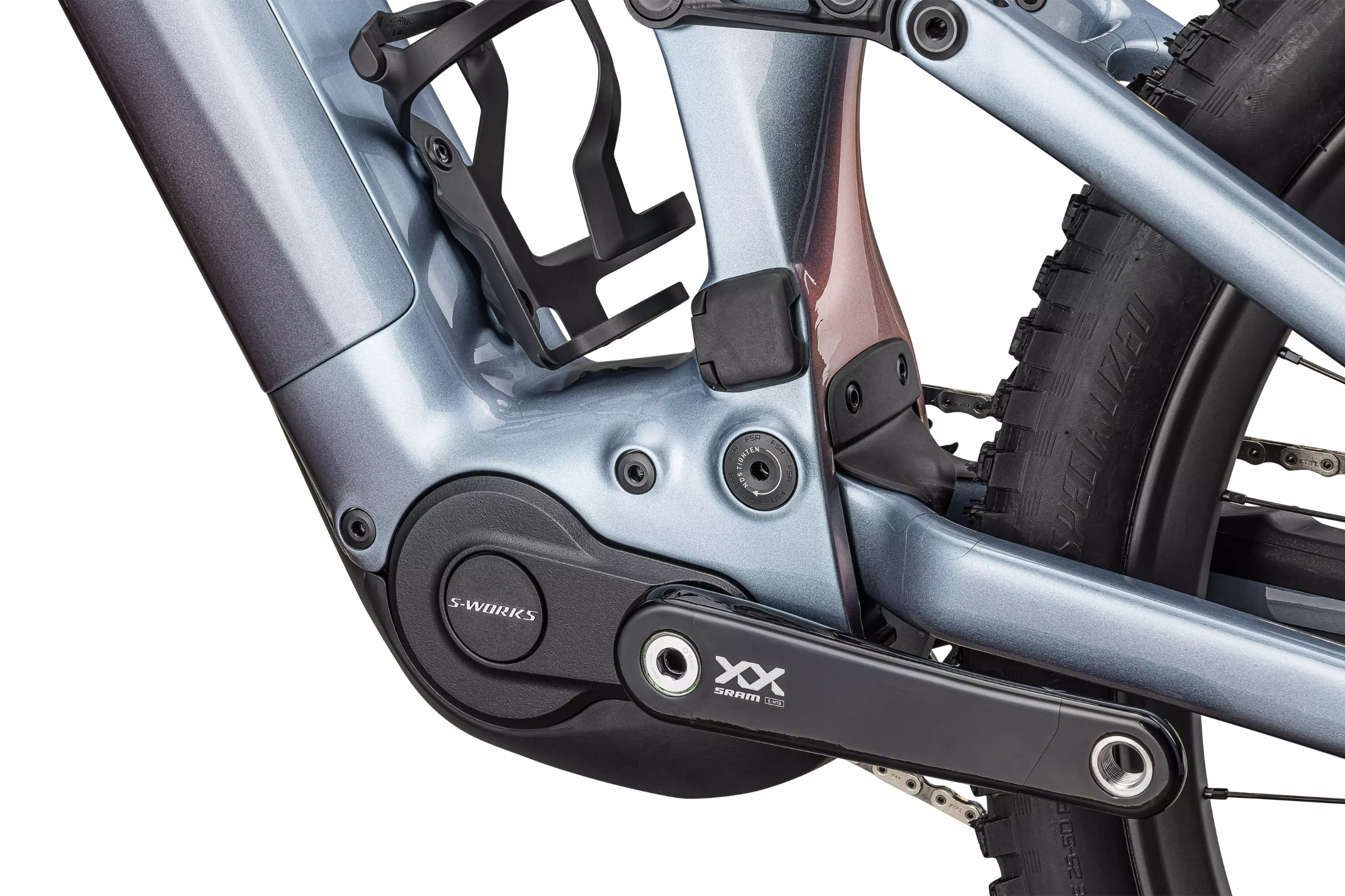

Motor: All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

Battery: 840wh battery

Frameset

Seat Binder: Alloy, 38.6mm

Frame: All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Suspension

Fork: FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

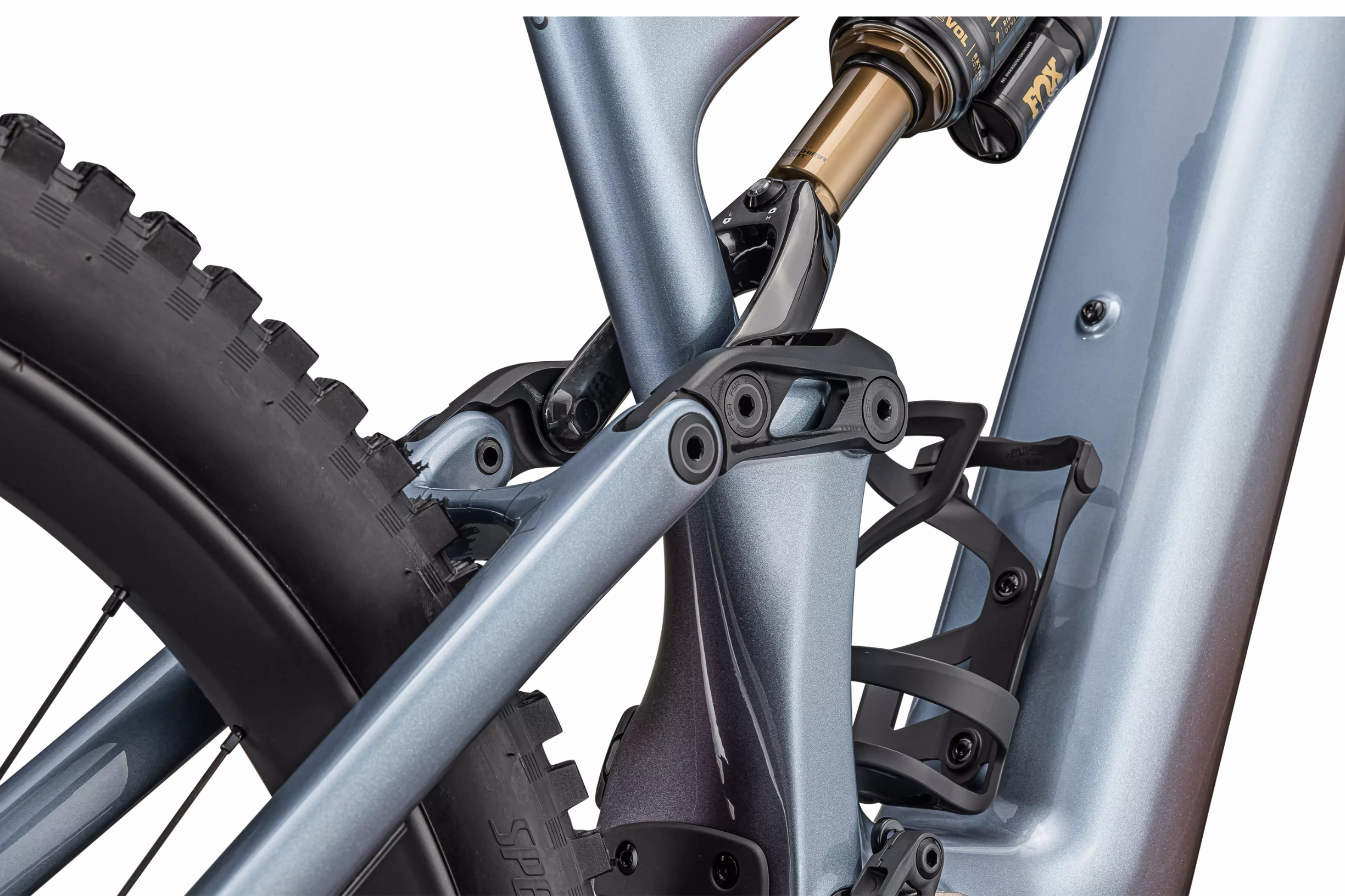

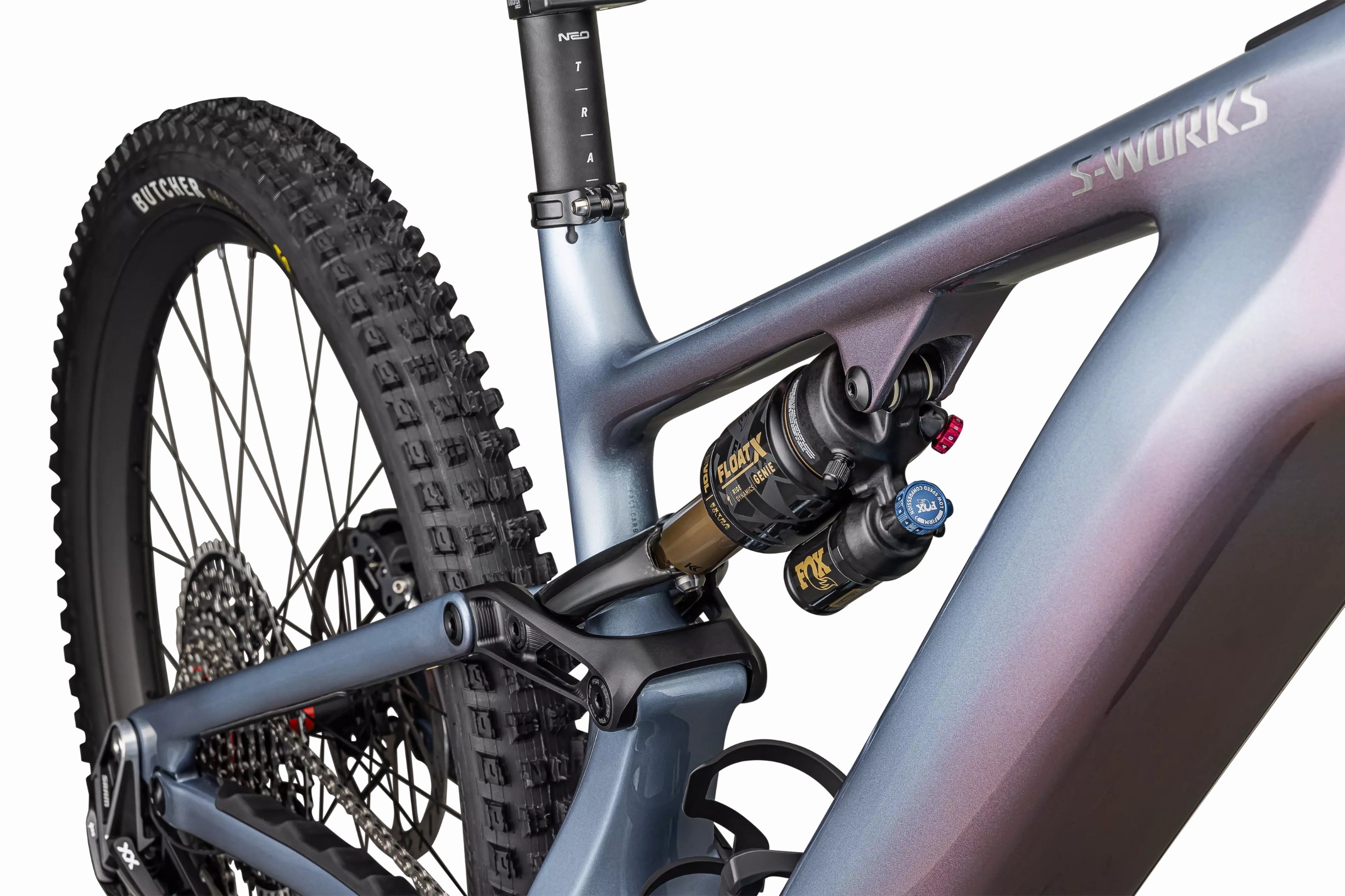

Rear Shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Brakes

Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Shift Levers: SRAM AXS POD ULTIMATE with DISCRETE CLAMP

Cassette: SRAM XX Eagle Transmission Cassette, 12spd, 10-52t

Crankset: SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm

Rear Derailleur: SRAM XX Eagle Transmission Derailleur

Chain: SRAM XX EagleTransmission Flattop Chain

Wheels & tires

Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h

Rear Wheel: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h

Inner Tubes: Standard, Presta Valve

Cockpit

Grips: Deity Lockjaw grips

SeatPost: FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm

Handlebars: RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm

Stem: Industry 9 Mountain stem, 35mm clamp, 40mm length

Saddle: Specialized Power Pro Mirror w/hollow Ti rails

Accessories

SWAT: SWAT internal downtube storage

Product details

Product ID: 218698

Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](

Weight

Weight: 23.68kg (52 lb, 3.3 oz)

Weight Size: S4

Geometry

	S2	S3	S4	S5	S6
Crank Length	160	160	160	160	160
Handlebar Width	800	800	800	800	800
Stem Length	40	40	40	40	40
Saddle Width	155	143	143	143	143
Seatpost Length	125	175	200	200	200
Stack	618	626	638	652	667
Reach	435	455	480	505	535
Headtube Length	95	103	117	132	149
Headtube Angle	64.5	64.5	64.5	64.5	64.5
BB Height	350	350	350	350	350
BB Drop	29.5	29.5	29.5	29.5	29.5
Trail	132	132	132	132	132
Fork Length (full)	577	577	577	577	577
Fork Rake/Offset	44	44	44	44	44
Front Center	765	789	820	851	888
Chainstay Length	435	435	435	435	435
Wheelbase	1200	1223	1254	1286	1323
Top-tube Length (horizontal)	578	599	627	655	689
Bike Standover Height	753	754	753	758	761
Seat Tube Length	390	405	425	445	465
Seat Tube Angle	77	77	77	77	77
Saddle Height for Effective ST Angle	690	735	780	825	870
Max Seatpost Insertion	274	289	313	337	357
Min Seatpost Insertion	80	80	80	80	80
