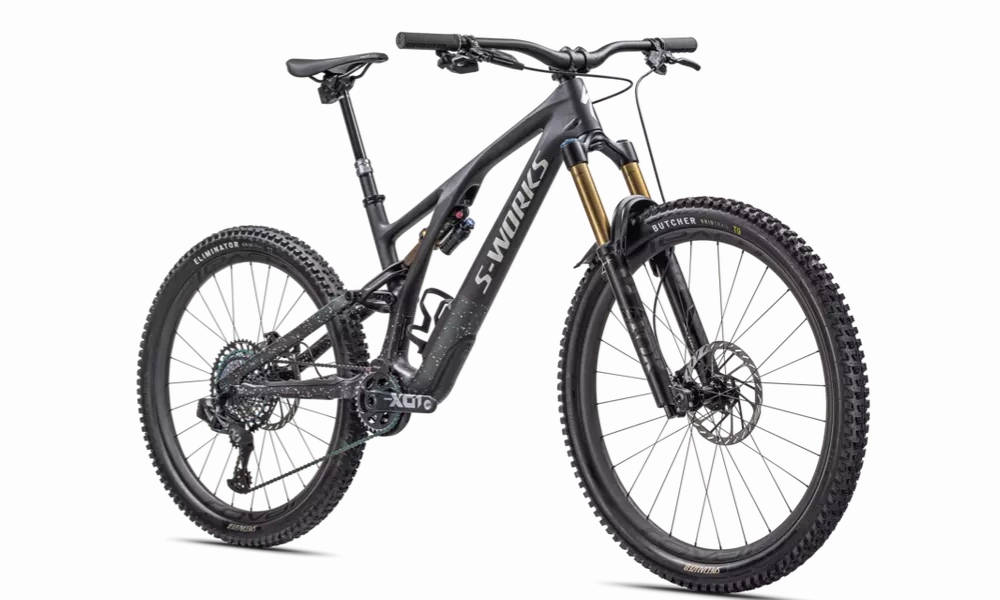

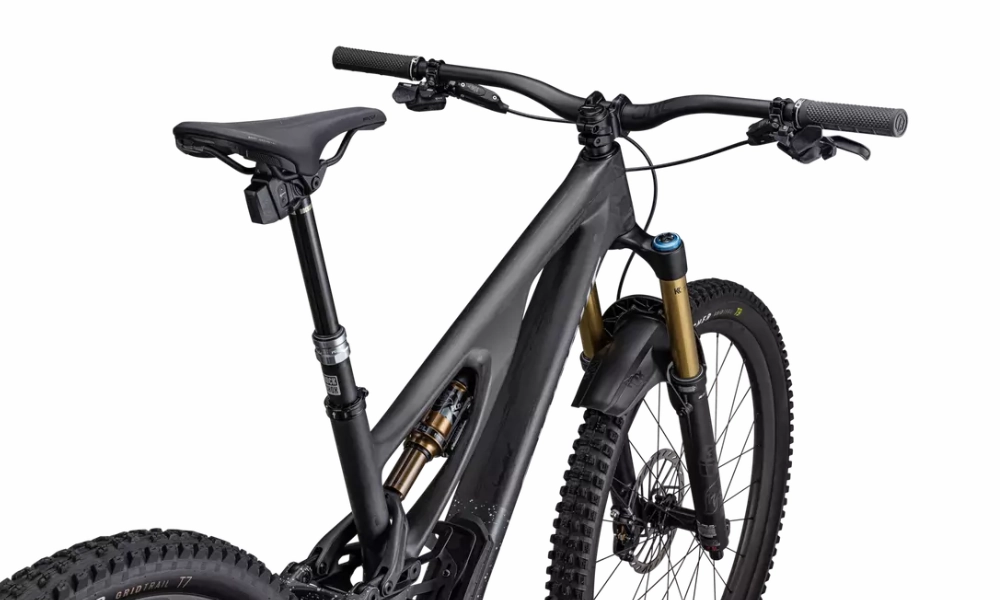

Name: S-Works Stumpjumper Evo 2023
SKU: 287913

Description

The S-Works Stumpjumper EVO is much more than just a trail bike; its a shred-sled built to full-send down the gnarliest trails. Featuring an all-new design, with an adjustable head tube angle, 150mm of performance tuned travel, and the adaptability of S-Sizing, this thing is an absolute ripper. The S-Works Stumpjumper EVOget rowdy.

Specification

Frameset

SWAT
Seat Binder - Alloy, 38.6mm

Frame - FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

Suspension

Fork - FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

Rear Shock - FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm

Cockpit

Saddle - Bridge, 155/143mm, Hollow Ti-rails

Grips - Deity Grips

Handlebars - OneUp Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, 35mm rise, 800mm, 35.0mm

Stem - OneUp, 35.0

SeatPost - RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)

Brakes

Rear Brake - SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

Front Brake - SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

Drivetrain

Bottom Bracket - SRAM DUB, BSA 73mm, Threaded

Shift Levers - SRAM Eagle AXS Rocker Paddle

Crankset - SRAM X01 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

Chain - SRAM XX1 Eagle

Rear Derailleur - SRAM XX1 Eagle AXS

Cassette - Sram XG-1299, 12-Speed, 10-52t

Chainrings - Steel, 30T

Wheels

Front Tire - Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"

Spokes - DT Competition Race

Rear Tire - Eliminator, GRID TRAIL casing, GRIPTON T7 compound, 2Bliss Ready, 27.5 x 2.3"

Rims - Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h

Rear Hub - Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing

Front Hub - Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing

Inner Tubes - Standard, Presta Valve

Geometry

Size	S1	S2	S3	S4	S5	S6
Crank Length	165	170	170	170	170	175
Stem Length	35	35	35	35	50	50
Handlebar Width	800	800	800	800	800	800
Seatpost Length	100	125	150	170	170	170
Saddle Width	155	155	143	143	143	143
Stack	613	617	626	635	644	654
Reach	408	428	448	475	498	528
Headtube Length	95	95	105	115	125	135
Headtube Angle	64.5	64.5	64.5	64.5	64.5	64.5
BB Height	335	340	340	340	340	340
BB Drop	40	35	35	35	35	35
Trail	131	131	131	131	131	131
Fork Length (full)	561	571	571	571	571	571
Fork Rake/Offset	44	44	44	44	44	44
Front Center	732	756	780	809	838	873
Chainstay Length	436	436	436	436	446	446
Wheelbase	1165	1189	1214	1245	1283	1317
Top-tube Length (horizontal)	538	564	590	623	647	679
Bike Standover Height	733	764	763	762	767	770
Seat Tube Length	385	385	405	425	445	465
Seat Tube Angle	78	77.6	77	77	77.2	76.9
Max Seatpost Insertion	180	180	200	220	240	260
Min Seatpost Insertion	80	80	80	80	80	80
